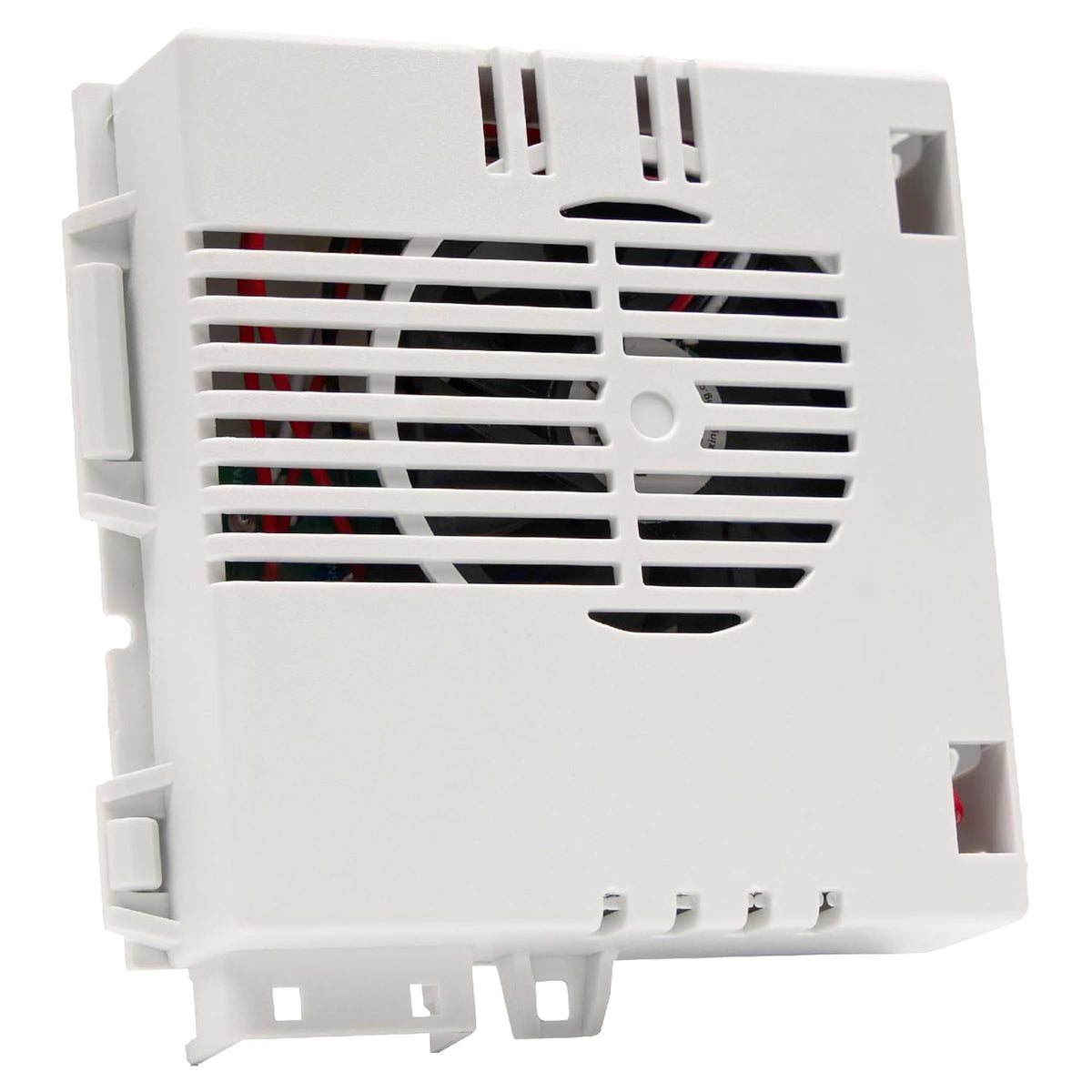

5304523304 154861101 Dishwasher Vent Assembly - For Frigidaire Kenmore Dishwashers - Replaces 154773301 154682301
0.00
Regular price
$33.38
Regular price
Save 11%
$37.39
Sale price
$33.38
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
5304523304 / 154861101 Dishwasher Vent
Key Features
- Direct fit vent and fan motor assembly

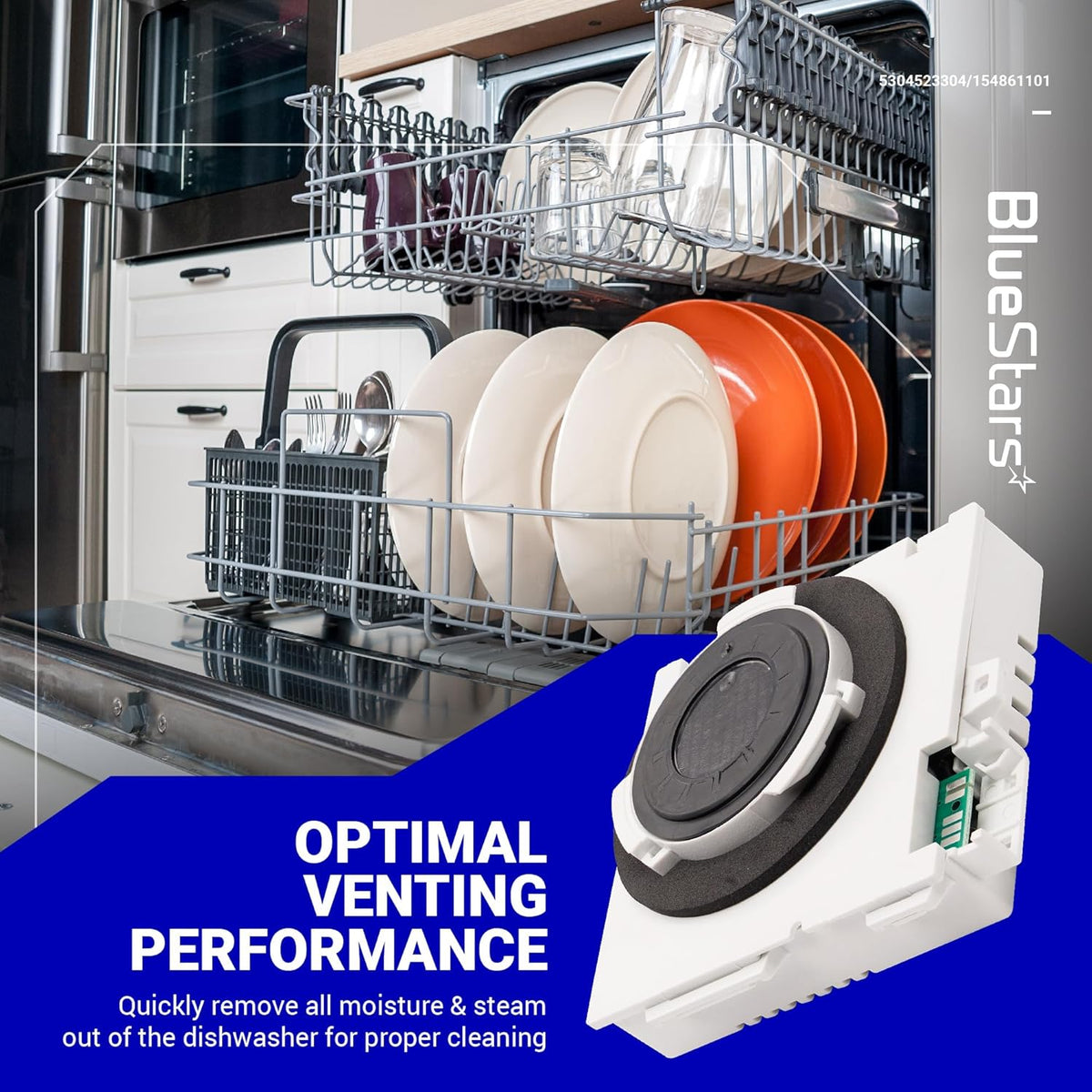

- Releases moisture and steam during the drying cycle
- Improves dish drying performance
Replaces / Cross-Reference Part Numbers
- AP6977370
- 154861101
- 154682301
- 154773301
- 5304504782
- 154562902
Compatibility & Fitment
- For select dishwasher models from brands including Frigidaire, Kenmore, Gibson, Kelvinator, Westinghouse, Sears, Tappan, and Crosley.
- Example compatible models: FGID2466QF6A, FGID2466QF5A.
When to Replace
- Dishes remain wet after the drying cycle completes
- Vent does not open or close correctly
- Fan motor is noisy, humming, or has failed
- Visible cracks or damage to the vent housing
Installation Tips
- Disconnect the dishwasher from power and water sources before servicing.
- Basic hand tools are typically required for installation.
- Confirm your dishwasher model number for compatibility before ordering.
-

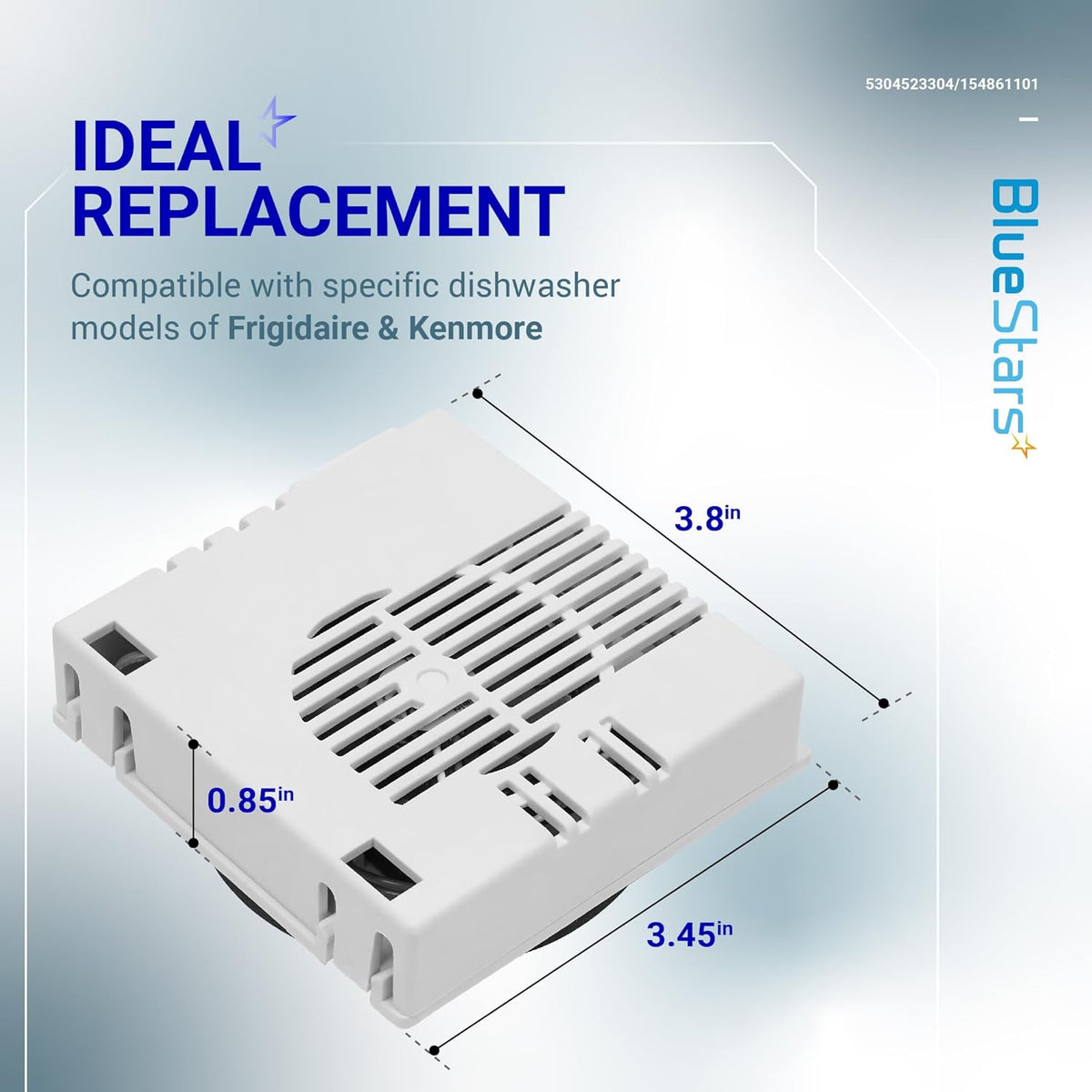

IDEAL REPLACEMENT
It replaces parts: #15304523304, 154861101, 154773301, 154682301, 2754419, 60522285, 80465585, PS7783963, AP6977370, AP5688407 -

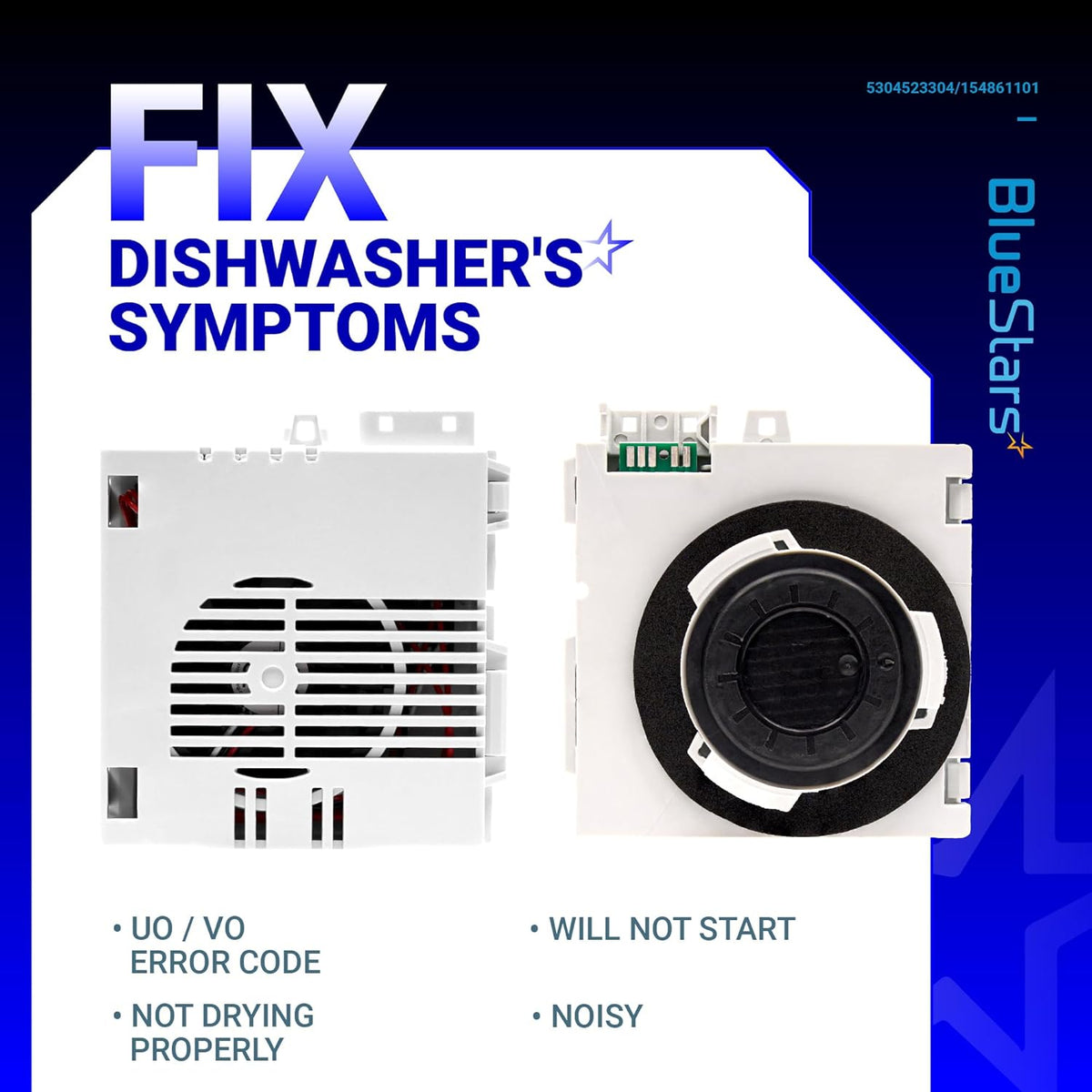

FIX SYMPTOMS
UO / VO error code Not drying properly Will Not Start Noisy -
SAVING SOLUTION
Repair your dishwasher in no time by replacing the old part with our superior yet affordable part -
IMPORTANT NOTE
Unplug the dishwasher power & wear gloves before installing Don't hesitate to ask us for help with compatibility & installation
LONG-LASTING SOLUTION

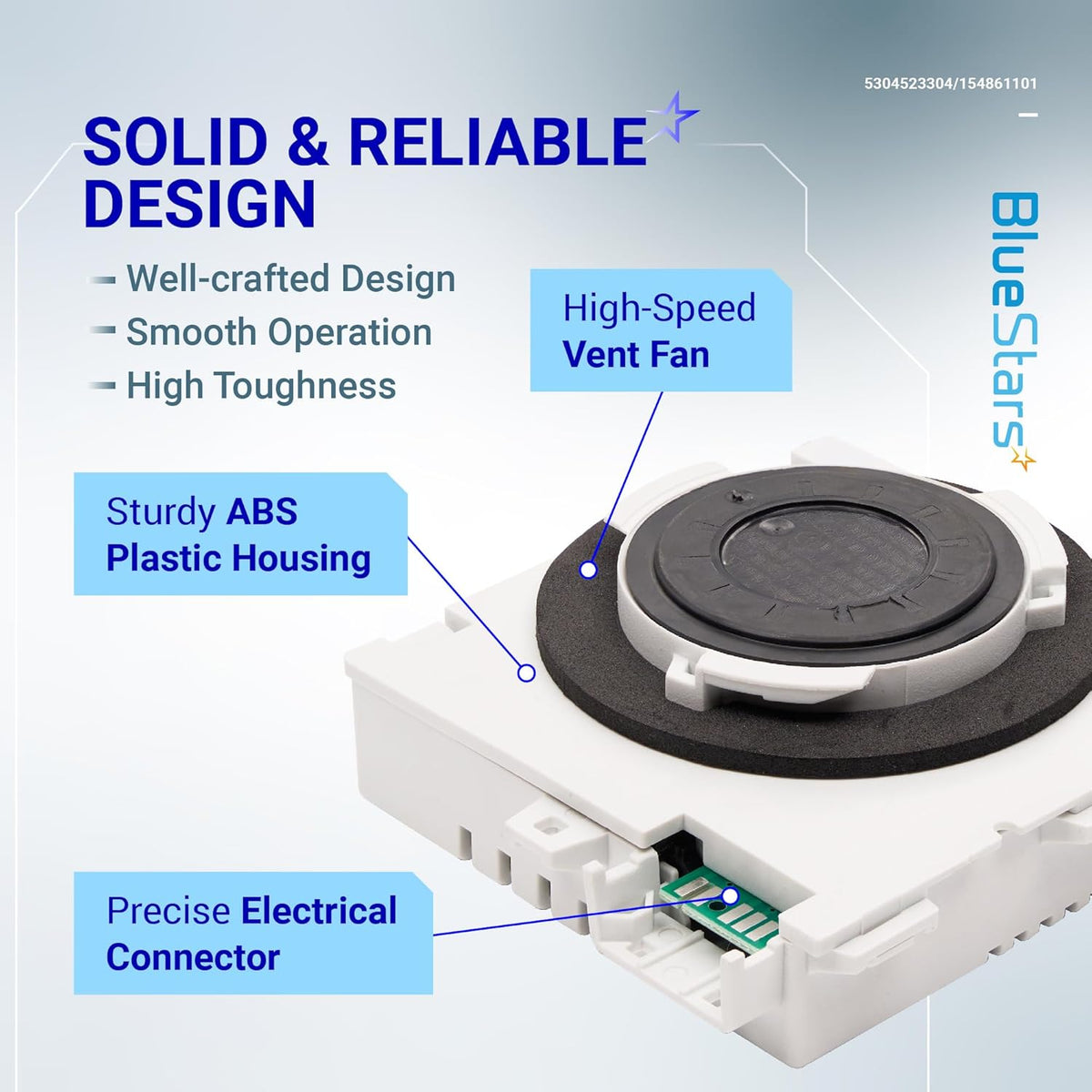

5304523304/154861101 Dishwasher Vent features well-crafted electrical connector, ensuring consistent performance
WORK LIKE A CHARM
It fits and works like a charm under daily frequent use with maximum filtration.
4 INSTALLATION STEPS
You will need a flat-head screwdriver, crosshead screwdriver, 1/4" nut driver, adjustable wrench: 1. Remove end caps to slide the upper rack out; 2. You can find the retaining nut of the vent assembly nut in the upper right corner of the back. Turn it counterclockwise to remove it; 3. Pull the dishwasher out to get access to the vent assembly. Disconnect the electrical harness; 4. Reinstall with our new part!
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Color
White
Material
PP (Polypropylene) / Metal
Assembly Type
Vent Blower Assembly (motorized fan + vent door)
Location
Behind the kickplate — lower right side of unit
Function
Opens during drying cycle to expel hot moist air; closes during wash cycle
Error Code Fixed
ER/UO (Vent Open)
