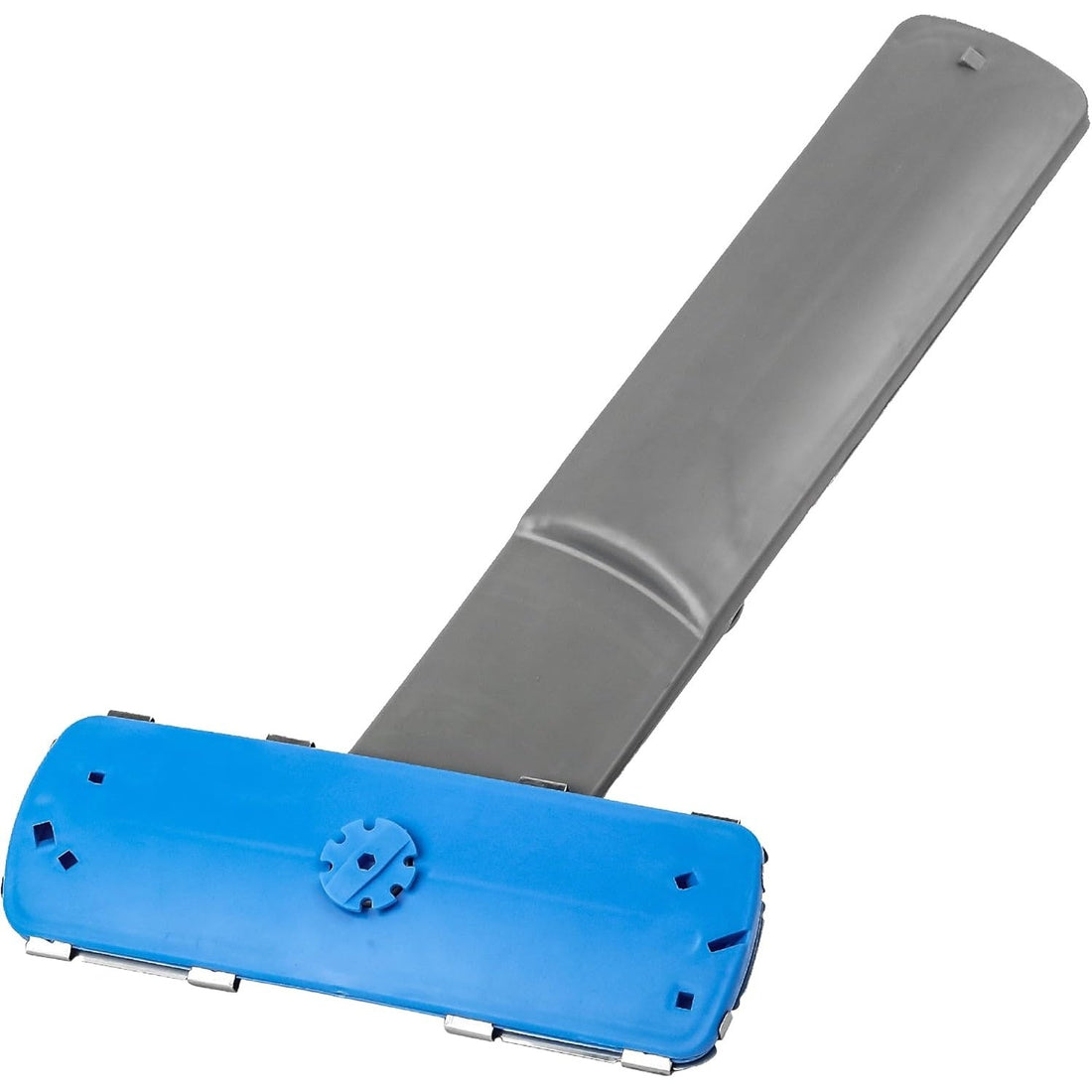

Replacement lower spray wash arm for Frigidaire dishwashers with blue plastic housing and grey arm extension.

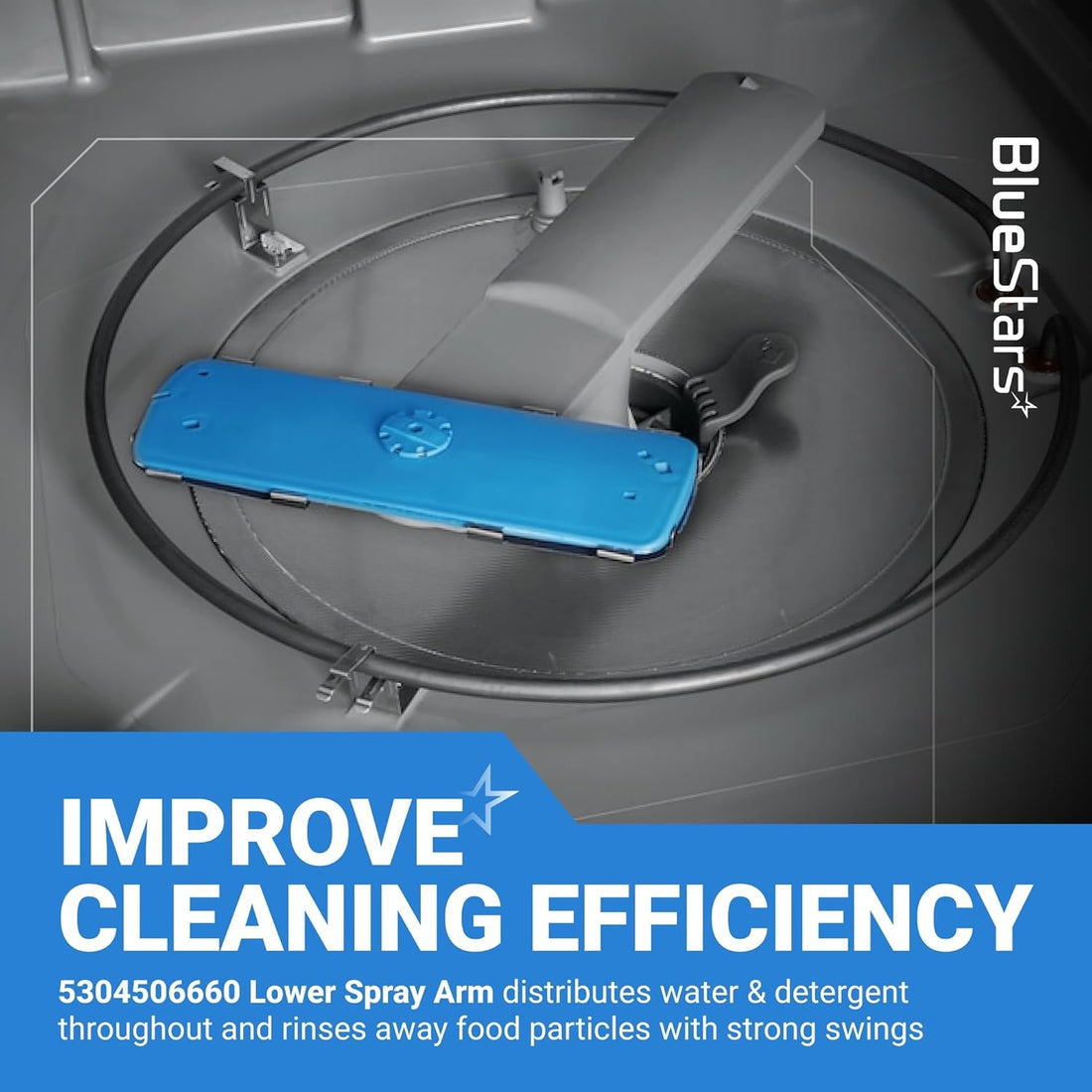

5304506660 dishwasher lower spray arm installed inside a Frigidaire dishwasher tub.

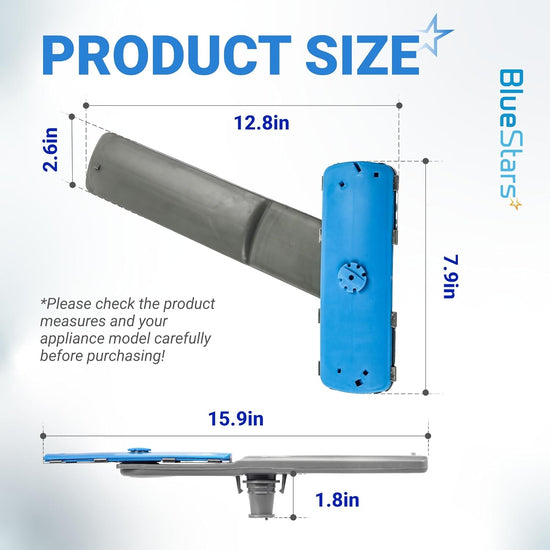

Dimensional diagram of 5304506660 dishwasher lower spray arm showing length, width, and height measurements.

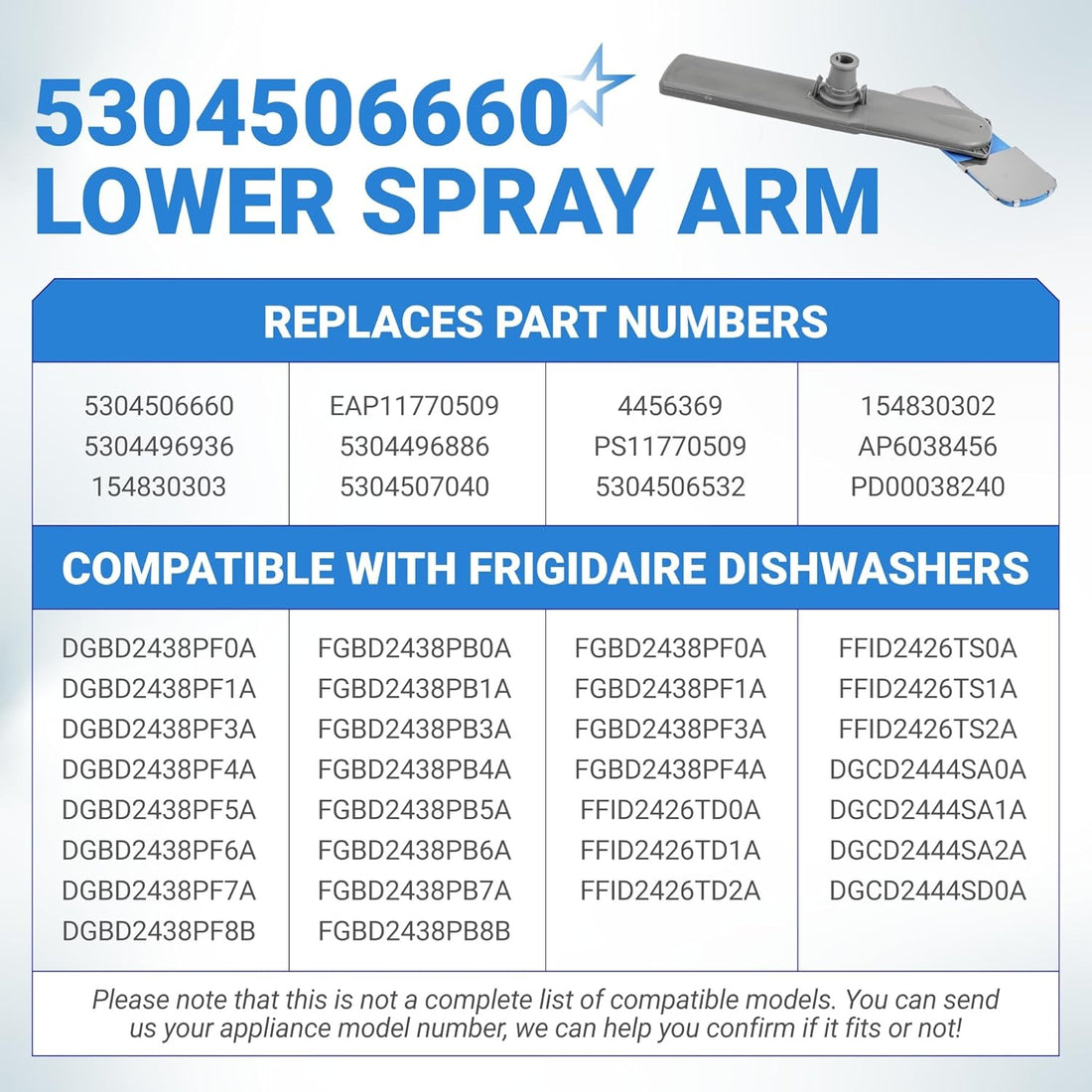

5304506660 dishwasher lower spray arm replacement part with compatibility and cross-reference chart.

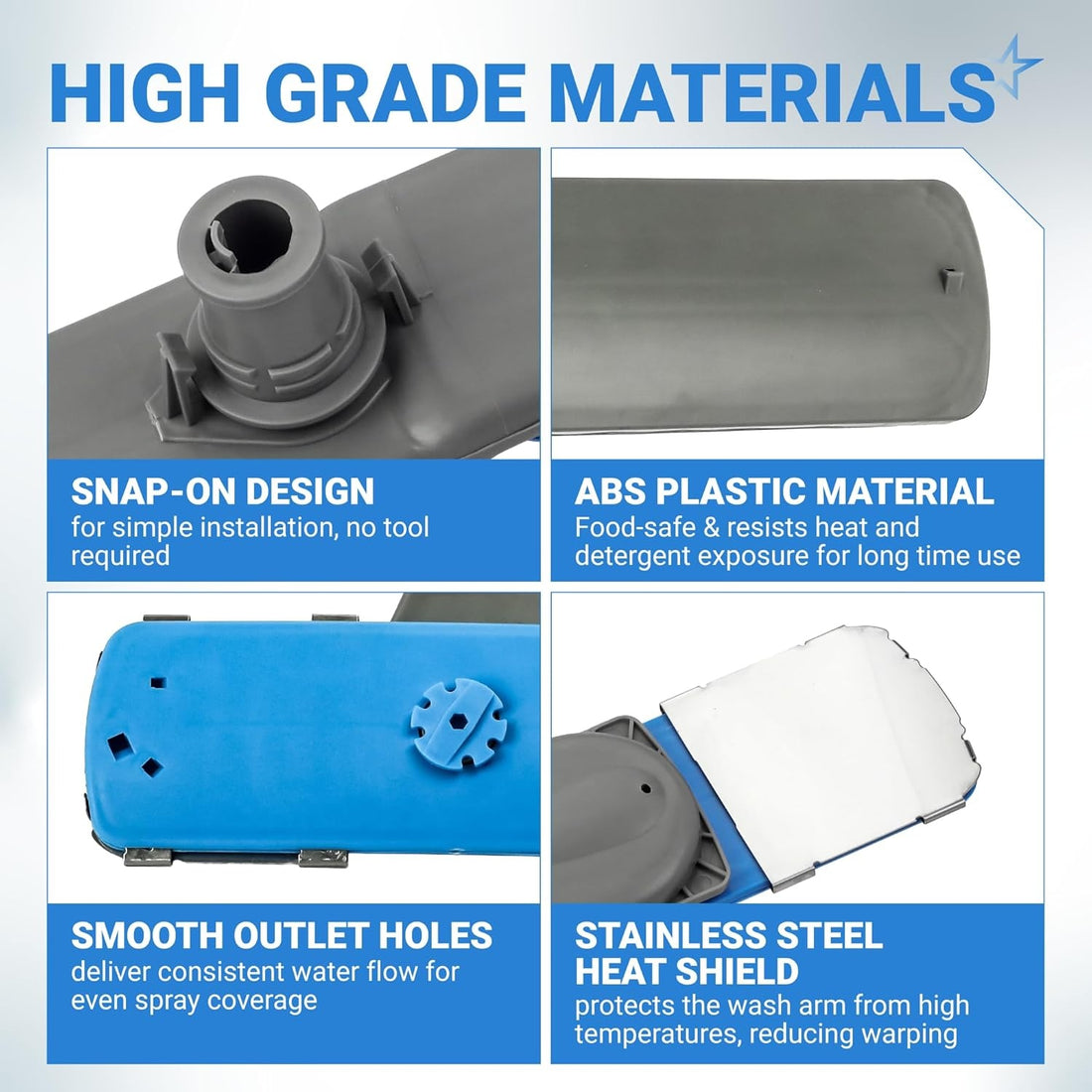

Infographic showing features of 5304506660 dishwasher lower spray arm including snap-on design and heat shield.
Technician repairing a Frigidaire dishwasher with a 5304506660 lower spray arm shown in the foreground.
Four-step installation guide for Frigidaire dishwasher lower spray arm 5304506660.

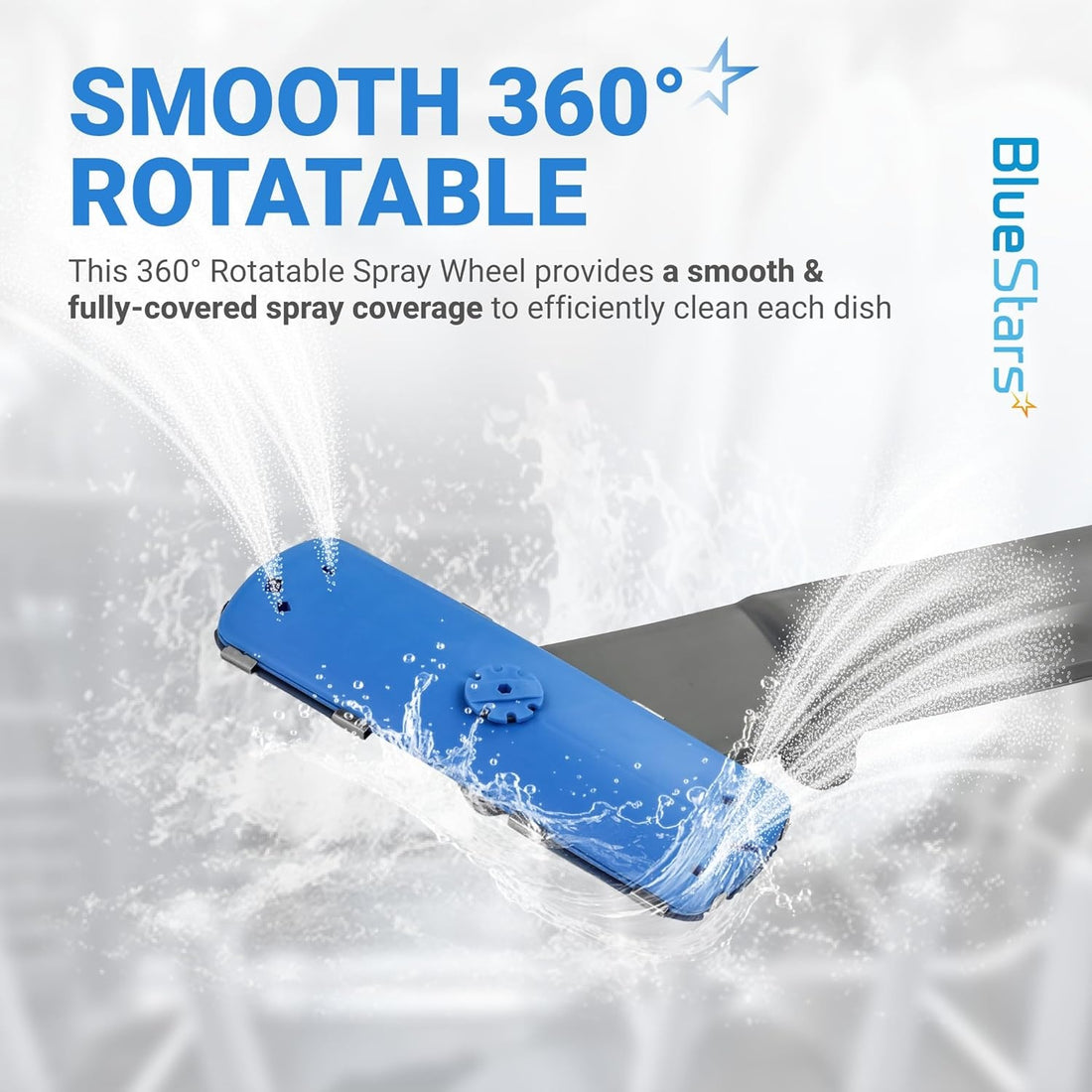

5304506660 dishwasher lower spray arm with 360-degree rotatable spray wheel in action.
Comparison chart showing BlueStars dishwasher lower spray arm vs generic replacement parts for durability.

5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers

0.00
$34.23
Save 11% $38.34
$34.23
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

5304506660 Dishwasher Lower Spray Arm Assembly

Key Features

  • Multi-Angle Spray Pattern: Features precision-engineered nozzles designed to rotate and distribute high-pressure water across the entire lower rack for maximum soil removal.
  • Heat-Stabilized Polymer: Constructed from high-durability, food-grade plastic that resists warping and cracking under high-temperature sanitize and heated dry cycles.
  • Dynamic Balanced Rotation: The arm is balanced to ensure smooth, consistent rotation even under varying water pressures, preventing "dead zones" in the wash tub.
  • Debris-Resistant Nozzles: Specifically shaped apertures designed to minimize the accumulation of hard water minerals and food particles within the arm.

Replaces / Cross-Reference Part Numbers

  • 5304506660
  • 5304496886
  • 5304496936
  • 5304506532
  • AP6038456
  • PS11770512
  • EAP11770512

Compatibility & Fitment

This lower spray arm is compatible with various Frigidaire and Kenmore 24-inch built-in dishwashers. Key compatible models include:

  • Frigidaire Models: LFID2426TF5A, FFID2426TS1A, FFID2426TD, LFID2426TF, FGID2466QF.
  • Kenmore / Sears: Fits select 587-series dishwashers manufactured by Frigidaire (e.g., 587.15113K90).
  • Crosley: Compatible with select XID series models utilizing the 5304 series spray assembly.

When to Replace

  • Poor Cleaning Results: Dishes in the lower rack remain dirty or have a "gritty" residue, indicating the arm is not spinning or the jets are clogged.
  • Visible Cracks: The plastic housing has split along the seam, causing a loss of water pressure and preventing the arm from rotating.
  • Blocked Nozzles: Hard water deposits or food debris have permanently plugged the spray holes.
  • Melting Damage: The arm has dropped onto the heating element, causing visible melting or deformation.
  • Wobbling: The central hub is worn out, causing the arm to tilt and hit the dish rack or the heating element.

Installation Tips

  • Safety First: Turn off the dishwasher. Remove the lower dish rack to gain full access to the bottom of the tub.
  • Tool-Free Removal: Most models allow the arm to be removed by unscrewing the center nut (often clockwise/reverse thread) or by simply pulling upward to release it from the support post.
  • Hub Inspection: Inspect the spray arm support and the glass trap/filter area for debris before installing the new arm.
  • Secure Seating: Snap the new arm onto the support post and ensure it spins freely by hand before replacing the rack.
  • Maintenance: To prevent future clogs, periodically check the nozzles and rinse the arm under warm water to clear any trapped particles.
5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers 1
  • 5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers 1

    IDEAL REPLACEMENT

    Replaces #5304506660, 5304496886, 5304496936, 5304506532, 5304507040, AP6038456, 154830302, 154830303, 4456369, EAP11770509, PD00038240, PS11770509
  • 5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers 2

    FIX SYMPTOMS

    Not cleaning properly | Not draining | Leaking | Noisy
  • 5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers 3

    SAVING SOLUTION

    Repair your dishwasher in no time by replacing the old part with our superior yet affordable part
  • 5304506660 Dishwasher Lower Spray Arm - For Frigidaire Dishwashers 4

    IMPORTANT NOTE

    Unplug the dishwasher power & wear gloves before installing | Don't hesitate to ask us for help with compatibility & installation

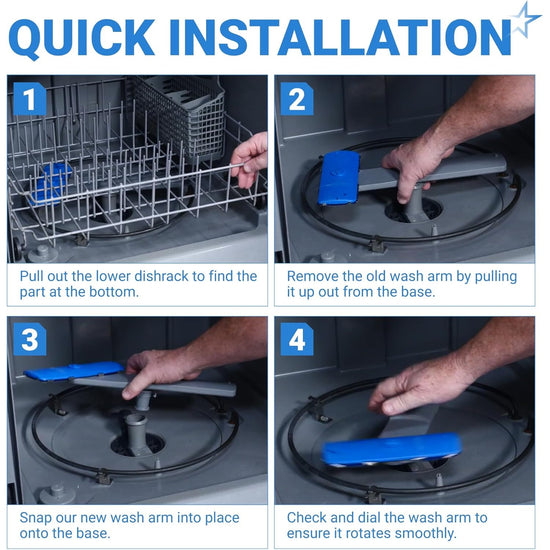

4 INSTALLATION STEPS

4 INSTALLATION STEPS

1. Pull out the lower rack, the part is located at the bottom of the dishwasher.
2. Remove your old wash arm by pulling it up out from the base.
3. Clean the base area, then simply snap our new wash arm into place.
4. Check and dial the wash arm to ensure it rotates smoothly.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This lower spray arm is compatible with select Frigidaire, Electrolux, and Crosley dishwashers, including models LFID2426TF5A and FFID2426TS1A. It also fits Frigidaire-family models such as FFID2426TD0A-5A, FFID2426TS0A-4A, LFID2426TF0A-5A, FGBD2438PF0A-6A, FGBD2438PB0A-7A, DGBD2438PF0A-7A, and DGCD2444SA0A-2A. Because dishwasher parts can vary by suffix, please match your full model number before ordering.
Part 5304506660 replaces or cross-references with the following part numbers: 5304496886, 5304496936, 5304506532, 5304507040, 154830302, 154830303, 4456369, AP6038456, PS11770509, and EAP11770509.
Typical symptoms include poor cleaning on the lower rack, food or detergent residue left on dishes, the spray arm not spinning freely, visible cracks or splits in the arm, clogged spray jets, or the arm coming loose from its mount. A damaged spray arm can reduce water pressure and prevent proper coverage inside the tub.
Installation is usually straightforward and often takes about 5 to 15 minutes. In many compatible dishwashers, you remove the lower rack, lift or unclip the old spray arm, and snap or seat the new one into place. Tools are often not required, though a small flat screwdriver may help on some models if a retaining tab is tight. Make sure the new arm spins freely before reinstalling the rack.
Inspect the spray arm support and the trap/drain filter area for debris or wear. This spray arm is often used in conjunction with support part 5304518968 (154294101) and trap drain filter assembly 5304506518 (154252701). If the support is worn or the filter area is blocked, a new spray arm alone may not fully restore wash performance.
The most common causes are clogged jet holes from hard-water scale or food debris, heat-related warping, cracks along the seams, and wear at the center mounting point. If the dishwasher filter is not cleaned regularly, debris can recirculate and block the spray arm. A damaged support or weak water circulation can also keep the arm from rotating correctly.
