2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack

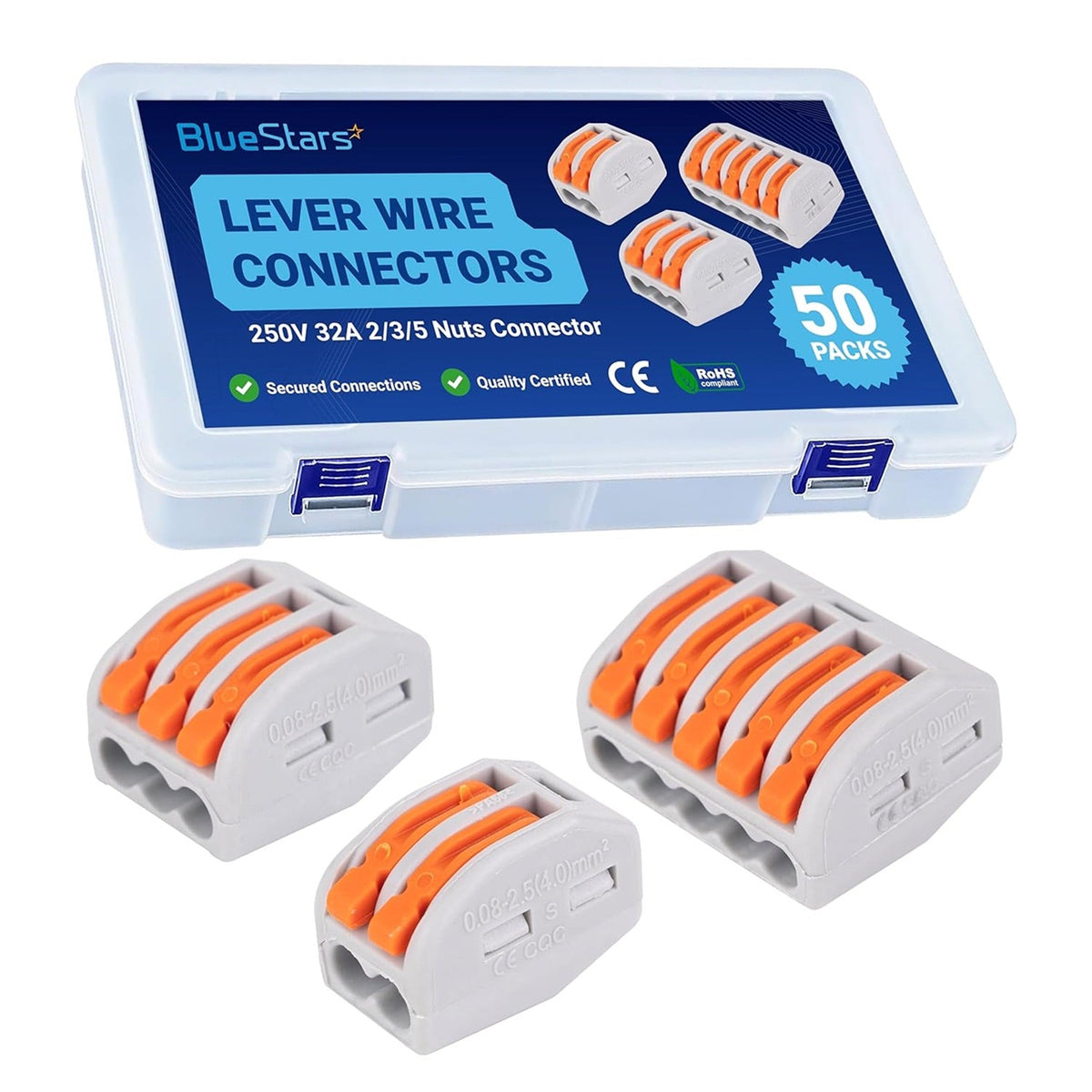

50-piece set of 250V 32A orange lever wire connectors in a storage case with three individual connector samples.

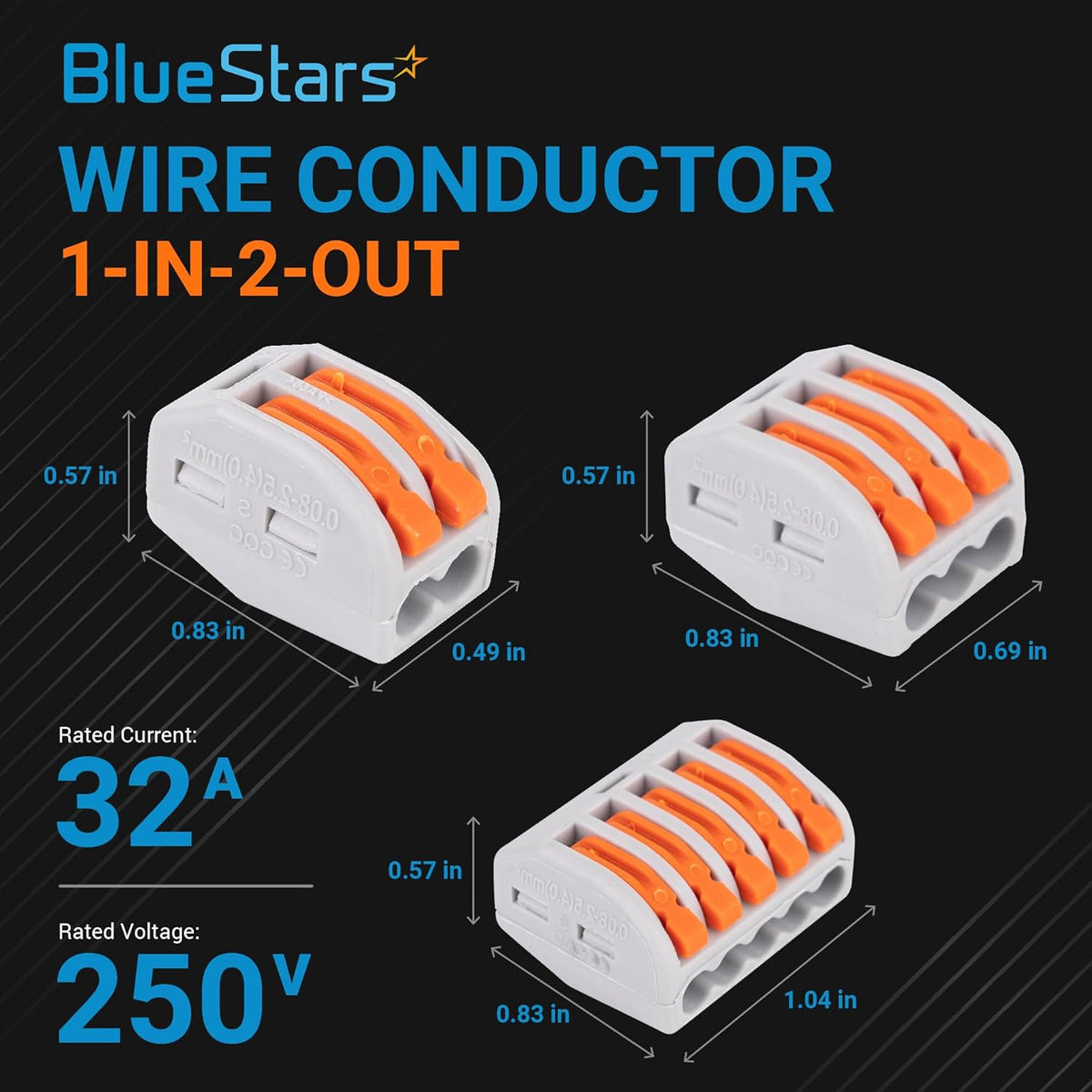

Dimensional diagram showing 2, 3, and 5-port orange lever wire connectors with 32A 250V specifications.

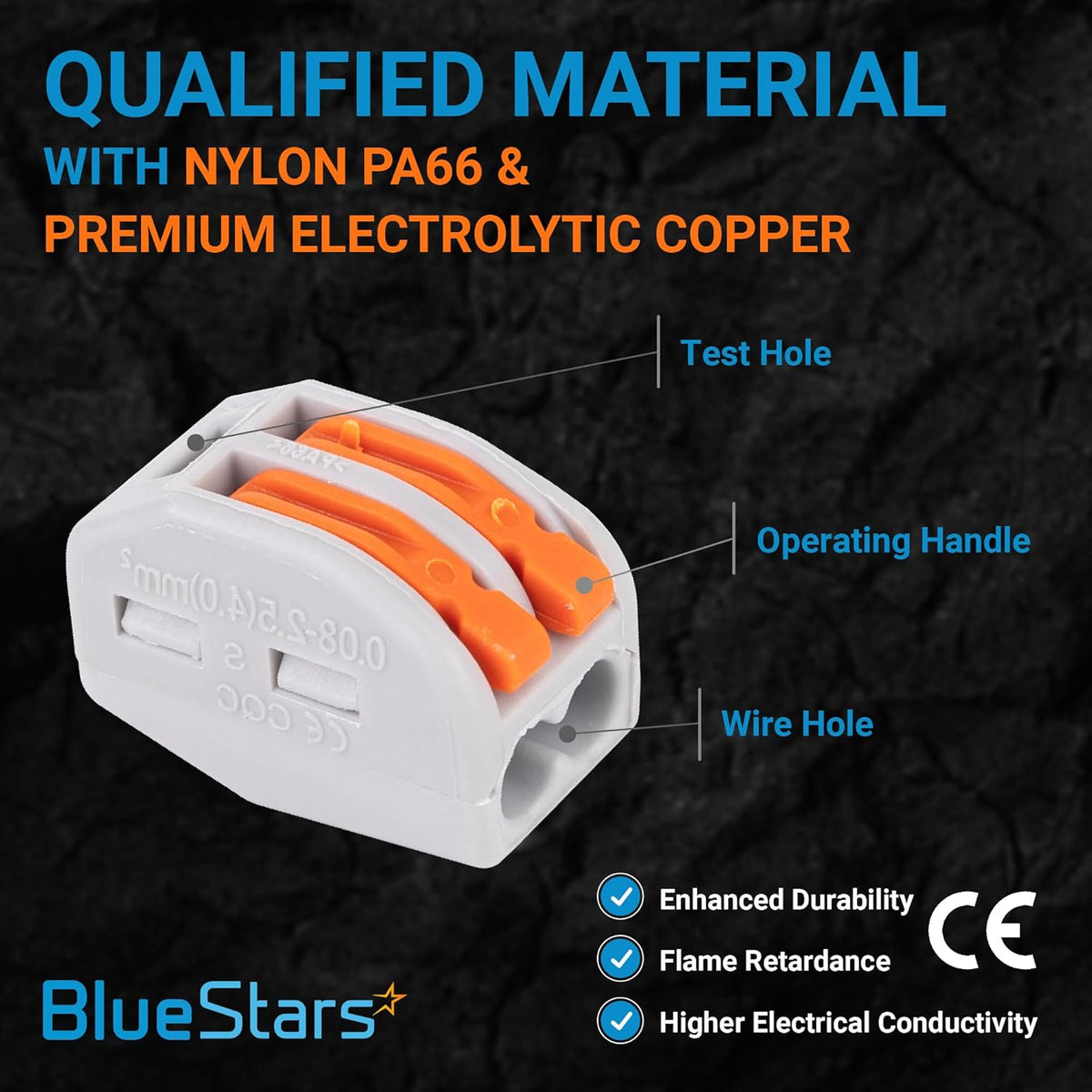

Close-up of a 2-port orange lever wire connector showing test hole, operating handle, and wire entry port.

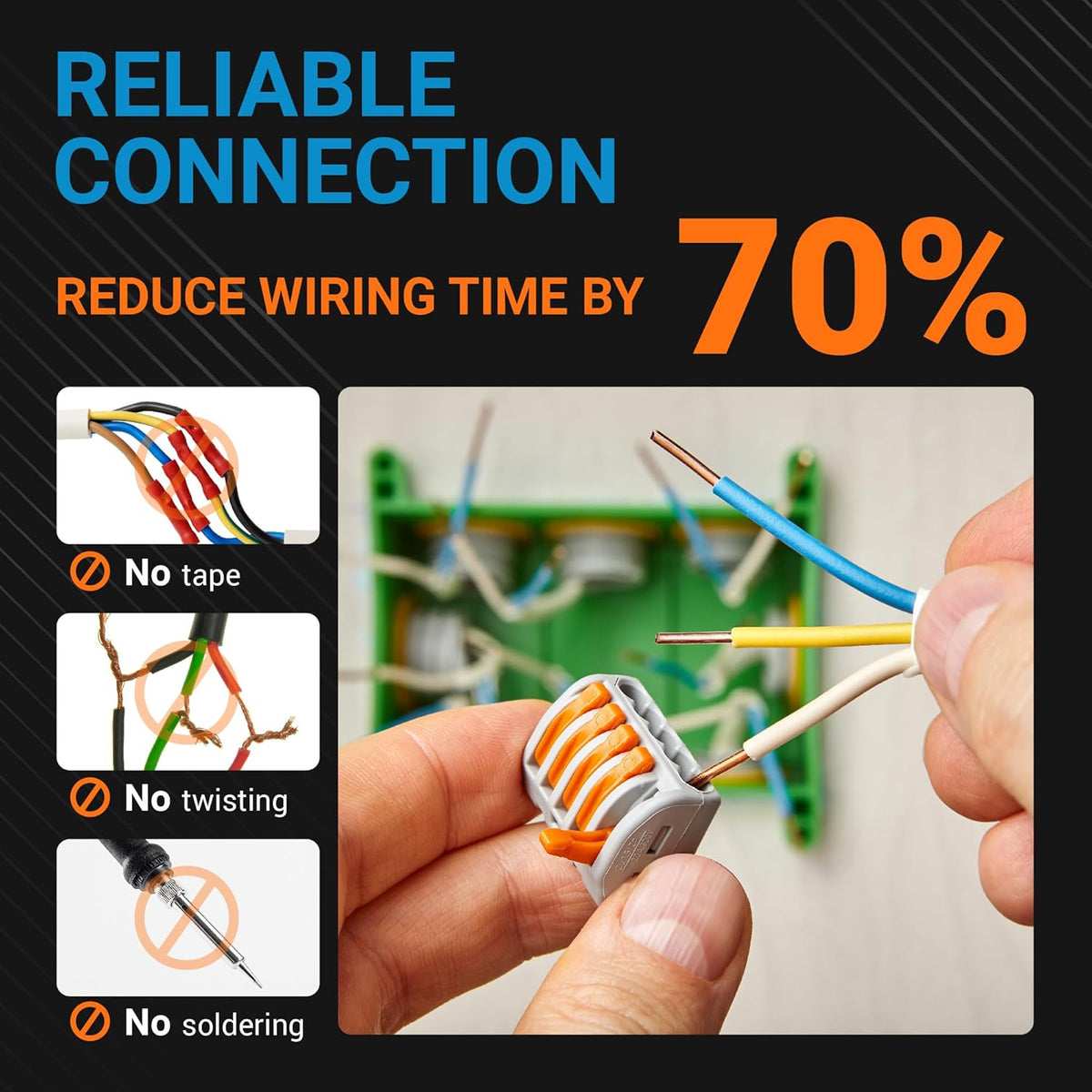

Infographic showing orange lever wire connector being used to connect electrical wires without tape or soldering.

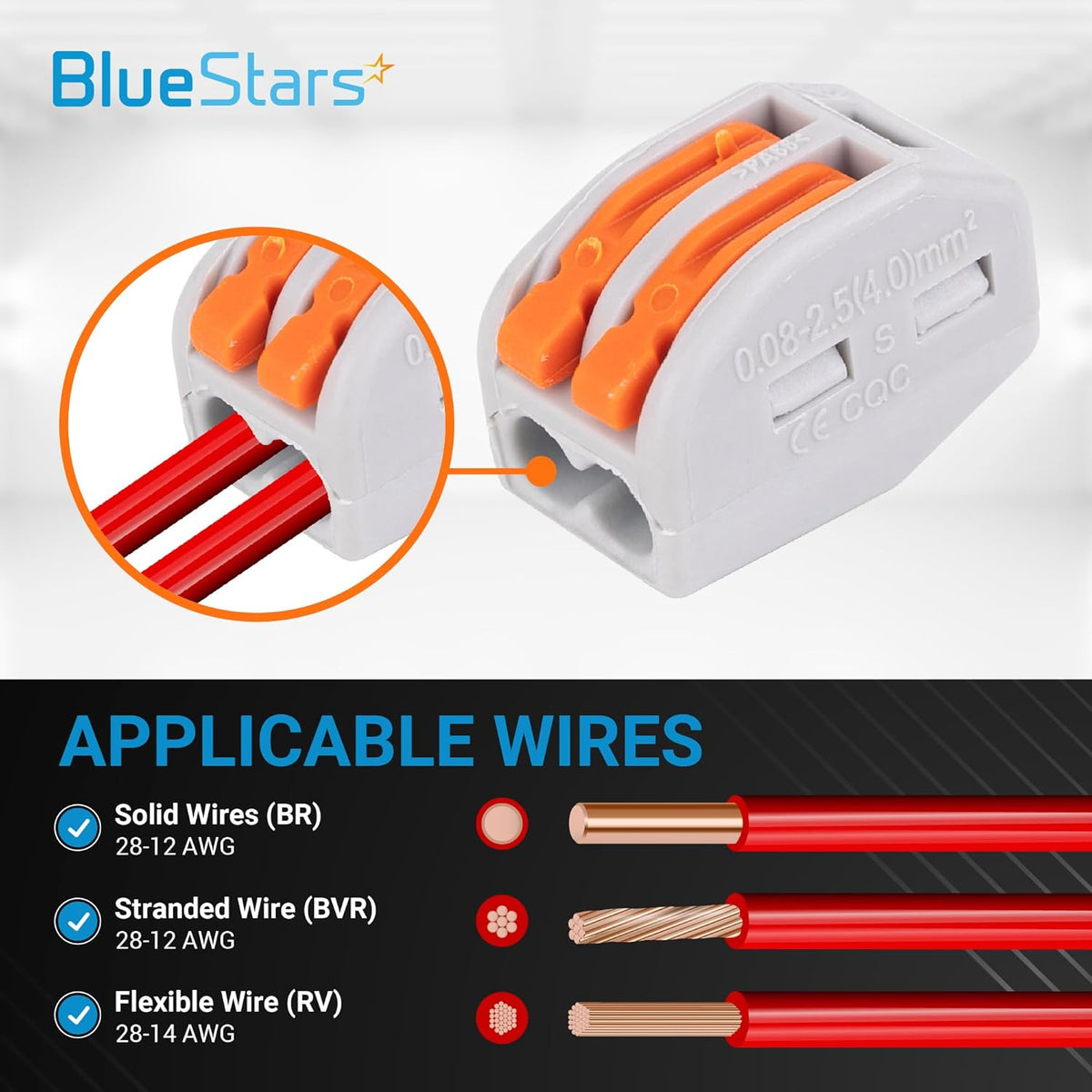

Close-up of a 2-port orange lever wire connector showing compatibility with solid, stranded, and flexible wires.

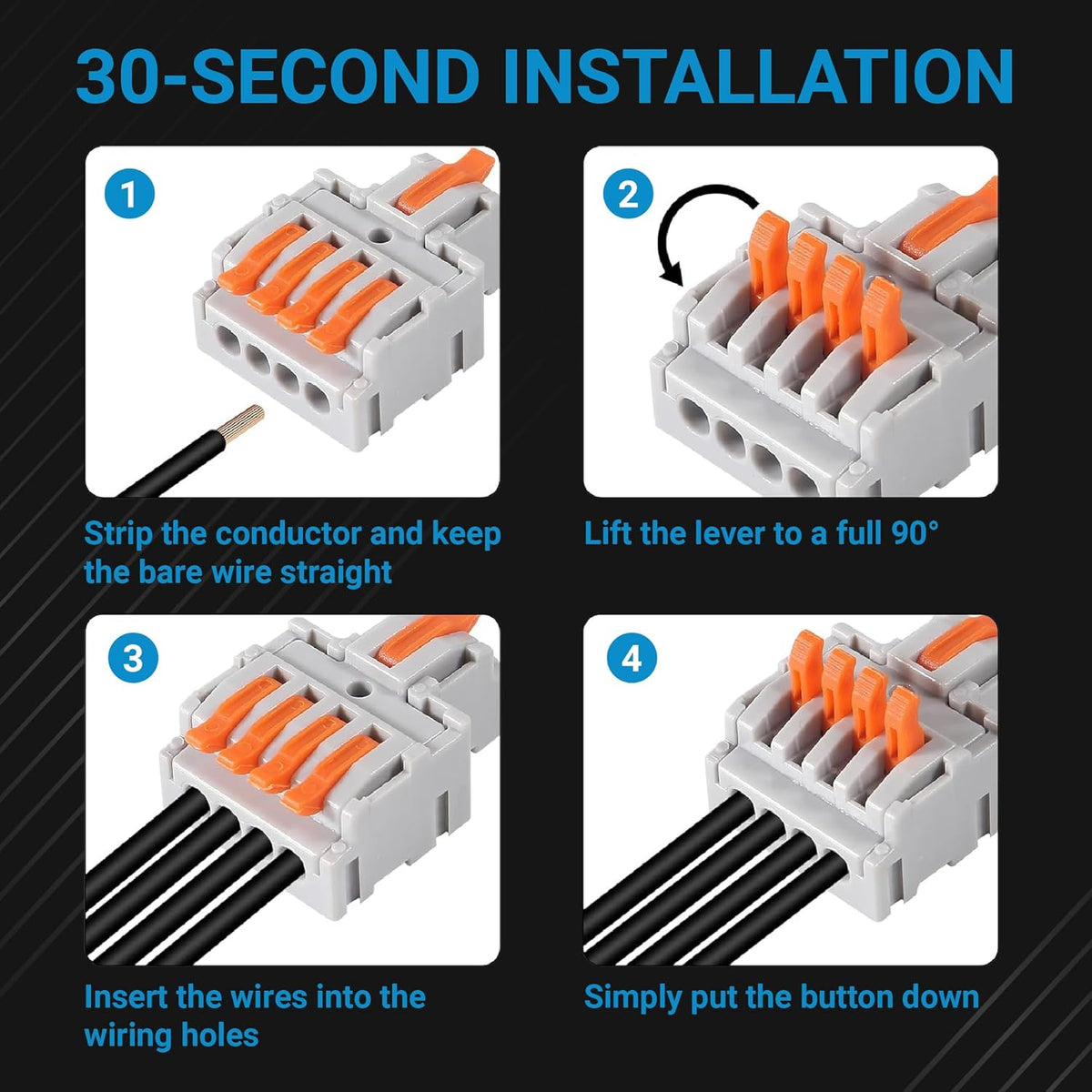

Four-step installation guide for orange lever wire connectors showing how to strip, lift, insert, and secure wires.
Woman using a tablet to control smart home lighting, representing the reliable power connection of wire connectors.
50-piece set of 250V 32A orange lever wire connectors in a storage case with three individual connector samples.
Dimensional diagram showing 2, 3, and 5-port orange lever wire connectors with 32A 250V specifications.
Close-up of a 2-port orange lever wire connector showing test hole, operating handle, and wire entry port.
Infographic showing orange lever wire connector being used to connect electrical wires without tape or soldering.
Close-up of a 2-port orange lever wire connector showing compatibility with solid, stranded, and flexible wires.
Four-step installation guide for orange lever wire connectors showing how to strip, lift, insert, and secure wires.
Woman using a tablet to control smart home lighting, representing the reliable power connection of wire connectors.

2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack

0.00
$10.44
Save 11% $11.69
$10.44
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

2/3/5 - 250V 32A Orange Wire Connectors

Key Features

  • Electrical Rating: 250V maximum voltage, 32A maximum current.
  • Conductor Types: Compatible with solid, stranded, and flexible copper wires.
  • Housing Material: PC (Polycarbonate) insulated, flame-retardant casing.
  • Mechanism: Lever-actuated for fast, secure, and reusable connections without tools.
  • Design: Compact body for installation in junction boxes and other tight spaces.
  • Includes an integrated test port for checking voltage.

Replaces / Cross-Reference Part Numbers

  • Serves as a modern alternative to traditional twist-on wire nuts, terminal blocks, and soldered connections.
  • Functionally comparable to connectors in the Wago 221 and 222 series.

Compatibility & Fitment

  • Wire Gauge Range: 28-12 AWG (0.08 to 4.0 mm²).
  • Applications: Suitable for residential and commercial wiring, lighting fixtures, control circuits, appliances, and automotive electrical systems.
  • Not suitable for direct burial or submersion in water.

When to Replace

  • Replace old or failing twist-on wire connectors for a more reliable connection.
  • Use during new installations or when modifying existing wiring.
  • Immediately replace any connector that shows signs of arcing, melting, discoloration, or physical damage.
  • If an existing electrical connection is intermittent or loose.

Installation Tips

  • Strip approximately 10 mm (0.39 in) of insulation from the wire end.
  • Lift the orange lever to a 90-degree angle to open the clamping port.
  • Insert the stripped wire conductor until it hits the backstop.
  • Lower the lever until it snaps shut, flush with the connector body.
  • Confirm the connection is secure by gently pulling on the wire.
2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 1
2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 2
2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 3
2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 4
2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 5
  • 2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 1

    REDUCE 70% WIRING TIME

    An innovative solution to connect the wire instead of traditional electrical tape and intertwined butt connectors.
  • 2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 2

    UPGRADED STRUCTURE

    Easily make a group of 2/3/5 connectors without worrying about the distortion between the wires.
  • 2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 3

    SAVING SOLUTION

    Effortlessly organize your electrical system with our Wire Conductor - BlueStars brings DIY solutions to help you deal with any trouble
  • 2/3/5 - 250V 32A Orange Wire Connectors Push-in - Suitable for Multiple Types Butt Terminal Connectors (28-12 AWG) - 50 Pack 4

    WIDE APPLICATION

    Our product is used in almost gauge household wiring, automotive projects, and electronics system.
INNOVATIVE SOLUTIONS FOR SEAMLESS CONNECTIONS

INNOVATIVE SOLUTIONS FOR SEAMLESS CONNECTIONS

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

These connectors are designed to accommodate solid, stranded, and flexible copper wires ranging from 28 to 12 AWG (0.08–4.0 mm²).
No tools are required. Simply strip the wire insulation back approximately 11mm, lift the orange lever, insert the wire, and snap the lever back down to secure the connection.
Yes, these are designed for multiple uses. You can easily open the lever to release the wire, make adjustments, or move the connector to a new circuit without damaging the wire or the connector itself.
These connectors are rated for up to 32A and 250V. Ensure your total circuit load does not exceed these specifications to prevent overheating.
Yes, these connectors allow you to mix solid and stranded wires within the same unit, provided they fall within the supported gauge range of 28–12 AWG.
These lever-style connectors provide a more reliable, vibration-resistant connection compared to traditional twist-on wire nuts. They also allow for easier inspection and testing, as each connector features a built-in test port for voltage probes.
