2-1/4" Oil Filter 492932S 492932 795890 695396 492932B 492056

2-1/4" Oil Filter 492932S 492932 795890 695396 492932B 492056

Key Features

• Replacement oil filter for lawn mowers, lawn tractors, zero-turn mowers, and compatible small engines.

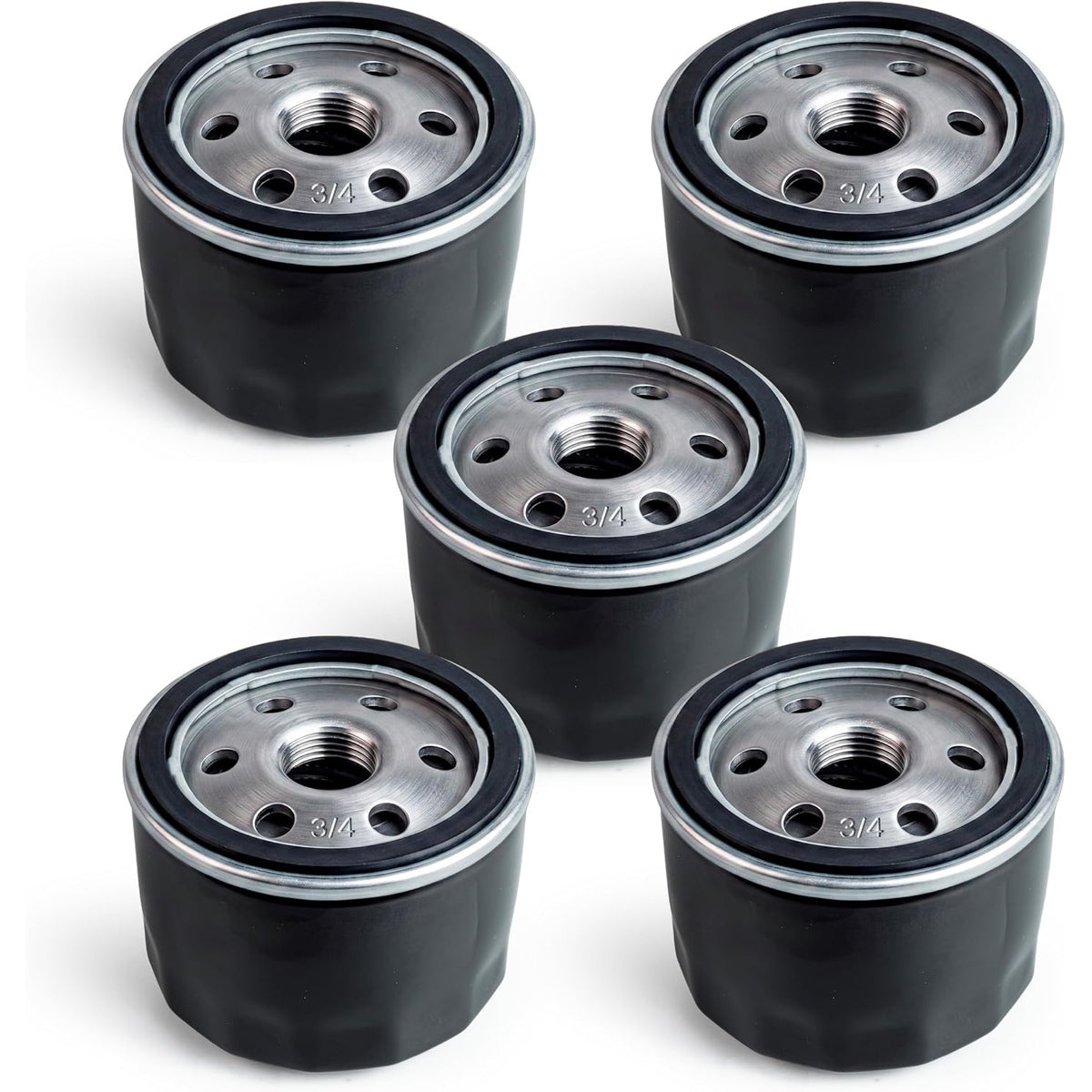

• Ships as 5 filters.

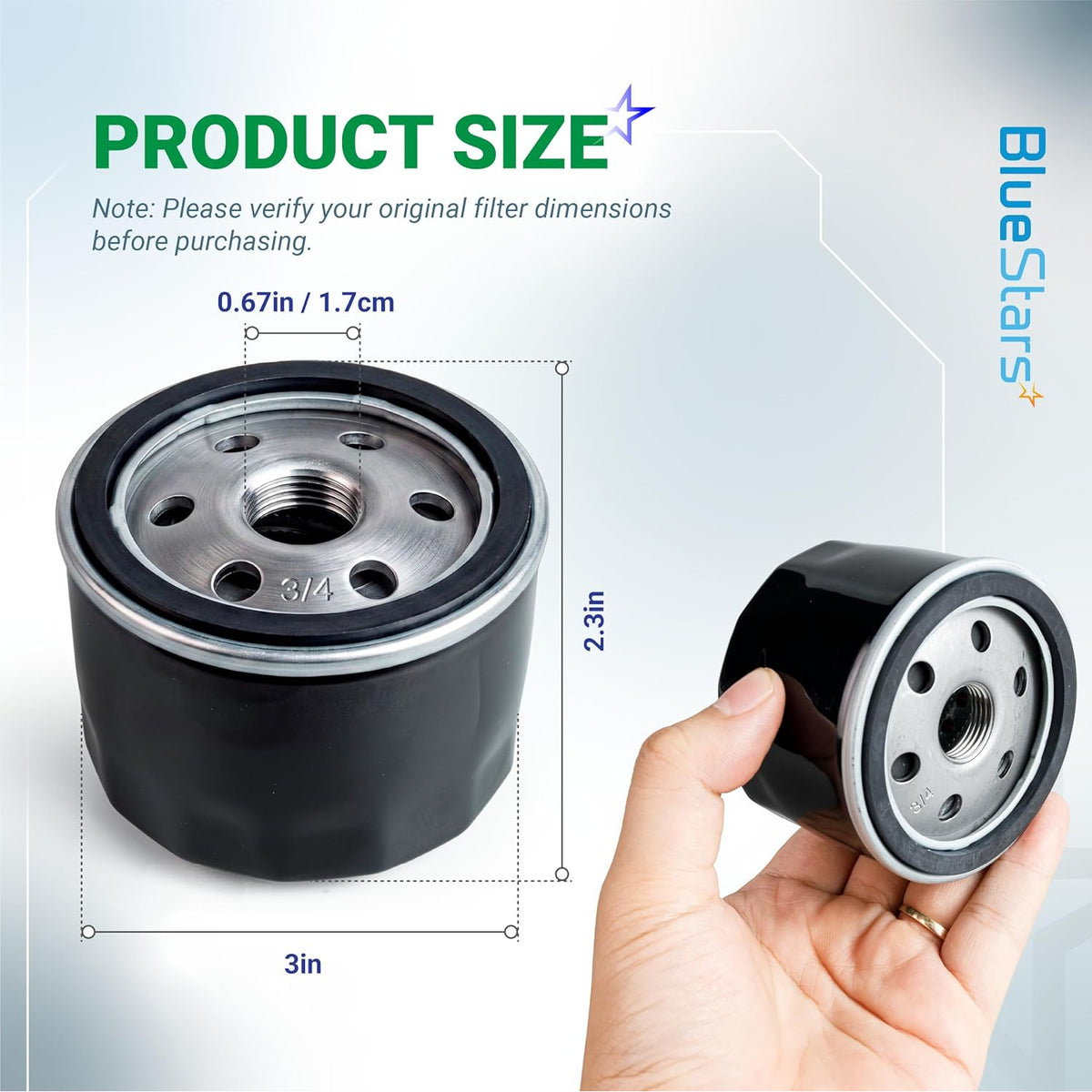

• Outside diameter: approximately 3 inches.
• Height: approximately 2.3 inches.
• Thread size: 0.67 inch.
• Designed to filter dirt, carbon, and metal debris from circulating engine oil, with filtration down to 27 microns.
• Product grade: replacement part.

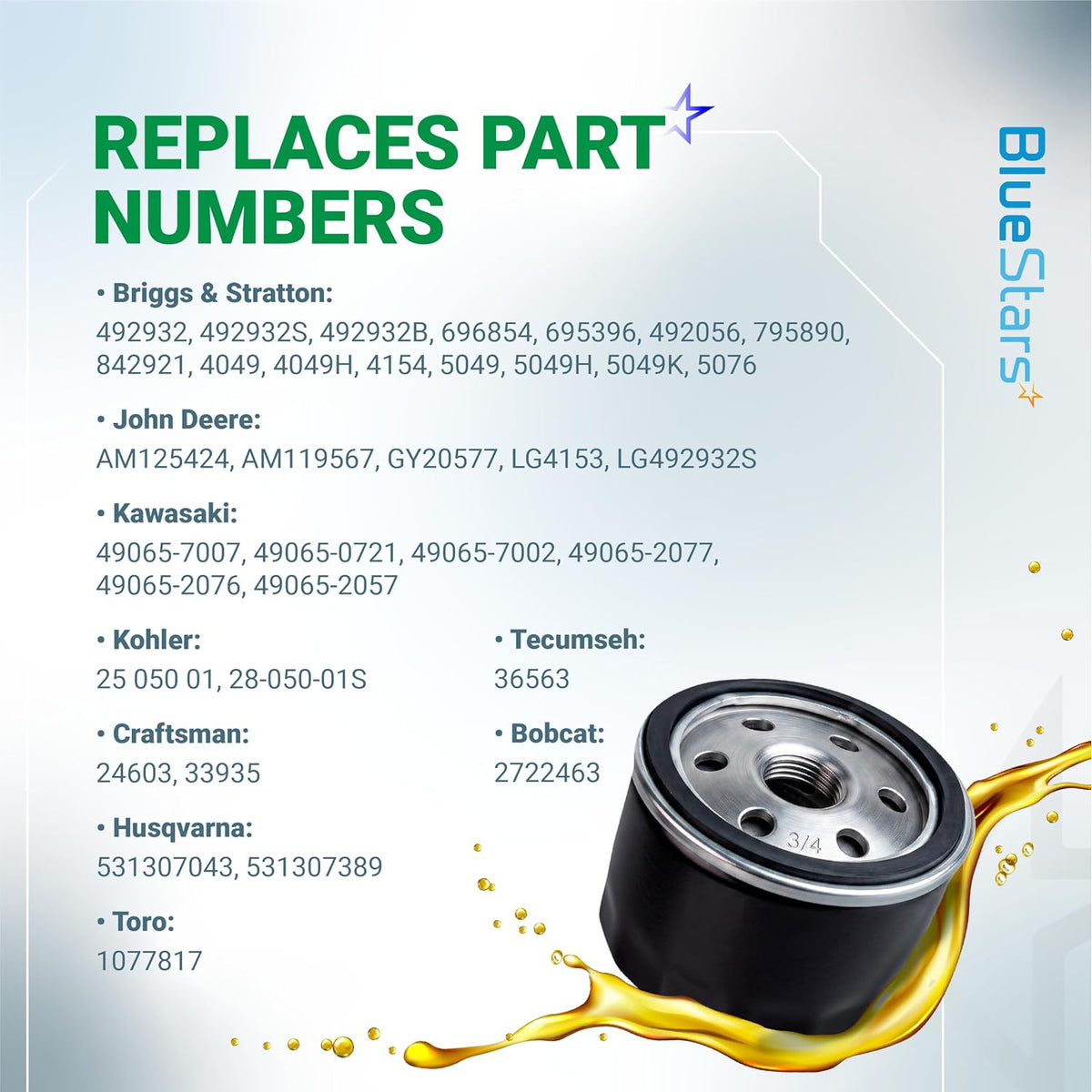

Replaces / Cross-Reference Part Numbers

• 492932S, 492932, 795890, 695396, 492932B, 492056, 696854, 842921
• 4049, 4049H, 4154, 5049, 5049H, 5049K, 5076
• AM125424, AM119567, GY20577, LG4153, LG492932S
• 49065-7007, 49065-0721, 49065-7002, 49065-2077, 49065-2076, 49065-2057
• 25 050 01, 28-050-01S, 24603, 33935, 531307043, 531307389, 1077817, 36563, 2722463

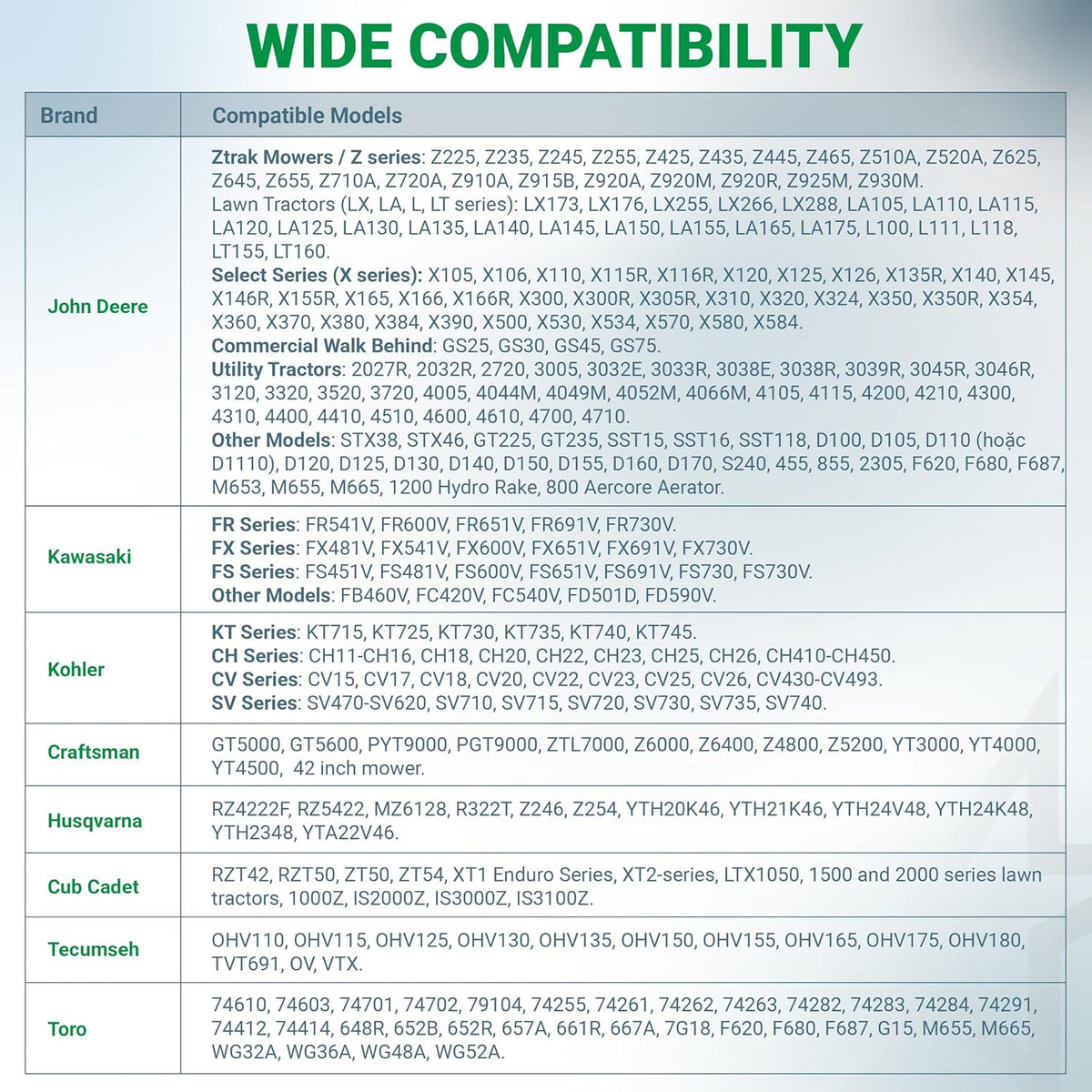

Compatibility & Fitment

Compatible with selected Kawasaki, Kohler, Craftsman, Husqvarna, Cub Cadet, John Deere, Tecumseh, and Toro lawn mower and engine applications. Confirm the old filter dimensions and engine model before ordering because similar filters may use different thread sizes.

• John Deere zero-turn and ZTrak mowers: Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z510A, Z520A, Z625, Z645, Z655, Z710A, Z720A, Z915B, Z920M, Z920R, Z925M, Z930M.
• John Deere lawn tractors: LX173, LX255, LX266, LX288, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, STX38, STX46, GT225, GT235, SST15, SST16, SST118, D100, D105, D1110, D120, D125, D130, D140, D150, D155, D160, D170.
• John Deere select models: X105, X106, X110, X115R, X116R, X120, X125, X126, X135R, X140, X145, X146R, X155R, X165, X166, X166R, X300, X300R, X305R, X310, X320, X324, X350, X350R, X354, X360, X370, X380, X384, X390, X500, X530, X534, X570, X580, X584. Also GS25, GS30, GS45, and GS75 commercial walk-behind mowers.
• Kawasaki engines: FR541V, FR600V, FR651V, FR691V, FR730V, FS451V, FS481V, FS600V, FS651V, FS691V, FS730V, FX481V, FX541V, FX600V, FX651V, FX691V, FX730V, FB460V, FC420V, FC540V, FD590V.
• Kohler engines: KT715, KT725, KT730, KT735, KT740, KT745, CH18, CH20, CH22, CH23, CH25, CH26, CV17, CV20, CV22, CV23, CV25, CV26, SV470, SV590, SV620, SV710, SV730.
• Craftsman: GT5000, YT3000, YT4000, YT4500, Z6000, Z6400.
• Husqvarna: Z246, Z254, RZ5422, YTH2348, R322T.
• Cub Cadet: RZT42, RZT50, ZT50, ZT54, LTX1050, XT1, XT2.

When to Replace

Replace the filter at the interval specified in the equipment service schedule, or when servicing the engine oil. A clogged or worn filter can contribute to dark, gritty oil, restricted oil flow, seepage around the filter base, and increased internal engine wear. Ethanol-related fuel contamination, poor maintenance, and extended service intervals can accelerate oil contamination.

Installation Tips

• Verify the engine model, old filter dimensions, outside diameter, height, and thread size before installation.
• Stop the engine, allow it to cool, and position the mower safely before servicing.
• Drain the engine oil according to the equipment manufacturer’s procedure.
• Remove the old filter with an appropriate filter wrench if it is tight, and clean the mounting surface.
• Check that the old gasket has been removed. Lightly coat the new gasket with clean engine oil, install the filter by hand, and tighten it according to the equipment service instructions.
• Refill with the specified oil, run the engine briefly, and check the filter base for leaks. Recheck the oil level after shutdown.
