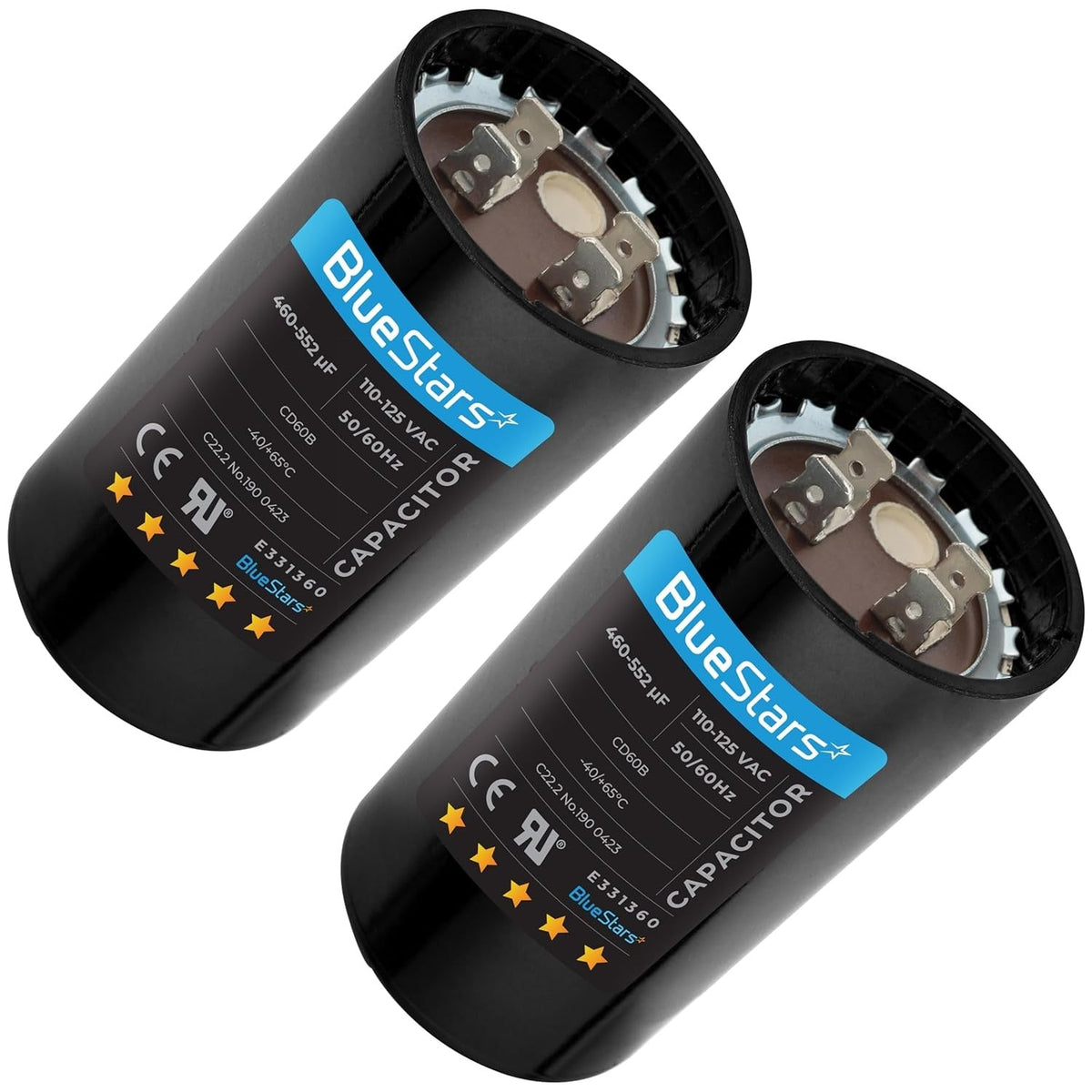

460-552 uF MFD 110-125 VAC 50/60 Hz Round Start Capacitor - Fits Air Conditioner, Electric Motors - 2 Pack
0.00
Regular price
$31.19
Regular price
Save 16%
$37.11
Sale price
$31.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
460-552 uf MFD 50/60 Hz 110-125 VAC Volts Round Start Capacitor - Pack of 2

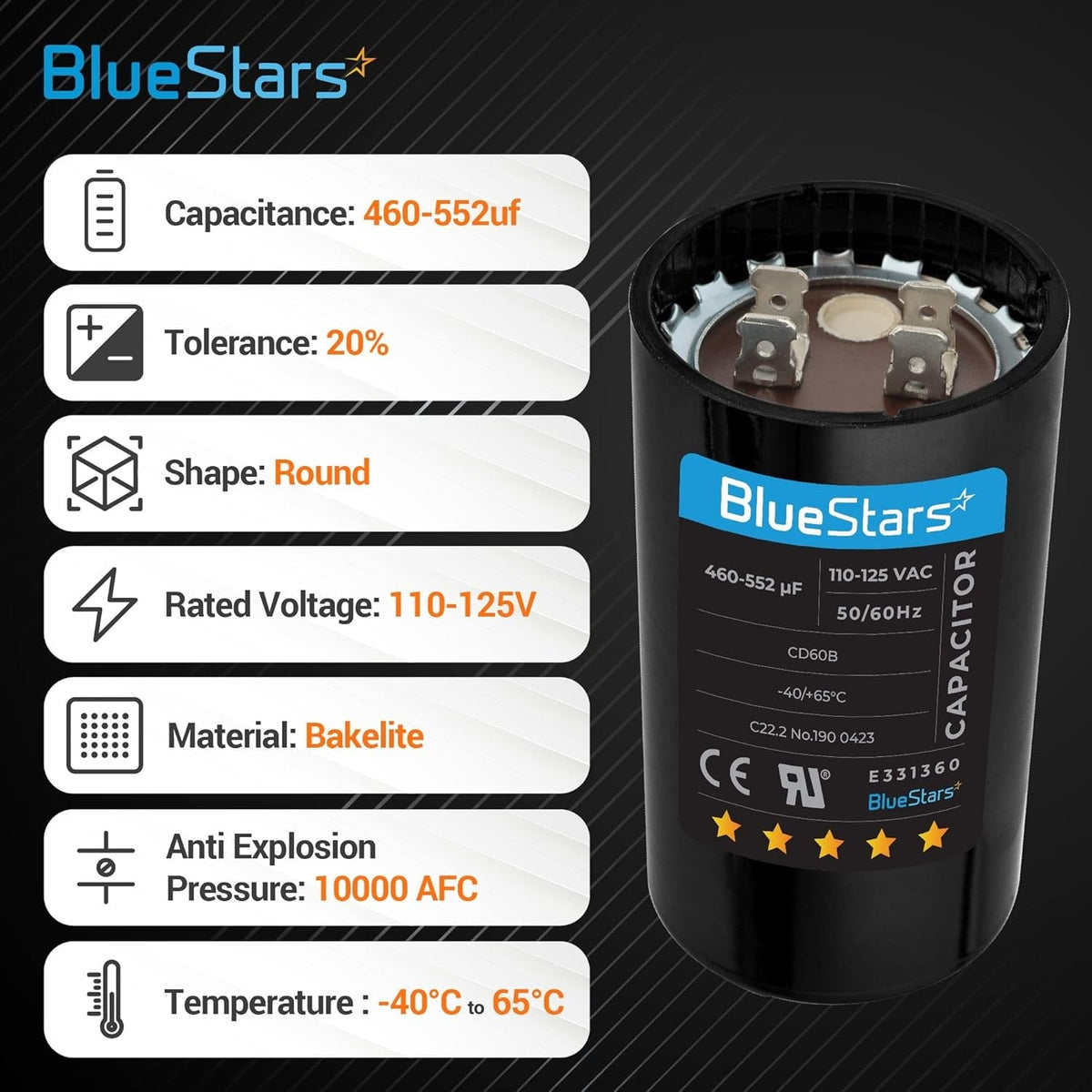

Key Features
- Capacitance: 460-552 uF/MFD
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Capacitance Tolerance: +/- 20%
- Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)
- Shape: Round
- Construction: Dry, non-PCB, phenolic resin case

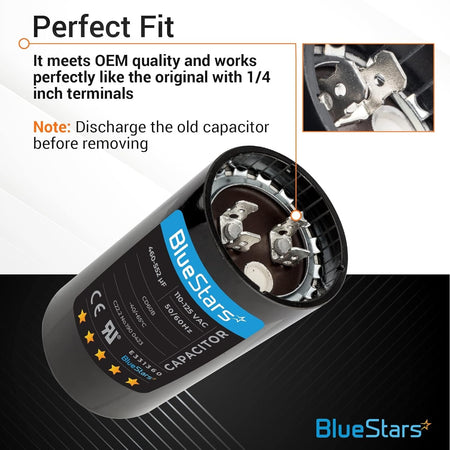

- Terminals: 1/4 in male quick-connect

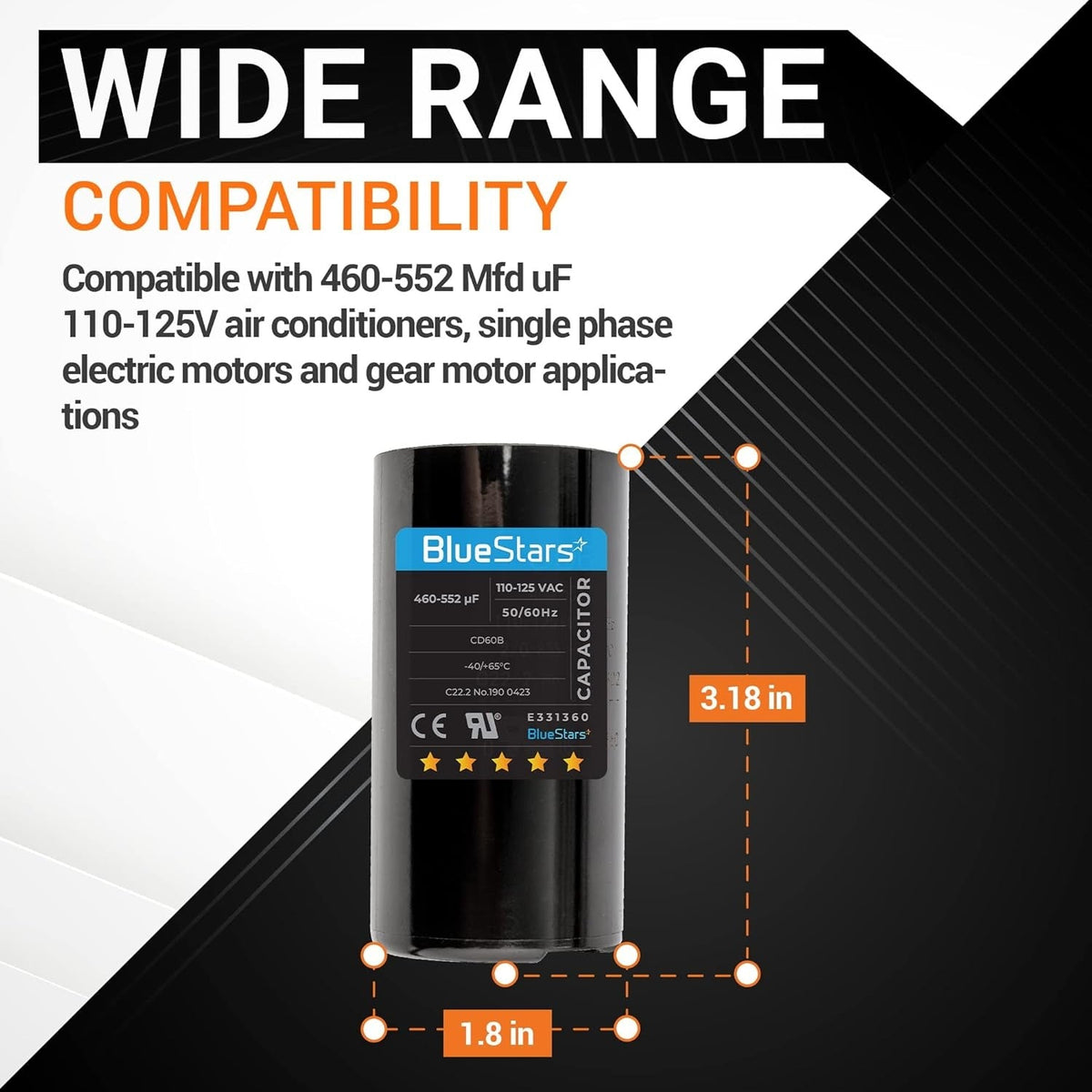

- Dimensions: 1.81 in Diameter x 3.37 in Height (46 mm x 86 mm)
Replaces / Cross-Reference Part Numbers
This capacitor is a universal replacement for any start capacitor with matching capacitance, voltage, and frequency specifications. It is commonly designated as a CD60 type motor start capacitor.
Compatibility & Fitment
Designed for intermittent duty motor starting applications. Always verify that your original capacitor's specifications match this part. Common applications include:
- HVAC units (compressors, blowers, fan motors)
- Water pumps (well pumps, pool pumps)
- Air compressors
- Refrigeration units
- Other single-phase AC electric motors
When to Replace
A failing or failed start capacitor can cause the following symptoms:
- Motor hums but does not start
- Motor requires a manual push to start turning
- Motor starts slowly or with difficulty
- Circuit breaker trips when the motor attempts to start
- Visible damage to the capacitor, such as bulging, cracking, or leaking fluid
Installation Tips
- Disconnect all electrical power to the equipment before beginning work.
- Safely discharge the old capacitor by shorting the terminals with a resistor or an insulated-handle screwdriver.
- Confirm the voltage rating and MFD/uF capacitance of the replacement part match the original capacitor. The replacement voltage rating can be equal to or higher than the original, but not lower.
- Note the position of the wires on the old capacitor terminals before disconnecting.
- Ensure the new capacitor is mounted securely and that all electrical connections are tight.
-
Benefits
This Electric Motor Start Capacitor is designed specifically for replacement of OEM single phase motor capacitors. It is built for intermittent duty and can be damaged if left in the circuit longer than the period prescribed by the maker (usually about 3 seconds duration). -
Round Start Capacitor
If your electric motor is struggling to start and is humming its more than likely a problem with the start capacitor. -

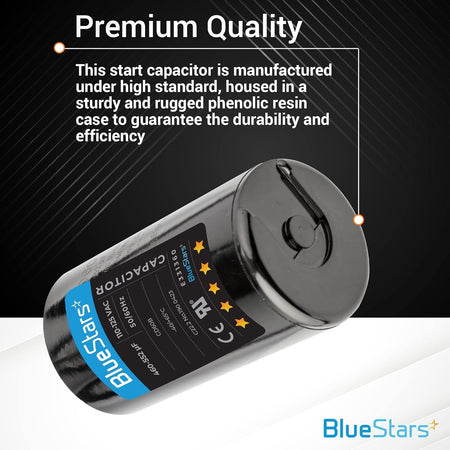

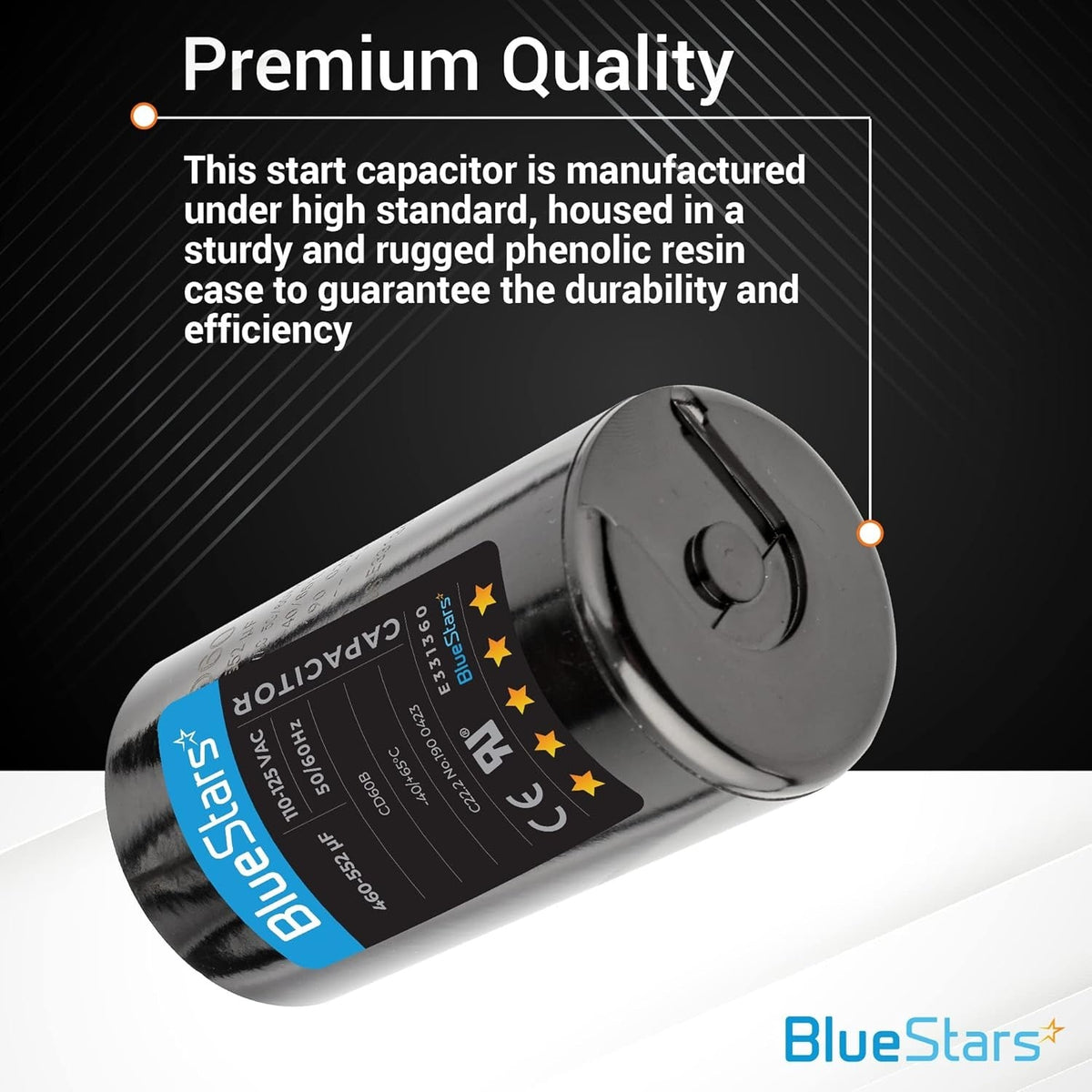

Premium Quality
The product is made of strong & durable materials that prevent cracking and failing during the installation and use process. -
Safe To Install
The capacitor is engineered for safety 10 000 AFC Anti Explosion Pressure Switch to ensure security when replacing
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Shape
Round
Capacitance tolerance
20%
Rated voltage
110-125V
Operating temperature range
-40℃ to 65℃
Material
Bakelite
Anti-explosion pressure switch
10000 AFC
