41A5434-11A Garage Door Opener Drive Belt (234") for LiftMaster 2280 2500 2580, Chamberlain WD822KS

41A5434-11A Garage Door Opener Drive Belt (234'')

Key Features

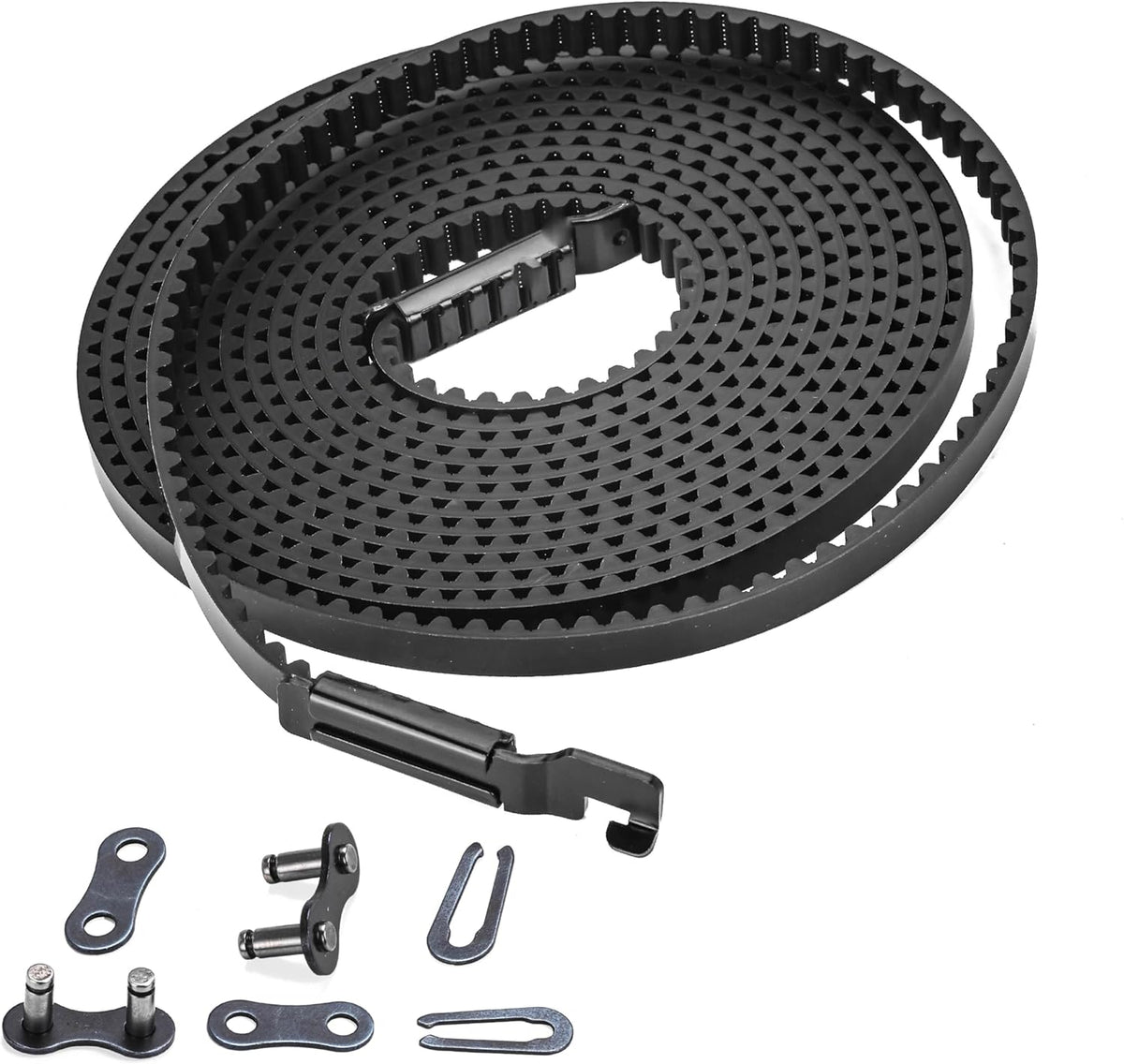

• One-piece drive belt assembly sized for 7 ft. residential garage doors; total belt length approximately 233–234 inches end to end
• Features 20 grooves per 6 inches of belt span for consistent grip and reduced slippage on the drive sprocket

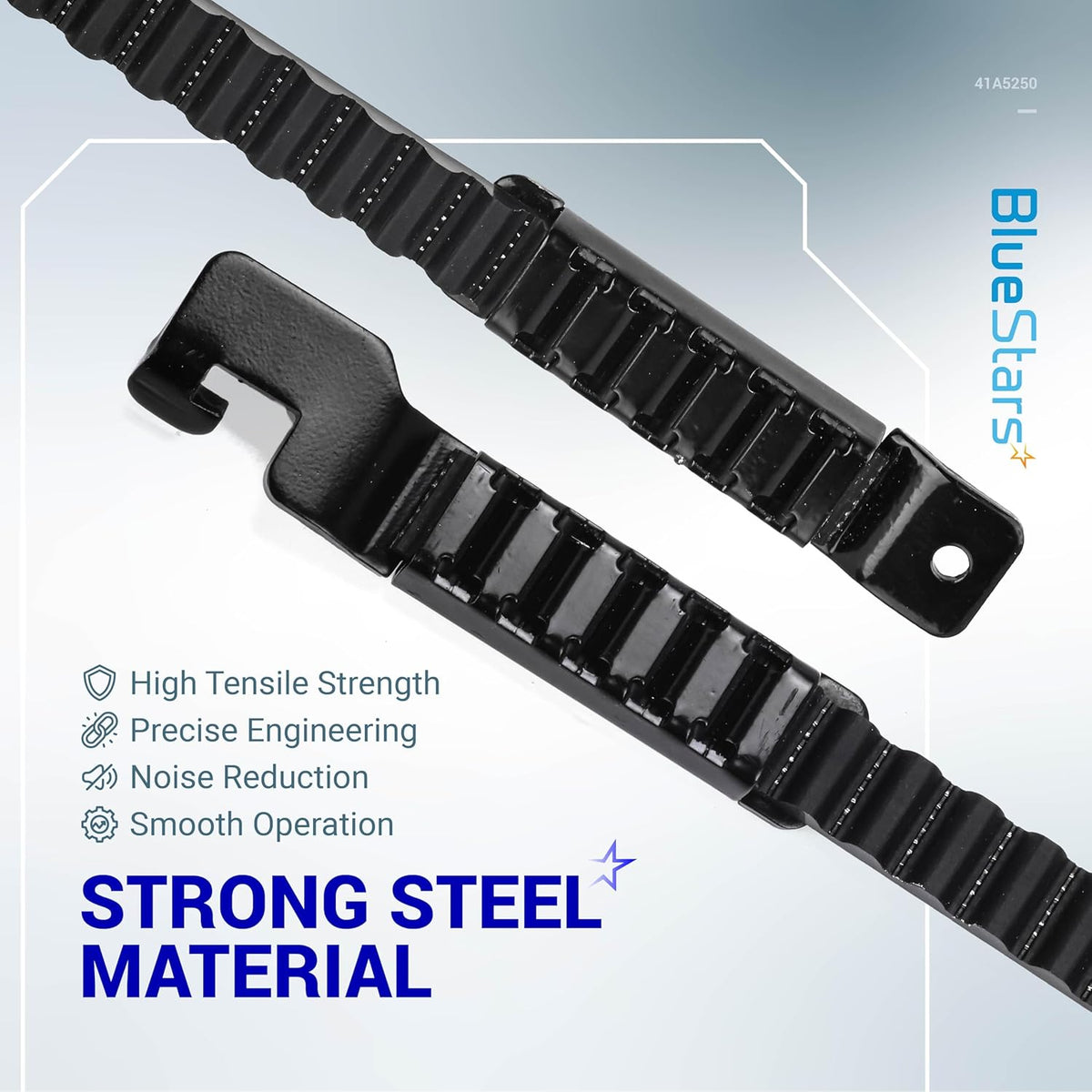

• Constructed with structural steel reinforcement inside a polyurethane (PU) outer layer; resistant to stretching, warping, and corrosion
• Designed for quieter operation compared to chain-drive systems; reduces operational noise at the motor and rail
• One end terminates with a buckle clip; the opposite end features a mounting hole — no cutting, splicing, or additional hardware required
• No tools required for installation; compatible with belt-drive rail systems from 1998 to present on supported models

Replaces / Cross-Reference Part Numbers

• LiftMaster / Chamberlain: 41A5434-11A, 41A5434-11, 41A5434-1, 041A5434-11, 041A5434-11A

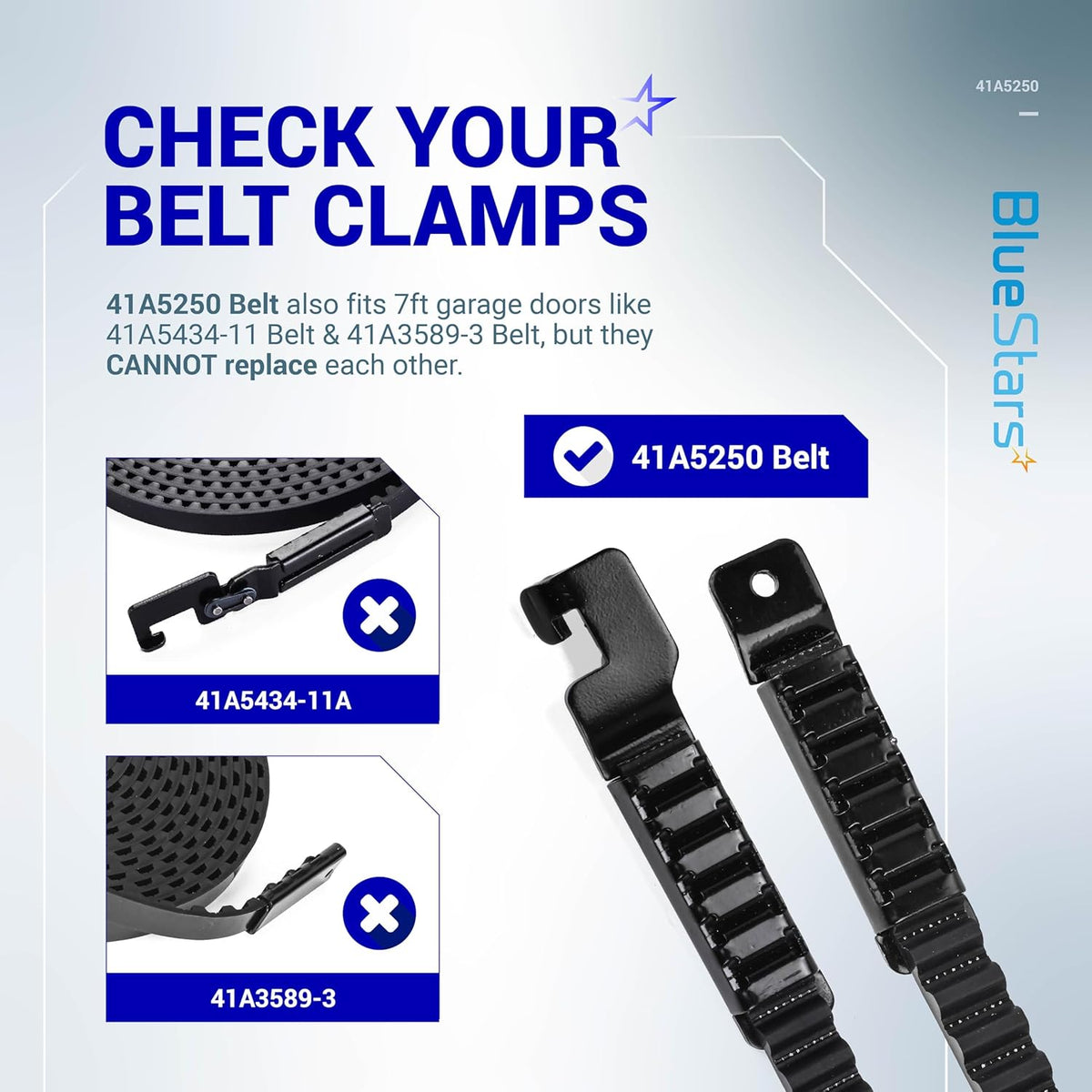

• Note: This belt is designed for 7 ft. doors only. It does not interchange with 41A5434-13A (8 ft.) or 41A5434-14A (9 ft.) variants. Confirm door height and belt end-connector style before ordering.

Compatibility & Fitment

Compatible with belt-drive garage door opener models from LiftMaster, Chamberlain, Sentex, and Craftsman. Confirmed fits include:

• LiftMaster: 2280, 2280R, 2500, 2500B, 2500D, 2580, 2585, 3280, 3280M, 3500, 3500D, 3550, 3580, 3580M, 3585, 3585S, 3850, 8155, 8155W, 8355, 8355W, 8550, 8550W, 8550WL, 8550WLB, 8557, 8557W, WLED, 84501, 87504, 87504-267
• Chamberlain: WD822KS, WD822KD, WD822KL, WD833KS, WD912KS, WD922K, WD952KD, WD952KLD, HD600
• Sentex / Whisper Drive: Belt-drive models using the same 7 ft. rail format as the above LiftMaster and Chamberlain lines

Applies to belt-drive openers manufactured from 1998 to present using the new-style belt format. Always verify the model number on the opener's label and check the parts diagram in the owner's manual before purchasing.

When to Replace

• Belt is visibly cracked, frayed, or missing teeth/grooves along its length
• Door moves erratically, jerks, or stalls mid-travel despite the motor running
• Belt has stretched beyond the tensioner's adjustment range and cannot be re-tensioned
• Squealing, slapping, or grinding noise occurs during door travel that is isolated to the belt and rail
• Belt has separated at one of the end connectors or the buckle clip has failed
• Opener activates but the door does not move (belt slipping freely on the sprocket)

Installation Tips

• Disconnect power to the opener before beginning — unplug the unit from the ceiling outlet
• Disengage the door from the trolley using the red emergency release cord before removing the old belt
• Thread the new belt through the trolley and around the idler pulley at the far end of the rail, then loop it around the drive sprocket at the motor head
• Attach the buckle clip end first, then feed the hole end through the belt tensioner bracket and secure with the retaining bolt
• Adjust belt tension so the belt does not sag more than approximately 1/2 inch below the rail at mid-span; over-tensioning accelerates sprocket and motor wear
• Run the door through 2–3 full open/close cycles after installation, then re-check tension — new belts seat slightly during initial use and may require a minor tension adjustment
• Wear work gloves during installation; belt edges and end clips can cause cuts during handling
