400-480 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz AC Electric Replacement
0.00
Regular price
$16.79
Regular price
Save 11%
$18.80
Sale price
$16.79
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

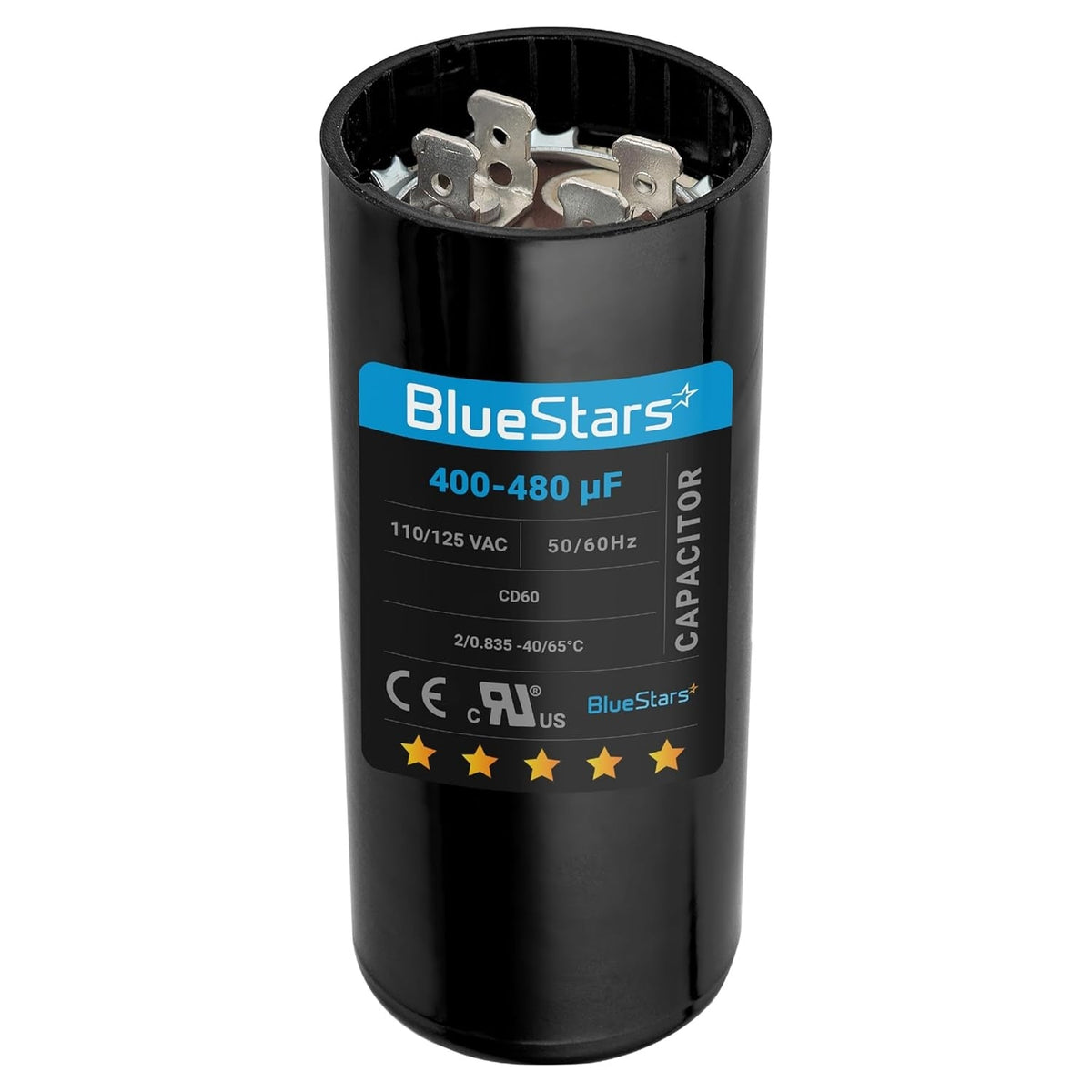

400-480 uf/MFD 110-125 VAC Round Motor Start
Key Features
- Capacitance: 400-480 MFD/uf
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Capacitance Tolerance: -0% / +20%
- Terminals: Standard 1/4 inch quick connect

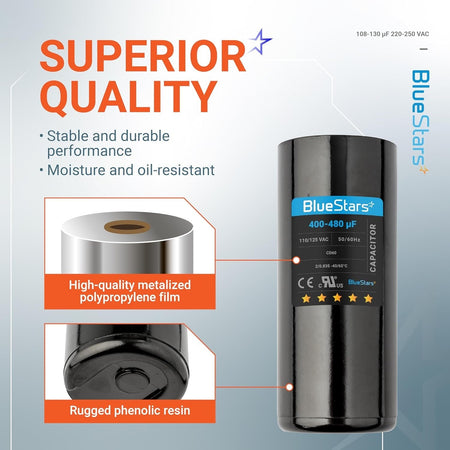

- Housing: Moisture and oil-resistant plastic case
- Safety Standard: UL 810 recognized component
Replaces / Cross-Reference Part Numbers
- Packard PMJ400
- TEMCo SC0032
- Replaces any round CD60-type motor start capacitor with matching capacitance and voltage specifications. Always verify dimensions for proper fit.
Compatibility & Fitment
- Designed for intermittent duty in single-phase AC motor starting circuits.
- Common applications include HVAC units, air compressors, well pumps, pool pumps, and other electric motors requiring start assistance.
- Compatible with systems operating at 110V, 115V, and 125V.

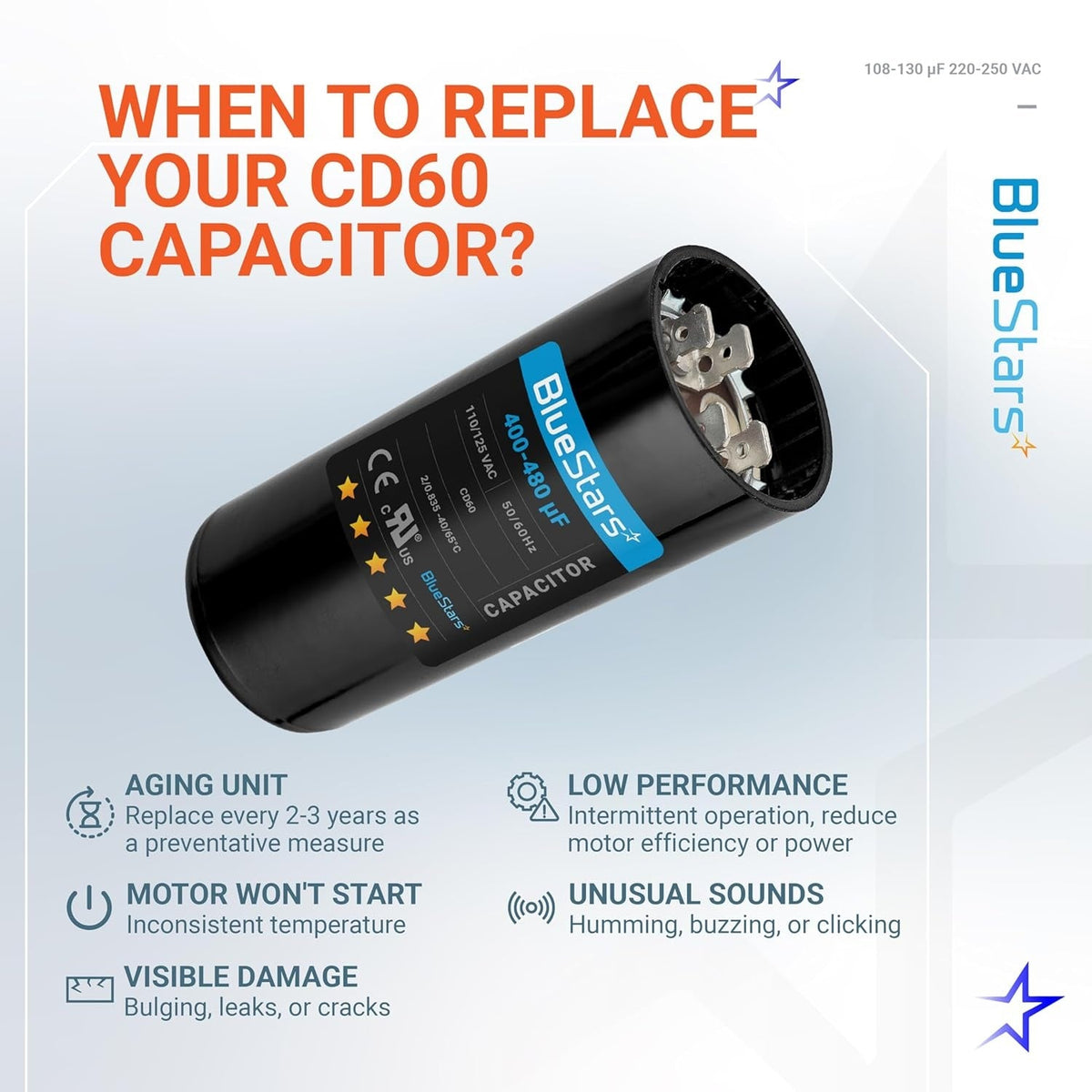

When to Replace
- Motor hums but fails to start.
- Motor starts slowly or requires manual help to spin.
- Circuit breaker trips when the motor attempts to start.
- Visible signs of damage such as bulging, cracking, or fluid leakage from the capacitor case.

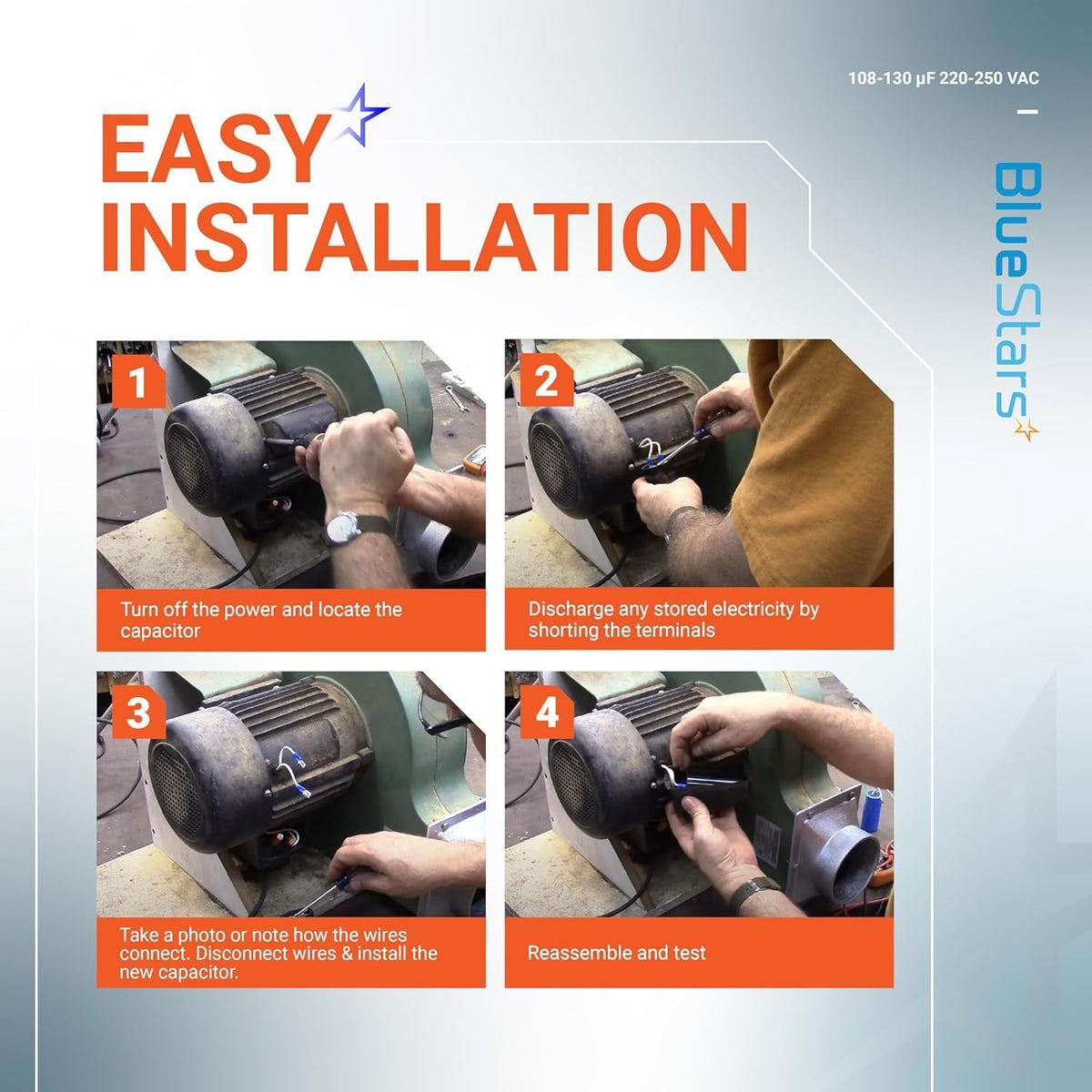

Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the existing capacitor by shorting its terminals with an insulated-handle screwdriver.
- Note the wire connections before removing the old capacitor.
- Ensure the replacement capacitor's voltage rating is equal to or greater than the original.
- The capacitance (MFD/uf) rating should be within the specified range of the original part.
-
Benefits
Start capacitors are needed at the beginning of each cycle and run capacitors are necessary for keeping HVAC running throughout the cycle. Replacing bad capacitors can help promote efficient operation and lengthen the life of your HVAC units -
Energy Saving

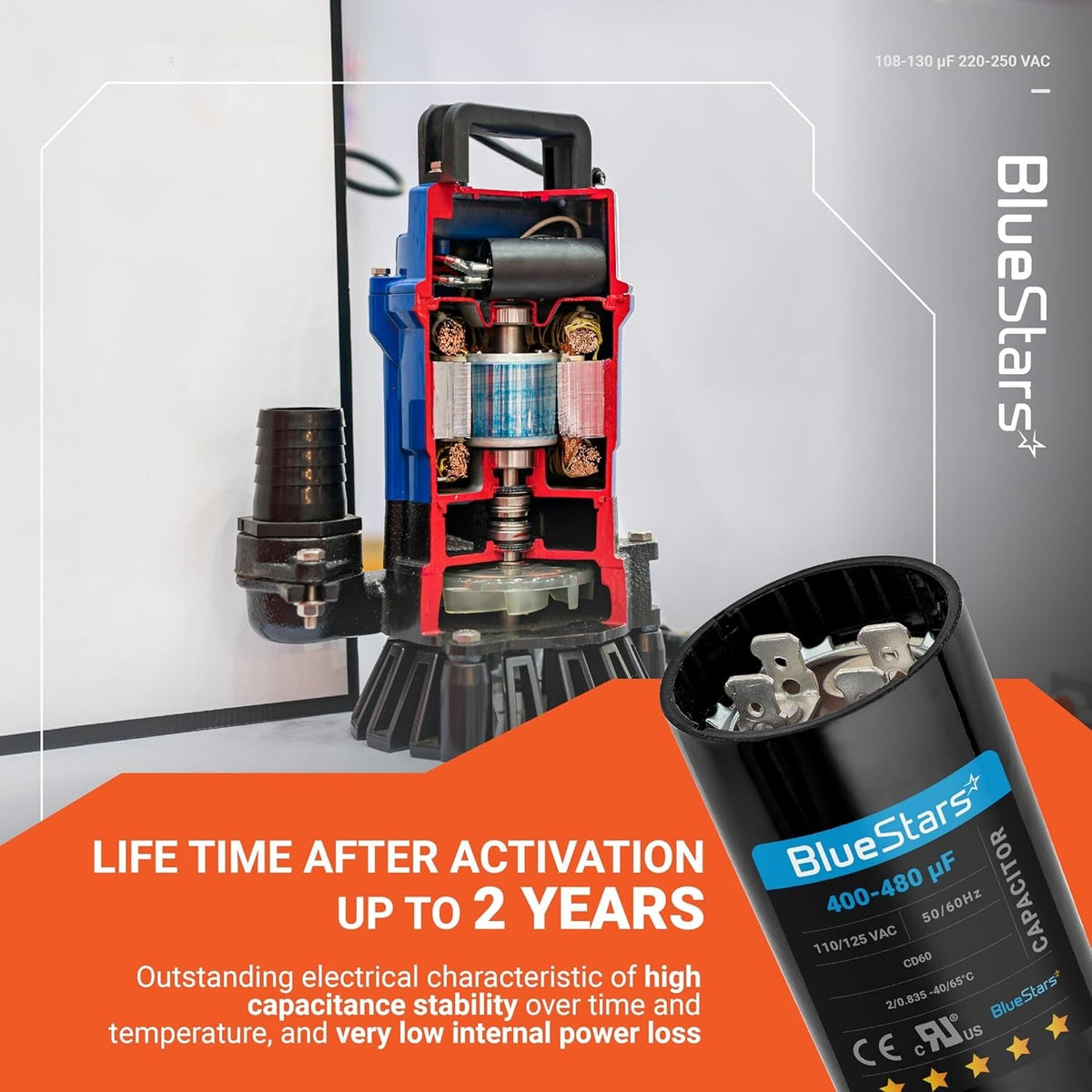

This capacitor will provide your electric motors with an outstanding electrical characteristic of high capacitance stability over time and temperature, and very low internal power loss. -
Premium Quality
The product is made of strong & durable materials that prevent cracking and failing during the installation and use process. -
Safe To Install
The capacitor is engineered for safety and ensure security when replacing
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…

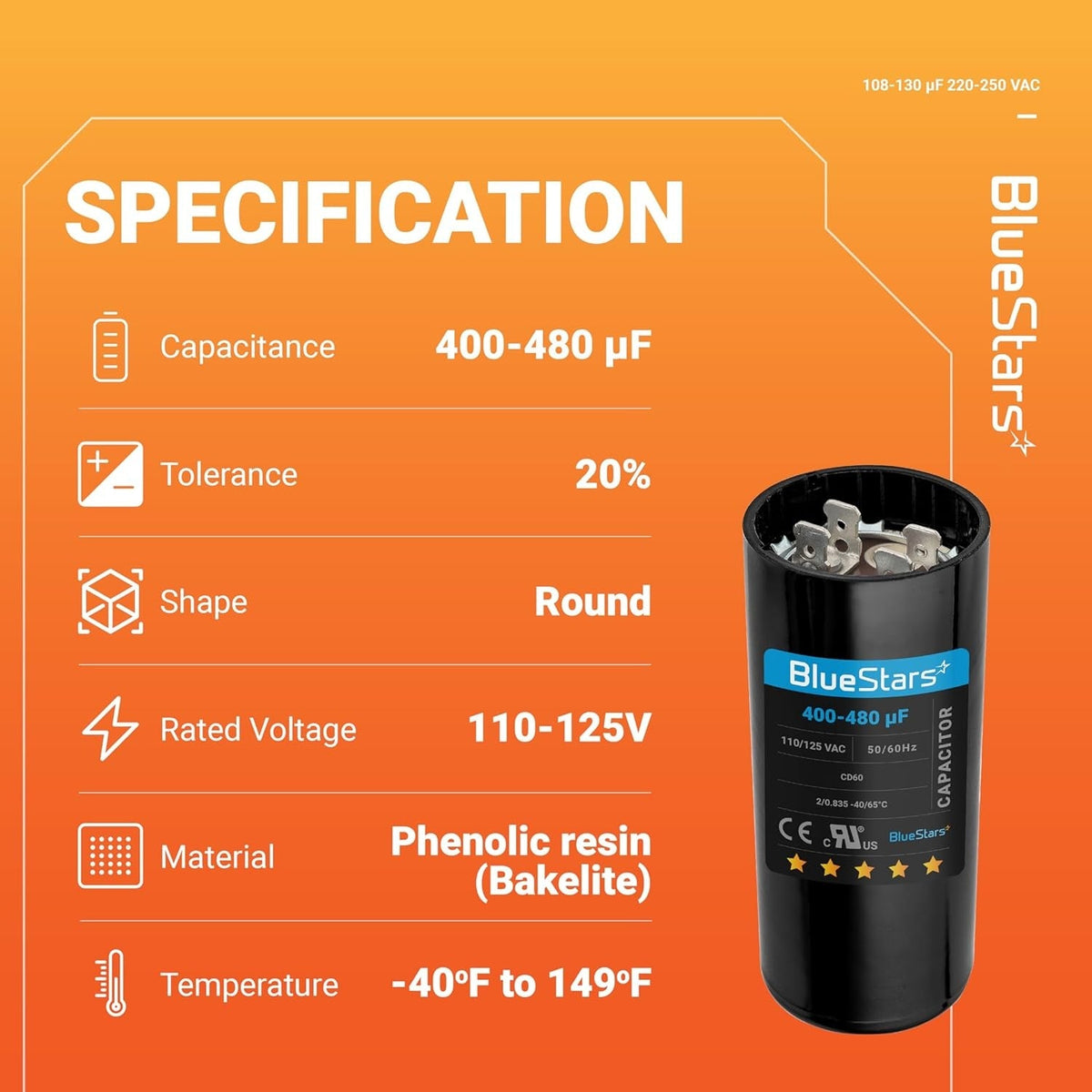

Shape
Round Motor Start
Capacitance tolerance
± 20%
Rated voltage
AC 110-125V
Temperature range
-40℃ to +65℃ / -40℉ to 149℉

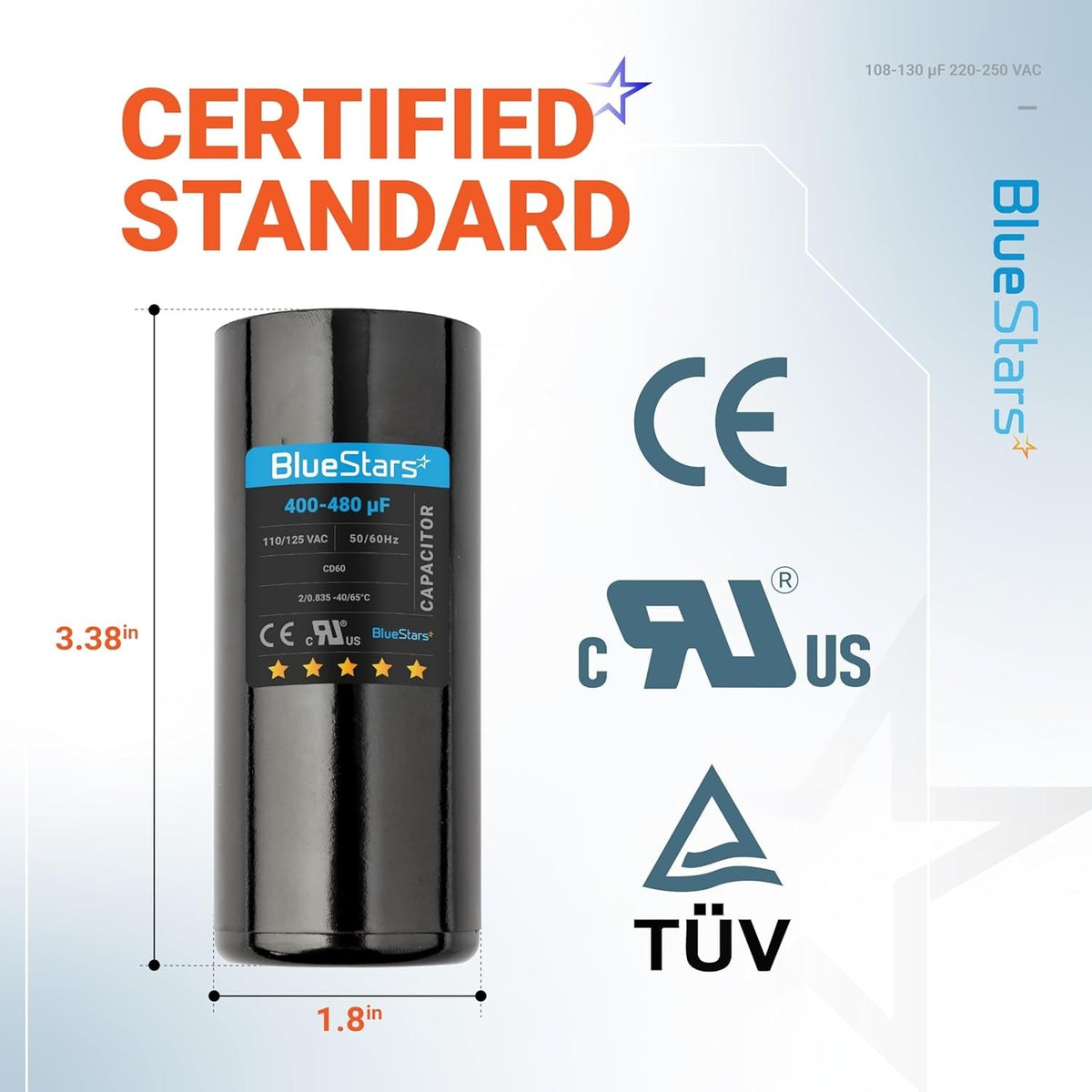

Capacitor Dimensions
36mm x 70mm
Engineered For Safety
10000 AFC Anti Explosion Pressure Switch
