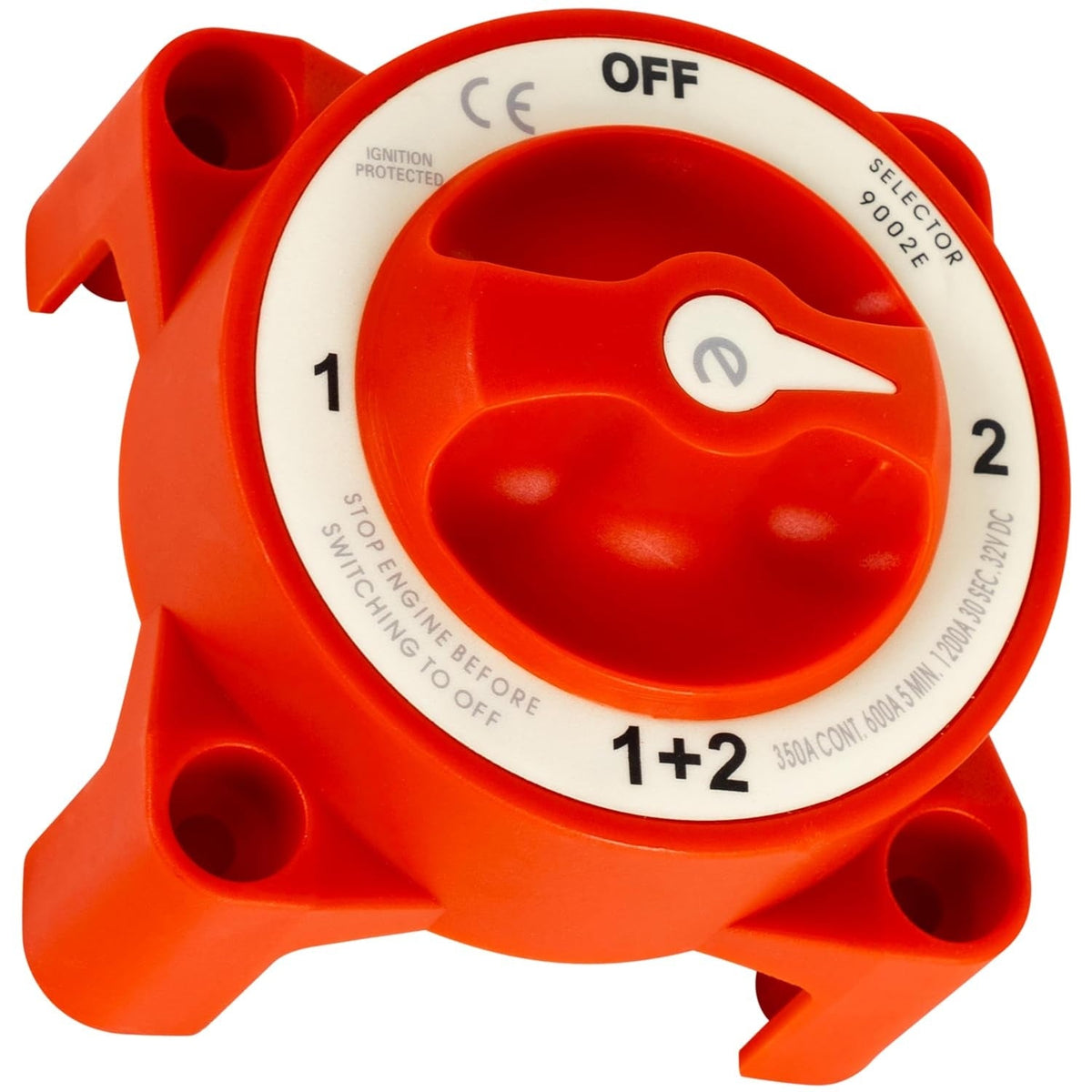

350A 9002E e-Series Battery Switch 350A Continuous 12V to 32V Battery Combiner and Selector Switch 4 Position
0.00
Regular price
$41.63
Regular price
Save 11%
$46.62
Sale price
$41.63
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
350A 9002E e-Series Battery Switch 350A Continuous 12V to 32V Battery Combiner and Selector Switch 4 Position
Key Features

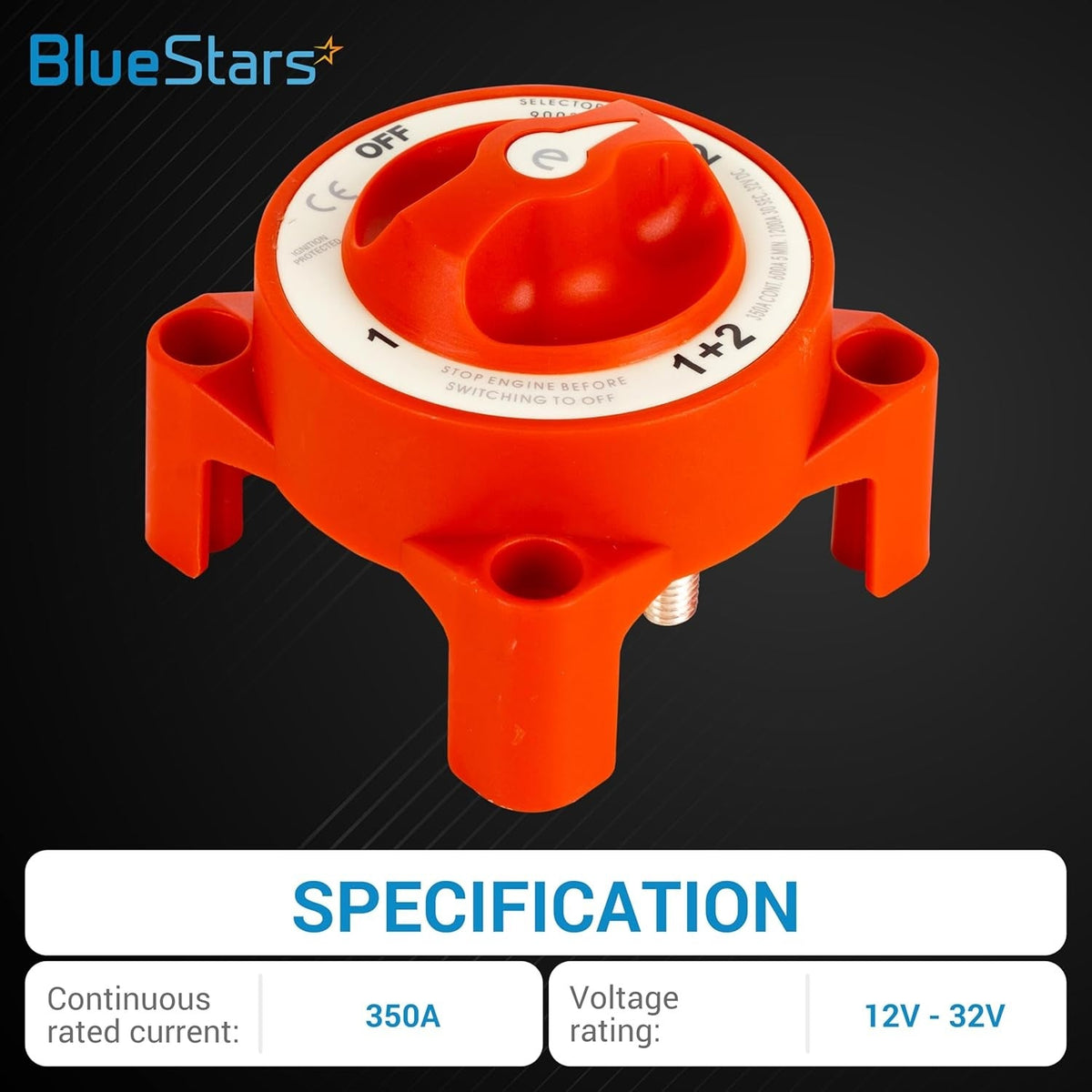

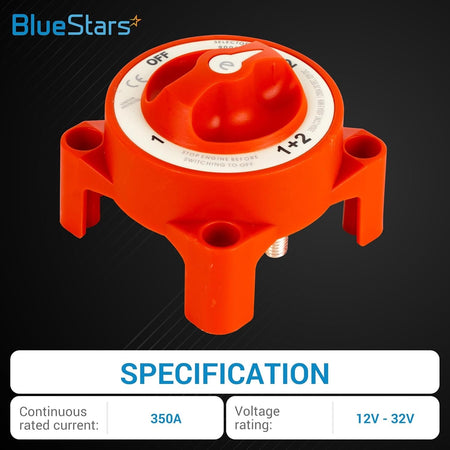

- Electrical Rating: 350A continuous, 600A intermittent (5 min), 1200A cranking (30 sec).
- Voltage: Rated for up to 32V DC systems.

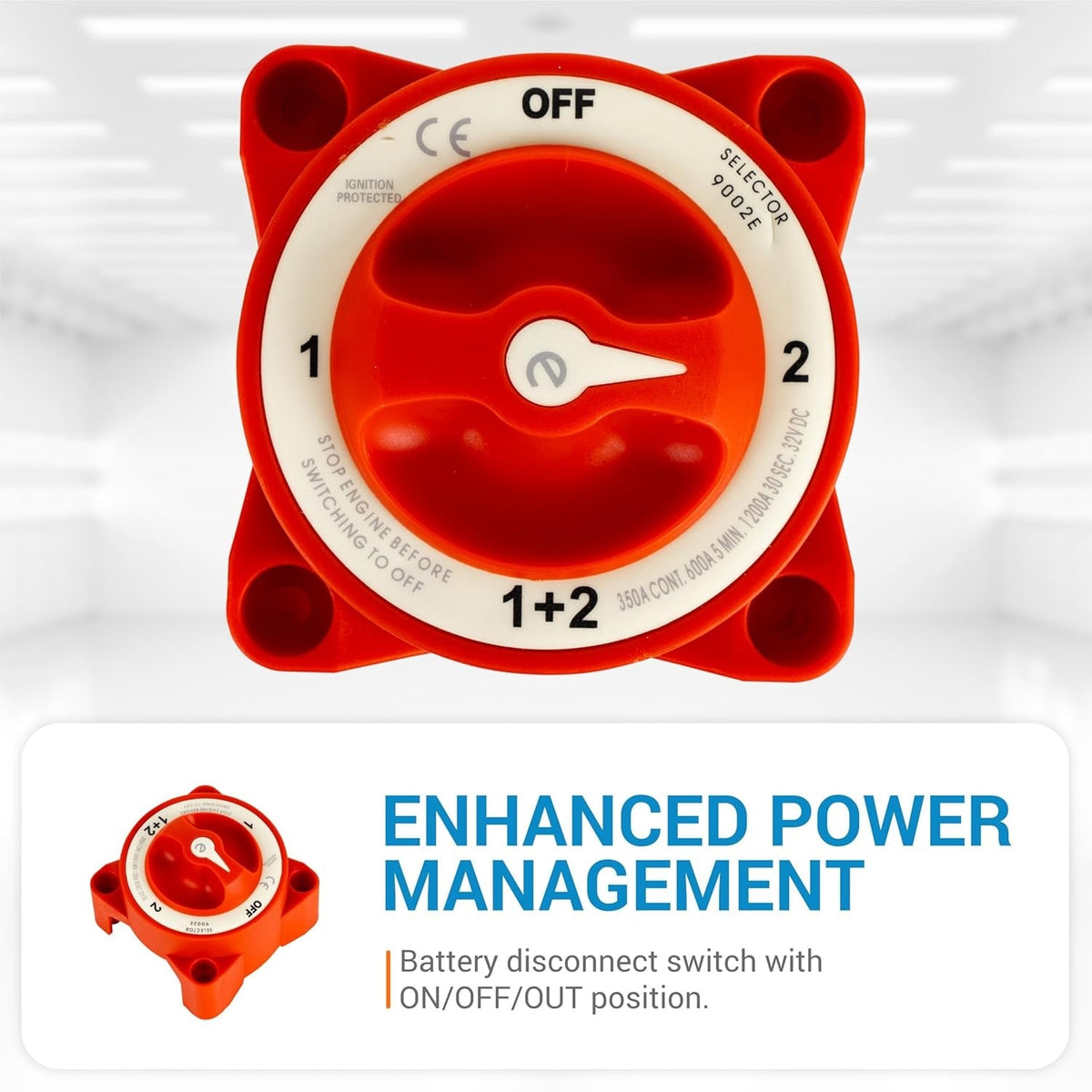

- Functionality: 4-position selector switches between two isolated battery banks or combines them for emergency starting or charging.
- Construction: Tin-plated copper studs for maximum conductivity and corrosion resistance.
- Design: Continuous contact design allows switching between battery banks without power interruption.
- Safety: Ignition protected (ISO 8846) and waterproof (IP66) for use in marine engine compartments.
- Mounting: Case design allows for surface, rear panel, or front panel mounting options.
Replaces / Cross-Reference Part Numbers
- 9002E
- Blue Sea Systems 9002E
Compatibility & Fitment
- Application: Designed for marine vessels, RVs, and heavy-duty vehicles with multi-battery systems.
- System Voltage: Compatible with 12V, 24V, and 32V DC electrical systems.
- Terminals: Accepts 3/8"-16 (M10) ring terminals.
When to Replace
- Switch fails to make a reliable connection, causing intermittent power.
- Physical damage to the housing, terminals, or selector knob.
- Signs of overheating, arcing, or melting at the terminals.
- Selector knob becomes excessively stiff, loose, or will not engage in a set position.
Installation Tips
- Disconnect all battery negative terminals before starting the installation.
- Use marine-grade wiring and terminal lugs sized appropriately for the system's amperage.
- Ensure all cable connections are clean and tighten terminal nuts to the manufacturer's specified torque.
- Mount the switch in an accessible location, protected from direct spray and physical impact.
- After installation, test all switch positions to confirm correct operation before reconnecting loads.
-
PERFECT FIT
Our product is suitable for a Boats, Marines, Cars, Vehicles, Campers, RV, Motorcycles, Yachts battery, and other engine applications. -
PREVENTS BATTERY DRAIN
Our product prevents unnecessary drain when the vehicle is not in use, useful for long periods of inactivity. -
SAVING SOLUTION
BlueStars brings DIY solutions to help you deal with any trouble! -

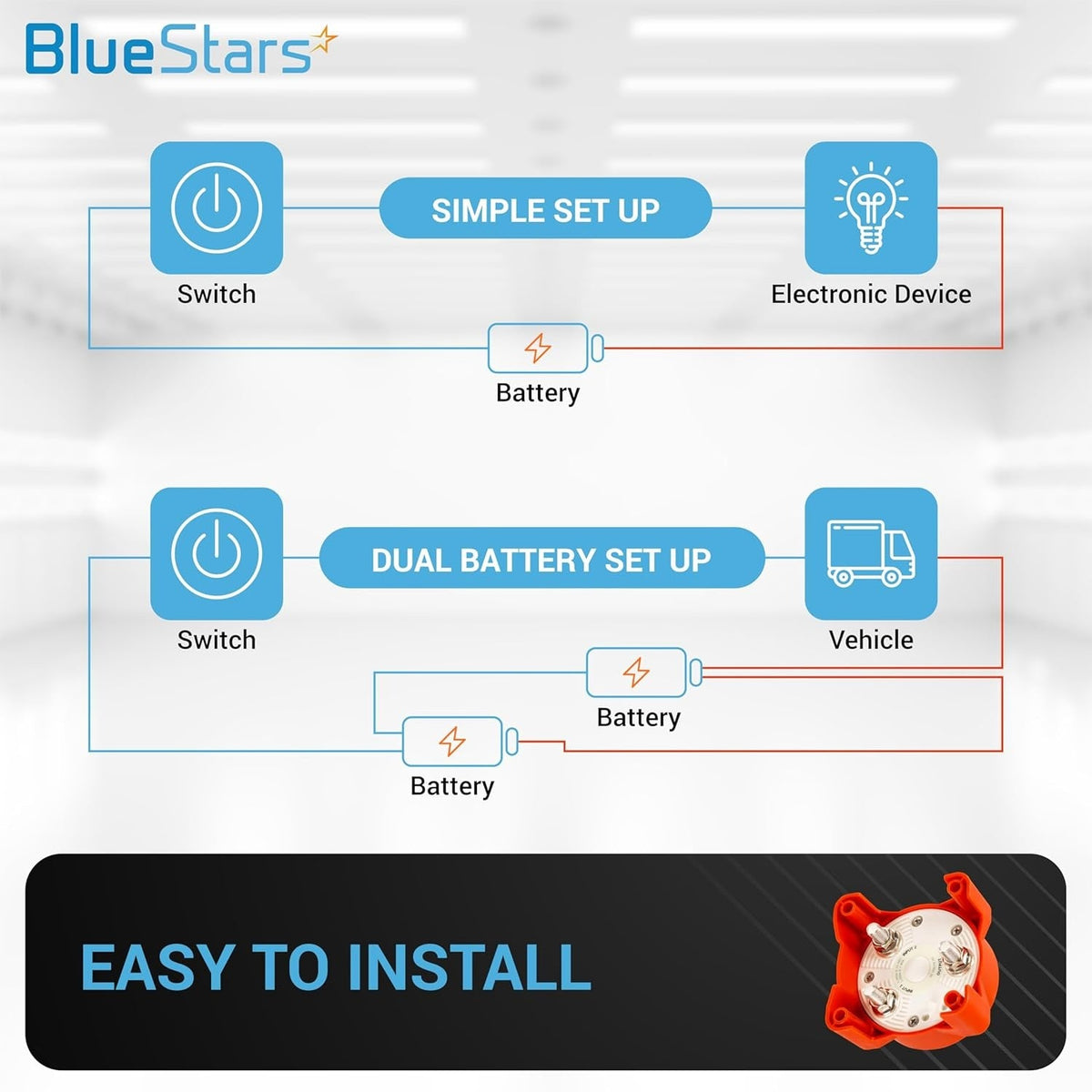

SIMPLE INSTALLATION
Our Battery Switch is designed to be easily install, allowing for quick and convenient maintenance.

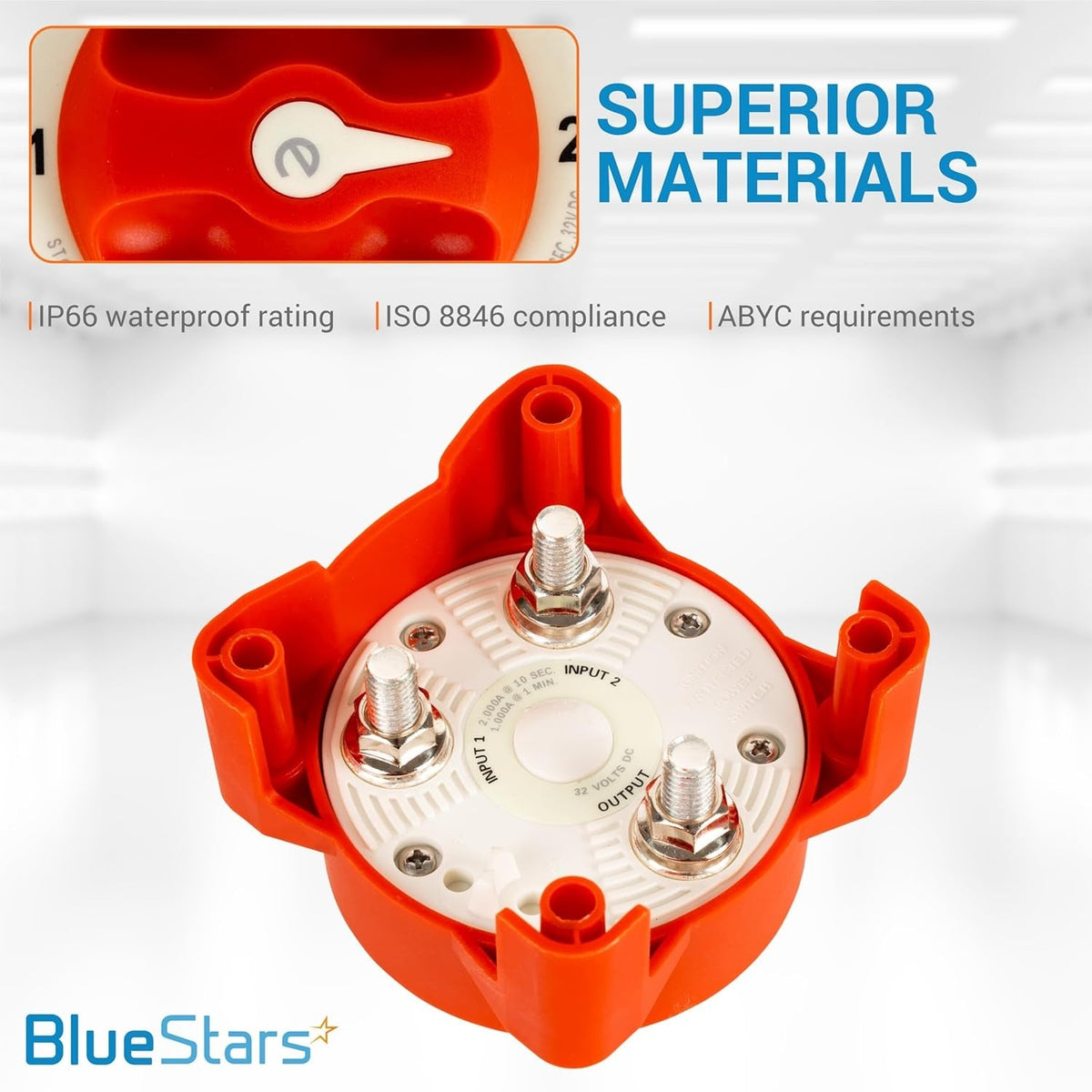

SUPERIOR MATERIALS
The battery switch features durable heavy-duty housing constructed from Stainless Steel Studs.
