340-408 uF MFD 220-250 VAC ±20% Round Start Capacitor 50/60 Hz - Fits Single-Phase Motors, Gear Motors
0.00
Regular price
$15.59
Regular price
Save 11%
$17.46
Sale price
$15.59
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

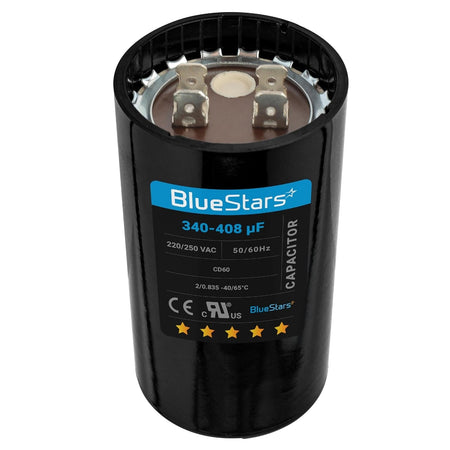

340-408 uF MFD 220-250 VAC ±20% Volts Round Start Capacitor 50/60 Hz AC Electric
Key Features
- Capacitance: 340-408 Microfarads (uF/MFD)
- Voltage Rating: 220-250 Volts AC (VAC)
- Frequency: 50/60 Hertz (Hz)
- Capacitance Tolerance: ±20%
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Shape: Round
- Case Material: Moisture and oil-resistant plastic

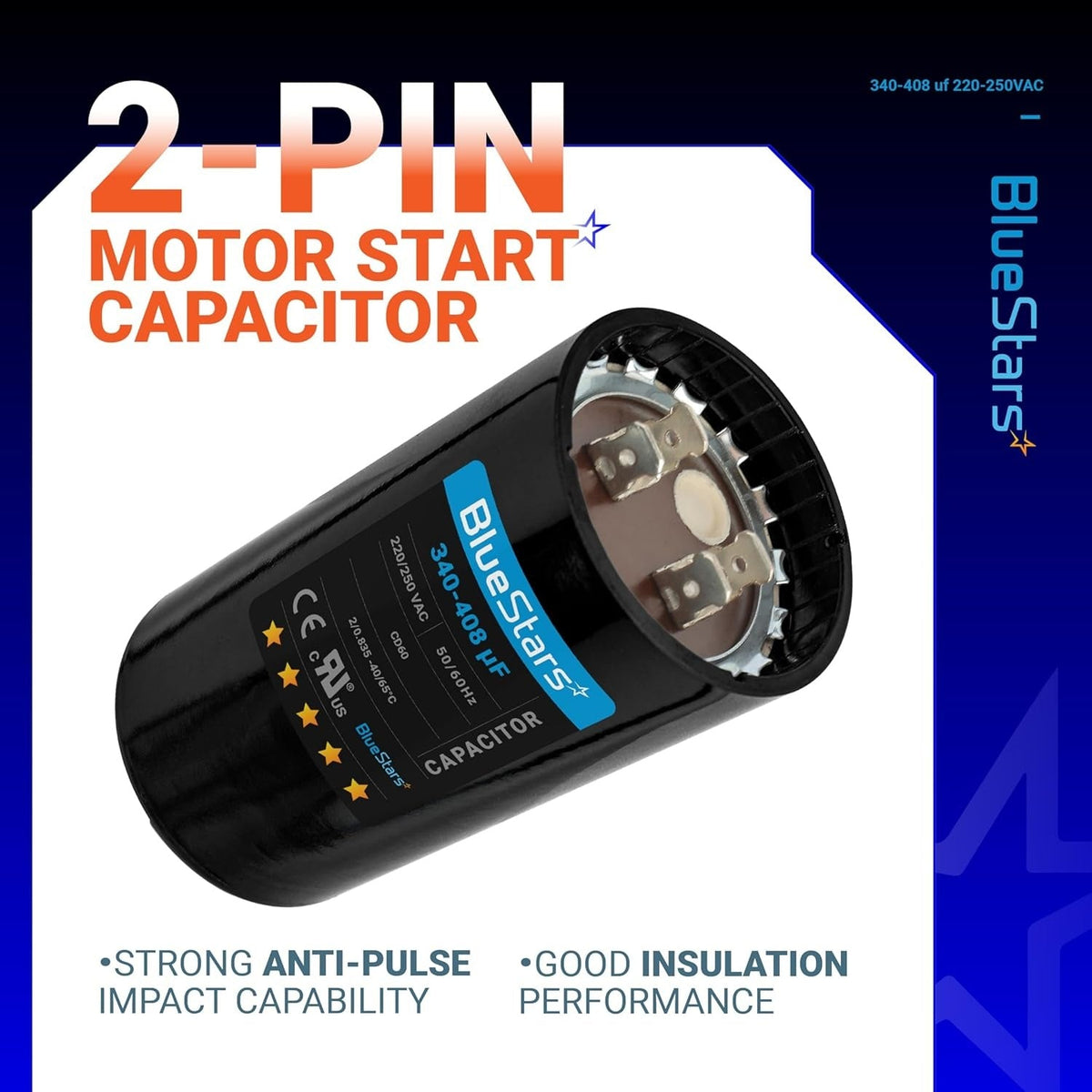

- Terminals: 1/4 inch male quick-disconnect

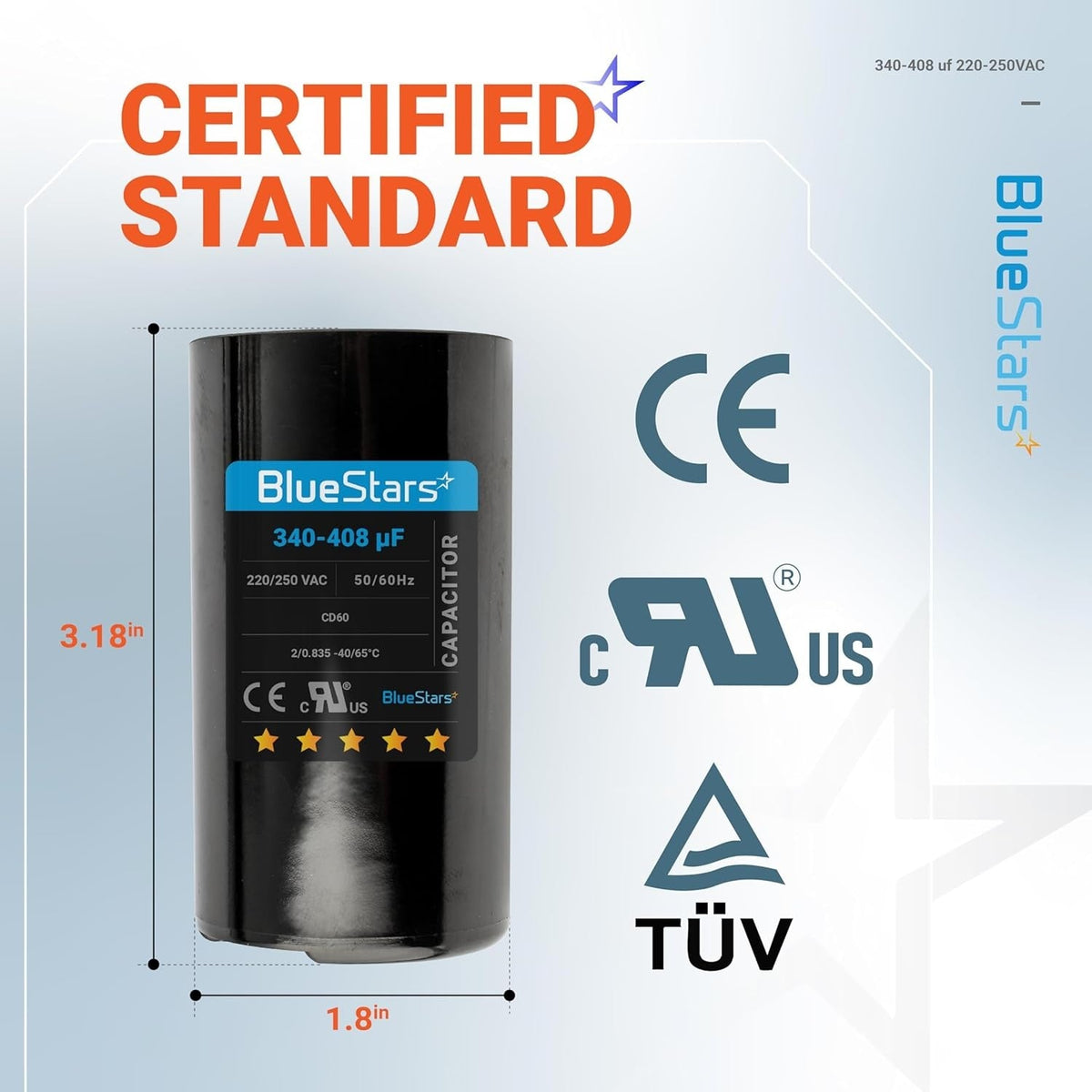

- Dimensions: 1.75 in Diameter x 3.38 in Height (44.5 mm x 86 mm)
Replaces / Cross-Reference Part Numbers
- Universal replacement for any round motor start capacitor with matching capacitance and voltage specifications.
- Commonly designated as a CD60 type capacitor.
Compatibility & Fitment
- Designed for single-phase AC electric motors that require a start capacitor.
- Applications include HVAC units, air compressors, well pumps, and various other electric motors.

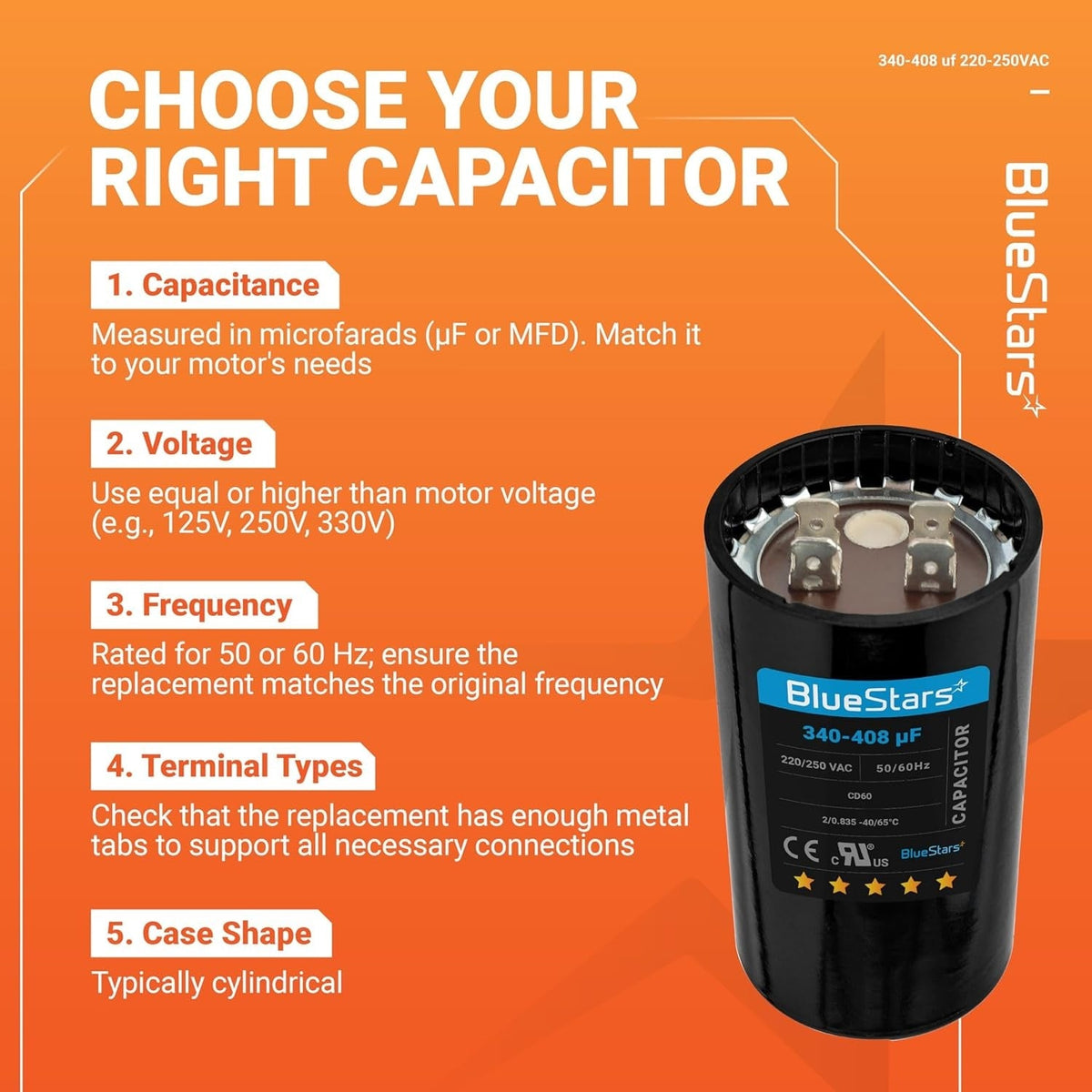

- To ensure compatibility, the replacement capacitor's uF/MFD range must match the original part's specification.
- The voltage rating of this capacitor (220-250 VAC) must be equal to or greater than the voltage rating of the capacitor being replaced.
When to Replace
- The motor hums but does not start.
- The motor starts slowly or requires manual assistance to turn over.
- The circuit breaker trips upon motor startup.
- The original capacitor shows physical signs of failure such as bulging, cracking, or leaking fluid.
Installation Tips
- Disconnect all electrical power to the unit before performing installation.
- Safely discharge the existing capacitor by carefully shorting its terminals with a resistor or an insulated-handle screwdriver.
- Note the wiring configuration before removing the old capacitor.
- As a non-polarized AC capacitor, wires can be connected to either terminal.
-
Perfect fit
Universal fit with any brands with the same ratings -
Premium quality

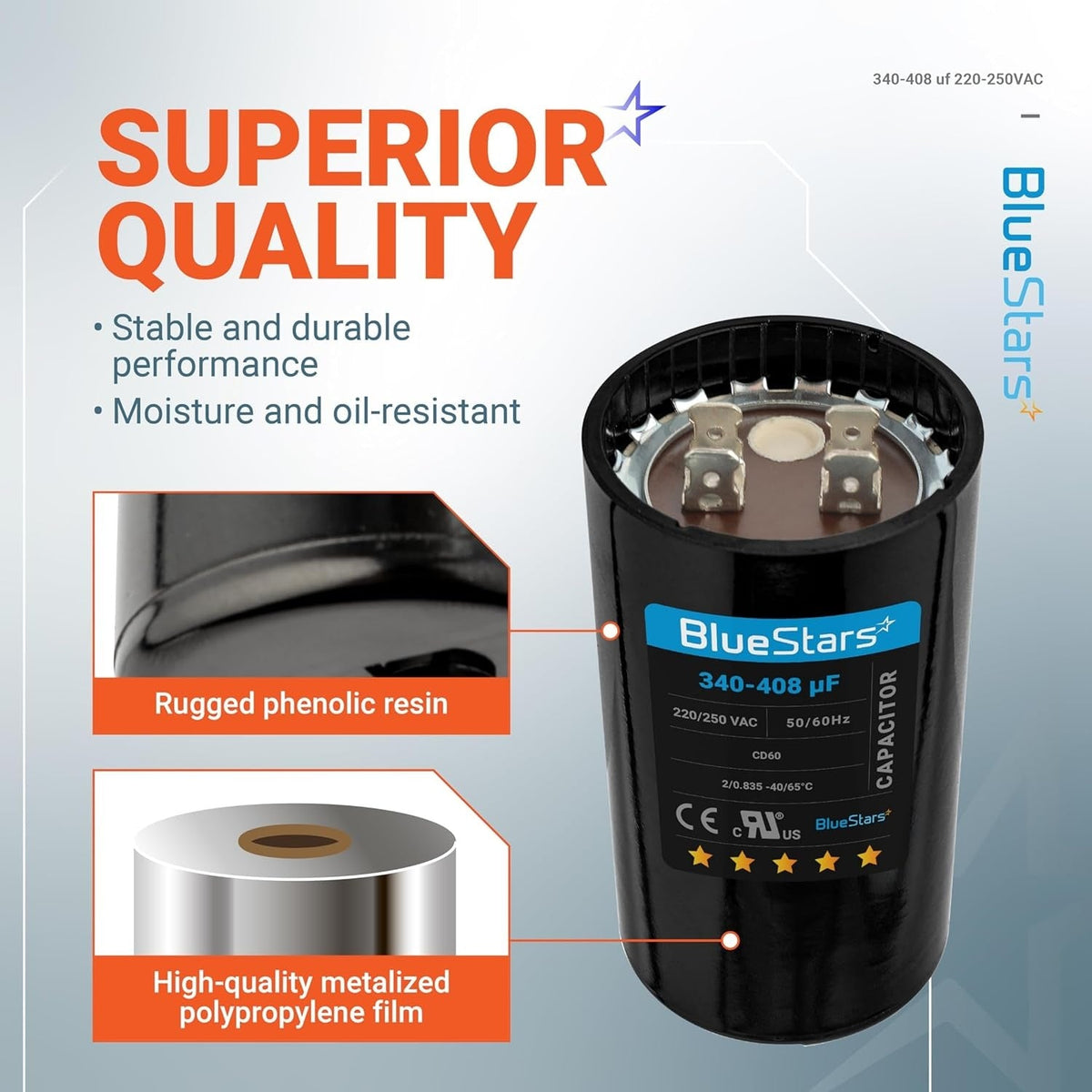

This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
