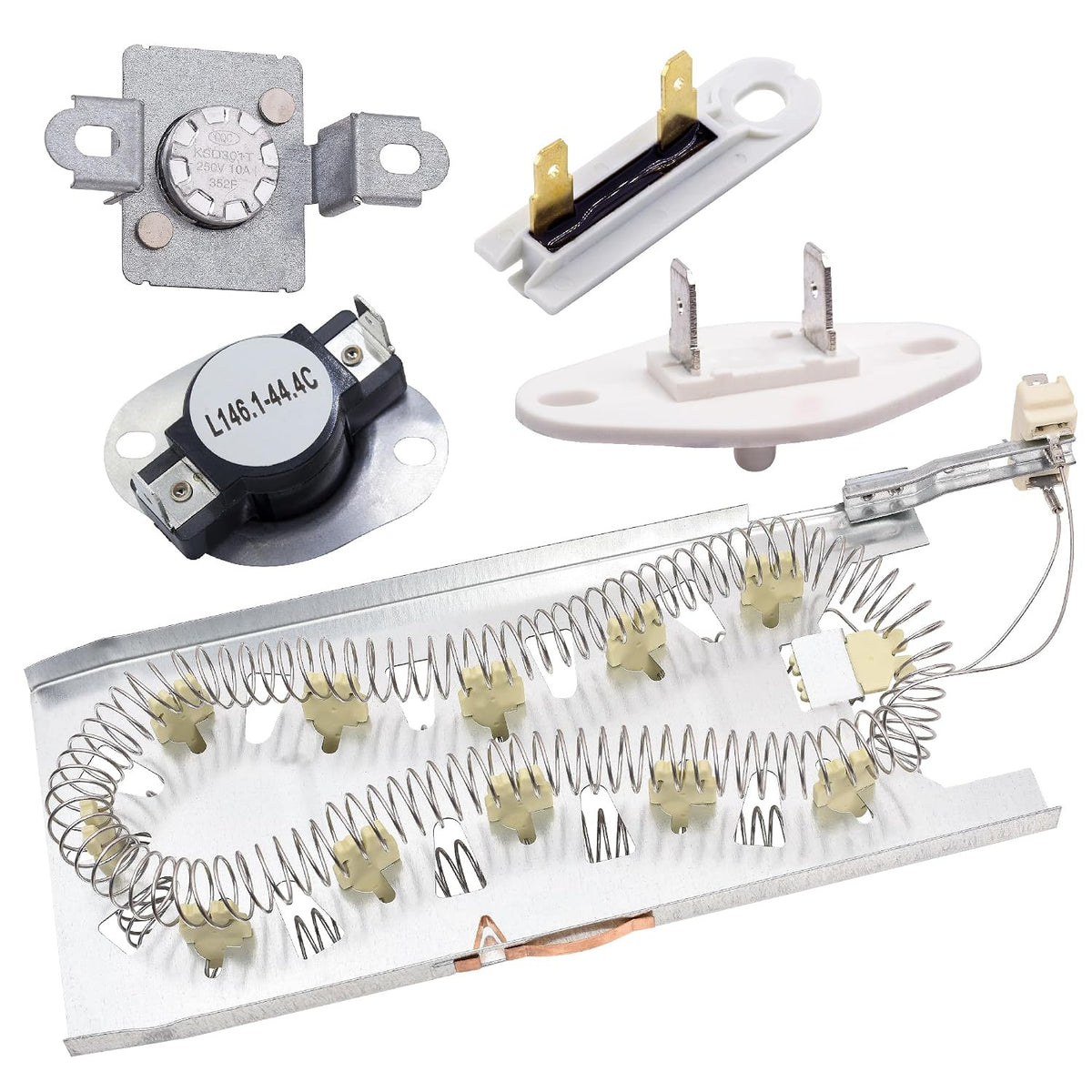

3387747 Dryer Heating Element kit with 3392519/279973 thermal fuse and 8577274 thermistor, product view
3387747 Dryer Heating Element, 3392519 Thermal Fuse, 8577274 Thermistor; dryer graphic and replacement parts

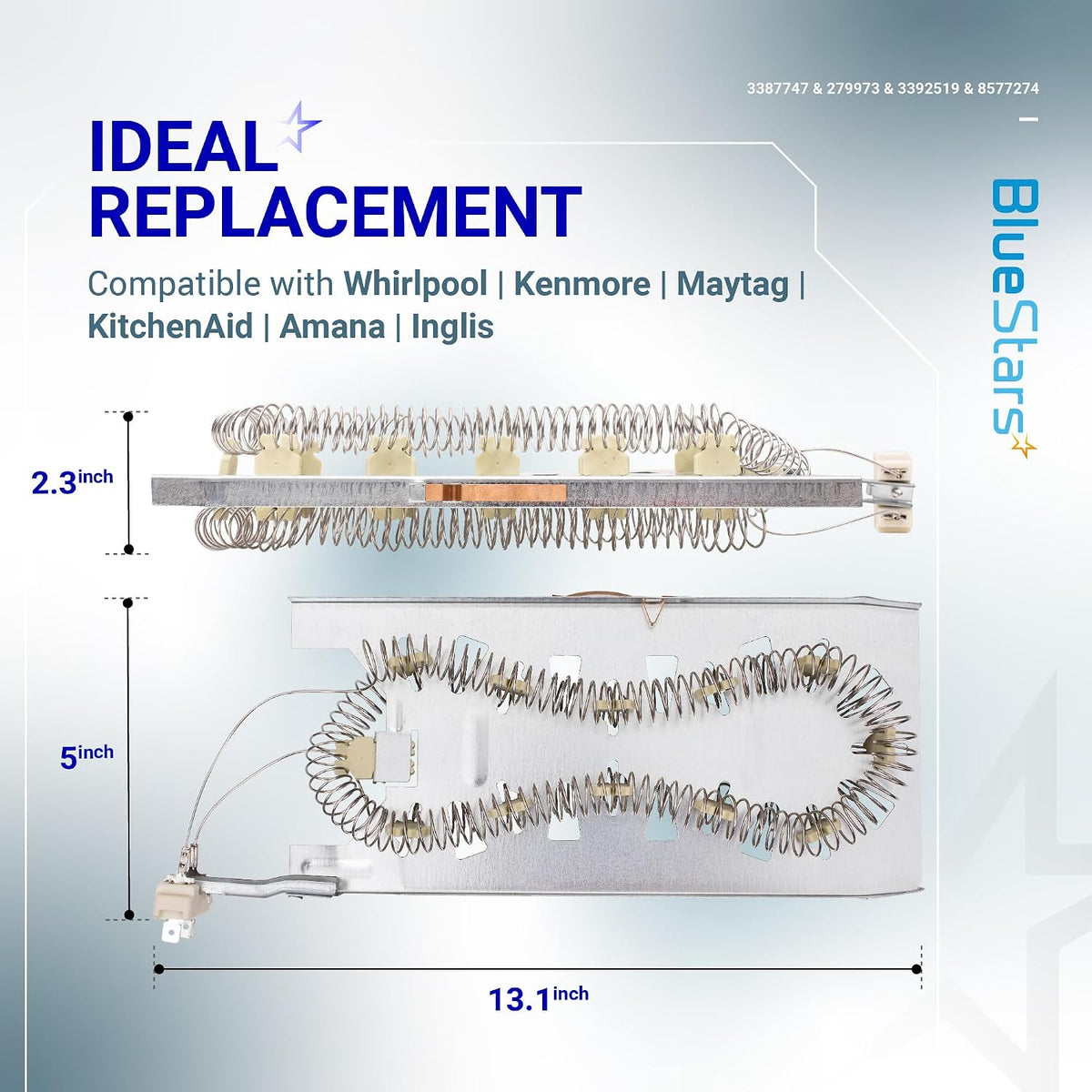

3387747 Dryer Heating Element, dimension diagram showing 2.3-inch and 5-inch elements with a 13.1-inch length

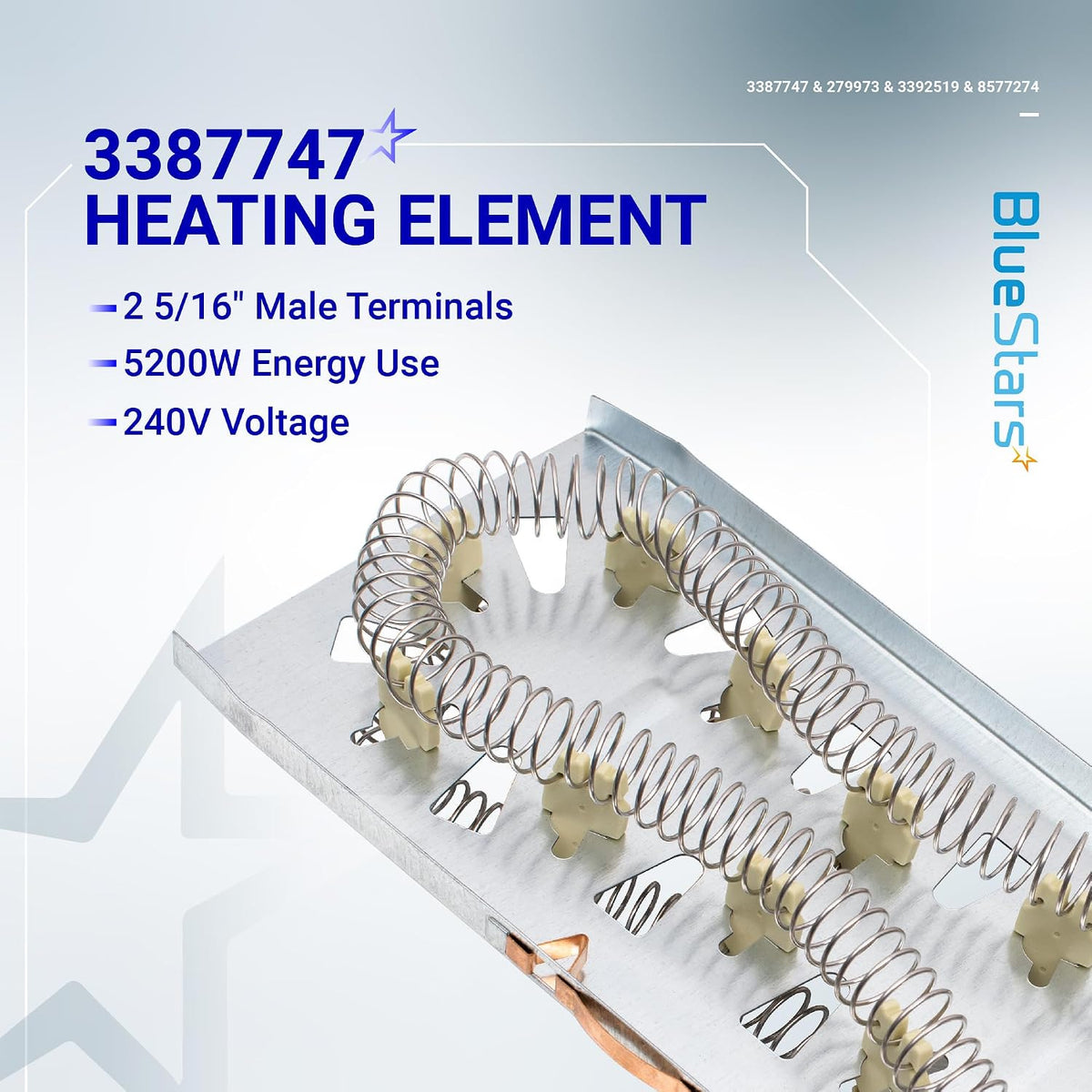

3387747 Heating Element, close-up product graphic showing coil assembly and listed 2 5/16-inch male terminals, 5200W, 240V

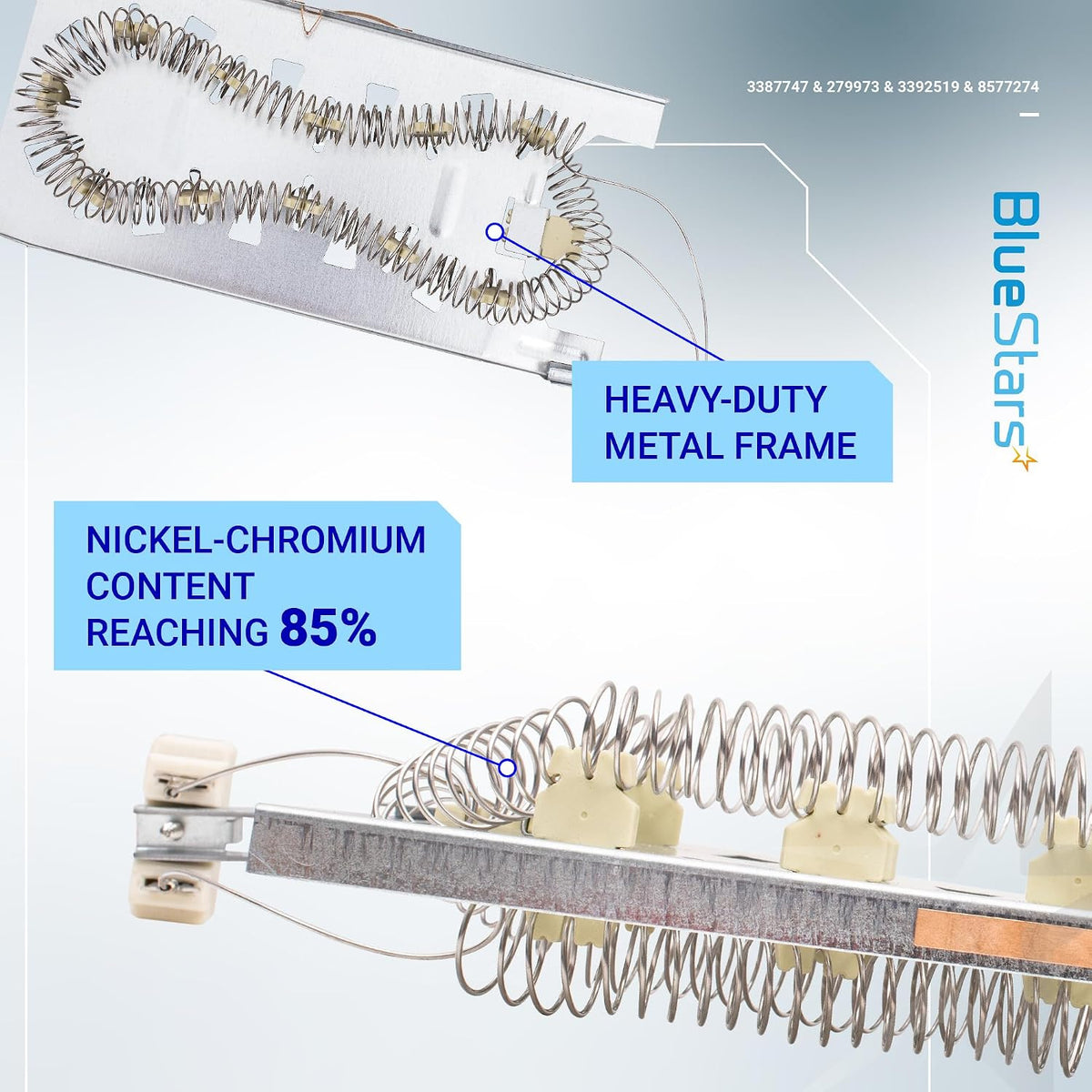

3387747 Dryer Heating Element close-up with heavy-duty metal frame and nickel-chromium coil callouts

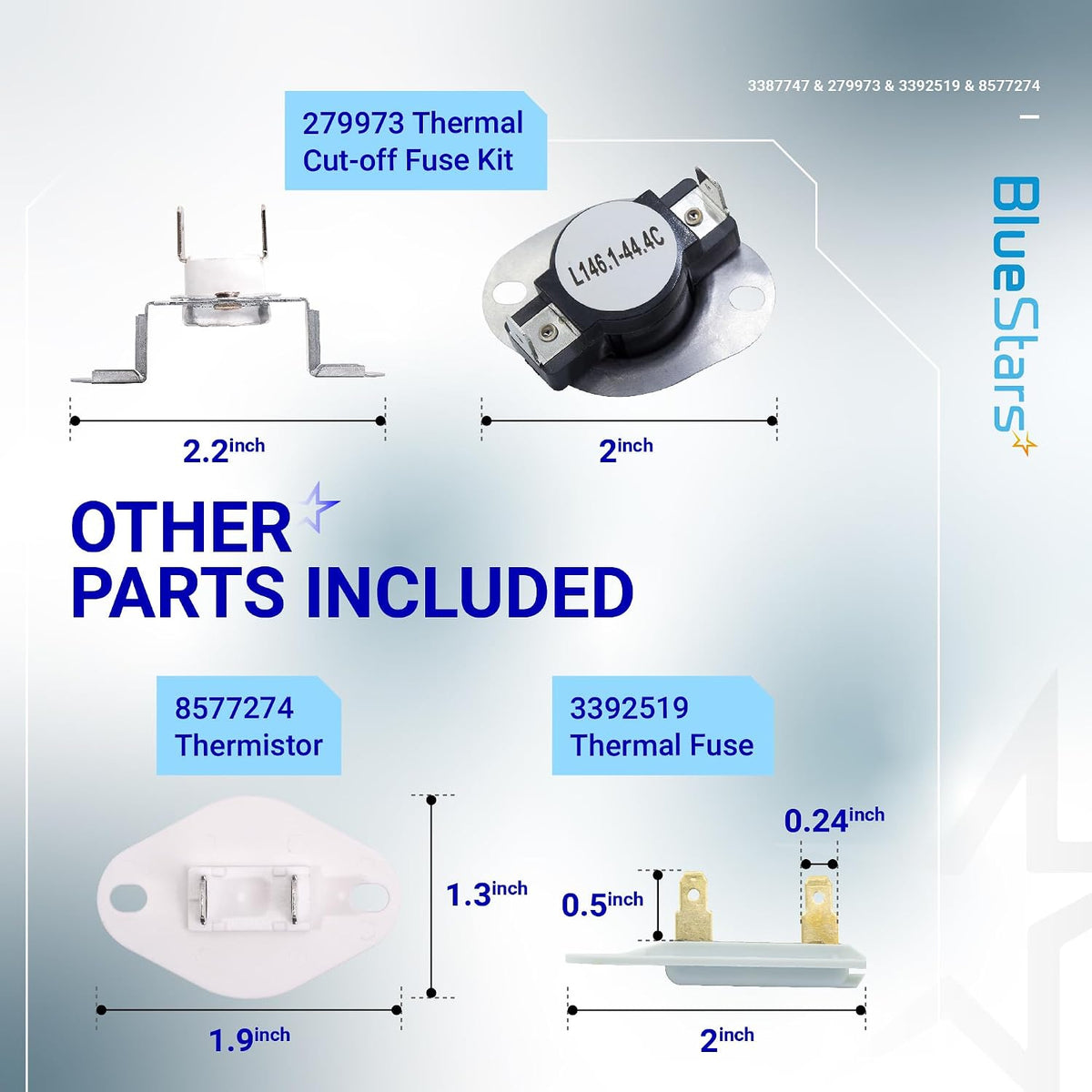

3387747 Dryer Heating Element graphic with 279973 thermal cutoff kit, 8577274 thermistor and 3392519 thermal fuse dimensions
3387747 Dryer Heating Element shown in a promotional graphic with a family folding laundry and the coiled element assembly
3387747 Dryer Heating Element kit with 3392519/279973 thermal fuse and 8577274 thermistor, product view
3387747 Dryer Heating Element, 3392519 Thermal Fuse, 8577274 Thermistor; dryer graphic and replacement parts
3387747 Dryer Heating Element, dimension diagram showing 2.3-inch and 5-inch elements with a 13.1-inch length
3387747 Heating Element, close-up product graphic showing coil assembly and listed 2 5/16-inch male terminals, 5200W, 240V
3387747 Dryer Heating Element close-up with heavy-duty metal frame and nickel-chromium coil callouts
3387747 Dryer Heating Element graphic with 279973 thermal cutoff kit, 8577274 thermistor and 3392519 thermal fuse dimensions
3387747 Dryer Heating Element shown in a promotional graphic with a family folding laundry and the coiled element assembly

3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore

0.00
$49.10
Save 11% $54.99
$49.10
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & Thermal Cut Off Kit & 8577274 Thermistor Kit

Key Features

  • Complete kit to repair common dryer heating and starting issues.
  • Heating Element (3387747): Rated at 5400 Watts, 240 Volts, with 5/16-inch male terminals.
  • Thermal Fuse (3392519): Non-resettable, single-use fuse.
  • Thermal Cut-Off Kit (279973): Includes a high-limit thermostat and a thermal cut-off fuse.
  • Thermistor (8577274): Senses dryer temperature to regulate the heat level.

Replaces / Cross-Reference Part Numbers

  • Heating Element: 3387747, AP6008281, WP3387747, 8544771, PS11741416
  • Thermal Fuse: 3392519, AP6008325, 80005, 694511, ET401, PS11741460, WP3392519
  • Thermal Cut-Off Kit: 279973, AP6007424, 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, AH334387, EA334387, PS334387
  • Thermistor: 8577274, AP6013514, PS11746740, W10184582, WP8577274

Compatibility & Fitment

  • Designed for use with dryers from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Roper, and Amana.
  • Direct replacement for numerous electric dryer models.
  • Verify compatibility by checking your appliance's model number or the part number of the component being replaced.

When to Replace

  • Dryer will not start.
  • Dryer produces no heat or insufficient heat.
  • Drying cycles take an excessive amount of time.
  • Dryer shuts off prematurely during a cycle.
  • Dryer becomes excessively hot.

Installation Tips

  • Disconnect the dryer from its power supply before beginning any repairs.
  • It is recommended to replace the thermal fuse, cut-off, and thermostat when replacing the heating element.
  • Thoroughly clean the dryer vent housing and exhaust duct of lint and debris to prevent overheating.
  • Document or photograph the existing wire connections before removal to ensure correct placement on the new parts.
3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 1
3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 2
  • 3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 1

    279973 Dryer Thermal Cut-Off Kit

    Functions: The 279973 Dryer Thermal Cut-Off Fuse acts as a safety mechanism that keeps the dryer from overheating and the fuse is like a backup system - it's set to trip at a higher temperature than the thermostat. Once it trips, it has to be replaced. Replaces part numbers: 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, AP3094323, PS334387.
  • 3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 2

    3392519 Dryer Thermal Fuse

    Functions: The thermal fuse stops the flow of electricity to the motor circuit when a dryer overheats. Replaces part numbers: 3388651, 694511, 80005, WP3392519VP.
  • 3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 3

    8577274 Dryer Thermistor

    Functions: The 8577274 Dryer Thermistor prevents the dryer from overheating by controlling the temperature inside of the dryer drum. Replaces part numbers: 3390292, 3406294, 3976615, 772546, WP8577274, WP8577274VP, PS11746740, AP3919451, PS993287.
  • 3387747 Dryer Heating Element & 3392519 279973 Thermal Fuse & 8577274 Thermistor - For Whirlpool Kenmore 4

    Perfect Fit

    Compatible with most top brands (Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Inglis, Crosley), and replaces part numbers: WP3387747, 80003, W11045584, WP3387747VP, AP2947033, 525502, AH344597, EA344597, PS344597.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This kit is compatible with a wide range of dryers produced by Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Estate, Inglis, Crosley, and Magic Chef. It is designed to fit many models within the 110, MED, WED, and YMED series.
This kit covers several critical components: the heating element (3387747, WP3387747, 8527865), the thermal fuse (3392519, WP3392519, 3388651, 694511, 80005), and the thermistor (8577274, WP8577274, 3976615, 3390292, 3406294).
If your dryer runs but fails to produce heat, the heating element is the most likely culprit. If the dryer does not start at all, or if it runs but shuts off unexpectedly, the thermal fuse has likely blown. A faulty thermistor often causes the dryer to overheat or fail to regulate temperature correctly, leading to excessively long drying times or clothes that remain damp.
Heating elements often fail due to age or restricted airflow, which causes the element to overheat and break. Thermal fuses typically blow as a safety measure when the dryer overheats, often due to a clogged vent or lint buildup. It is highly recommended to replace the fuse and thermistor whenever you replace the heating element, as these parts work in tandem; if one has failed, the others are often nearing the end of their service life.
You will generally need a 1/4-inch nut driver, a flathead screwdriver, and a Phillips head screwdriver to access the internal components. For most users, this repair takes approximately 45 to 90 minutes. Always ensure the dryer is unplugged and the gas supply is turned off (if applicable) before beginning.
Before installing the new heating element and fuses, thoroughly clean your dryer's vent hose and the exhaust duct leading outside. A restricted vent is the most common root cause for heating element and thermal fuse failure. Ensuring proper airflow is essential to prevent the new parts from burning out prematurely.
