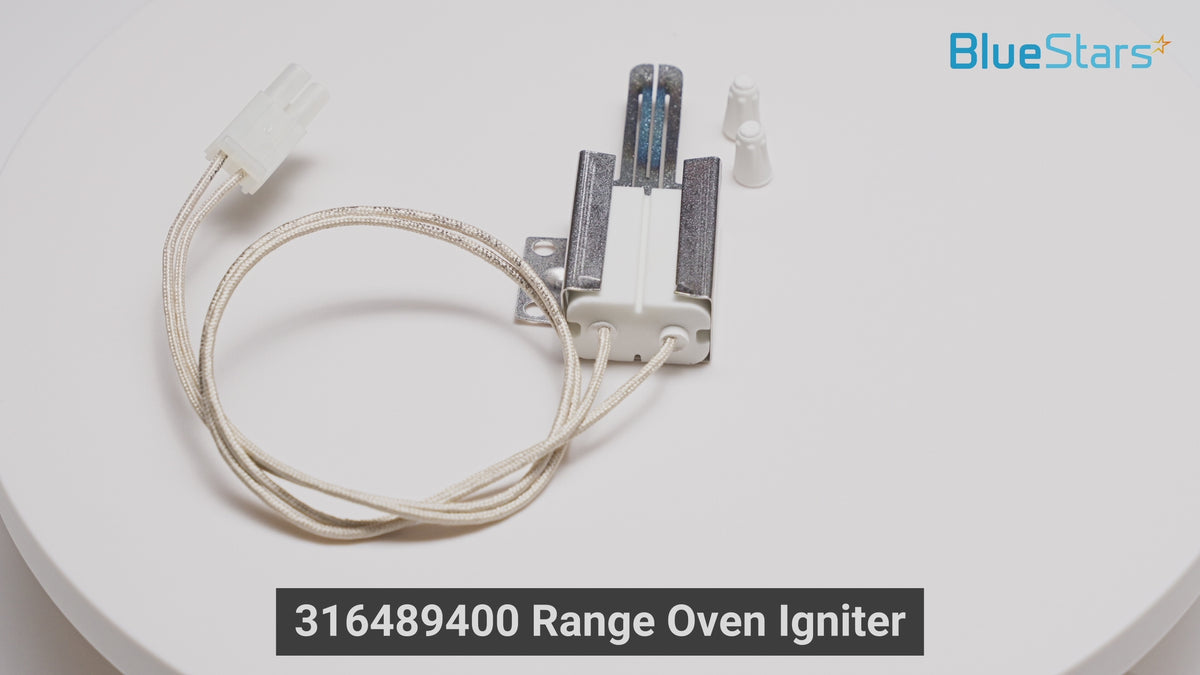

316489400 Range Oven Igniter for Frigidaire Kenmore Electrolux Crosley - Replaces 316428500 316428501 5304462661
0.00
Regular price
$30.67
Regular price
Save 13%
$35.27
Sale price
$30.67
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

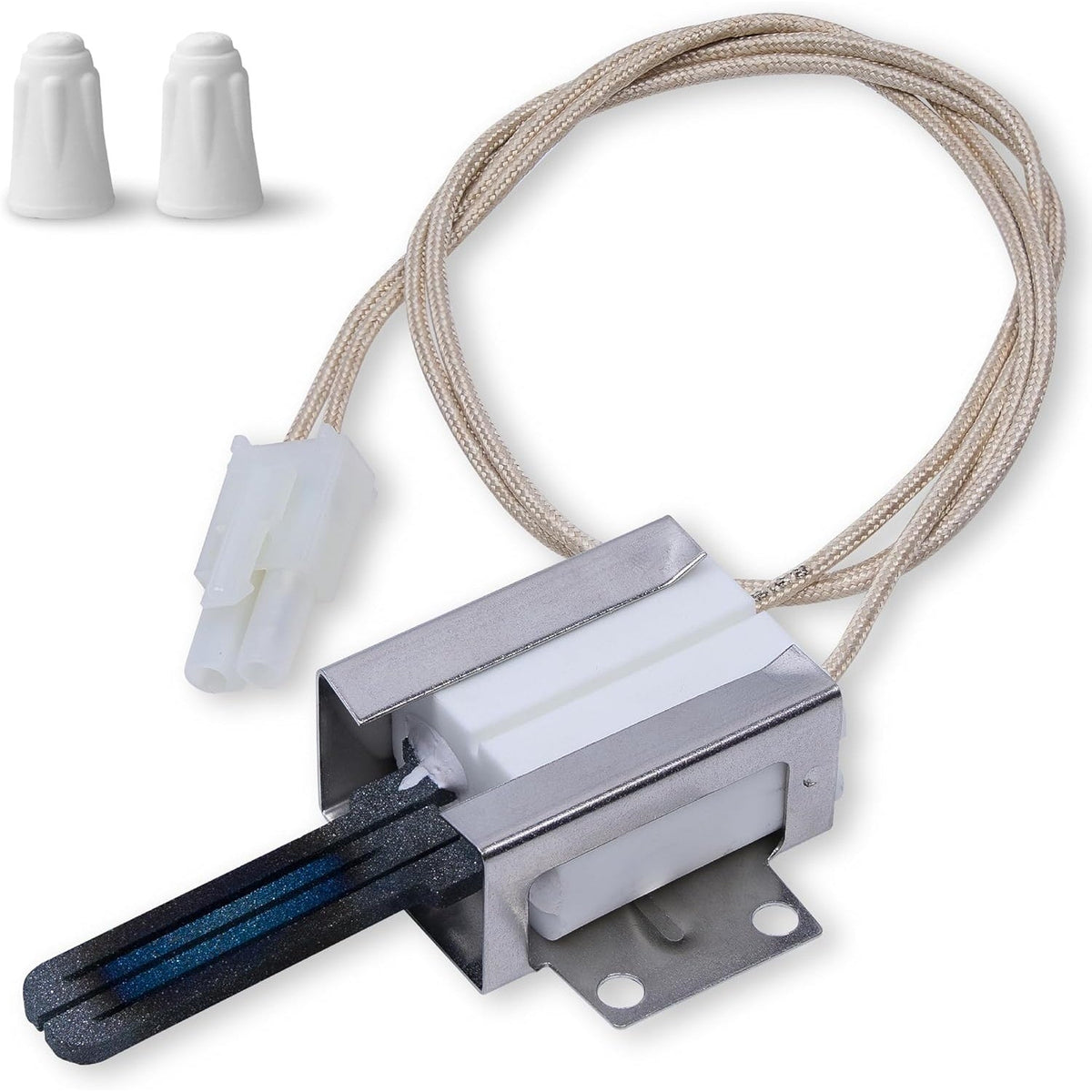

316489400 Range Oven Igniter Replacement
Key Features
- High-temperature silicon carbide heating element designed for rapid and reliable gas ignition.
- Integrated ceramic mounting block for stable positioning within the burner assembly.
- Equipped with a standardized two-pin plastic wiring connector for secure electrical termination.
- Engineered to reach the specific amperage required to safely open the oven gas valve.
- Protective metal cage design to shield the fragile heating element during handling and installation.

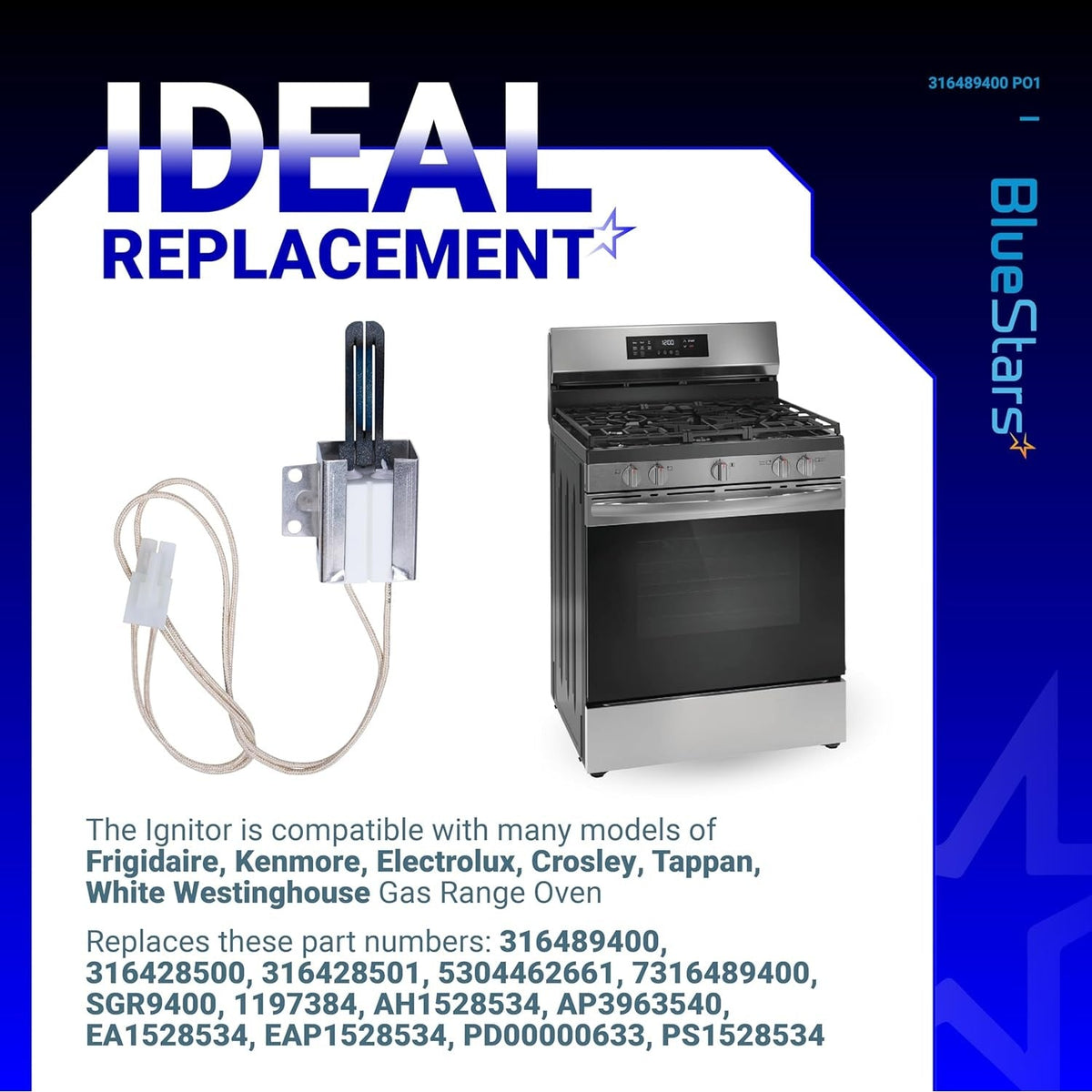

Replaces / Cross-Reference Part Numbers
- AP3963540
- PS1528534
- 316428500
- 316428501
- 5304462661
- 7316489400
- 1197384
- AH1528534
- EAP1528534
- PD00000633
Compatibility & Fitment
- Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Tappan, and White-Westinghouse ranges.
- Fits various freestanding gas ranges, slide-in models, and built-in gas ovens.
- Designed for use in both bake (lower) and broil (upper) burner configurations where specified.
When to Replace
- Oven fails to heat or takes an unusually long time to ignite the gas burner.
- Igniter glows orange but does not get hot enough to trigger the gas valve release.
- Visible cracks, breaks, or white chemical "burn" spots on the dark gray heating element.
- The element does not glow at all when the oven is set to a bake or broil cycle.
- Multimeter testing shows no continuity across the igniter terminals.

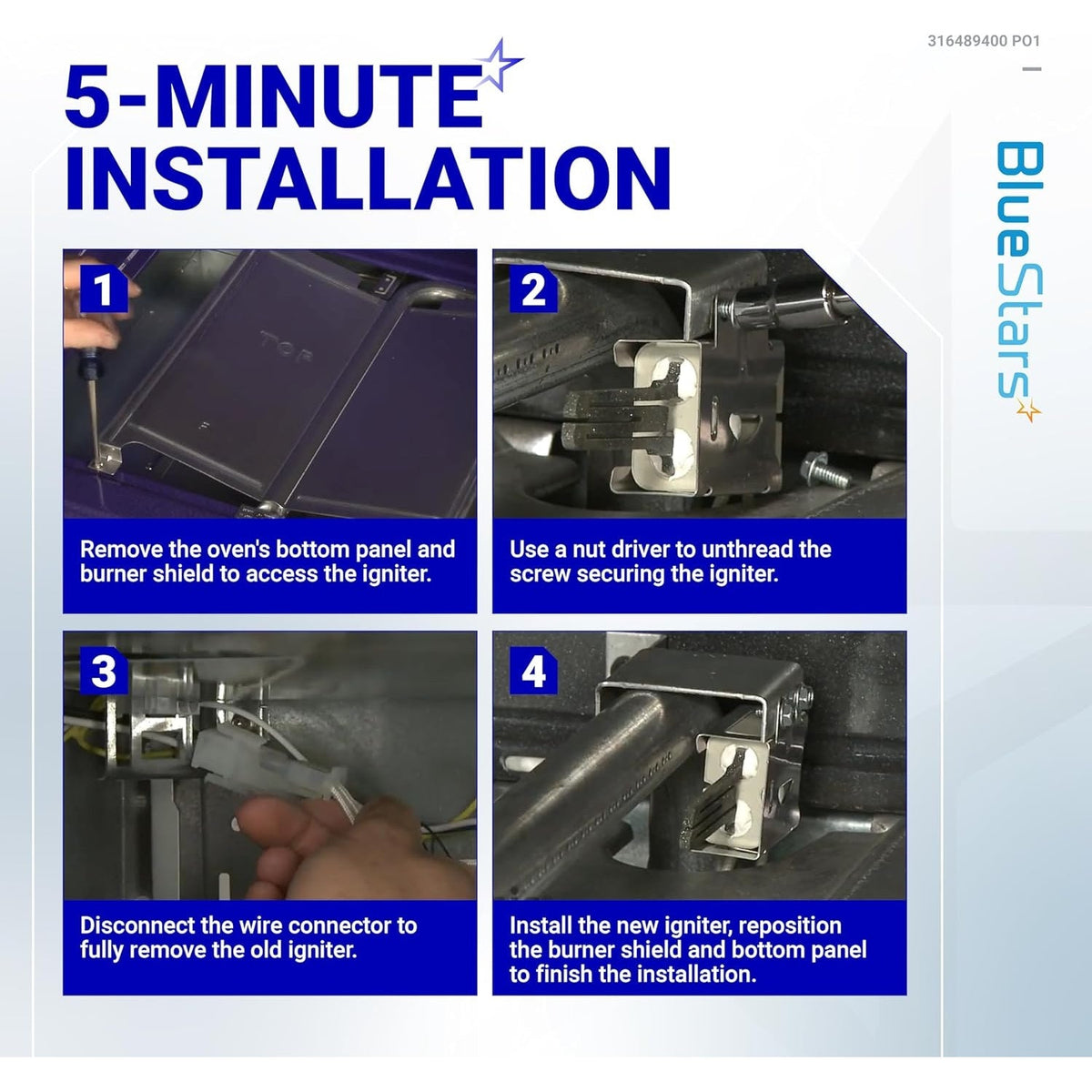

Installation Tips
- Disconnect the appliance from the power source and shut off the gas supply before beginning.
- Remove oven racks and the bottom floor panel to access the burner assembly.
- Handle the new igniter only by the ceramic base; do not touch the gray heating element, as skin oils can cause premature failure.
- Unplug the existing wiring harness and remove the mounting screws (typically 1/4 inch hex head).
- Secure the new igniter in the exact same orientation as the original to ensure proper flame travel.
- Reconnect the wiring harness and ensure no wires are touching the burner or metal shielding before reassembling.
-

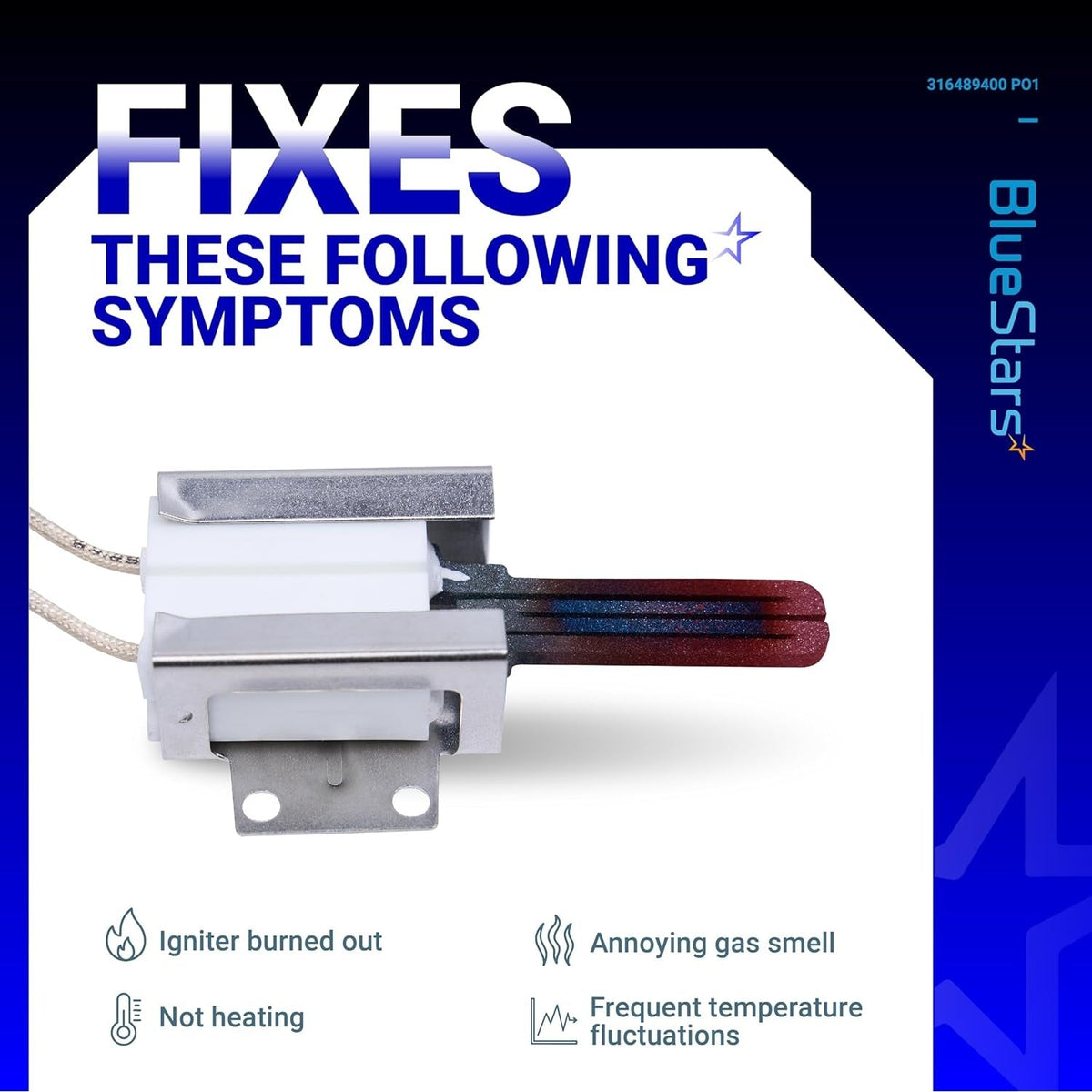

FIXING SYMPTOMS
Igniter burned out | Not heating | Annoying gas smell | Frequent temperature fluctuations -

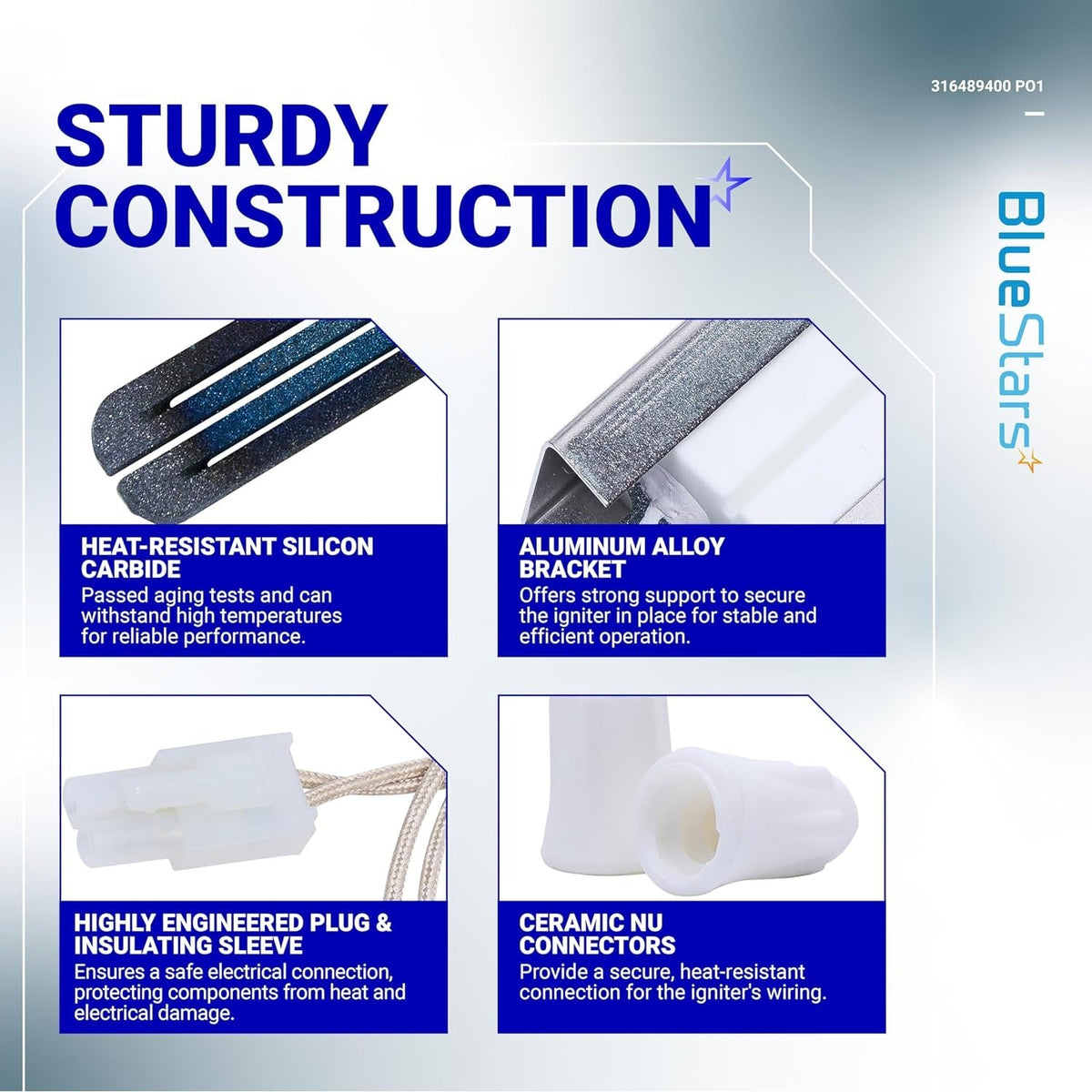

DURABLE MATERIAL
This Igniter is made of heat-resistant silicon carbide with aluminum alloy bracket housing for reliable performance. -
BEST SOLUTION
Enjoy the great feeling when your range is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble -
SIMPLE INSTALLATION
The Igniter is designed to be easily removed and replaced, allowing for quick and convenient maintenance.
ENJOY YOUR MEALS RIGHT AWAY!

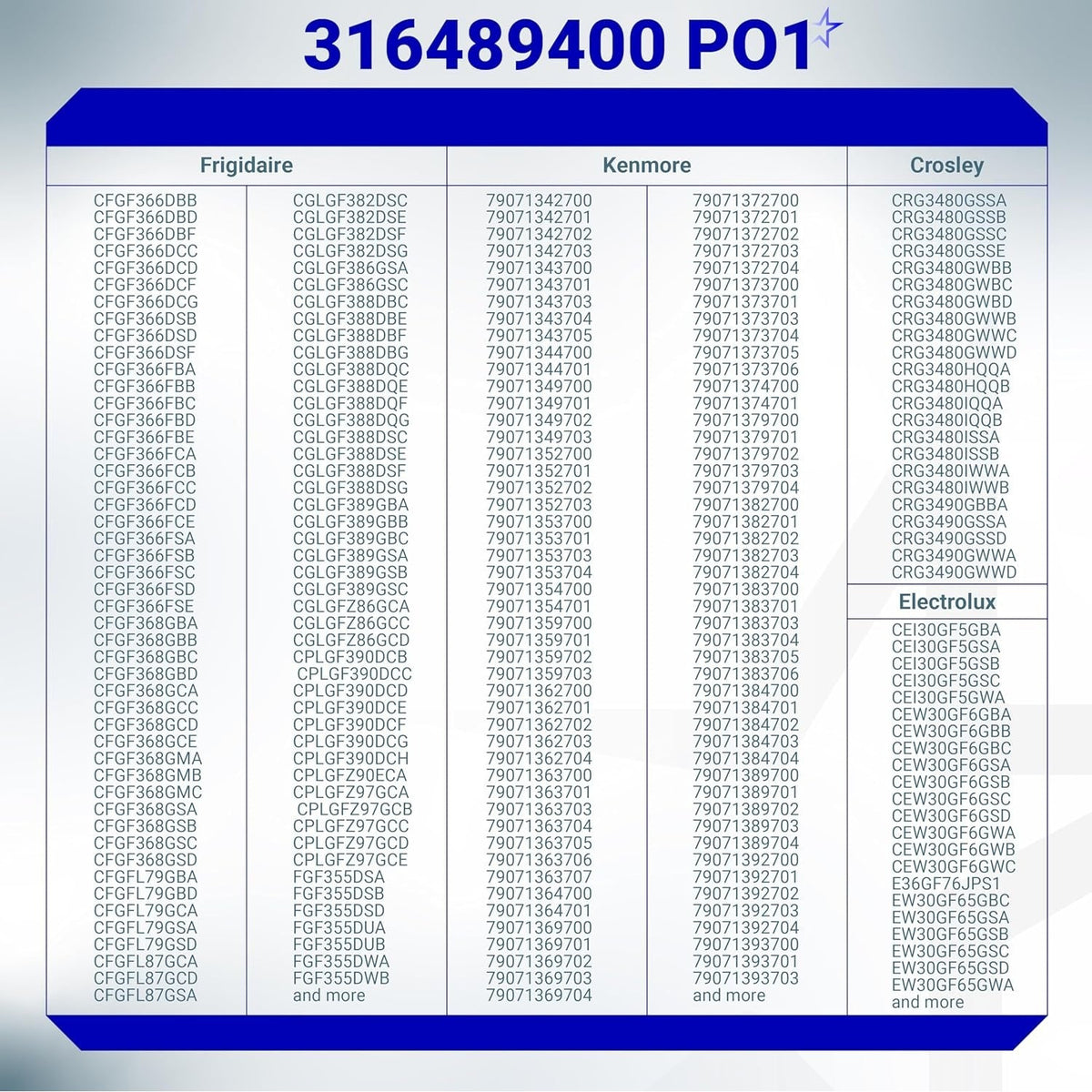

Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…

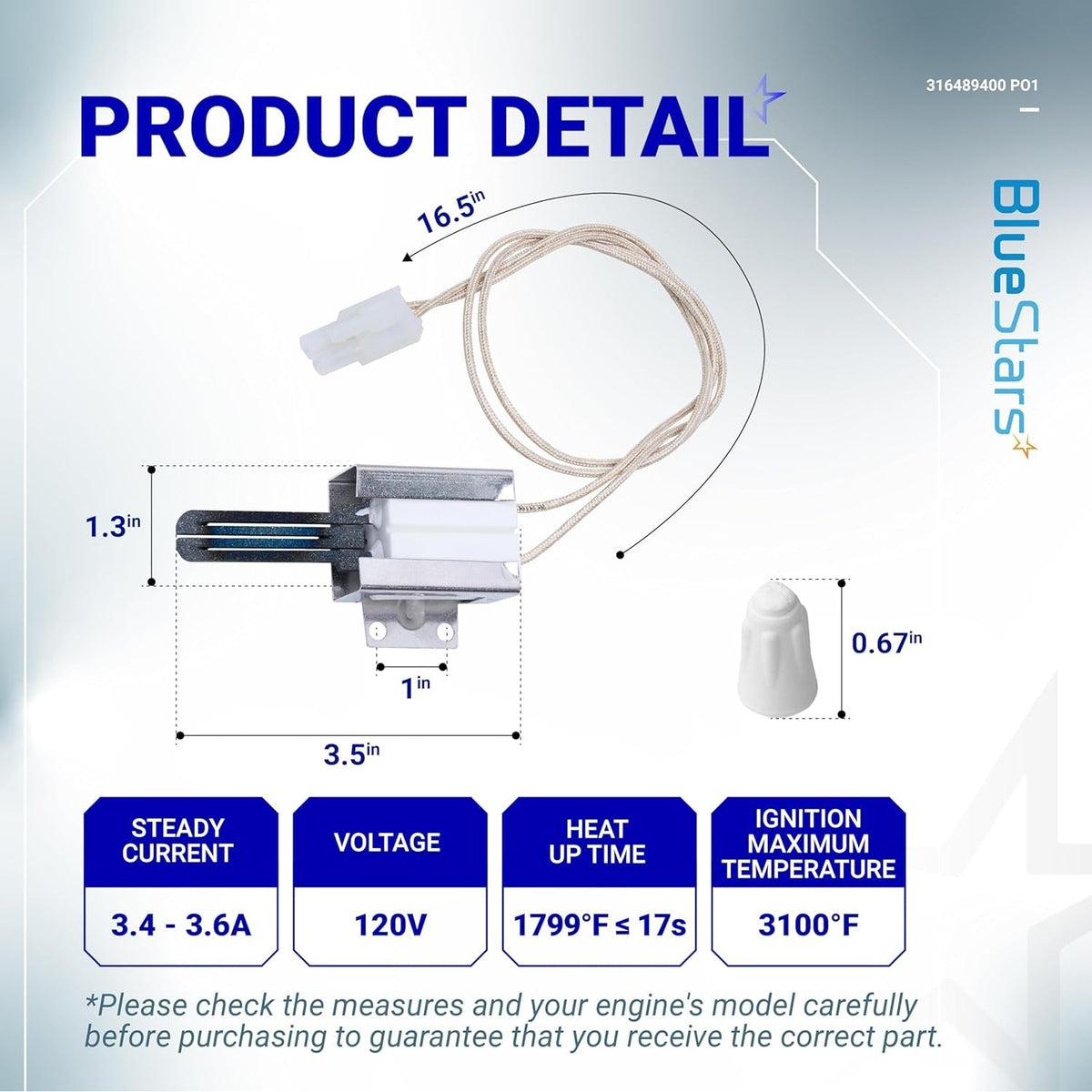

Material
Ceramic / Metal / Plastic
Style
Flat Glow Bar (Bake Ignitor)
Amperage
3.4 – 3.6A
Cage / Bracket Dimensions
3-1/2 x 1-3/4 x 13/16 inches
Ceramic Block Length
1-1/2 inches
Lead Length
15-3/4 inches
