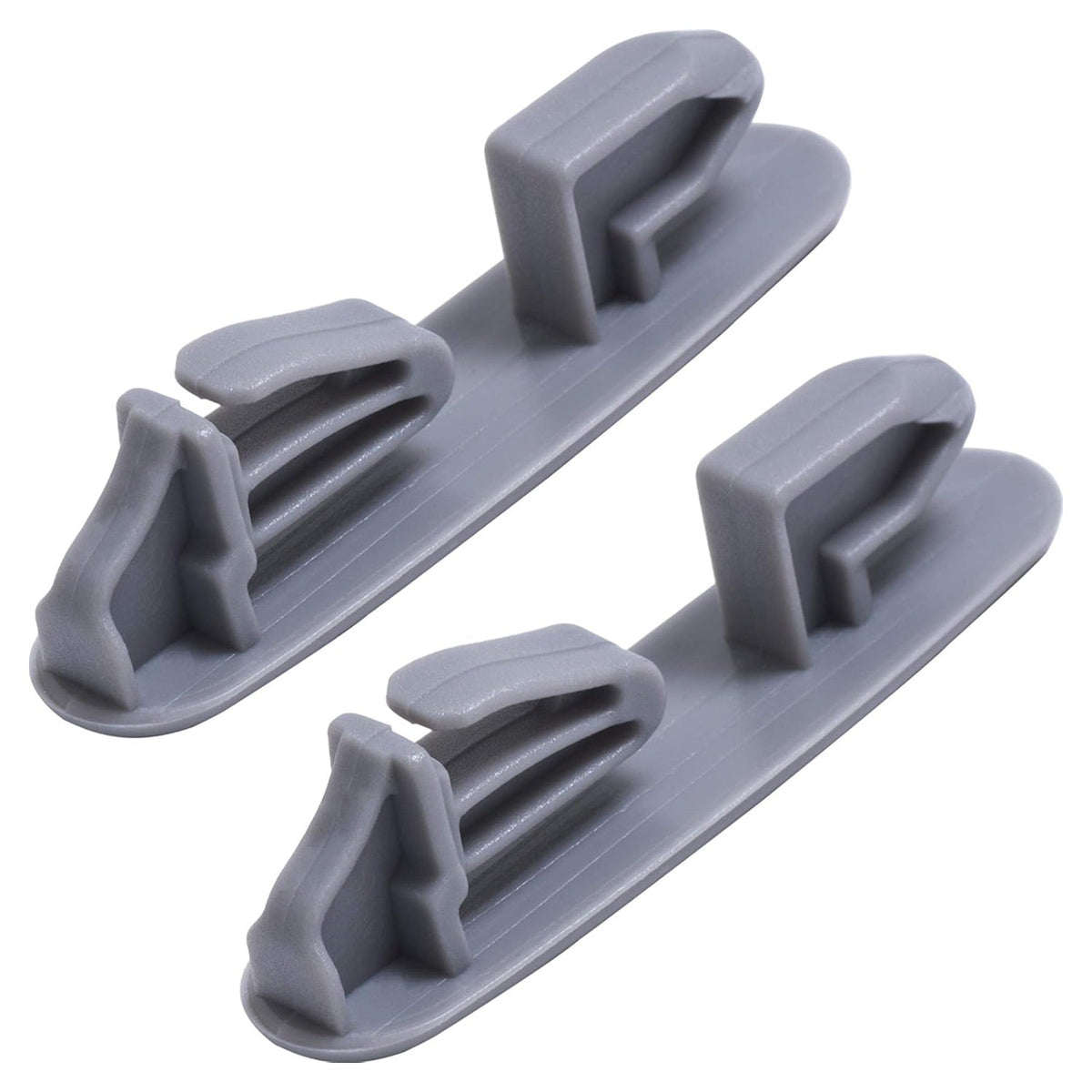

8565925 Dishwasher Upper Rack Slide Rail Stop Clip for Whirlpool Kenmore KitchenAid Dishwashers - 2 Pack

8565925 / WP8565925 Upper Rack Slide Rail Stop Clip

Key Features

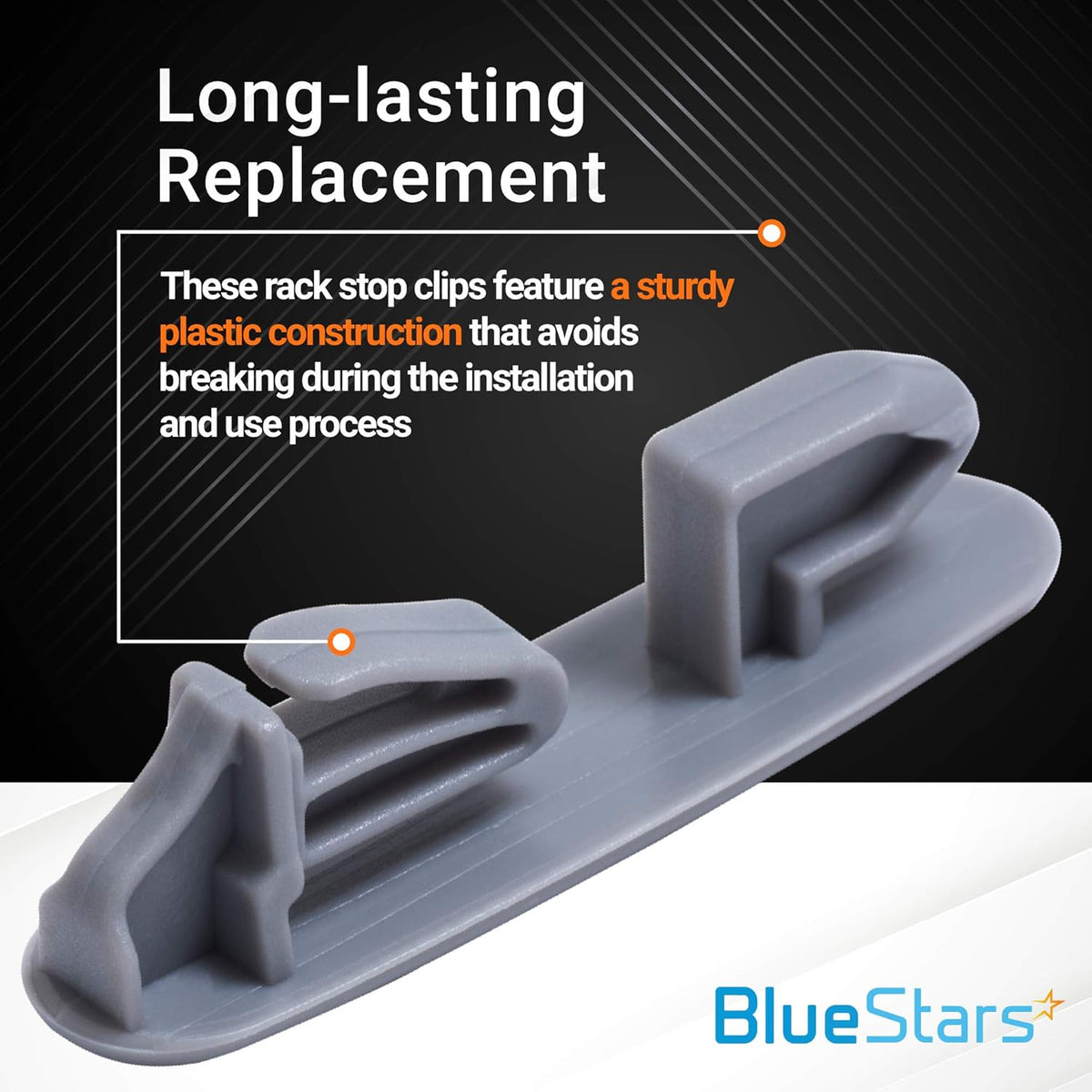

• High-Impact Structural Polymer: Manufactured from a specialized, heat-stabilized plastic designed to withstand the intense thermal stress of "Sani-Rinse" and "Heated Dry" cycles without becoming brittle or snapping.

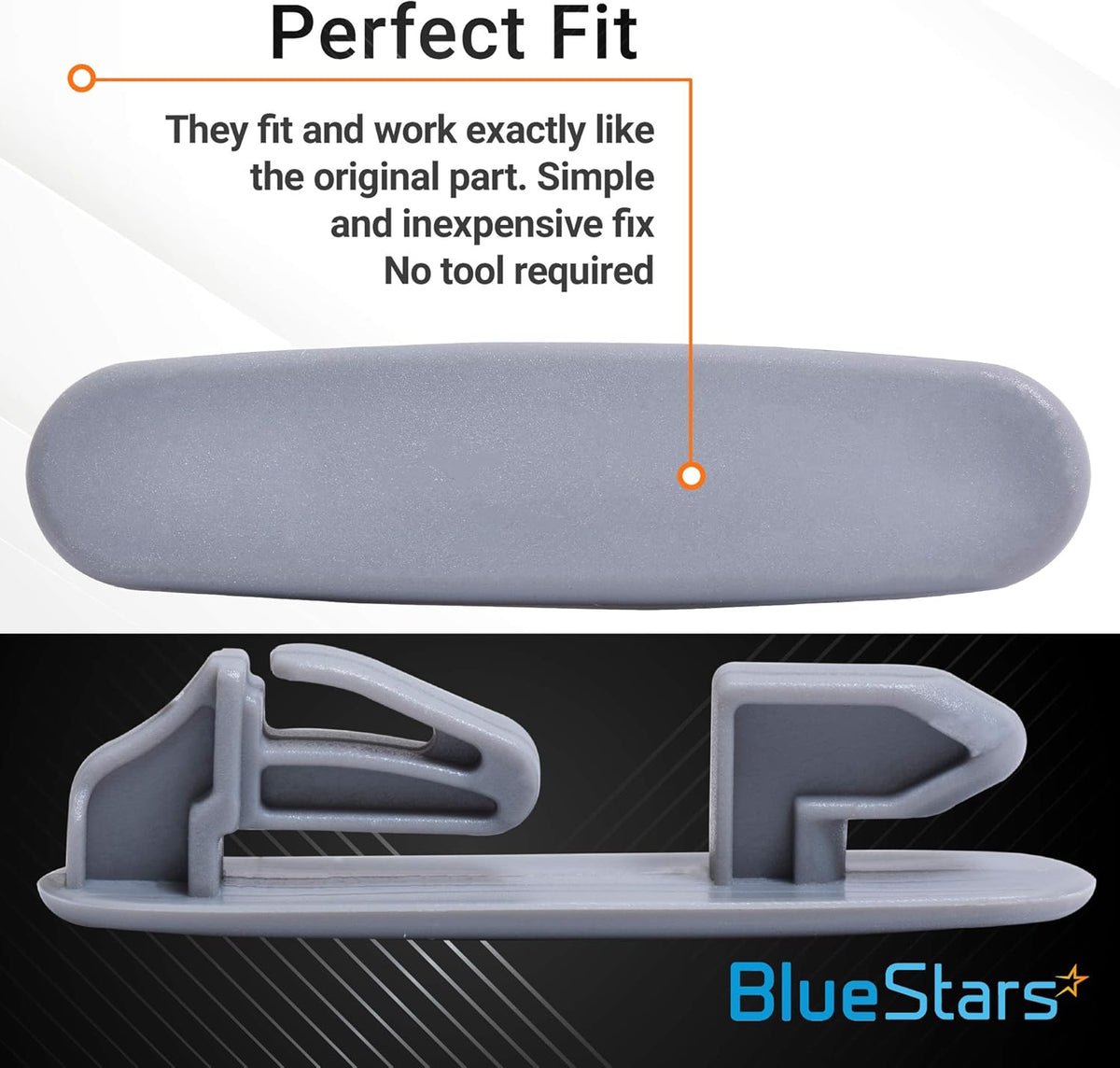

• Precision Snap-Lock Interface: Features a standardized dual-tab locking system that snaps securely onto the end of the metal slide rail, providing a physical barrier that prevents the upper rack from rolling off its tracks.
• Enhanced Safety Stop: Specifically engineered to absorb the impact of the upper rack being pulled forward, ensuring the rack remains safely captive within the cabinet even when fully loaded with heavy glassware.
• Corrosion-Proof Construction: 100% rust-proof and resistant to the caustic enzymes, surfactants, and high-pH chemicals found in modern dishwasher detergent pods and rinse aids.

Replaces / Cross-Reference Part Numbers

• WP8565925
• AP6013365
• PS11746591
• 8565920
• 8524581
• 8524582
• 8270105
• W10082860
• WP8565925VP
• 8270106

Compatibility & Fitment

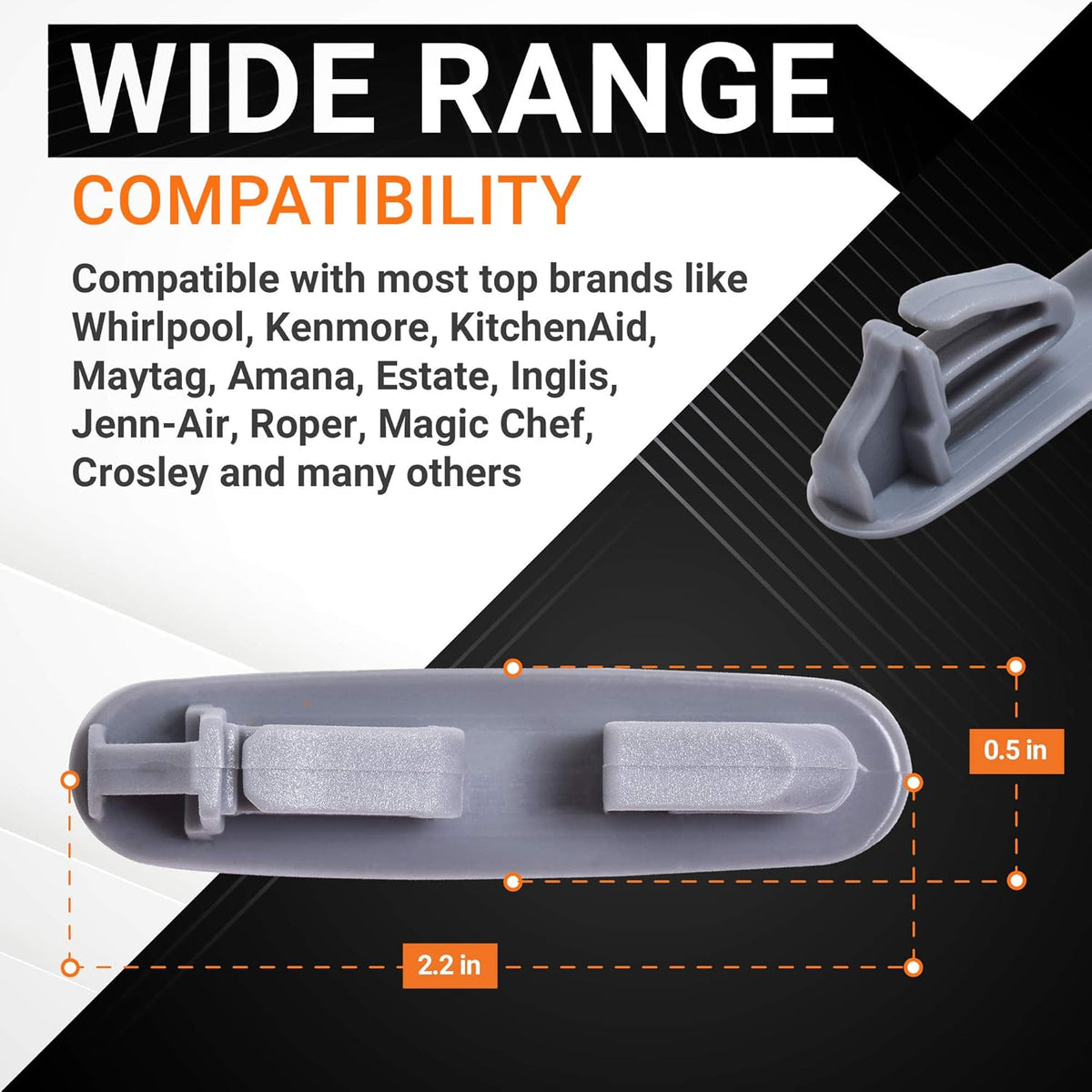

This rail stop clip is the standard safety end-cap for the upper rack tracks of most Whirlpool-manufactured tall-tub dishwashers. Key compatible brands include:

• Whirlpool & Maytag: Fits hundreds of WDT, WDF, and MDB series models (e.g., WDT720PADM, MDB4949SHZ).
• KitchenAid & Jenn-Air: Compatible with various KDTM, KDTE, and JDT series high-end units (e.g., KDTE104ESS, KUDC10FXSS).
• Kenmore (665 Series): Fits many 665-prefix "Elite" and standard dishwashers produced for Sears (e.g., 665.13263K311, 665.13282K113).
• Amana & Estate: Direct fit for dozens of ADB and DU series models utilizing the 8565925 clip style.
• Note: These clips are located at the front end of the metal slide rails (the tracks attached to the cabinet walls). They are not the wheels that attach to the rack itself.

When to Replace

• Upper Rack Rolling Out: The rack pulls completely out of the dishwasher and falls into your hands because the stop clip has snapped or fallen off.
• Visible Stress Fractures: The grey plastic looks "whitened" or has visible cracks, indicating it is about to fail under the weight of a loaded rack.
• Missing Clips: A clip has popped off during a cycle and was lost or melted against the dishwasher's heating element at the bottom of the tub.
• Rack "Jumping" the Track: The rack feels unstable when pulled forward, suggesting the clip is loose and no longer providing a solid vertical stop.
• Brittle Material: The plastic feels "stony" and snaps easily when touched, a common result of years of exposure to high-heat drying cycles.

Installation Tips

• No Tools Required: This is a simple "snap-on" repair. Open the dishwasher and pull the upper rack forward slightly to expose the end of the metal rails.
• Removing the Old Clip: Most clips have a small center tab. Use your thumb or a small flat-head screwdriver to press the tab and slide the clip upward or forward off the rail.
• Clean the Rail End: Before installing the new 8565925 clip, wipe away any old food particles or mineral scale from the tip of the metal rail to ensure a secure, permanent lock.
• Orientation: Ensure the "stop" portion of the clip is facing outward (toward the front of the dishwasher). Slide the clip onto the rail until you hear a distinct "click."
• The "Tug" Test: Gently pull the rack forward against the new clips to ensure they are locked securely. It is recommended to replace both sides simultaneously to ensure even wear and safety.
