290D3070P002 Door Lid Lock Switch Assembly for GE and Hotpoint

Key Features

  • Door lid lock switch assembly for compatible GE and Hotpoint top-load washing machines.
  • Part number and model: 290D3070P002.

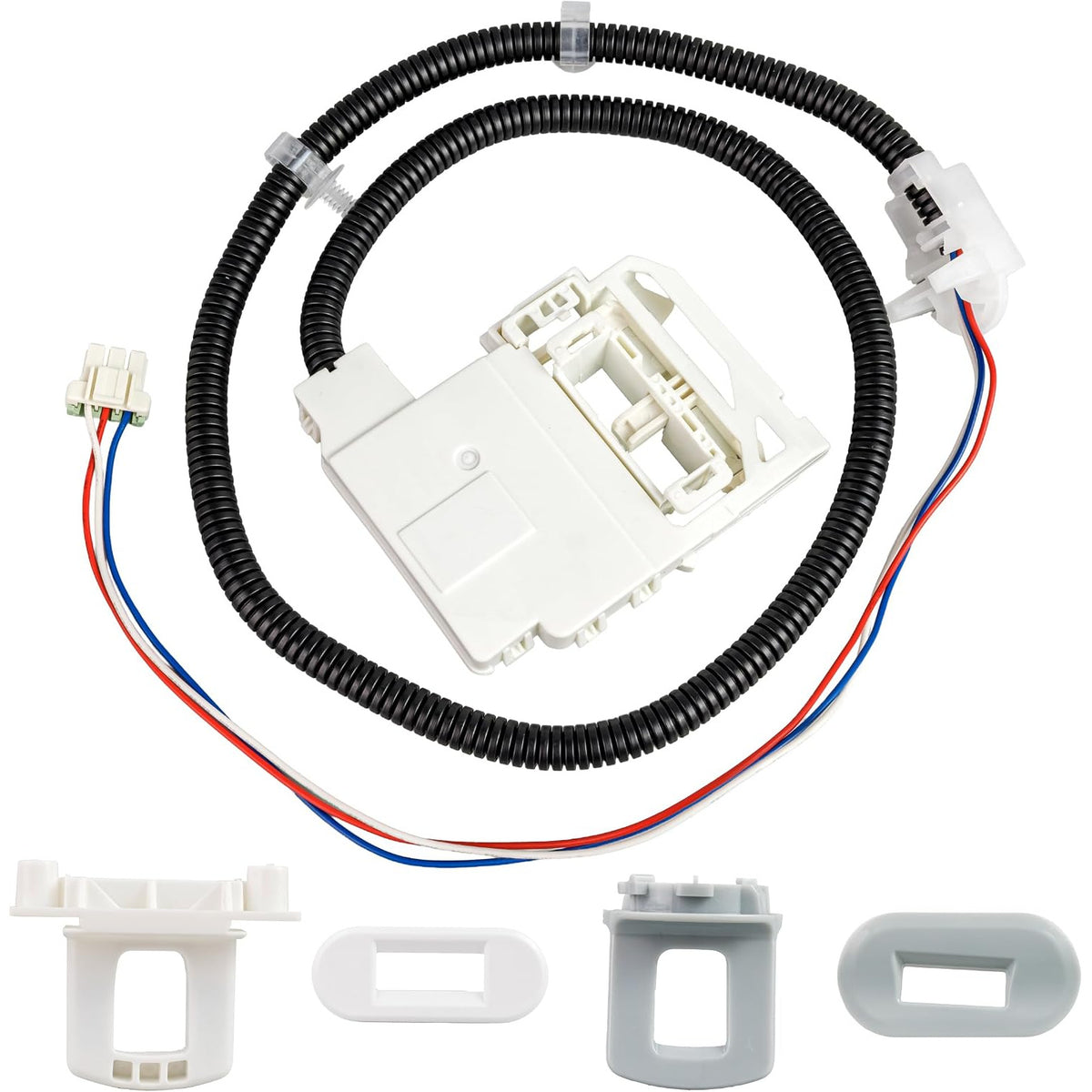

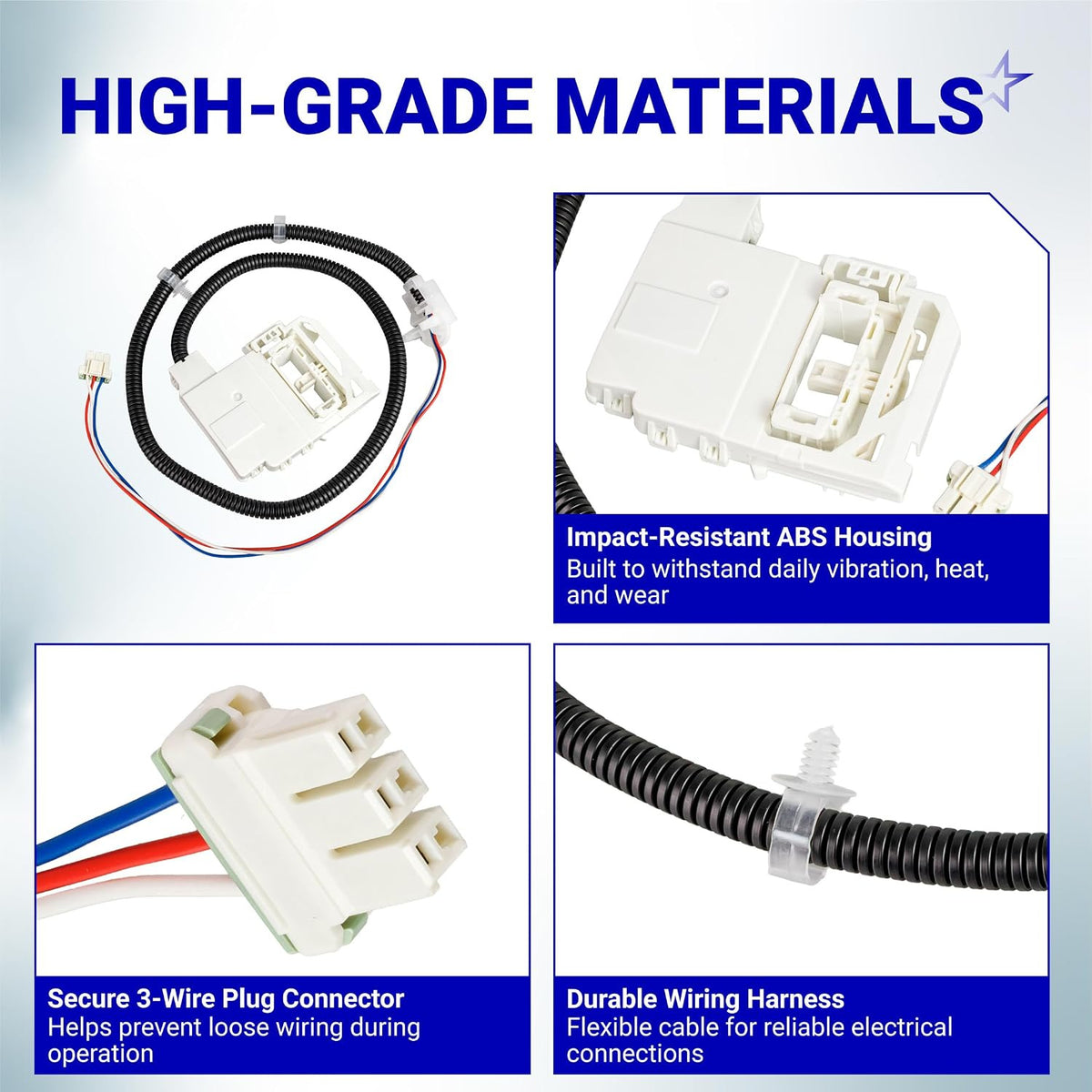

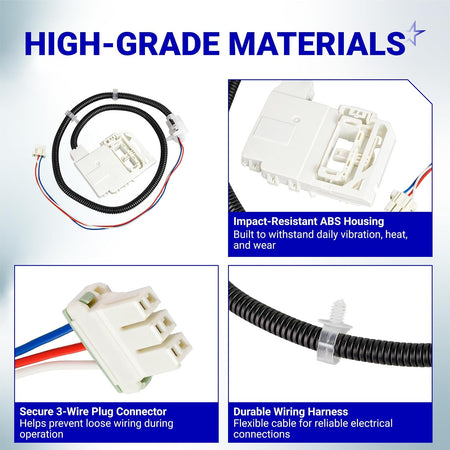

  • Constructed with a plastic housing, metal electrical contacts, and a reinforced wiring harness.
  • The integrated fuse helps protect the washer's electrical circuit.

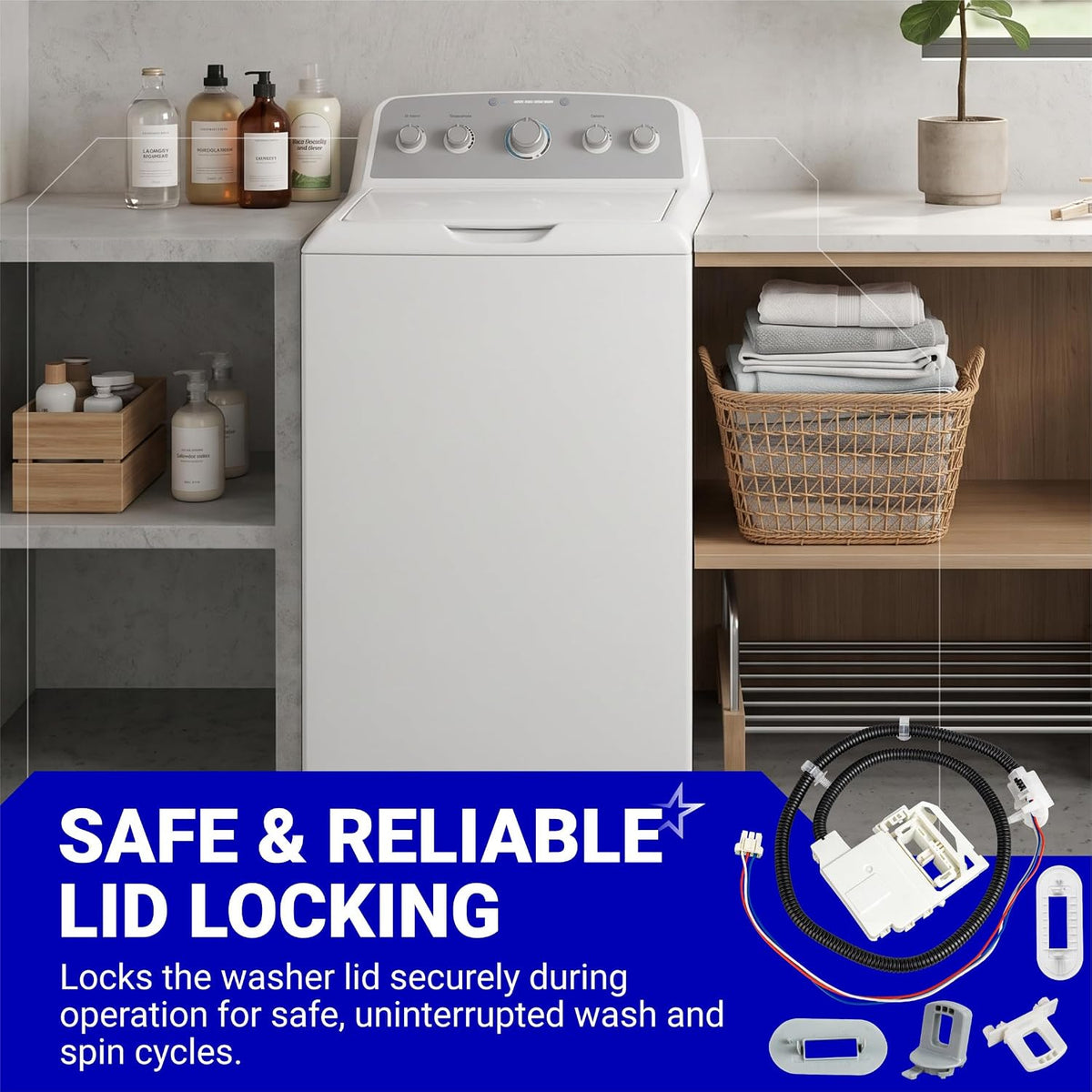

  • Designed to lock the lid during operation and send the locking signal to the control board.

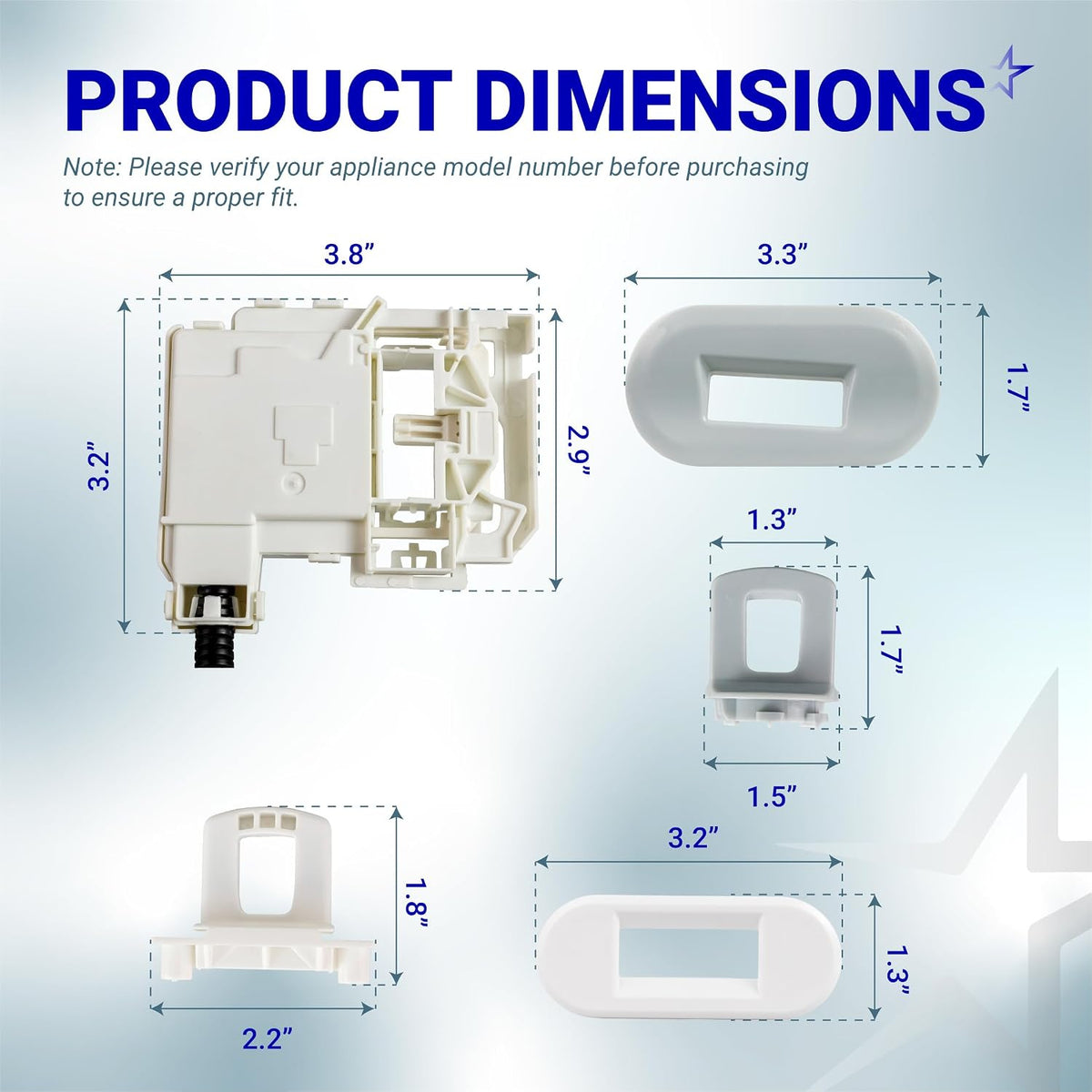

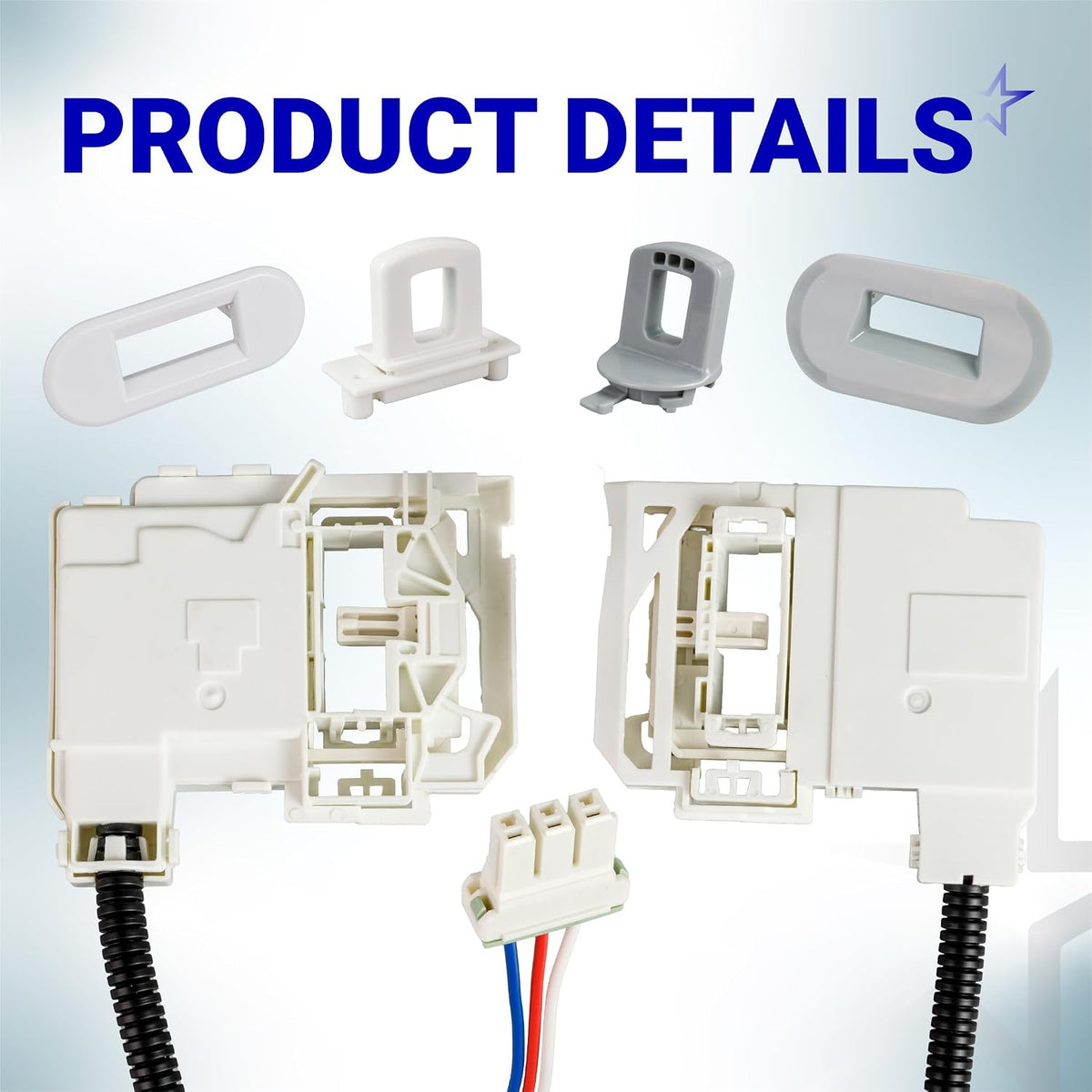

  • The specifications identify one item with five component pieces. Color is as pictured.

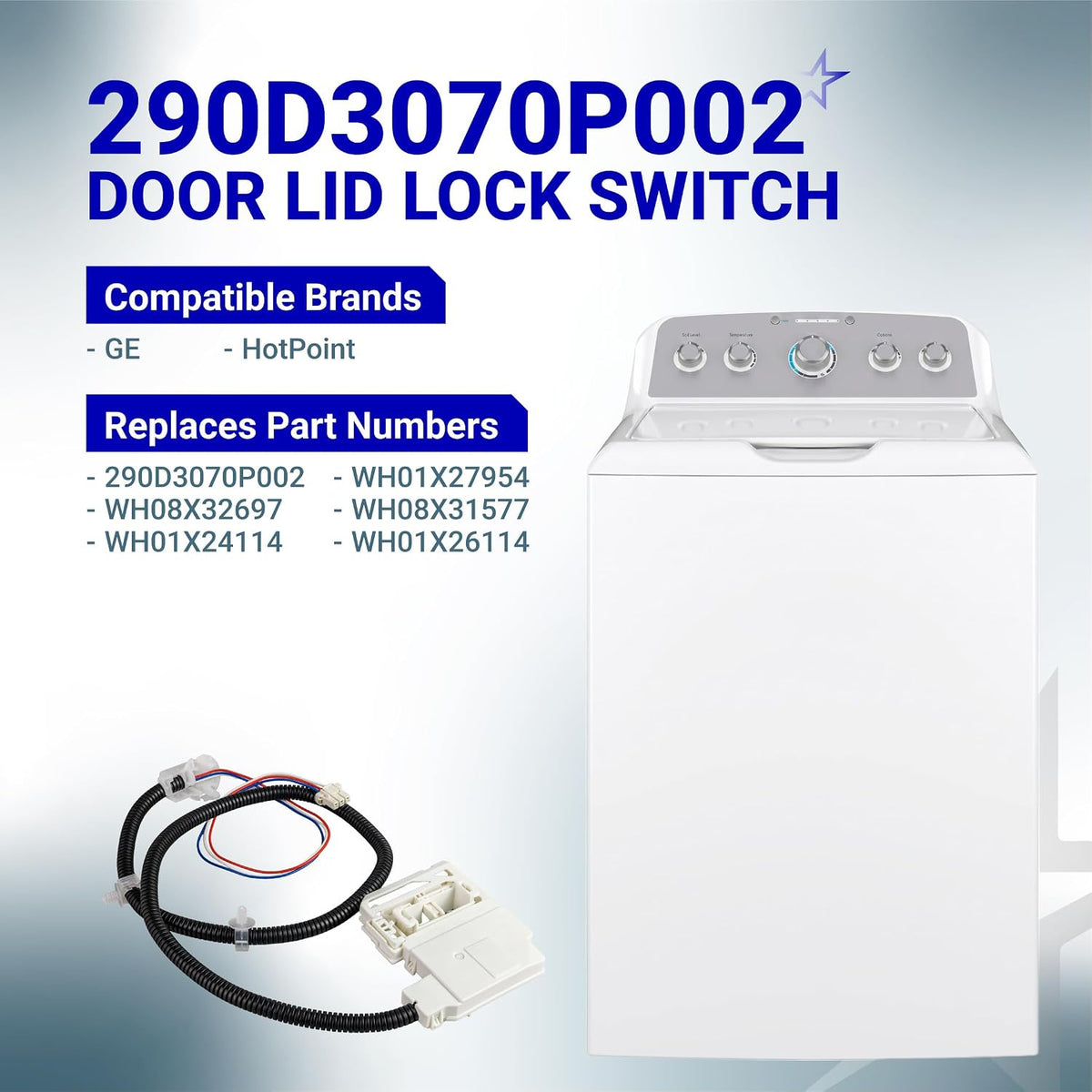

Replaces / Cross-Reference Part Numbers

  • 290D3070P002
  • WH08X32697
  • WH08X31577
  • WH01X279
  • WH01X24114
  • WH01X27954
  • WH01X26114

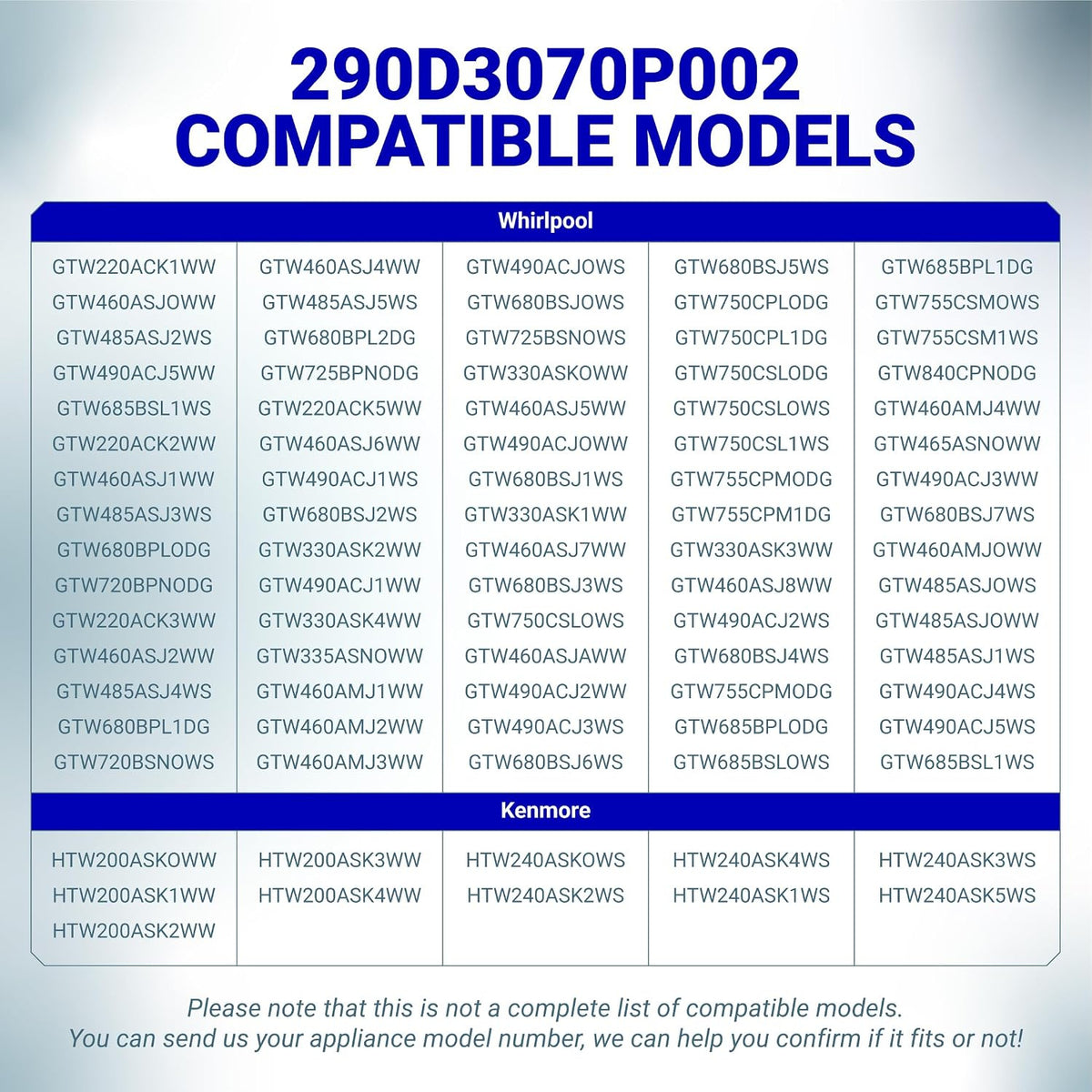

Compatibility & Fitment

This assembly fits the following listed GE models:

  • GTW220ACK1WW, GTW220ACK3WW, GTW220ACK5WW
  • GTW330ASK0WW
  • GTW460ASJ0WW, GTW460ASJ4WW
  • GTW490ACJ0WS, GTW490ACJ5WW
  • GTW485ASJ2WS, GTW485ASJ5WS
  • GTW680BSJ5WS, GTW680BSJ0WS, GTW680BPL2DG
  • GTW685BPL1DG, GTW685BSL1WS
  • GTW725BSN0WS, GTW725BPN0DG
  • GTW750CPL0DG, GTW750CPL1DG, GTW750CSL0DG
  • GTW755CSM0WS, GTW755CSM1WS
  • GTW840CPN0DG

It also fits the following listed Hotpoint models:

  • HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW200ASK3WW, HTW200ASK4WW
  • HTW240ASK0WS, HTW240ASK1WS, HTW240ASK2WS, HTW240ASK3WS, HTW240ASK4WS, HTW240ASK5WS

Confirm the complete washer model number and compare the original switch, connector, and part number before purchase. The listed fitment does not establish compatibility with every GE or Hotpoint washer.

When to Replace

  • Replace the assembly when the washer will not start because the lid-lock signal is not received.
  • A failed switch can prevent agitation, draining, or spinning, or cause repeated clicking during startup.
  • Other symptoms include a lid-lock error code or a lid that will not lock or unlock correctly.
  • Inspect for worn electrical contacts, damaged wiring, a cracked housing, or a mechanism that does not engage the lid.

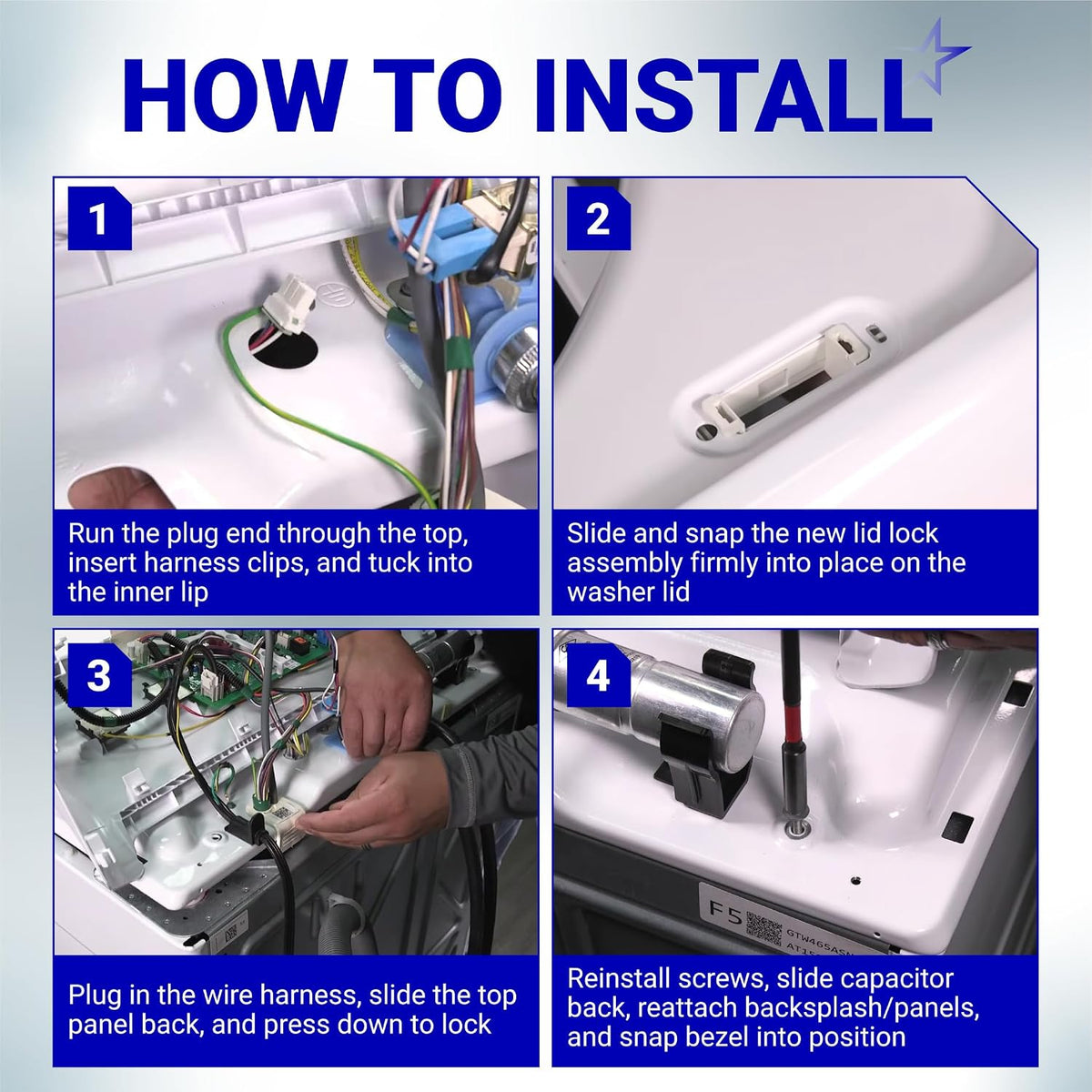

Installation Tips

  • Disconnect the washer from electrical power before servicing the lid-lock circuit.
  • Record the full washer model number and compare the old assembly with 290D3070P002 before removing it.
  • Check the connector and wiring harness for damage, corrosion, or loose terminals.
  • Install the replacement in the same orientation as the original and route the harness away from moving or pinching components.
  • Restore power and run an appropriate washer test cycle to confirm that the lid locks and the machine starts, agitates, drains, and spins normally.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This 290D3070P002 assembly is used with select GE and Hotpoint top-load washers, including GE GTW220ACK3WW, GTW220ACK4WW, GTW220ACK5WW, GTW330ASK0WW, and GTW330ASK1WW. Confirm the complete model number and connector arrangement before ordering.
It replaces 290D3070P002, WH08X32697, WH08X31577, WH01X279, and WH01X24114.
Common symptoms include the washer refusing to start or spin, stopping before the cycle begins, displaying a lid-lock warning, or repeatedly reporting that the lid is open when it is closed. A washer that will not unlock after a cycle can also have a faulty lock assembly, although wiring and lid alignment should be checked as well.
Unplug the washer and inspect the lid strike, hinge area, wiring harness, and connector for damage, looseness, or corrosion. Make sure the lid closes squarely and the strike fully enters the lock; a bent lid or misalignment can damage a replacement switch.
Installation is generally moderate and usually takes about 15–30 minutes for a properly matched model. A screwdriver is commonly required, but the exact fastener and access method vary by washer model. Disconnect power before removing the old assembly, transfer the wiring connector carefully, and test the lid lock before running a full wash cycle.
