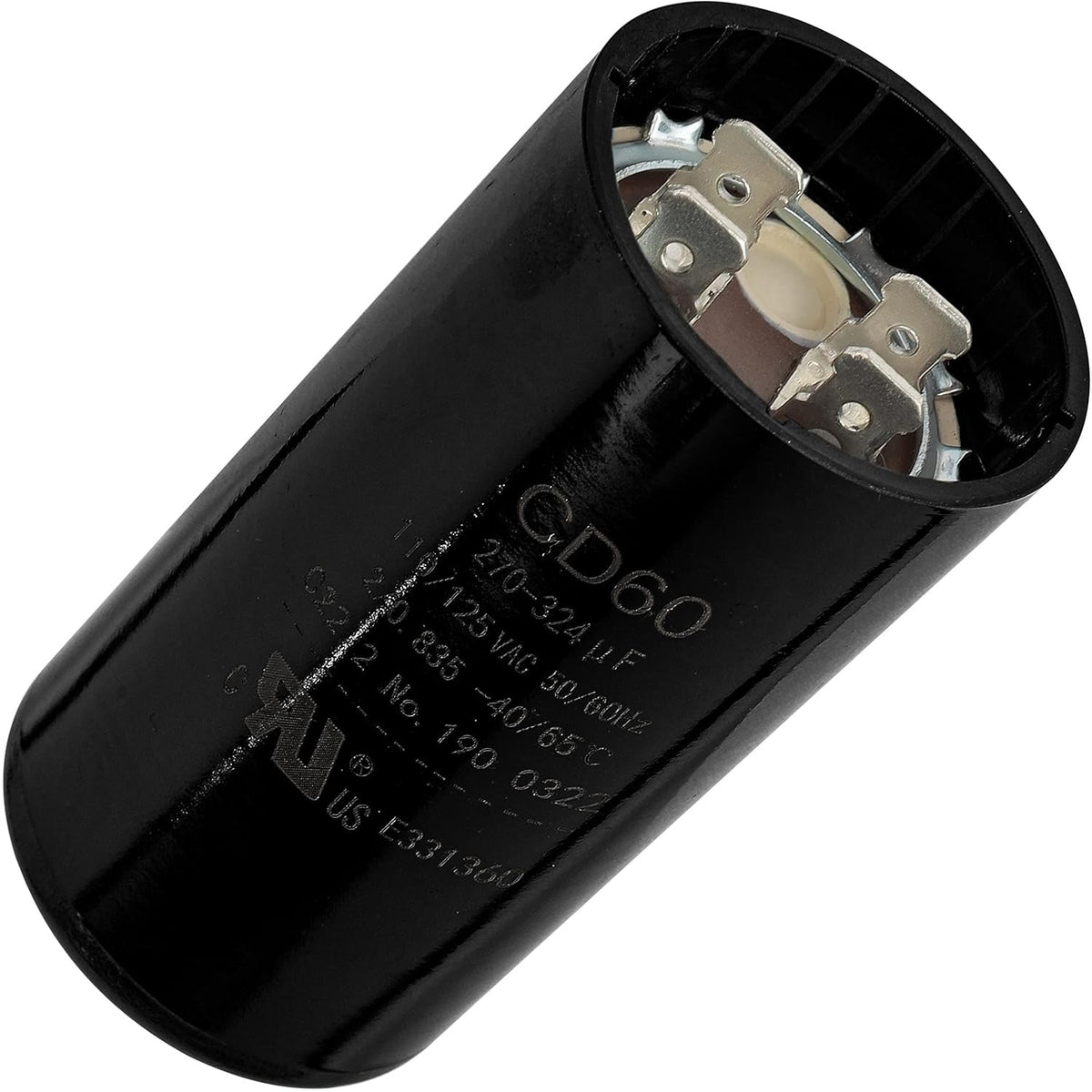

270-324 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz - Fits AC Motors, Pool Pump, Well Pump
0.00
Regular price
$12.99
Regular price
Save 16%
$15.45
Sale price
$12.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
270-324 Mfd uF 110-125VAC Round Motor Start Capacitor 50/60 Hz AC Electric

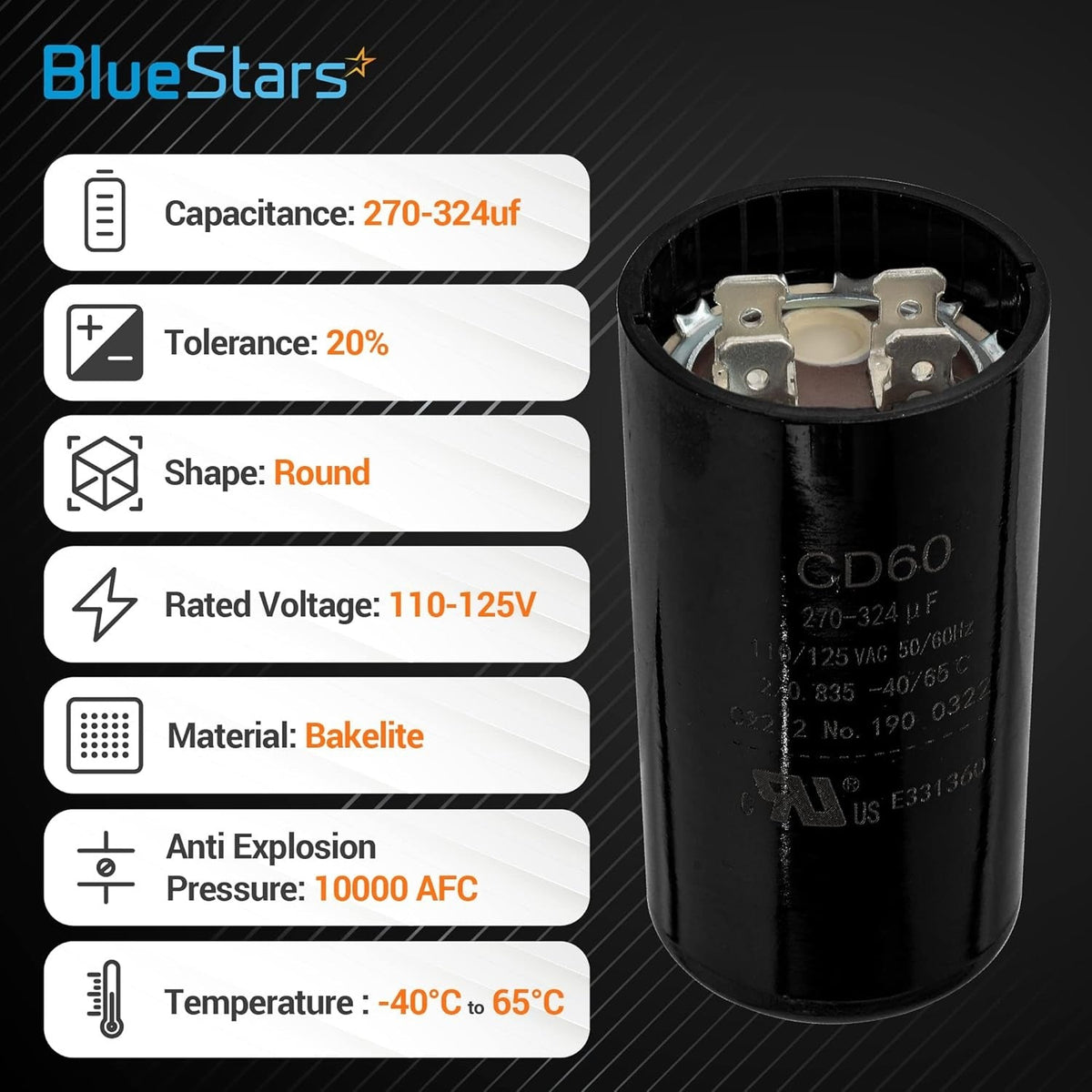

Key Features
- Capacitance: 270-324 MFD / uF
- Voltage Rating: 110-125 VAC
- Frequency: 50/60 Hz
- Tolerance: +/- 20%
- Operating Temperature: -40°C to 65°C (-40°F to 149°F)
- Shape: Round
- Case: Moisture and oil-resistant molded plastic
- Duty Cycle: Intermittent, for motor starting applications

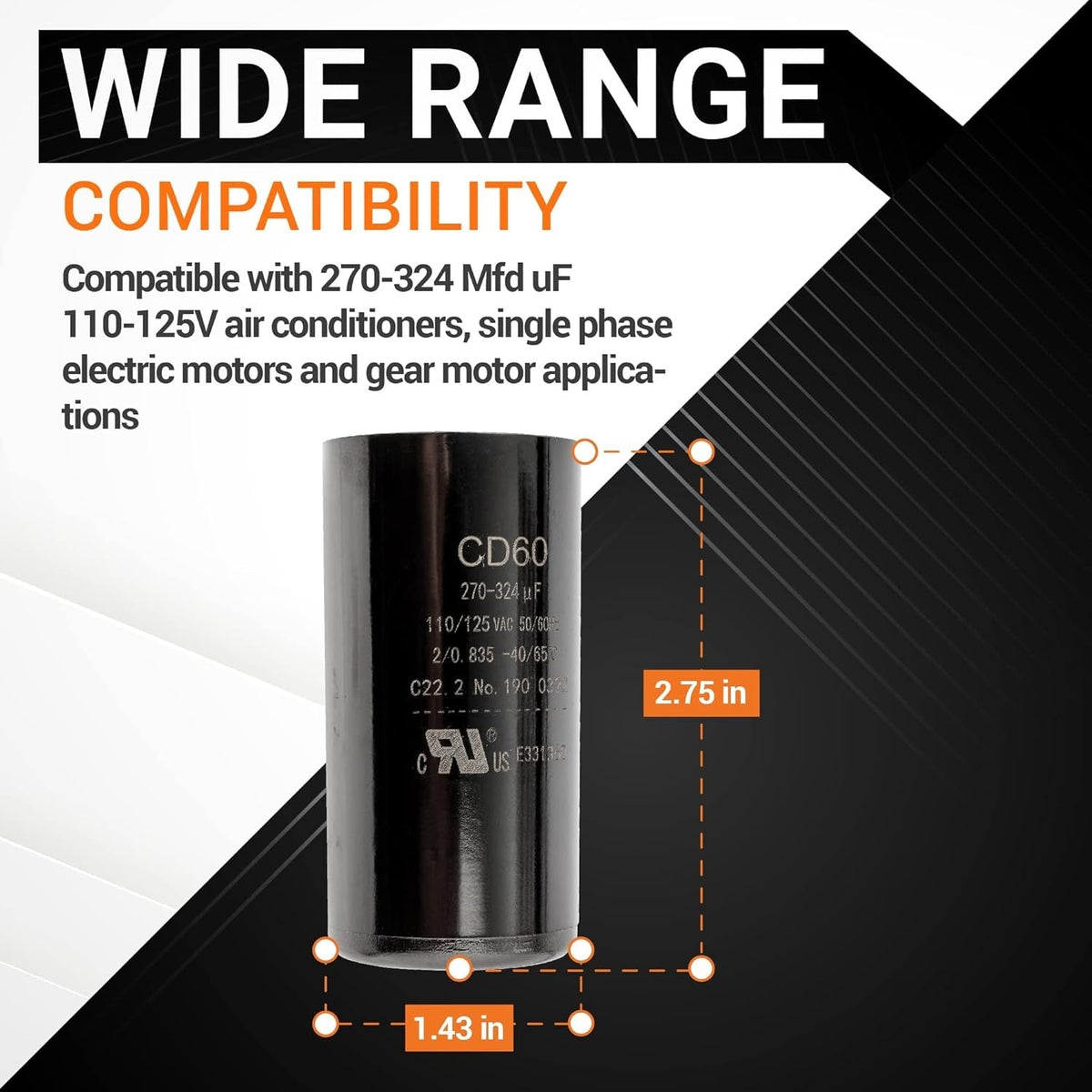

- Dimensions (Diameter x Height): 36mm x 70mm (1.42 in x 2.75 in)
Replaces / Cross-Reference Part Numbers
- CD60
- BC-270
- Replaces any start capacitor with matching capacitance, voltage, and frequency specifications.
Compatibility & Fitment
- Designed for starting fractional horsepower, single-phase AC electric motors.
- Common applications include HVAC units, air compressors, well pumps, refrigeration units, and fans.
- Fit is universal for applications requiring a 270-324 MFD capacitor at 110V to 125V.
When to Replace
- Motor hums but fails to start or starts slowly.
- Circuit breaker trips repeatedly upon motor startup.
- Visible damage to the existing capacitor, such as bulging, cracking, or leaking fluid.
- Capacitance measures outside the specified tolerance range when tested with a multimeter.
Installation Tips
- Disconnect all electrical power to the equipment before beginning installation.
- Safely discharge the old capacitor by shorting the terminals with an insulated tool.
- Confirm the new capacitor's MFD and VAC ratings match the component being replaced.
- As a non-polarized component, wires can be connected to either terminal.
- Securely mount the capacitor to prevent vibration and ensure firm wire connections.
-

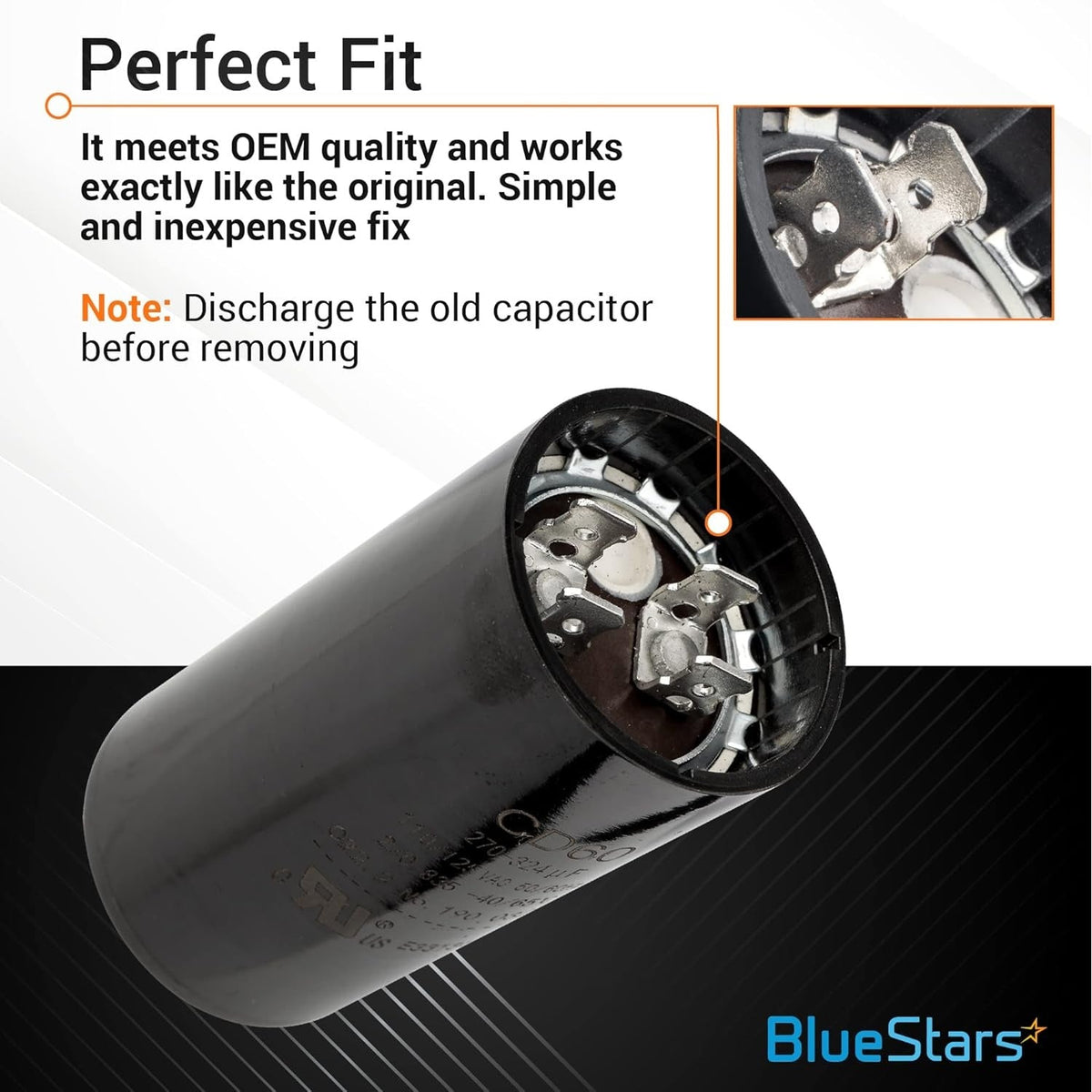

Perfect fit
Universal fit with any brands with the same ratings -

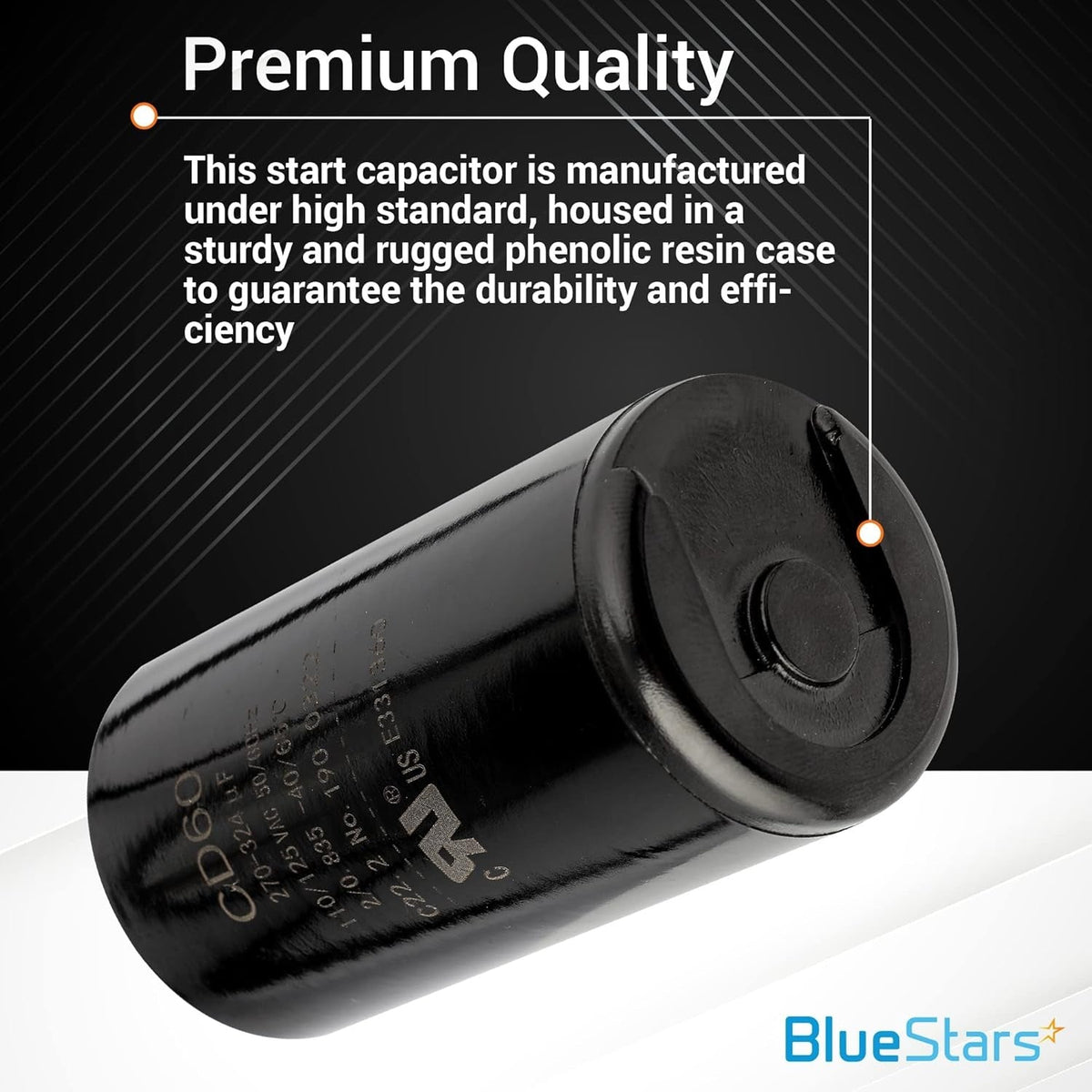

Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
