240323001 Refrigerator Bottom Door Shelf Bin - Compatible with Frigidaire/Kenmore

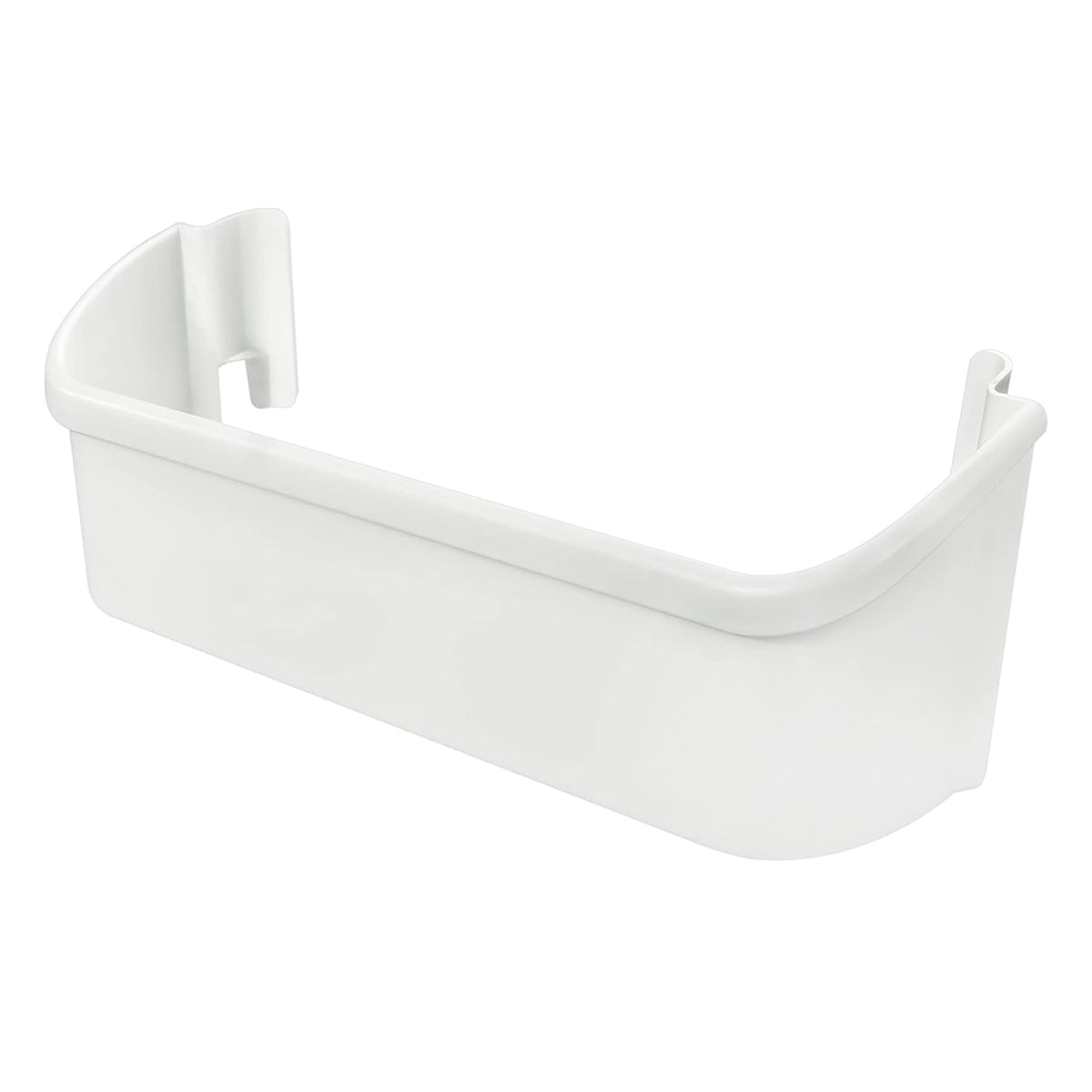

240323001 Refrigerator Bottom Door Shelf Bin, plain product view

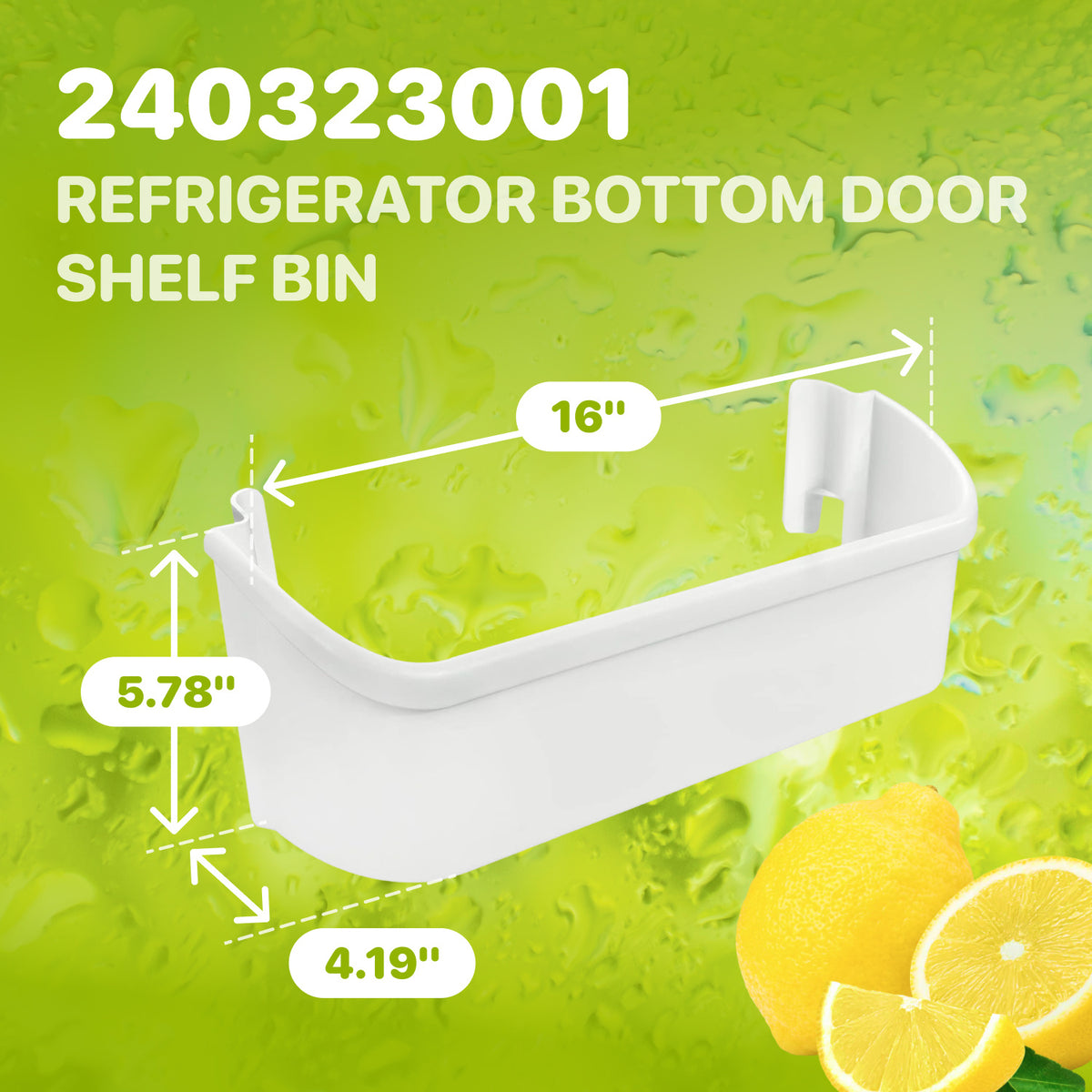

240323001 Refrigerator Bottom Door Shelf Bin with dimensions diagram showing 16, 5.78, and 4.19 inches

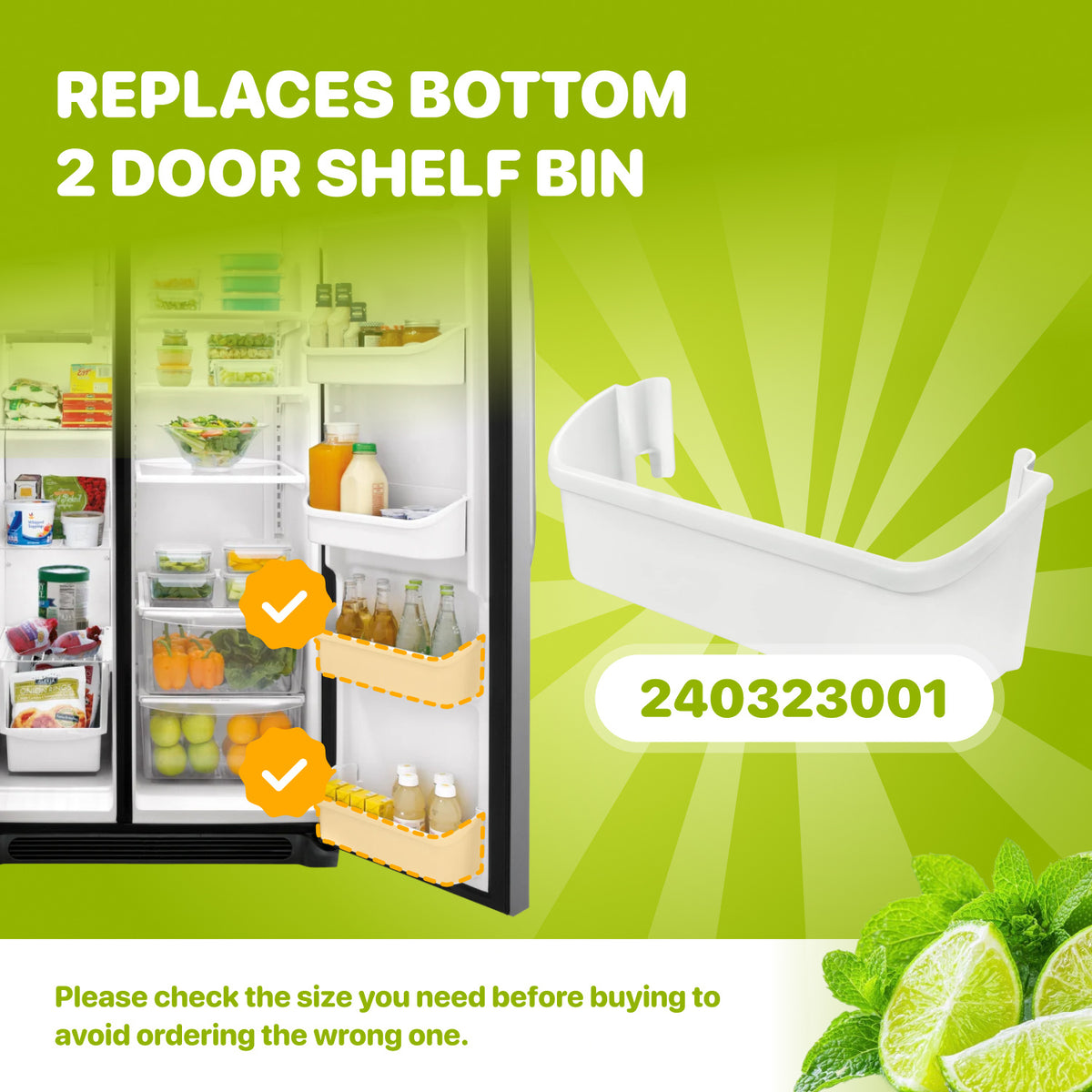

240323001 Refrigerator Bottom Door Shelf Bin shown as a replacement in the bottom two refrigerator door shelves
240323001 Refrigerator Bottom Door Shelf Bin, white bin shown on a green promotional background
240323001 Refrigerator Bottom Door Shelf Bin, plain product view
240323001 Refrigerator Bottom Door Shelf Bin with dimensions diagram showing 16, 5.78, and 4.19 inches
240323001 Refrigerator Bottom Door Shelf Bin shown as a replacement in the bottom two refrigerator door shelves
240323001 Refrigerator Bottom Door Shelf Bin, white bin shown on a green promotional background
Lifetime Warranty

240323001 Refrigerator Bottom Door Shelf Bin - Compatible with Frigidaire/Kenmore

Save 9%
0.00
$23.36
$25.70
$23.36
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
πŸ› οΈ
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

240323001 Refrigerator Bottom Door Shelf Bin

Key Features

  • Replacement lower door shelf bin for select refrigerators.
  • Part number: 240323001.
  • Designed for the bottom refrigerator-door position.
  • Fits door openings measuring at least 15-3/4 inches wide; a narrower opening requires a different bin.
  • Provides supported storage for bottles, containers, and other refrigerator-door items.

Replaces

This door bin replaces damaged, cracked, or missing lower refrigerator-door bins using the same design and fitment. Confirm the original part number, refrigerator model, and door opening before installation.

Cross-Reference Part Numbers

  • 240323001
  • 240323007
  • 240323000
  • 890954
  • AH429724
  • EA429724
  • PS429724
  • AP2115741

Compatibility & Fitment

This bin is compatible with select Frigidaire, Kenmore, and Electrolux refrigerators. It is intended for the lower refrigerator-door shelf position, not the freezer-door shelf. Fitment varies by model, so compare the model information, existing bin shape, mounting points, and minimum 15-3/4-inch opening width before ordering.

When to Replace

  • Replace the bin when the plastic is cracked, split, or broken.
  • Replace it if the mounting edges no longer lock securely into the refrigerator door.
  • A missing or badly warped bin should be replaced to prevent items from falling when the door opens.
  • Replace the bin if it no longer supports its rated contents evenly or safely.

Installation Tips

  • No special tools are normally required.
  • Remove the old bin by lifting it from its door supports and pulling it away from the door.
  • Clean and dry the door support area before fitting the replacement.
  • Align both sides of the new bin with the door supports, then press it fully into position.
  • Installation typically takes about 5 to 10 minutes. Do not force the bin if the width or mounting points do not match.

FAQ

This bottom refrigerator door bin is made for compatible Frigidaire and Kenmore refrigerators. Fit is model-specific, so compare the mounting profile and the width of your existing lower door bin before ordering. It is not the same size as every Frigidaire or Kenmore door shelf.
The replacement cross-references for this bin include 240323001, 240323000, 240323007, 890954, AP2115741, AH429724, EA429724, and PS429724.
Replace the bin if it is cracked, bowed, has broken mounting hooks, no longer seats securely in the door liner, or allows bottles and containers to fall forward. Overloading the shelf or placing heavy items against one area commonly causes the plastic to split.
Yes. Installation normally requires no tools and takes only a few minutes. Empty the old bin, lift or pull it out according to the door design, clean the mounting area, and press the replacement into the same supports until it is fully seated. Do not force it if the hooks or slots do not align.
Confirm that the refrigerator model, bin position, mounting points, and width match your original shelf. Also inspect the door liner for cracked supports or damaged retaining rails; a damaged door liner can prevent a new bin from locking in place.
