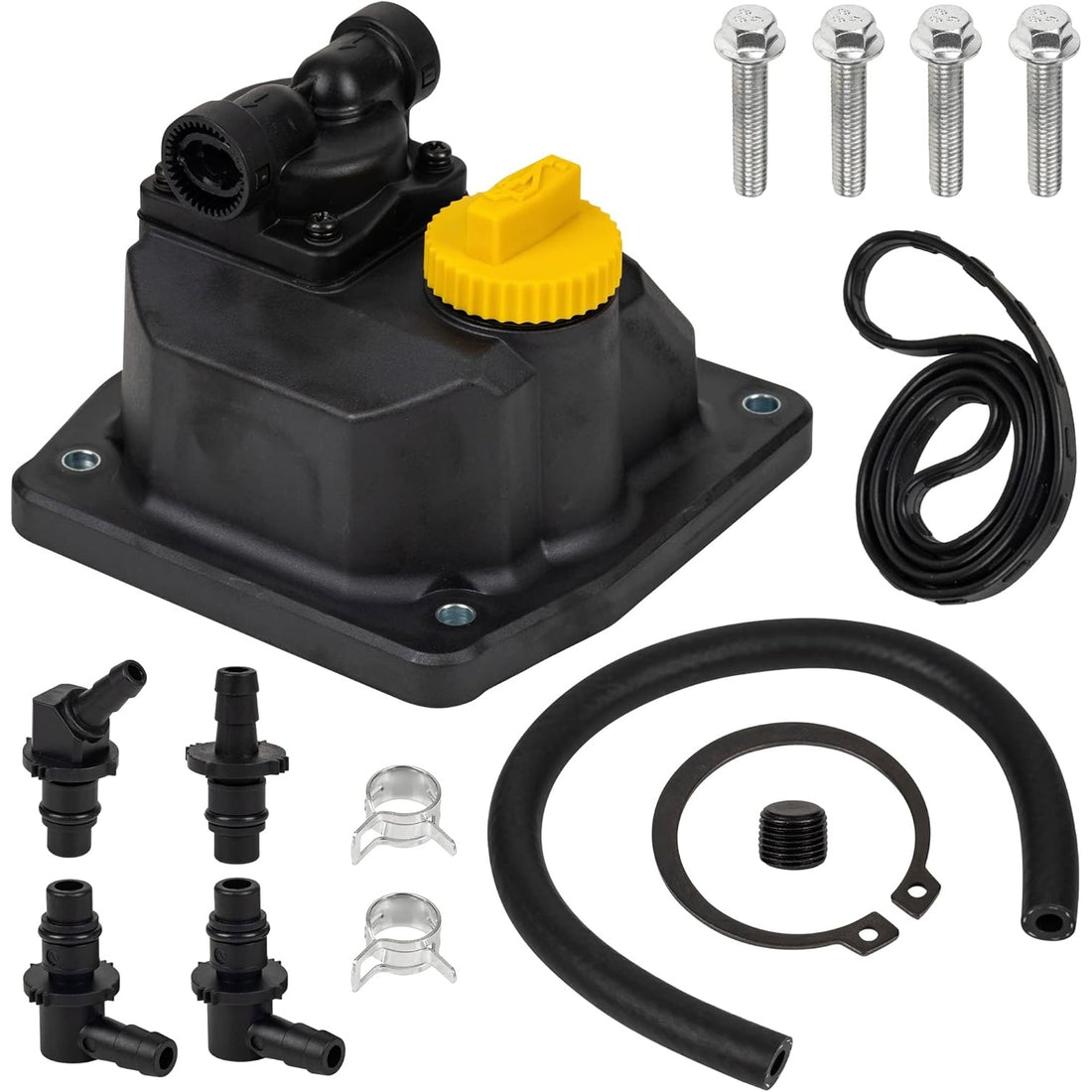

24 559 02-S fuel pump kit with pump, mounting bolts, fuel line, fittings, and gaskets for Kohler engines.

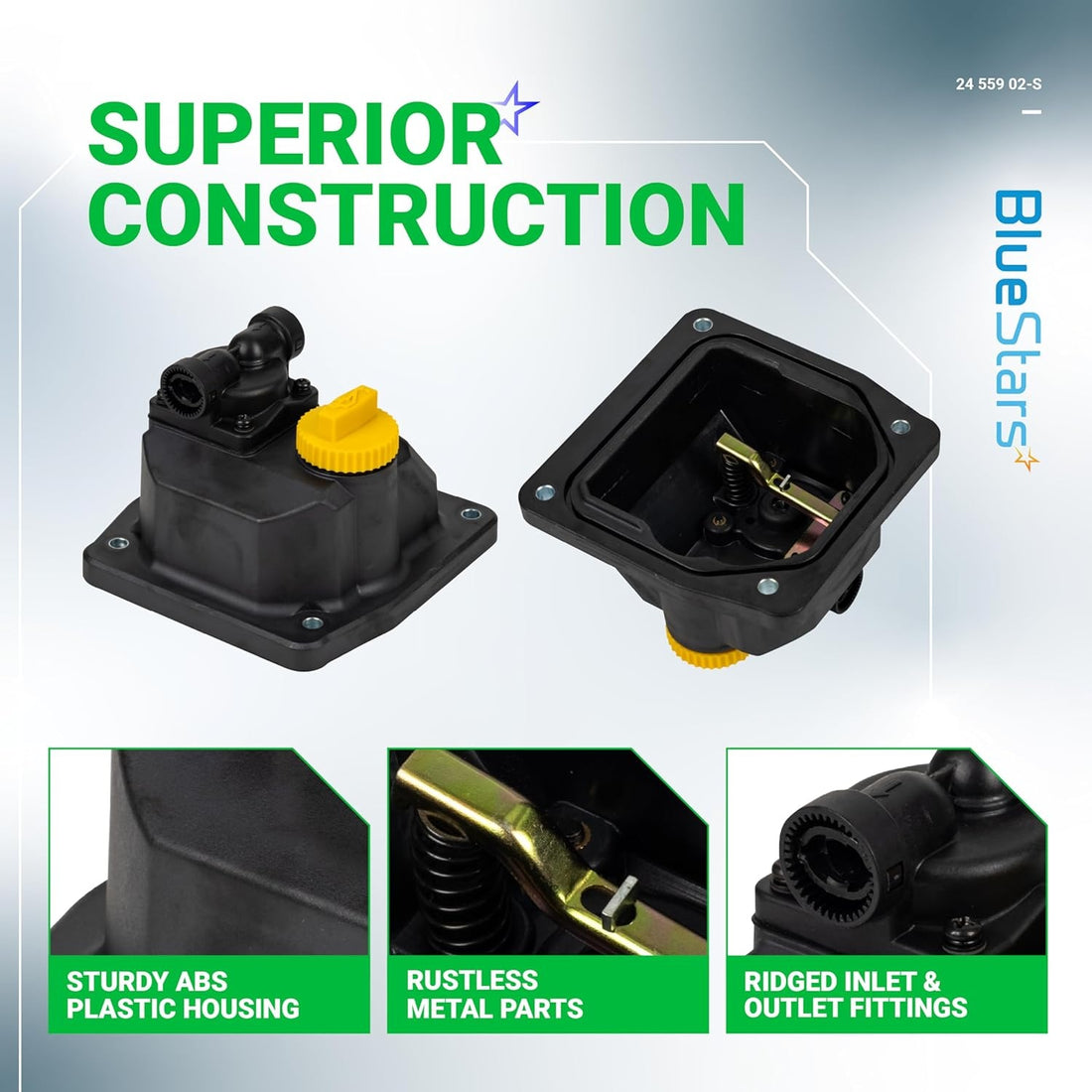

24 559 02-S fuel pump kit for Kohler engines showing construction details, ABS housing, and internal metal components.

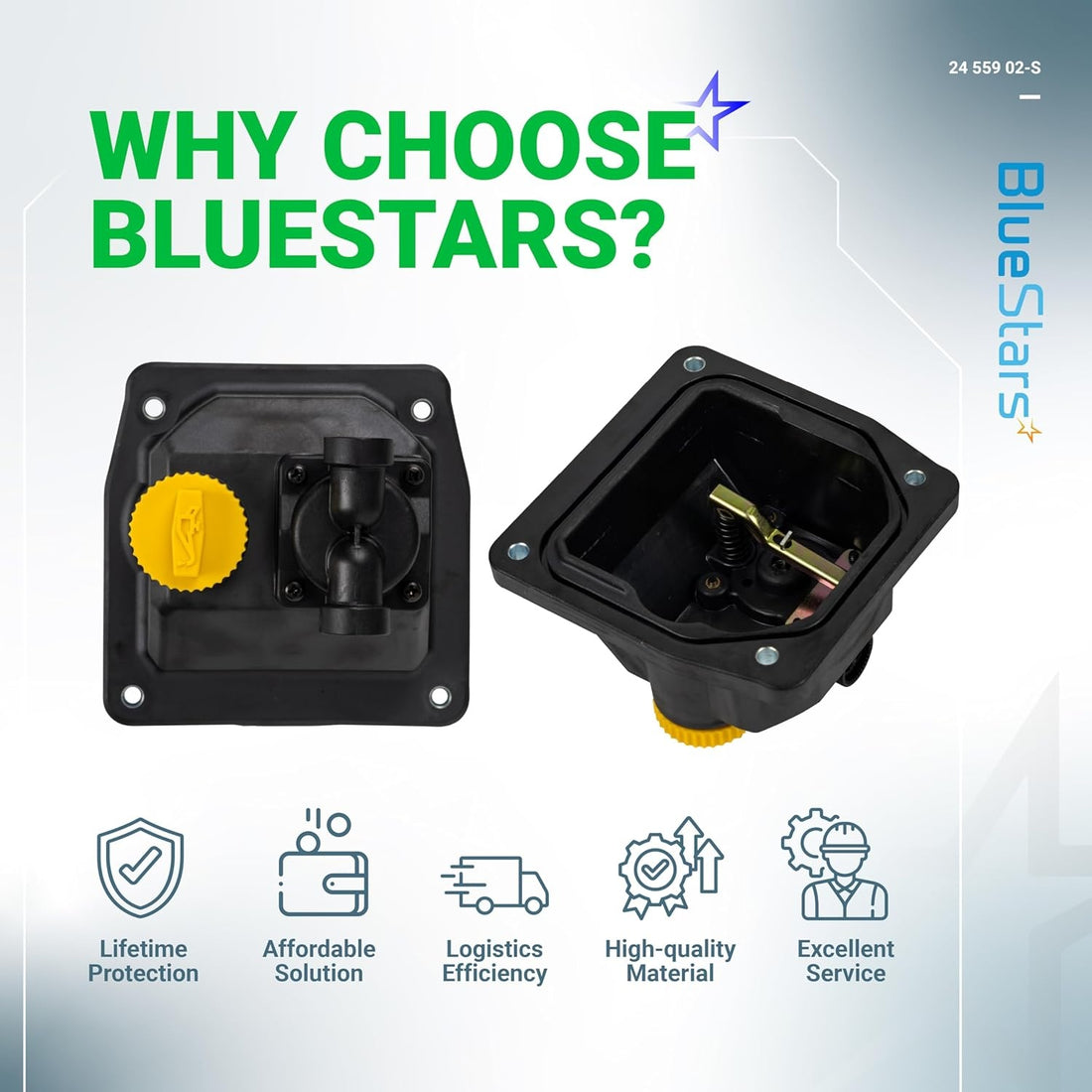

24 559 02-S fuel pump kit for Kohler engines shown from front and interior angles with BlueStars branding.

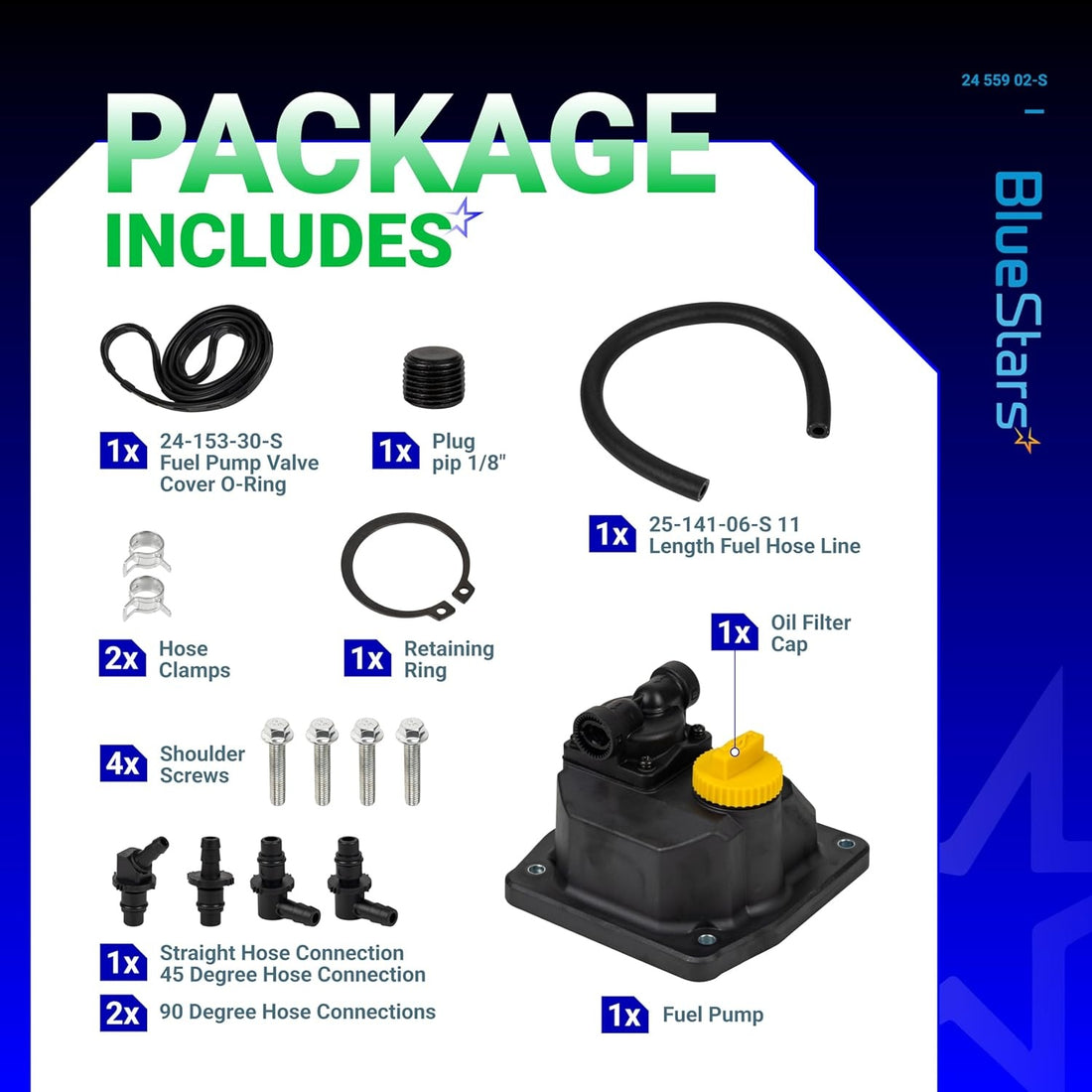

Package contents for 24 559 02-S fuel pump kit including pump, fuel hose, O-ring, screws, clamps, and fittings.

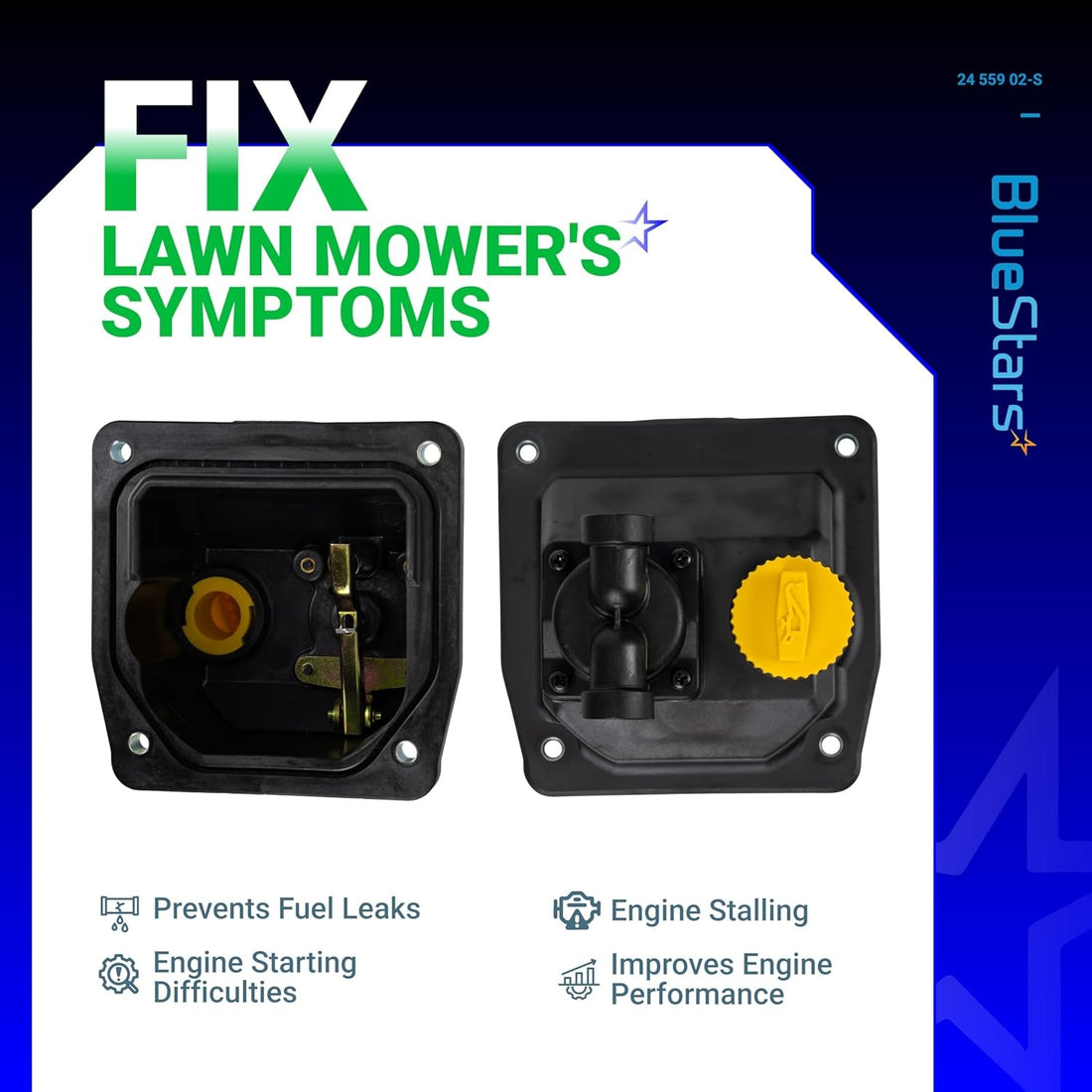

Front and back view of 24 559 02-S fuel pump kit for Kohler engines, showing internal components and yellow cap.

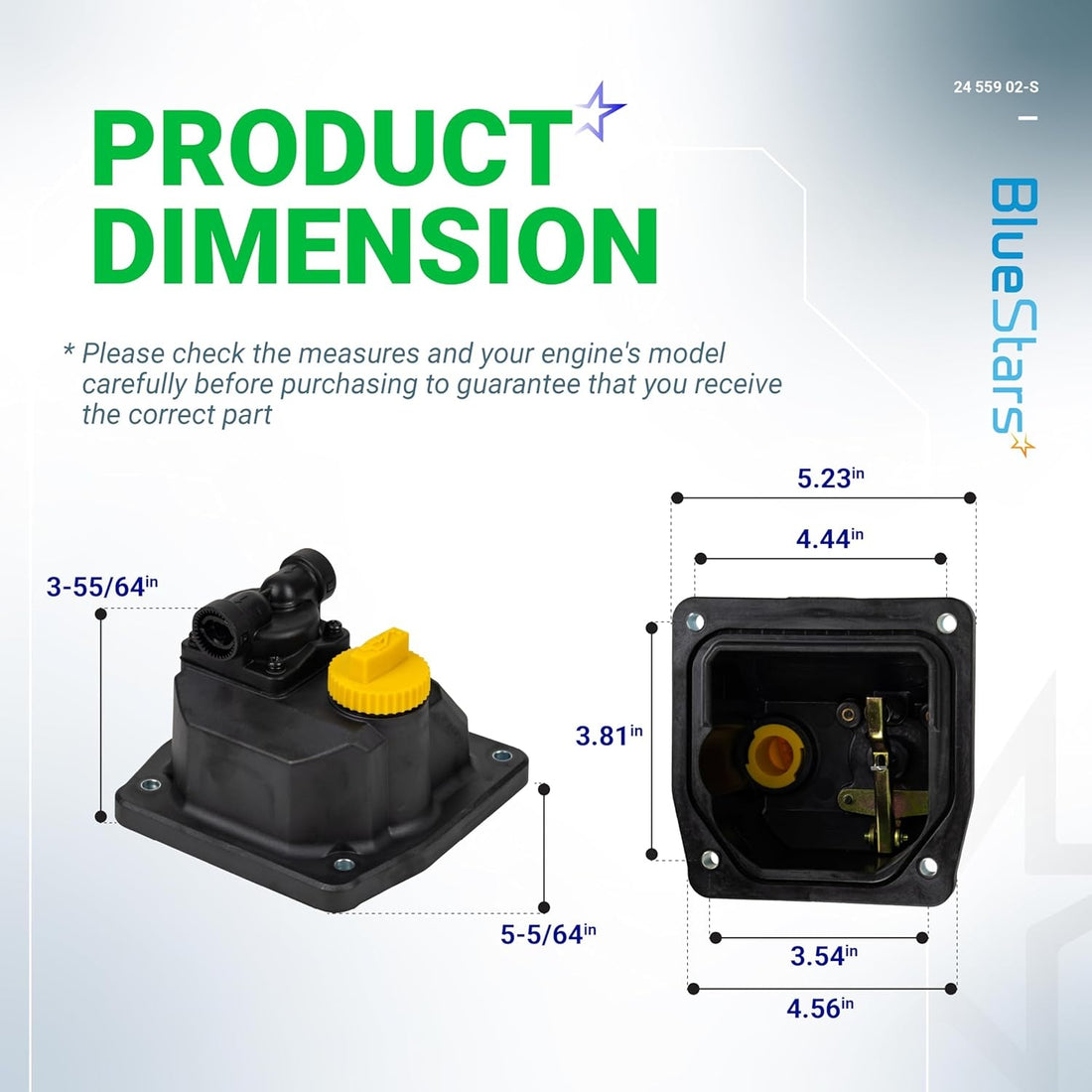

Dimensional diagram showing measurements for the 24 559 02-S fuel pump kit for Kohler engines.

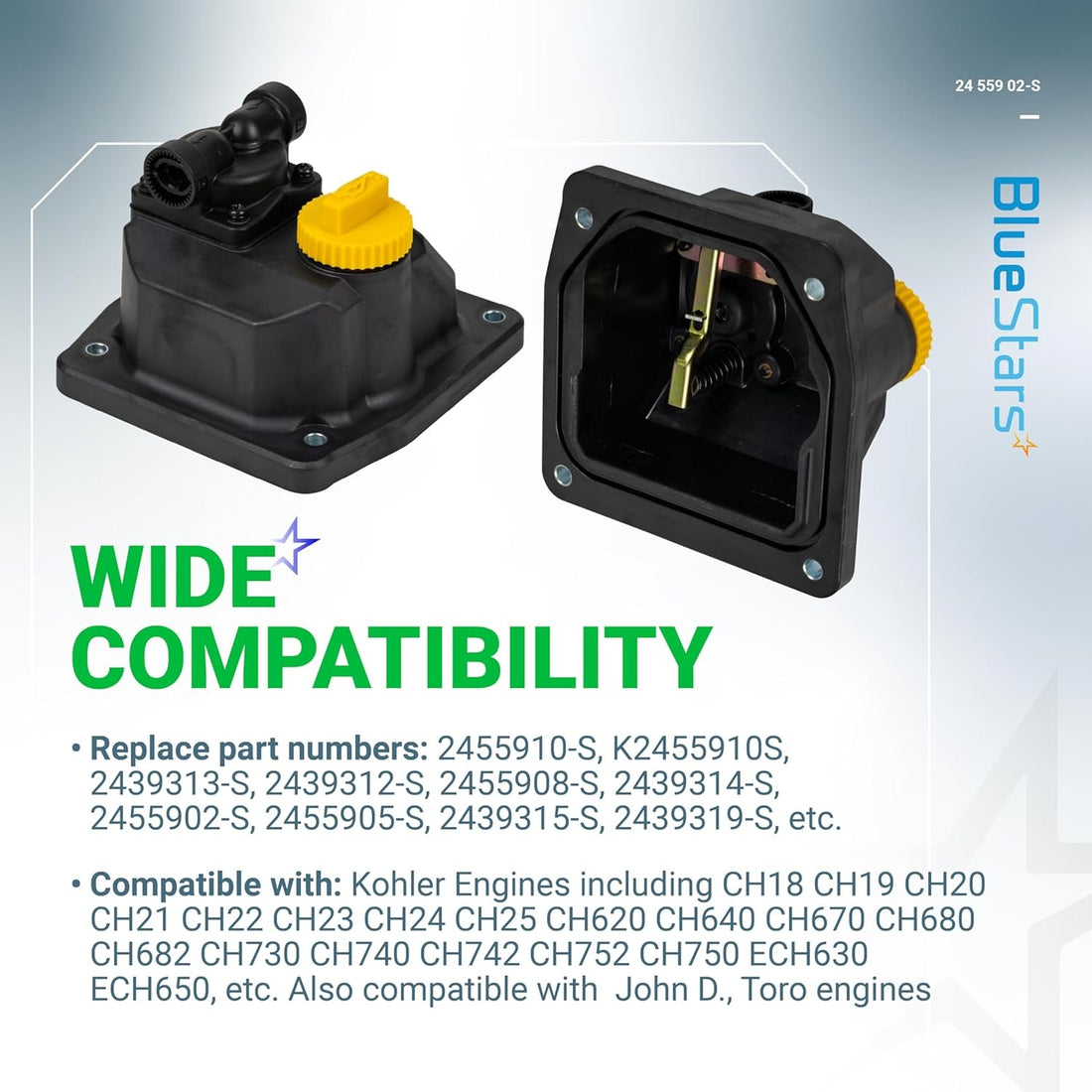

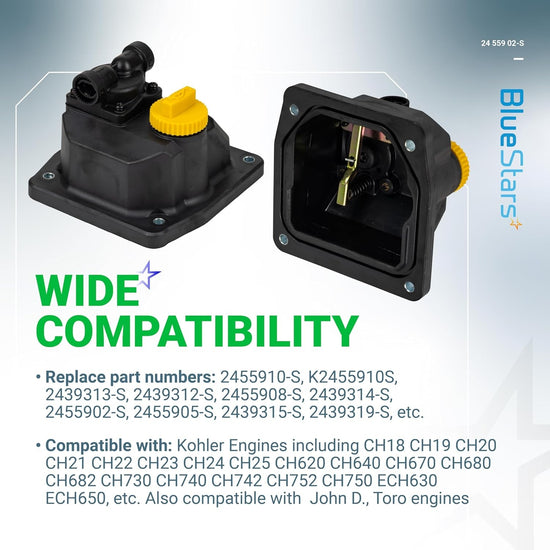

Two views of 24 559 02-S fuel pump for Kohler engines showing exterior and internal mechanical components.

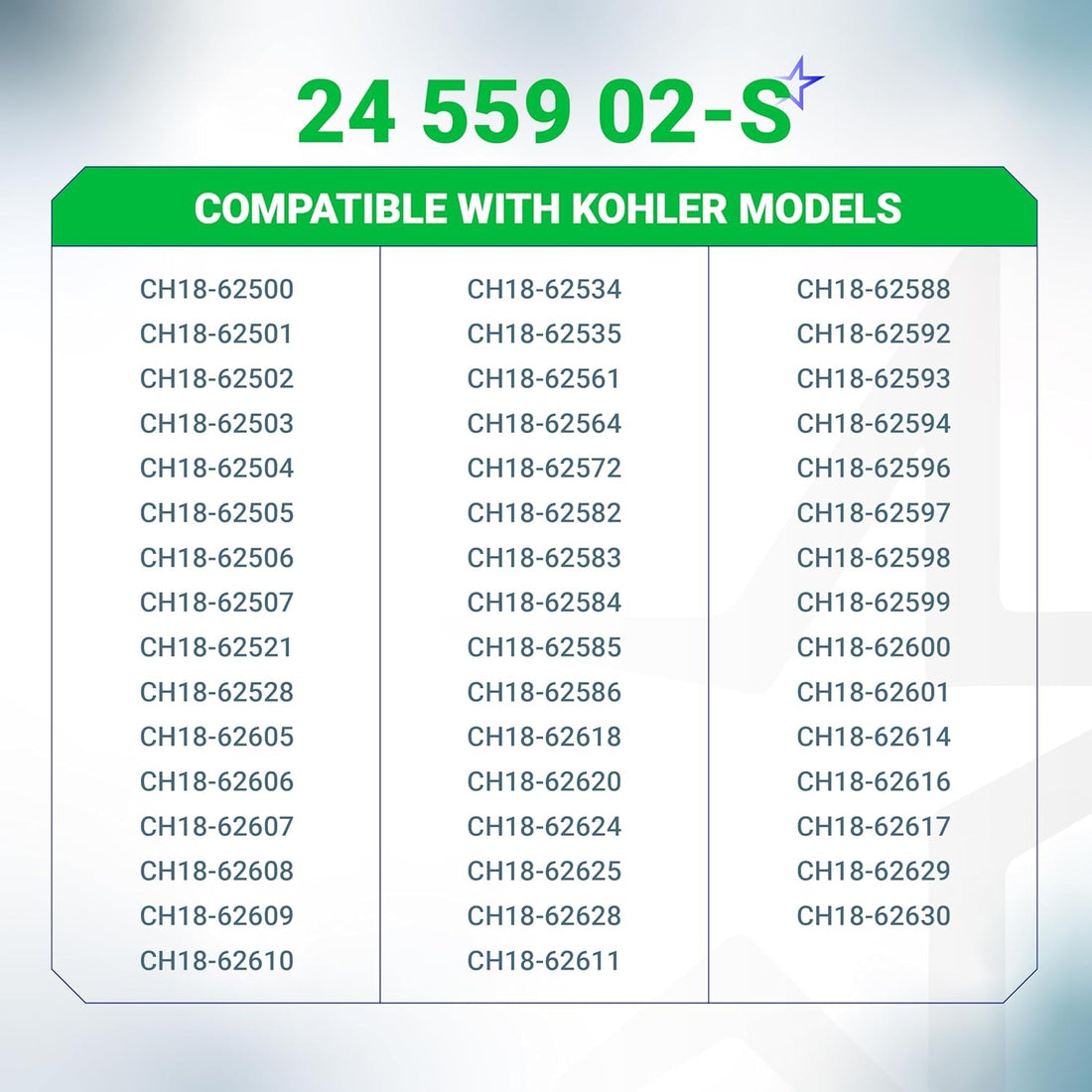

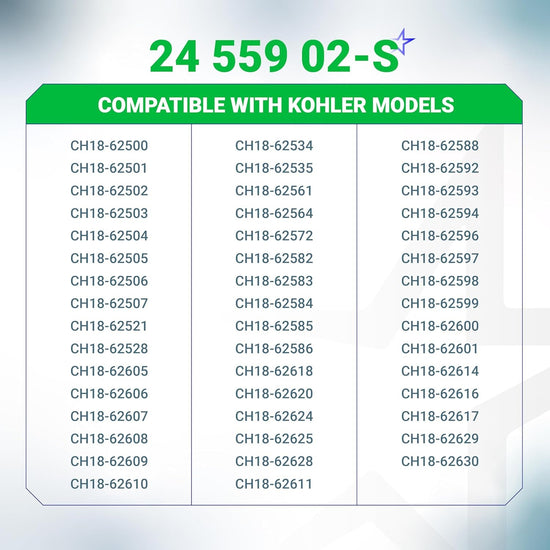

Compatibility chart for 24 559 02-S fuel pump kit listing specific Kohler engine model numbers.

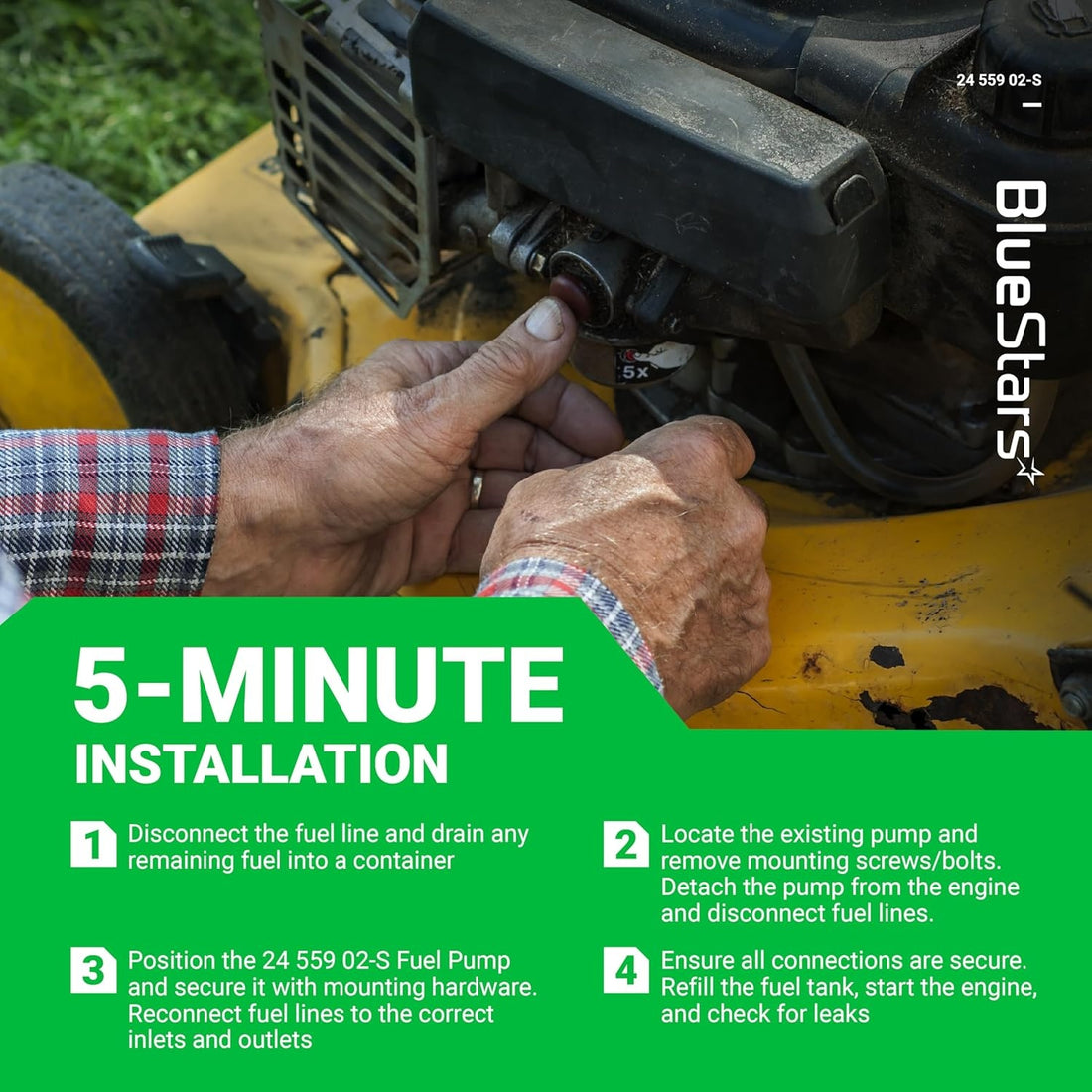

Installation guide for 24 559 02-S fuel pump on a Kohler engine showing 5-minute replacement steps.
24 559 02-S fuel pump kit with pump, mounting bolts, fuel line, fittings, and gaskets for Kohler engines.
24 559 02-S fuel pump kit for Kohler engines showing construction details, ABS housing, and internal metal components.
24 559 02-S fuel pump kit for Kohler engines shown from front and interior angles with BlueStars branding.
Package contents for 24 559 02-S fuel pump kit including pump, fuel hose, O-ring, screws, clamps, and fittings.
Front and back view of 24 559 02-S fuel pump kit for Kohler engines, showing internal components and yellow cap.
Dimensional diagram showing measurements for the 24 559 02-S fuel pump kit for Kohler engines.
Two views of 24 559 02-S fuel pump for Kohler engines showing exterior and internal mechanical components.
Compatibility chart for 24 559 02-S fuel pump kit listing specific Kohler engine model numbers.
Installation guide for 24 559 02-S fuel pump on a Kohler engine showing 5-minute replacement steps.
Lifetime Warranty

[Lifetime Warranty] 24 559 02-S Fuel Pump Kit - Compatible with Kohler CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH640 CH670 CH680 CH682 CH730 CH740 CH742 CH752 CH750 Engine

Save 13%
0.00
$39.35
$45.25
$39.35
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

24 559 02-S Fuel Pump Kit

Key Features

  • Direct replacement mechanical fuel pump kit
  • Ensures consistent fuel pressure and flow to the carburetor
  • Constructed from durable plastic materials
  • Kit includes components for a complete installation

Replaces / Cross-Reference Part Numbers

  • 24-559-03-S
  • 24-559-05-S
  • 24-559-08-S
  • 24-559-10-S
  • 2455910-S
  • 055-561
  • 24-393-12-S
  • 24-393-13-S
  • 24-393-14-S
  • 24-393-19-S

Compatibility & Fitment

  • Fits select Kohler Command PRO Twin Cylinder engines
  • CH Series: CH18, CH19, CH20, CH21, CH22, CH23, CH24, CH25, CH620, CH640, CH670, CH680, CH682, CH730, CH740, CH742, CH750, CH752
  • ECH Series: ECH630, ECH650, ECH680, ECH730, ECH749

When to Replace

  • Engine has difficulty starting or fails to start
  • Engine sputters, stalls, or loses power under load
  • Noticeable decrease in engine performance
  • Visible cracks or fuel leaks from the pump housing

Installation Tips

  • Disconnect the battery before beginning work.
  • Relieve fuel system pressure before disconnecting lines.
  • Note the orientation of existing fuel lines and fittings prior to removal.
  • Ensure the engine mounting surface is clean and free of old gasket material.
  • After installation, check all connections for leaks before starting the engine.
Product image 1
Product image 2
  • Perfect Fit

    Perfect Fit

    BlueStars 24 559 02-S Fuel Pump Kit is compatible with Kohler CH18, CH19, CH20, CH21, CH22, CH23, CH24, CH25, CH640, CH670, CH680, CH682, etc.
  • Solid Built & Durable To Use

    Solid Built & Durable To Use

    BlueStars Fuel Pump Kit is constructed with high-grade, impact-resistant plastic and metal materials for enhanced durability.
  • Saving Solution

    Saving Solution

    Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • Simple Installation

    Simple Installation

    The Fuel Pump Kit is designed to be easily removed and replaced, allowing for quick and convenient maintenance.
DELIVER A CONSISTENT FLOW OF FUEL

DELIVER A CONSISTENT FLOW OF FUEL

The high-quality Fuel Shut-Off Valve is designed to deliver a consistent flow of fuel to your lawn mower's engine. This helps to ensure smooth and efficient operation, even in tough conditions.
IDEAL REPLACEMENT

IDEAL REPLACEMENT

BlueStars Replacement Part will ensure that your lawn mower runs smoothly and efficiently.
THE REPLACEMENT PART THAT KEEP YOUR YARD LOOKING FRESH!

THE REPLACEMENT PART THAT KEEP YOUR YARD LOOKING FRESH!

Pump Type
Mechanical Fuel Pump — Integrated into Valve Cover Assembly
Kit Contents
1 x Valve Cover with Fuel Pump, 1 x Oil Fill Cap, 1 x Straight Hose Connection, 2 x 90° Hose Connection, 1 x 45° Hose Connection, 1 x Valve Cover O-ring, 1 x Plug Pip 1/8", 1 x Retaining Ring, 4 x Shoulder Screw, 1 x Fuel Hose Line 11" Length, 2 x Hose Clamp
Fuel Line Length
11 inches
Compatible Engines
Kohler CH18 / CH19 / CH20 / CH21 / CH22 / CH23 / CH24 / CH25 / CH620 / CH640 / CH670 / CH680 / CH682 / CH730 / CH740 / CH742 / CH750 / CH752 / ECH630 / ECH650 / ECH680 / ECH730 / ECH740 / ECH749

FAQ

This kit is designed for the Kohler Command series, specifically models CH18, CH19, CH20, CH21, CH22, CH23, CH24, CH25, CH620, CH640, CH670, CH680, CH682, CH730, CH740, CH742, CH750, and CH752.
This kit replaces OEM part numbers 24 559 02-S, 24-559-03-S, 24 559 05-S, 24-559-08-S, and 24-559-10-S.
Common symptoms of a failing fuel pump include the engine struggling to start, surging or stalling during operation, or a noticeable lack of power under load. If you notice fuel leaking from the pump housing or if the engine runs lean despite a clean carburetor, the internal diaphragm may be worn or torn.
This is a valve-cover-mounted fuel pump. It is installed specifically on the #2 cylinder side of the engine, which is the same side as the oil filter.
Before installation, inspect your fuel lines for any cracks, dry rot, or clogs. It is also a good practice to replace your fuel filter at the same time to prevent debris from reaching the new pump or the carburetor. Ensure the vacuum port on the engine is clear and free of obstructions to allow for proper pump pulsation.
These pumps are sensitive to fuel quality. Using fuel with an ethanol content higher than 10% can degrade the internal seals and diaphragms prematurely. Always use fresh, stabilized fuel to ensure the longevity of the new pump.
