[Lifetime Warranty] 2188874 4-Pin 115V 60HZ Refrigerator Condenser Motor - Compatible with Whirlpool Kenmore KitchenAid Refrigerators - Replaces 2188875 WP2188874 PS11739140 AP6006075

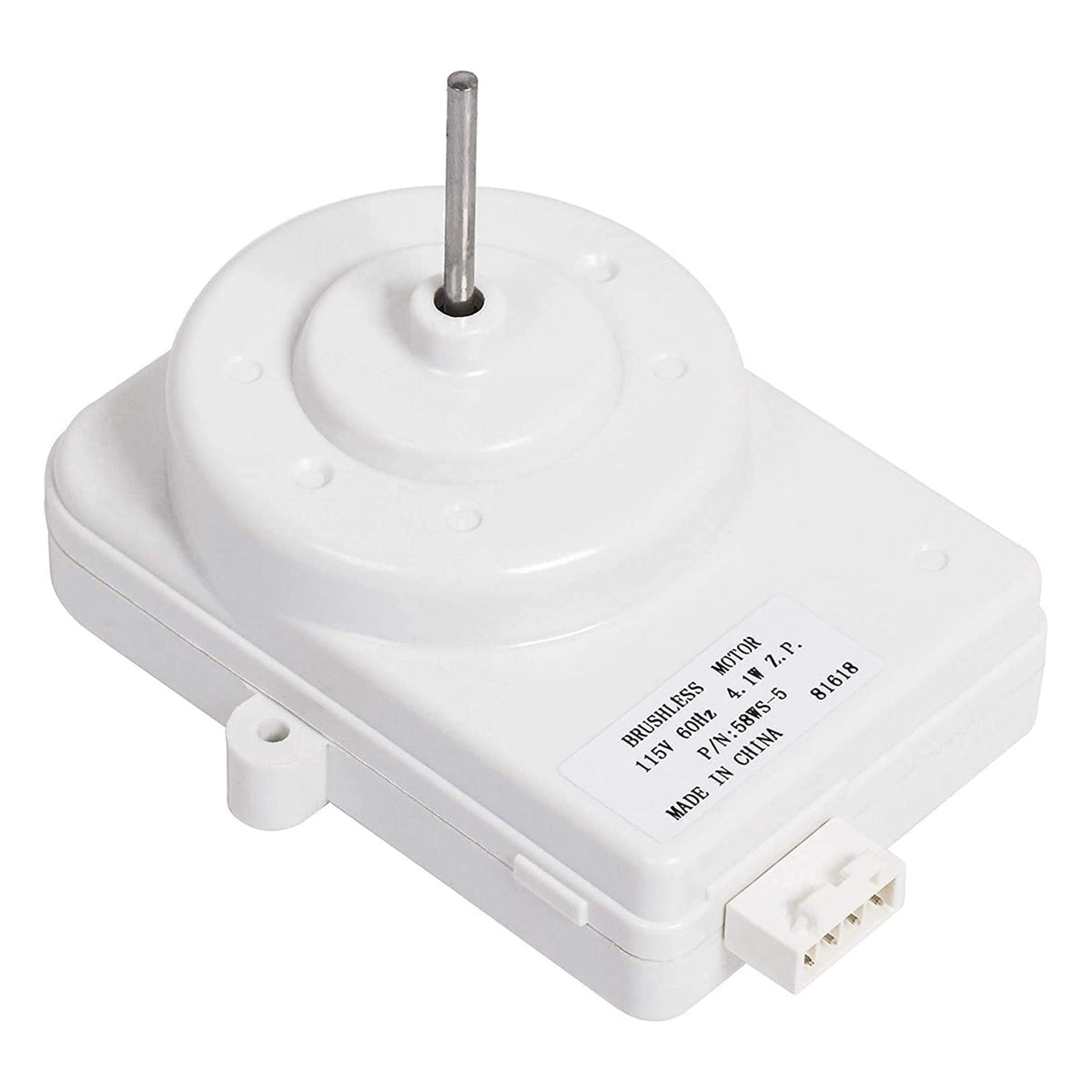

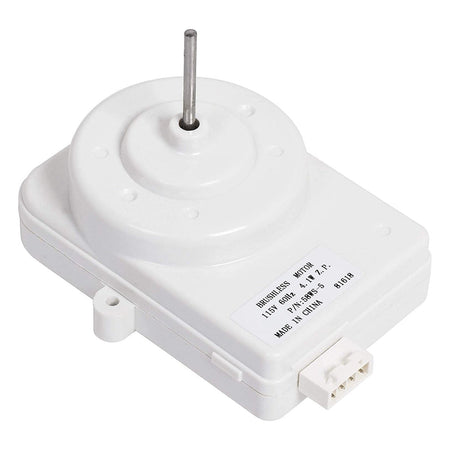

White 4-pin 115V refrigerator condenser motor with metal shaft and label detail.

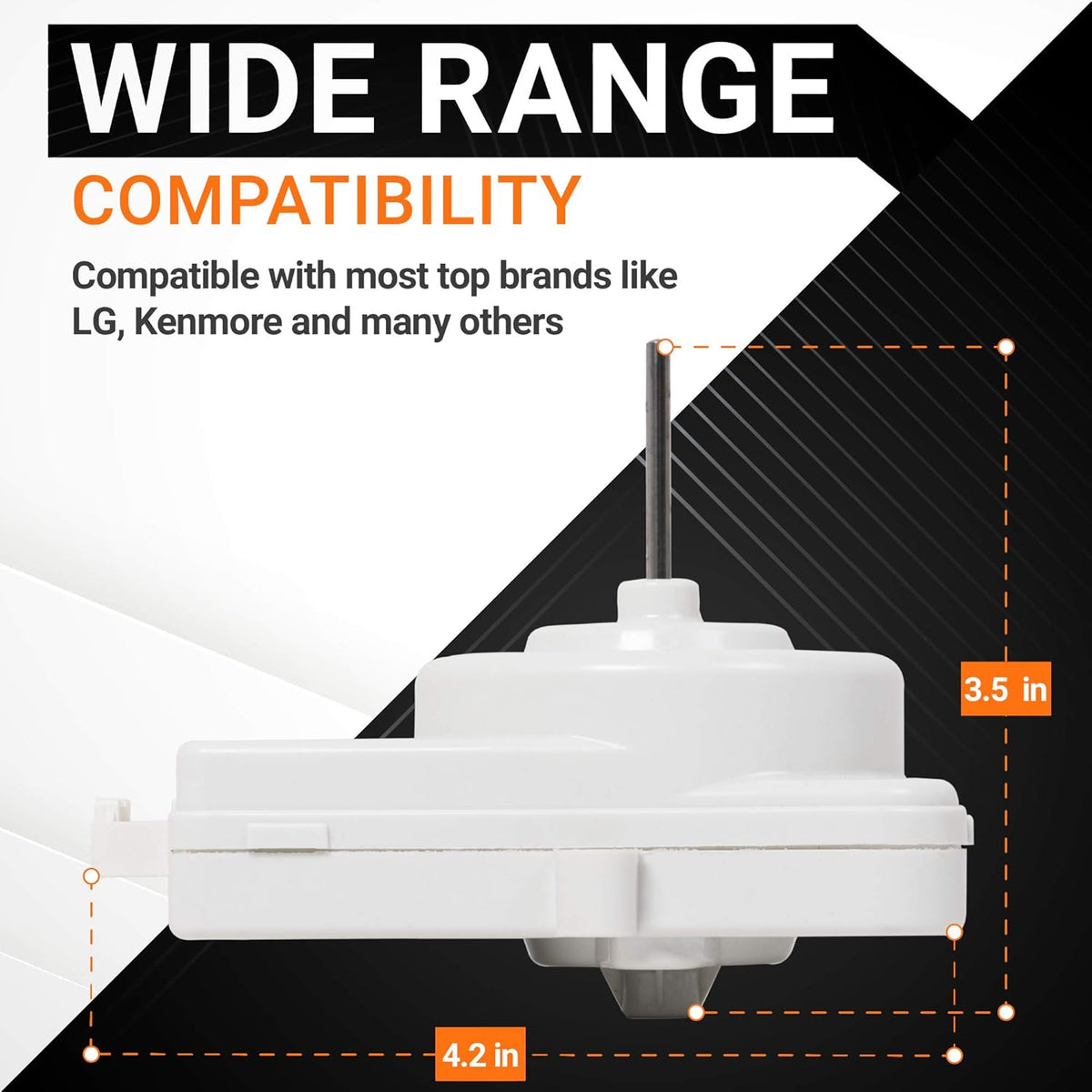

Dimensional diagram of 2188874 refrigerator condenser motor showing 4.2-inch width and 3.5-inch height.
Graphic showing benefits of replacing refrigerator condenser motor for Whirlpool and Kenmore appliances.

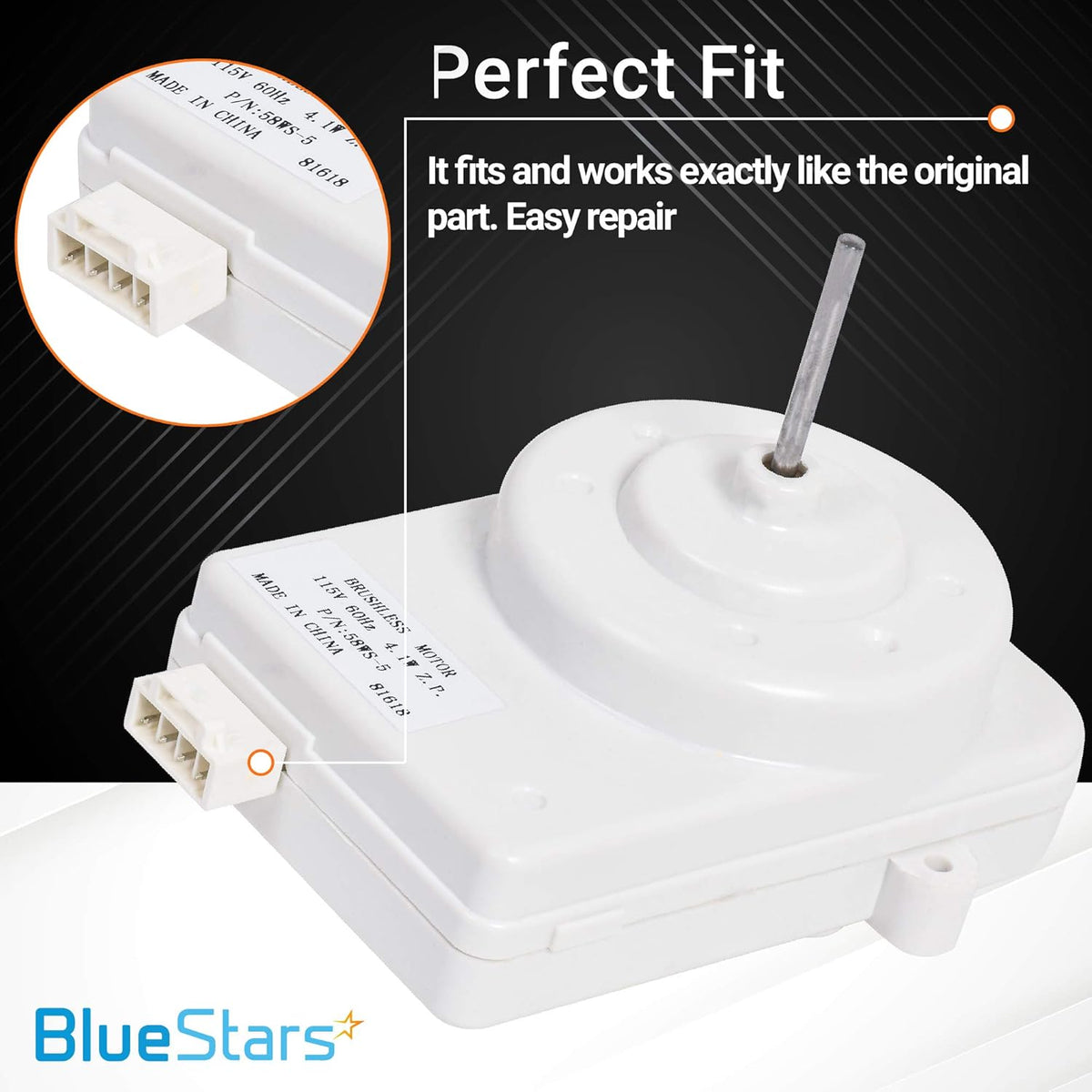

White 4-pin refrigerator condenser motor with close-up of the electrical connector and technical label.

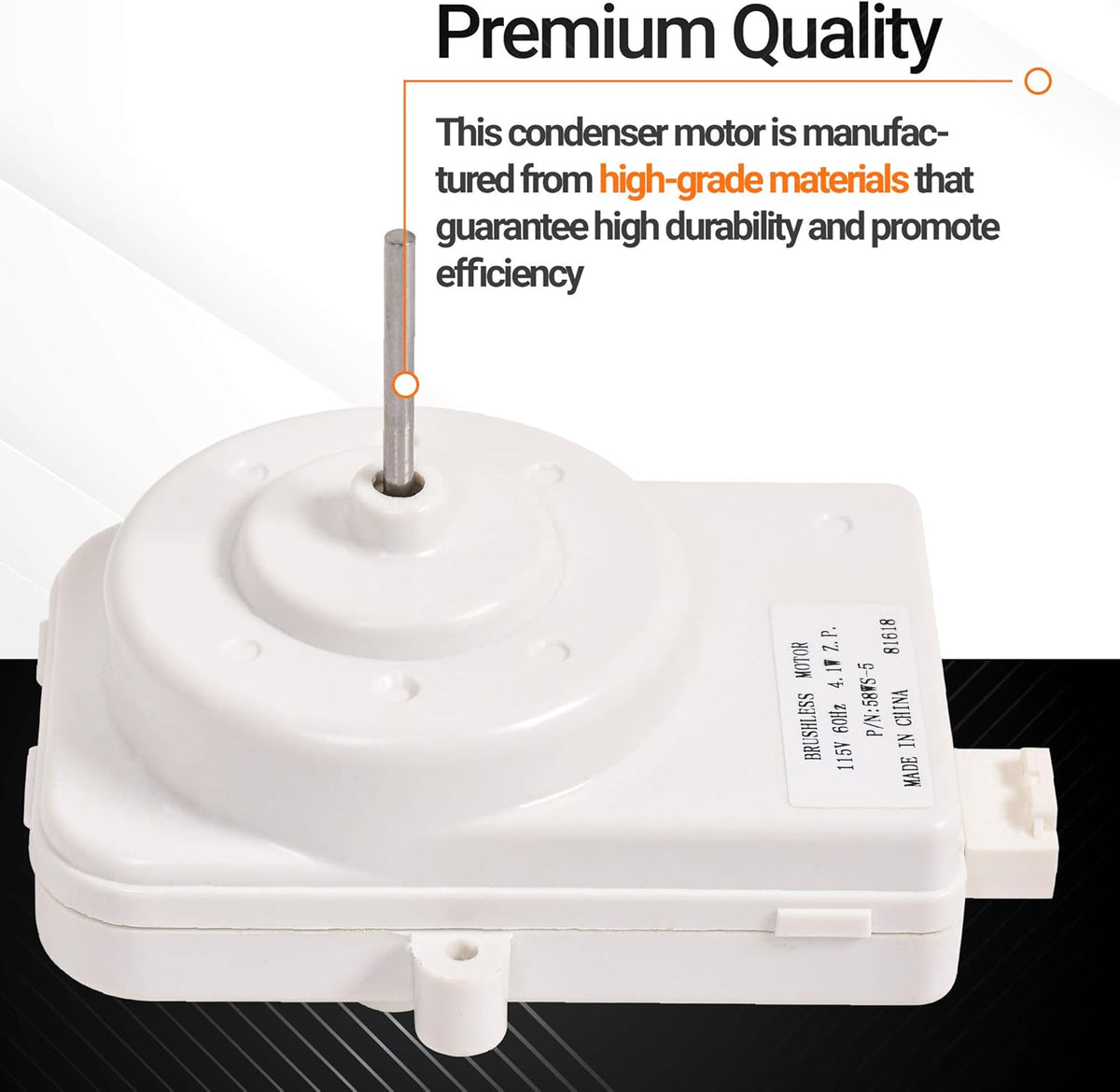

White 115V refrigerator condenser motor with shaft and label, highlighting premium quality construction.
Family smiling in front of a refrigerator with text overlay promoting economical DIY refrigerator repair solutions.
White 4-pin 115V refrigerator condenser motor with metal shaft and label detail.
Dimensional diagram of 2188874 refrigerator condenser motor showing 4.2-inch width and 3.5-inch height.
Graphic showing benefits of replacing refrigerator condenser motor for Whirlpool and Kenmore appliances.
White 4-pin refrigerator condenser motor with close-up of the electrical connector and technical label.
White 115V refrigerator condenser motor with shaft and label, highlighting premium quality construction.
Family smiling in front of a refrigerator with text overlay promoting economical DIY refrigerator repair solutions.
Lifetime Warranty

[Lifetime Warranty] 2188874 4-Pin 115V 60HZ Refrigerator Condenser Motor - Compatible with Whirlpool Kenmore KitchenAid Refrigerators - Replaces 2188875 WP2188874 PS11739140 AP6006075

Save 30%
0.00
$35.48
$50.69
$35.48
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

2188874 Refrigerator Condenser Fan Motor (4-Pin, 115V, 60Hz)

Key Features

  • Optimal Heat Dissipation: Engineered to pull ambient room air across the hot condenser coils and the compressor, actively removing heat from the refrigerant to keep your refrigerator and freezer at food-safe temperatures.
  • Thermal Overload Protection: Equipped with an internal safety switch that automatically cuts power to the motor if it becomes jammed by debris, preventing electrical shorts, melted wiring, or fire hazards.
  • Factory 4-Pin Connection: Features a standard 4-pin male electrical terminal plug designed to mate perfectly with the original factory wiring harness for a seamless, wire-free installation.
  • Sealed Bearing Construction: Built with high-quality, permanently lubricated bearings designed to withstand the dusty, lint-heavy environment of the bottom rear compressor compartment without seizing.
  • OEM-Grade Specifications: Calibrated to exactly 115 Volts and 60Hz, ensuring the motor spins the fan blade at the precise RPM required for maximum airflow and cooling efficiency.

Replaces / Cross-Reference Part Numbers

  • WP2188874
  • AP6006075
  • PS11739140
  • W10508362
  • WPW10508362
  • W11042567
  • W11253683
  • 2206036
  • SM8874
  • WP2188874VP

Compatibility & Fitment

This condenser fan motor is a universal replacement for a vast number of side-by-side and top-freezer refrigerators. Compatible brands include:

  • Whirlpool
  • Kenmore / Sears
  • KitchenAid
  • Maytag
  • Roper
  • Estate
  • Amana
  • Crosley

When to Replace

  • Refrigerator is Too Warm: Both the freezer and the fresh food sections are struggling to maintain cold temperatures because the compressor is overheating and shutting down prematurely.
  • Compressor is Constantly Running: If the fan dies, the compressor has to work overtime to try to cool the system, leading to a machine that never cycles off.
  • Loud Humming or Grinding: A failing motor bearing will often produce a loud, continuous humming, grinding, or squealing noise from the lower back panel of the refrigerator.
  • Motor is Hot to the Touch: If you pull the fridge out and find the condenser motor is too hot to touch but the fan blade is barely spinning (or completely stopped), the internal coils have burned out.

Installation Tips

  • Safety First: CRITICAL: Always unplug the refrigerator from the wall outlet before removing the lower back cardboard access panel.
  • Save the Old Fan Blade: PRO TIP: This product is the motor only. You must gently pull the white plastic or metal fan blade off the old motor shaft and transfer it to the new motor. Do not throw the old blade away!
  • Clear the Coils: A dead condenser fan is often caused by years of dust and pet hair clogging the condenser coils, which suffocates the motor. Use a narrow vacuum attachment and a coil brush to thoroughly clean the area before installing the new part.
  • Position the Blade Correctly: When pressing the old fan blade onto the new motor shaft, ensure it is pushed down to the exact same depth as it was originally. If it sits too high or too low, it will scrape against the metal mounting bracket when it spins.
  • Secure the Mounting Screws: Ensure the bracket holding the motor is screwed back in tightly. A loose bracket will cause the motor to vibrate loudly against the frame of the refrigerator.
Product image 1
Product image 2
  • PERFECT FIT

    PERFECT FIT

    BlueStars 2188874 Refrigerator Condenser Motor replaces part numbers: 2188875, WP2188874, AP6006075, PS11739140.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    2188874 Refrigerator Condenser Motor is made from durable high quality material and well-tested by the manufacturer. Ensure effective operation.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your refrigerator works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The 2188874 Refrigerator Condenser Motor is very simple that anyone with basic hand tools can do.
PERFECT FIT

PERFECT FIT

Fits and works exactly like the original part. Simple and inexpensive fix
PREMIUM QUALITY

PREMIUM QUALITY

This condenser motor is manufactured from high-grade materials that ensure high durability and promote efficiency
ECONOMICAL DIY REPAIR

ECONOMICAL DIY REPAIR

Enjoy the comfort that our Refrigerator Condenser Motor brings into your refrigerator - BlueStars provides DIY solutions to help you deal with any troubles
Brand Model Number
Replaces 1065075, 2188875, 2206036, AP6006075, EAP11739140, PD00002933, PS11739140, SM8874, UDQR107W3, W10508362, W10530280, W11042567, W11177620, W11253683, W11546725, W11563806, WP2188874VP, WPW10508362
Amana A1RXNGFYB00, A2RXNMFWB02, A2RXNMFWB03, A2RXNMFWS02, A2RXNMFWS03, A2RXNMFWW02, A2RXNMFWW03, A8RXEGFXB00, A8RXEGFXD00, A8RXEGFXW00, A8TXEGFYB00, A8TXEGFYB01, A8TXEGFYB02, A8TXEGFYW00, A8TXEGFYW01, A8TXEGFYW02, A9RXNGFYB00, A9RXNGFYS00, A9RXNGFYW00, A9RXNMFWB01, A9RXNMFWB02, A9RXNMFWS01, A9RXNMFWS02, A9RXNMFWW02, ASD2275BRB00, ASD2275BRW00, ASD2520WRB00, ASD2520WRW00, ASD2522WEB00, ASD2522WEB01, ASD2522WED01, ASD2522WES00, ASD2522WES01, ASD2522WEW00, ASD2522WEW01, ASD2522WRD01, ASD2522WRD02, ASD2522WRD03, ASD2522WRD04, ASD2522WRS02, ASD2522WRS03, ASD2522WRS07, ASD2522WRW01, ASD2522WRW02, ASD2522WRW04, ASD2523WRB00, ASD2523WRW00, ASD2524VEB00, ASD2524VEB01, ASD2524VEB02, ASD2524VES00, ASD2524VES01, ASD2524VES02, ASD2524VEW00, ASD2524VEW01, ASD2524VEW02, ASD2526VES00, ASD2575BRB00, ASD2575BRS00, ASD2575BRW00, ATB2232MRB01, ATB2232MRS01, ATB2232MRW01
Crosley CS22CFXTQ00, CS22CFXTS00, CS22CFXTT00, CS25CFXTQ00, CS25CFXTQ01, CT18GKXRQ01, CT18GKXRT01, CT18GMXRQ00, CT18GMXRQ01, CT21GKXPQ01, CT21GKXPQ02, CT21GKXPT01, CT21GKXPT02, CT21GKXRQ00, CT21GKXRQ01, CT21GKXRQ02, CT21GKXRQ03, CT21GKXRT00, CT21GKXRT01, CT21GKXRT02, CT21GKXRT03
Estate TT18AKXPQ03, TT18WKXRT01
Ikea ID3CHEXWS01
Jenn-Air JCD2395WES00, JCD2395WES01, JCD2395WES02, JCD2595WES02
Kenmore 10632242101, 10632243101, 10632249101, 10632852011, 10632853011, 10632862011, 10632863011, 10632942101, 10632943101, 10632949101, 10640212011, 10640262010, 10640263010, 10640263011, 10640269010, 10640562010, 10640563010, 10640563011, 10640569010, 10640569011, 10641122210
KitchenAid KSF22C4CYY00, KSF26C4XYB00, KSF26C4XYB02, KSF26C4XYB03, KSF26C4XYW02, KSF26C4XYW03, KSF26C4XYY00, KSF26C4XYY01, KSF26C4XYY02, KSF26C6XYY00, KSF26C6XYY02, KSF26C6XYY03, KSF26C7XYY00, KSF26C7XYY02, KSCK23FVBL00, KSCK23FVBL01, KSCK23FVMS00, KSCK23FVMS01, KSCK23FVMS02, KSCK23FVSS00, KSCK23FVSS01, KSCK23FVSS02, KSCK23FVWH01, KSCK23FVWH02, KSCK25FVBL00, KSCK25FVBL01, KSCK25FVBL03, KSCK25FVMS00, KSCK25FVMS01, KSCK25FVSS00, KSCK25FVSS01, KSCK25FVSS03, KSCK25FVWH00, KSCK25FVWH01, KSCK25FVWH03, KSCS25FVBL01, KSCS25FVBT01, KSRL25FXBL00, KSRL25FXMS00, KSRL25FXMT00
KitchenAid KSRS25CSBL00, KSRS25CSBL01, KSRS25CSBL02, KSRS25CSBT00, KSRS25CSBT01, KSRS25CSBT02, KSRS25CSMK01, KSRS25CSMK02, KSRS25CSMS00, KSRS25CSMS01, KSRS25CSMS02, KSRS25CSSS00, KSRS25CSWH02, KSRS25FTBL00, KSRS25FTBL03, KSRS25FTBT00, KSRS25FTBT01, KSRS25FTBT03, KSRS25FTMS00, KSRS25FTMS01, KSRS25FTMS03, KSRS25FTSS00, KSRS25FTSS01, KSRS25FTSS03, KSRS25FTWH00, KSRS25FTWH01, KSRS25FTWH03, KSRS25MWBL00, KSRS25MWMS00, KSRS25MWMS01, KSRS25MWMS02, KSRS25MWMS03, KSRS25MWSS00, KSRS25MWWH00, KSRS25RSBL00, KSRS25RSBL01, KSRS25RSBT00, KSRS25RSBT01, KSRS25RSMK00, KSRS25RSMK01, KSRS25RSMS00, KSRS25RSMS01, KSRS25RSMS03, KSRS25RSWH00, KSRS25RSWH01, KSRS25RVBL02, KSRS25RVBL03, KSRS25RVMK00, KSRS25RVMK01, KSRS25RVMK02, KSRS25RVMK03, KSRS25RVMK05, KSRS25RVMS00, KSRS25RVMS01, KSRS25RVMS02, KSRS25RVMS05, KSRS25RVWH00, KSRS25RVWH01, KSRS25RVWH02, KSRS25RVWH03, KSRV22FVBL00, KSRV22FVBL01, KSRV22FVBT00, KSRV22FVBT02, KSRV22FVMS00, KSRV22FVMS01, KSRV22FVMS02, KSRV22FVMS03, KSRV22FVMS04, KSRV22FVSS00, KSRV22FVSS01, KSRV22FVSS02, KSRV22FVSS03, KSRV22FVSS04, KSRV22FVWH00, KSRV22FVWH01, KSRV22FVWH02, KTRP22KRWH02, KSRX22FSST00, KSRX22FSST01, KSRX22FSST02, KSRX22FSST03, KSRX22FSWH00, KSRX22FSWH01, KSRX22FSWH03, KSRX22FTBL00, KSRX22FTST00, KSRX22FTWH00, KSRX25FNST03, KSRX25FSBL00, KSRX25FSBL01, KSRX25FSST00, KSRX25FSST01, KSRX25FSWH00, KSRX25FSWH01, KSRX25FTBL00, KSRX25FTBL01, KSRX25FTBL02, KSRX25FTSS00, KSRX25FTST00, KSRX25FTST01, KSRX25FTST02, KSRX25FTWH00, KSRX25FTWH02, KSRX25FVBL00, KSRX25FVBL02, KSRX25FVMS00, KSRX25FVMS02, KSRX25FVWH02, KSRY25CTMS00, KSRY25CTMS01, KSRY25CVMS00
Maytag 7MF2976AEM00, 7MF2976AEM01, 7MF2976AEM02, 7MF2976AEM03, M1TXEGMYB01, M1TXEMMWQ00, M1TXEMMWQ02, M1TXEMMWQ03, M1TXEMMWQ04, M9BXXGMYM00, MCD2358WEB01, MCD2358WEM01, MCD2358WEW01, MSD2242VEB01, MSD2242VES00, MSD2242VES01, MSD2242VES03, MSD2242VEU00, MSD2242VEU01, MSD2242VEW00, MSD2242VEW01, MSD2254VEA00, MSD2254VEA01, MSD2254VEB00, MSD2254VEB01, MSD2254VEQ00, MSD2254VEQ01, MSD2254VEW00, MSD2254VEW01, MSD2254VEY00, MSD2254VEY01, MSD2258KES00, MSD2258KES01, MSD2258KEU01, MSD2258KGB01, MSD2258KGW00, MSD2269KEA02, MSD2269KEB01, MSD2269KEB02, MSD2269KEW00, MSD2269KEW01, MSD2269KEW02, MSD2269KEY00, MSD2269KEY01, MSD2272VES02, MSD2273VEB00, MSD2273VES00, MSD2273VEW00, MSD2550VEB00, MSD2550VEB01, MSD2550VES01, MSD2550VES02, MSD2550VES03, MSD2550VEU01, MSD2550VEW01, MSD2552VEA00, MSD2552VEW01, MSD2552VEY00, MSD2552VEY01, MSD2553WEB00, MSD2553WEB01, MSD2553WEM00, MSD2553WEM01, MSD2553WEW00, MSD2554VEY00, MSD2554VEY01, MSD2559XEB00, MSD2559XEB01, MSD2559XEB03, MSD2559XEB04, MSD2559XEM00, MSD2559XEM01, MSD2559XEM02, MSD2559XEM03, MSD2559XEM04, MSD2559XEW04, MSD2572VEB00, MSD2572VES00, MSD2572VES01, MSD2572VES03, MSD2572VEU00, MSD2572VEW01, MSD2573VEB01, MSD2573VEB02, MSD2573VES01, MSD2573VES02, MSD2573VES03, MSD2573VES04, MSD2573VEW00, MSD2573VEW01, MSD2574VEA00, MSD2574VEA10, MSD2574VEB00, MSD2574VEB10, MSD2574VEB11, MSD2574VEM00, MSD2574VEM10, MSD2574VEM13, MSD2574VEQ00, MSD2574VEQ11, MSD2574VEW00, MSD2574VEW10, MSD2574VEW11, MSD2576VEA00, MSD2576VEB00, MSD2576VEM01, MSD2576VEW00, MSD2578VEA00, MSD2578VEB00, MSD2578VEM00, MSD2578VEM01, MSD2578VEW00, MSD2572VEW00
Whirlpool 7ET1FTKXRQ00, 7GF6NFEXTY00, 7GR2SHWXRL00, 7GR2SHWXRS00, 7GS2FHAXTA00, 7GS2FHAXTA01, 7GS2FHAXTA02, 7GS5FHAXTA00, 7GS5FHAXTA01, 7GS5FHAXTA02, 7GSC22C6XA00, 7GSC22C6XW00, 7GSC22C6XY00, 7GSC22C6XY01, 7WF736SDAM10, 7WF736SDAM11, 7WRS22FDBW00, 7WRS25FDBF00, 7WSC19D2XL00, 7WSC19D2XS00, 7WSC19D2XS01, 7WSC19D2XW00, 7WSC21C4XA00, 7WSC21C4XW00, 7WSC21C4XY00, 7WSC21C4XY01, 8ET1FTKXKT06, 8ET1FTKXKT07, 8ET1WTKXKT06, 8ET8FTKXKT06, 8ET8WPKXKT06, 8ET8WPKXKT07, 8GT2FTKXSS00, 8GT2FTKXSS01, 8GT2FTKXSS02, 8GT2FTKXSS03, 8GT9FTKXST00, 8GT9FTKXST01, 8GT9FTKXST02, 8VET0WPKKQ04, 8VET0WPKKQ05, 8VET0WPKKQ06, 8VET2WPKKQ05, 8VET2WPKKQ06, 8W8TXDGFBW00, 8W8TXDGFXT00, 8W8TXDWFBW00, 8W8TXDWFXT00
Whirlpool BRS62BBANA00, BRS62BRANA00, BRS62CBANA00, BRS62CRANA00, BRS70FBANA00, BRS70FRANA00, BRS70FRANA01, BRS70HEANA00, BRS70HRANA00, BRS80ARANA00, BRS80ARANA01, ED5CHQXTB00, ED5CHQXTQ00, ED5CHQXTT00, ED5CHQXVB00, ED5CHQXVB01, ED5CHQXVQ00, ED5CHQXVQ01, ED5CHQXVT00, ED5CHQXVT01, ED5DHEXWB00, ED5DHEXWB03, ED5DHEXWL00, ED5DHEXWL03, ED5DHEXWQ00, ED5DHEXWQ03, ED5FHAXVA00, ED5FHAXVA01, ED5FHAXVA02, ED5FHAXVA03, ED5FHAXVA04, ED5FHAXVB00, ED5FHAXVB01, ED5FHAXVB02, ED5FHAXVB03, ED5FHAXVB04, ED5FHAXVQ00, ED5FHAXVQ01, ED5FHAXVQ02, ED5FHAXVQ03, ED5FHAXVQ04, ED5FHAXVS00, ED5FHAXVS01, ED5FHAXVS02, ED5FHAXVS03, ED5FHAXVS04, ED5FHAXVT00, ED5FHAXVT01, ED5FHAXVT02, ED5FHAXVT03, ED5FHAXVT04, ED5FHAXVY00, ED5FHAXVY01, ED5FHAXVY02, ED5FHAXVY03, ED5FHAXVY04, ED5FHEXVB00, ED5FHEXVB01, ED5FHEXVL00, ED5FHEXVL01, ED5FHEXVQ00, ED5FHEXVQ01, ED5FHEXVS00, ED5FHEXVS01, ED5FHEXVS02, ED5FHEXVS04, ED5FHEXVT00, ED5FHEXVT01, ED5FVAXWL00, ED5FVAXWL01, ED5FVGXWS00, ED5FVGXWS01, ED5FVGXWS02, ED5FVGXWS05, ED5FVGXWS06, ED5HBEXTB00, ED5HBEXTQ01, ED5HHAXVB01, ED5HVAXVL02, ED5HVAXVL03, ED5HVEXVB01, ED5HVEXVB02, ED5HVEXVB03, ED5HVEXVL01, ED5HVEXVL02, ED5HVEXVL03, ED5HVEXVQ01, ED5HVEXVQ02, ED5HVEXVQ03, ED5JVEXTQ00, ED5JVEXTS00, ED5KVEXVB01, ED5KVEXVB03, ED5KVEXVB04
Whirlpool ED5LHAXML12, ED5LHAXMQ11, ED5LHAXMT11, ED5LHAXWB00, ED5LHAXWQ00, ED5LHAXWQ01, ED5LHAXWQ02, ED5LHAXWS00, ED5LHAXWS01, ED5LHAXWS02, ED5LHAXWS06, ED5LHAXWS07, ED5LHAXWT00, ED5LHAXWT01, ED5LHAXWT02, ED5LHEXTD00, ED5LHEXTD10, ED5LTAXVB01, ED5LTAXVL00, ED5LTAXVL01, ES2FHAXSA00, ES2FHAXSA01, ES2FHAXSA02, ES2FHAXSB00, ES2FHAXSB01, ES2FHAXSB02, ES2FHAXSL01, ES2FHAXSL02, ES2FHAXSQ00, ES2FHAXSQ01, ES2FHAXSQ02, ES5DVAXWA00, ES5DVAXWA01, ES5DVAXWB00, ES5DVAXWB01, ES5DVAXWQ00, ES5DVAXWQ01, ES5DVAXWS00, ES5DVAXWS01, ES5DVAXWY00, ES5DVAXWY01
Whirlpool G2IXEFMWB00, G2IXEFMWB01, G2IXEFMWB02, G2IXEFMWB03, G2IXEFMWQ00, G2IXEFMWQ02, G2IXEFMWS00, G2IXEFMWS01, G2IXEFMWS02, G2IXEFMWS03, G9IXEFMWB01, G9IXEFMWB02, G9IXEFMWQ01, G9IXEFMWQ02, G9IXEFMWS01, G9IXEFMWS02, G9RXXFMWB00, G9RXXFMWL00, G9RXXFMWQ00, G9RXXFMWS00, GAFZ21XXRK00, GD5DHAXVA00, GD5DHAXVA02, GD5DHAXVA03, GD5DHAXVA04, GD5DHAXVA05, GD5DHAXVQ00, GD5DHAXVQ03, GD5DHAXVQ04, GD5DHAXVQ05, GD5NHAXSB00, GD5NHAXSQ00, GD5NHAXSY00, GD5NVAXSA00, GD5NVAXSA03, GD5NVAXSB00, GD5NVAXSB01, GD5NVAXSB02, GD5NVAXSB03, GD5NVAXSL00, GD5NVAXSL01, GD5NVAXSL02, GD5NVAXSL03, GD5NVAXSQ00, GD5NVAXSQ01, GD5NVAXSQ02, GD5NVAXSQ03, GD5NVAXSS00, GD5RHAXRL00, GD5RHAXRQ00, GD5RHAXSB00, GD5RHAXSB01, GD5RHAXSL00, GD5RHAXSL01, GD5RHAXSQ00, GD5RHAXTB01, GD5RHAXTL01, GD5RVAXVA00, GD5RVAXVA01, GD5RVAXVA02, GD5RVAXVA03, GD5RVAXVA04, GD5RVAXVA05, GD5RVAXVQ00, GD5RVAXVQ01, GD5RVAXVQ02, GD5RVAXVQ04, GD5RVAXVQ05, GD5RVAXVY02, GD5RVAXVY03, GD5RVAXVY04, GD5RVAXVY05, GD5SHAXNB03, GD5SHAXNL01, GD5SHAXNL03, GD5SHAXNQ01, GD5SHAXNQ03, GD5SHAXNS03, GD5SHAXNT01, GD5SHAXNT03, GD5YHAXTL00, GD5YHAXTL01, GD5YHAXTQ00, GD5YHAXTQ01, GD5YHAXTQ02
Whirlpool GF6NFEXRB00, GF6NFEXRB01, GF6NFEXRQ00, GF6NFEXRQ01, GF6NFEXRY01, GF6NFEXTB01, GF6NFEXTQ01, GF6NFEXTY01, GS2KVAXVS00, GS2KVAXVS01, GS2KVAXVS03, GS2KVAXVS00, GS2SHKXNQ02, GS5DHAXVA00, GS5DHAXVB00, GS5DHAXVB01, GS5DHAXVQ00, GS5DHAXVQ01, GS5DHAXVY00, GS5SVAXVA00, GS5SVAXVB01, GS5SVAXVY00, GS5SVAXVY01, GS5VHAXWA00, GS5VHAXWA01, GS5VHAXWA02, GS5VHAXWQ00, GS5VHAXWQ01, GS5VHAXWQ02, GS5VHAXWY02, GS6NBEXRA00, GS6NBEXRA01, GS6NBEXRA02, GS6NBEXRA03, GS6NBEXRA04, GS6NBEXRB03, GS6NBEXRB04, GS6NBEXRL00, GS6NBEXRL01, GS6NBEXRL02, GS6NBEXRL03, GS6NBEXRL04, GS6NBEXRQ02, GS6NBEXRQ03, GS6NBEXRQ04, GS6NBEXRS00, GS6NBEXRS01, GS6NBEXRS03, GS6NBEXRS04, GS6NBEXRT00, GS6NBEXRT02, GS6NBEXRT03, GS6NBEXRT04, GS6NBEXRY00, GS6NBEXRY02, GS6NBEXRY03, GS6NBEXRY04, GS6NHAXVQ04, GS6NHAXVQ05, GS6NHAXVS00, GS6NHAXVS02, GS6NHAXVS04, GS6NHAXVS05, GS6NHAXVT00, GS6NHAXVT01, GS6NHAXVT02, GSC25C4EYB02, GSC25C6EYW00, GSS30C6EYY01, WSF26D4EXB00
Color
White
Material
Plastic / Metal
Finish
Satin
Terminals
4-Terminal
Voltage
115V, 60Hz
Wattage
4.1W
Motor Dimensions
3-1/2 x 3-1/4 x 4-1/4 inches
Shaft
1-1/4 inches long x 1/8 inch diameter

FAQ

This motor is compatible with a wide range of refrigerators from Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Jenn-Air, Roper, Crosley, Estate, Inglis, Magic Chef, Dacor, and Thermador. It is designed for units that require a 4-pin connection.
This unit replaces OEM part numbers 2188874, 2188875, WP2188874, PS11739140, AP6006075, AP3778594, 1065075, AH968756, EA968756, and PS968756.
Common symptoms include the refrigerator running warmer than usual, the compressor overheating, or an audible clicking sound coming from the back of the unit. Before replacing, unplug the refrigerator and check the fan blade for obstructions. If the blade does not spin freely by hand, the motor bearings have likely seized and the motor needs to be replaced.
Yes. This motor features a 4-pin connector. Before purchasing, check your existing motor; if your original motor uses a 3-pin connector, this part will not be compatible. Always ensure the refrigerator is unplugged before beginning the repair to avoid electrical shock.
The condenser fan motor circulates air through the refrigerator grille to cool the compressor and the condenser coils. It also assists in evaporating excess water collected in the drain pan. Proper airflow is essential for the refrigerator to maintain consistent cooling temperatures.
