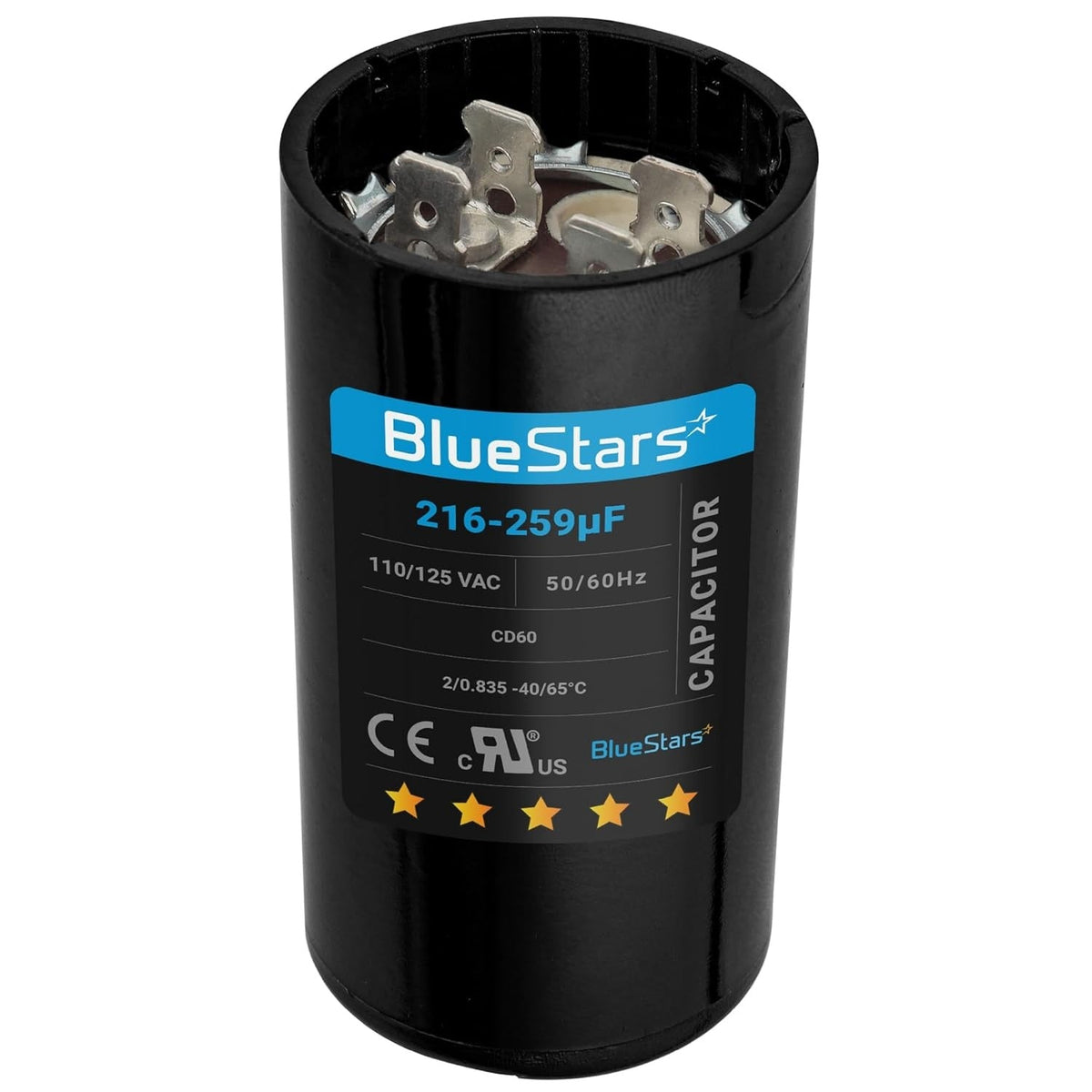

216-259 uF/MFD 110-125V Round Start Capacitor
0.00
Regular price
$15.21
Regular price
Save 10%
$16.89
Sale price
$15.21
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

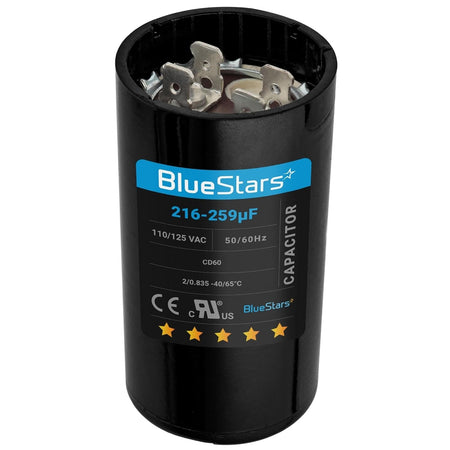

216-259 uF/MFD 110-125V Round Start Capacitor

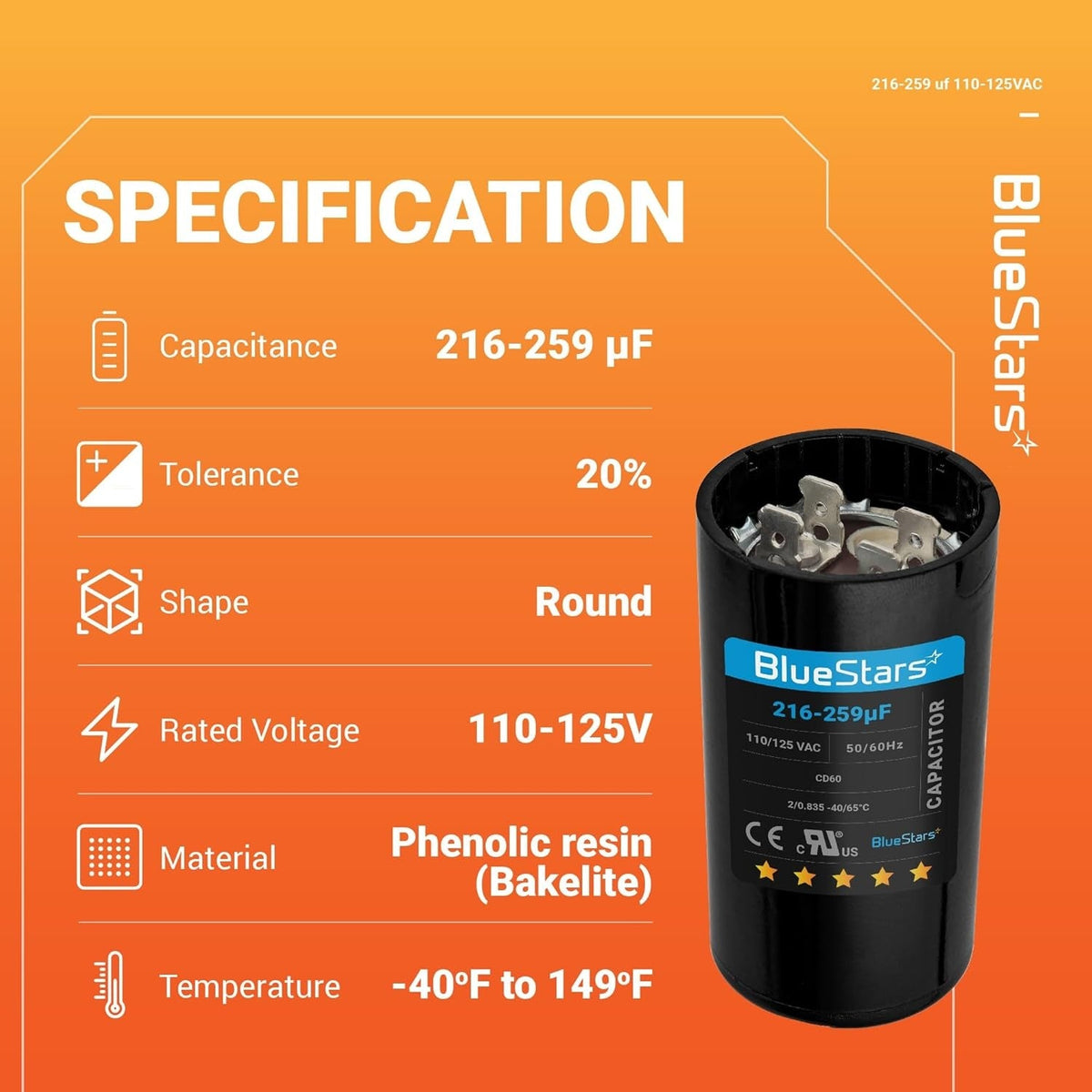

Key Features
- Capacitance: 216-259 Microfarad
- Voltage Rating: 110-125V AC
- Frequency: 50/60 Hz
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Capacitance Tolerance: -0% / +20%
- Terminals: 1/4 inch quick connect

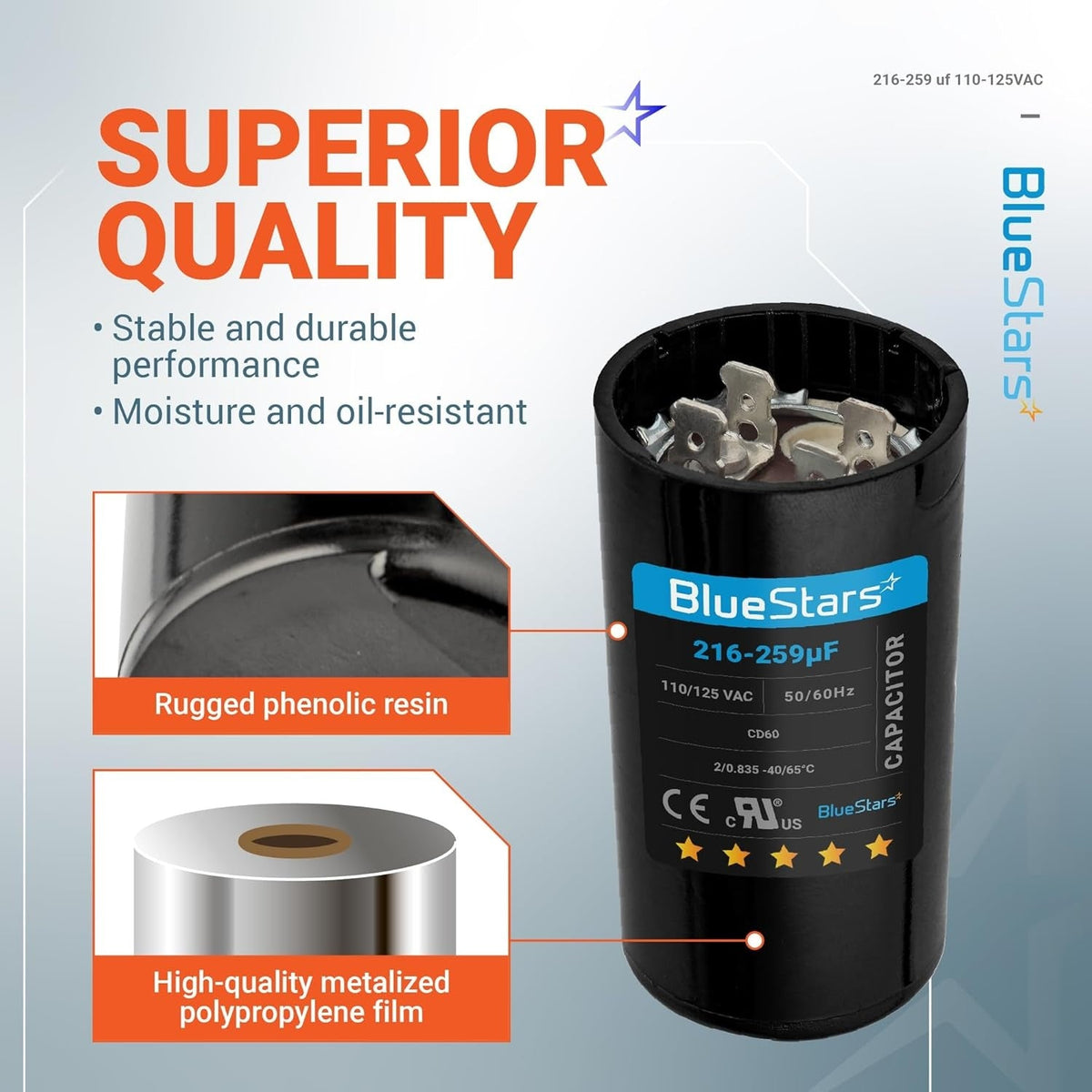

- Case Material: Plastic / Phenolic Resin
- Shape: Round

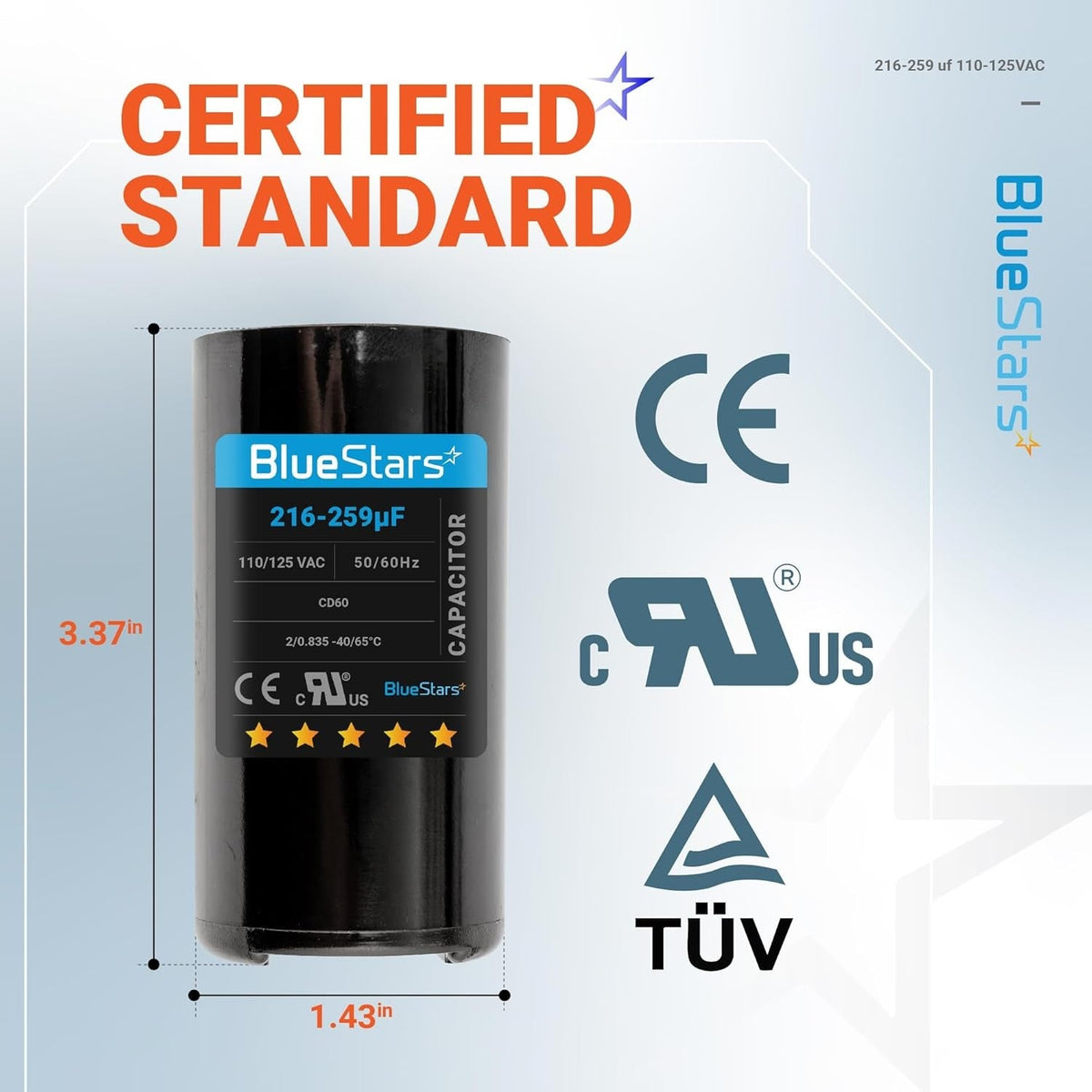

- Dimensions: 1.44 in. Diameter x 2.75 in. Height
Replaces / Cross-Reference Part Numbers
- CD60
- 460-552
Compatibility & Fitment

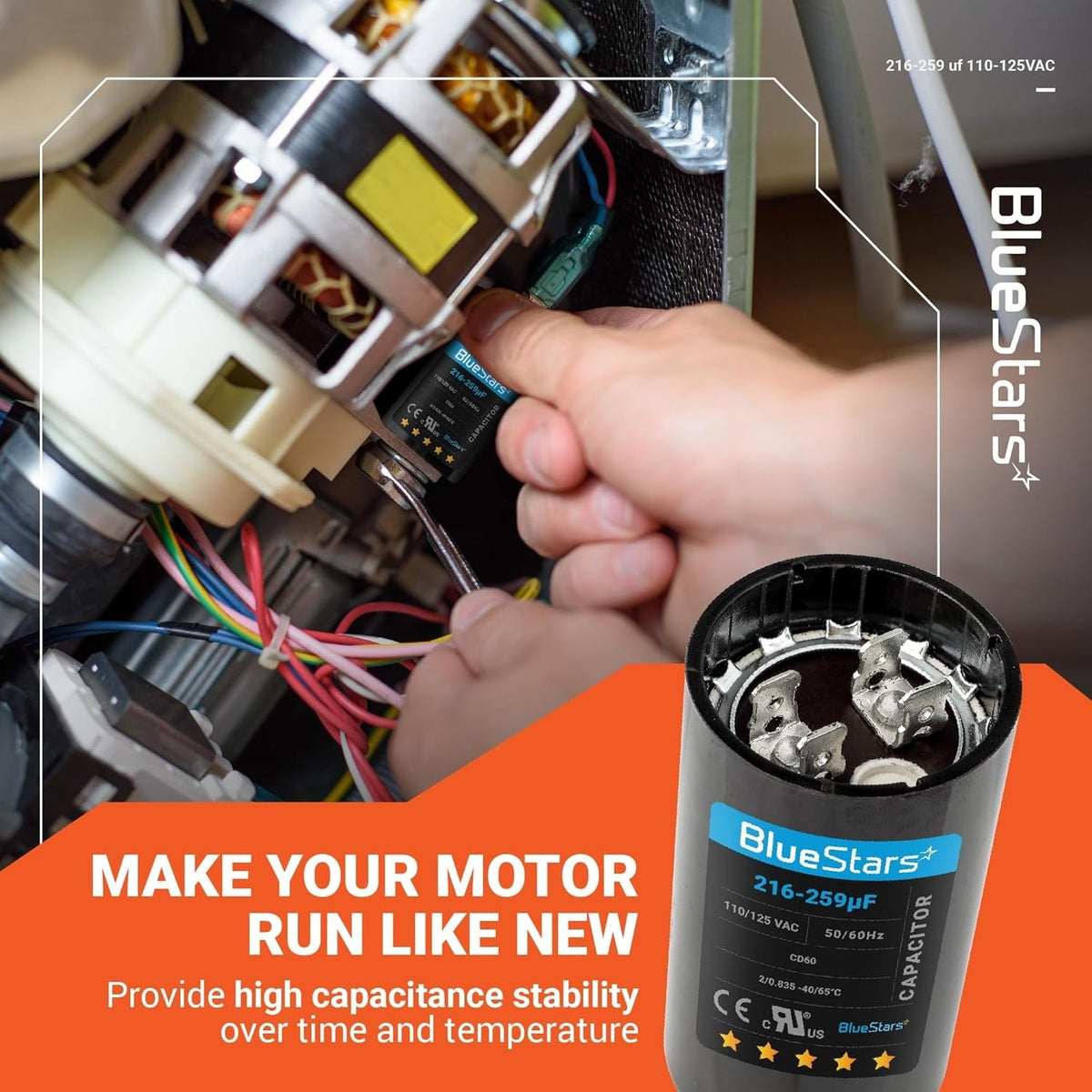

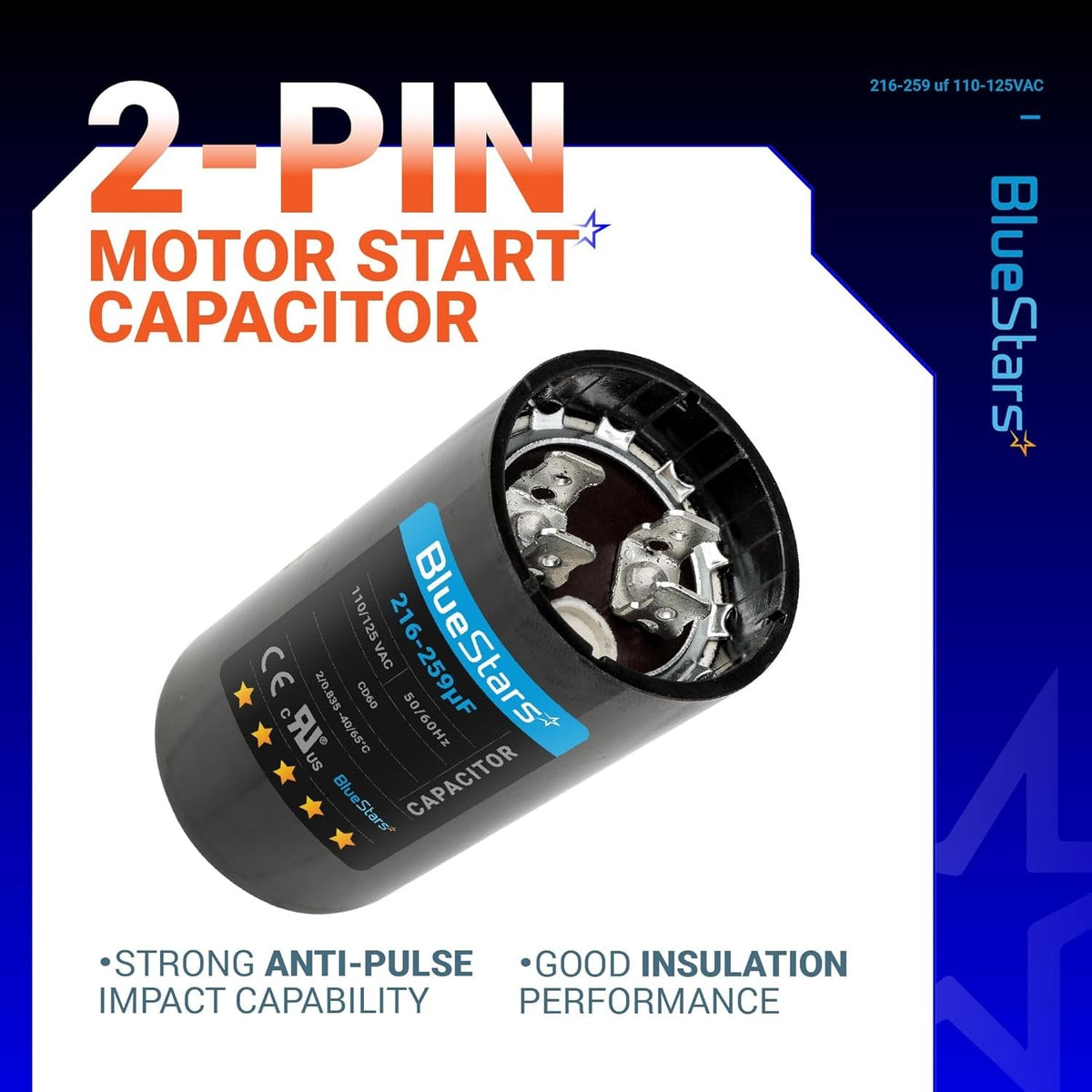

- Designed for single-phase motor starting applications.
- Commonly used in HVAC units, air conditioners, compressors, and water pumps requiring a capacitor with matching specifications.
When to Replace
- Motor hums but fails to start or starts slowly.
- Capacitor shows physical damage such as bulging, cracking, or leaking fluid.
- Multimeter test shows capacitance reading outside the 216-259 uF range.

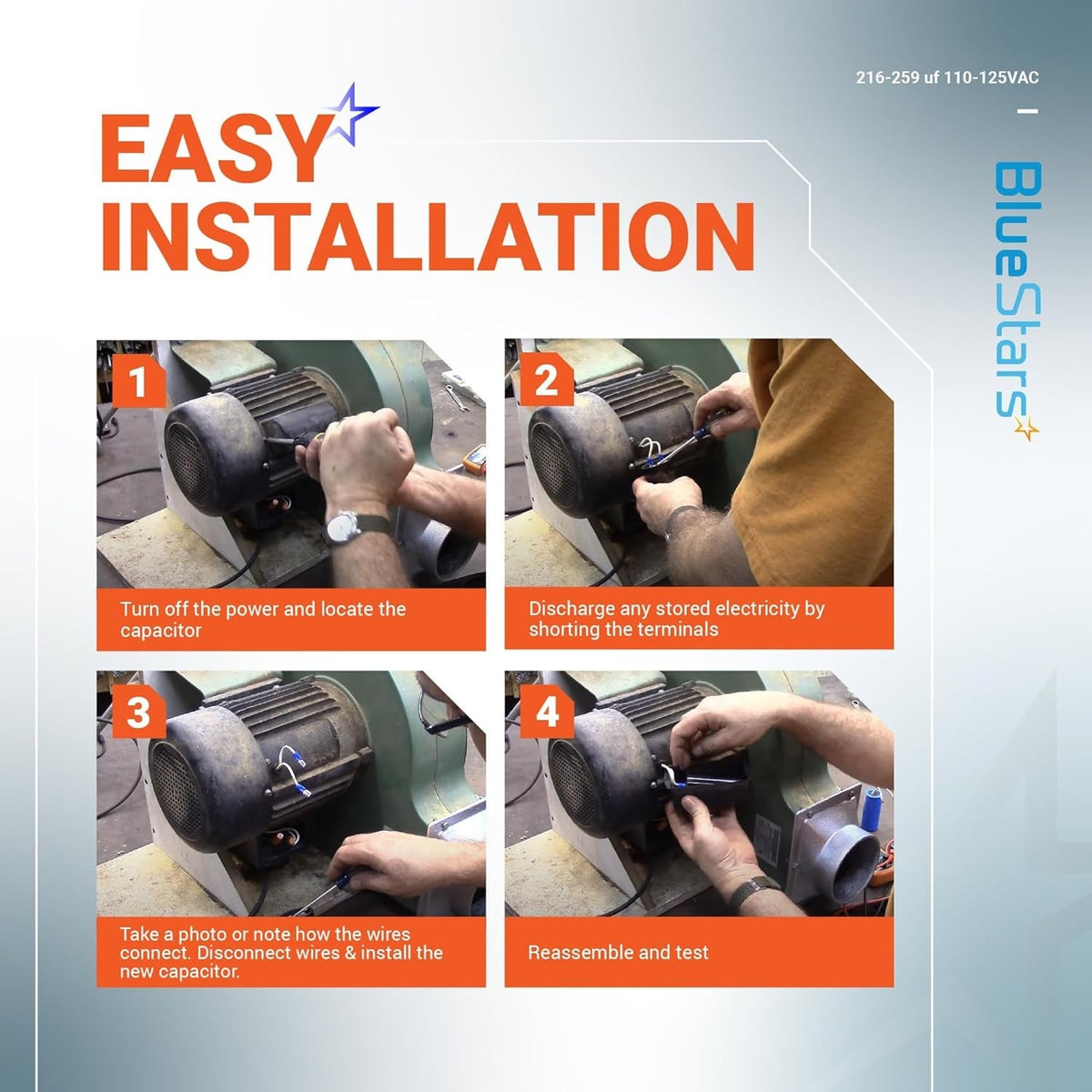

Installation Tips
- Disconnect all electrical power to the unit before servicing.
- Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.

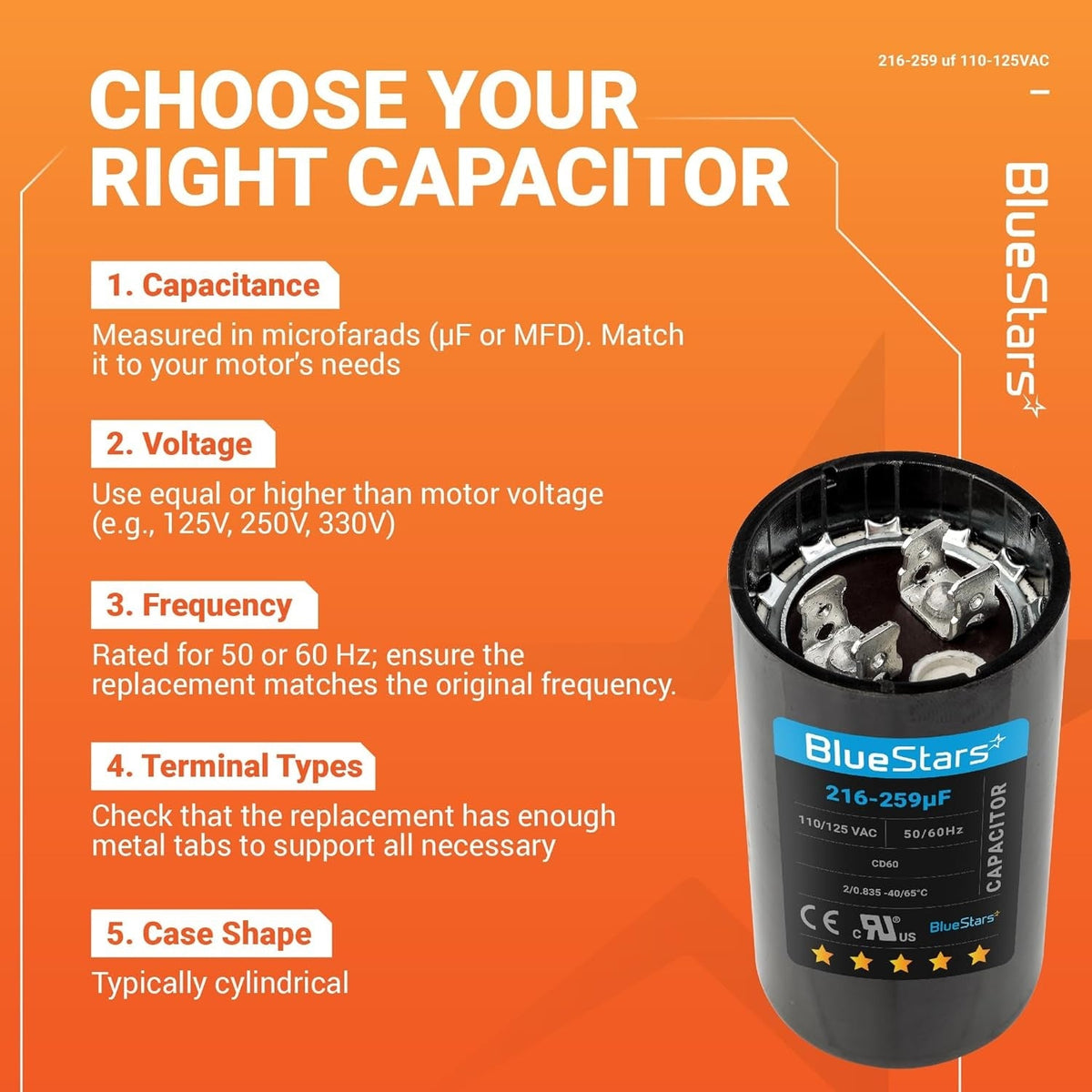

- Verify that the voltage and uF/MFD ratings of the new capacitor match the original component.
- Note the wire placement on the old capacitor terminals before disconnecting.
