20 Pcs 250V 32A Compact Splicing Lever

20 Pcs 250V 32A Compact Splicing Lever

Key Features

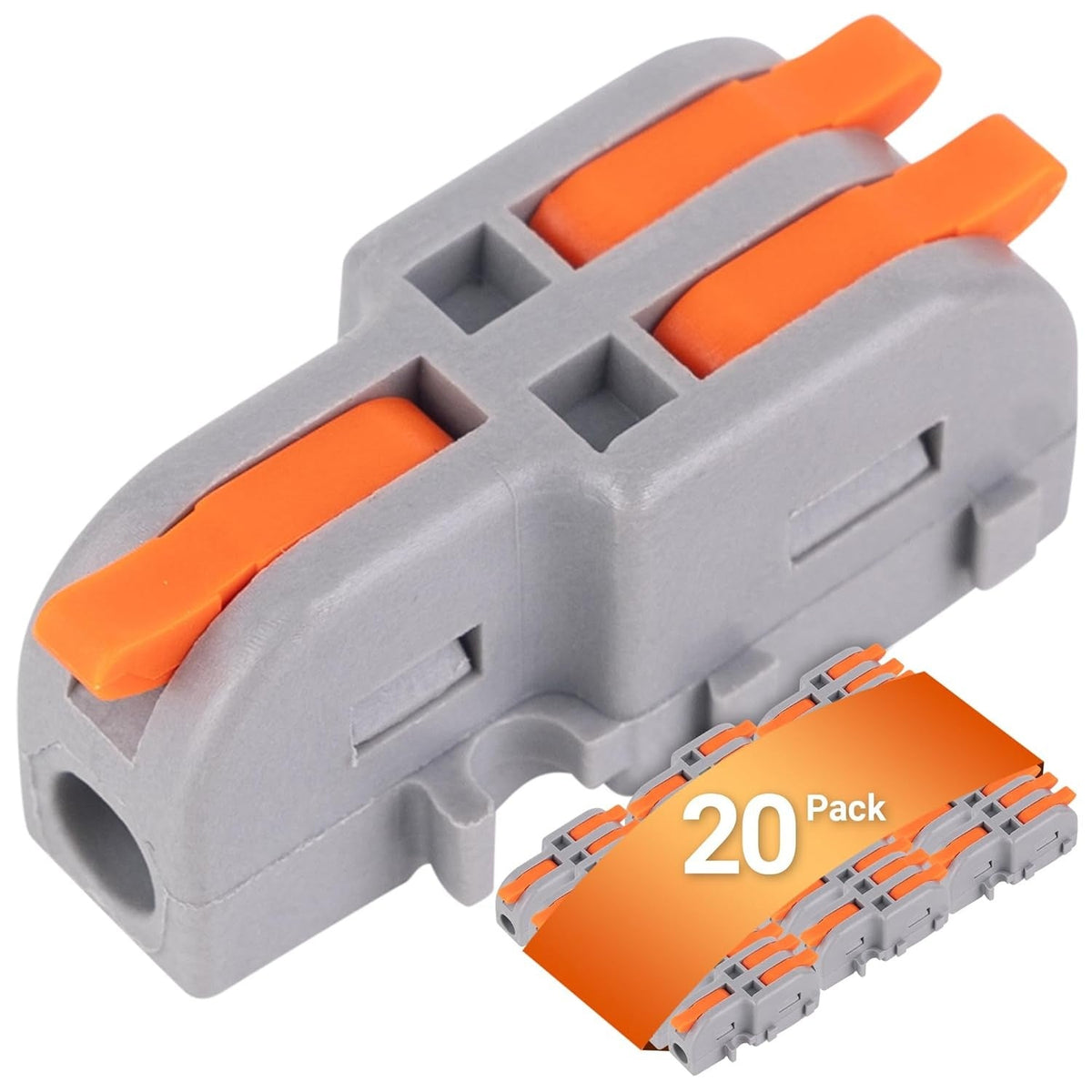

• Package includes 20 splicing lever connectors.

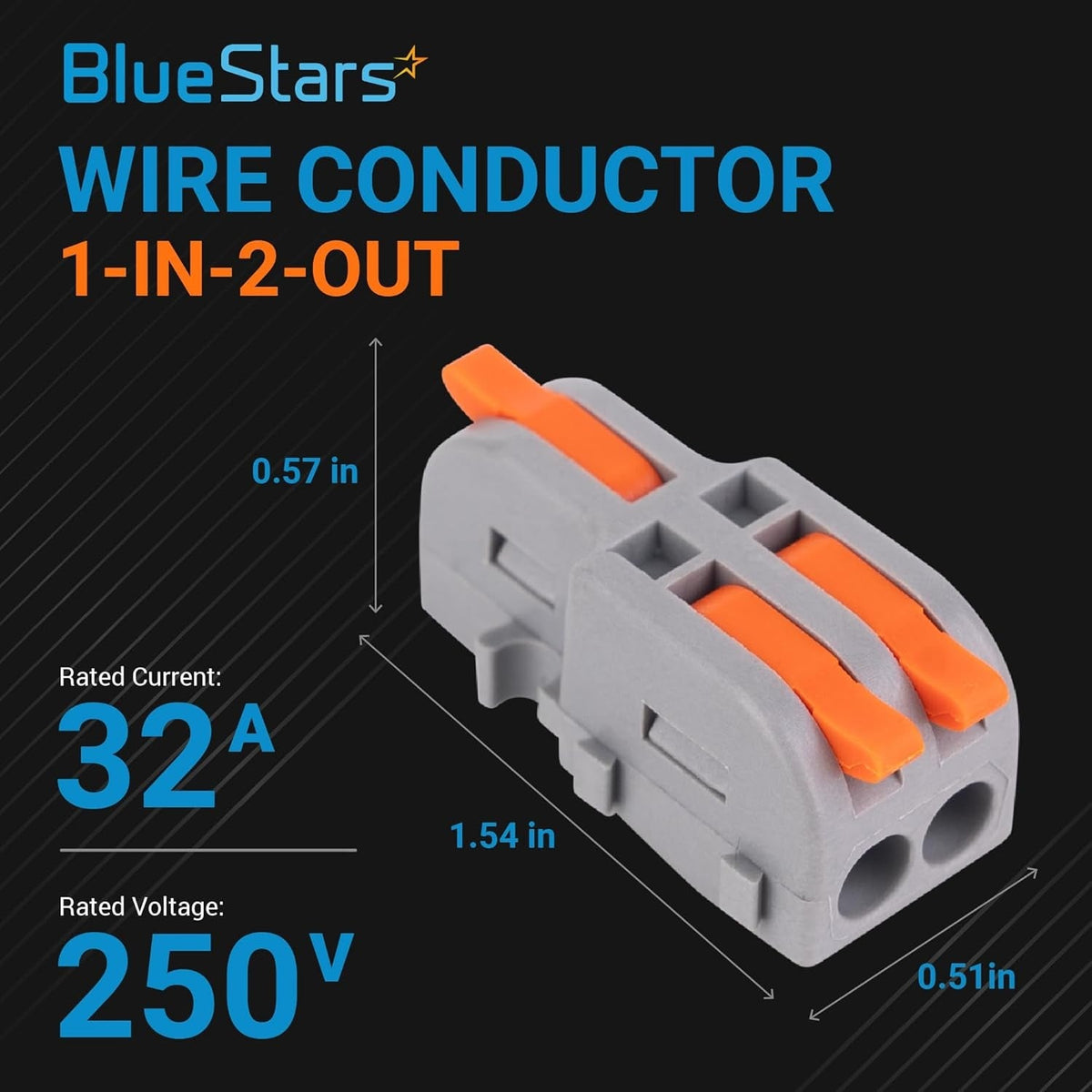

• Electrical Rating: 250V / 32A maximum.
• Configuration: 1 input, 2 outputs per connector.
• Actuation: Lever-operated mechanism for secure, tool-free wire termination.

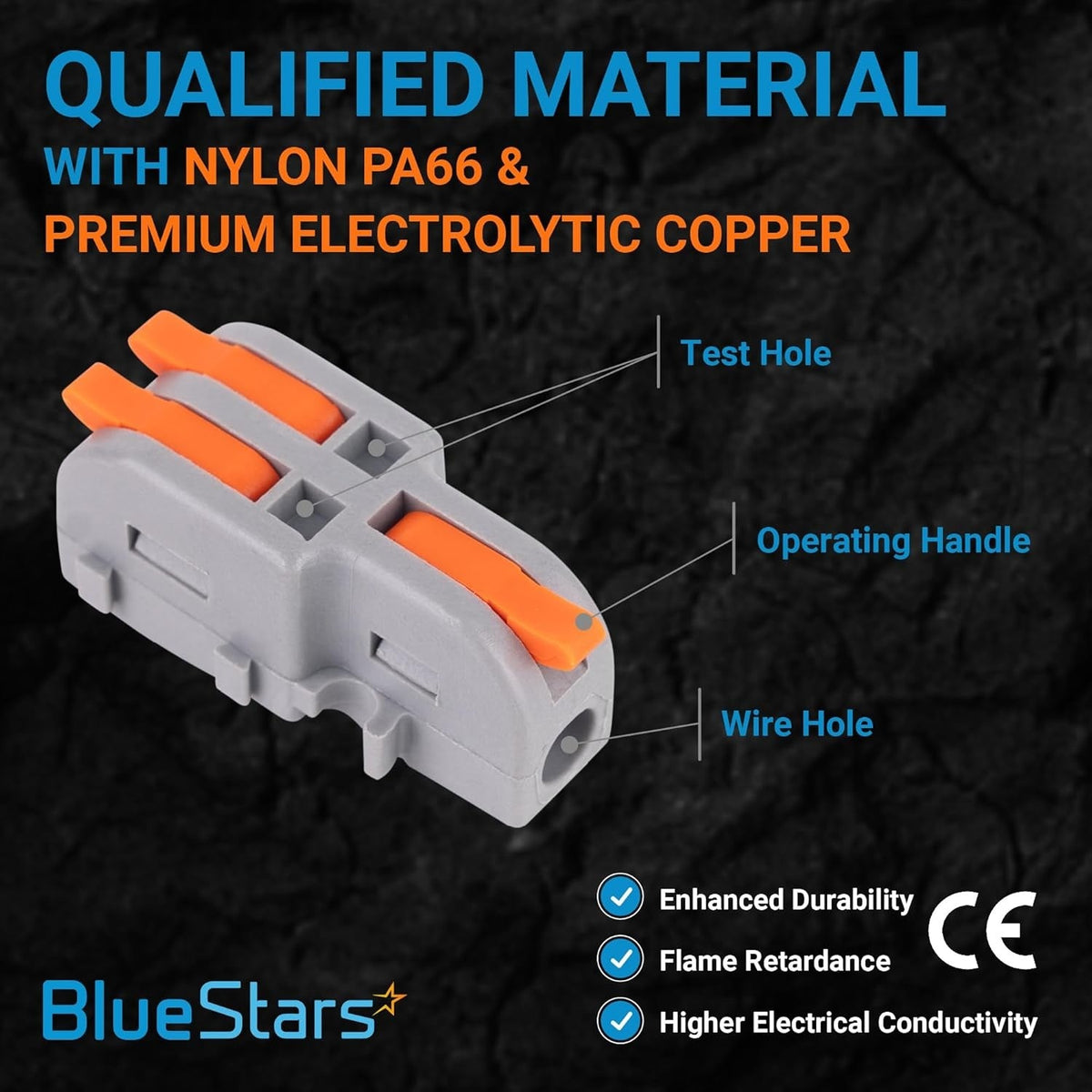

• Housing Material: Flame-retardant PA66 nylon.
• Conductor Material: Electrolytic copper.

Replaces / Cross-Reference Part Numbers

• LT-211
• Serves as an alternative for similar 2-port push-in or lever-style wire connectors.

Compatibility & Fitment

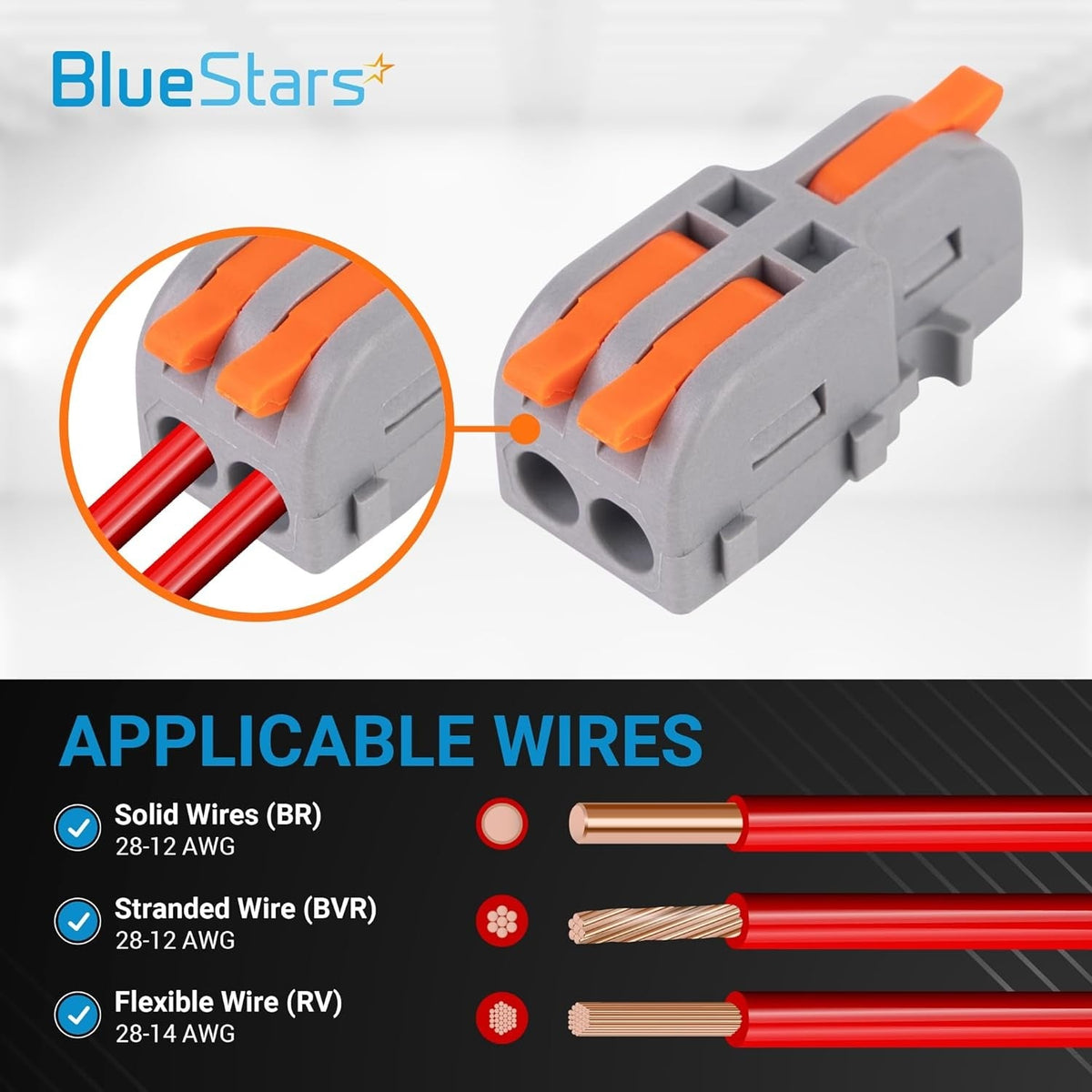

• Wire Gauge Range: Accommodates 28-12 AWG (0.08-4.0mm²) wire.
• Wire Types: Compatible with solid, stranded, and flexible copper wires.
• Applications: Suitable for junction boxes, lighting fixtures, control circuits, and general electrical wiring.

When to Replace

• Use for new electrical installations and circuit extensions.
• Use to repair or replace outdated or damaged connection methods such as wire nuts or terminal blocks.
• Replace any existing connector that shows signs of heat damage, melting, corrosion, or physical cracking.

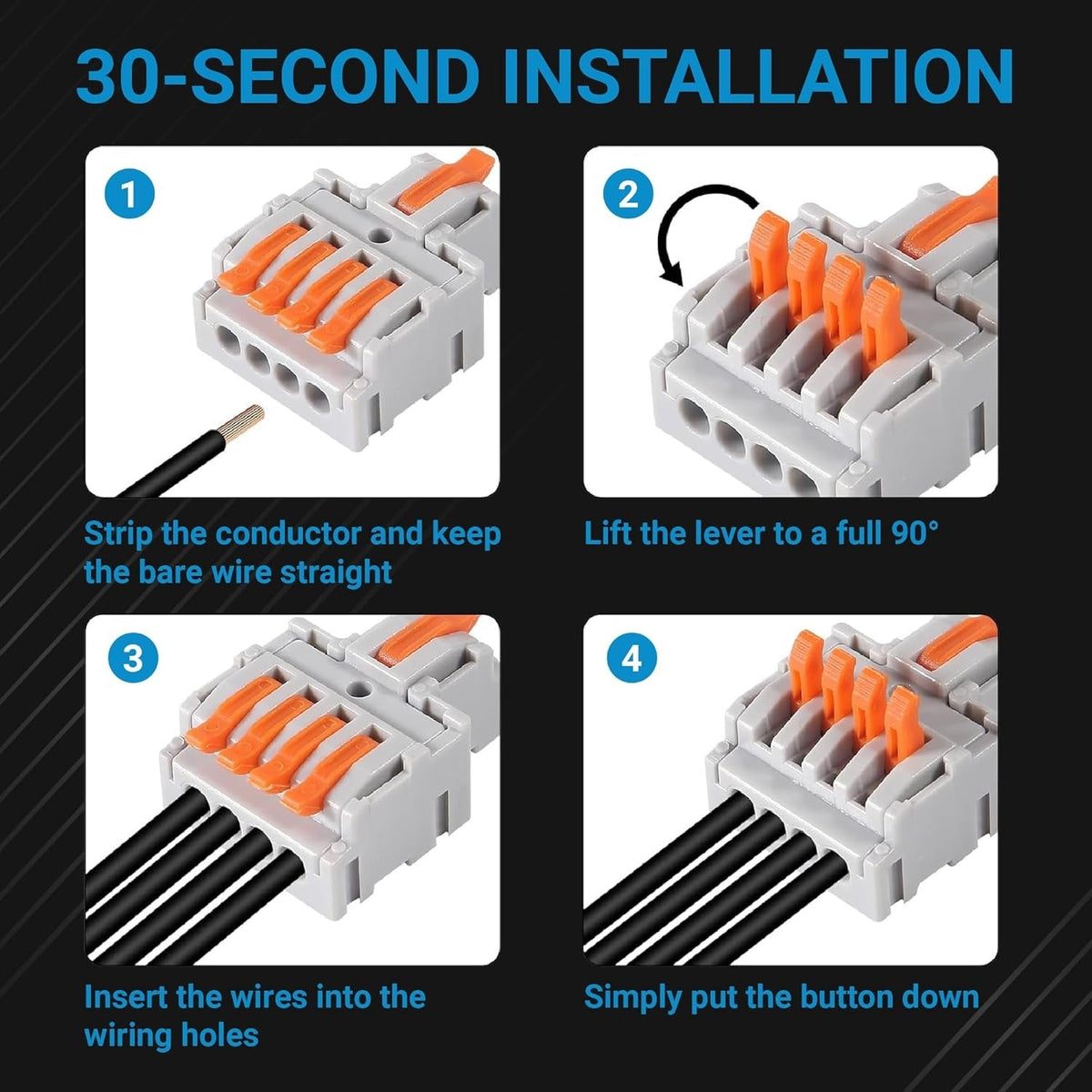

Installation Tips

• Always disconnect power to the circuit before beginning work.
• Strip wire insulation to the length specified by the connector's strip gauge (typically 9-10mm).
• Lift the orange lever to its fully open (vertical) position.
• Insert the stripped conductor completely into the wire port.
• Lower the lever until it snaps firmly into the closed position.
• Verify a secure connection by gently tugging on the wire.
