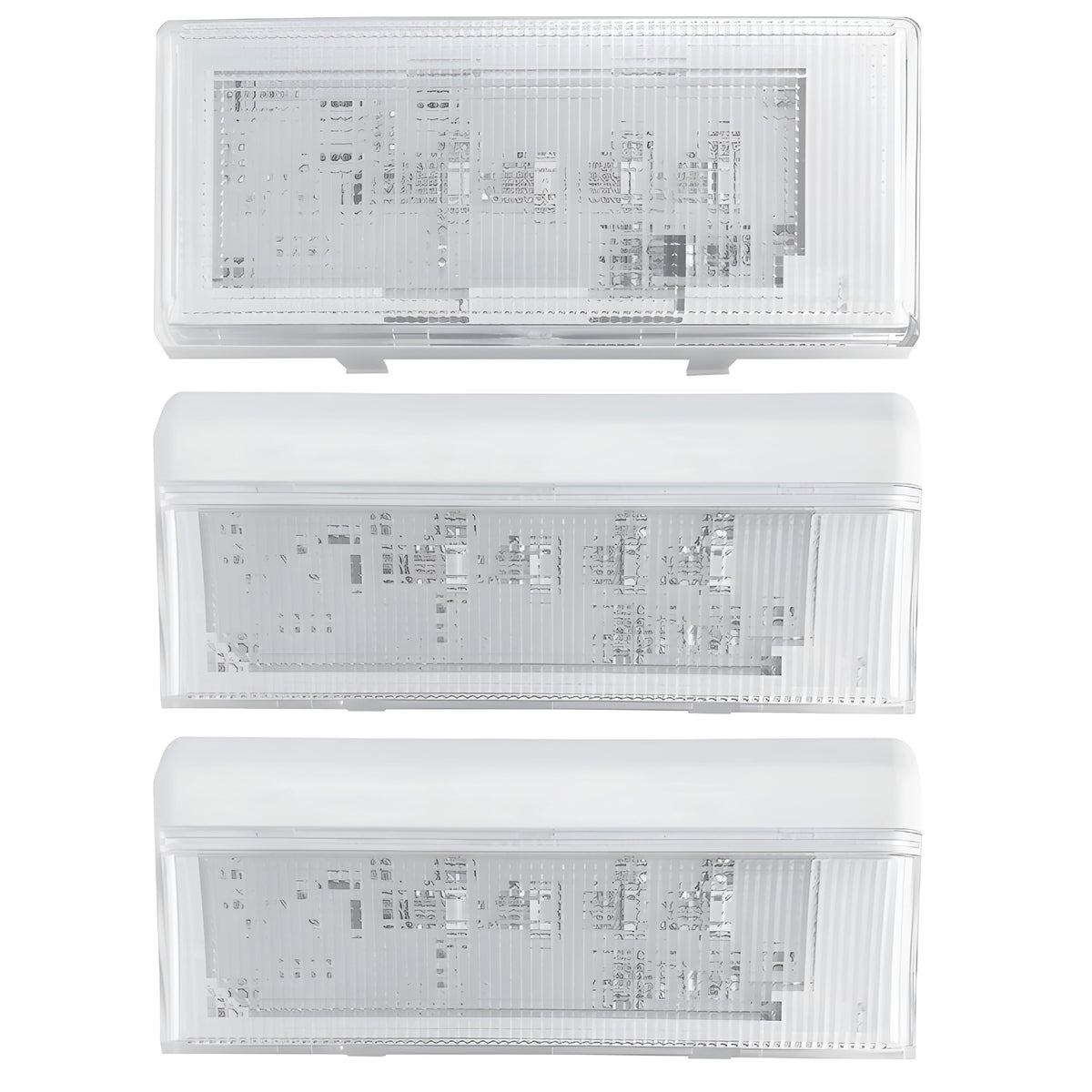

Three replacement refrigerator LED light modules for Whirlpool, Kenmore, and Maytag refrigerators.

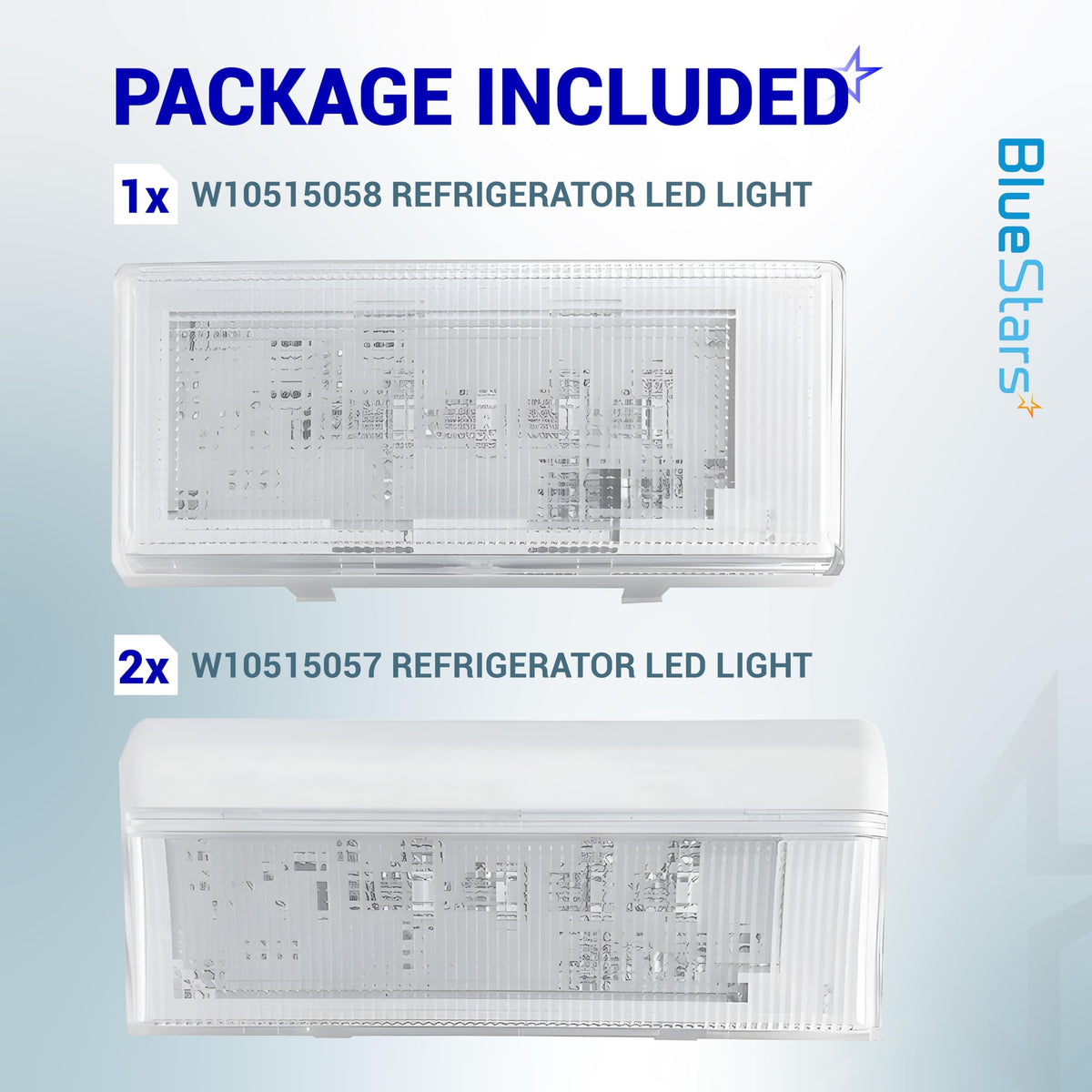

Package contents showing one W10515058 and two W10515057 refrigerator LED light modules.
Man looking into a brightly lit refrigerator with W10515057 and W10515058 LED light modules displayed on the side.

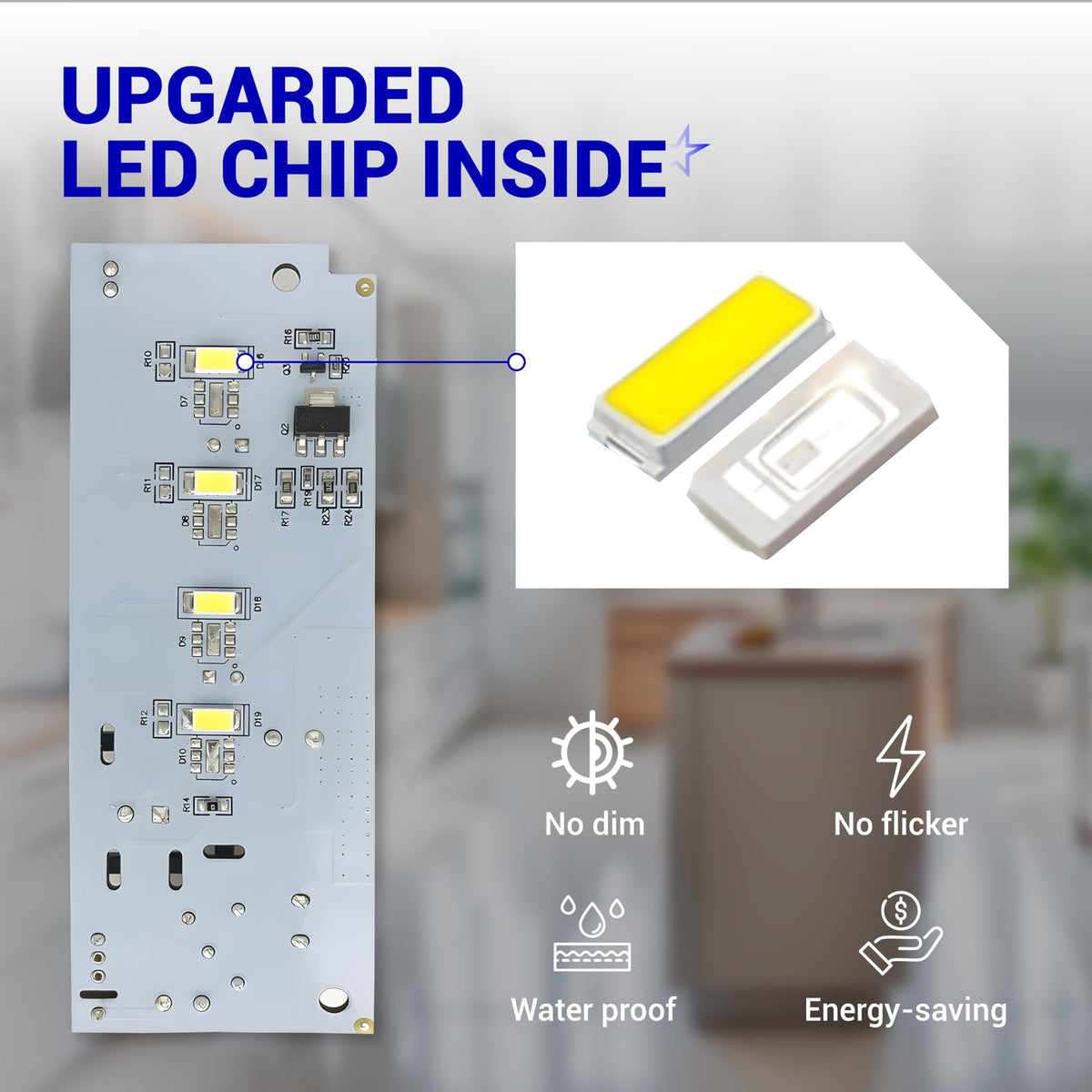

Close-up of refrigerator LED light circuit board with upgraded LED chip and performance feature icons.

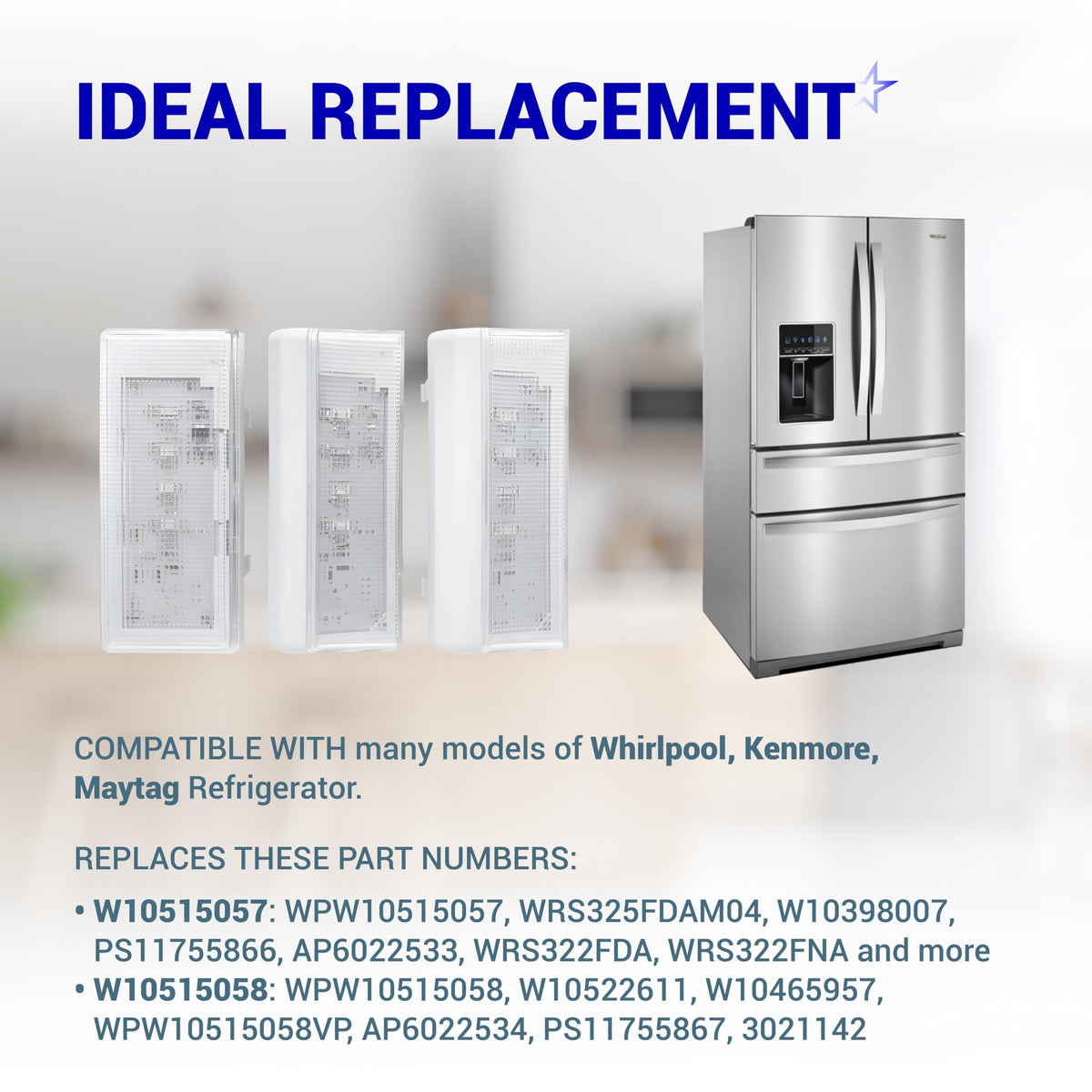

Three W10515057 and W10515058 refrigerator LED light modules with a compatible Whirlpool refrigerator.

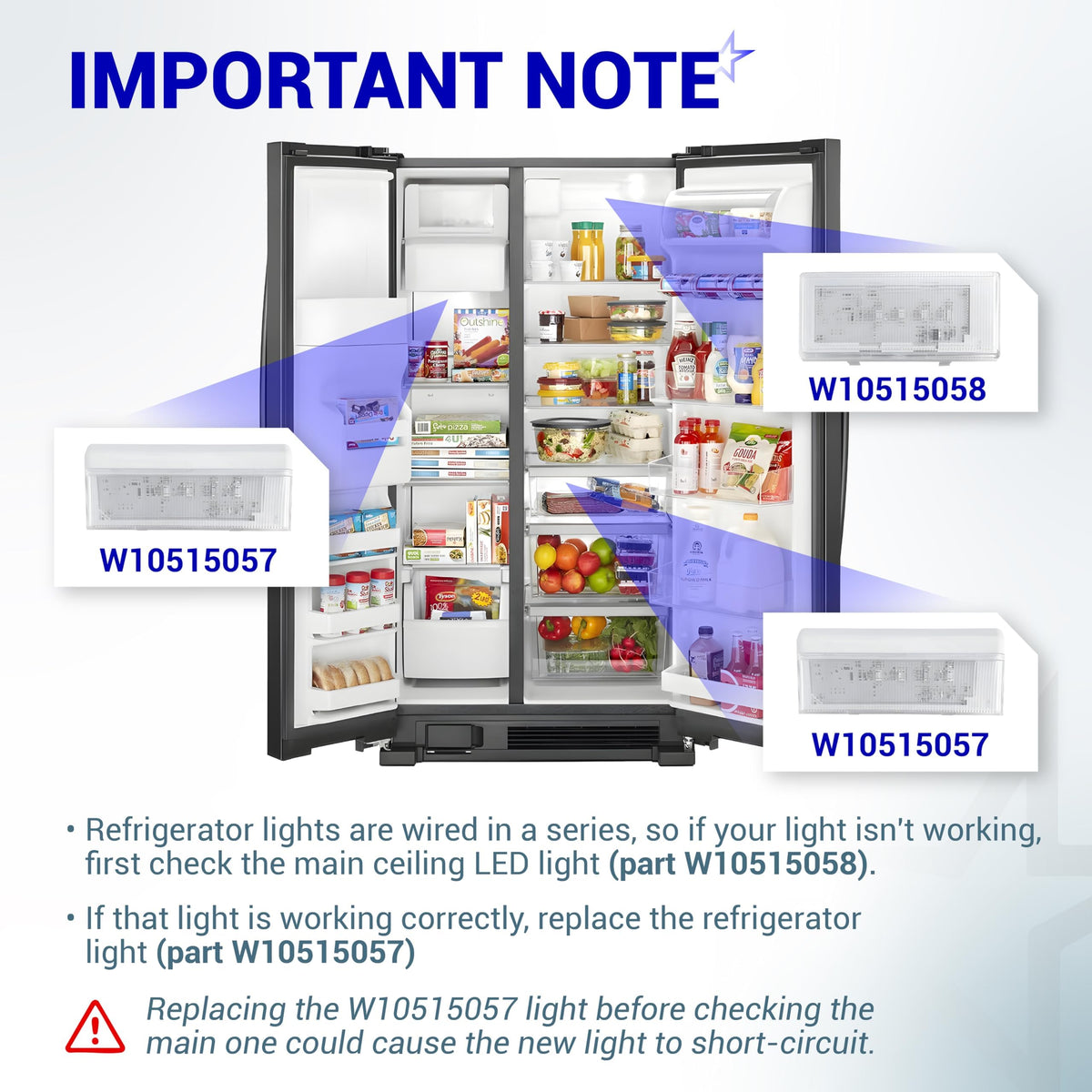

Diagram showing W10515057 and W10515058 refrigerator LED light placement and troubleshooting instructions.

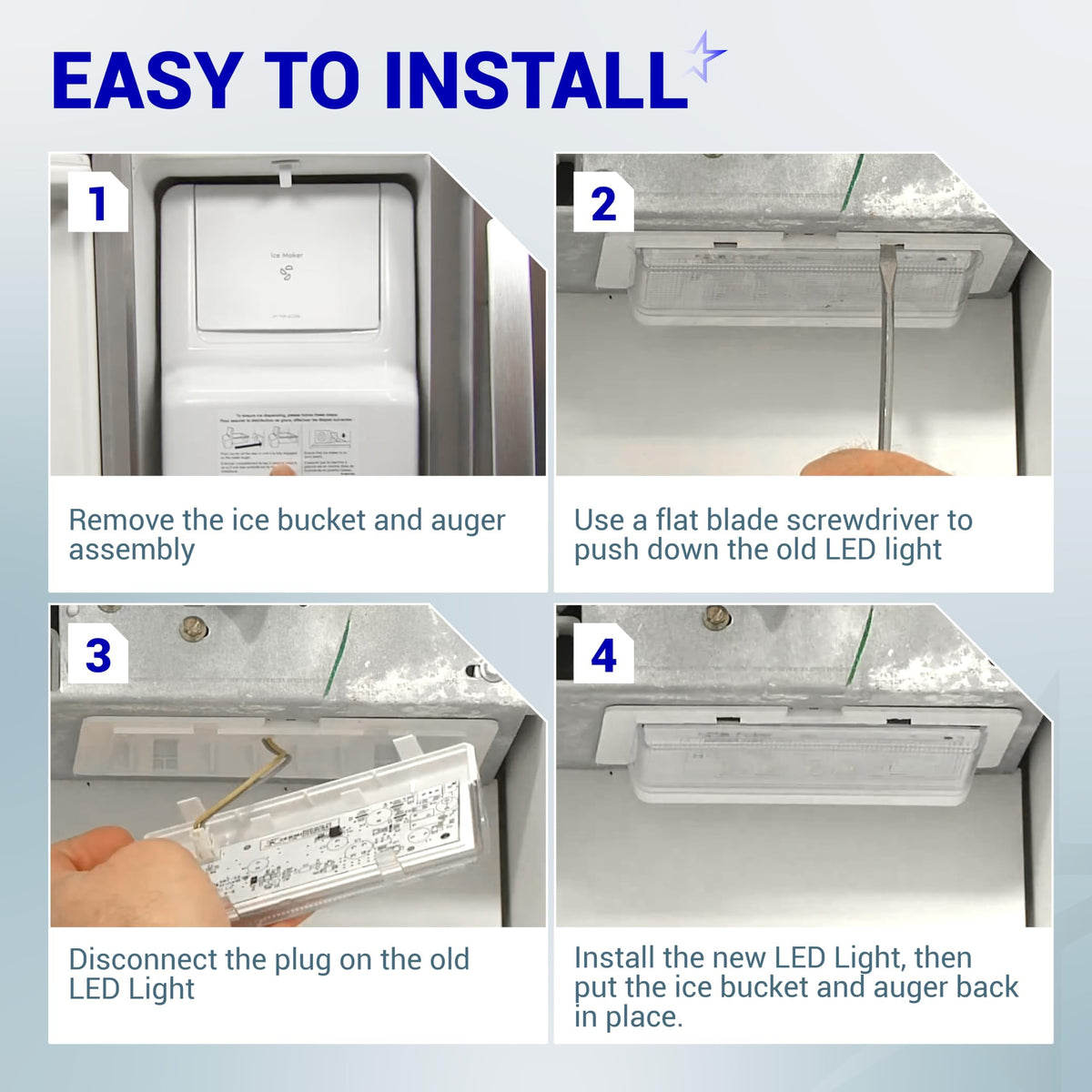

Four-step installation guide for W10515057 and W10515058 refrigerator LED light replacement.
Before and after comparison of refrigerator LED light replacement fixing dim, flickering, or broken light symptoms.
Three refrigerator LED light modules W10515057 and W10515058 displayed on a promotional BlueStars brand graphic.
Three replacement refrigerator LED light modules for Whirlpool, Kenmore, and Maytag refrigerators.
Package contents showing one W10515058 and two W10515057 refrigerator LED light modules.
Man looking into a brightly lit refrigerator with W10515057 and W10515058 LED light modules displayed on the side.
Close-up of refrigerator LED light circuit board with upgraded LED chip and performance feature icons.
Three W10515057 and W10515058 refrigerator LED light modules with a compatible Whirlpool refrigerator.
Diagram showing W10515057 and W10515058 refrigerator LED light placement and troubleshooting instructions.
Four-step installation guide for W10515057 and W10515058 refrigerator LED light replacement.
Before and after comparison of refrigerator LED light replacement fixing dim, flickering, or broken light symptoms.
Three refrigerator LED light modules W10515057 and W10515058 displayed on a promotional BlueStars brand graphic.
Lifetime Warranty

2 PCS W10515057 & 1 PCS W10515058 Refrigerator LED Light for Whirlpool Kenmore Maytag

Save 13%
0.00
$51.13
$58.80
$51.13
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

2 PCS W10515057 & 1 PCS W10515058 Refrigerator LED Light

Key Features

  • Kit includes two W10515057 LED modules and one W10515058 LED driver module.
  • Direct replacement for malfunctioning or burnt-out interior refrigerator and freezer lights.
  • Restores bright, clear illumination to your appliance's compartments.
  • Features a tapered lens design for optimal light distribution.
  • Constructed from durable plastic housing materials.

Replaces / Cross-Reference Part Numbers

  • W10515057 LED Light Auxiliary (Side): WPW10515057, AP6022533, PS11755866, W10398007, 3021141, EAP11755866, PD00031142
  • W10515058 LED Light Main (Ceiling/Top): WPW10515058, AP6022534, PS11755867, W10465957, W10522611, 3021142, EAP11755867, WPW10515058VP, PD00030078, WPPBA001052G-GLDN

Compatibility & Fitment

  • Brands: Whirlpool, Kenmore, Maytag, KitchenAid
  • Select Whirlpool Models: WRS322FDAB00, WRS322FDAB01, WRS325FDAW04, WRS322FDAM04
  • Select Kenmore Models: 10651729410, 10641129211, 10651133213, 10651139210
  • Select Maytag Models: MSB27C2XAM00, MSB27C2XAW00, MSC21C6MFZ00

When to Replace

  • Interior lights are dim, flickering, or do not illuminate.
  • Only one or some of the LED lights are working.
  • Lights fail to turn on when the refrigerator or freezer door is opened.

Installation Tips

  • Disconnect the refrigerator from its power source before beginning the repair.
  • Modules are typically located in the ceiling or side walls of the fresh food and freezer sections.
  • Gently pry the old light module out of its housing using a small flat-head screwdriver.
  • Disconnect the wire harness, connect it to the new module, and snap the new module into place.
  • Removal of the ice bucket may be necessary for access to the freezer light.
Product image
Product image
Product image
Product image
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Compatible with a wide range of Whirlpool, Kenmore, Maytag, and KitchenAid refrigerator models.
  • DURABLE MATERIAL

    DURABLE MATERIAL

    Constructed from high-quality components with a protective plastic cover for reliable, long-lasting performance.
  • COST-SAVING SOLUTION

    COST-SAVING SOLUTION

    Restore your refrigerator lighting affordably with an easy DIY replacement solution.
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a compatible replacement part. Any brand names mentioned are used solely to indicate compatibility.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home
Brand Model Number
Note This is not an exhaustive list. You can send us your appliance model and we will help you!
Kenmore 10651122211, 10651123211, 10651124211, 10651129211, 10651129212, 10651799412, 10641122210, 10641122211, 10651792412, 10651793412, 10651799413, 10651135610, 10641153211, 10651133213, 10641122212, 10641122213, 10641123212, 10641129212, 10641129213, 10641152211, 10641159211, 10641159212, 10651132213, 10651134213, 10651139213, 10651139214, 10651132210
Kenmore 10641123211, 10641124210, 10641129210, 10641129211, 10641152210, 10641153210, 10641154210, 10641159210, 10651122210, 10651123210, 10651124210, 10651129210, 10651133210, 10651134210, 10651136210, 10651139210, 10651722410, 10651723410, 10651724410, 10651729410, 10651792410, 10651792411, 10651793410, 10651793411, 10651799410, 10651799411, 10641123210
Maytag 8MSF25N4BW00, 8MSF25N4BW02, MSB27C2XAB00, MSF21D4MDH01, MSF21D4MDM01, MSF22D4XAW01, MSF21D4MDE00, MSF21D4MDE01, MSF21D4MDE02, MSF21D4MDH00, MSF21D4MDM00, MSF25D4MDE00, MSF25D4MDE01, MSF25D4MDE02, MSF25D4MDE03, MSF25D4MDH00, MSF25D4MDH01, MSF25D4MDH02, MSF25D4XAB00, MSF25D4XAM00, MSF25D4XAW00, MSB27C2XAM00, MSB27C2XAW00, MSF22D4XAB00, MSF22D4XAB01, MSF22D4XAM00, MSF22D4XAM01, MSF22D4XAW00, MSF25D4MDM00, MSF25D4MDM01, MSF25D4MDM02
Whirlpool 7WRS22FDBW00, 7WRS22FDBW02, 7WRS22FEBF00, 7WRS25FDBF00, 7WRS25FDBF02, 7WRS25FEBF00, 8WRS25KNBF00, 8WRS25KNBF02, WRS325FDAT04, WRS335FDDM01, WRS325FDAW04, WRS331FDDM01, WRS322FDAD04, WRS322FNAW00, WRS325FNAW00, WRS331FDDB01, WRS331FDDB02, WRS331FDDW01, WRS335FDDB01, WRS335FDDB02, WRS335FDDW01, WRS322FDAB00, WRS322FDAB01, WRS322FDAB02, WRS322FDAB03, WRS322FDAB04, WRS322FDAB05, WRS322FDAD00, WRS322FDAD01, WRS322FDAM00, WRS322FDAM01, WRS322FDAM02, WRS322FDAM03, WRS322FDAM04, WRS322FDAT00
Whirlpool WRS322FDAT04, WRS322FDAW00, WRS322FDAW01, WRS322FDAW02, WRS322FDAW03, WRS322FDAW04, WRS322FNAB00, WRS322FNAE00, WRS322FNAE02, WRS322FNAE03, WRS322FNAH00, WRS322FNAH01, WRS322FNAM00, WRS322FNAM01, WRS325FDAB01, WRS325FDAB02, WRS325FDAB04, WRS325FDAB05, WRS325FDAB06, WRS325FDAD02, WRS325FDAM01, WRS325FDAM02, WRS325FDAM04, WRS325FDAT02, WRS325FDAW01, WRS325FDAW02, WRS325FNAB00, WRS325FNAE00, WRS325FNAE01, WRS325FNAE02, WRS325FNAE03, WRS325FNAH00, WRS325FNAH01, WRS325FNAM00, WRS325FNAM01
Whirlpool WRS322FDAT02, WRS322FDAT03, 7WRS22FDBF00, 7WRS22FDBF02, WRS331FDDM00, WRS331FDDW00, WRS335FDDB00, WRS335FDDM00, WRS335FDDW00, WRS342FIAB00, WRS342FIAB02, WRS342FIAB03, WRS342FIAB04, WRS342FIAM00, WRS342FIAM02, WRS342FIAM03, WRS342FIAT00, WRS342FIAW00, WRS342FIAW02, WRS342FIAW03, WRS346FIAB00, WRS346FIAM00, WRS346FIAT00, WRS346FIAW00, WRS3L5FNDE00, WRS3L5FNDH00, WRS3L5FNDM00, WRS537SIAB00, WRS537SIAF00, WRS537SIAM00, WRS537SIAM01, WRS537SIAW00, WRS322FDAT01, WRS331FDDB00
Ikea ISF25D2XBM00, ISF25D2XBM01
KitchenAid KSF22C4CYY00, KSF22C4CYY01
Kit Contents
2× W10515057 Freezer LED Light (Tapered Lens) + 1× W10515058 Main Refrigerator LED Light (Flat Lens)
W10515057 – Freezer / Slave LED Light (×2)
White / Transparent | Plastic / Metal | Glossy | Tapered Lens + White Bezel | 2-Pin Male Connector | 12V DC | 5-1/8 x 2-1/4 x 1-1/4 inches
W10515058 – Main / Master LED Light (×1)
White / Transparent | Plastic / Metal | Glossy | Flat Lens + White Bezel | Large 2-Pin Male Inlet + Small 2-Pin Male Outlet | Input: 120V AC | Output: 12–14V DC | 5-1/8 x 2-3/8 x 1-1/8 inches

FAQ

This 3-piece light set is used on select Whirlpool, Kenmore, Maytag, and KitchenAid refrigerators. The listing specifically names Whirlpool WRS322FDAB00, WRS322FDAB01; Kenmore 10651729410, 10641129211; and Maytag MSB27C2XAM00, MSB27C2XAW00. Because these light boards were used across multiple side-by-side refrigerator platforms, matching the part numbers on your original light modules is the safest way to confirm fit.
This set includes W10515057 and W10515058. Cross-reference numbers found for these lights include WPW10515057, WPW10515058, W10465957, W10522611, W10398007, 3021141, 3021142, AP6022533, AP6022534, PS11755866, PS11755867, and EAP11755866.
Common symptoms include the refrigerator or freezer light not turning on, dim lighting, flickering, intermittent operation, or one section going dark while the door switch still works normally. On models that use both W10515057 and W10515058, a failed main driver board or one failed LED module can cause one or more interior lights to stop working.
This type of kit is typically the LED boards only: 2 pieces of W10515057 and 1 piece of W10515058. The plastic cover/lens is generally reused from your existing light assembly, so check your current housing before ordering if the cover itself is damaged.
Installation is usually a straightforward repair for a DIYer. In many refrigerators, you will need to unplug the refrigerator or switch off power first, remove the existing light cover, disconnect the old board, and install the replacement board into the original housing. A small flat screwdriver or plastic pry tool is commonly used to release the cover tabs. Typical install time is about 10 to 30 minutes depending on how accessible the light modules are.
Before replacing the boards, verify that the door switch is working and that the light cover, connector, and wiring are not damaged. If your refrigerator uses both W10515057 and W10515058, inspect all light locations because one failed board can sometimes affect overall lighting performance. It is also important to compare the numbers printed on your original parts with W10515057, W10515058, or their cross-reference numbers before installation.
