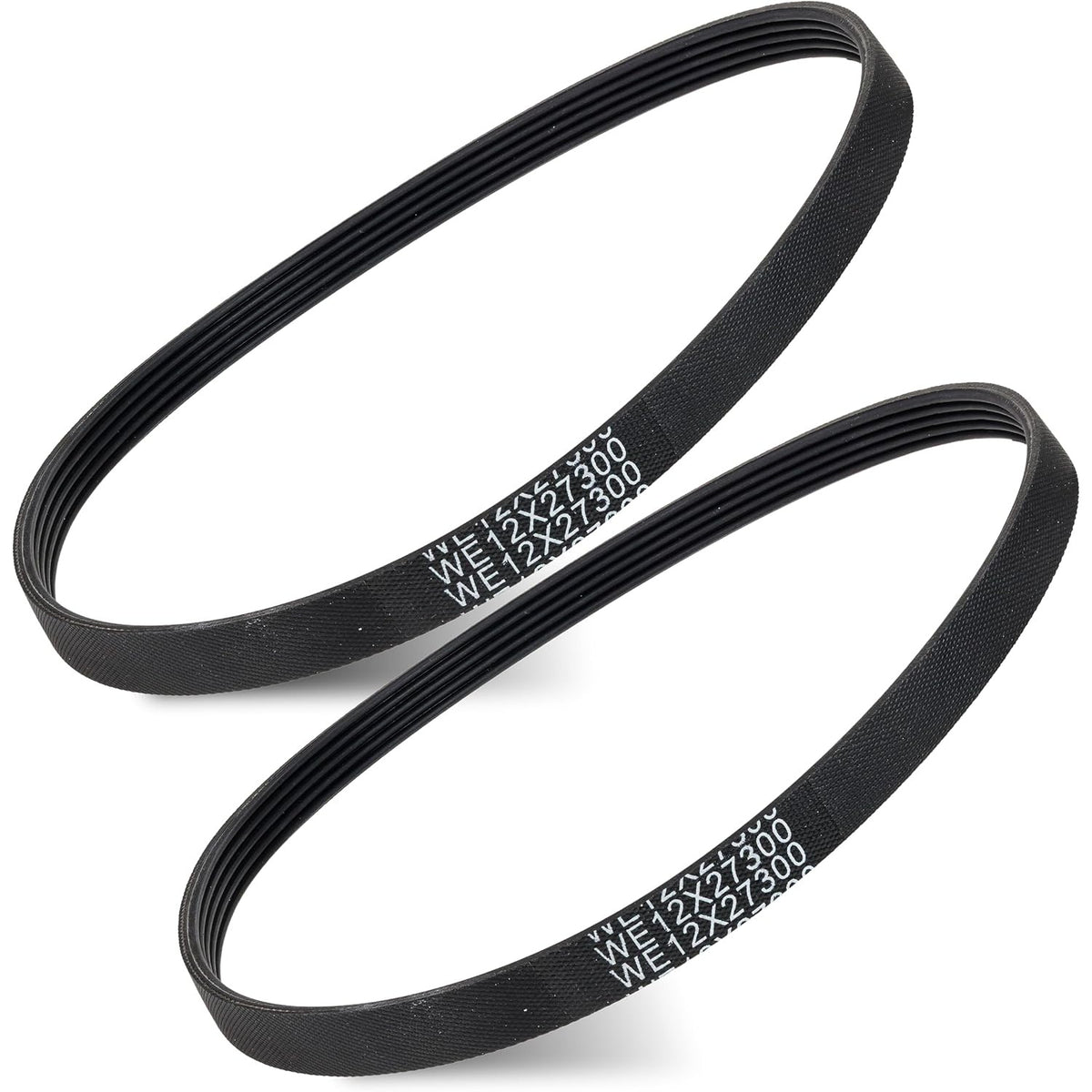

WE12X27300 Washer Drive Belt - Compatible with GE Washer - Replaces 4587578 AP6328196 PS12342956 - 2 Pack
0.00
Regular price
$12.64
Regular price
Save 11%
$14.16
Sale price
$12.64
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
WE12X27300 Washer Drive Belt
Key Features
- Two washer drive belts for GE laundry center and combination washer units.

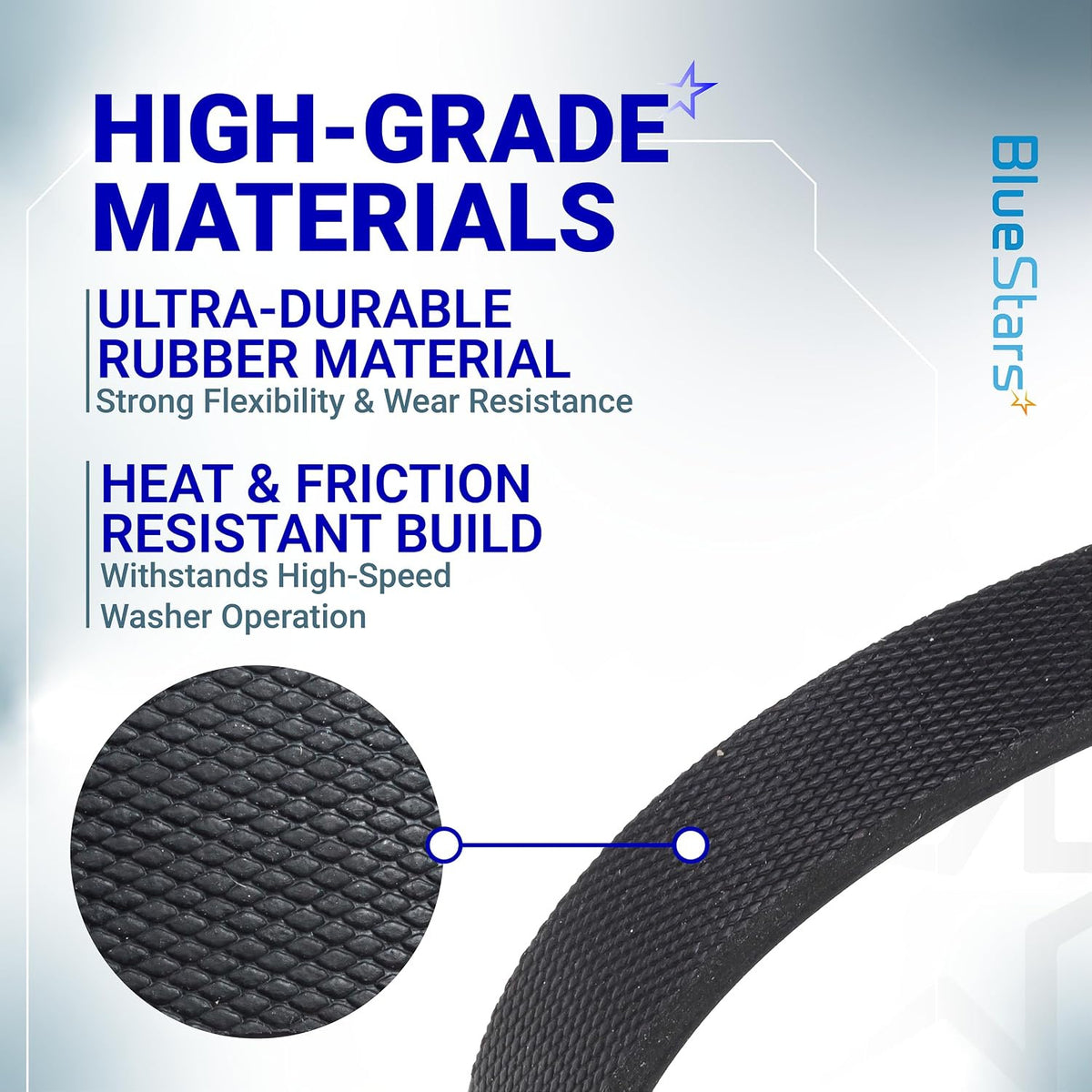

- Heat-resistant neoprene construction with high tensile strength for drive-system service.
- Designed to transfer motor power to the washer drive system with low energy loss and high torque.
Replaces / Cross-Reference Part Numbers
- WE12X27300
- 4587578
- 253C1275P001
- 5PJ587SJ161
- AP6328196
- PS12342956
- EAP12342956

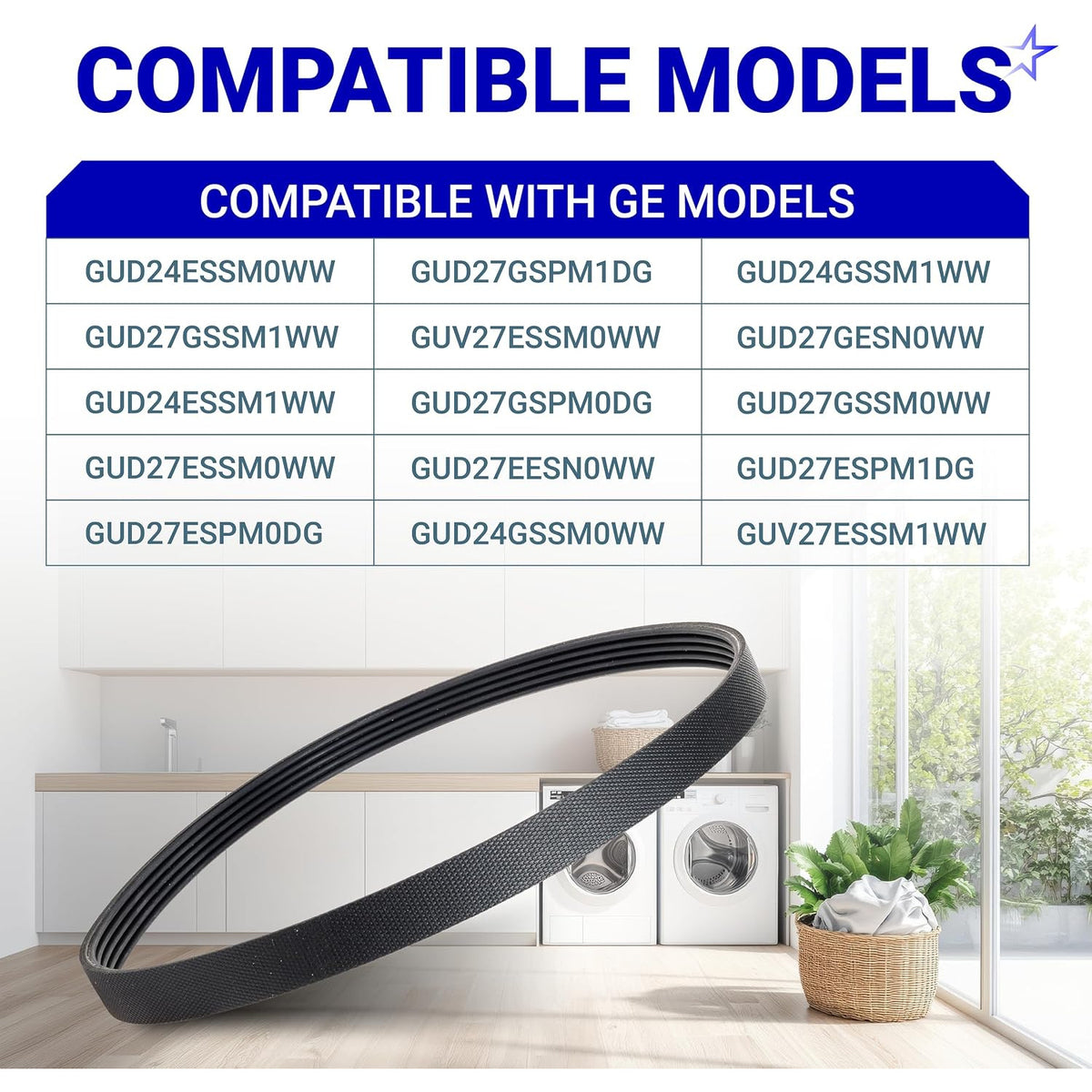

Compatibility & Fitment
Compatible with the following GE washer and laundry center models:
- GUD27GSSM0WW
- GUD27GSPM1DG
- XUD27GSSM0WW
- GUD27GSSM1WW
- GUD27EESN0WW
- GUD27ESPM0DG
- GUD27EEPV0DG
- GUD27GESN0WW
- GUV27ESSM1WW
- GUD27ESSM0WW
- GUD24ESSM1WW
- GUD27GSSM2WW
- GUD27ESPM1DG
- GUD24GSSM1WW
- GUD24GSSM0WW
- VTW565ASV0WB
- GUD27GSPM0DG
- XUD27GSSM1WW
- XUD27ESSM0WW
- XUD27ESSM1WW
- GUV27ESSM0WW
- GUD24ESSM0WW
When to Replace
Replace the washer drive belt when the washer motor runs but the drum or agitator does not turn correctly, or when the belt slips, squeals, shows cracking, becomes glazed, or has stretched. Repeated belt failure can also indicate an overloaded washer, a seized pulley, restricted movement, or worn drive components. Inspect the pulleys and surrounding components before fitting the replacement belt.
Installation Tips
- Disconnect power before servicing the washer.
- Use the correct screwdriver or nut driver for the cabinet or access-panel fasteners.
- Remove the worn belt and inspect the motor pulley, driven pulley, and belt path for damage or obstruction.
- Route the new belt around the pulleys according to the washer’s original belt path, then rotate the pulley by hand to confirm that the belt tracks correctly.
- Allow approximately 30 to 60 minutes for installation, depending on model access and cabinet design.
- Run a short test cycle and listen for slipping, rubbing, or unusual pulley noise before returning the washer to normal use.
-

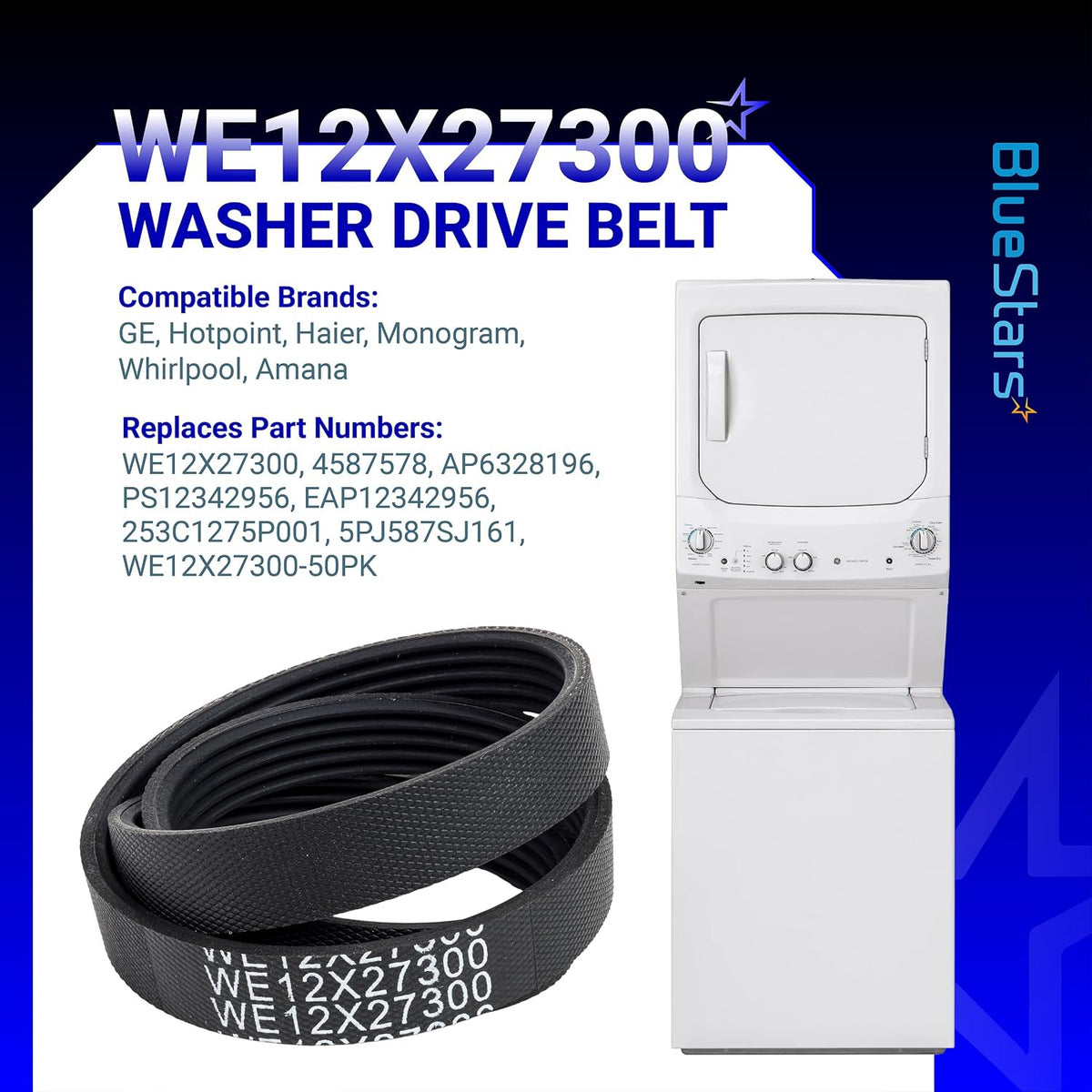

REPLACES PART NUMBERS
WE12X27300, 4587578, AP6328196, PS12342956, EAP12342956, 253C1275P001, 5PJ587SJ161, WE12X27300-50PK. -
FIX WASHER ISSUES
Washer will not spin | Burning smell during operation | Drum moves weakly or unevenly | Washer makes squealing or rubbing noises. -
COMPATIBLE BRANDS
GE, Hotpoint, Haier, Monogram, Whirlpool, Amana. -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

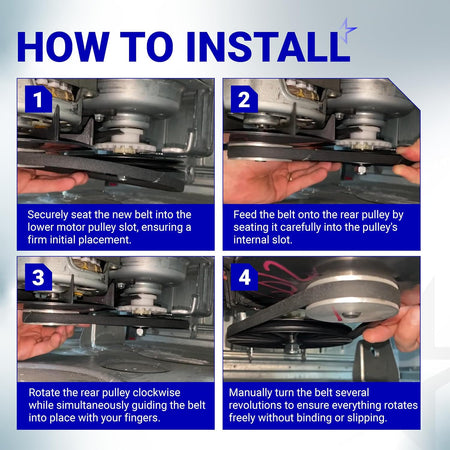

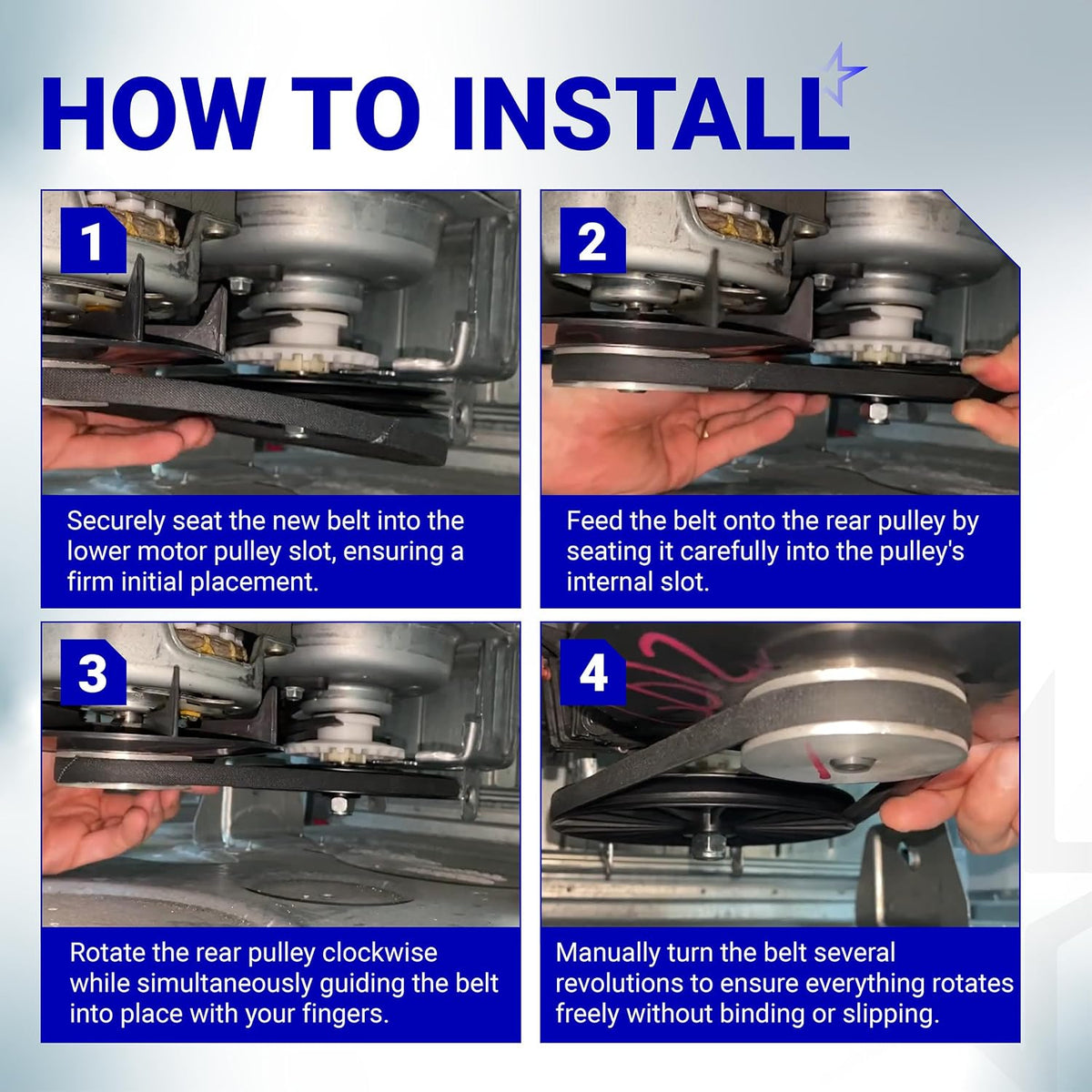

HOW TO INSTALL
1. Securely seat the new belt into the lower motor pulley slot, ensuring a firm initial placement.
2. Feed the belt onto the rear pulley by seating it carefully into the pulley's internal slot.
3. Rotate the rear pulley clockwise while simultaneously guiding the belt into place with your fingers.
4. Manually turn the belt several revolutions to ensure everything rotates freely without binding or slipping.
2. Feed the belt onto the rear pulley by seating it carefully into the pulley's internal slot.
3. Rotate the rear pulley clockwise while simultaneously guiding the belt into place with your fingers.
4. Manually turn the belt several revolutions to ensure everything rotates freely without binding or slipping.
