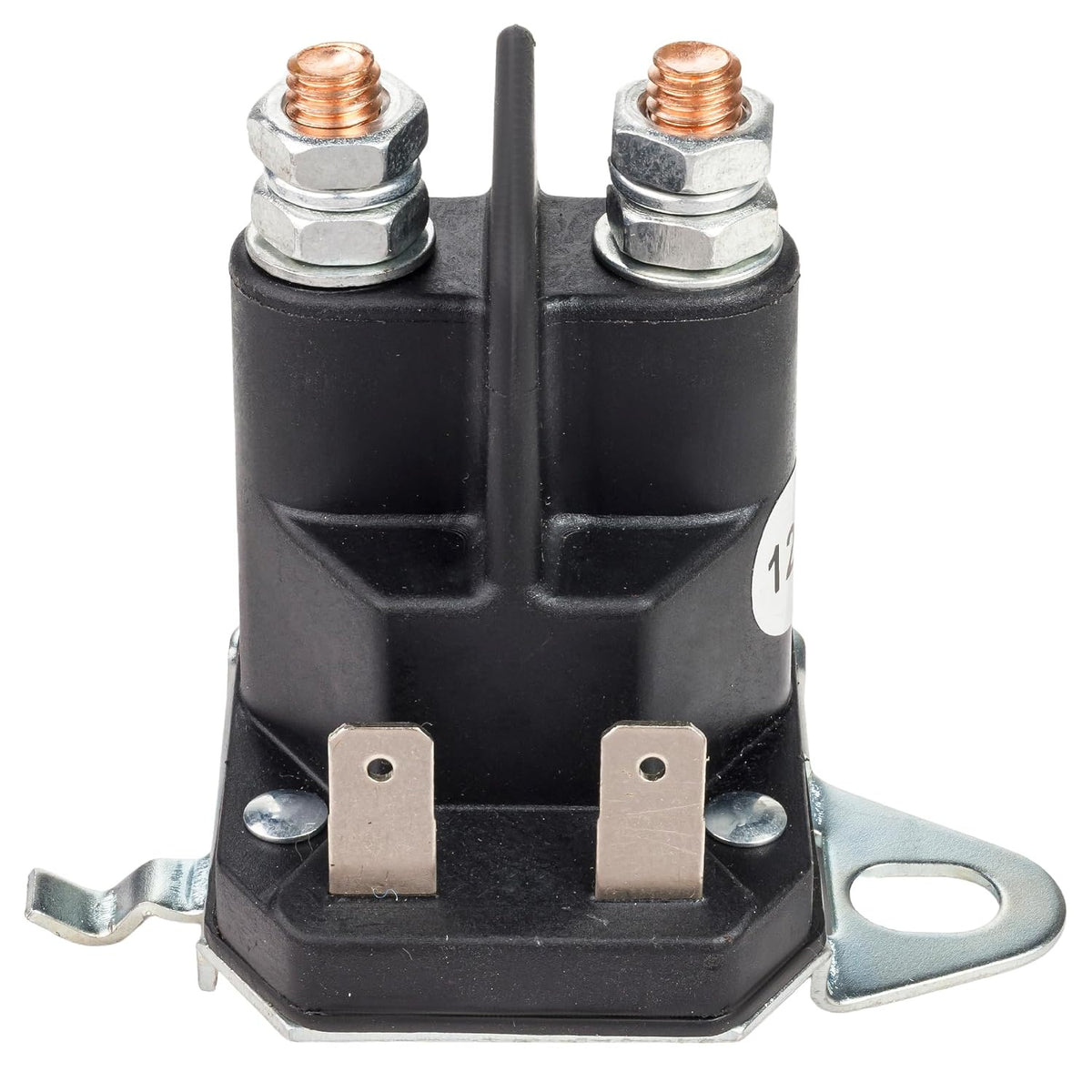

192507 Starter Solenoid, front view showing four terminals and metal mounting bracket
192507 Starter Solenoid, specification diagram showing 12V DC, 4 terminals, copper studs, spades, and dimensions
192507 Starter Solenoid, product photo with replacement part numbers and fit model lists
192507 Starter Solenoid infographic showing copper studs, ABS plastic housing, control terminals, and zinc-plated steel brack
192507 Starter Solenoid, product graphic highlighting the 180°C copper wire coil and an inset close-up of copper winding
192507 Starter Solenoid wiring diagram with battery, fuse, motor/starter, chassis ground, key switch, and ground wire
192507 starter solenoid, product display showing four views of the black 12V four-post solenoid
192507 Starter Solenoid, promotional graphic showing the solenoid beside a riding mower and listed starting symptoms
192507 Starter Solenoid compatibility graphic with solenoid and four riding lawn tractors
192507 Starter Solenoid promotional graphic showing the solenoid beside a riding lawn tractor in a field
192507 Starter Solenoid, 12V product graphic comparing the featured solenoid with another solenoid
192507 Starter Solenoid, front view showing four terminals and metal mounting bracket
192507 Starter Solenoid, specification diagram showing 12V DC, 4 terminals, copper studs, spades, and dimensions
192507 Starter Solenoid, product photo with replacement part numbers and fit model lists
192507 Starter Solenoid infographic showing copper studs, ABS plastic housing, control terminals, and zinc-plated steel brack
192507 Starter Solenoid, product graphic highlighting the 180°C copper wire coil and an inset close-up of copper winding
192507 Starter Solenoid wiring diagram with battery, fuse, motor/starter, chassis ground, key switch, and ground wire
192507 starter solenoid, product display showing four views of the black 12V four-post solenoid
192507 Starter Solenoid, promotional graphic showing the solenoid beside a riding mower and listed starting symptoms
192507 Starter Solenoid compatibility graphic with solenoid and four riding lawn tractors
192507 Starter Solenoid promotional graphic showing the solenoid beside a riding lawn tractor in a field
192507 Starter Solenoid, 12V product graphic comparing the featured solenoid with another solenoid

192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor

0.00
$14.29
Save 11% $16.00
$14.29
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

192507 Starter Solenoid (12V 4-Terminal)

Key Features

  • 12V DC starter solenoid for riding lawn mowers and lawn tractors.
  • 4-terminal design with two top 1/4-20 copper studs and two bottom 1/4-inch male spade terminals.

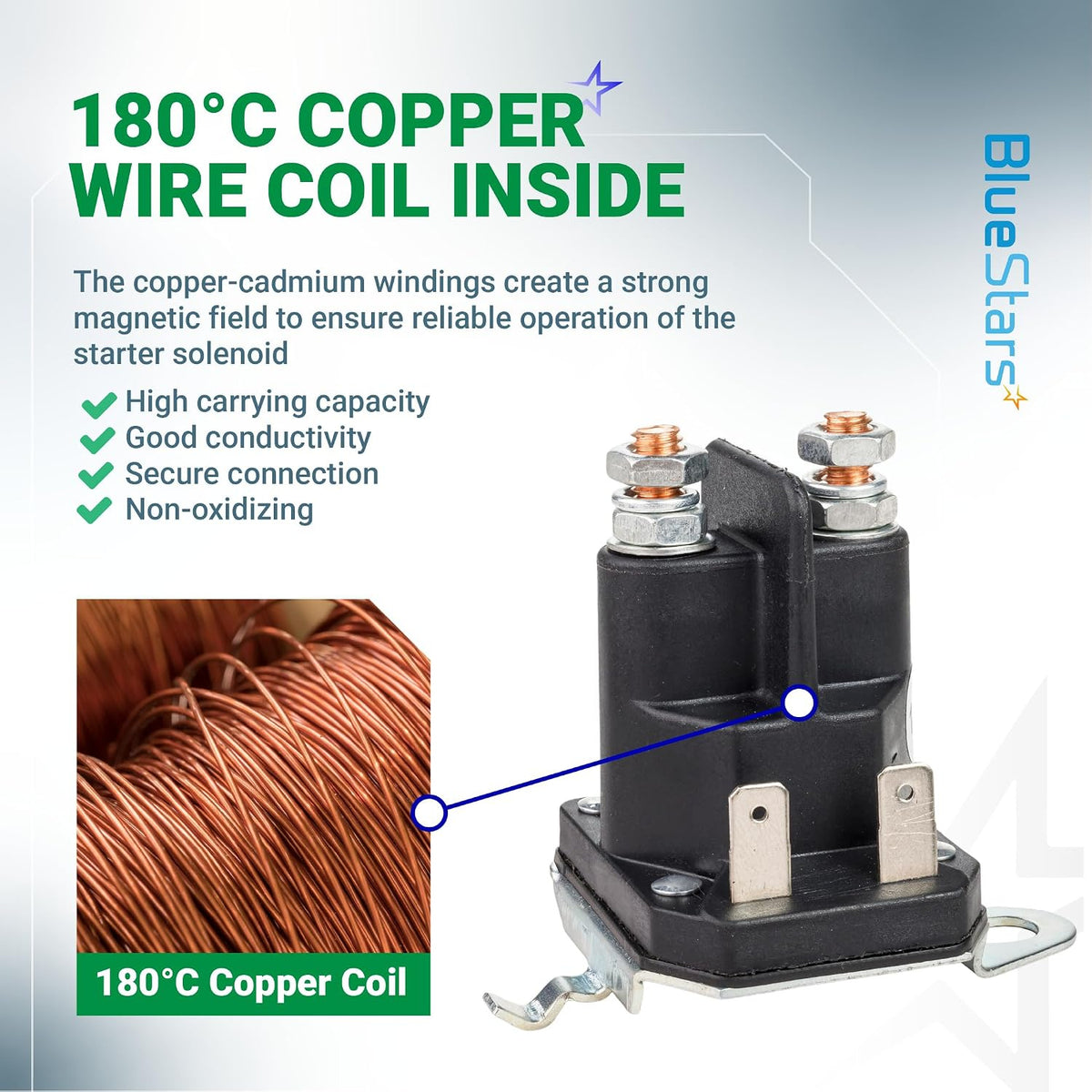

  • Copper contact material and copper internal windings rated to 180°C.
  • ABS plastic housing resists wear, impact, and common outdoor operating conditions.
  • Minimum switching voltage: 12V DC.

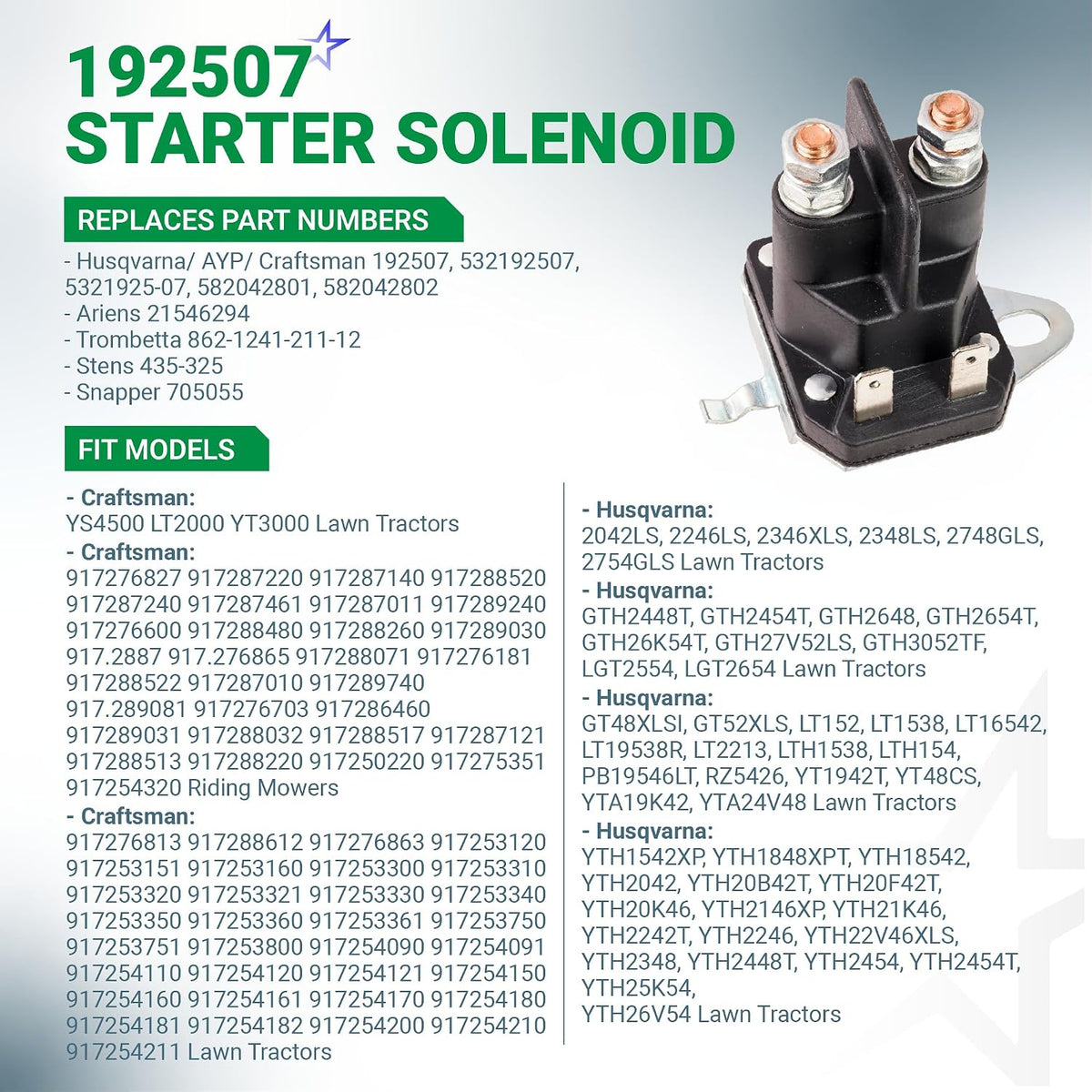

Replaces / Cross-Reference Part Numbers

  • AYP/Sears: 192507
  • Husqvarna: 532192507
  • AYP/Husqvarna: 582042801, 582042802, 532194653
  • Ariens: 21546294
  • Snapper: 705055
  • Cub Cadet/MTD: 725-06153A
  • Stens: 435-325
  • Trombetta: 862-1241-211-12

Compatibility & Fitment

Compatible with selected Husqvarna YTH1842 and YTH22V46 models, Craftsman LT, YT, and YS series including LT2000, YS4500, and YT3000, and the following listed applications:

  • Craftsman: 917276827, 917287220, 917287140, 917288520, 917287240, 917287461, 917287011, 917289240, 917276600, 917288480, 917288260, 917289030, 917.2887, 917.276865, 917288071, 917276181, 917288522, 917287010, 917289740, 917.289081, 917276703, 917286460, 917289031, 917288032, 917288517, 917287121, 917288513, 917288220, 917250220, 917275351, 917254320, 917276813, 917288612, 917276863, 917253120, 917253151, 917253160, 917253300, 917253310, 917253320, 917253321, 917253330, 917253340
  • Husqvarna: GTH2448T, GTH2454T, GTH2648, GTH2654T, GTH26K54T, GTH27V52LS, GTH3052TF, LGT2554, LGT2654, GT48XLSI, GT52XLS, LT152, LT1538, LT16542, LT19538R, LT2213, LTH1538, LTH154, PB19546LT, RZ5426, YT1942T, YT48CS, YTA19K42, YTA24V48, YTH1542XP, YTH1848XPT, YTH18542, YTH2042, YTH20B42T, YTH20F42T, YTH20K46, YTH2146XP, YTH21K46, YTH2242T, YTH2246, YTH22V46XLS, YTH2348, YTH2448T, YTH2454, YTH2454T, YTH25K54, YTH26V54, 2042LS, 2246LS, 2346XLS, 2348LS, 2748GLS, 2754GLS

Do not use this part for a 3-terminal solenoid. A different bracket or terminal layout indicates a different application. Verify the engine or mower model and the original part number before purchase.

When to Replace

A failed starter solenoid can cause a no-crank condition, a click without starter engagement, intermittent starting, or no voltage reaching the starter. Common causes include worn contacts, corrosion, a weak connection, overload, or a short circuit. Inspect the battery, cables, terminals, and wiring before replacing the solenoid.

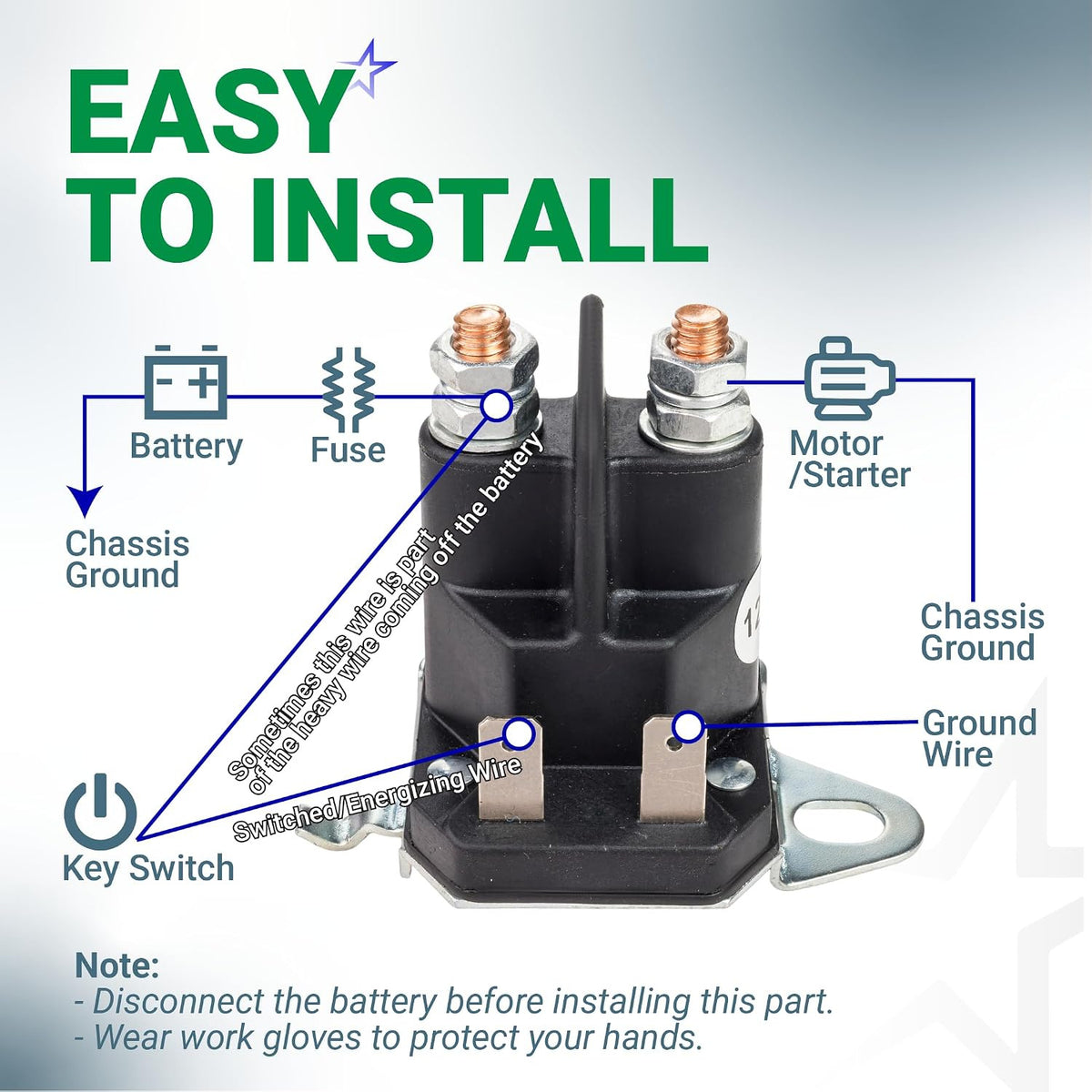

Installation Tips

  • Disconnect the battery negative terminal before servicing to reduce the risk of an accidental short circuit.
  • Photograph or label the wiring before removal and follow the tractor wiring diagram during installation.
  • Match the two top stud connections and two bottom spade connections to the original layout. Incorrect wiring or reverse polarity can damage the component.
  • Clean and tighten all connections. Poor connections, overload, and short circuits can cause premature failure.
  • Installation generally takes a few minutes when the replacement matches the original bracket and terminal arrangement.
192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 1
  • 192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 1

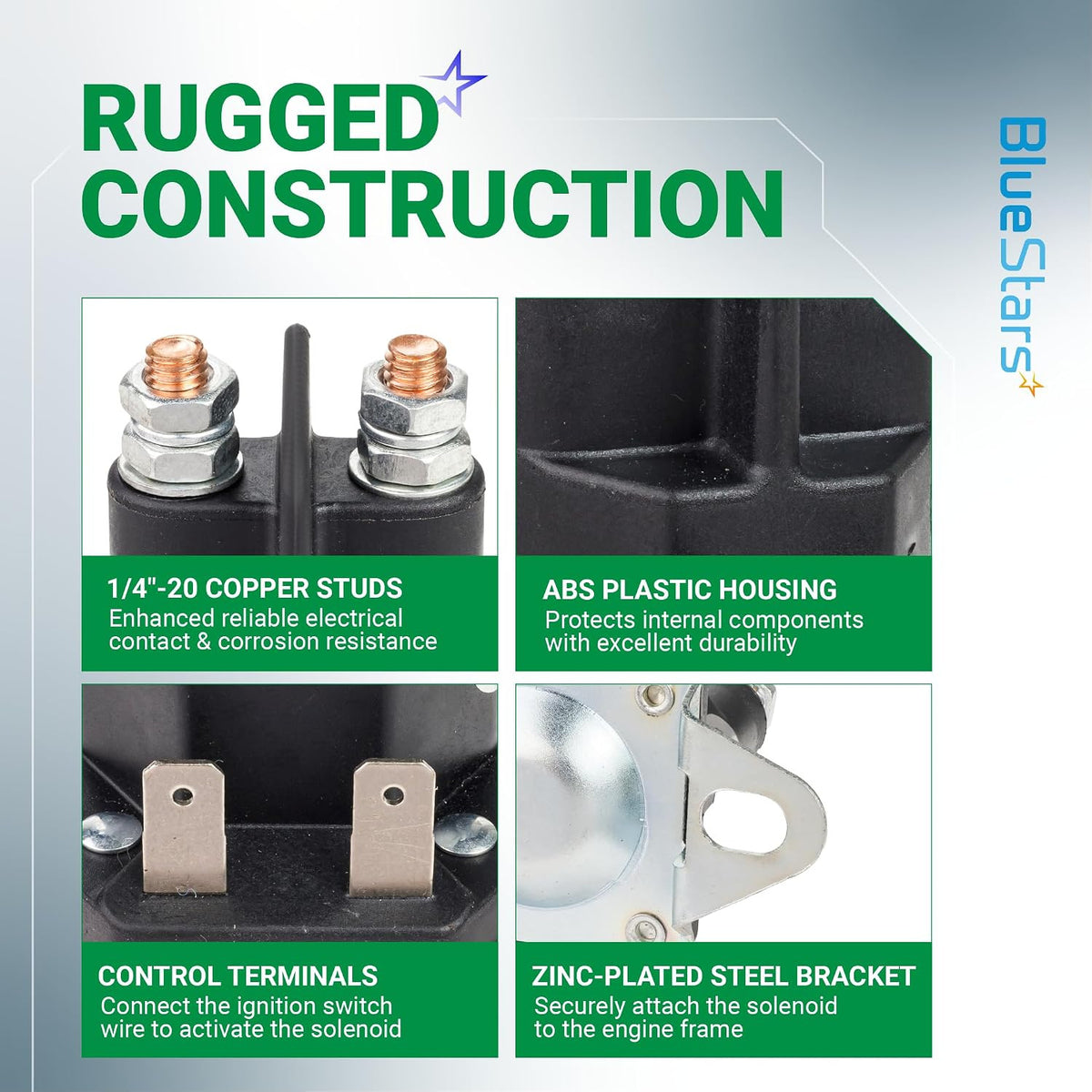

    1/4"-20 COPPER STUDS

    Enhanced reliable electrical contact & corrosion resistance
  • 192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 2

    ABS PLASTIC HOUSING

    Protects internal components with excellent durability
  • 192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 3

    ZINC-PLATED STEEL BRACKET

    Securely attach the solenoid to the engine frame
  • 192507 Starter Solenoid (12V 4-Terminal) for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 4

    CONTROL TERMINALS

    Connect the ignition switch wire to activate the solenoid

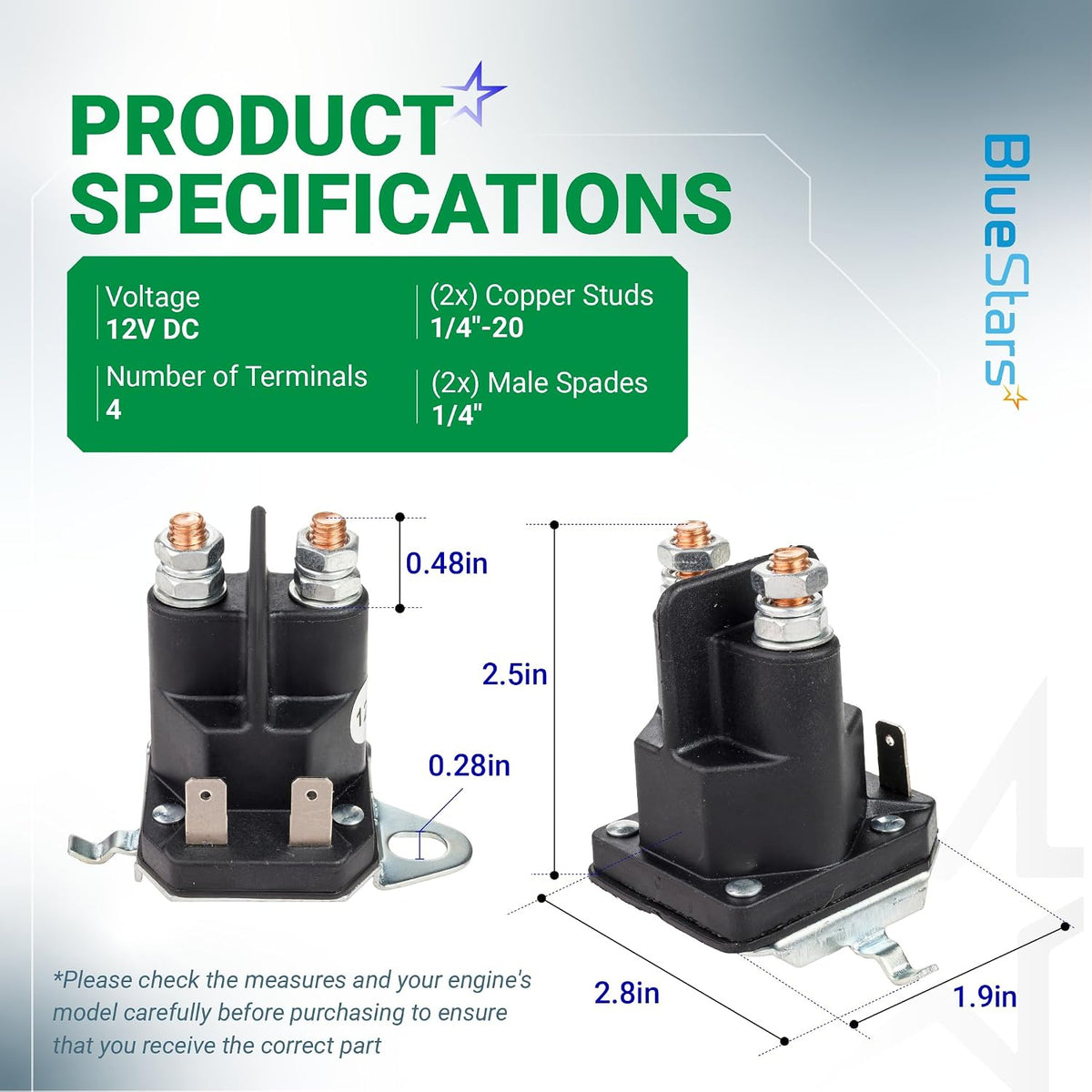

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

- Designed for 12V DC electrical systems only

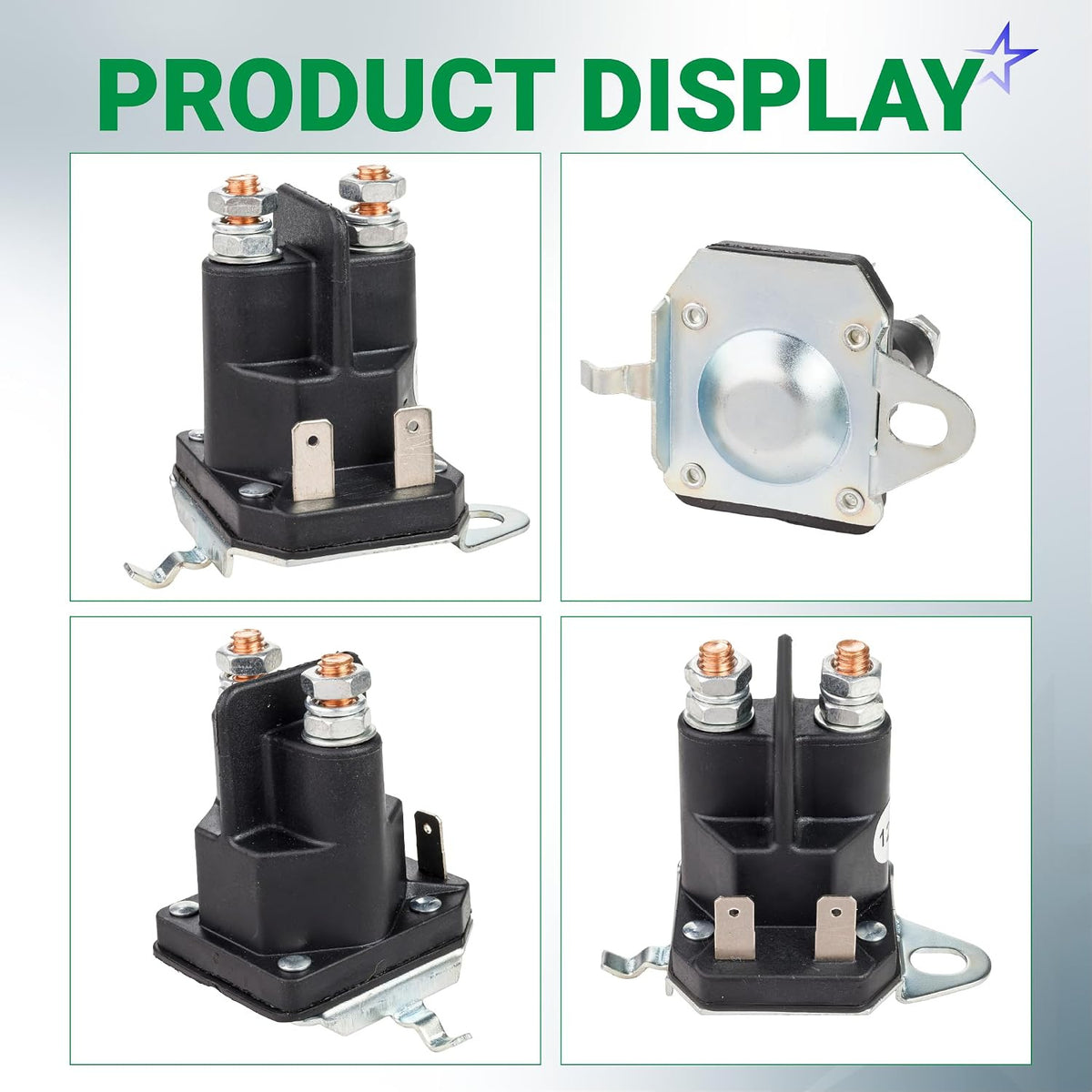

- 4 Terminals: (2x) 1/4"-20 Copper Studs, (2x) 1/4" Male Spades
- Replaces part numbers: Husqvarna/ AYP/ Craftsman 192507, 532192507, 5321925-07, 582042801, 582042802; Ariens 21546294; Trombetta 862-1241-211-12; Stens 435-325; Snapper 705055.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This 12V, 4-post starter solenoid is designed for selected Husqvarna, Poulan, Craftsman, and Ariens riding lawn mowers and tractors, including Craftsman LT2000, YS4500, and YT3000 applications. Confirm the existing solenoid has the same four-terminal layout and mounting arrangement before installation.
Compatible reference numbers include 192507, 532192507, 582042802, 582042801, Trombetta 862-1241-211-12, and Ariens 21546294.
Common symptoms include a single click or no click when the key is turned, a starter motor that does not engage, intermittent starting, or battery power reaching the solenoid but not the starter terminal. Corroded cable connections or a weak battery can produce similar symptoms and should be checked first.
Yes. The solenoid uses a 12V DC coil and a four-post terminal configuration for riding mower and lawn tractor starting systems. Match the cable and small control-wire positions to the original unit rather than relying only on terminal location.
Installation is typically straightforward and usually takes about 15–30 minutes. Disconnect the negative battery cable first, then use basic wrenches or sockets to transfer the cables and control wires to the matching terminals. Photographing the original wiring before removal helps prevent misconnection.
Inspect the battery charge, battery terminals, ground cable, positive starter cable, ignition-switch circuit, and safety-switch wiring. Clean loose or corroded connections and make sure the starter motor is not seized, since these issues can cause a replacement solenoid to appear faulty.
