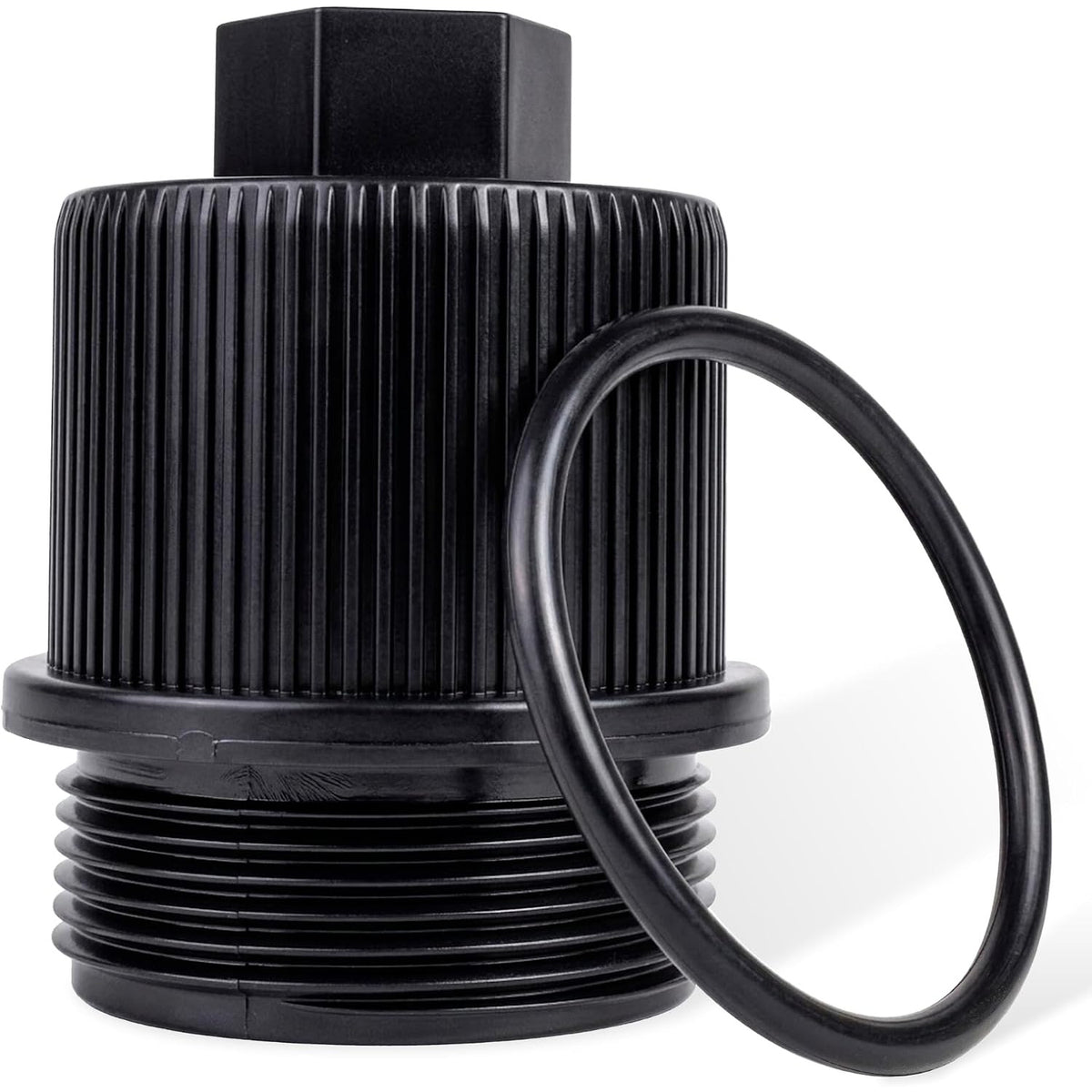

190030 Pentair Filter Drain Plug Cap Assembly with O-Ring

Key Features

  • Includes one 190030 pool filter drain plug cap assembly and one O-ring.

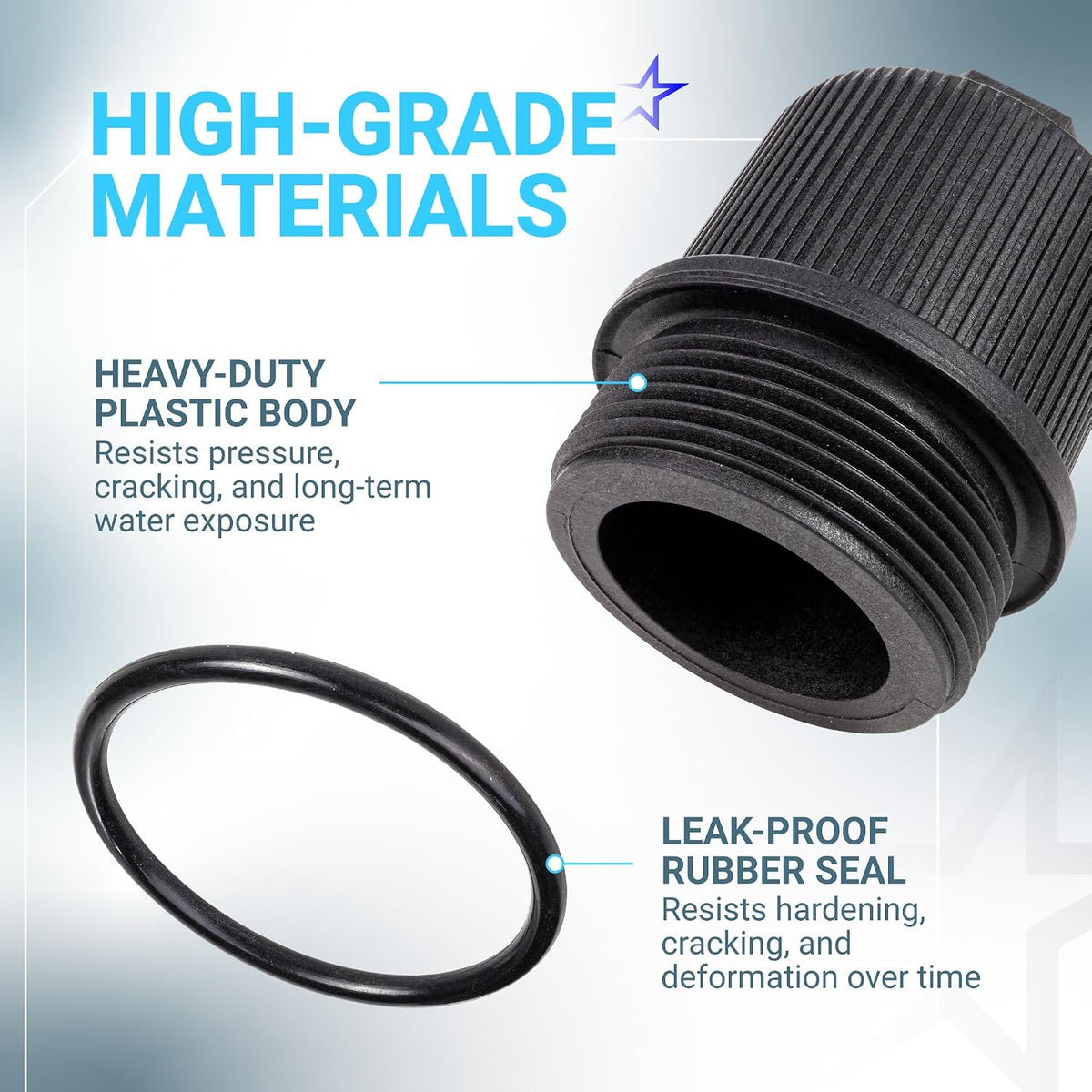

  • Made from heavy-duty plastic for use in pool and spa filtration systems.

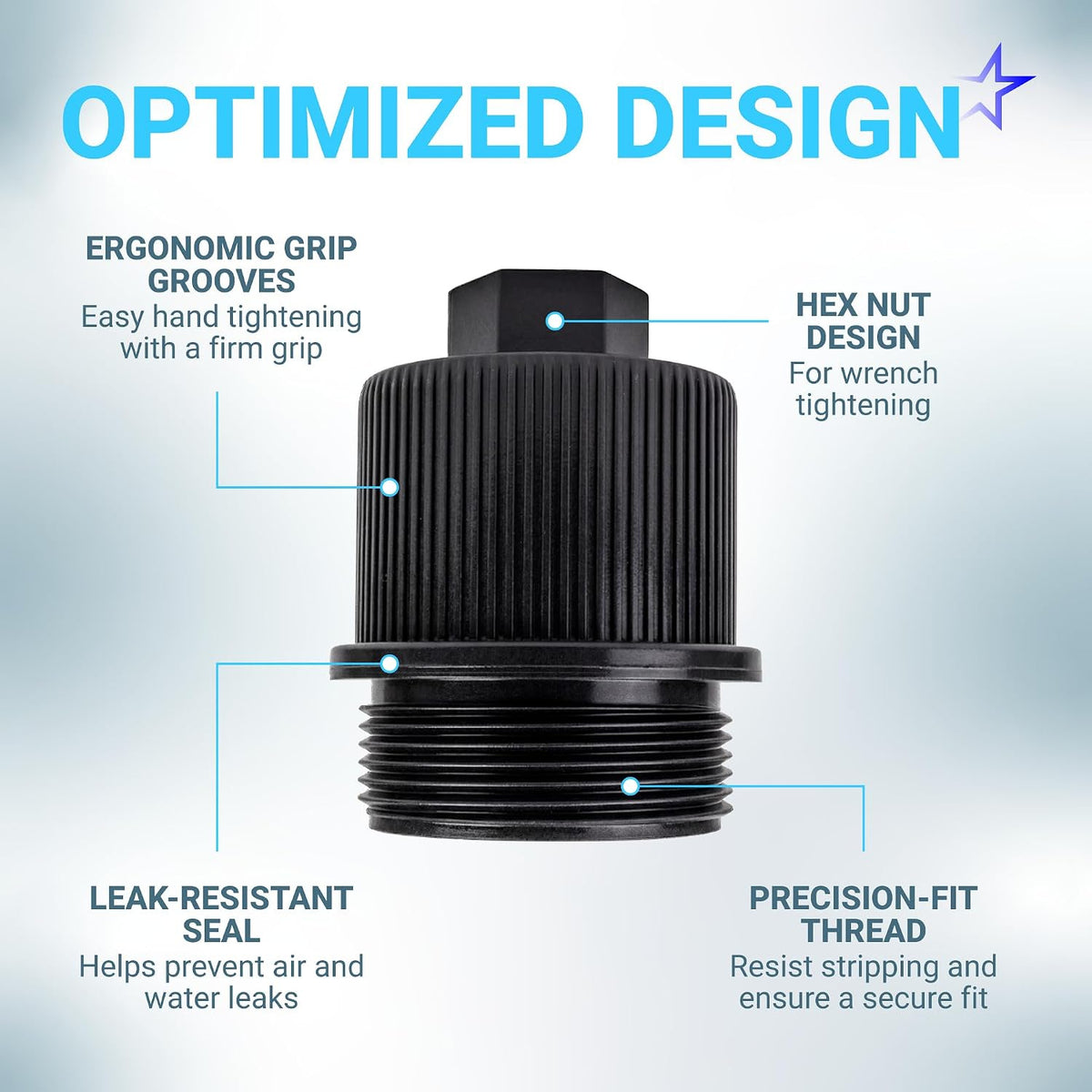

  • Designed to seal the filter drain port and control water flow during filter maintenance.
  • The included O-ring helps provide a tight seal against leaks and water loss.
  • Suitable for systems exposed to continuous water pressure and pool chemicals.

Replaces / Cross-Reference Part Numbers

  • 190030
  • 190030Z
  • RV40401

Compatibility & Fitment

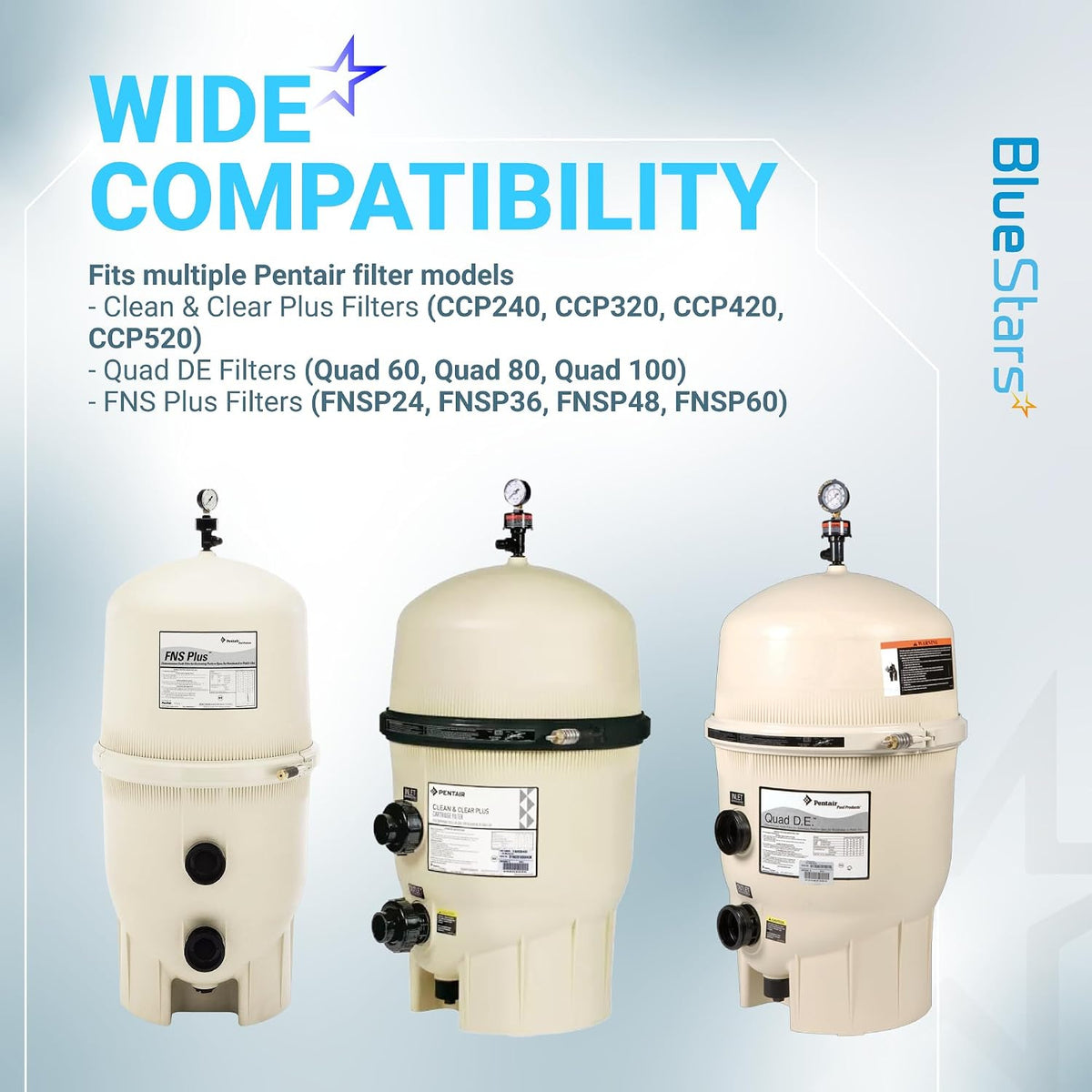

Compatible with Pentair Clean & Clear Plus, Quad DE, and FNS Plus filtration systems, including the following models:

  • Clean & Clear Plus: CCP240, CCP320, CCP420, CCP520
  • Quad DE: Quad 60, Quad 80, Quad 100
  • FNS Plus: FNSP24, FNSP36, FNSP48, FNSP60

Designed to work with most Pentair filtration systems using the applicable drain plug. Confirm your filter model and part number for proper fitment.

When to Replace

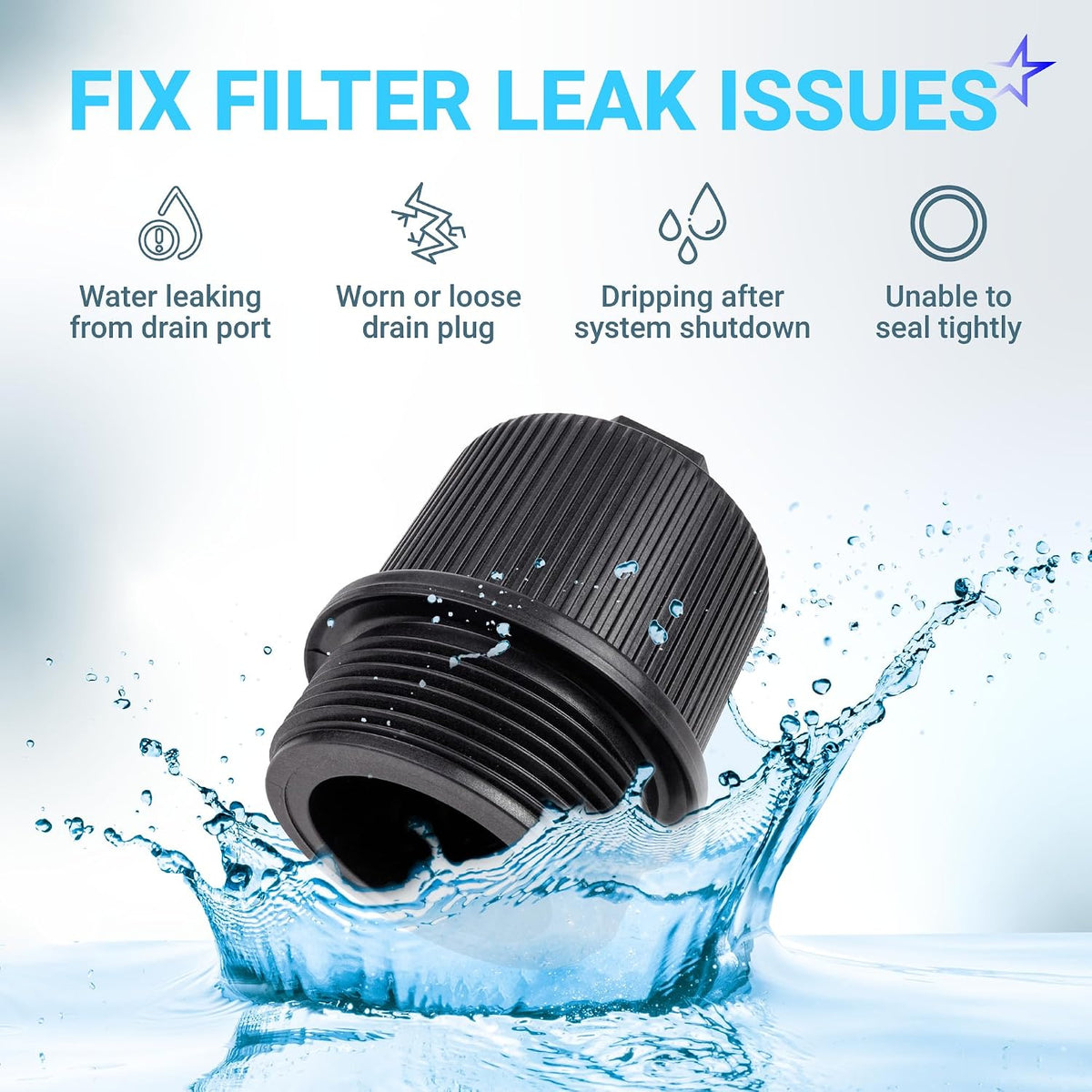

Replace the drain plug cap assembly when you notice water leaking from the drain port, a cracked or visibly worn plug, a damaged O-ring, a loose fitting, or continuing water loss after tightening the existing plug. A compromised seal can affect maintenance drainage and filtration system operation.

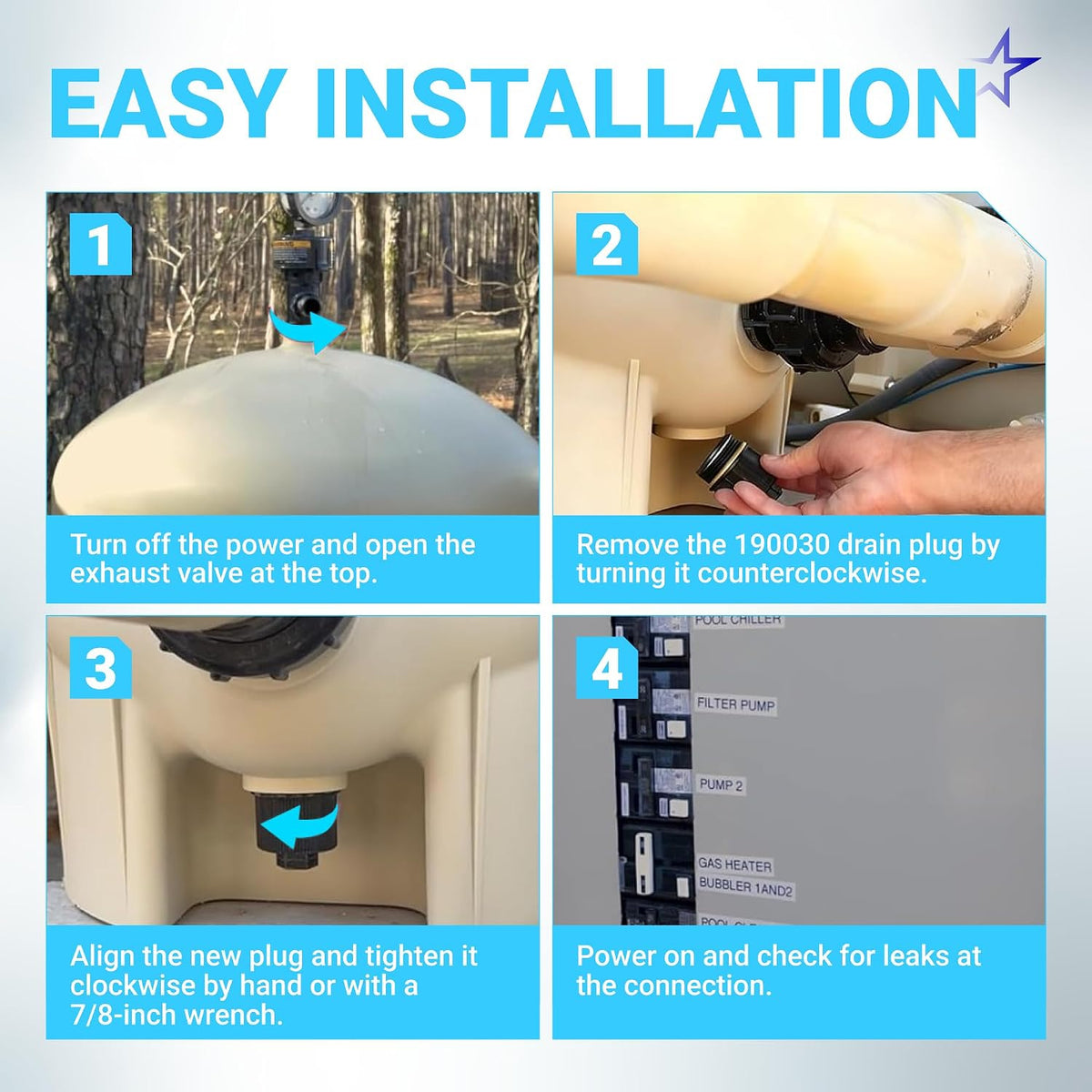

Installation Tips

  1. Turn off the pool filtration system power.
  2. Open the air relief valve at the top of the filter to release pressure.
  3. Remove the old 190030 drain plug by turning it counterclockwise.
  4. Align the replacement plug and tighten it clockwise by hand or with a 7/8-inch wrench.
  5. Restore system operation and inspect the connection for leaks.
190030 drain plug cap assembly shown beside a swimming pool, with text describing a tight seal for the filter’s bottom drain

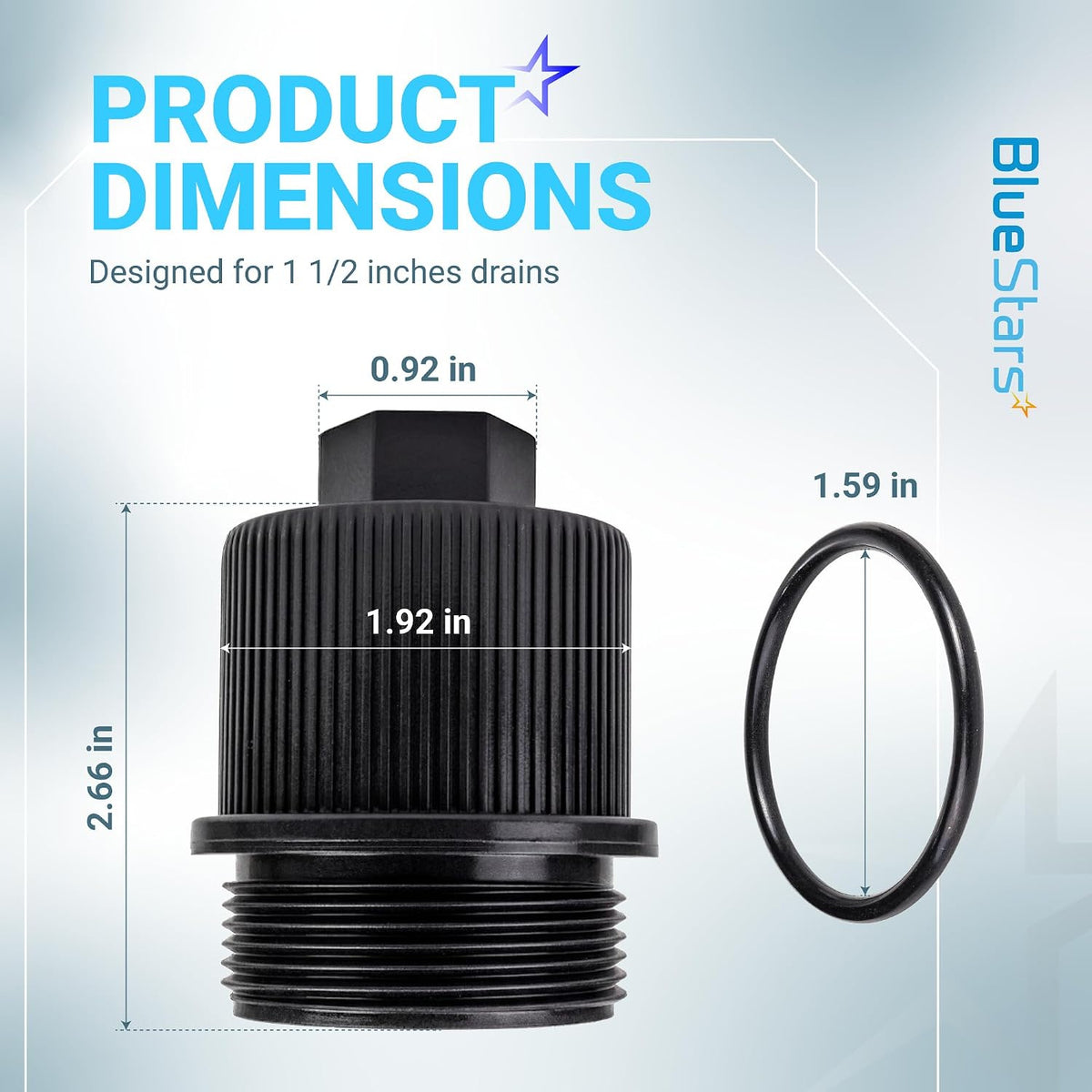

Product dimensions for a black threaded automotive part with separate O-ring: 2.66 in tall, 1.92 in wide, and 1.59 in ring di
190030 Pentair Filter Drain Plug Cap Assembly with O-Ring - Compatible with Pentair Clean & Clear Plus, FNS Plus, Quad DE 3
190030 Pentair Filter Drain Plug Cap Assembly with O-Ring - Compatible with Pentair Clean & Clear Plus, FNS Plus, Quad DE 4
190030 Pentair Filter Drain Plug Cap Assembly with O-Ring - Compatible with Pentair Clean & Clear Plus, FNS Plus, Quad DE 5
WIDE COMPATIBILITY

WIDE COMPATIBILITY

Fits multiple Pentair filter models:
- Clean & Clear Plus Filters (CCP240, CCP320, CCP420, CCP520)
- Quad DE Filters (Quad 60, Quad 80, Quad 100)
- FNS Plus Filters (FNSP24, FNSP36, FNSP48, FNSP60)

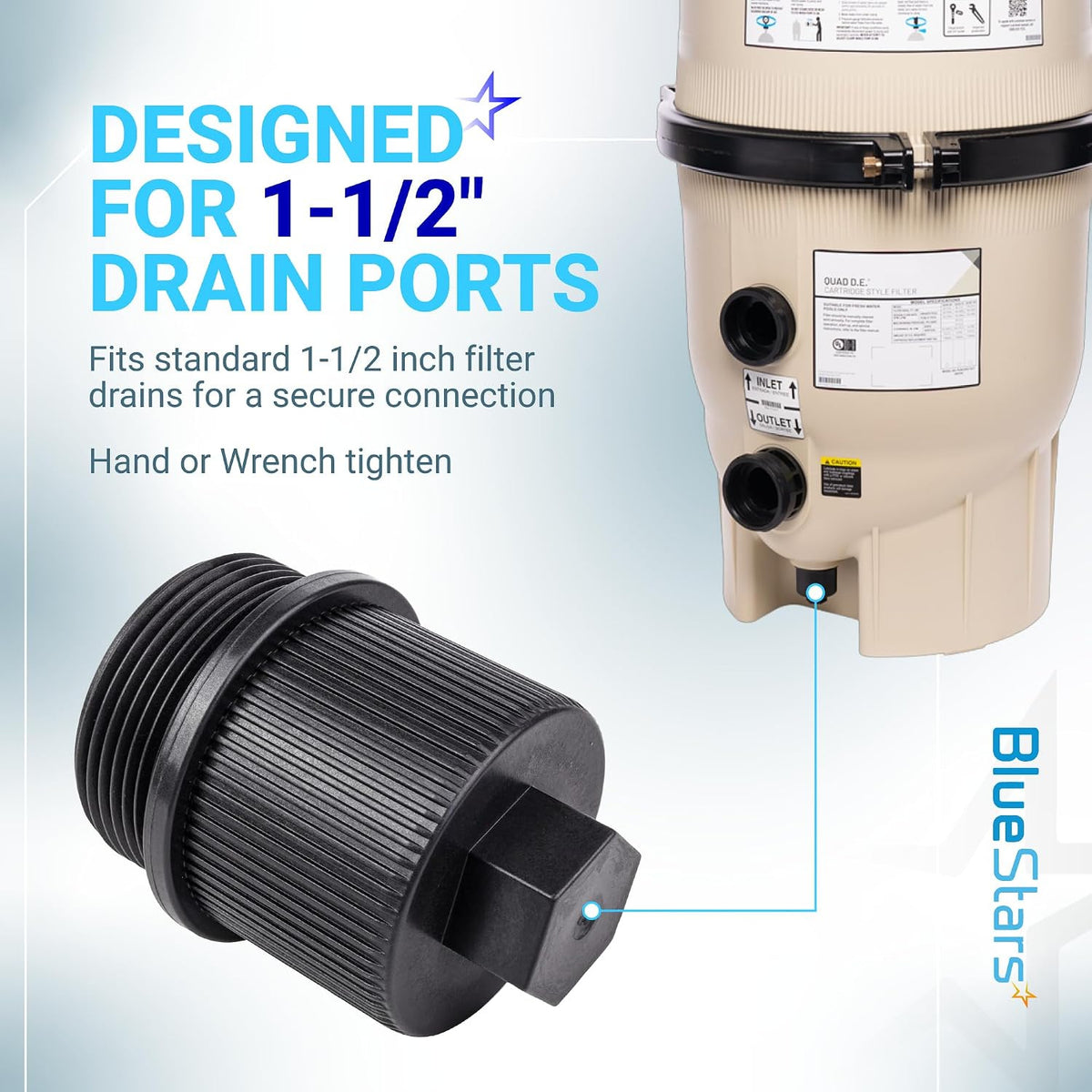

DESIGNED FOR 1-1/2" DRAIN PORTS

DESIGNED FOR 1-1/2" DRAIN PORTS

Fits standard 1-1/2 inch filter drains for a secure connection
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

FAQs

This drain plug cap assembly is compatible with Pentair Clean & Clear Plus, FNS Plus, and Quad DE pool and spa filters. It fits the filter tank drain port and includes the matching O-ring for sealing.
It replaces Pentair part number 190030 and is also identified by item model number 698183.
Common signs include water dripping from the filter drain port, an O-ring that is flattened, cracked, brittle, or swollen, visible damage to the cap threads, or a cap that will not tighten securely. A leak can also occur if the O-ring is missing or improperly seated.
Turn off the pump, relieve all filter pressure, and close the appropriate valves before removing the old cap. Clean the drain port and sealing surface, lightly lubricate the new O-ring with pool-equipment-safe silicone lubricant, seat it correctly, and hand-tighten the cap. Restore the valves and check carefully for leaks while the system is running.
Confirm that the filter is a Clean & Clear Plus, FNS Plus, or Quad DE model and compare the old cap and drain-port threads with the replacement. Inspect the drain-port housing for cracks or damaged threads, since replacing the cap will not correct damage to the filter body. Always relieve pressure before removing any filter fitting.
