161-193 uF MFD 220-250 VAC 50/60 Hz Round Start Capacitor - Universal Fits Air Conditioners
0.00
Regular price
$14.51
Regular price
Save 11%
$16.25
Sale price
$14.51
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

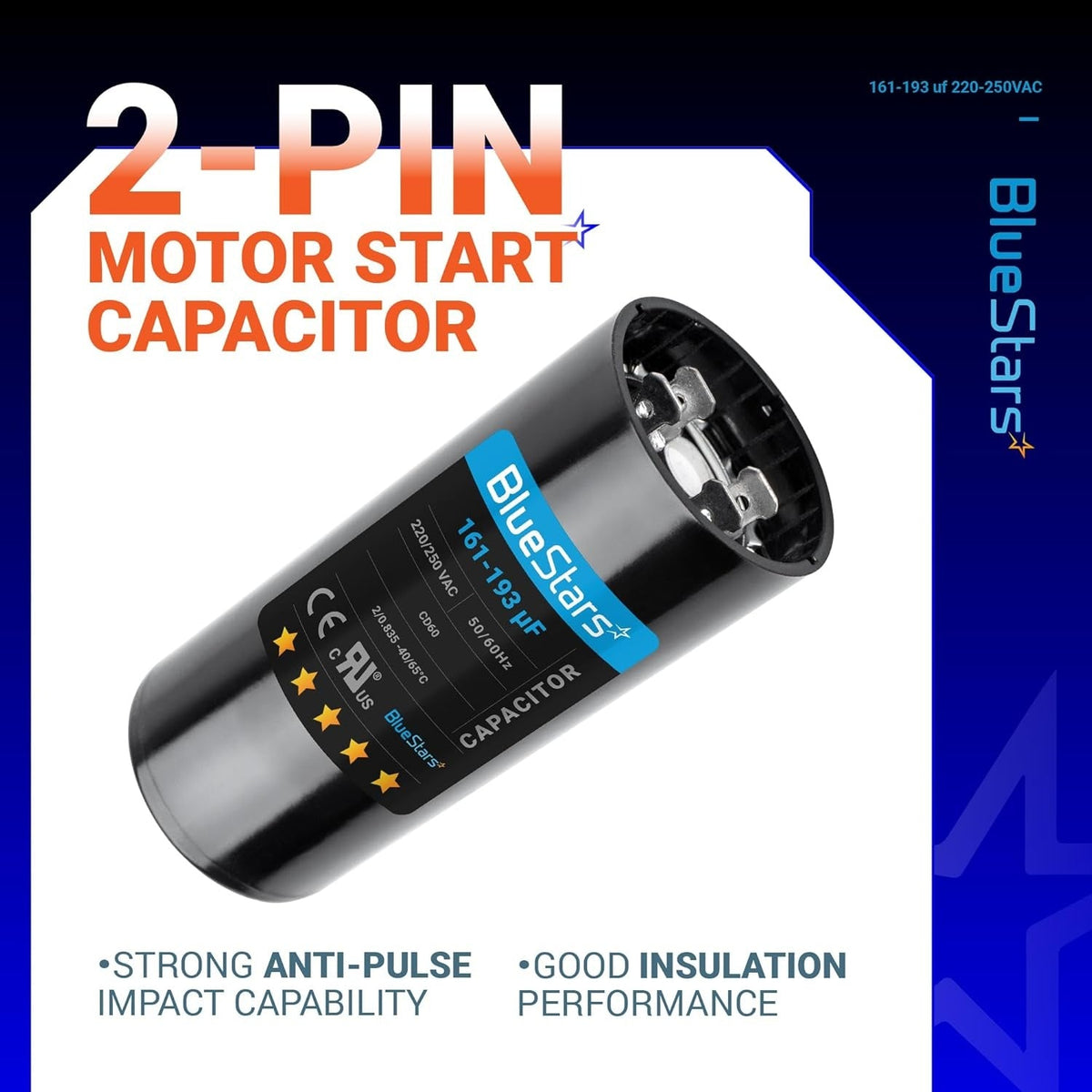

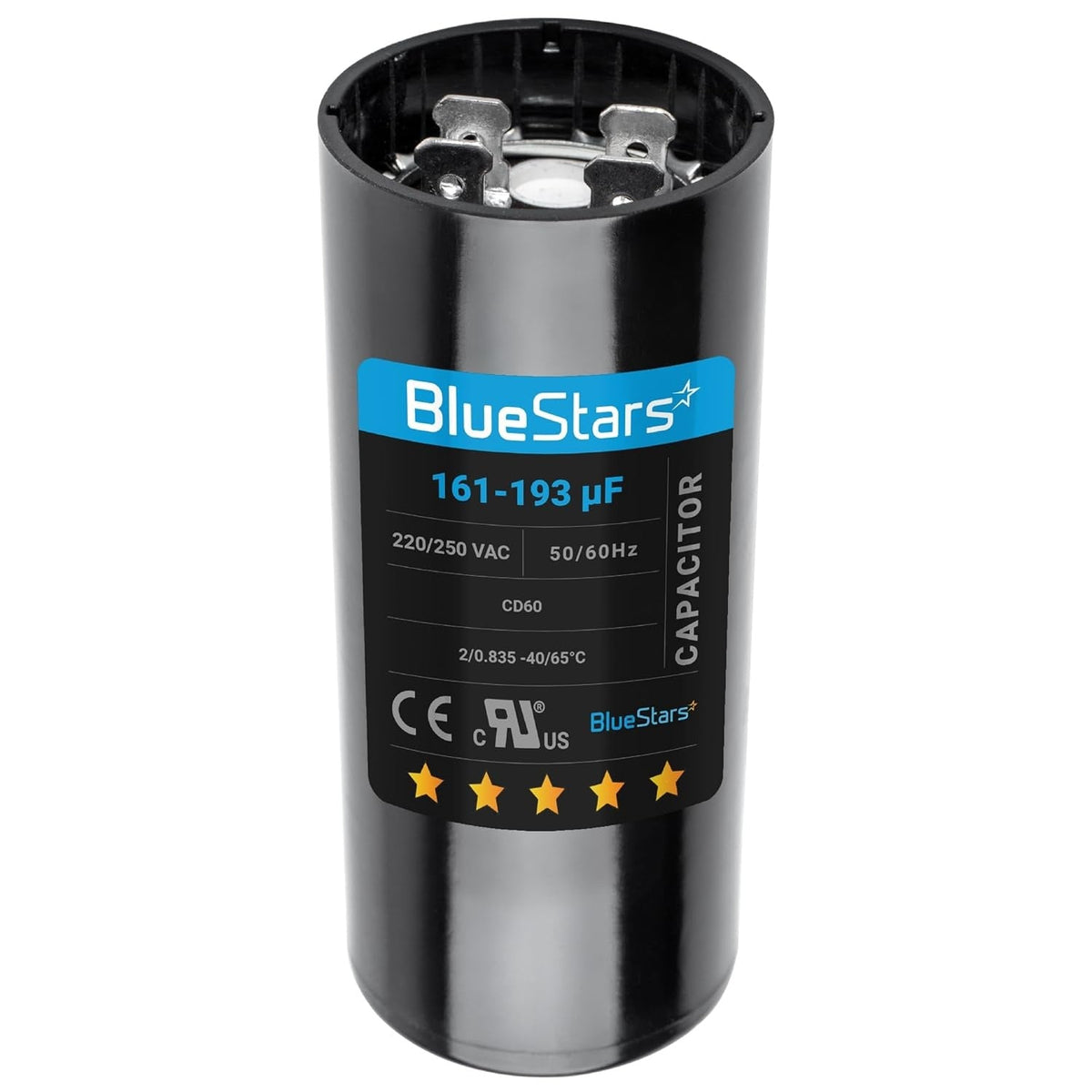

161-193 uf MFD 50/60 Hz 220-250 VAC Round Start Capacitor
Key Features
- Capacitance: 161-193 µF (Microfarad)
- Voltage Rating: 220-250 VAC
- Frequency: 50/60 Hz
- Case Shape: Round
- Dimensions (Diameter x Height): 1.81 in x 3.35 in (46mm x 85.2mm)
- Terminals: 1/4 inch male quick-connect
- Operating Temperature: -40°C to +65°C
- Case Material: Moisture and oil-resistant molded plastic
Replaces / Cross-Reference Part Numbers
- Replaces any start capacitor with the same capacitance, voltage, and physical specifications.
- Generic Model Type: CD60
- Cross-references part numbers such as 6501038 and 7525353.
Compatibility & Fitment
- For use in single-phase electric motor starting circuits.

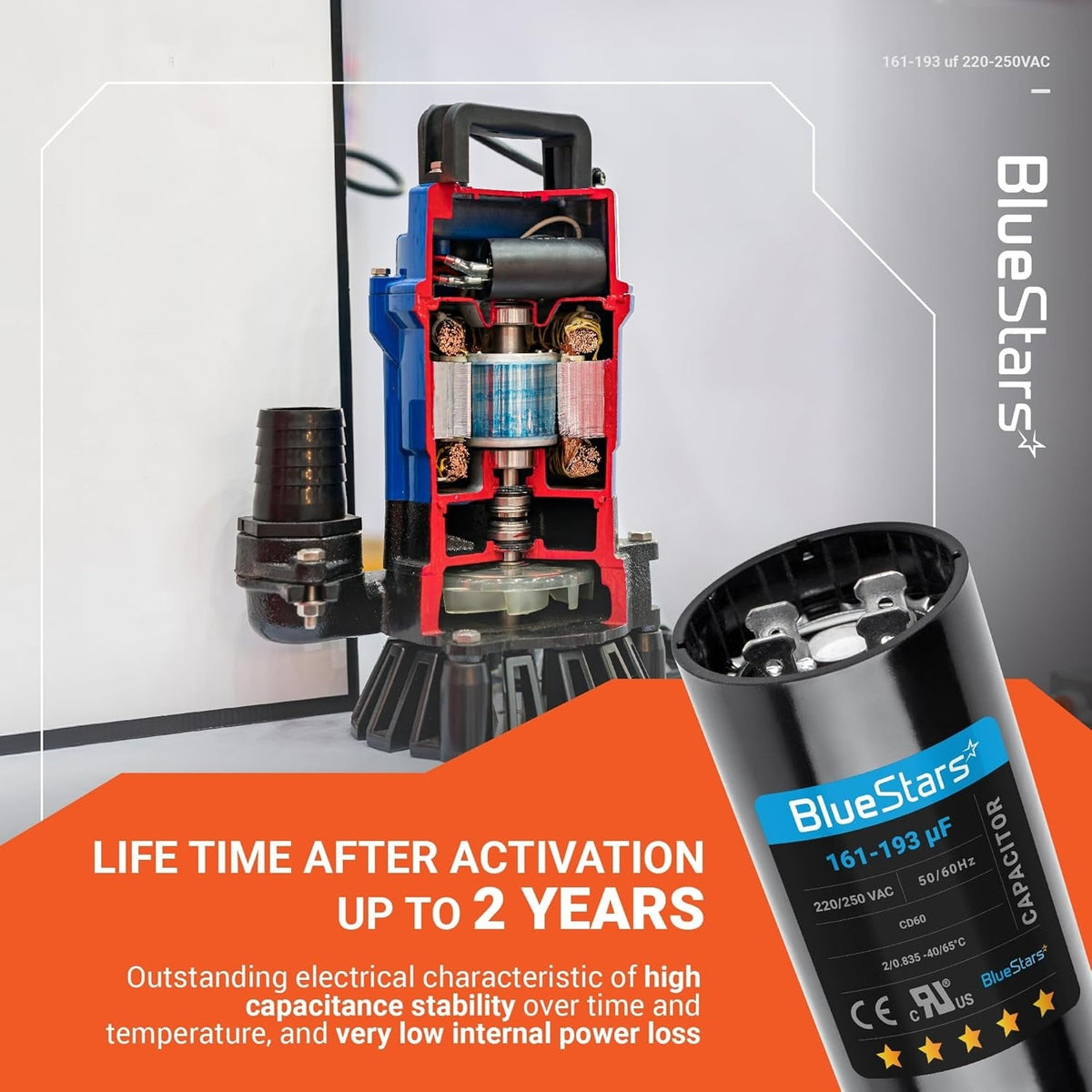

- Commonly used in HVAC units, air compressors, pool pumps, well pumps, and other electric motors.
- To ensure compatibility, the replacement capacitor's VAC rating must be equal to or greater than the original part.
- The capacitance (µF/MFD) rating must match the range specified for the motor.

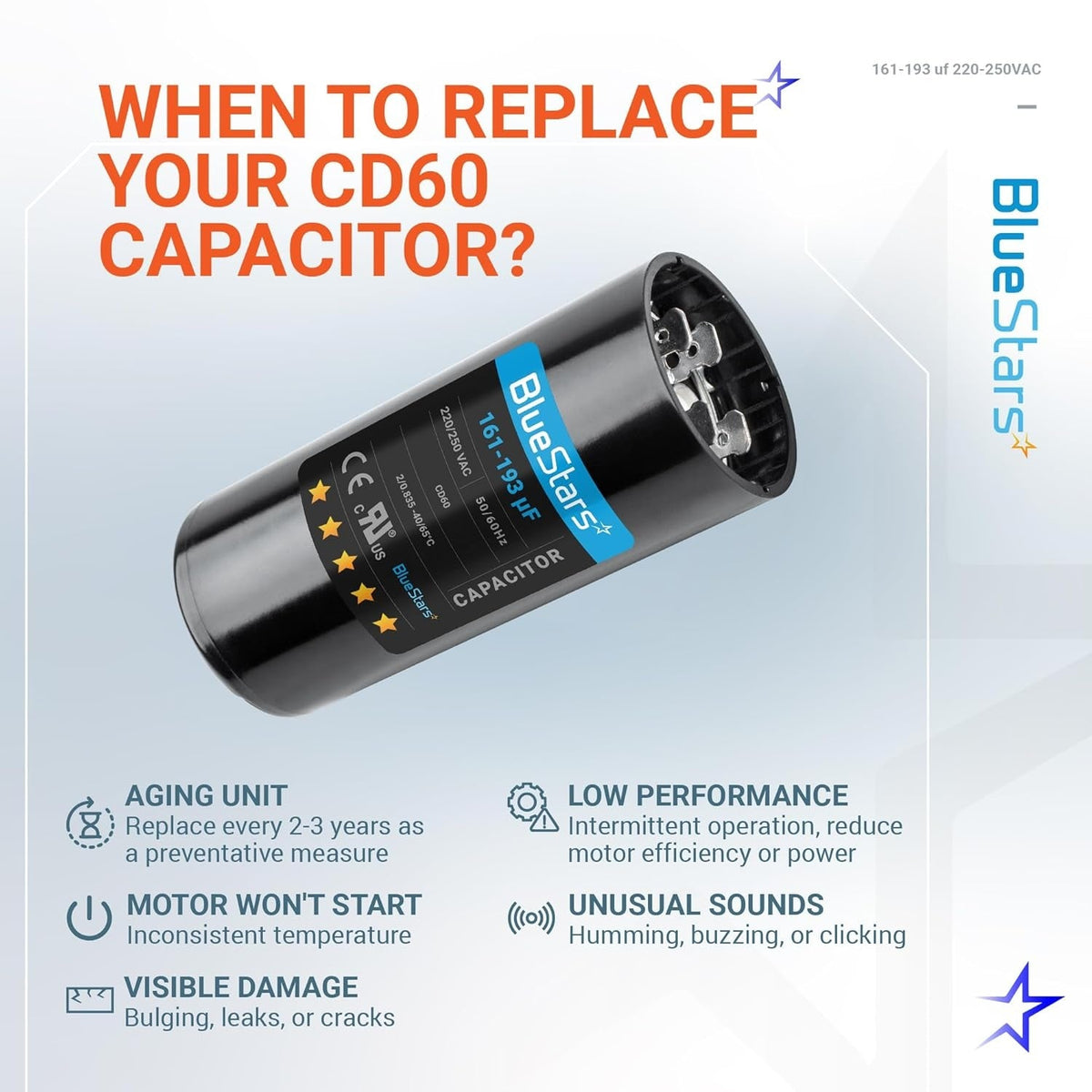

When to Replace
- Motor hums or buzzes but does not start.
- Motor starts slowly or requires manual help to turn over.
- The original capacitor shows physical damage, such as bulging, cracking, or leaking fluid.
- A multimeter test shows the capacitor is outside its rated capacitance range.

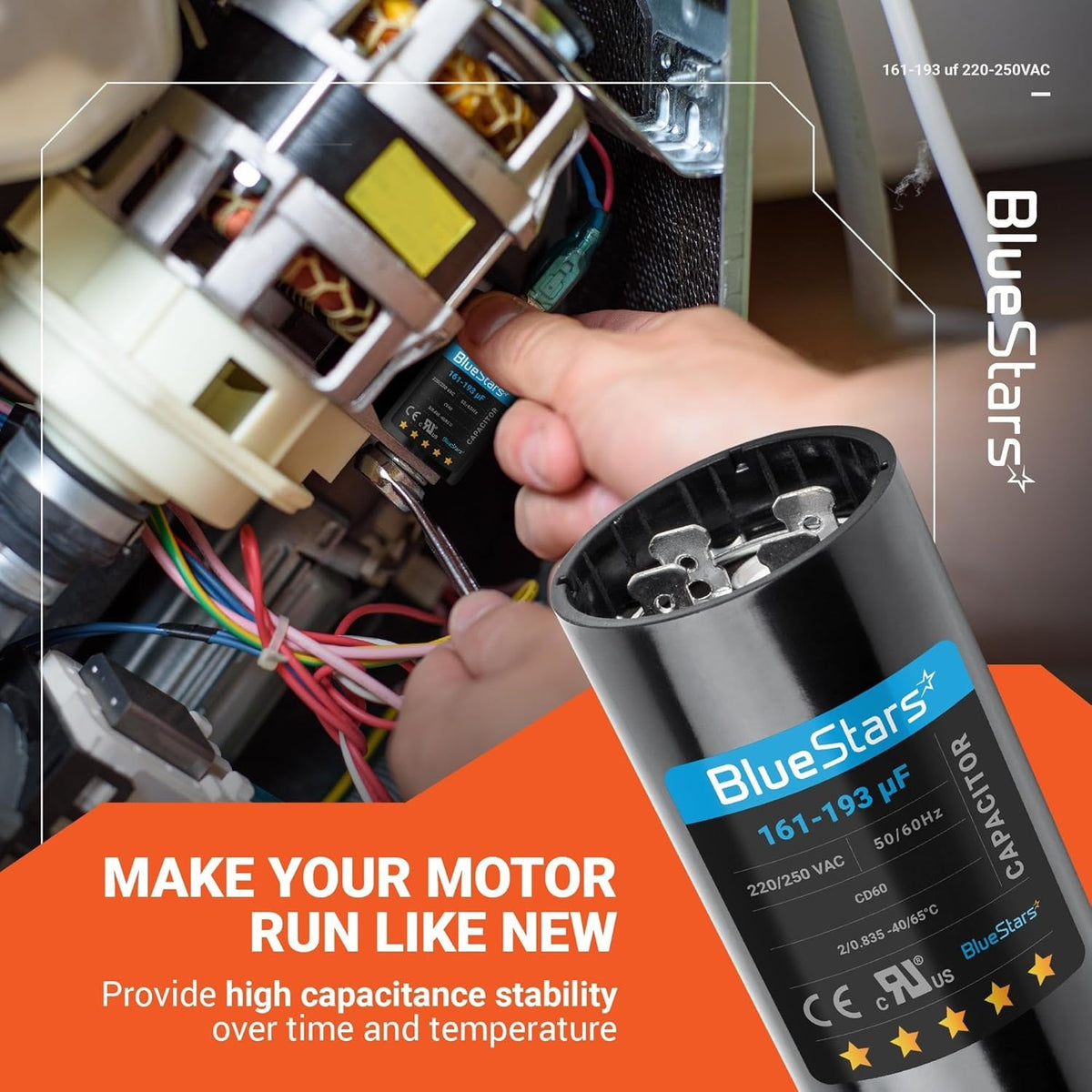

Installation Tips
- Disconnect all power to the equipment before servicing.
- Discharge the old capacitor by safely shorting its terminals with an insulated screwdriver.
- Note the wire placement before removing the old capacitor.
- Confirm specifications of the new capacitor match the motor's requirements.
- Secure the new capacitor with the original mounting hardware.
-
Perfect fit
Universal fit with any brands with the same ratings -

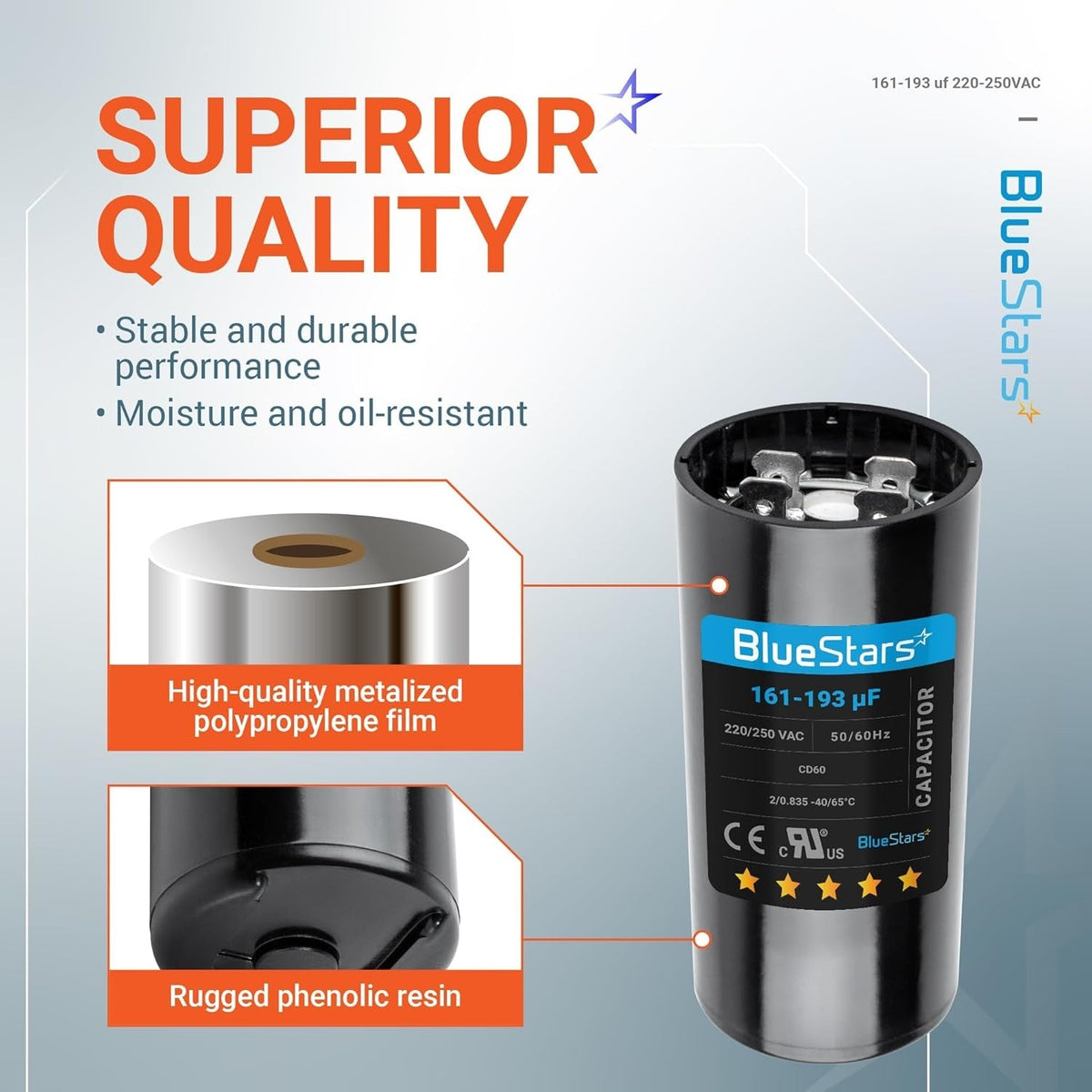

Premium quality
This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
