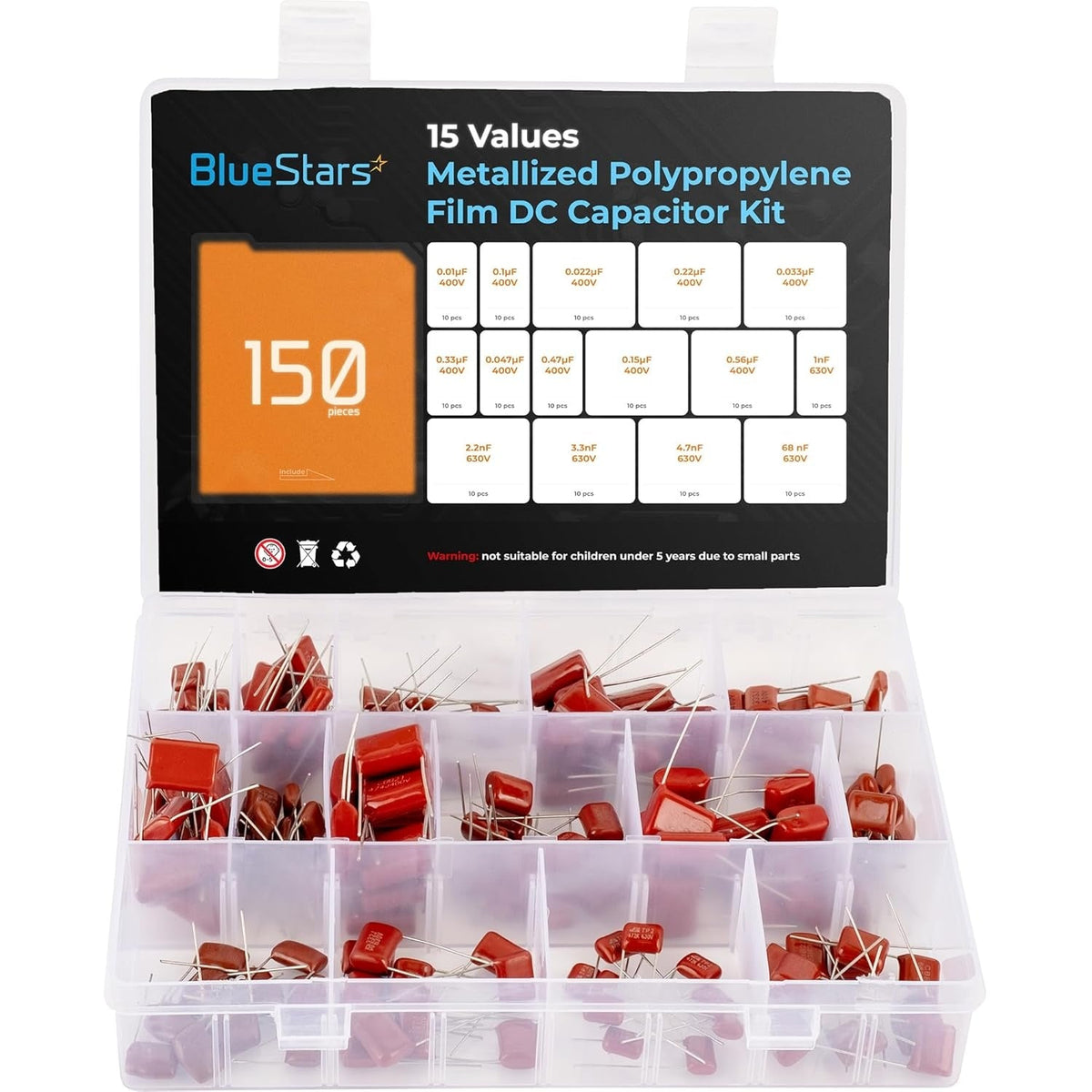

15-Value Metallized Polypropylene Film Assortment Kit - DC CBB22 Capacitor 400V/0.01uF ~ 0.56uF 630V/ 0.001uF ~ 0.068uF - Pack of 150

15-Value Metallized Polypropylene Film Assortment Kit

Key Features

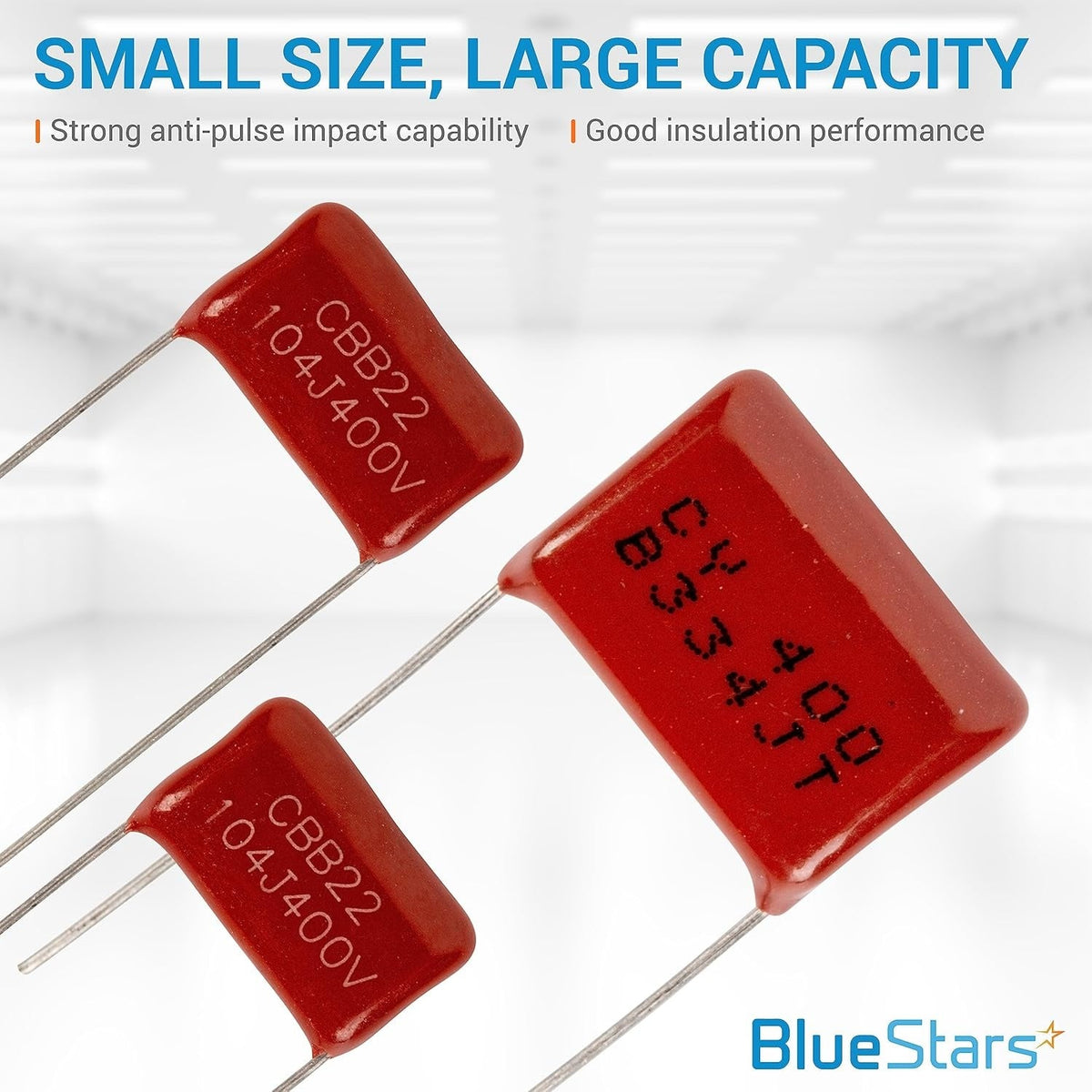

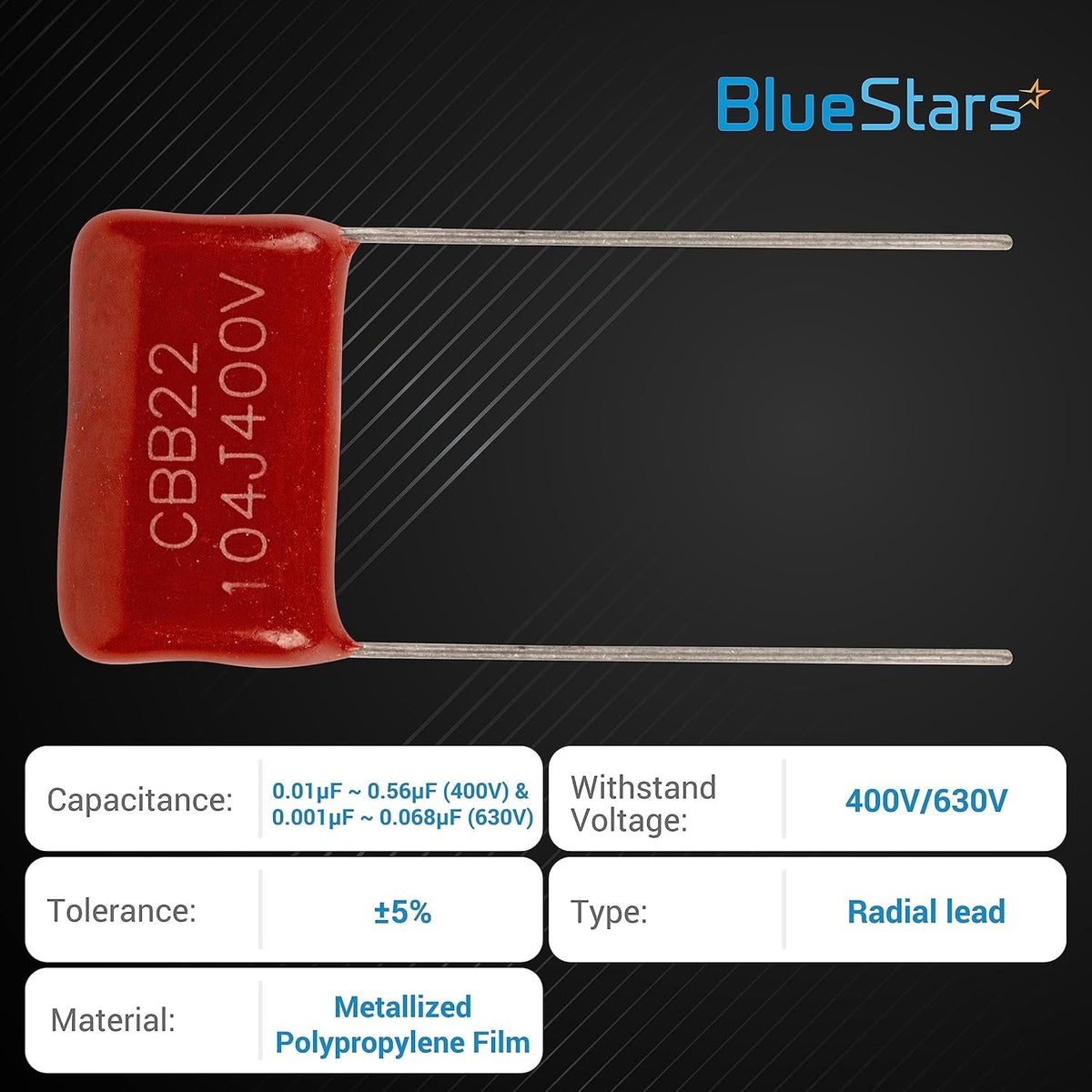

• Type: CBB22 Metallized Polypropylene Film Capacitor
• Quantity: Assortment kit with multiple pieces per value
• Values: 15 distinct capacitance values
• Capacitance Tolerance: ±5%
• Voltage Ratings: 400V and 630V DC

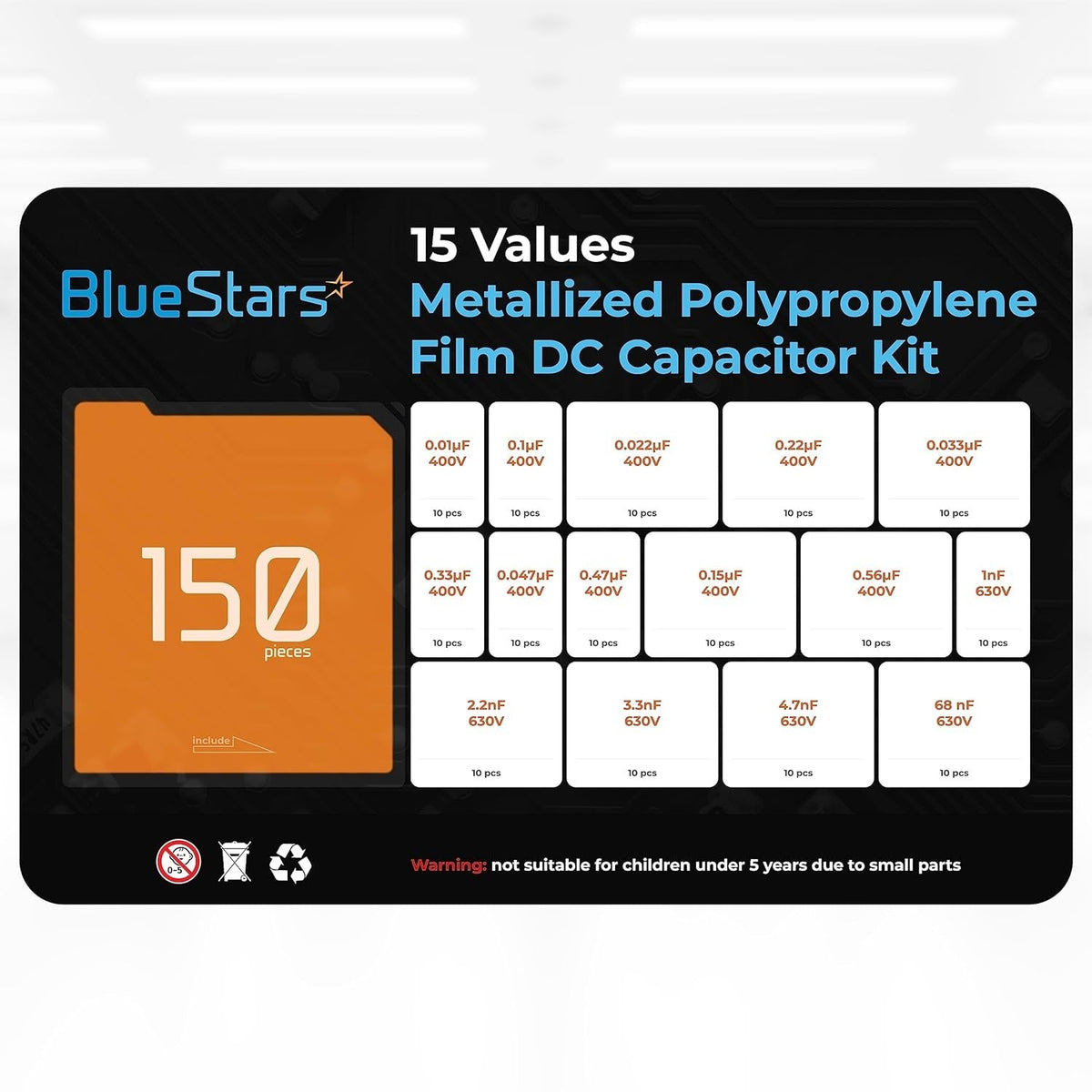

• Capacitance Range (400V): 0.01uF, 0.022uF, 0.033uF, 0.047uF, 0.1uF, 0.15uF, 0.22uF, 0.33uF, 0.47uF, 0.56uF
• Capacitance Range (630V): 0.001uF, 0.0022uF, 0.0047uF, 0.01uF, 0.068uF
• Features: Non-polarized, low dissipation factor, high insulation resistance

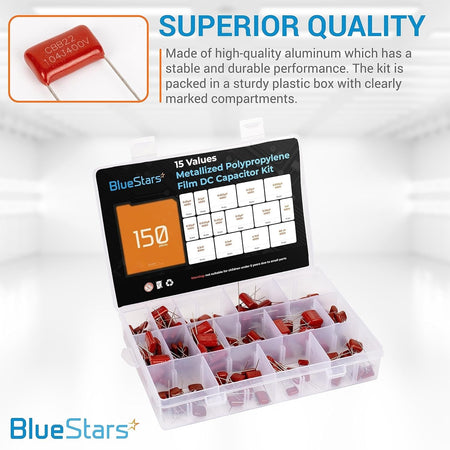

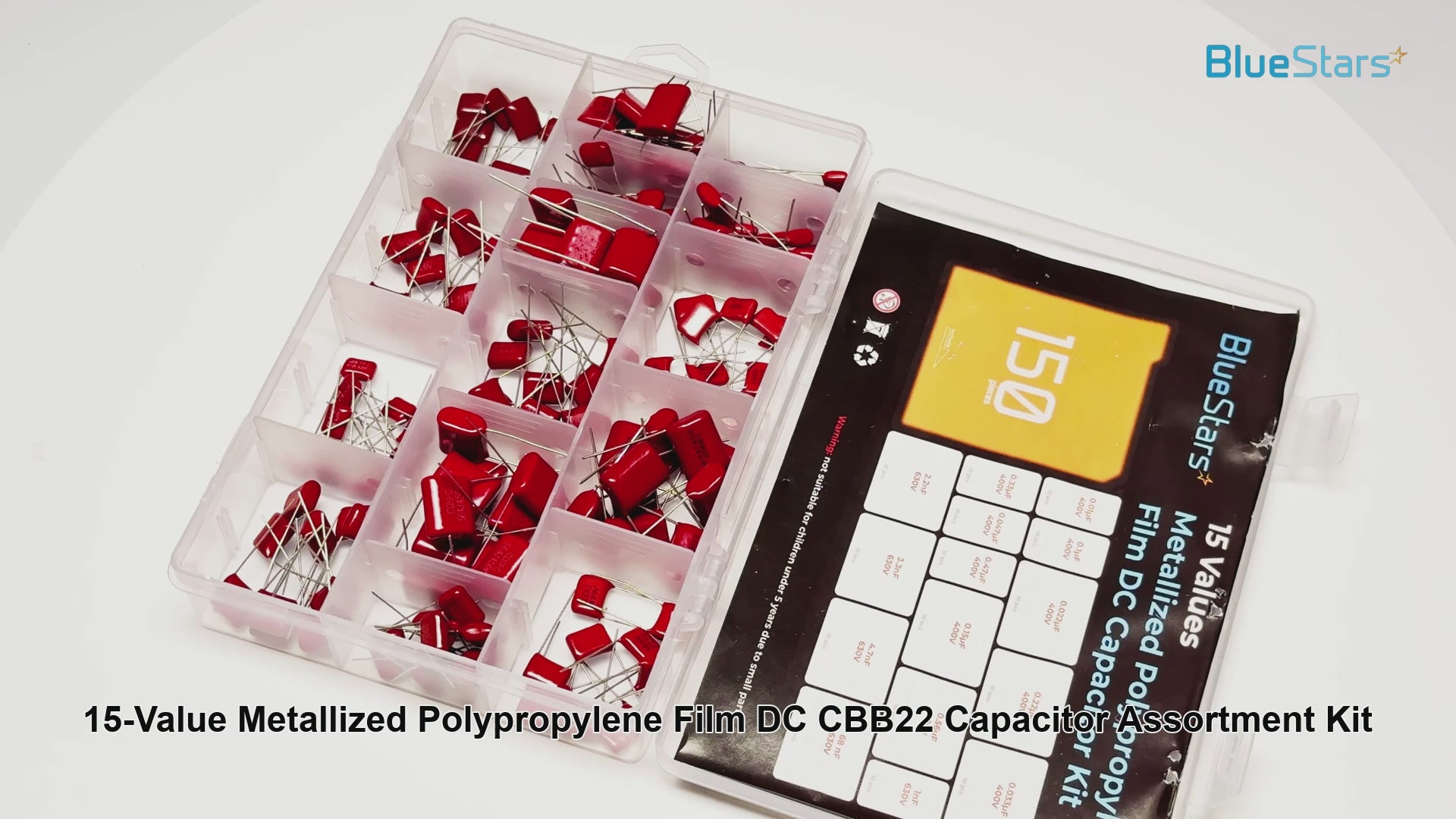

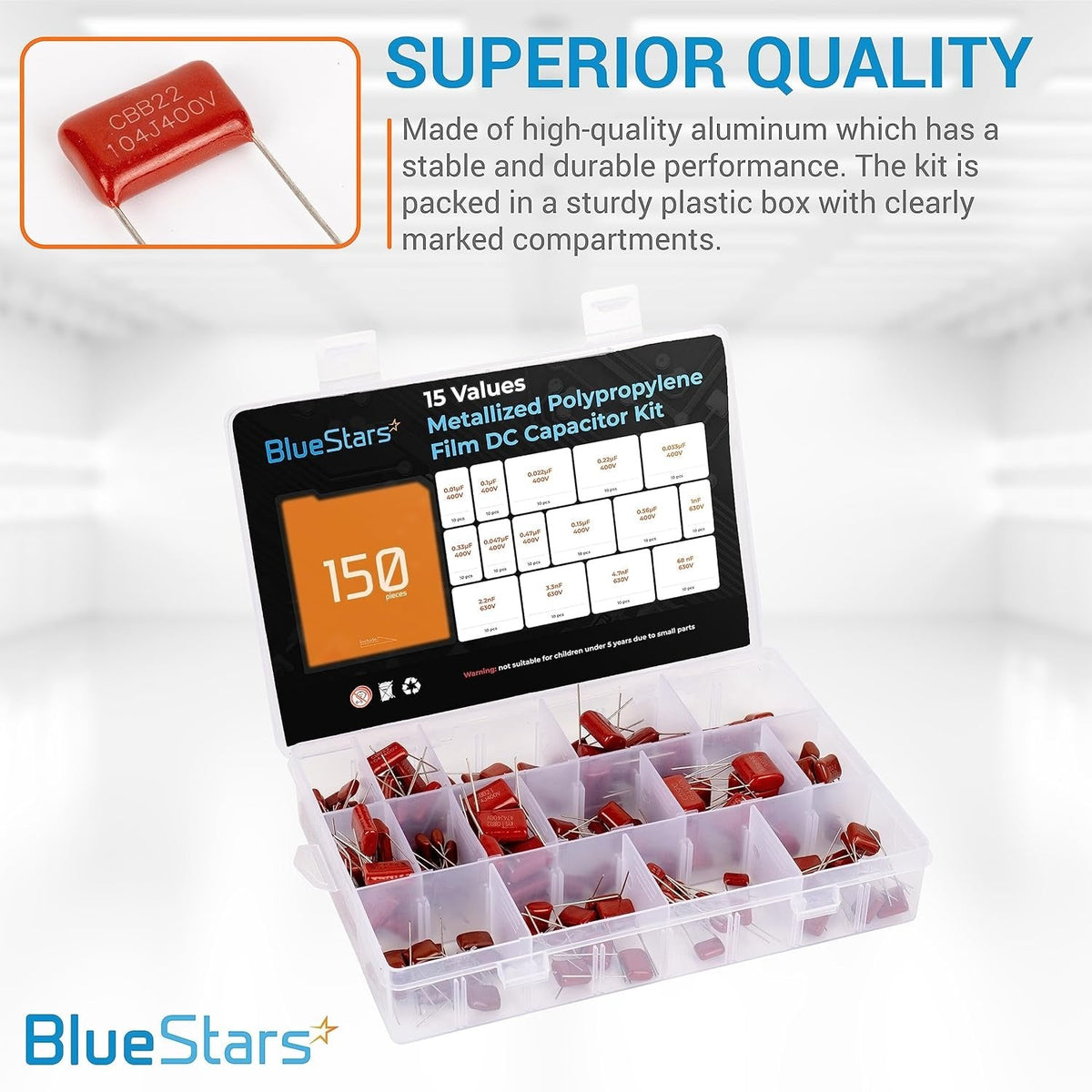

• Packaging: Organized in a multi-compartment plastic storage case

Replaces / Cross-Reference Part Numbers

• General purpose assortment kit for replacing individual CBB22 type capacitors.
• Verify capacitance (uF), voltage (V), and physical dimensions for a correct match.

Compatibility & Fitment

• Suitable for general-purpose electronics, prototyping, and repair.
• Common applications include blocking, coupling, filtering, timing, and bypass circuits.

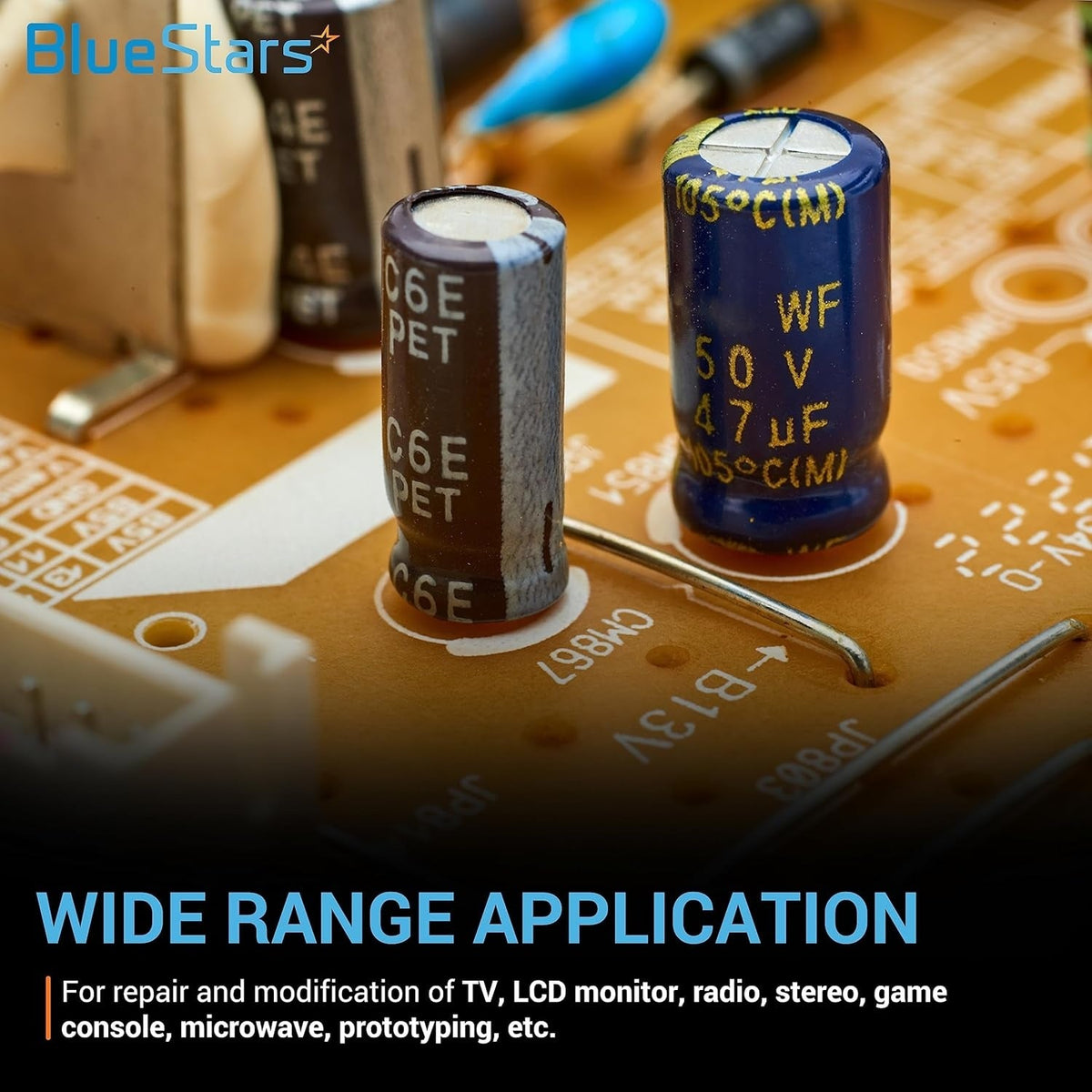

• Used in consumer electronics, power supplies, audio equipment, and various industrial applications.

When to Replace

• Capacitor shows visible damage such as bulging, cracking, or leaking.
• Component fails to meet its specified capacitance when tested with a multimeter or LCR meter.
• The circuit in which the capacitor is installed is malfunctioning due to timing, filtering, or power delivery issues.

Installation Tips

• Always disconnect power and safely discharge any stored energy in the circuit before starting work.
• These film capacitors are non-polarized and can be installed in either direction.
• Ensure the voltage rating of the new capacitor is equal to or greater than the original part.
• Use proper soldering and desoldering techniques to avoid damaging the component or the printed circuit board (PCB).
