15A 125V AC Shore Power Inlet Plug

15A 125V AC Shore Power Inlet Plug

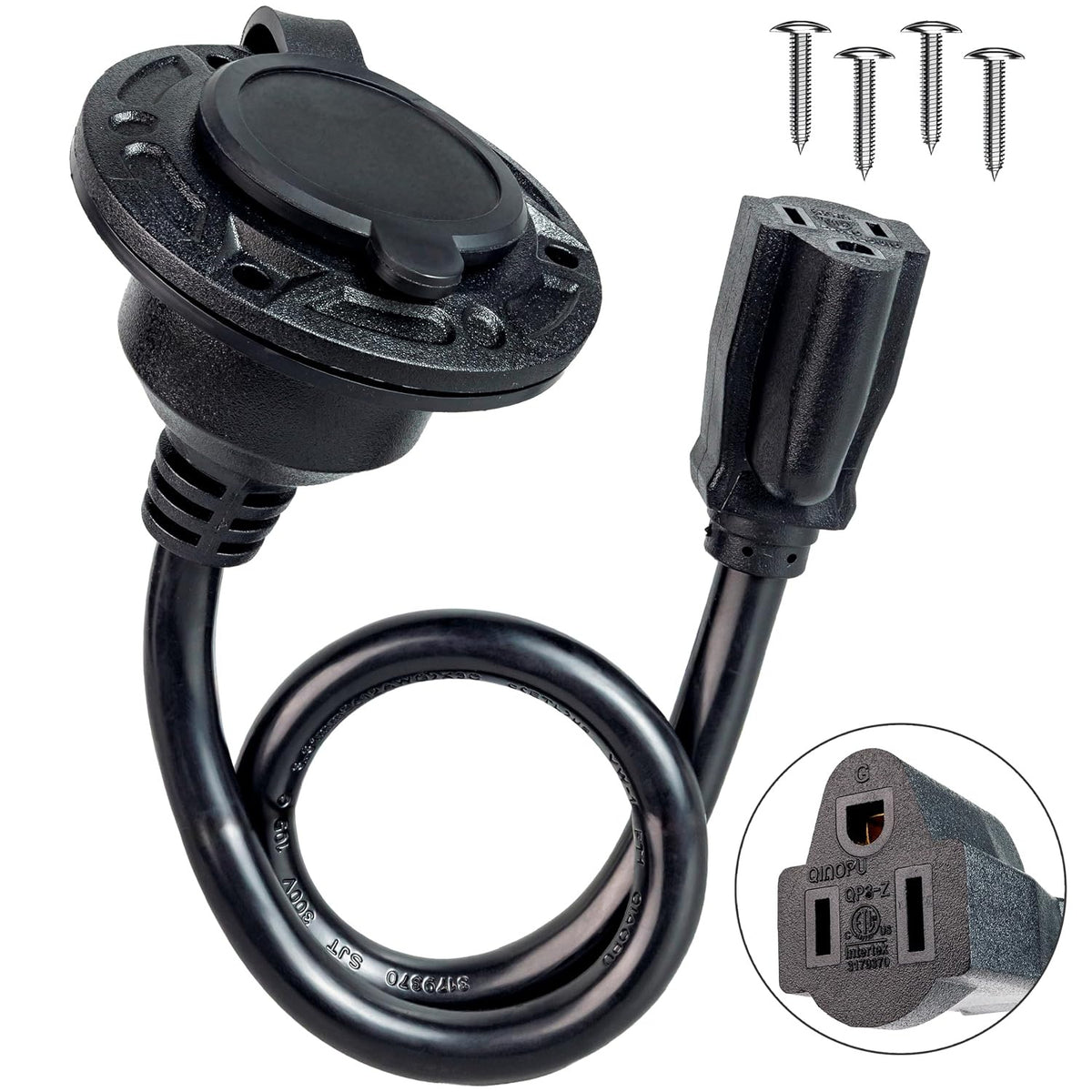

Key Features

• Male-to-female electrical connection with a NEMA 5-15P male plug and NEMA 5-15R female receptacle.
• Rated for 15 amps, 125 volts, and up to 1875 watts of power.

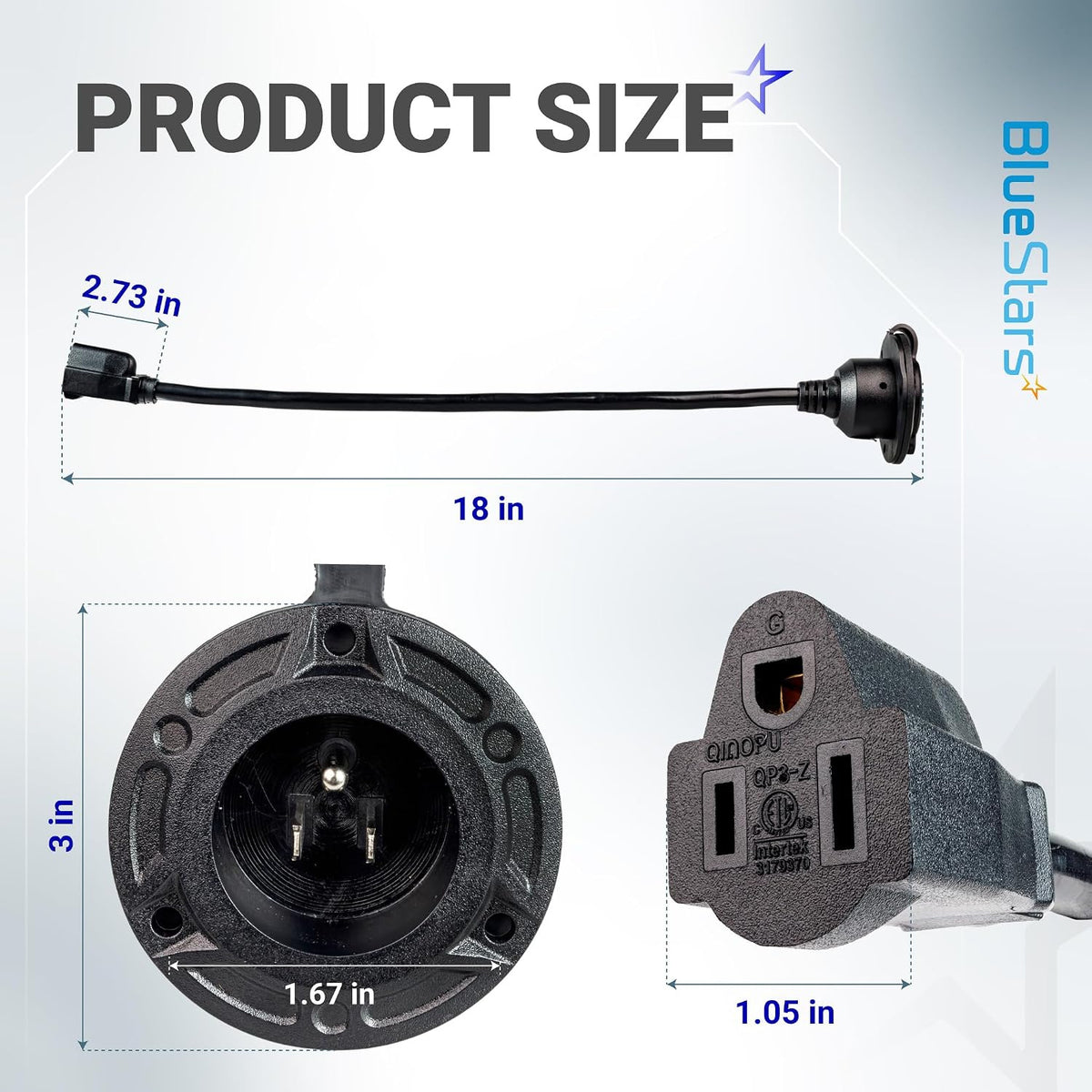

• Includes an integrated 18-inch outdoor extension cord with 14 AWG pure copper wiring.
• Type A plug format with three power-cord prongs.
• Waterproof receptacle for outdoor electrical connections.
• Flexible polyvinyl plastic sleeve jacket remains flexible in temperatures as low as -58°F.

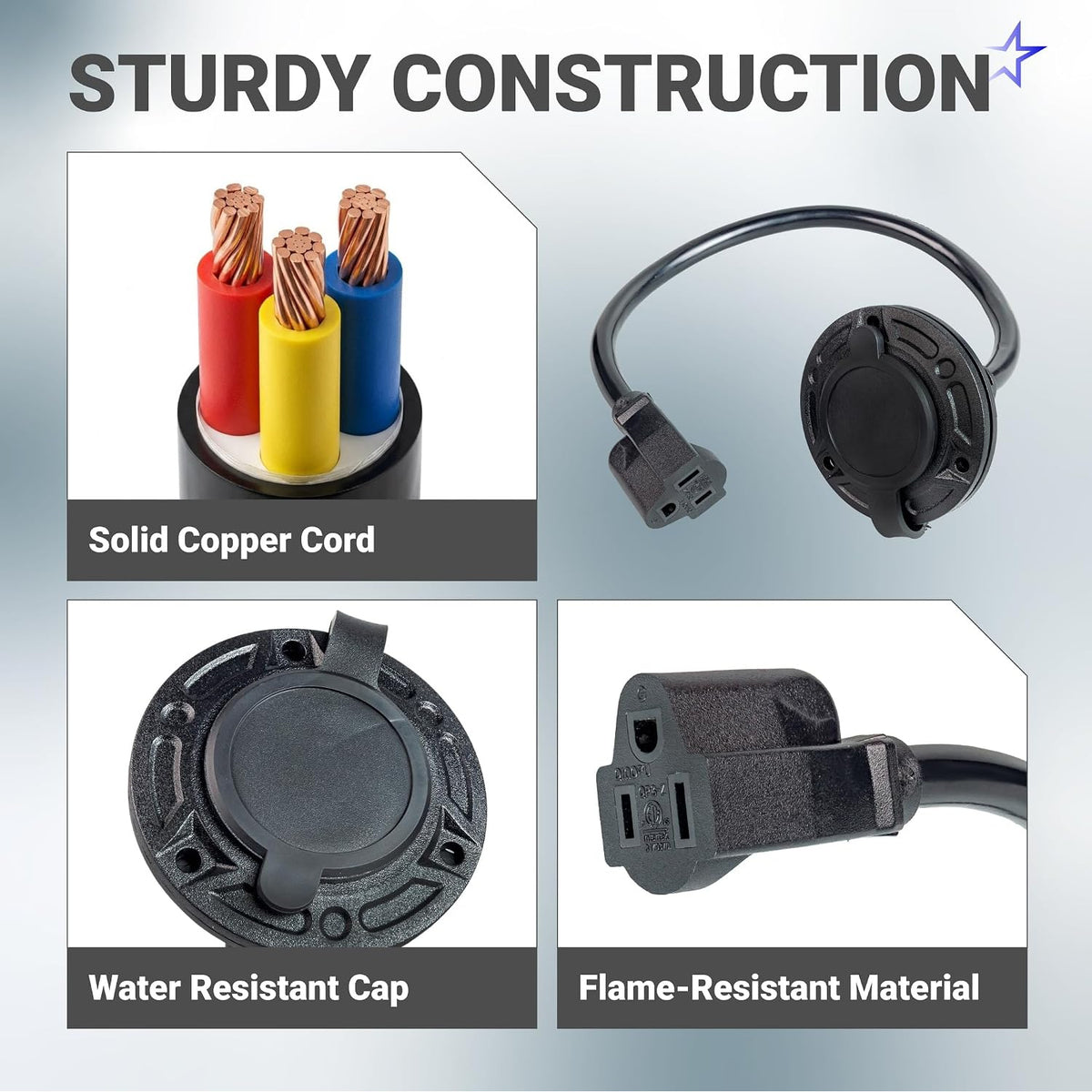

• Black nylon housing resists UV exposure and chemicals. Nickel-coated copper pins help resist oxidation.
• Rubber cap provides a deeper, higher-friction seal to help block rust, snow, and ice.
• Flush-mount flanged design creates an accessible pass-through connection through a wall, bumper, or enclosure.
• Color: As pictured. One item is included.

Replaces / Cross-Reference Part Numbers

• Model number: 18 inch RV Cord
• Manufacturer part number: 18 inch RV Cord

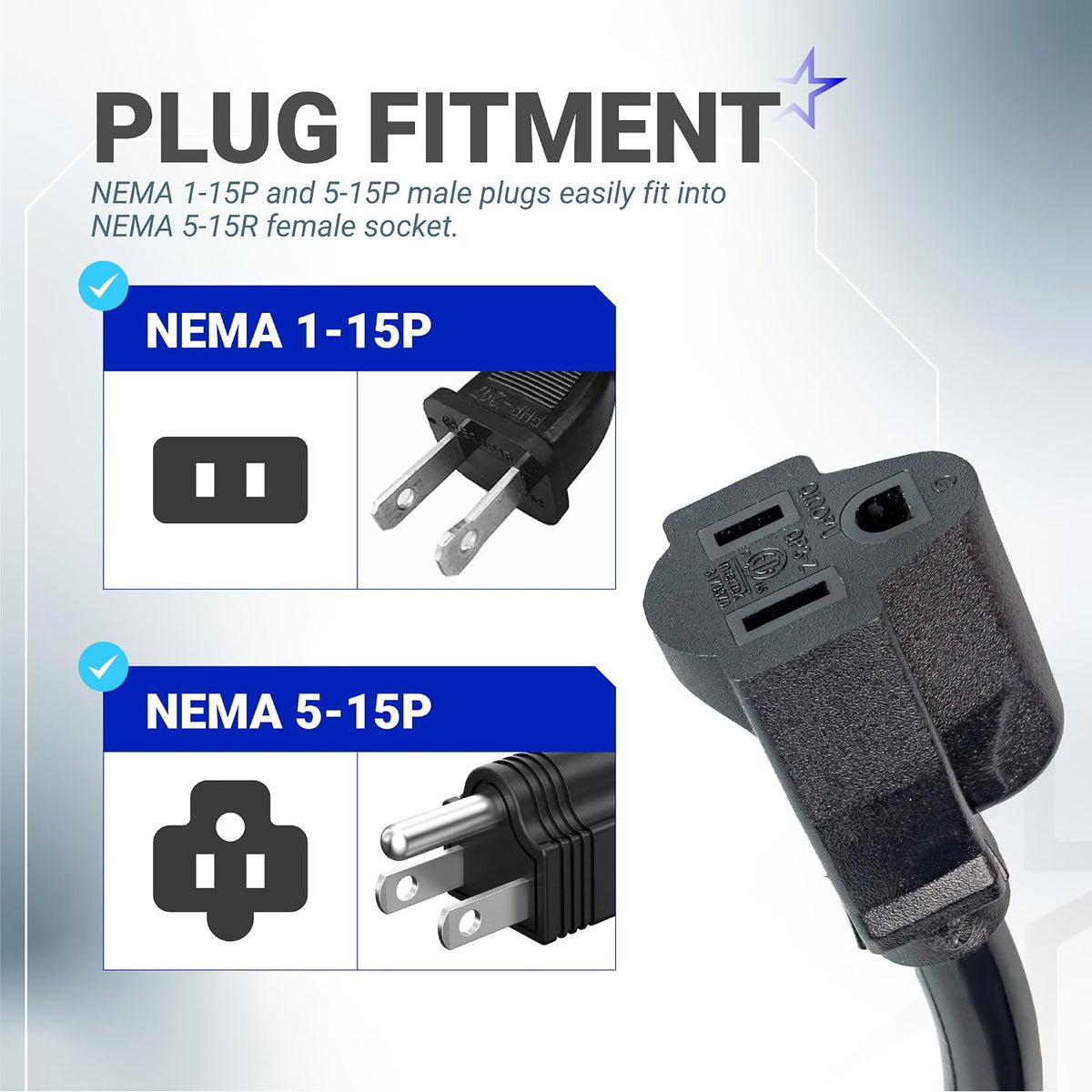

• NEMA 5-15P male plug
• NEMA 5-15R female receptacle

Compatibility & Fitment

This shore power inlet is suitable for trailers, boats, campers, enclosed trailers, garden sheds, cabins, trucks, cargo setups, selected golf cart models, and engine block heaters. It provides a pass-through connection for 110–125V electrical systems supplied by an external generator or shore power source.

When to Replace

Replace a corroded, loose, cracked, or weather-damaged inlet when it no longer holds the plug securely or the protective cap fails to seal the connection. Oxidized pins, damaged wiring, intermittent power, and visible water or ice intrusion are also indications that the inlet should be changed.

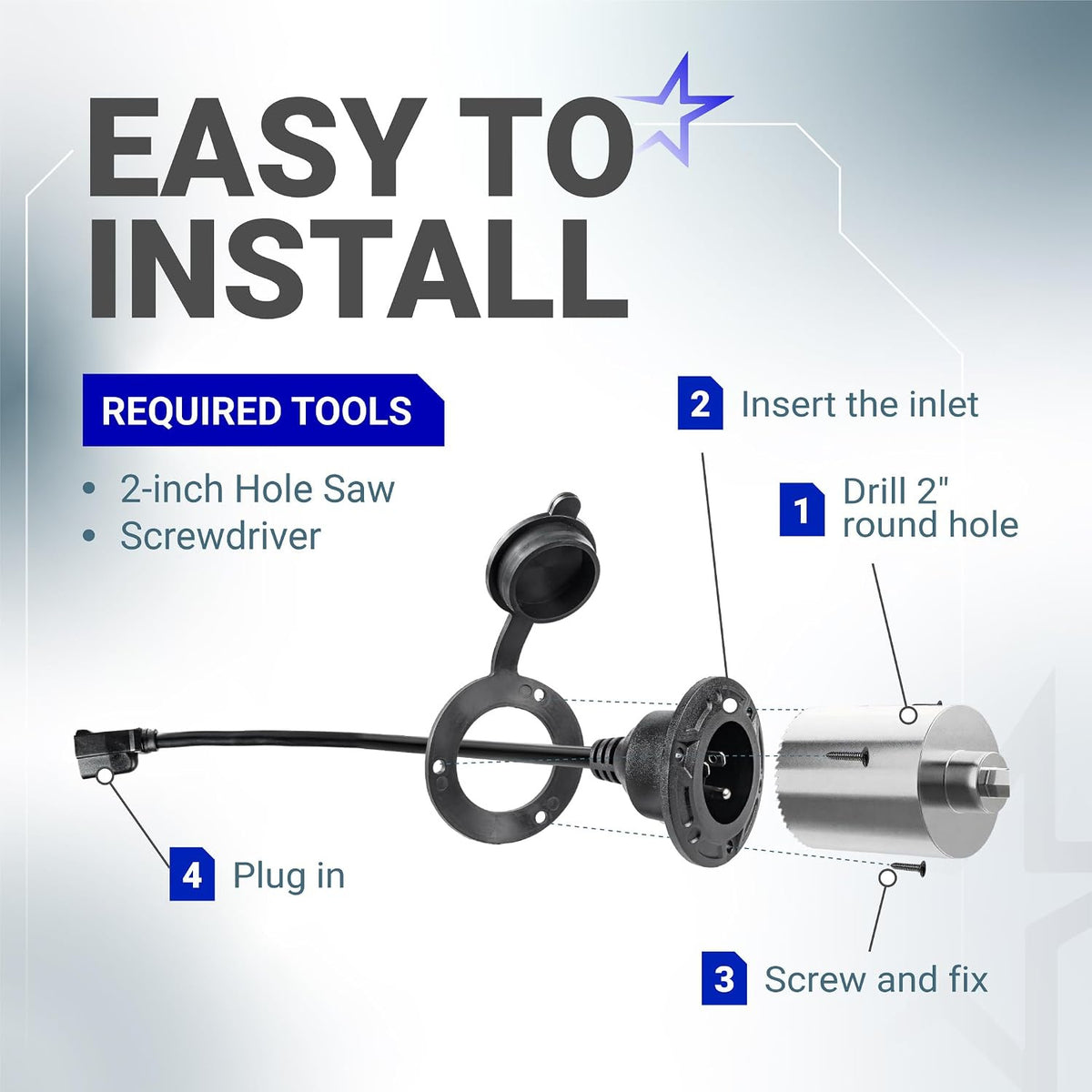

Installation Tips

1. Mark the mounting location and use a 2-inch hole saw to cut the opening.
2. Insert the flush-mount inlet into the opening.
3. Secure it with the four provided stainless steel screws.
4. Plug the external power cord into the inlet and verify the connection before use.

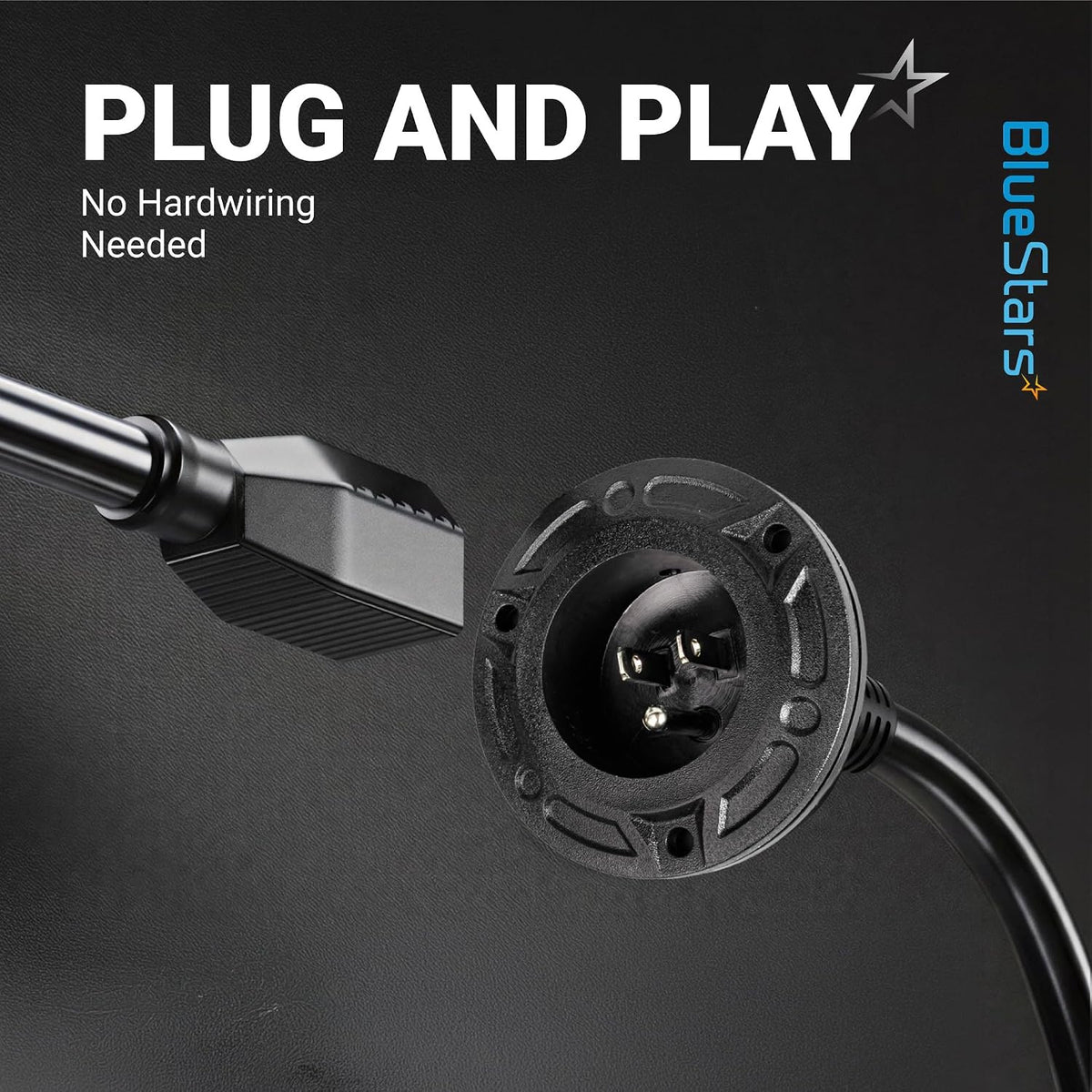

Installation requires no wire cutting when using the integrated cord. Disconnect all power before drilling or mounting. Lifetime protection is provided for defects or issues with the product.
