137032600 Dryer Thermal Limiter for Frigidaire Kenmore Electrolux Crosley - Replaces 137060800 1483164
0.00
Regular price
$11.99
Regular price
Save 11%
$13.43
Sale price
$11.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

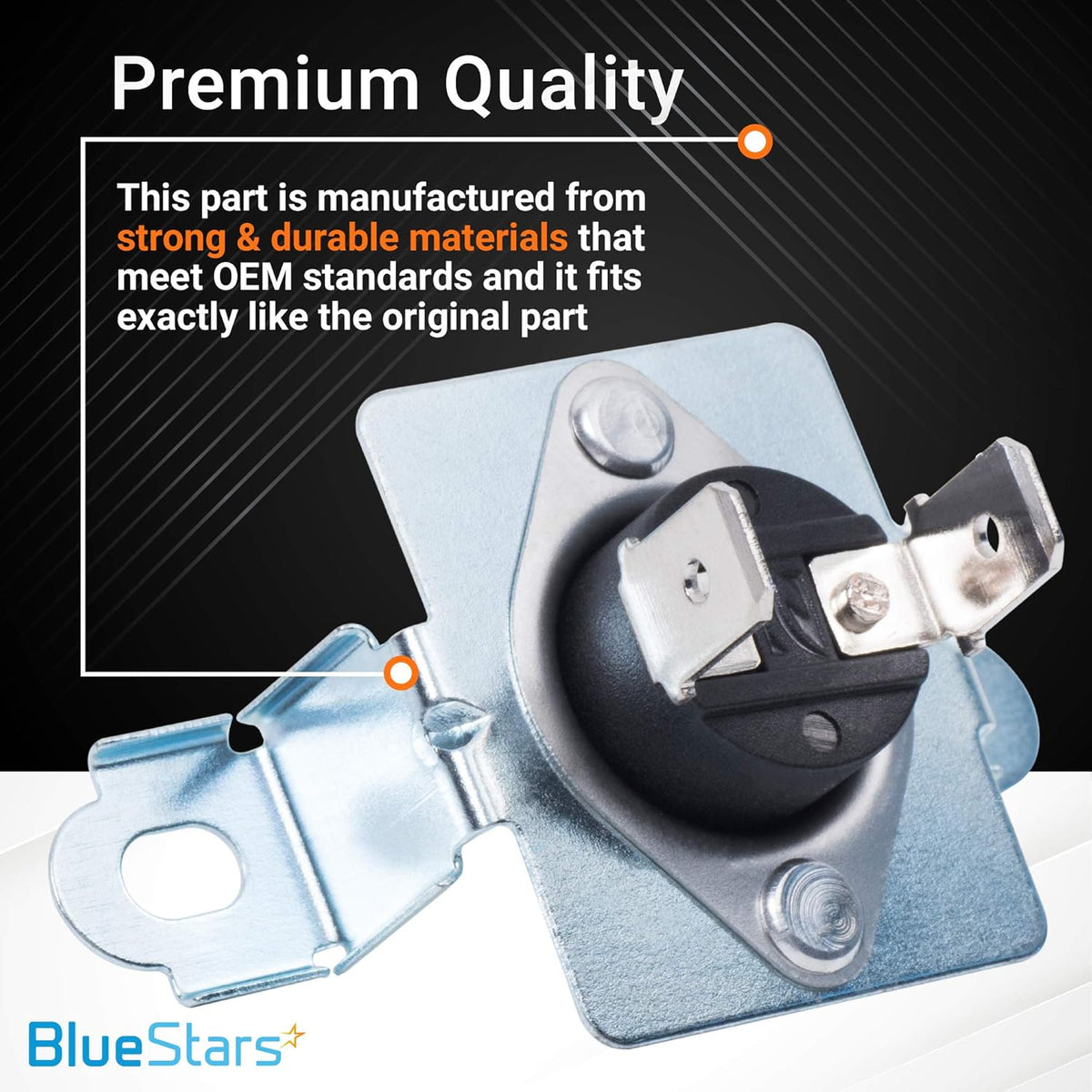

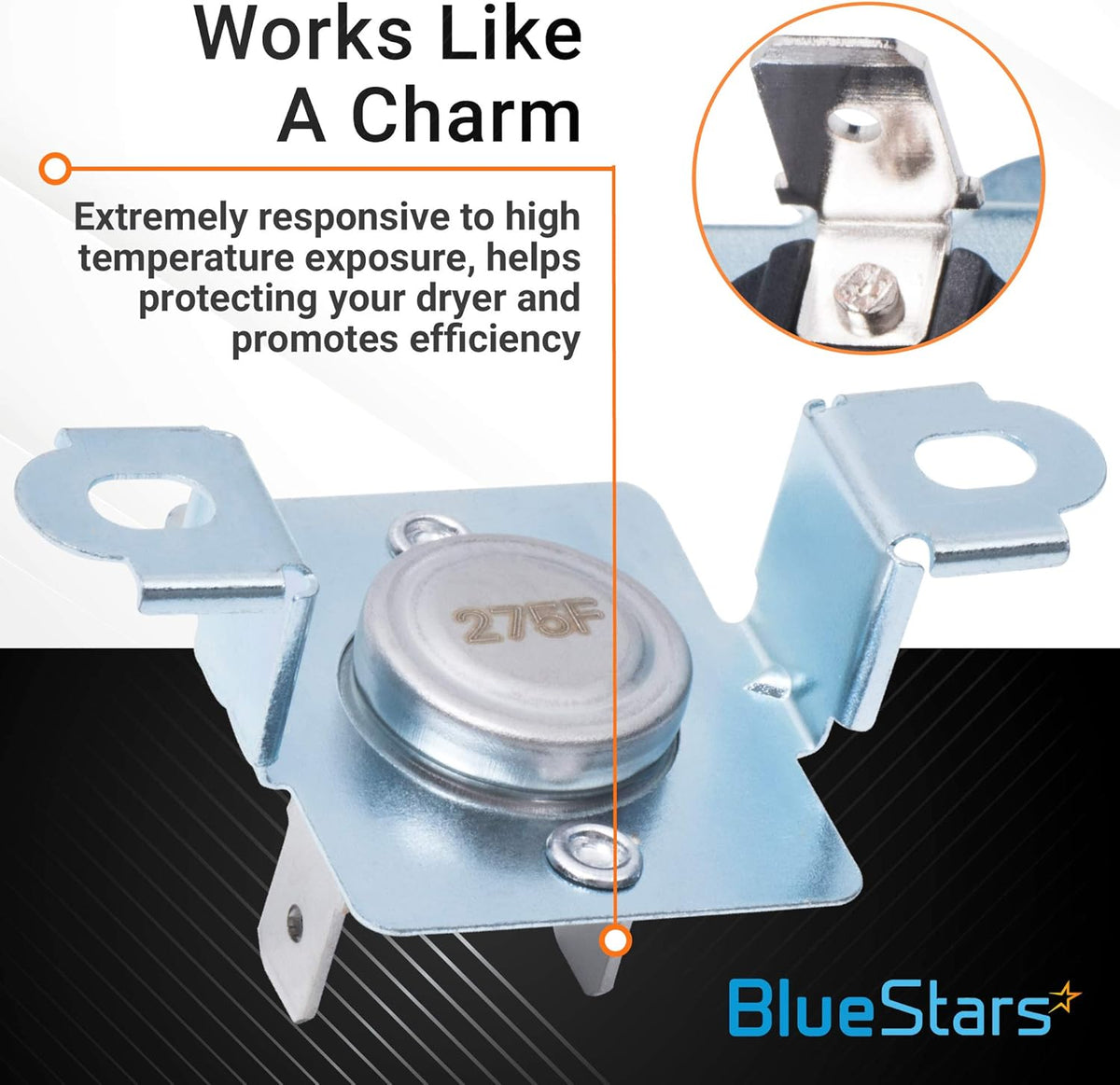

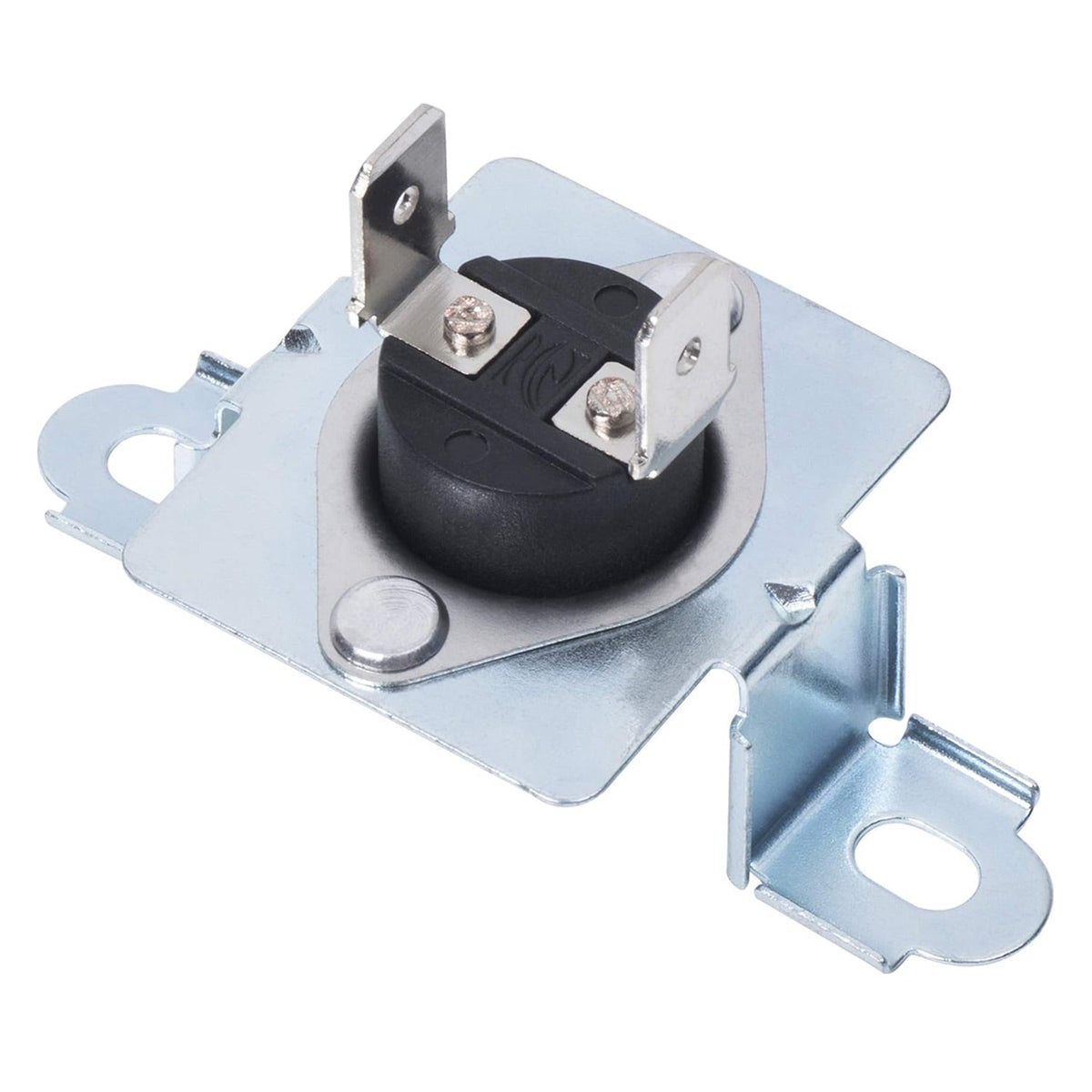

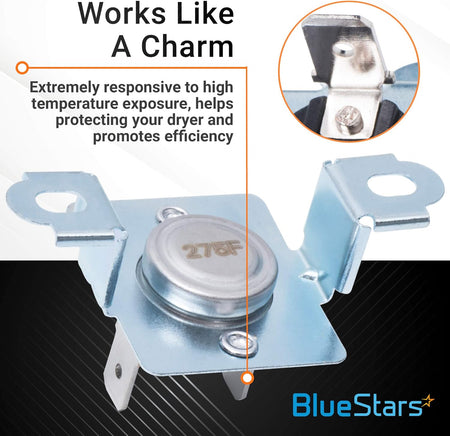

137032600 Dryer Thermal Limiter
Key Features
- Acts as a non-resettable safety fuse to prevent overheating
- Monitors dryer temperature and interrupts power to the heating element if it exceeds safe limits
- Located on the heater housing
Replaces / Cross-Reference Part Numbers
- AP4368739
- PS2349395
- AH2349395
- EA2349395
- 1483164
- 137060800

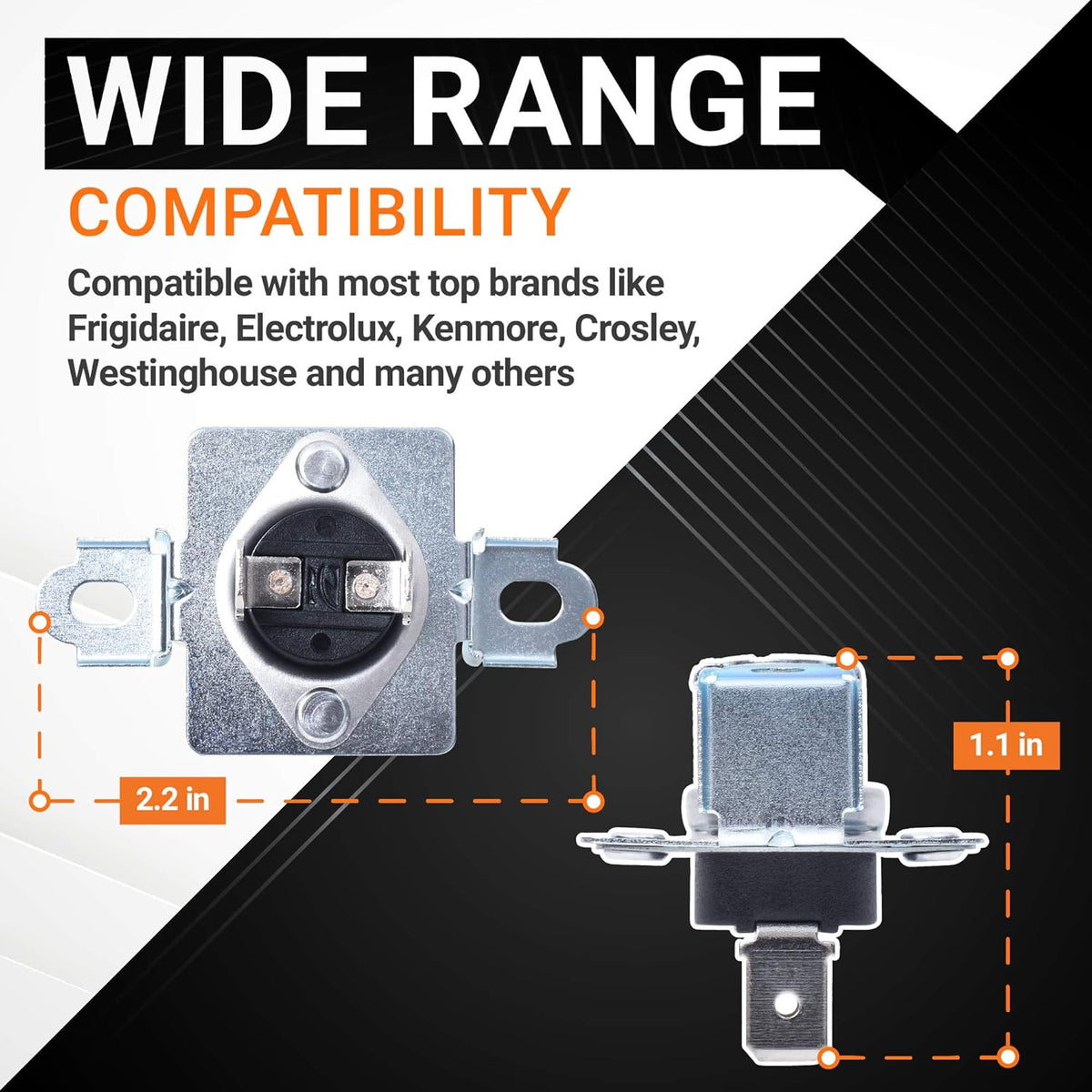

Compatibility & Fitment
- Designed for specific dryer models from Frigidaire, Electrolux, Kenmore, Crosley, and Westinghouse
- Example compatible models: AGQ6000ES4, AGQ6400HE1
- Always verify fitment with your appliance's model number before purchasing
When to Replace
- Dryer runs but does not produce heat
- Dryer stops heating during a cycle
- The original thermal limiter shows no continuity when tested with a multimeter
Installation Tips
- Disconnect the dryer from its power source before starting the repair
- This component is a one-time fuse. If the original has failed, inspect and clean the entire dryer venting system for lint blockages to resolve the root cause of overheating.
- Failure to clear obstructions may cause the new limiter to fail prematurely
