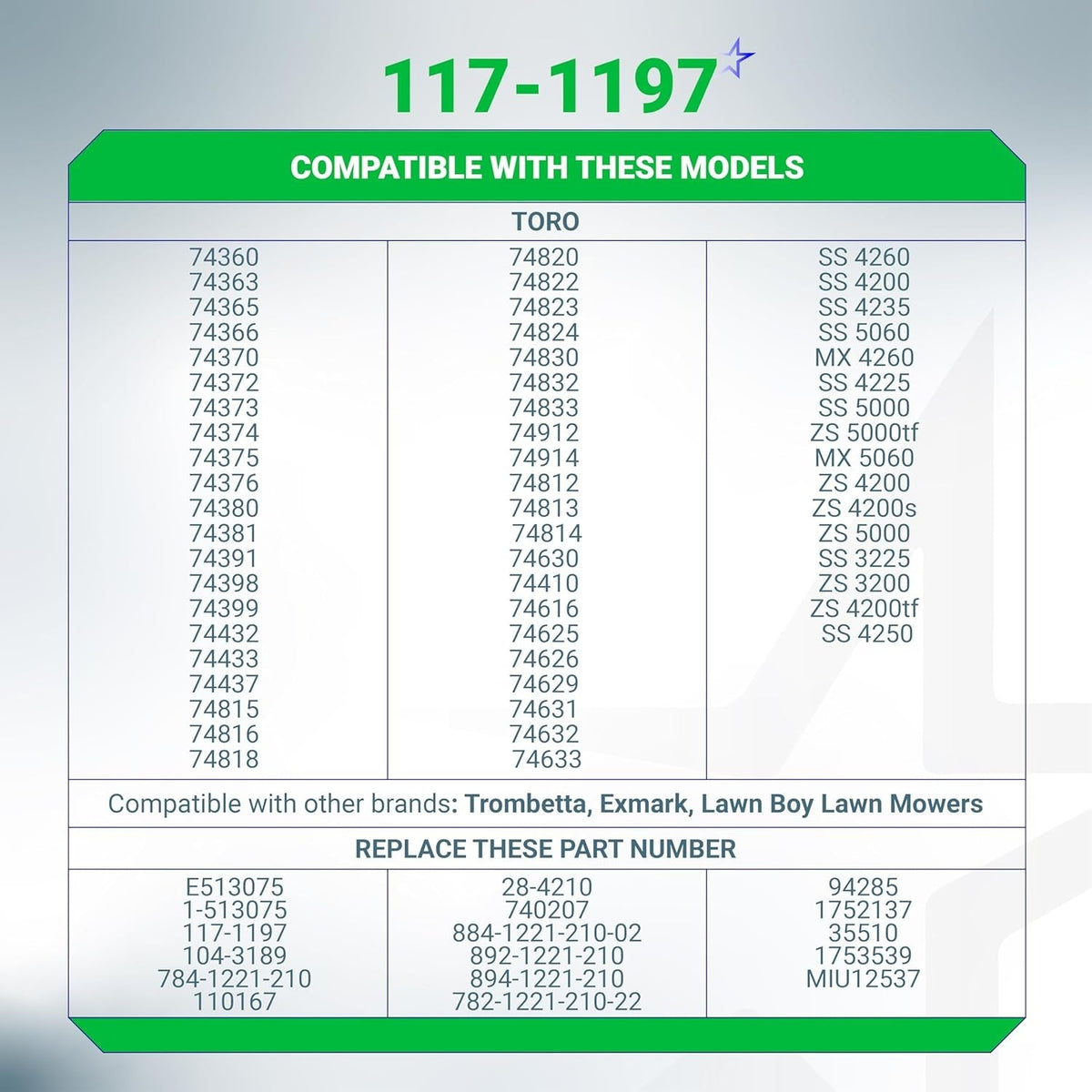

Compatibility chart for 117-1197 starter solenoid listing Toro mower models and replacement part numbers.

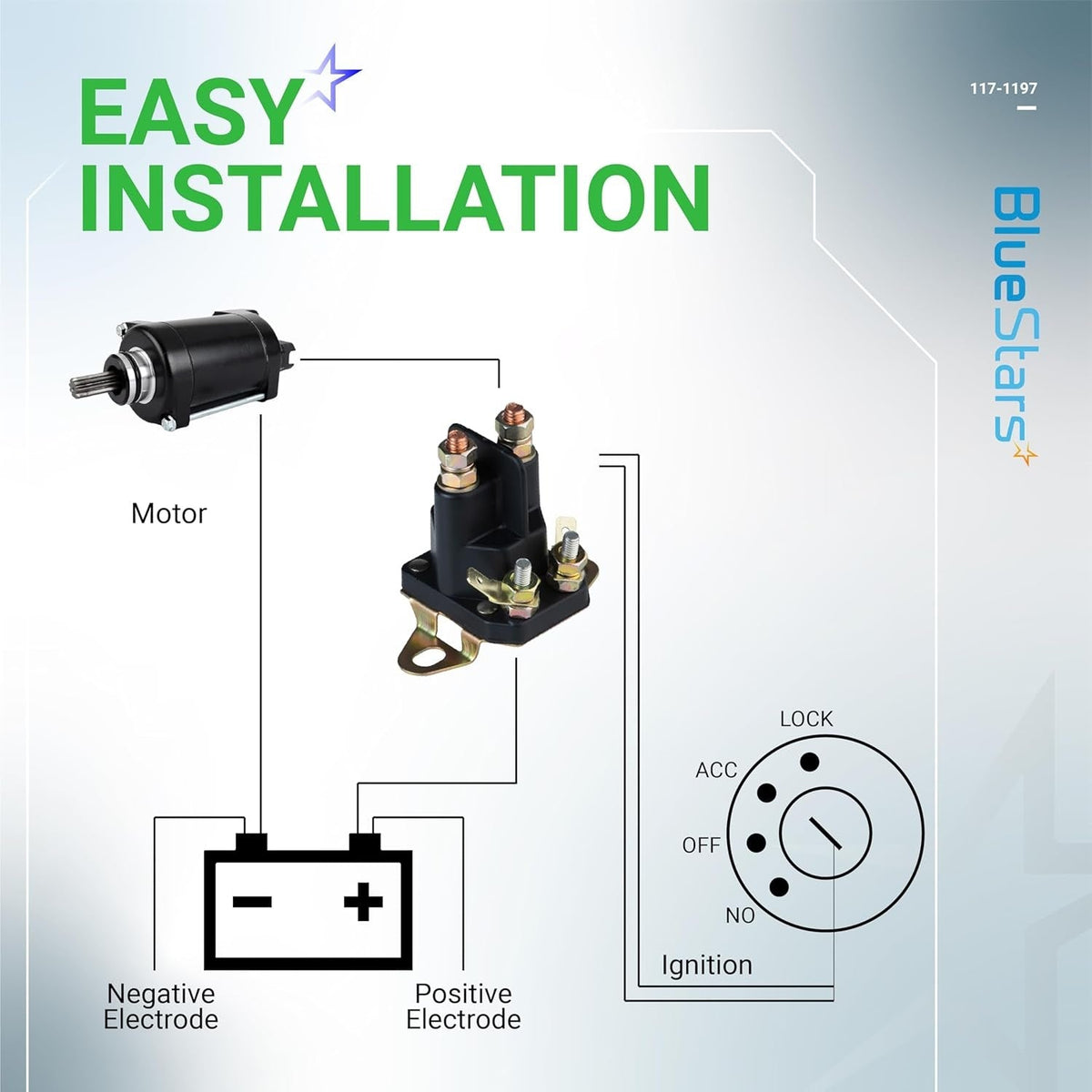

Installation diagram for 12V 4-terminal starter solenoid showing connections to motor, battery, and ignition switch.
12V 4-terminal starter solenoid installation diagram for Exmark and Toro lawn mowers showing wiring connections.
12V 4-terminal starter solenoid for Exmark and Toro zero-turn lawn mowers with mounting brackets.
12V 4-terminal starter solenoid with dimension diagram for Exmark and Toro zero-turn lawn mowers.
12V 4-terminal starter solenoid for Exmark and Toro lawn mowers shown in a promotional lifestyle graphic.
Infographic showing 117-1197 starter solenoid features including terminal threads, mounting bracket, and ABS housing.
12V 4-terminal starter solenoid showing internal copper wire coil construction for Exmark and Toro lawn mowers.
12V 4-terminal starter solenoid for Exmark and Toro lawn mowers with wide compatibility graphic.
Compatibility chart for 117-1197 starter solenoid listing Toro mower models and replacement part numbers.
Installation diagram for 12V 4-terminal starter solenoid showing connections to motor, battery, and ignition switch.
12V 4-terminal starter solenoid installation diagram for Exmark and Toro lawn mowers showing wiring connections.
Lifetime Warranty

[Lifetime Warranty] 12V 4-Terminal 117-1197 Starter Solenoid - Compatible with Exmark Toro TimeCutter SS5000 Z4200 SS4225 SS4235 Zero-Turn Lawn Mower 784-1221-210 104-3189 E513075 1-513075 212655 28-4210

Save 30%
0.00
$15.16
$21.65
$15.16
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

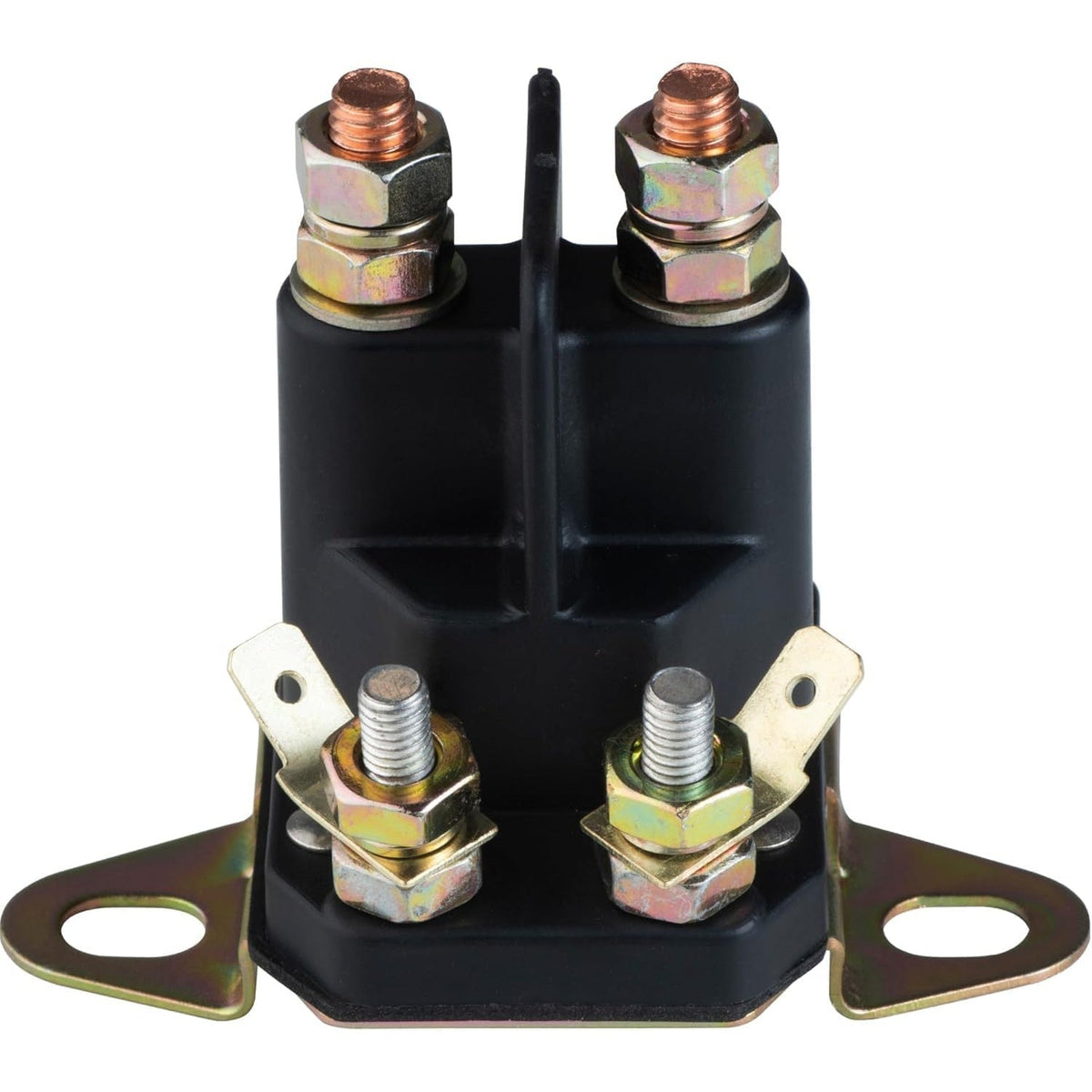

12V 4-Terminal 117-1197 Starter Solenoid

Key Features

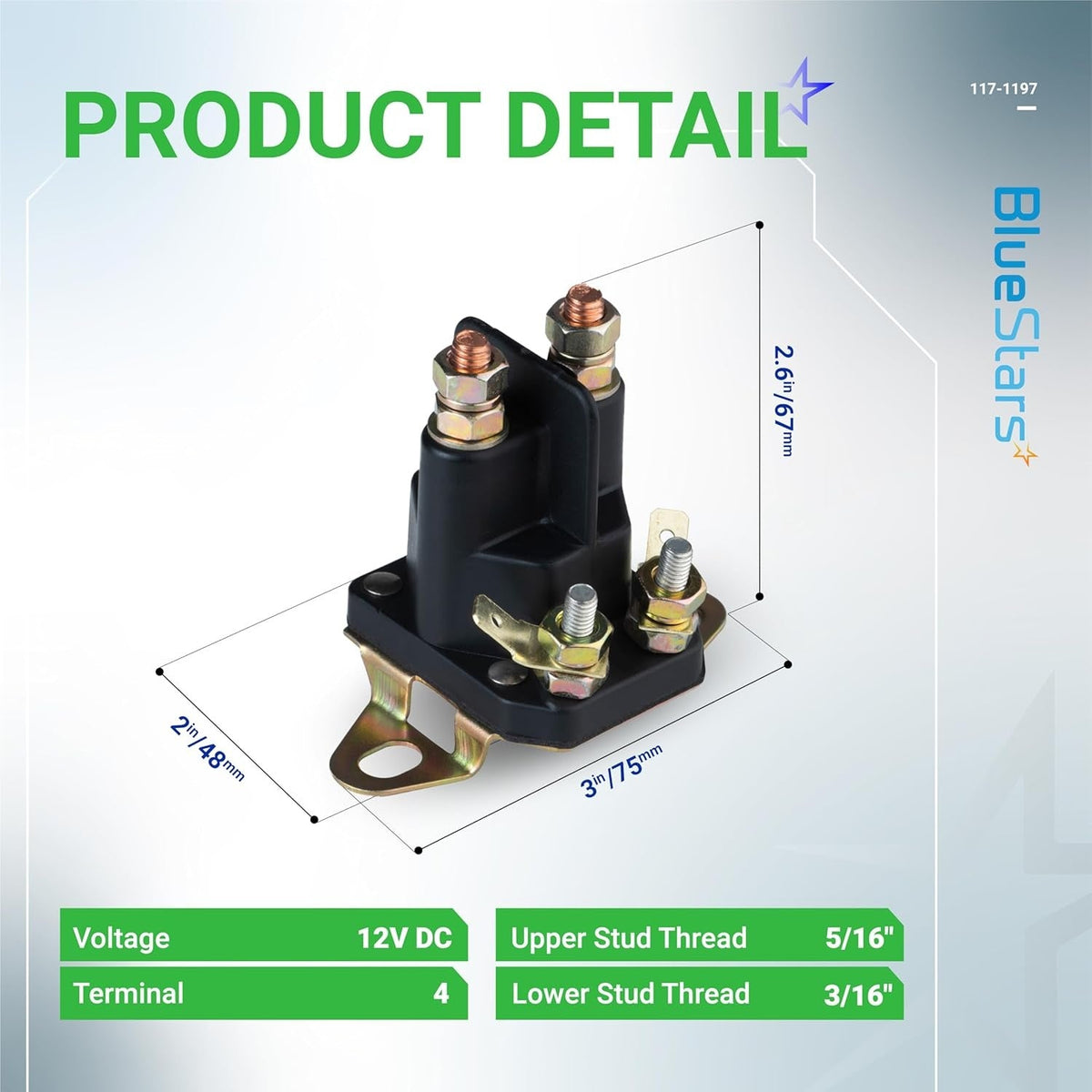

  • Voltage: 12V DC
  • Terminals: 4
  • Upper Stud Thread: 5/16 inch
  • Lower Stud Thread: 3/16 inch
  • Constructed with a brass coil and silver-plated contacts for electrical conductivity and corrosion resistance.

Replaces / Cross-Reference Part Numbers

  • 117-1197
  • 784-1221-210
  • 104-3189
  • 1-513075
  • 513075
  • 28-4210
  • 47-1910
  • 435-103
  • 92-9845

Compatibility & Fitment

  • Fits various models from brands including Toro, Exmark, and Lawn Boy.
  • Select Toro Models:
    • TimeCutter: SS 4200, SS 4225, SS 4235, SS 4260, SS 5000, SS 5060, MX 4260
    • Titan
    • GrandStand
    • Commercial Walk-Behind Mowers

When to Replace

  • Engine does not crank when the ignition key is turned.
  • An audible clicking sound is heard from the solenoid, but the starter does not engage.
  • Starter motor continues to run after the ignition key is released.
  • Intermittent starting problems.

Installation Tips

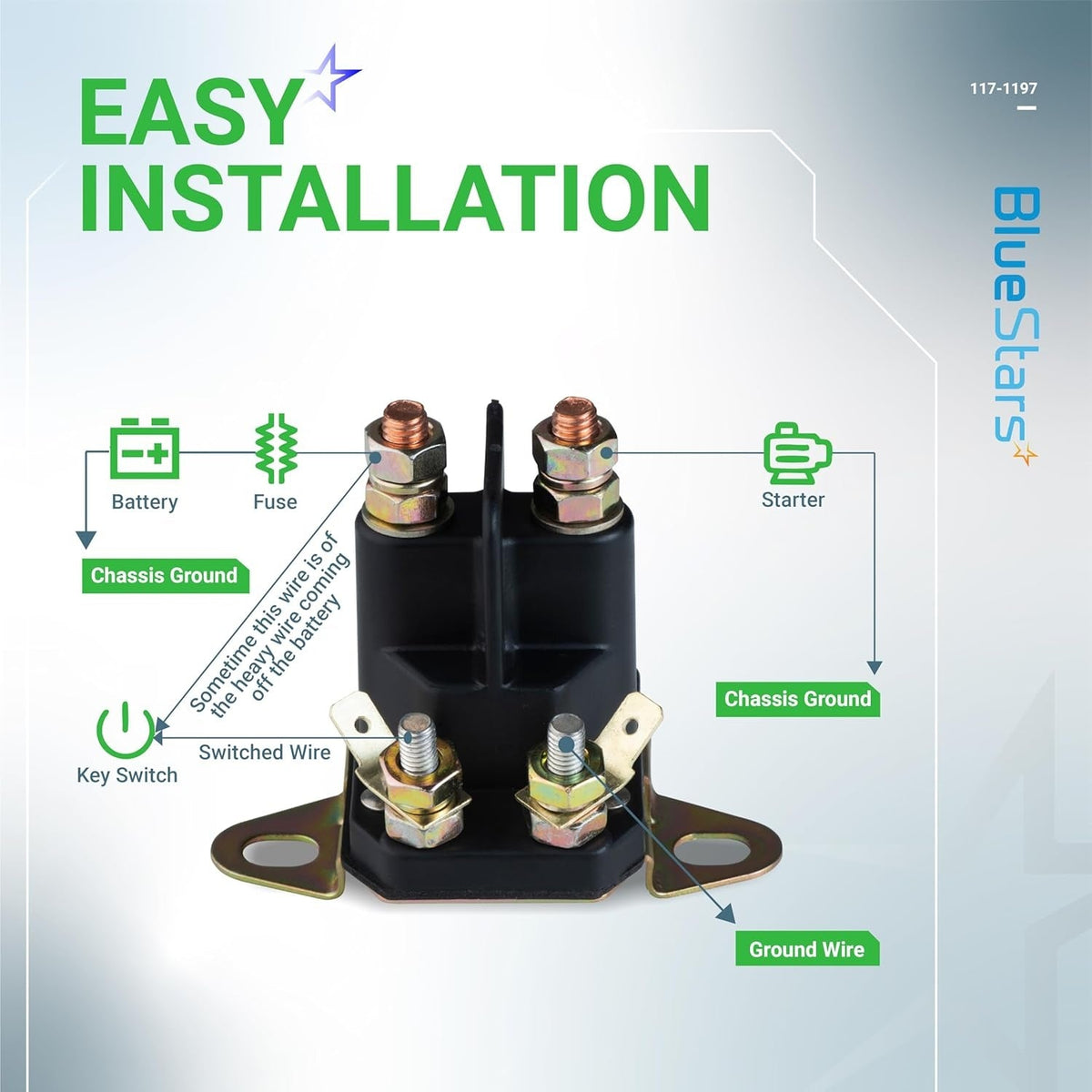

  • Disconnect the negative battery terminal before beginning installation.
  • Photograph or label the wiring connections before removing the old solenoid.
  • Ensure all electrical connections are clean and secure to prevent poor contact and overheating.
  • Mount the solenoid securely to its designated location on the chassis.
Product image 1
Product image 2
Product image 1
Product image 2
Product image
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    This solenoid is compatible with Trombetta, Exmark, Lawn Boy, Toro Lawn Mowers
  • DURABLE MATERIAL

    DURABLE MATERIAL

    This part is made of high streng steel and ABS Plastic housing which is flexibility and flame-retardant, enhancing durability
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility
Enjoy your fresh garden with the support of our replacement part!

Enjoy your fresh garden with the support of our replacement part!

Brand Model Number

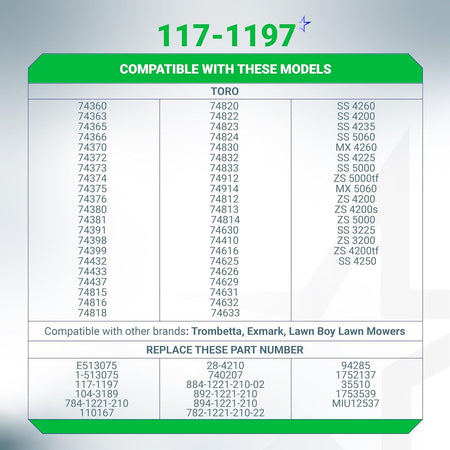

Replaces E513075, 1-513075, 117-1197, 104-3189, 784-1221-210, 110167, 28-4210, 740207, 884-1221-210-02, 892-1221-210, 894-1221-210, 782-1221-210-22, 94285, 1752137, 35510, 1753539, MIU12537
Toro TimeCutter Riding Mower 74360, 74363, 74365, 74366, 74370, 74372, 74373, 74374, 74375, 74376, 74380, 74381, 74391, 74398, 74399, 74432, 74433, 74437, 74815, 74816
Toro TimeCutter Riding Mower 74818, 74820, 74822, 74823, 74824, 74830, 74832, 74833, 74912, 74914, 74812, 74813, 74814, 74630, 74410, 74616, 74625, 74626, 74629, 74631, 74632, 74633
Toro TimeCutter Riding Mower SS 4260, SS 4200, SS 4235, SS 5060, MX 4260, SS 4225, SS 5000, ZS 5000, ZS 5000tf, MX 5060, ZS 4200, ZS 4200s, SS 3225, ZS 3200, ZS 4200tf, SS 4250
Fits for Exmark Lawn Boy Toro TimeCutter Zero Turn lawn mower

FAQ

This 12V 4-terminal solenoid replaces Toro and Exmark part numbers 117-1197, 1-513075, E513075, 104-3189, 784-1221-210, 212655, 28-4210, 47-1910, and 110116. It also cross-references with common industry numbers including 532146154, AM130365, 146154, 109946X, 138406X, 175-2137, and 175-3539.
This part is designed for use across a wide range of Toro TimeCutter and Exmark zero-turn mowers. Compatible models include, but are not limited to, the SS4200, SS4225, SS4235, SS4250, SS4260, SS5000, SS5060, Z4200, ZS3200, ZS4200, ZS5000, MX4260, and MX5060 series.
If you turn the key and hear a single 'click' but the engine does not crank, or if you hear a rapid 'chattering' sound, the solenoid is likely failing to engage the starter motor. Other signs include the engine failing to turn over despite having a fully charged battery, or the starter motor continuing to run even after the ignition switch is released.
Before replacing the solenoid, ensure your battery terminals are clean and tight, and verify the battery voltage is at least 12.4 volts. Also, check the safety interlock switches (such as the seat, brake, and blade engagement switches), as these can prevent the signal from reaching the solenoid, mimicking a failed part.
Installation is generally straightforward and can usually be completed in 15–30 minutes. You will typically need a socket set (commonly 1/4" and 5/16" for the terminal nuts), a wrench for the mounting bolts, and a screwdriver. Always disconnect the negative battery cable first to prevent accidental shorting while working on the electrical connections.
This is a 4-terminal, double-pole chassis-grounded solenoid. It features both 1/4" and 5/16" posts and includes the necessary hardware for standard mounting. If your specific wire harness uses a spade connector, ensure the adapter included with the unit is securely attached to maintain a solid electrical connection.
