[Lifetime Warranty] 12001656 Oven Temperature Sensor Part - Compatible with Whirlpool Kenmore Ovens - Replaces AP4009009 74004943 PS1570174 12001554 12001656VP 7430P003-60 WB21X5301

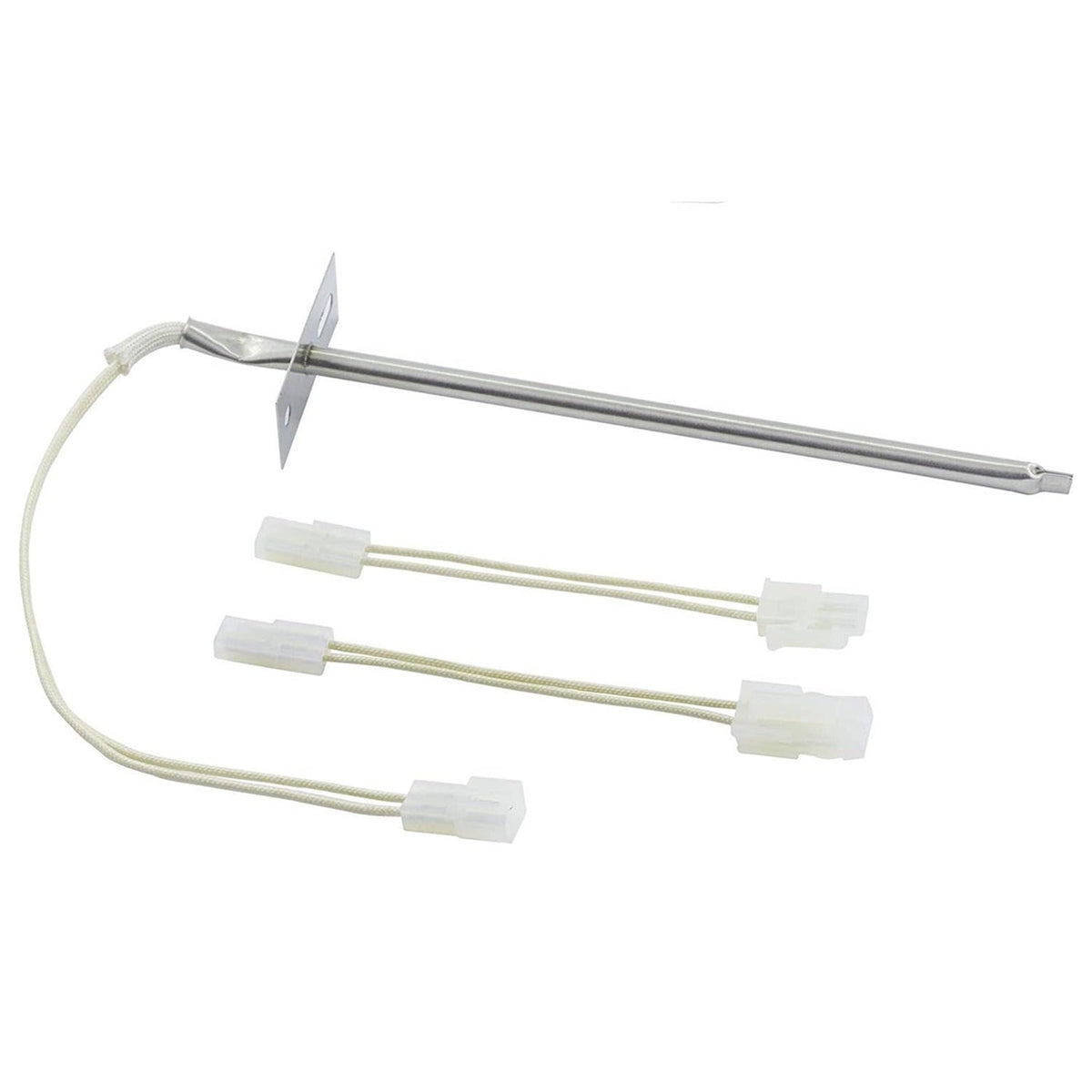

12001656 oven temperature sensor with mounting bracket and two wire harness adapters for Whirlpool and Kenmore ovens.

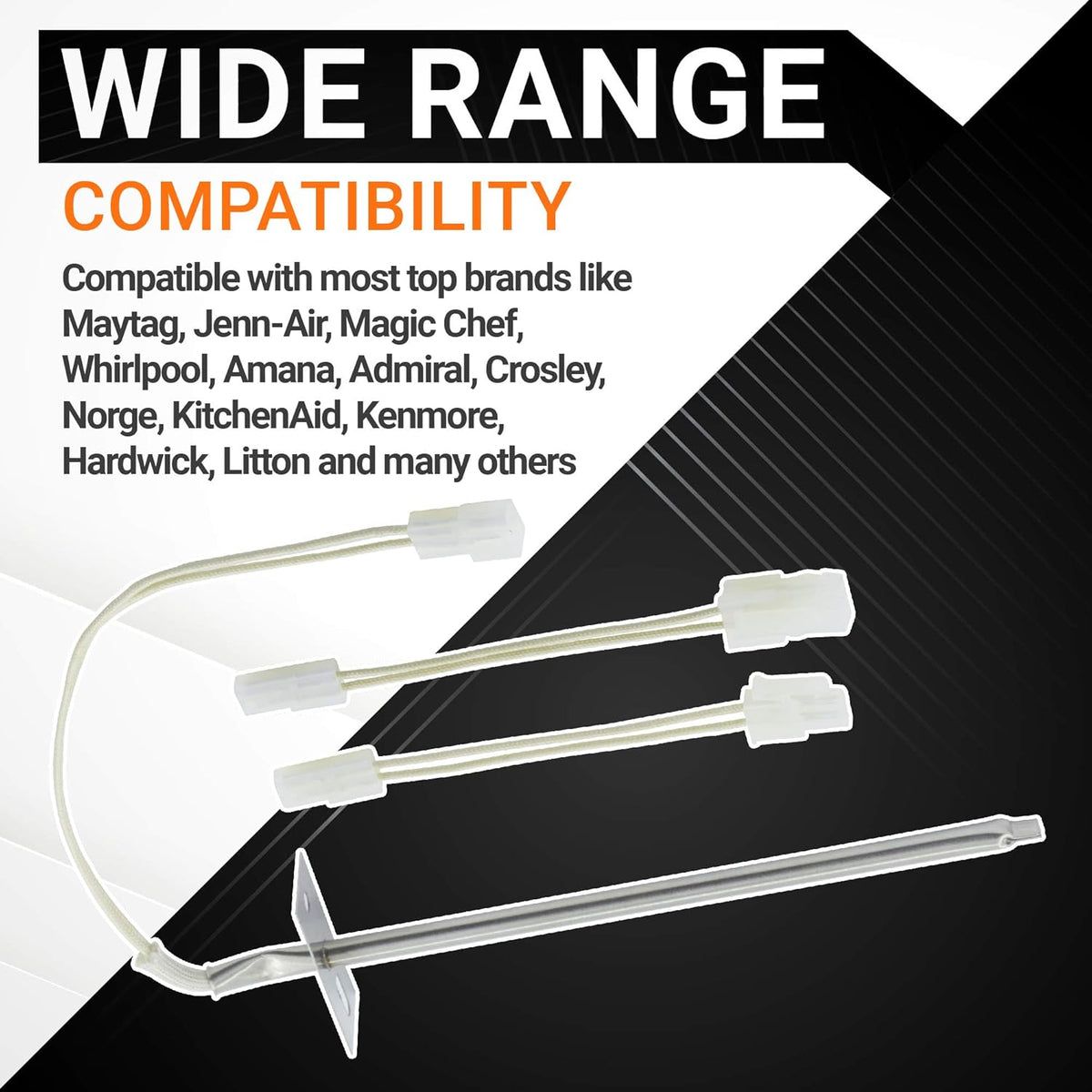

Oven temperature sensor replacement part with compatibility information graphic for Whirlpool and Kenmore ovens.

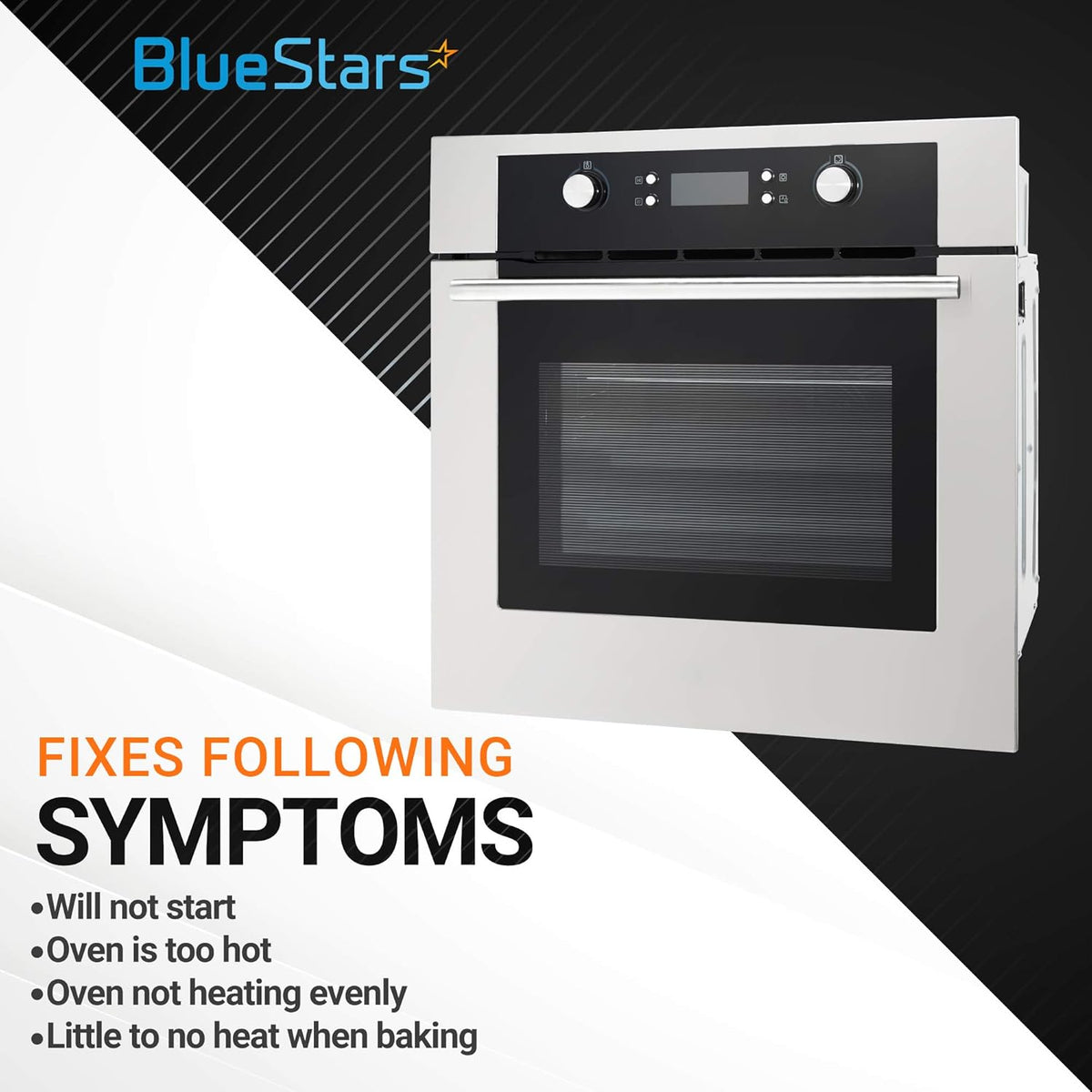

Stainless steel wall oven showing symptoms fixed by 12001656 oven temperature sensor replacement.
12001656 oven temperature sensor with mounting bracket and wire harness connectors for Whirlpool and Kenmore ovens.

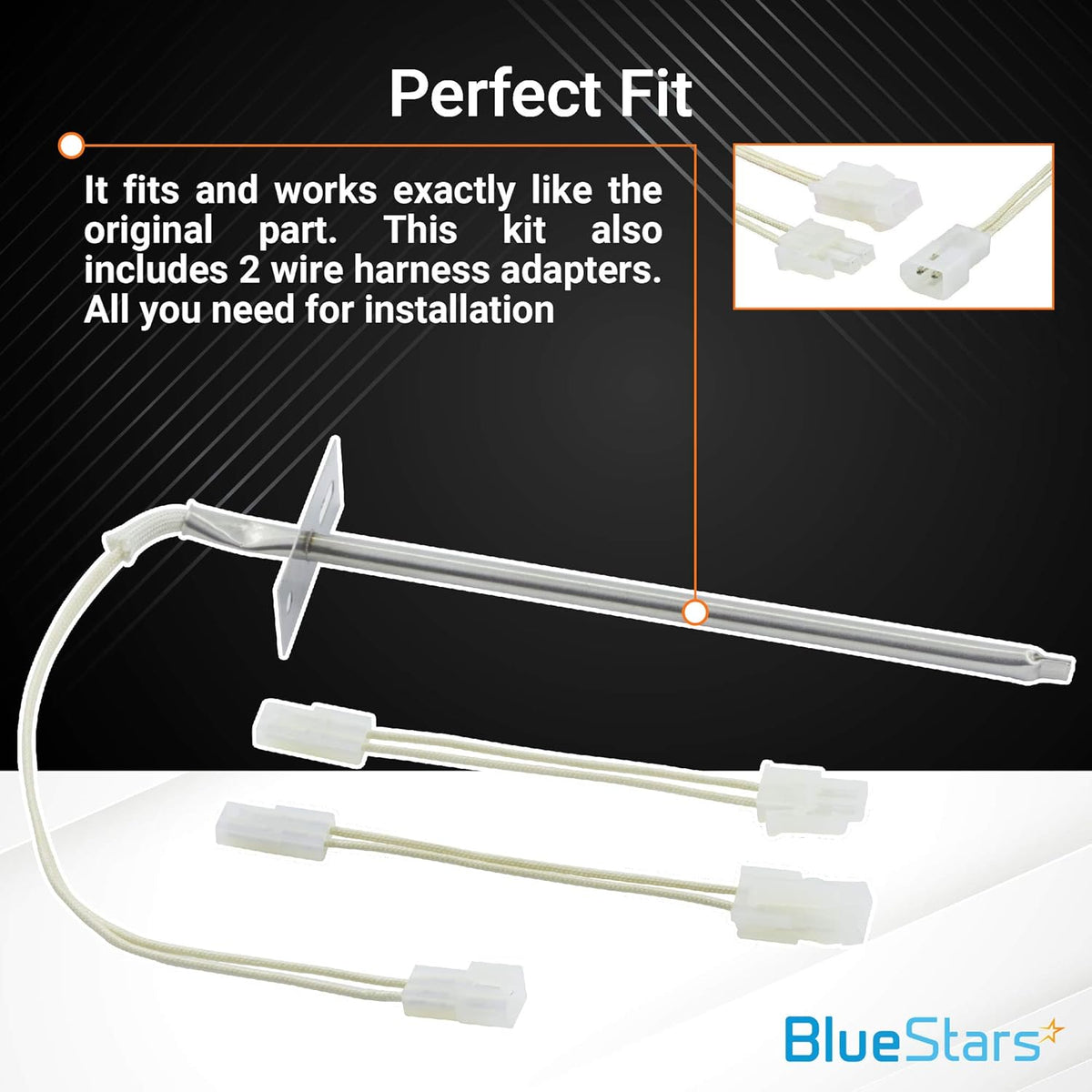

Oven temperature sensor kit with wire harness adapters for Whirlpool and Kenmore ovens.
Man using a repaired oven after installing a BlueStars oven temperature sensor replacement part.
12001656 oven temperature sensor with mounting bracket and two wire harness adapters for Whirlpool and Kenmore ovens.
Oven temperature sensor replacement part with compatibility information graphic for Whirlpool and Kenmore ovens.
Stainless steel wall oven showing symptoms fixed by 12001656 oven temperature sensor replacement.
12001656 oven temperature sensor with mounting bracket and wire harness connectors for Whirlpool and Kenmore ovens.
Oven temperature sensor kit with wire harness adapters for Whirlpool and Kenmore ovens.
Man using a repaired oven after installing a BlueStars oven temperature sensor replacement part.
Lifetime Warranty

[Lifetime Warranty] 12001656 Oven Temperature Sensor Part - Compatible with Whirlpool Kenmore Ovens - Replaces AP4009009 74004943 PS1570174 12001554 12001656VP 7430P003-60 WB21X5301

Save 13%
0.00
$17.43
$20.04
$17.43
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

12001656 Oven Temperature Sensor

Key Features

  • Monitors and regulates internal oven temperature for accurate cooking.
  • Probe length: 6 inches
  • Overall length: 7-1/8 inches
  • Includes two wire harness adapters to ensure proper connection for various models.
  • Kit contains one sensor and installation hardware.

Replaces / Cross-Reference Part Numbers

  • AP4009009
  • PS1570174
  • 74004943
  • 12001554
  • 12001357
  • 74003390
  • 7430P003-60
  • 12001656VP
  • AH1570174
  • W10127323

Compatibility & Fitment

  • Fits a wide range of oven and stove models from major brands including Whirlpool, Maytag, Kenmore, and Magic Chef.
  • Verify compatibility by checking your appliance's original part number before ordering.

When to Replace

  • Oven temperature is inaccurate (too hot or not hot enough).
  • Oven fails to heat.
  • Cooking results are inconsistent, with food being burnt or undercooked.
  • The oven's display shows a fault code related to the temperature sensor (e.g., F3, F4).

Installation Tips

  • Disconnect the appliance from its power source before beginning installation.
  • The sensor is typically located inside the oven cavity, on the upper left or right of the rear wall.
  • Unscrew the old sensor, gently pull it out, and disconnect the wire harness.
  • Connect the new sensor, using one of the included adapters if the plug does not match directly.
  • Secure the new sensor in place with the original screws.
Product image 1
Product image 2
  • FIXING SYMPTOMS

    FIXING SYMPTOMS

    Oven temperature unpredictable or uncontrollable | No heat or Too hot | Not correspond to the LED readout temp | Error code displayed C-20

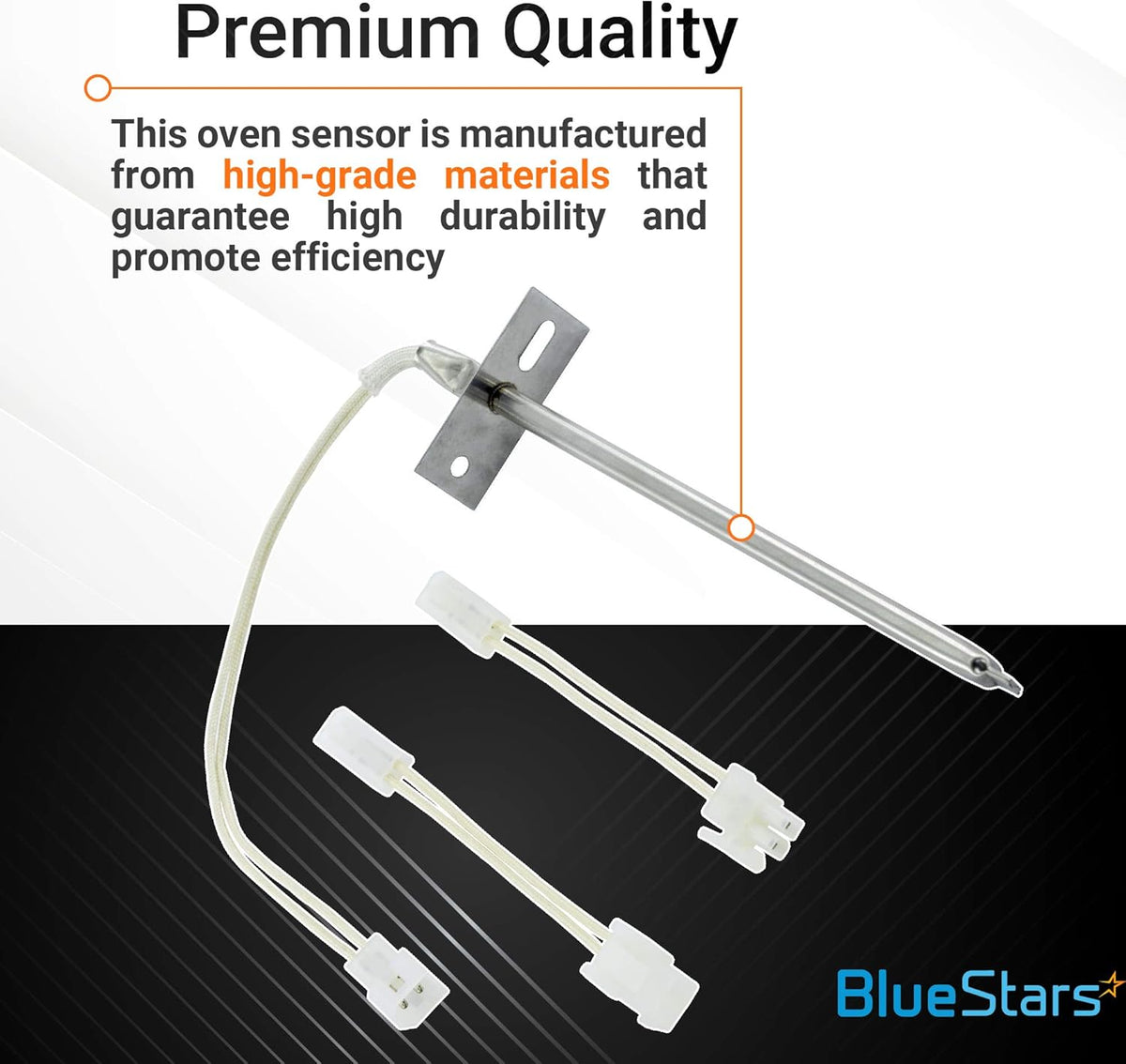

  • PREMIUM QUALITY

    PREMIUM QUALITY

    BlueStars 12001656 Temperature Sensor is made of high-grade materials ensuring long-lasting operation.
  • SAVING SOLUTION

    SAVING SOLUTION

    Great feeling when your oven is repaired and works efficiently - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    You will need these tools in advance: 1 x small flat-blade screwdriver; 2 x Phillips screwdriver; 1 x locking pliers; 1 x needle nose pliers.
IDEAL DESIGN

IDEAL DESIGN

Well-designed with 304 stainless steel and sturdy braided fiber wire material to withstand extreme heat
PRECISE TEMP CONTROL

PRECISE TEMP CONTROL

The sensitive thermistor sensor chip will allow for precise temperature control, allowing you to set and maintain the desired temperature.
ENJOY YOUR LIFE WITH OUR PART INSIDE!

ENJOY YOUR LIFE WITH OUR PART INSIDE!

BlueStars - #1 source of high-quality replacement parts
Brand Model Number
Replaces 04000052, 04100258, 12001357, 12001554, 12001656VP, 12500029, 1364, 7-4657, 704657, 71003083, 74003390, 74004471, 74004943, 74005193, 7430P003-60, 7430P005-60, 7430P008-60, 7430P008-60K, 7430P010-60, 7430P042-60, 8189679, 879368, AH1570174, AP4009009, EA1570174, PS1570174, W10127323, Y04000052, Y04100258, Y704657
Admiral A3875XRA, A3875XRW, A3878XRA, A3878XRB, A3878XRW, A3888VRA, A3888VRV, A3888XRA, A3888XRB, A3888XRW, A5892XRS, A5898VRV, A5898XRB, A59F-5TXW-R, A59F-5TXWM-R, A59FN-5TVW-R, A59FN-5TVWM-R, A59G-5TXW-R, A59GN-5TVW-R, A6892XRS, A6898VRV, A6898XRB, A9875VRV, A9875XRB, A9895VRV, A9895XRB, CFEA500ACE, CHEA700BCB, CHEA700BCE
Amana ACB6260AB, ACB6260AS, ACB6260AW, AER4311AAW, AER5511AAB, AER5511AAQ, AER5511AAW, AER5511ACB, AER5511ACW, AER5511BAB, AER5511BAQ, AER5511BAW, AER5515QAQ, AER5515QAW, AER5515QCW, AER5515RCW, AER5710BAH, AER5712AAQ, AER5712AAS, AER5712AAW, AER5712AAZ, AER5712ACW, AER5712ACZ, AER5712BAB, AER5712BAW, AER5712BAZ, AER5715QAQ, AER5715QAW, AER5715QCB, AER5715QCS, AER5715QCW, AER5715RCB, AER5715RCS, AER5715RCW, AER5722BAQ, AER5722BAS, AER5722BAW, AER5722CAS, AER5725QAF, AER5725QAN, AER5725QAQ, AER5725QAW, AER5735QAB, AER5735QAF, AER5735QAN, AER5735QAQ, AER5735QAS, AER5735QAW, AER5815RCB, AER5815RCS, AER5815RCW, AER5845QAB, AER5845QAN, AER5845QAS, AER5845RAB, AER5845RAW, AES1350BAW, AES3540BAW, AES3760BAB, AES3760BAQ, AES3760BAS, AES3760BAW, AES3760BCB, AES3760BCS, AES3760BCS16, AES3760BCW, AES5730BAB, AES5730BAF, AES5730BAN, AES5730BAS
Amana AEW3530DDB, AEW3530DDS, AEW3530DDW, AEW3630DDB, AEW3630DDS, AEW3630DDW, AEW4630DDB, AEW4630DDQ, AEW4630DDS, AEW4630DDW, DCF4115AC, DCF4115AW, DCF4205BK, DCF4205BT, DCF4215AW
Crosley CC35111BCV, CC38700ACV, CC3872XRA, CC3872XRW, CC3872XVA, CC3872XVW, CC3878VVV, CC3878VYV, CE35110BCV, CE35400AAQ, CE35400AAV, CE35400ACV, CE38300AAV, CE38300BAB, CE38300BAQ, CE38300BAT, CE38300BAV, CE38300BAW, CE38300BCV, CE38600AAB, CE38600AAQ, CE38600ACV, CE38700AAD, CE38700AAQ, CE38700AAV, CE38700BAQ, CE38700BAT, CE38700BAW, CE38700BCV, CE3875XRA, CE3875XRW, CE3878VVA, CE3878VVD, CE3878VVV, CE3878VVW, CE38800AAQ, CE38800AAS, CE38800AAV, CE38800ACS, CE38800ACV, CE38800BAS, CE6898VVA, CE6898VVV, CEA4D59TDV, CEA4D59TSV, CEW4D59TDV, CEW4D59TSV
Hardwick EPF9-71KA669A, EPF9-71KW669A, EPG9-77(*)589GF, EPG9-77A589GF, EPG9-77W589GF, H3875XRA, H3875XRW, H3878XRA, H3878XRW, H3878XVA, H3878XVB, H3878XVW
Ikea ISE630VS11, ISE630WS00, ISE630WS01, YISE630VS11, YISE630VS12, YISE630WS00, YISE630WS01
Jenn-Air D156W, FCE10500A, FCE10500B, FCE10500W, FCE10500WC, FCE10501WC, FCE10510A, FCE10510B, FCE10510W, FCE10610A, FCE10610B, FCE10610W, FCE10610WC, FCE2010B, FCE2010W, FCE2011B, FCE2011W, FCE2012B, FCE2012W, FCE30500A, FCE30500B, FCE30500W, JDR8880RDB, JDR8880RDB10, JDR8880RDS, JDR8880RDS1, JDR8880RDS10, JDR8880RDW, JDR8880RDW1, JDR8880RDW10, JDR8895AAW, JDR8895ACB, JDR8895ACW, JDR8895BAB13, JDR8895BAS13, JDR8895BAW13, JDR8895BCB13, JDR8895BCS13, JDR8895BCW13
Jenn-Air JDS8850AAB, JDS8850AAQ, JDS8850AAW, JDS8850AAS, JDS8850ACS, JDS8850ACW, JDS8850CDB01, JDS8850CDR00, JDS8850CDW00, JDS8850CDW01, JDS8850CDS00, JDS8850CDS01, JDS8850CDS02, JDS9861AAP, JDS9865BDP, JDS9865BDP22, JDS9865BDP23, JEB8860ADB, JEB8860ADS, JEB8860ADW
Jenn-Air JER8500AAA, JER8500AAW, JER8530AAQ, JER8530AAW, JER8550AAA, JER8550AAB, JER8550AAW, JER8550ACB, JER8550ACW, JER8650AAA, JER8650AAB, JER8650AAW, JER8750AAA, JER8750AAB, JER8750AAQ, JER8750AAW, JER8750ACB, JER8750ACW, JER8750BAB, JER8750BAQ, JER8750BAW, JER8785QAB, JER8785QAF, JER8785QAN, JER8785QAS, JER8785RAB, JER8785RAF, JER8785RAS, JER8849BCQ, JER8849BCW, JER8854BCS, JER8855AAS, JER8855BAS, JER8850AAA, JER8850AAB, JER8850AAQ, JER8850AAW, JER8850ACB, JER8850ACW, JER8850BAB, JER8850BAQ, JER8850BAW
Jenn-Air JER8885QAB, JER8885QAF, JER8885QAS, JER8885QCB, JER8885QCS, JER8885RAB, JER8885RAF, JER8885RAS, JER8885RCB, JER8885RCB1, JER8885RCS, JER8885RCS1, JER8885RCW, JER8885RCW1, JER8895BAS10, JER8895BAS11, JER8895BAS12
Jenn-Air JES8750AAB, JES8750AAW, JES8750BAB, JES8750BAB16, JES8750BAF, JES8750BAF16, JES8750BAS, JES8750BAS17, JES8750CAB00, JES8750CAS00, JES8750CAS01, JES8850AAQ, JES8850ACS, JES8850ACW, JES8850BAB, JES8850BAB19, JES8850BAF, JES8850BAF19, JES8850BAQ, JES8850BCB, JES8850BCB20, JES8850BCW, JES8850CAB00, JES8850CAB01, JES8850CAF00, JES8850CAF01, JES8850CAS00, JES8850CAS01, JES8850CAS02, JES8860CAB00, JES8860CAS00, JES8860CAW00, JES8860CCB00, JES8860CCS00, JES8860CCS01, JES8860CCS02, JES8860CCW00
Jenn-Air JES9750AAS, JES9750CAB00, JES9750CAS00, JES9750CAS02, JES9750CAW00, JES9800BAB, JES9860AAW, JES9860ACB, JES9860ACS, JES9860BCB, JES9860BCS, JES9860BCW, JES9860CCB00, JES9860CCS00, JES9860CCS01, JES9860CCS02, JES9860CCW00, JES9900BAB, JES9900BAS, JES9900BCB, JES9900BCB20, JES9900BCW, JES9900BCW20, JES9900CCB00, JES9900CCB01, JES9900CCS00, JES9900CCS01, JES9900CCS02, JES9900CCW00, JES9900CCW01, JESS8860CCS01
Jenn-Air JEW8527AAB, JEW8527AAW, JEW8530AAB, JEW8530AAW, JEW8530ACB, JEW8530ACW, JEW8627AAB, JEW8627AAW, JEW8630AAB, JEW8630AAW, JEW9527AAB, JEW9527AAS, JEW9527AAW, JEW9530AAB, JEW9530AAS, JEW9530AAW, JEW9530ACB, JEW9530ACW, JEW9627AAB, JEW9627AAS, JEW9627AAW, JEW9630AAB, JEW9630AAS, JEW9630AAW, JEW9630ACB, JEW9630ACW
Jenn-Air JJW8127AAB, JJW8127AAW, JJW8130AAB, JJW8130AAW, JJW8130DDB, JJW8130DDS, JJW8130DDW, JJW8227AAB, JJW8227AAW, JJW8230AAB, JJW8230AAW, JJW8230DDB, JJW8230DDS, JJW8230DDW, JJW8330DDB, JJW8330DDB13, JJW8330DDS, JJW8330DDS13, JJW8330DDW, JJW8330DDW13, JJW8430DDB, JJW8430DDB13, JJW8430DDS, JJW8430DDS13, JJW8430DDW, JJW8430DDW13, JJW8527AAB, JJW8527AAW, JJW8527BAB, JJW8527BAW, JJW8527CAB, JJW8527CAS, JJW8527CAW, JJW8627AAB, JJW8627BAB, JJW8627BAW, JJW8627CAB, JJW8627CAS, JJW8627CAW, JJW8630AAB, JJW8630BAB, JJW8630BAW, JJW8630CAB, JJW8630CAS, JJW8630CAW
Jenn-Air JJW9130DDB, JJW9130DDS, JJW9130DDW, JJW9230DDB, JJW9230DDS, JJW9230DDW, JJW9327DDB11, JJW9327DDS11, JJW9330DDB13, JJW9330DDW, JJW9330DDW13, JJW9427DDB11, JJW9427DDS11, JJW9430DDB, JJW9430DDB13, JJW9430DDS, JJW9430DDS13, JJW9430DDW, JJW9430DDW13, JJW9527AAB, JJW9527AAQ, JJW9527AAS, JJW9527AAW, JJW9527BAB, JJW9527BAQ, JJW9527BAS, JJW9527CAB, JJW9527CAQ, JJW9527CAS, JJW9527CAW, JJW9530AAB, JJW9530AAQ, JJW9530AAW, JJW9530ACB, JJW9530ACW, JJW9530BAB, JJW9530BAQ, JJW9530BAS, JJW9530BAW, JJW9530BCB, JJW9530BCW, JJW9530CAB, JJW9530CAQ, JJW9530CAS, JJW9530CAW, JJW9530CCB, JJW9530CCS, JJW9530CCW, JJW9630AAB, JJW9630AAQ, JJW9630AAS, JJW9630ACB, JJW9630ACW, JJW9630BAQ, JJW9630BAS, JJW9630CAB, JJW9630CAQ, JJW9630CAS, JJW9630CAW, JJW9630CAS
Jenn-Air JMC1000ADR00, JMC1000ADB00, JMC1000ADW00, JMW9527CAB, JMW9527CAS, JMW9527CAW, JMW9530CAB, JMW9530CAS, JMW9530CAW, SCE30600W, SCE30600WC, SVE47100W, SVE47100WC, SVE47600B, SVE47600BC, SVE47600W, SVE47600WC, SVE87600B, W131B, W131B-C, W156B, W156W, W256, W256B, W256B-C, W256W-C, W27200W, W27200WC, W277W, WM277W, WW2780B, WW30430W
Kenmore 6294576, 62945765690, 62945765790, 62945766790, 62945769790, 62946775690, 62946775790, 62946776790, 62946779790, 62946796, 6294697, 62946975, 62946979, 62960002606, 62960008606, 62960009606
Magic Chef 38HA-3TXW-ON, 38HK-6TXW, 38HN-36TX-ON, 3867VVV, 3867VVD, 3868XVA, 5898VVV, 6892VRA, 6898XVB, 7858XVA, 7898VAD, 7898VAV, 7898VRA, 7898VRV, 7898VVV, 7898XRA, 7898XRW, 7898XVA, 9825VUV, 9845VUV, 9845VVV, 9845XVB, 9875VRV, 9875VVV, 9875VYV, 9875XRB, 9875XVB, 9875XYB, 9895VRV, 9895XRB, B38HA-3TXW-ON, B38HA-42TXW, B38HA-4TXW, B38HA-5TVW, B38HK-5TXW, B38HN-3TXW-ON, B38HN-42TVW-EV, B38HN-42TXW, B38HN-4TXW, B38HN-5TVW, B59FN-5TVW, C3523WVA, C3523WVV, C3862VYV, C3862XYB, C3868VYV, C3882VRV, C3882XRA, C3882XRW, C3888VRV, C3888VVV, C3888XRA, C3888XRW, C3888XVA, C3888XVW, CER3520AAH, CER3525AAW, CER3765AAC, CEP3540AAA, CEP3540AAQ, CEP3540AAW, CEP3760AAA, CEP3760AAB, CEP3760AAQ, CEP3760AAW, CES1350AAH, CES3540AAC, CES3540AAW, CES3540ACC, CES3540ACW, CES3759BCB, CES3759BCS, CES3759BCW, CES3760AAA, CES3760AAB, CES3760AAQ, CES3760AAW, CEW3330AAB, CEW3330AAW, CEW3330ACB, CEW3330ACW, DF454670, DF454676, DF454677, DF456570, DF456577
Maytag BCRE805, BCRE905, BCRE955, CHE9000ACB, CHE9000BCB, CHE9000BCE, CHE9800ACB, CHE9800ACE, CHE9800BCB, CHE9800BCE, CHE9800BCM, CHE9830BCB, CHE9830BCE, CRE8600ACL, CRE8600ACW, CRE8600CCL, CRE8600CCM, CRE9400ACL, CRE9400ACW, CRE9400CCM, CWE4200ACB, CWE5200ACB, CWE7000ACB, CWE7000ACE, CWE7800ACB, CWE900, CWE9000BCB, CWE9000BCE, CWE9000BCM, CWE9000BDB, CWE9000CDB, CWE9000DDB, CWE9000DDE, CWE9030BCB, CWE9030BCE, CWE9030BDB, CWE9030BDE, CWE9030DDB, CWE9030DDE, CWE9900, ECWE900
Maytag G3862XRA, G3862XRW, GA3872XUW, GA3878XUW, MER4351AAB, MER4351AAQ, MER4351AAW, MER4351AGW, MER5511BAW, MER5530AAH, MER5550AAA, MER5550AAL, MER5550AAQ, MER5550AAT, MER5550AAW, MER5550BAB, MER5550BAQ, MER5551BAB, MER5551BAW, MER5552BAB, MER5555QAB, MER5555QAQ, MER5555QAW, MER5555QCB, MER5555QCW, MER5730BAW, MER5750BAW, MER5751AAQ, MER5751BAW, MER5752BAW, MER5754QAQ, MER5754QAW, MER5755QAB, MER5755QAQ, MER5755QAS, MER5755QAW, MER5755QCB, MER5755QCW, MER5765QAB, MER5765QAF, MER5765QAN, MER5765QAQ, MER5765QAW, MER5765RAB, MER5765RAB1, MER5770AAA, MER5770AAB, MER5775QAB, MER5775QAF, MER5775QAN, MER5775QAQ, MER5775QAS, MER5775QAW, MER5775QCB, MER5775QCF, MER5775QCQ, MER5775QCS, MER5775QCW, MER5775RAS, MER5775RAS1, MER5780BAW
Maytag MER5875QAB, MER5875QAF, MER5875QAN, MER5875QAS, MER5875QCB, MER5875QCF, MER5875QCS, MER5875QCW, MER5875RAF, MER5875RAN, MER5880BAS, MERH752CAS, MERH865RAB1, MERH865RAB13, MERH865RAB15, MERL752BAW, MERD750BAF, MER6549BAW, MER6555AAW, MER6600ACL, MER6600ACQ, MER6741BAB, MER6741BAB17, MER6751AAS24, MER6755AAQ, MER6755AAQ25, MER6755ABW25, MER6755ACB, MER6755ACB24, MER6755ACS, MER6755ACS26, MER6755ACW, MER6770AAQ, MER6771AAB, MER6771AAC, MER6771AAQ, MER6775AAN, MER6775AAB, MER6775ACS, MER6775BAS18, MER6775BDS18, MER6870AAB, MER6872BAQ, MER6872BAW, MER6970AAB, MES5770AAB, MES5770AAW, MES5775BAS19, MES5870AAW, MEP5770AAB, MEP5770AAW, MEP5775BAB, MEP5775BAF, MEP5775BAB19, MEP5775BAF19
Maytag MEW5627BAB, MEW5627BAW, MEW5627DDB, MEW5627DDB16, MEW5627DDB17, MEW5627DDS10, MEW5627DDW, MEW5627DDW16, MEW5627DDW17, MEW5630BAW, MEW5630DDS10, MEW6527DDS18, MEW6530BAW, MEW6630DDS19, MGR6772BDB, PER5750LAQ, PER5750LAS, PER5750LAW, PER5750QAQ, PER5750QAS, PER5750QAW, PER5750QCQ, PER5750QCW, SVD48600P, SVD48600PC
Whirlpool GGE350LWB00, GGE350LWQ00, GGE350LWS00, GY397LXUB0, GY397LXUB02, GY397LXUT0, GY397LXUT02, GY399LXUB0, GY399LXUB02, GY399LXUB03, GY399LXUB04, GY399LXUQ0, GY399LXUQ04, GY399LXUQ05, GY399LXUS0, GY399LXUS03, GY399LXUS04, GY399LXUT0, RB262PXYQ0, RY160LXTB02, RY160LXTS03, WDE150LVT01C
Includes
1× Sensor Probe + 2× Wire Harness Adapters
Probe Length
~7 inches
Resistance at Room Temp
~1090 – 1100 Ohms @ 70°F
Resistance at 350°F
~1654 Ohms

FAQ

This sensor is commonly used on ovens and ranges from Whirlpool, Kenmore, Maytag, Jenn-Air, Magic Chef, Amana, Admiral, Crosley, Norge, KitchenAid, Hardwick, and Litton. Because fitment can vary by model, match your original sensor number and your appliance model number before ordering.
This part cross-references 12001656, AP4009009, 74004943, PS1570174, 12001554, 12001656VP, 7430P003-60, WB21X5301, 04000052, 04100258, 12001357, 12500029, 1364, 7-4657, 704657, 71003083, 74003390, 74004471, 74005193, 7430P005-60, 7430P008-60, 7430P008-60K, 7430P010-60, 7430P042-60, 8189679, 879368, AH1570174, EA1570174, W10127323, Y04000052, Y04100258, and Y704657.
A failing oven sensor can cause inaccurate baking temperatures, long preheat times, overheating, underheating, temperature swings during cooking, or fault codes related to temperature sensing. If the oven consistently cooks too hot or too cold even after calibration, the sensor is a common part to check.
On many ranges, this is a straightforward repair that takes about 15 to 30 minutes. You typically need a screwdriver or nut driver to remove the mounting screws inside the oven cavity. Disconnect power to the appliance first. After removing the sensor from the rear oven wall, carefully pull the connector forward, unplug it, and install the replacement without letting the harness slip back through the insulation.
First disconnect power and inspect the sensor plug, wire harness, and terminals for heat damage, corrosion, or loose connections. If you have a multimeter, the oven sensor should usually measure about 1080 ohms at room temperature. A reading far outside that range, an open circuit, or an intermittent reading points to a failed sensor. If the sensor tests good, the issue may be in the wiring or electronic control.
These sensors commonly fail from repeated heat cycling, internal element drift, or damage to the connector and wiring near the hot oven cavity. In some cases, the sensor itself is fine but the harness insulation or terminal connection has degraded from heat, causing false temperature readings.
