100112330 Water Heater Pilot and Igniter Assembly for Natual Gas
Replaces Part Numbers
100112330 Water Heater Pilot & Igniter Assembly for Natural Gas Water Heaters

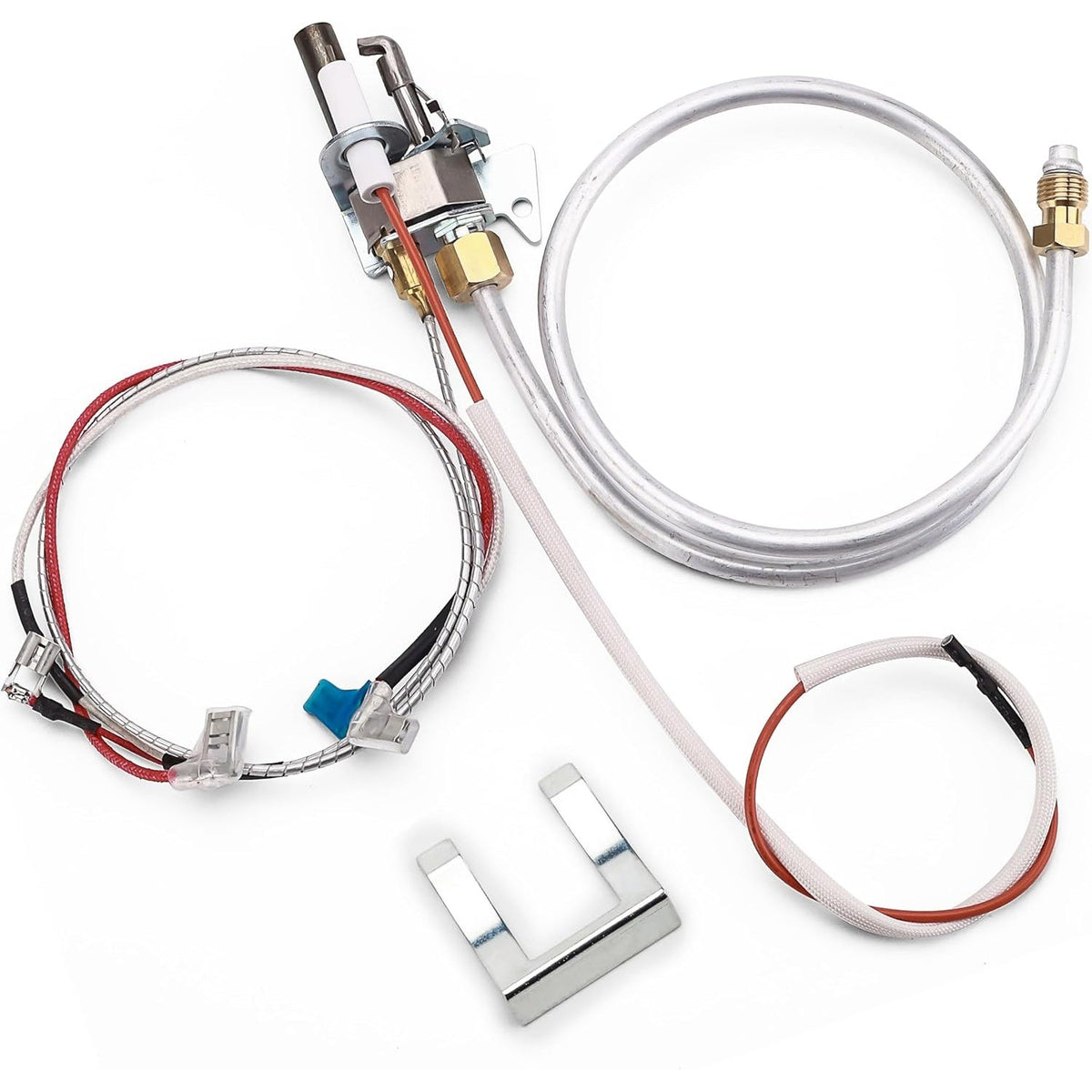

The 100112330 Water Heater Pilot and Igniter Assembly is designed to provide reliable, consistent ignition for natural gas water heaters. Engineered to meet OEM specifications, this assembly restores safe and efficient burner operation, reducing ignition failures and ensuring dependable hot water performance.
Reliable & Efficient Ignition

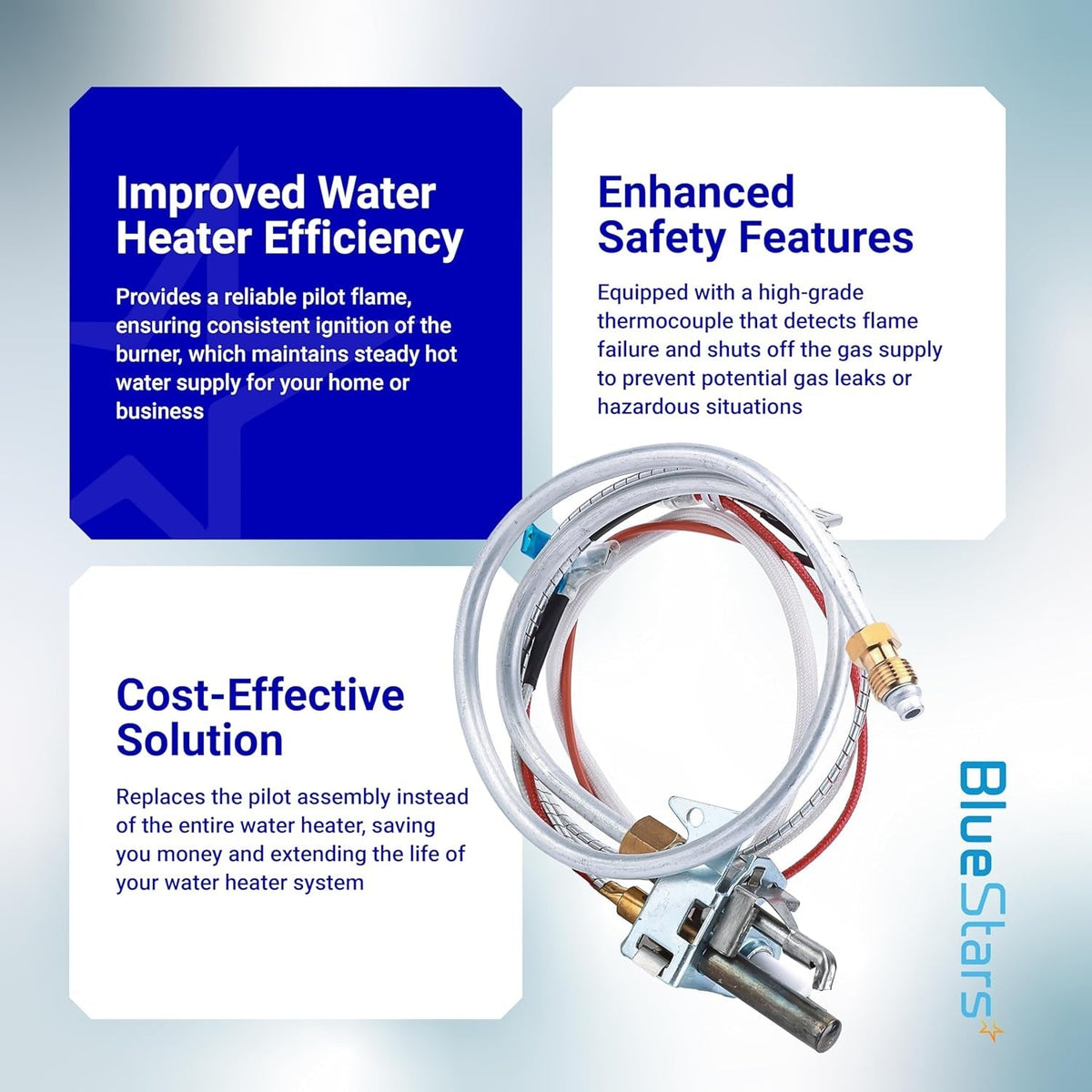

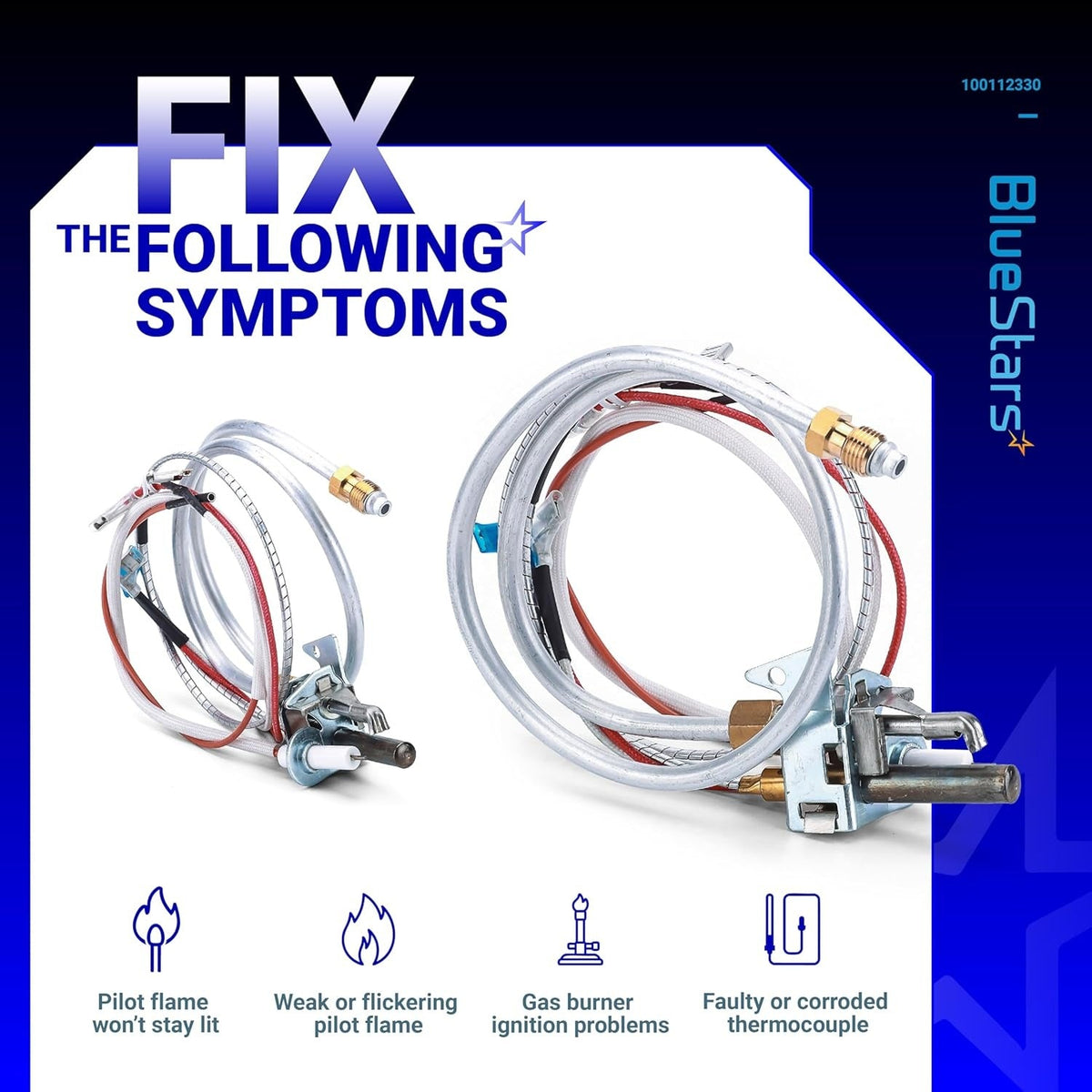

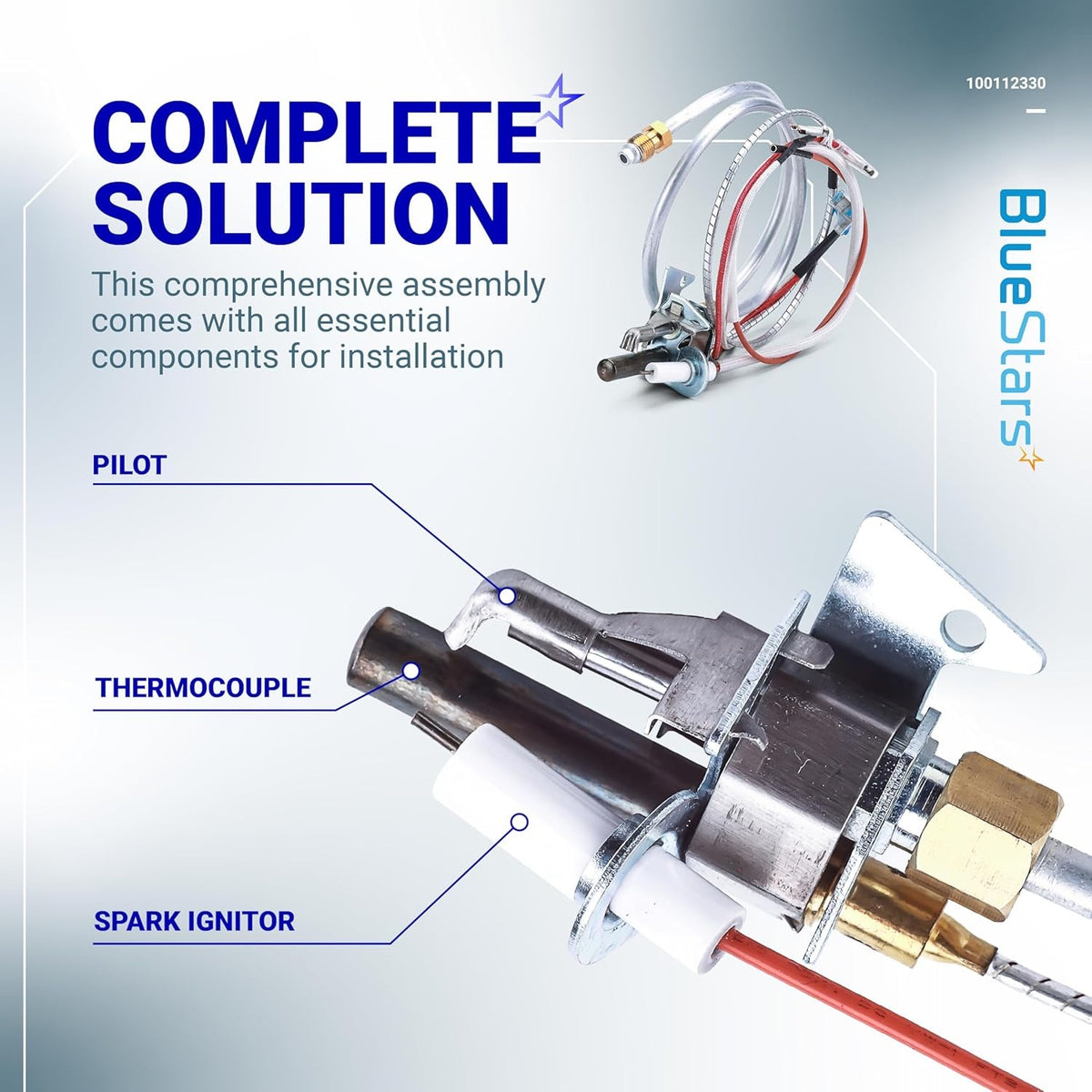

This pilot assembly features a precision pilot tube, responsive thermocouple, and durable igniter to ensure fast and stable ignition. It helps eliminate common problems such as pilot outages, delayed ignition, and inconsistent burner operation, keeping your water heater ready whenever hot water is needed.
Durable, Heat-Resistant Construction

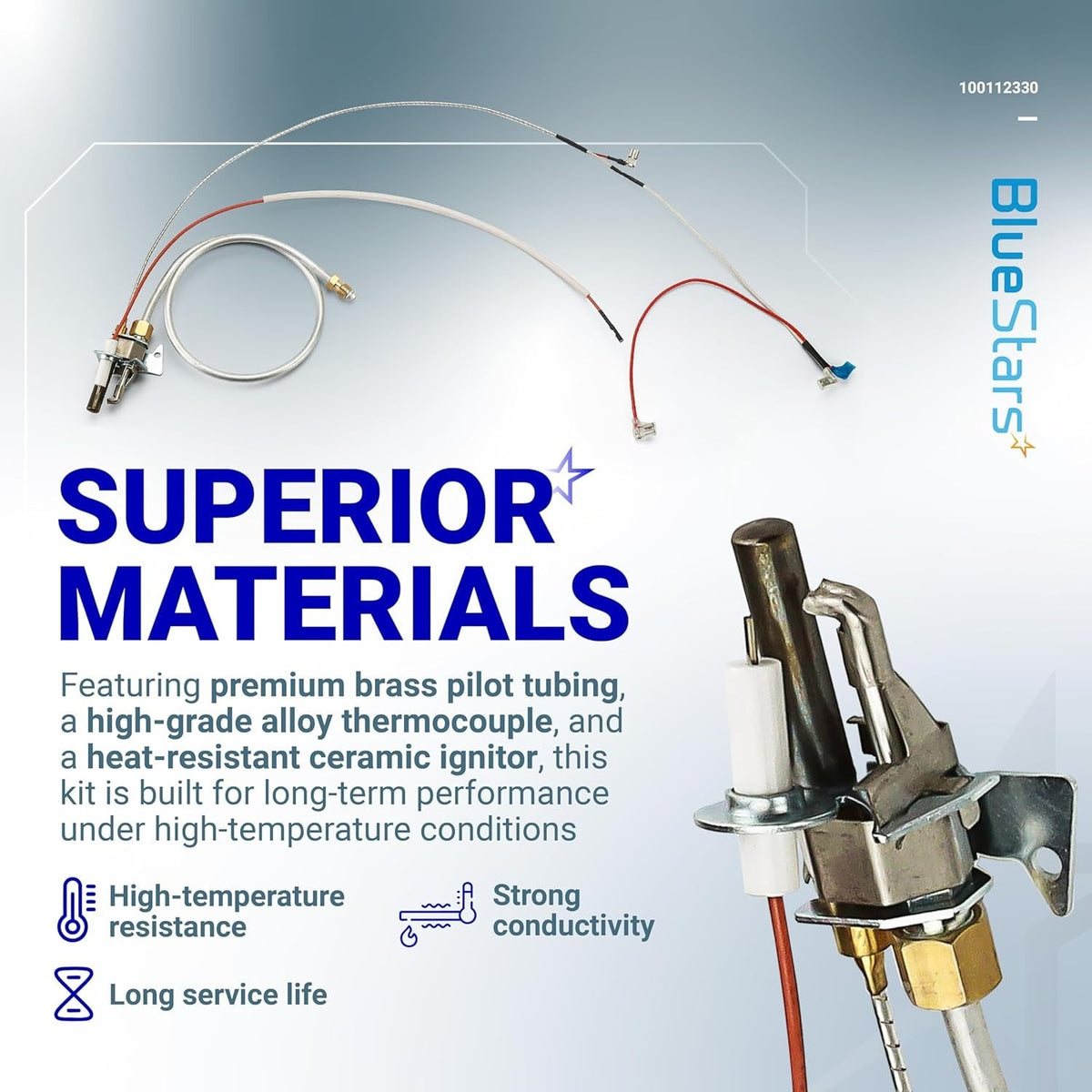

Built with premium brass pilot tubing, a high-grade alloy thermocouple, and a heat-resistant ceramic igniter, this assembly is designed to withstand high temperatures, corrosion, and long-term use. Its rugged construction ensures reliable performance even in demanding operating conditions.
Wide Compatibility

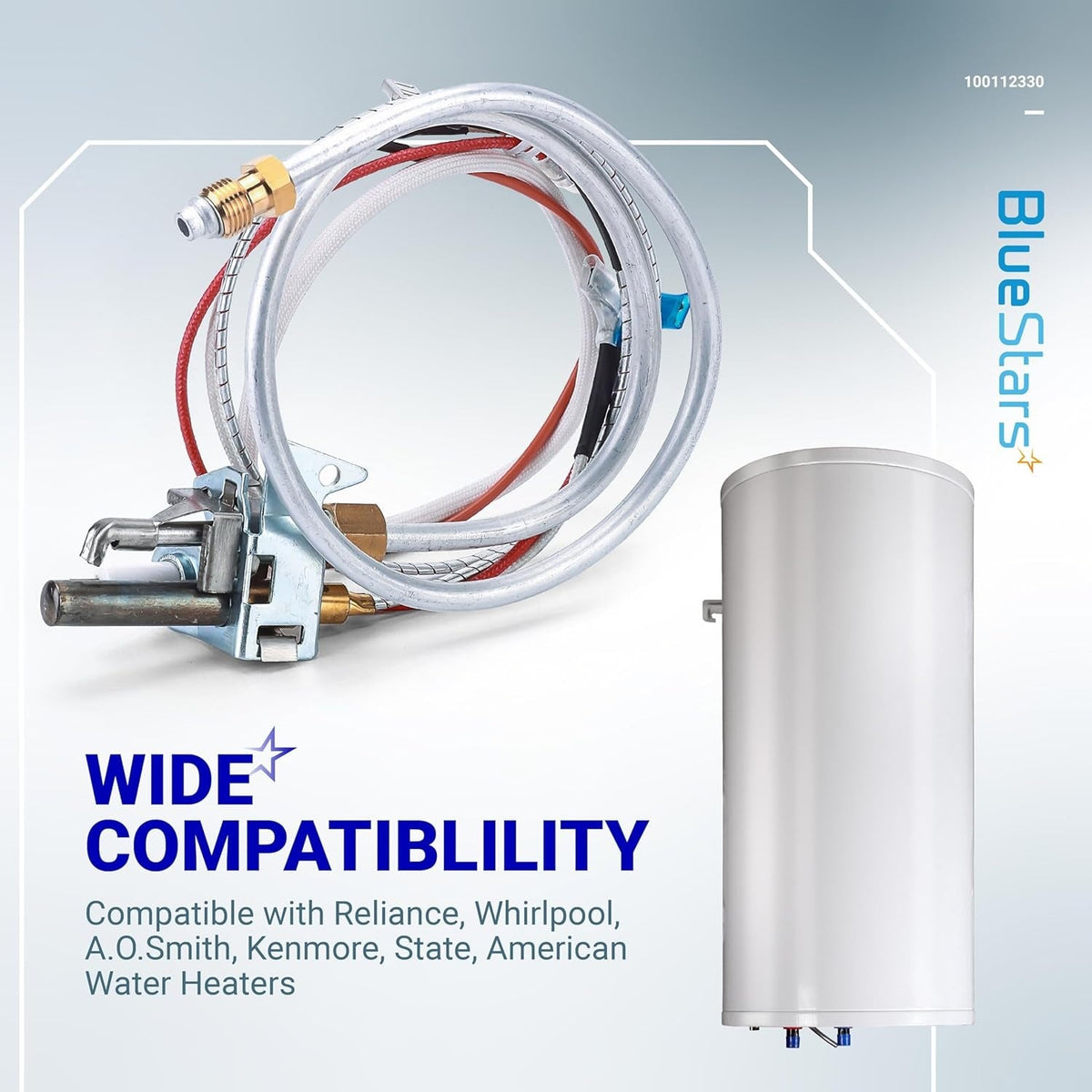

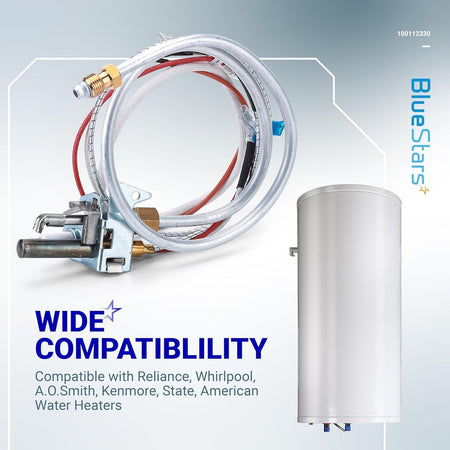

Designed for use with many popular natural gas water heater brands, including: Reliance, Whirlpool, A.O. Smith, Kenmore, State, and American.

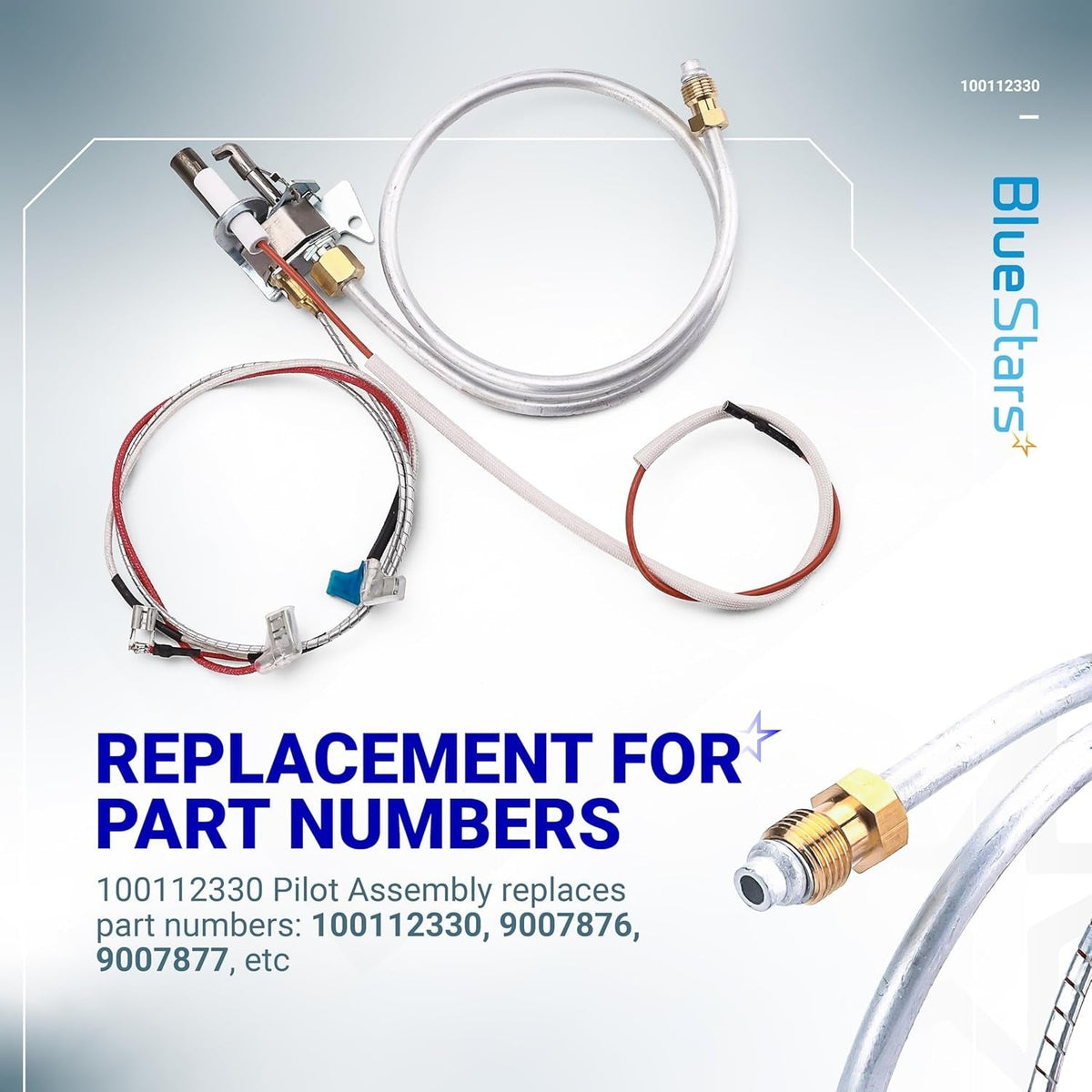

Replaces part numbers: 100112330, 9007876, 9007877. The assembly includes all essential components for a secure, leak-free installation.

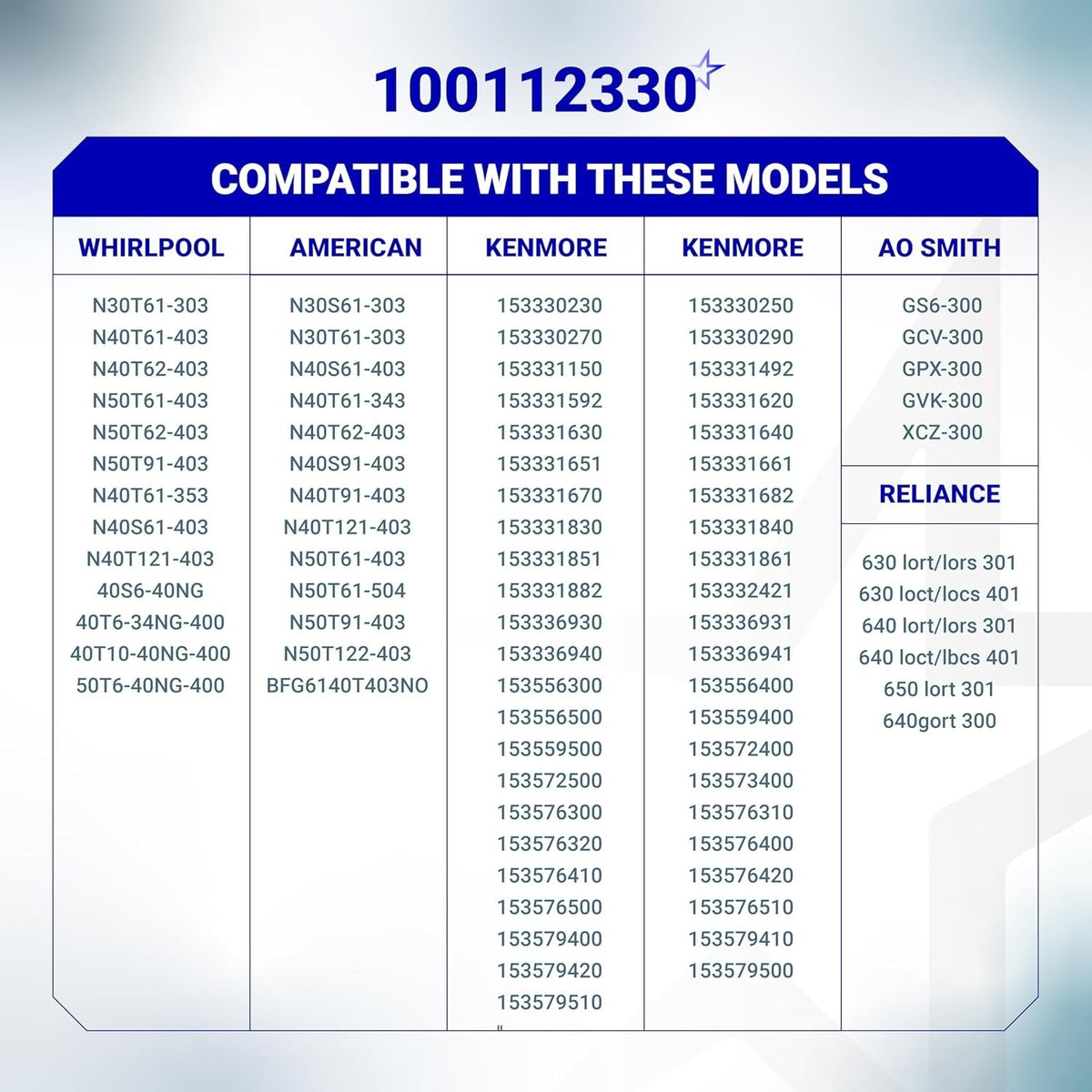

Compatible Whirlpool Water Heater Models
N30T61-303, N40T61-403, N40T62-403, N50T61-403, N50T62-403, N50T91-403, N40T61-353, N40S61-403, N40T121-403, 40S6-40NG, 40T6-34NG-400, 40T10-40NG-400, 50T6-40NG-400
Compatible American Water Heater Models
N30S61-303, N30T61-303, N40S61-403, N40T61-343, N40T62-403, N40S91-403, N40T91-403, N40T121-403, N50T61-403, N50T61-504, N50T91-403, N50T122-403, BFG6140T403NO
Compatible Kenmore Water Heater Models
153330290, 153331150, 153331492, 153331620, 153331630, 153331640, 153331651, 153331661, 153331670, 153331682, 153331830, 153330270, 153330250, 153331840, 153331851, 153331861, 153331592, 153331882, 153332421, 153336930, 153336931, 153336940, 153336941, 153556300, 153556400, 153556500, 153559400, 153559500, 153330230, 153330280, 153572400, 153572500, 153573400, 153576300, 153576310, 153576320, 153576400, 153576410, 153576420, 153576500, 153576510, 153579400, 153579410, 153579420, 153579500, 153579510
Compatible A.O. Smith Series
GS6-300, GCV-300, GPX-300, GVK-300, XCZ-300
Compatible Reliance Models
630 LORT/LORS 301, 630 LOCT/LOCS 401, 640 LORT/LORS 301, 640 LOCT/LBCS 401, 650 LORT 301
Easy Installation
This pilot and igniter assembly is designed for straightforward replacement. Always turn off the gas supply and disconnect power before installation. Proper installation helps ensure safe operation and optimal ignition performance.
Built for Long-Term Reliability
Manufactured to meet or exceed OEM standards, this water heater pilot assembly delivers dependable ignition, stable flame control, and long-lasting performance—making it an ideal replacement solution for restoring your natural gas water heater.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
