[Lifetime Warranty] 00618112 00637940 Rubber Grate Feet Replacement - Compatible with Thermador & Bosch Range Cooktop - Replaces 1999626 617174 618112 PS3478553 - Pack of 20

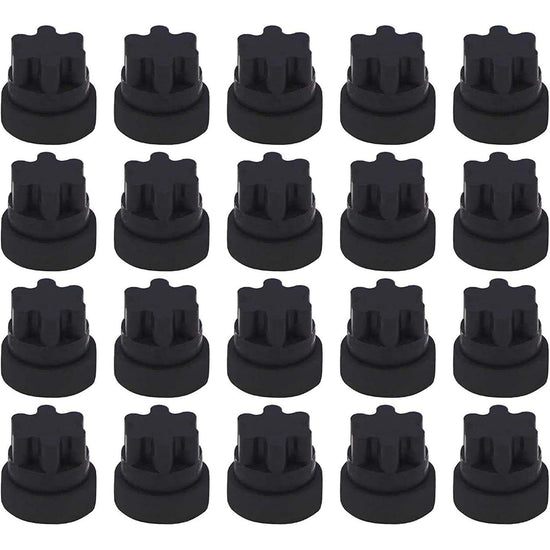

00618112 / 00637940 Rubber Grate Feet Replacement - Pack of 20

Key Features

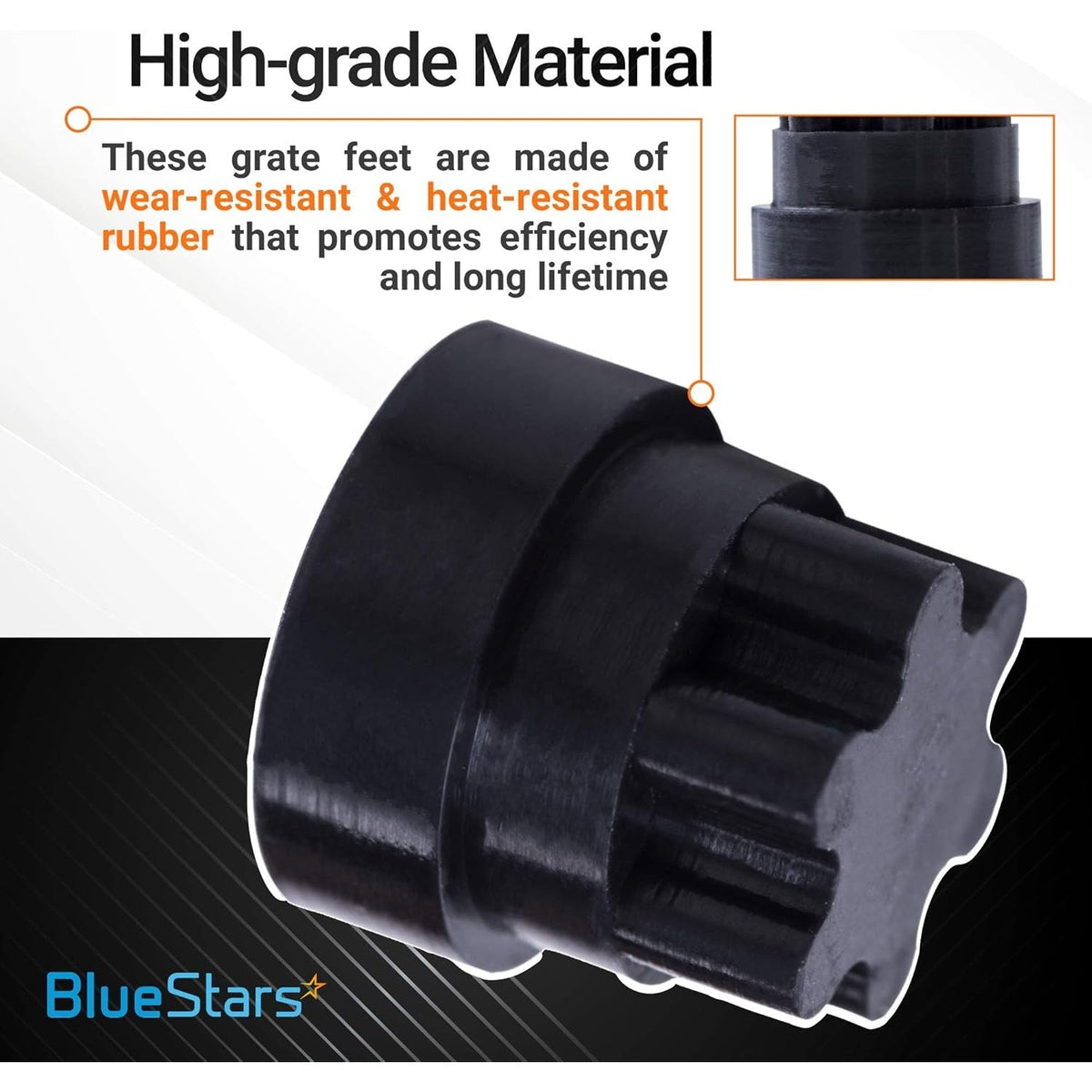

• High-temperature resistant rubber compound designed to withstand direct heat from gas burners.
• Protective barrier prevents heavy cast iron grates from scratching or damaging the stainless steel or porcelain cooktop surface.

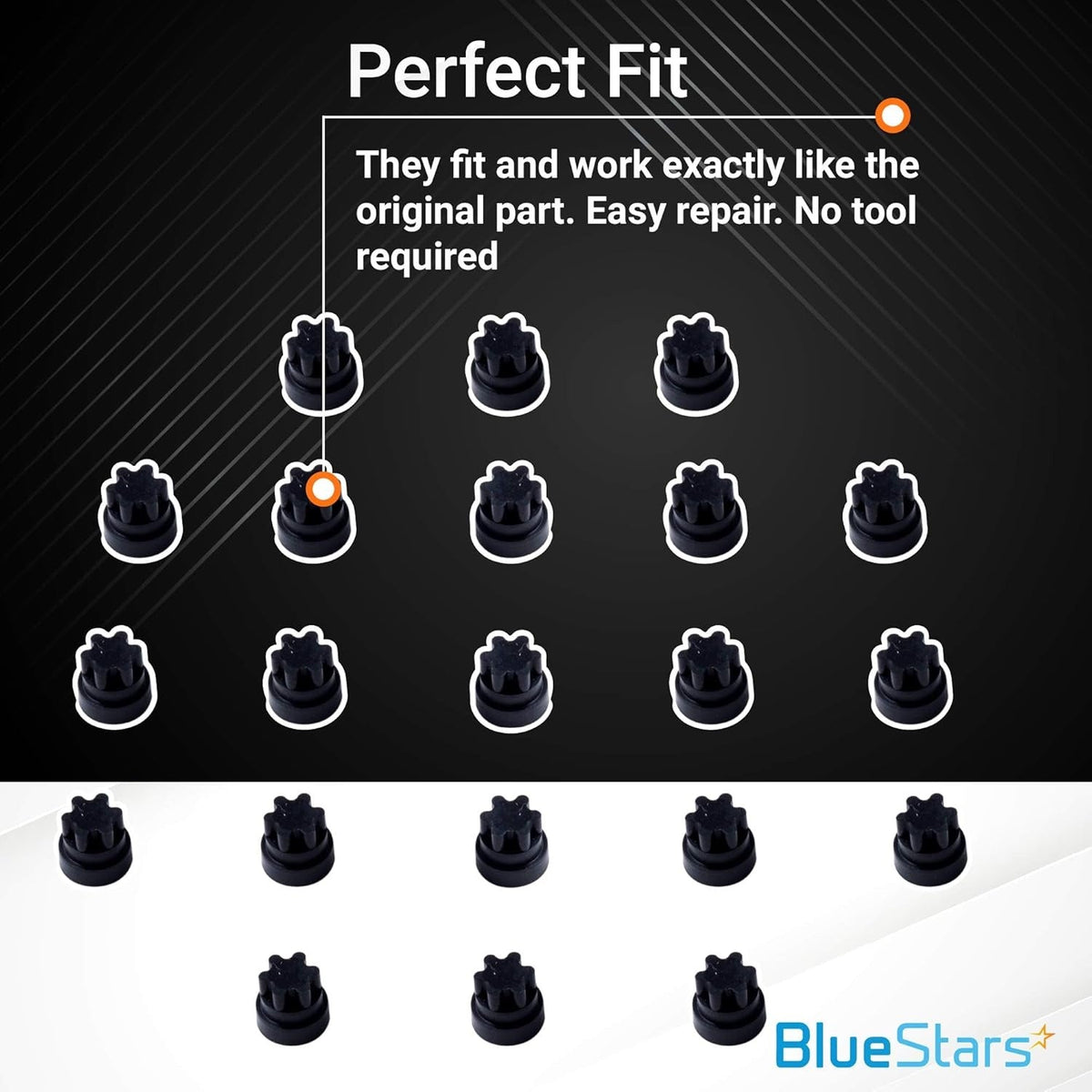

• Precision-molded stem ensures a secure friction fit into the pre-drilled holes on the underside of the grate.

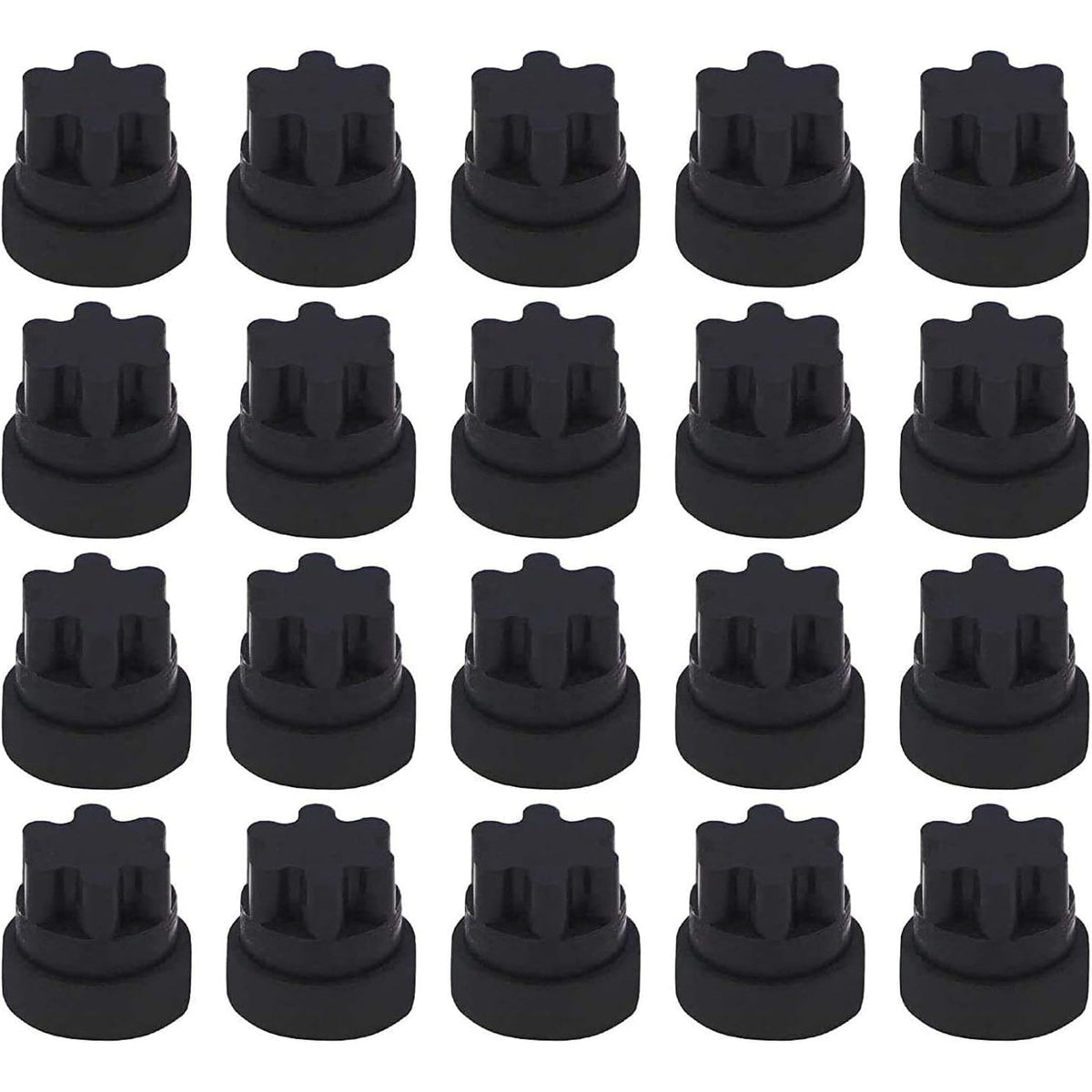

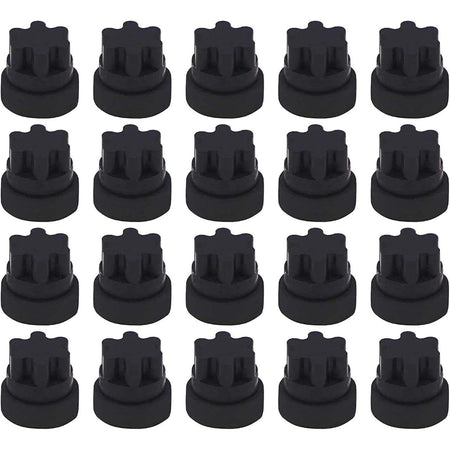

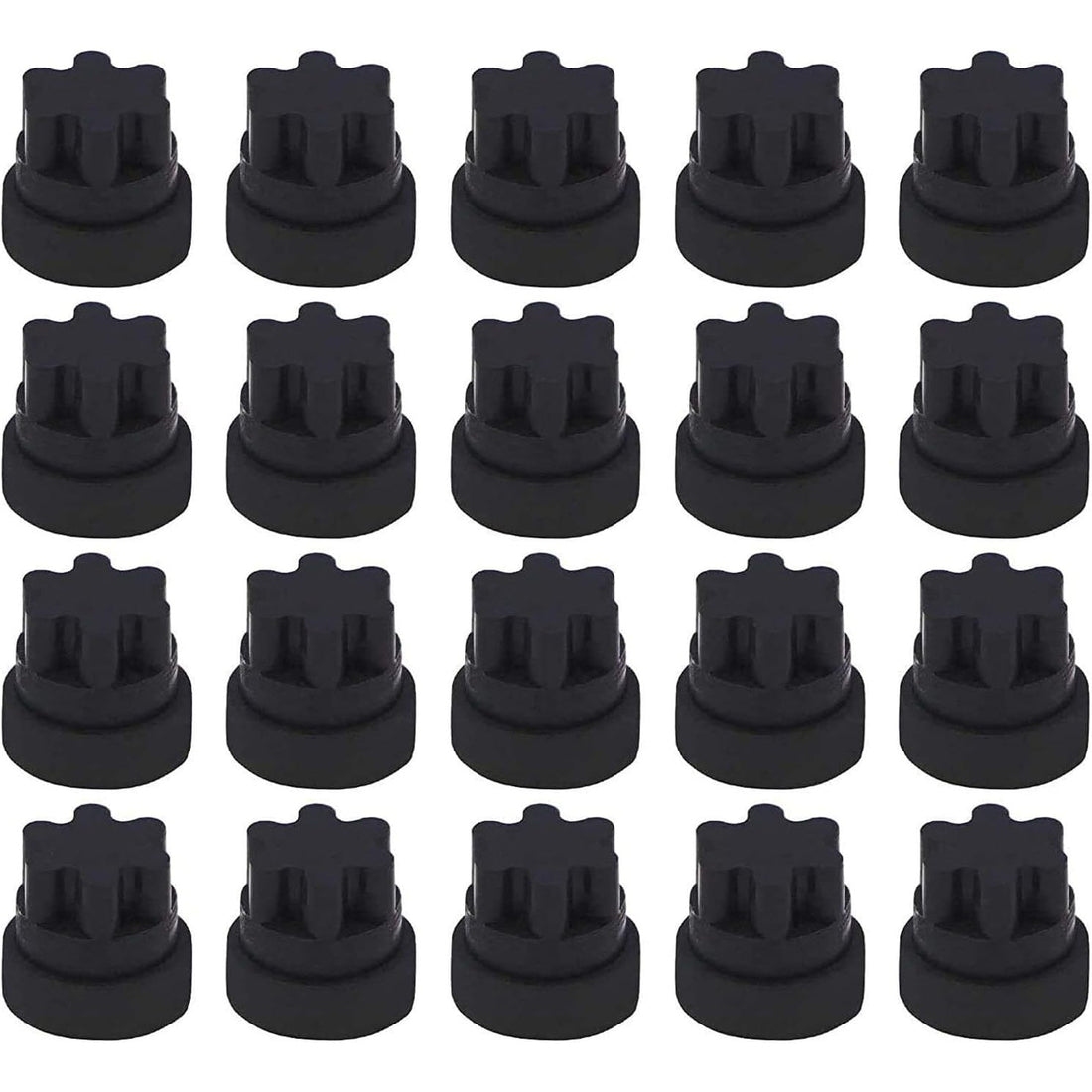

• Comprehensive 20-pack provides enough components for multiple grates or future maintenance needs.
• Improved vibration dampening to reduce noise and movement of grates during cooking.

Replaces / Cross-Reference Part Numbers

• AP4570139
• PS3478553
• 00637940
• 00617174
• 617174
• 618112
• 637940
• AH3478553
• EA3478553
• 1999626


Compatibility & Fitment

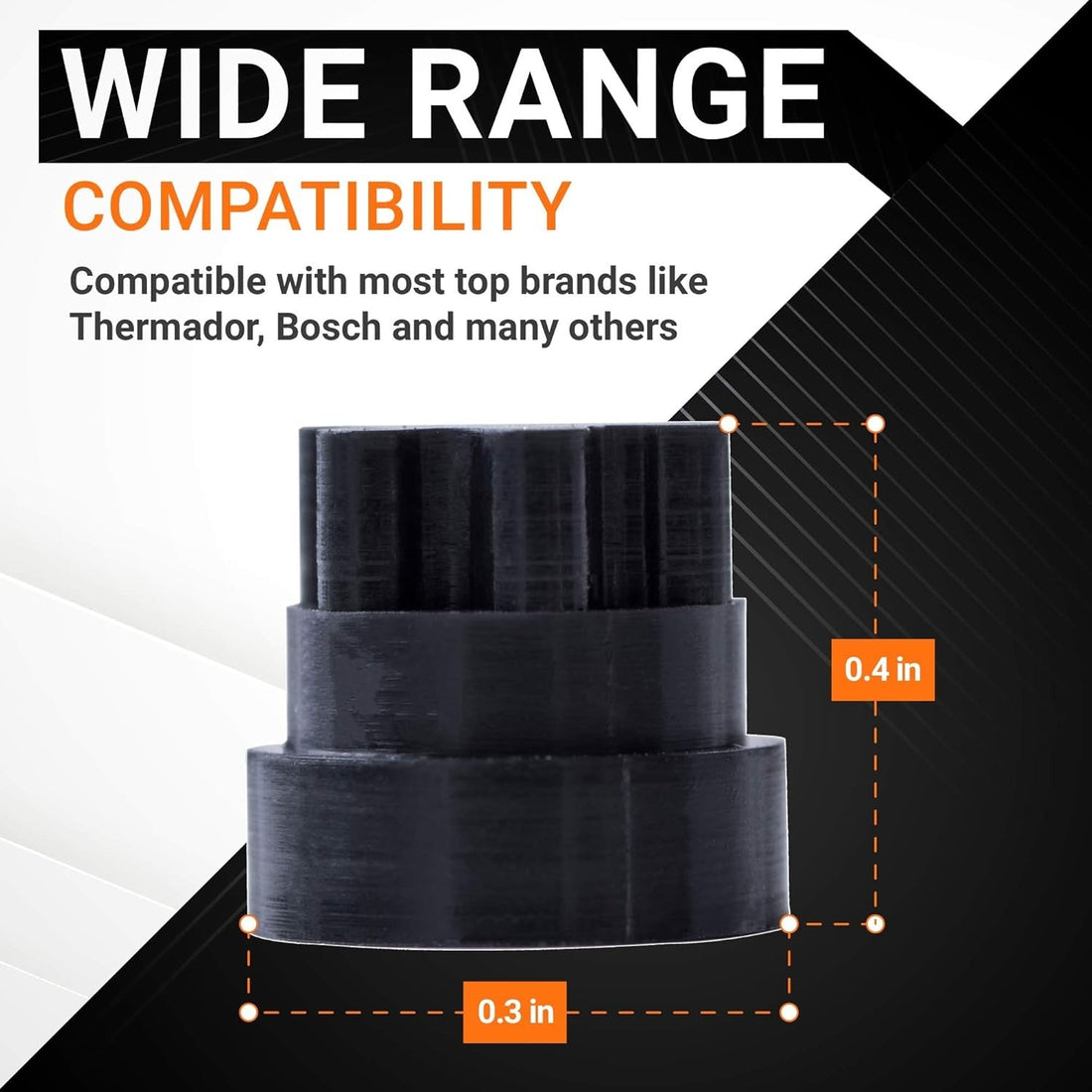

• Compatible with Bosch, Thermador, and Gaggenau gas ranges and cooktops.
• Fits various SGS, SGSX, SGSL, PCG, and PCS series professional cooktops.
• Designed for standard grate mounting holes requiring a push-in rubber foot.

When to Replace

• Rubber feet are missing, leaving the metal grate in direct contact with the cooktop.
• The rubber has become brittle, cracked, or flattened due to age and heat exposure.
• Grates appear unlevel or wobble during use.
• Visible scratches or scuff marks are appearing on the cooktop surface under the grate corners.
• The feet have melted or fused to the cooktop due to excessive heat or localized spills.

Installation Tips

• Remove the grates from the cooktop and allow them to cool completely before servicing.
• Use a small screwdriver or pliers to remove any remnants of old or melted rubber from the mounting holes.
• Thoroughly clean the underside of the grate with a degreaser to ensure a clean mounting surface.
• Apply a small amount of high-temperature silicone adhesive to the stem of the new foot for a permanent bond (optional).
• Press the new rubber foot firmly into the hole until the shoulder sits flush against the grate.
• Allow any adhesive to cure fully before placing the grates back onto the cooktop.
