[Holiday Deal] - DC97-14486A Dryer Heating Element
Save 17%
0.00
Regular price
$69.40
Regular price
$83.53
Sale price
$69.40
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
DC97-14486A Dryer Heating Element
Key Features

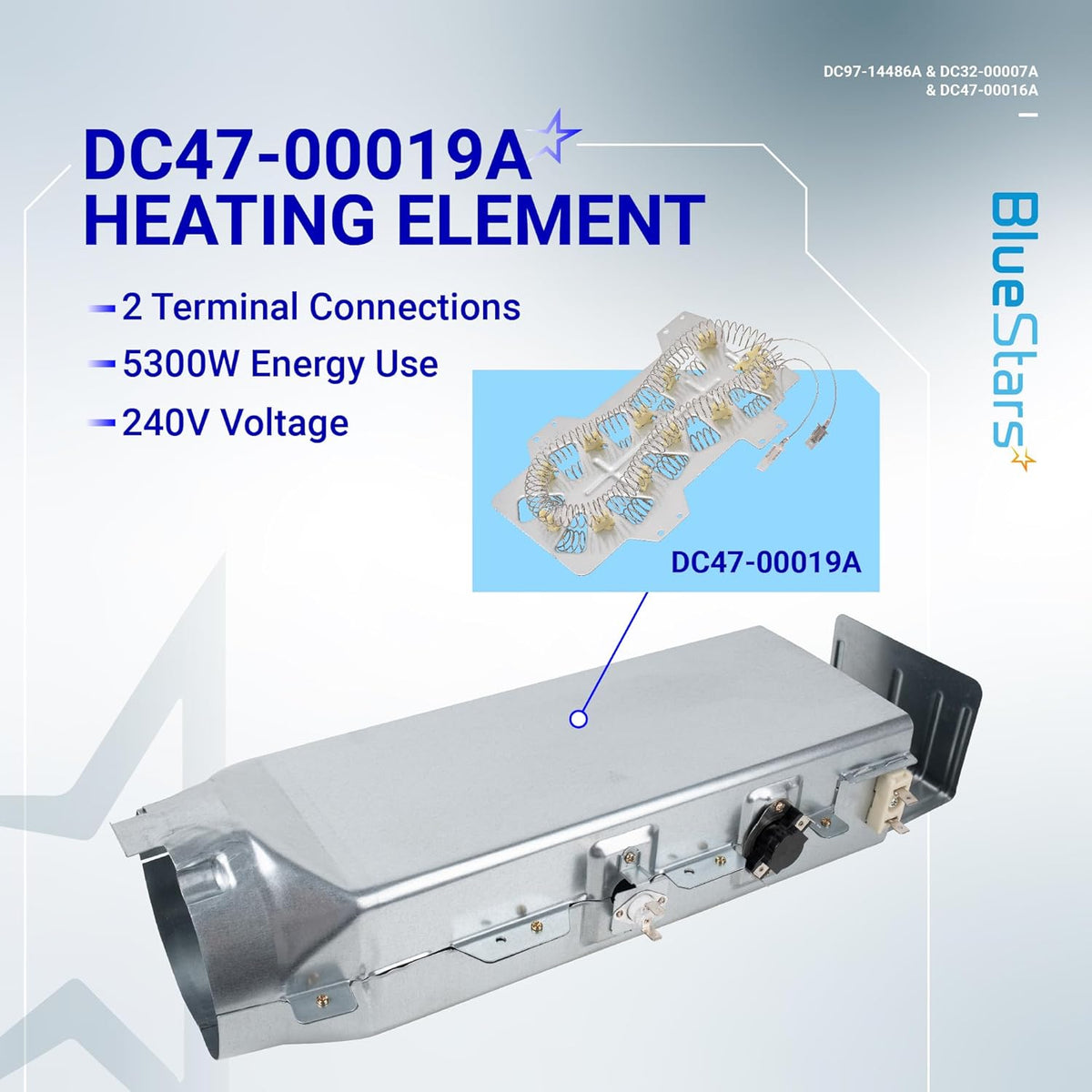

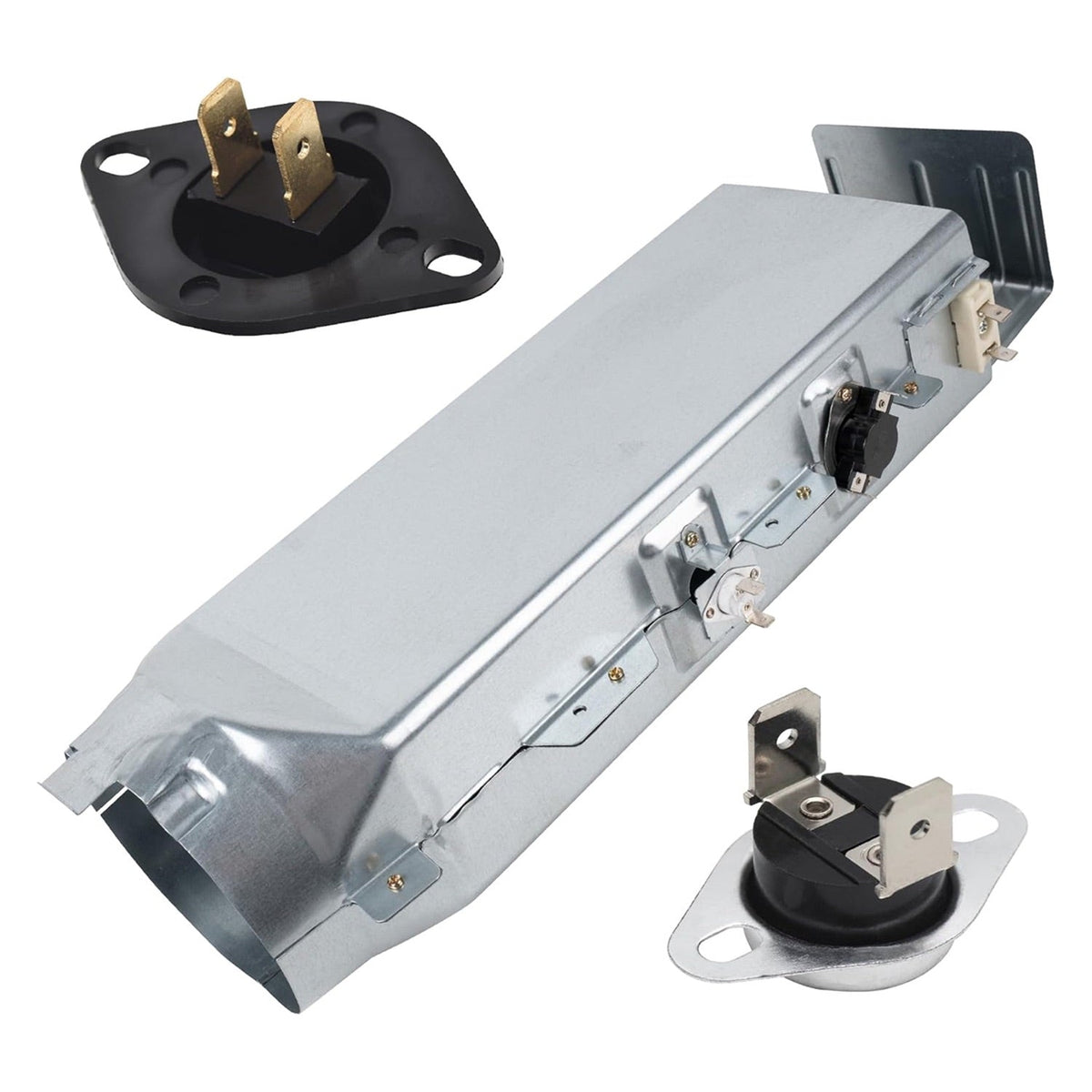

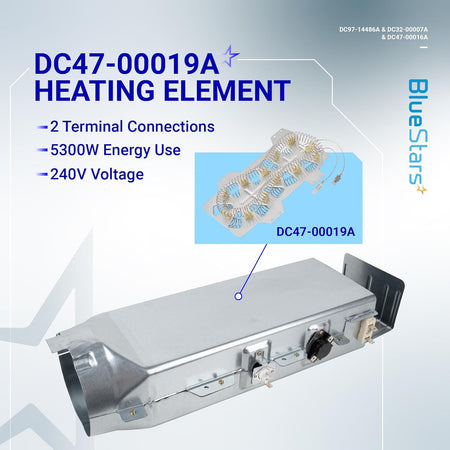

- Complete heating element assembly with housing and thermostats

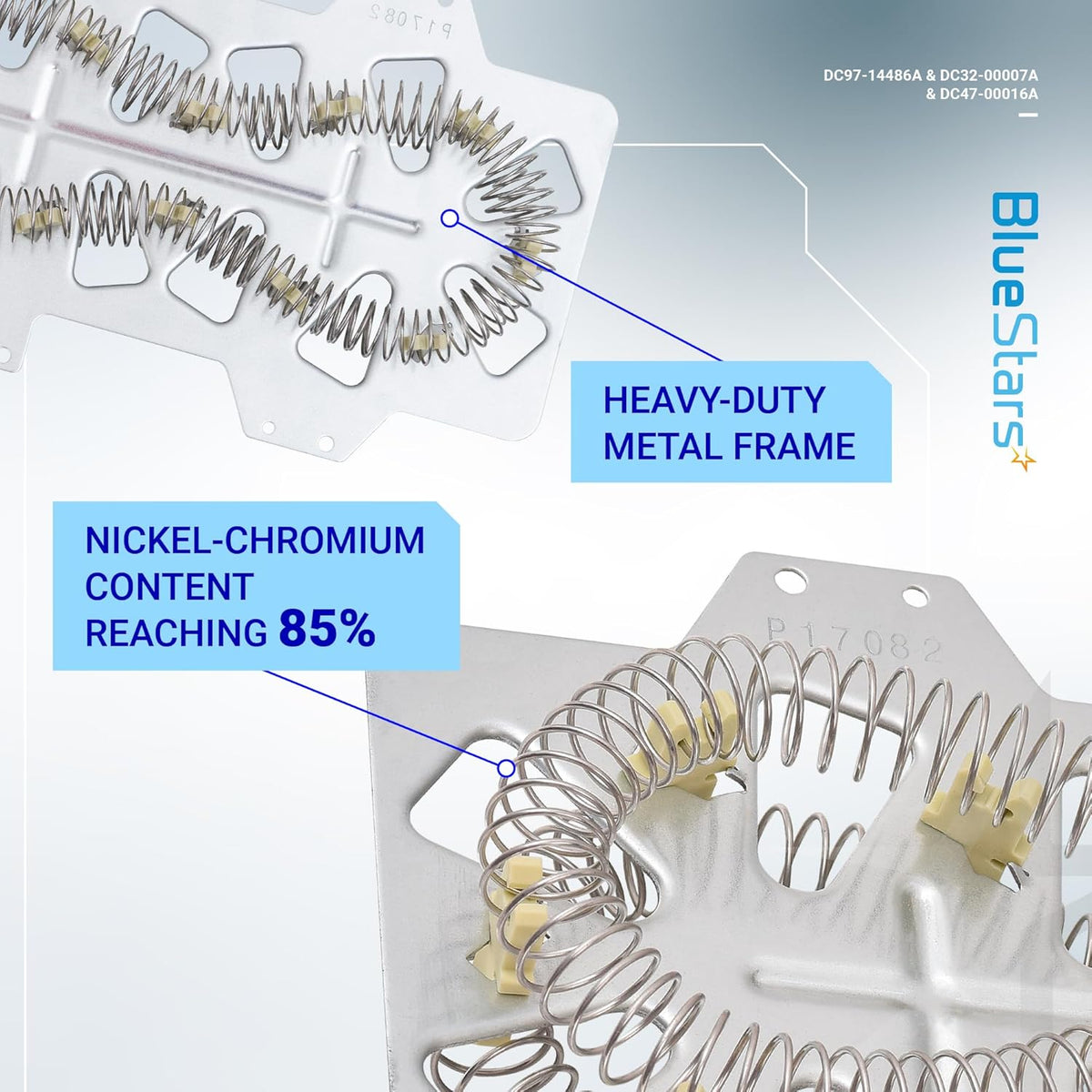

- Constructed with a high-grade nickel-chromium alloy for durability

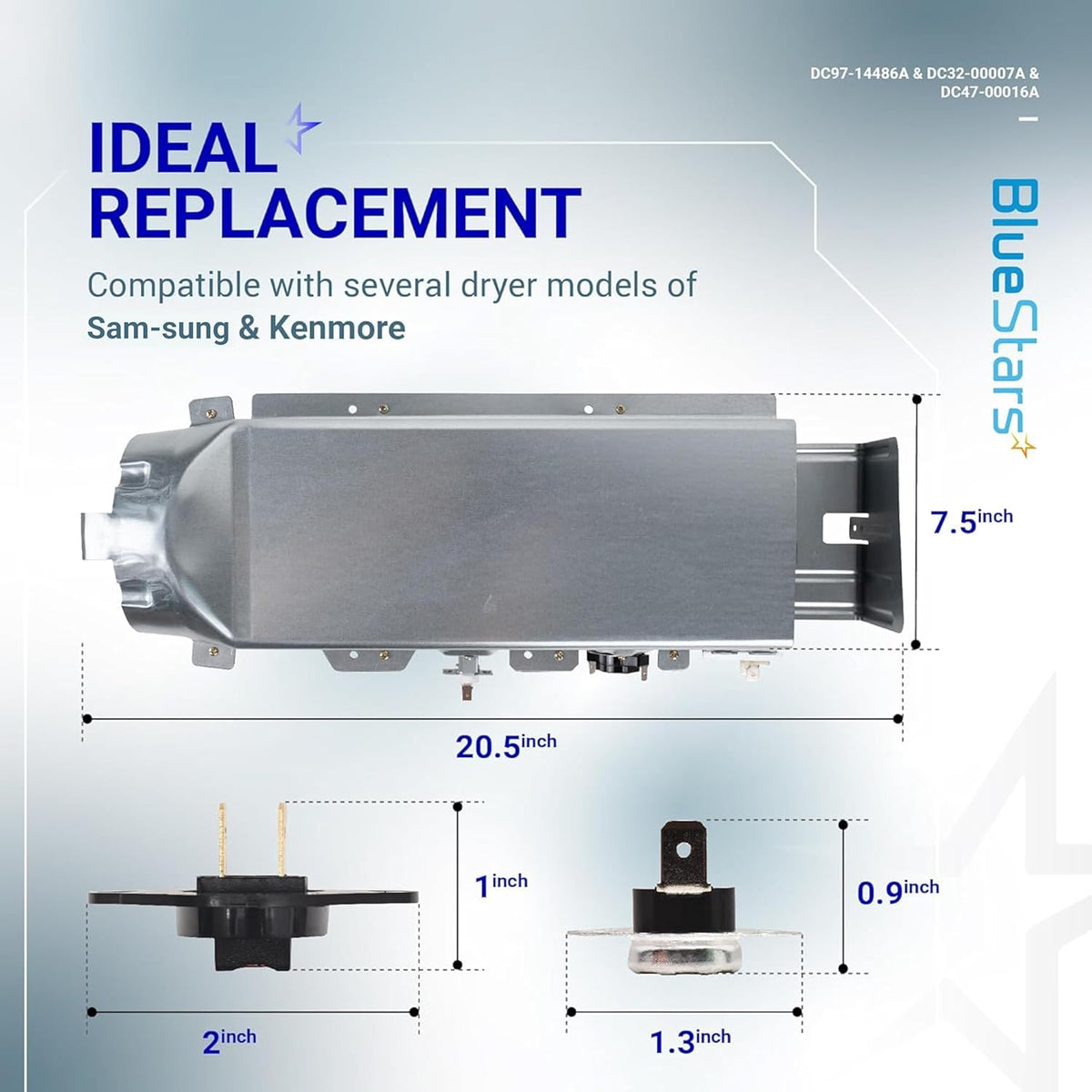

- Dimensions: 20-inch length, 5-inch diameter
- Features a two-terminal electrical connection
Replaces / Cross-Reference Part Numbers
- DC97-14486D
- DC97-08891A
Compatibility & Fitment
- Designed for specific Samsung brand clothes dryer models
- Verify compatibility with your exact dryer model number before ordering

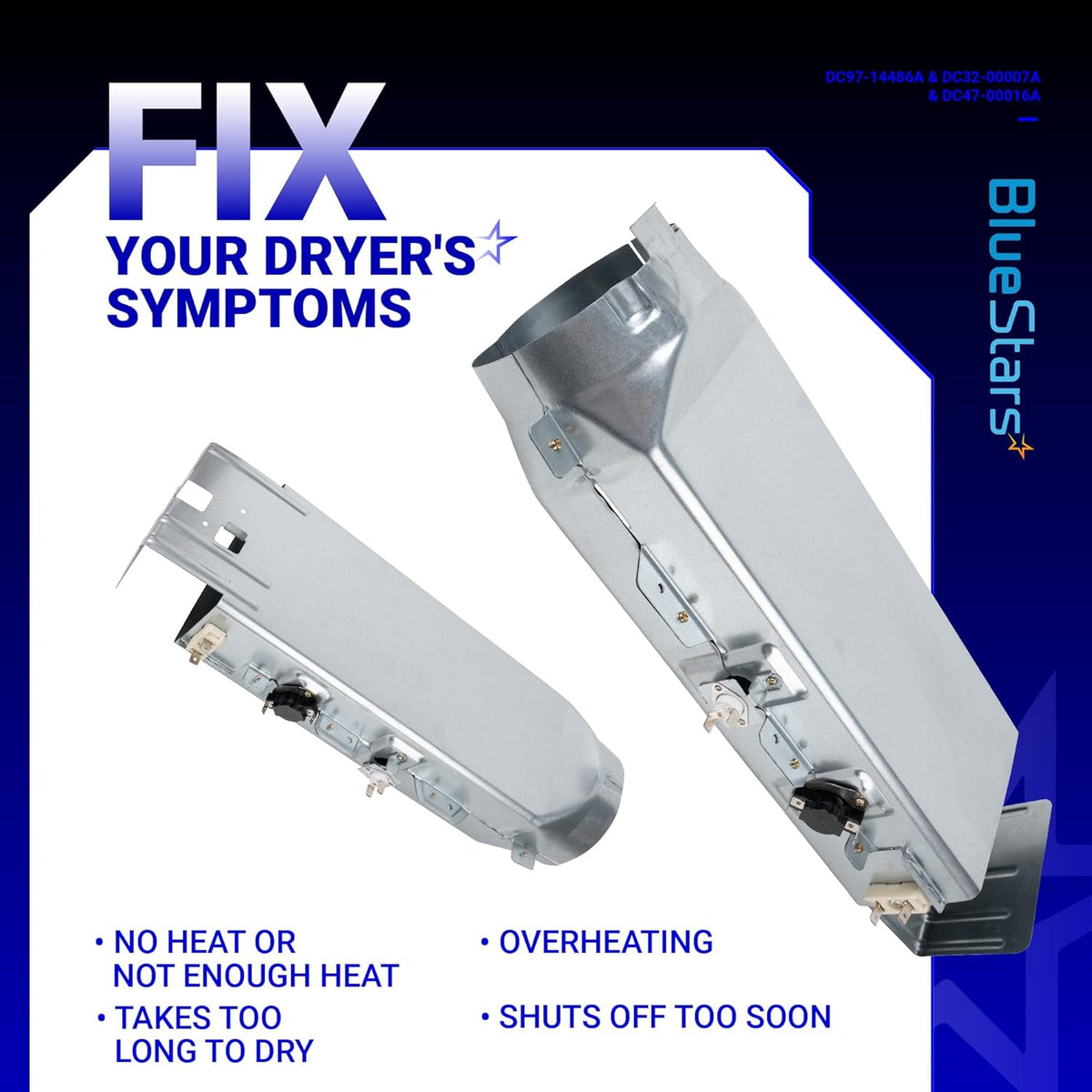

When to Replace
- Dryer runs but produces no heat
- Drying cycles are excessively long
- Heating element coil is visibly broken or shorted
- Dryer shuts off prematurely during the cycle
Installation Tips
- Disconnect the dryer from its power source before starting the repair
- Ensure the two lead wires are securely attached to the terminals on the new element
- Clean the dryer vent system of any lint or debris during installation
DC47-00016A Thermal Fuse
- If the thermal fuse is blown to stop the electricity flow when a dryer overheats, it must be replaced.
DC32-00007A Thermistor
- If the dryer displays a fault code the thermistor may be defective.
4 SIMPLE STEPS
1. Remove the dryer main top, control panel, front panel & bulkhead to reach the heating element assembly; 2. Disconnect the moisture sensor. Unscrew the mounting screws to pull the heater duct out; 3. Release wires & mounting screws to remove the parts from the heater housing; 4. Make sure to clean the dryer vent and blower housing. Reinstall with our new parts!
Brand Name
BlueStars
Model Info
TEST64
Item Weight
4.04 pounds
Product Dimensions
8.11 x 8 x 5.8 inches
Part Number
DC97-14486A & DC32-00007A & DC47-00016A
Color
As pictured
Included Components
NO
Batteries Included?
No
Batteries Required?
No
