8544771 Heating Element & 280148 Thermal Cut-Off (8557403 Hi-Limit Thermostat & 8318314 Thermal Fuse)
0.00
Regular price
$47.51
Regular price
Save 11%
$53.21
Sale price
$47.51
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

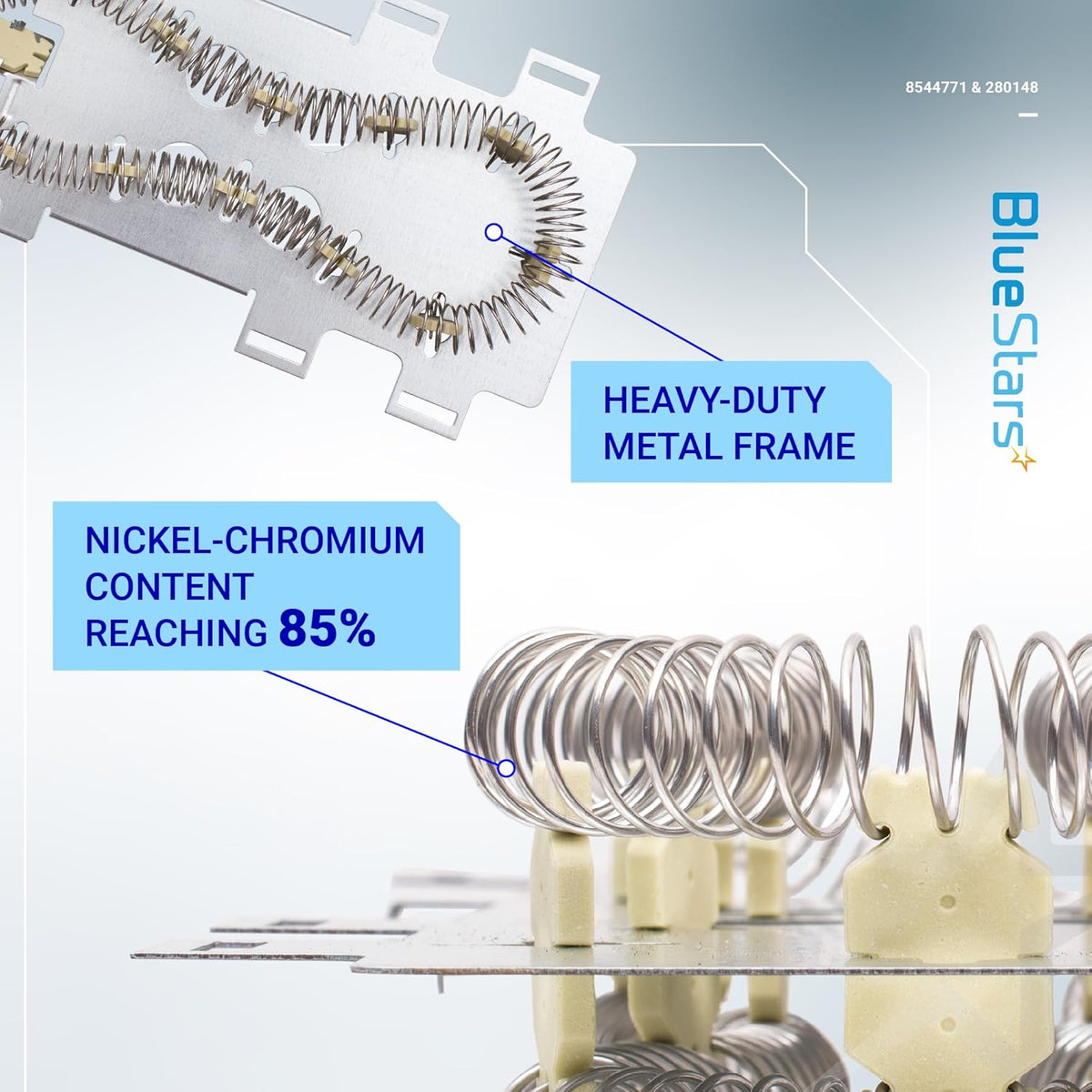

8544771 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat 8318314 Thermal Fuse)
Key Features
- Complete repair kit for non-heating electric dryers.

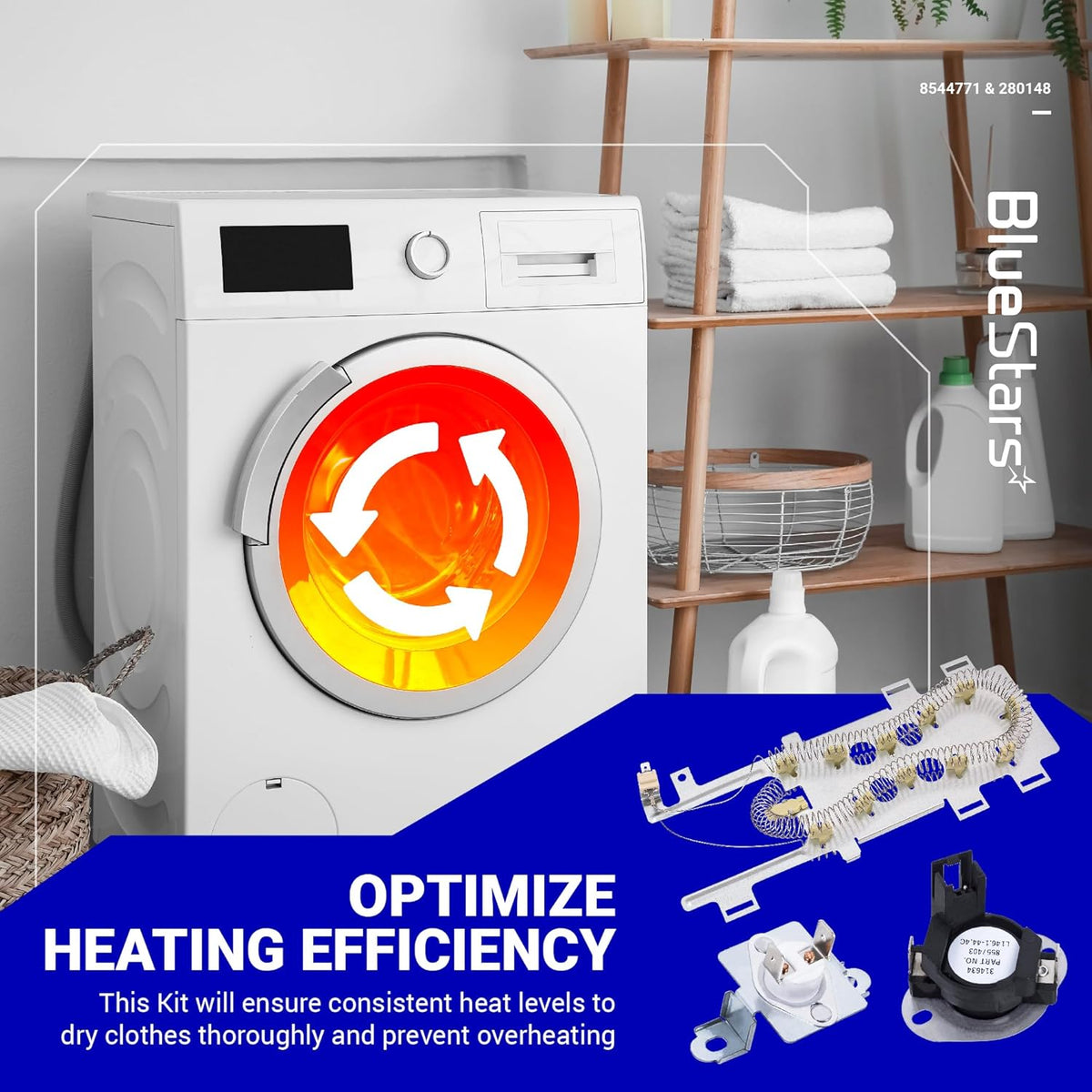

- Restores heat generation and provides critical thermal protection.

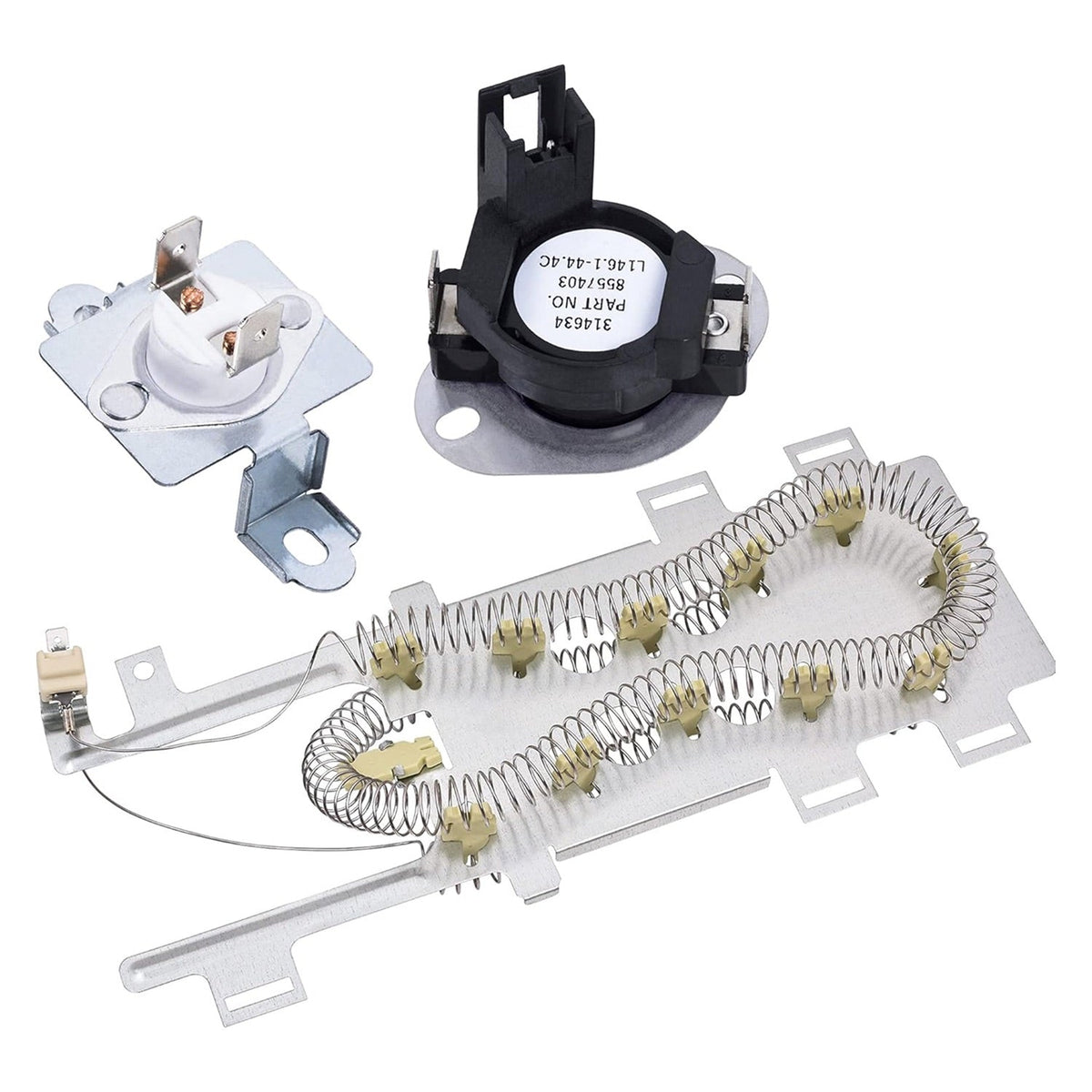

- Kit Contents:
- 1 x 8544771 Heating Element
- 1 x 8557403 High-Limit Thermostat
- 1 x 8318314 Thermal Fuse
Replaces / Cross-Reference Part Numbers
- Dryer Heating Element (8544771): WP8544771, AP6013115, PS11746337, W10836011, WP8544771VP, 8544771R, AP3866035, 7154072, 1180054, PS990361
- Thermal Cut-Off Kit (Thermostat & Fuse) (280148): AP3874047, PS991443, 280148VP, 1175772, EAP991443
- High-Limit Thermostat (8557403): WP8557403, AP6013164, PS11746386, 1180102, EAP11746386
- Thermal Fuse (8318314): AP3094323, PS334387, 279973VP, 3391913, 3404151, AH334387, EAP334387
Compatibility & Fitment
- Designed for select electric dryer models.
- Compatible with major brands including:
- Amana
- Crosley
- Kenmore
- Maytag
- Whirlpool
- Verify fitment by checking your appliance's original part numbers.

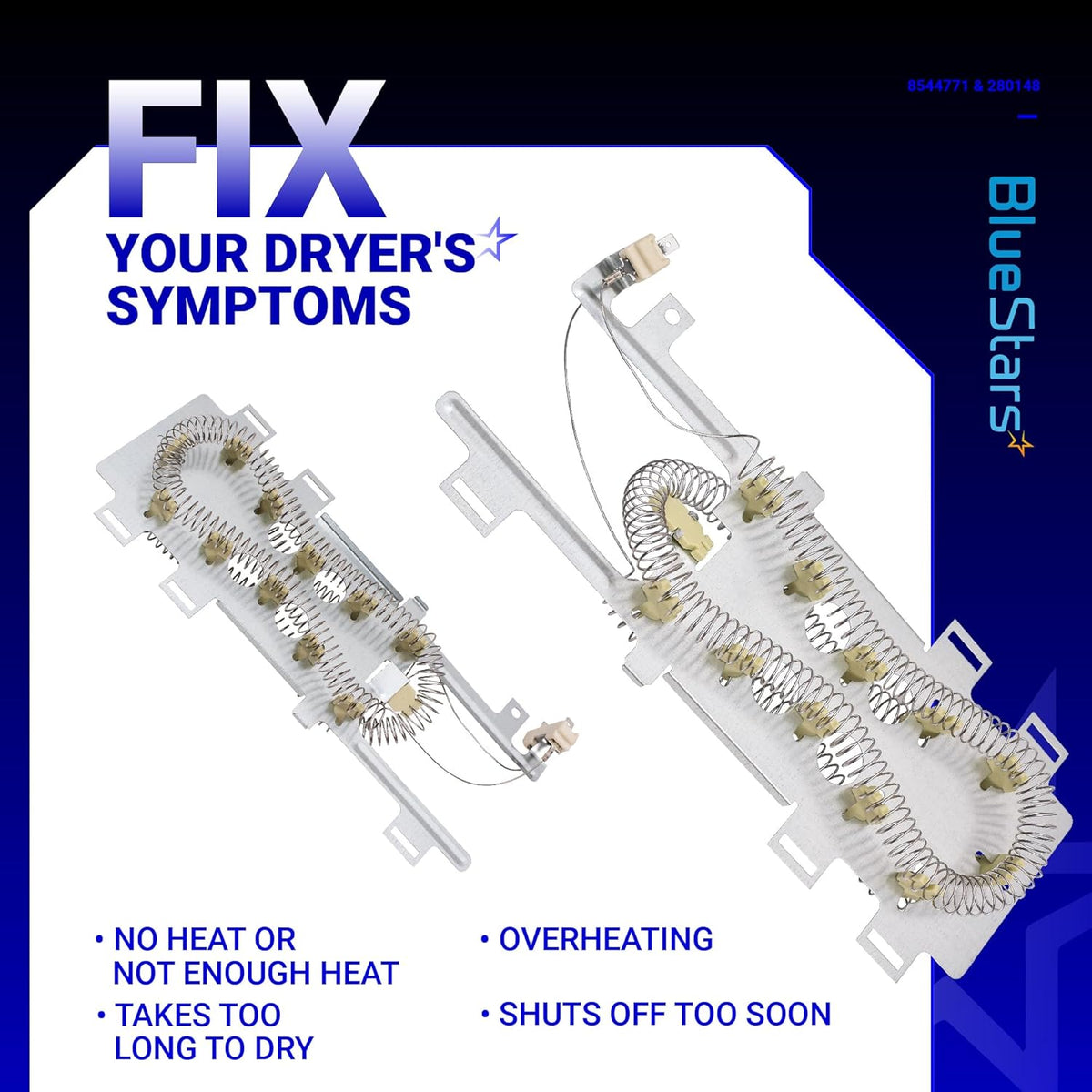

When to Replace
- Dryer runs but does not produce any heat.
- Drying cycles are excessively long.
- Dryer shuts off prematurely mid-cycle.
- Heating element coil is visibly broken or has lost continuity.
Installation Tips
- Disconnect the dryer from its power source before starting the installation.
- For safety and system reliability, it is recommended to replace the heating element, thermostat, and fuse at the same time.
- A multimeter can be used to test the continuity of the original components to confirm failure.
- Ensure the dryer's exhaust vent is completely clear of lint and obstructions to prevent future overheating.
8557403 High Limit Thermostat
Shuts off the heating element when it overheats. Replaces: AP6013164, WP8557403, PS11746386, EAP11746386, 1180102
8318314 Thermal Fuse
Electrical Specs: 352°F, One-Time Fuse (must be replaced once blown). Replaces part number: 8318314
4 SIMPLE STEPS
1. Remove the dryer main top, control panel, front panel & bulkhead, and drum to reach the heating element; 2. Release wires & mounting screws to remove the hi-limit thermostat, thermal fuse,... then pull out the heater housing; 3. Remove the top half of the heater housing to discard the old heating element; 4. Make sure to clean the dryer vent and blower housing. Reinstall with our new parts!
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Part Number
8544771 & 280148
Item Weight
1.08 pounds

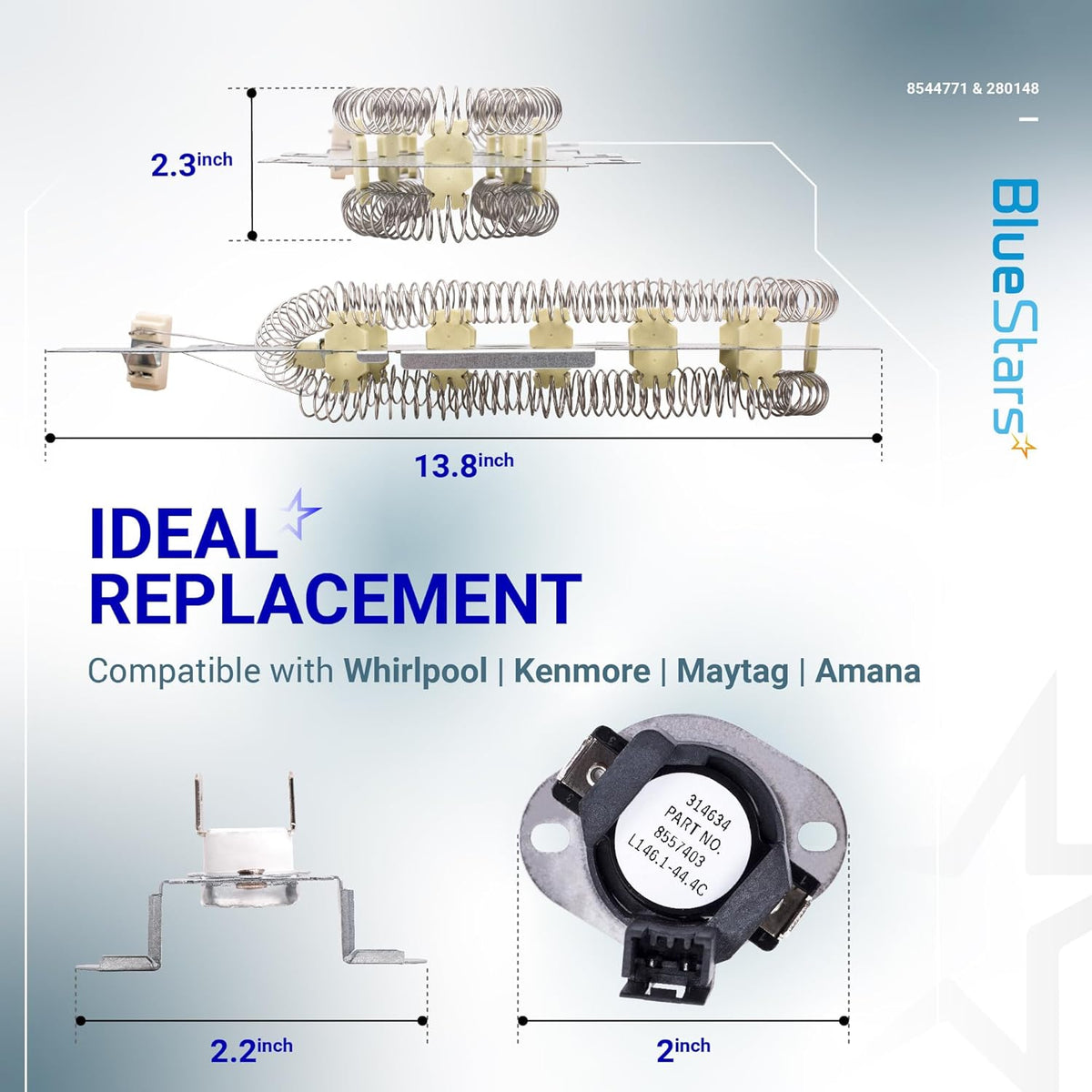

Package Dimensions
14.29 x 13.94 x 2.64 inches
Color
As Pictured

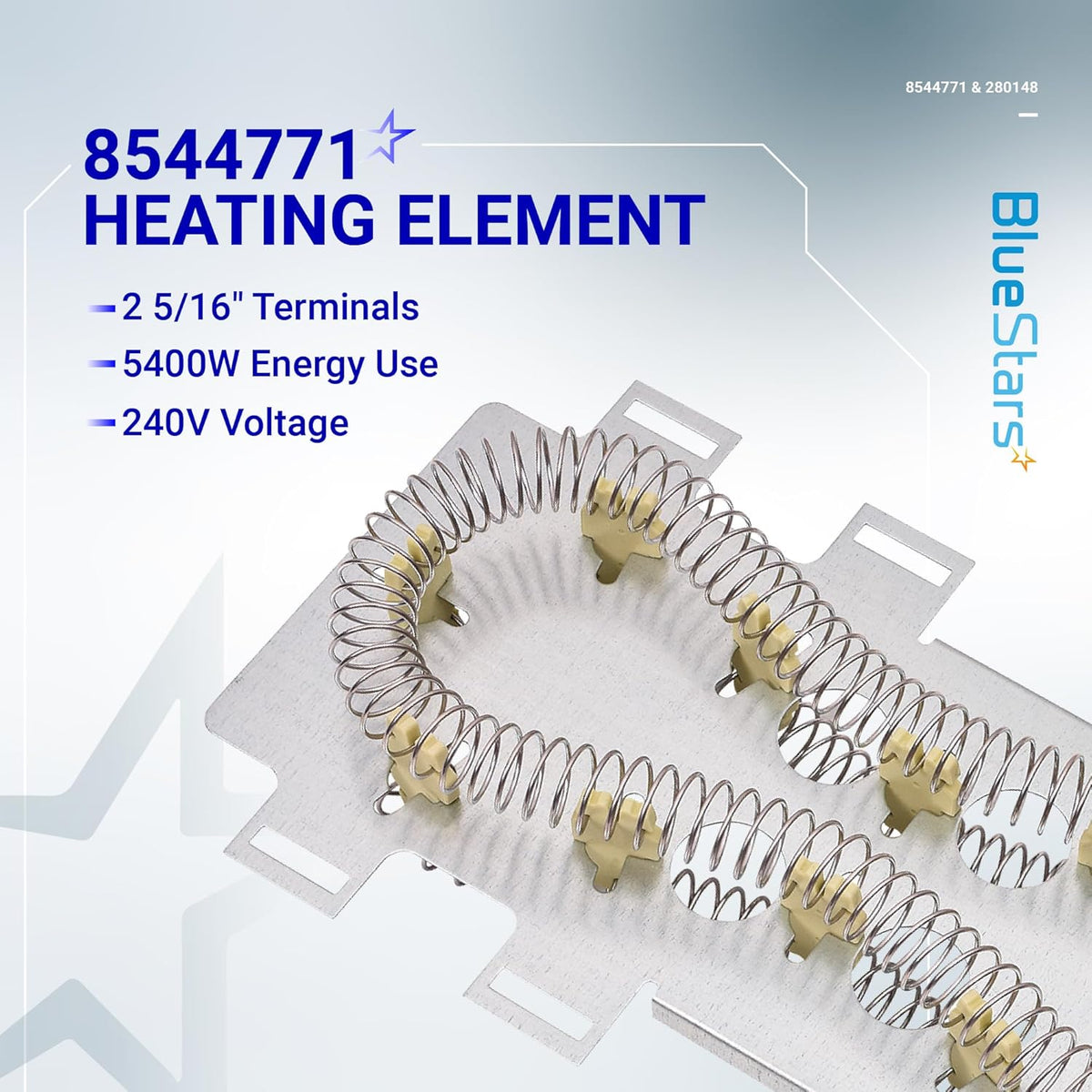

Voltage
240 Volts
Wattage
5400 watts
Included Components
280148 Thermal Cut-Off with High Limit Thermostat
