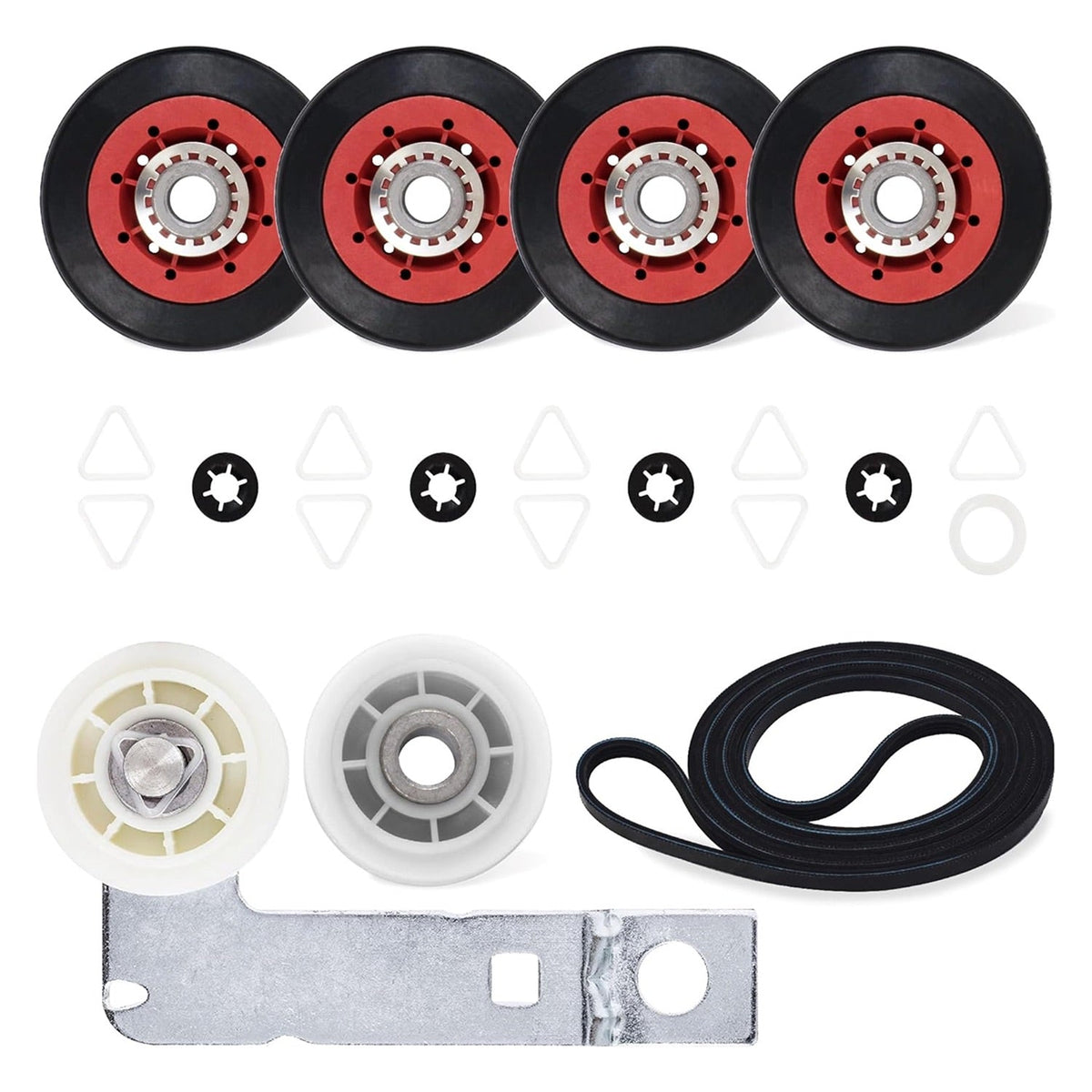

Dryer repair kit with four red idler pulleys, white wheels, metal bracket, drive belt, and hardware for Whirlpool dryers.

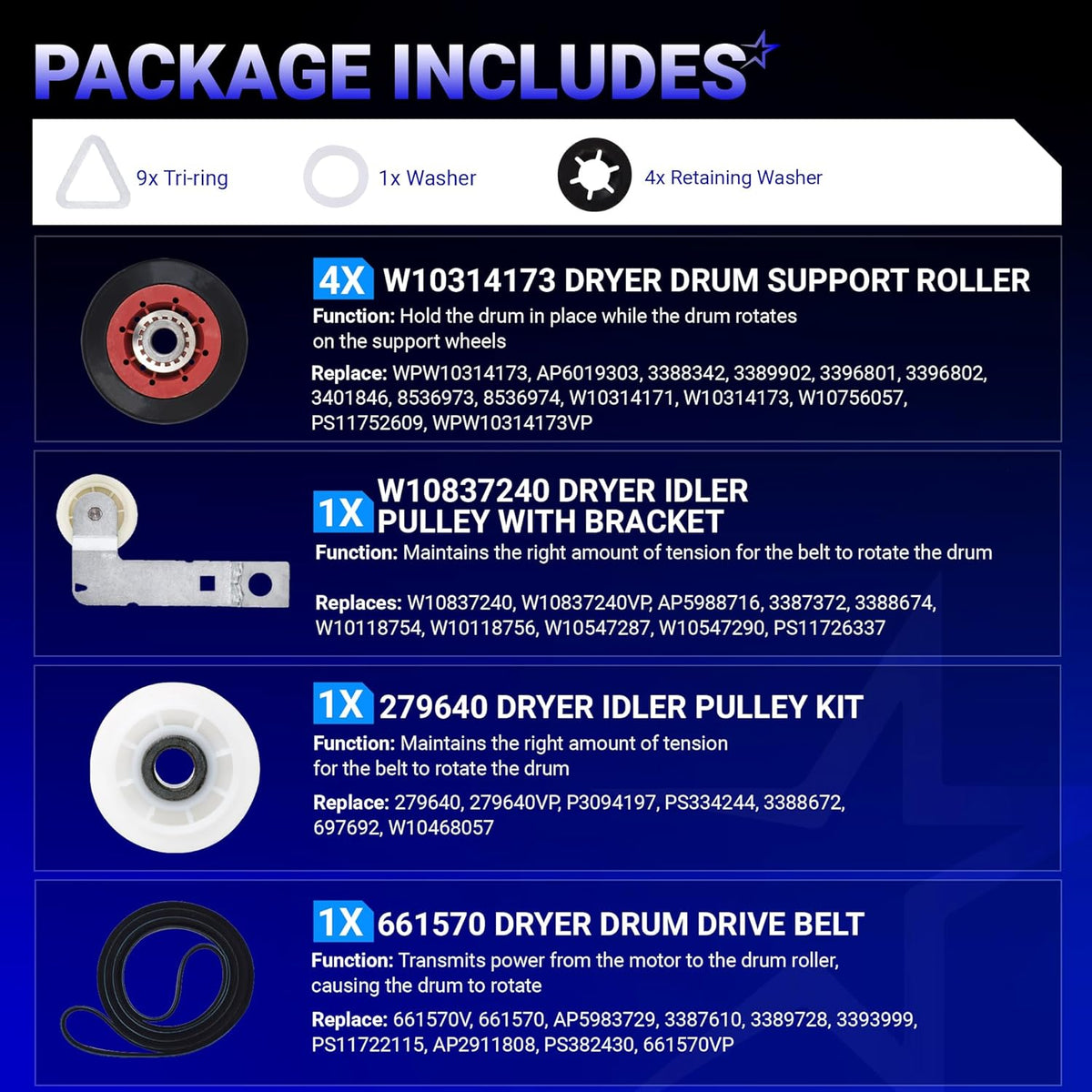

Dryer repair kit contents infographic showing drum rollers, idler pulleys, drive belt, and hardware for Whirlpool dryers.

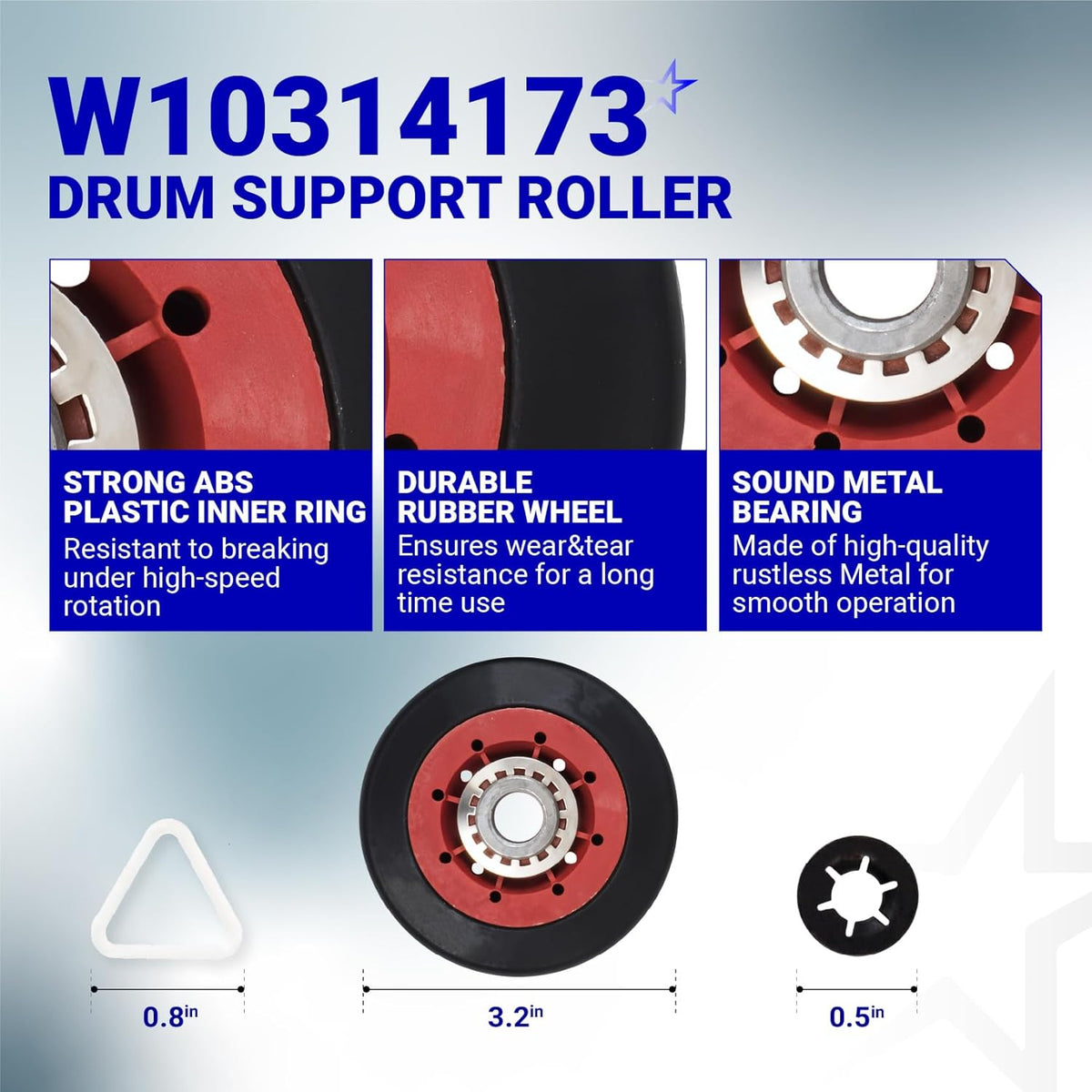

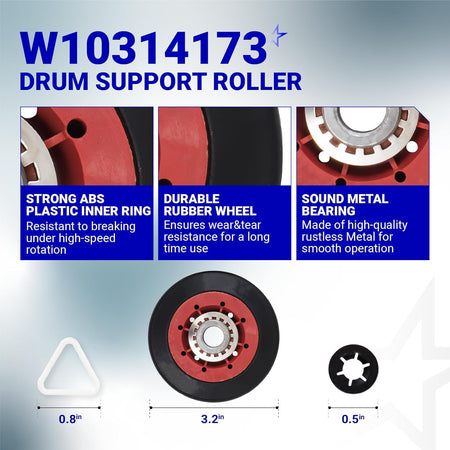

W10314173 dryer drum support roller with metal bearing, rubber wheel, and hardware with dimension labels.

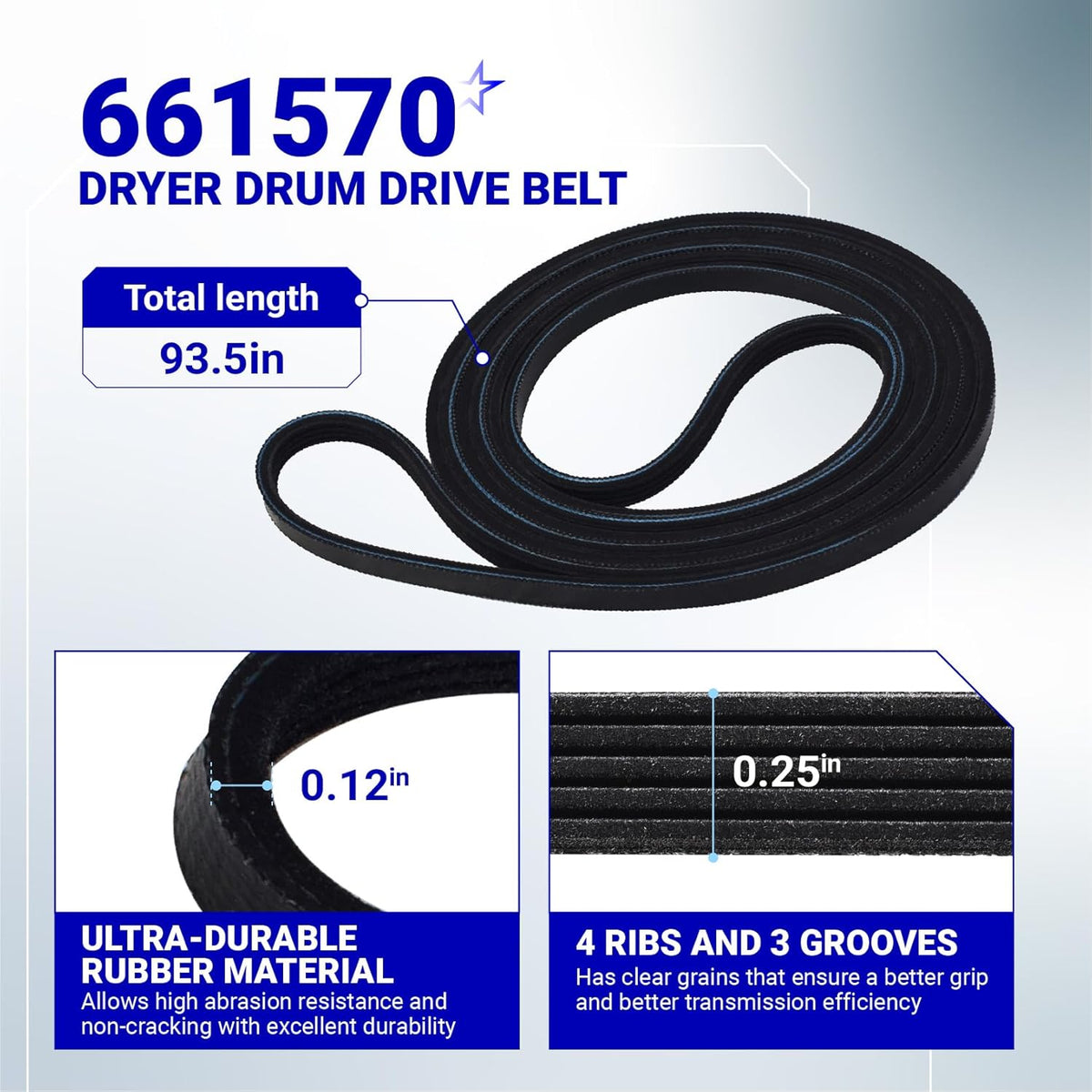

661570 dryer drum drive belt with 93.5-inch length, 4 ribs, and 3 grooves for Whirlpool, Maytag, and Kenmore dryers.

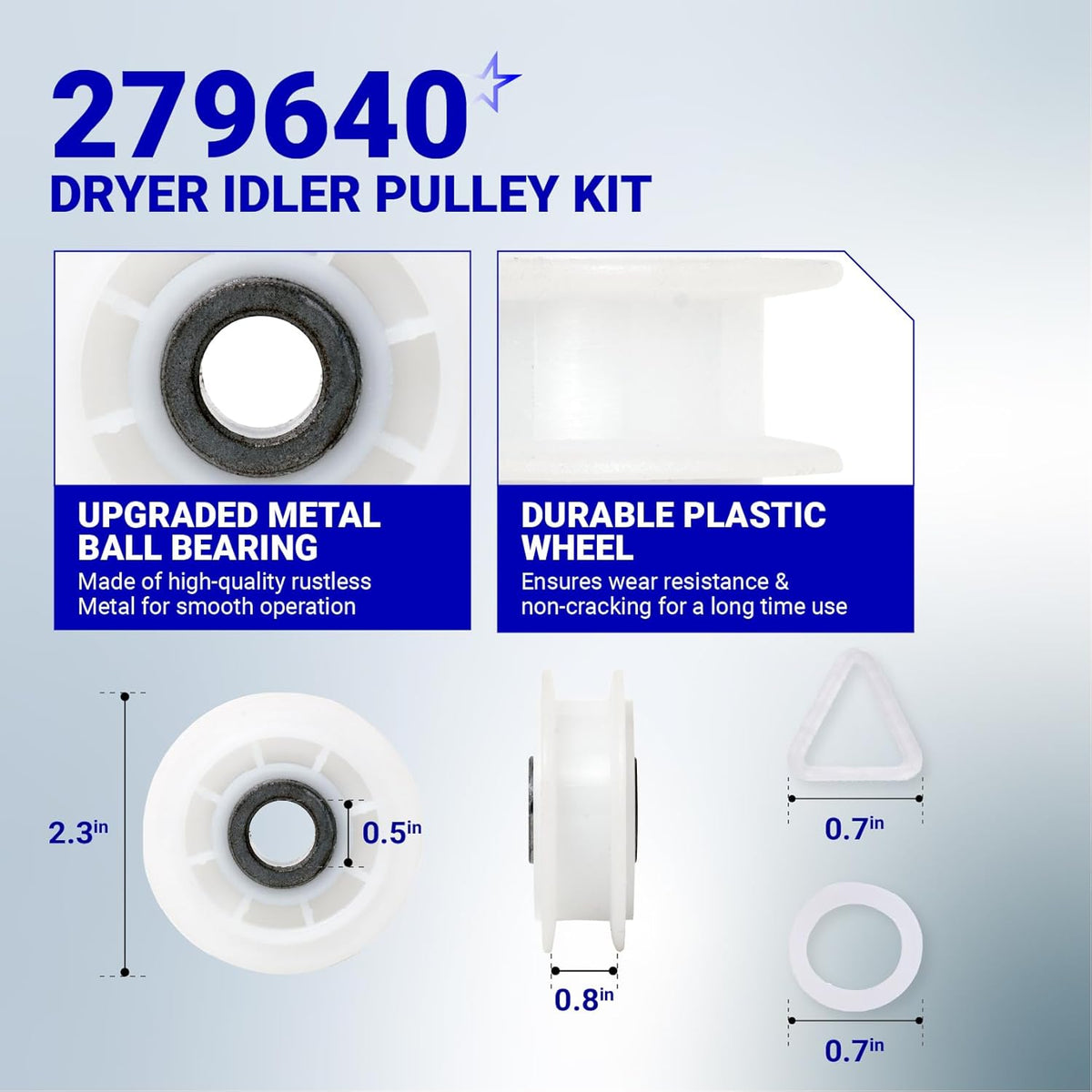

279640 dryer idler pulley kit with metal ball bearing, plastic wheel, and dimensions shown in technical diagram.

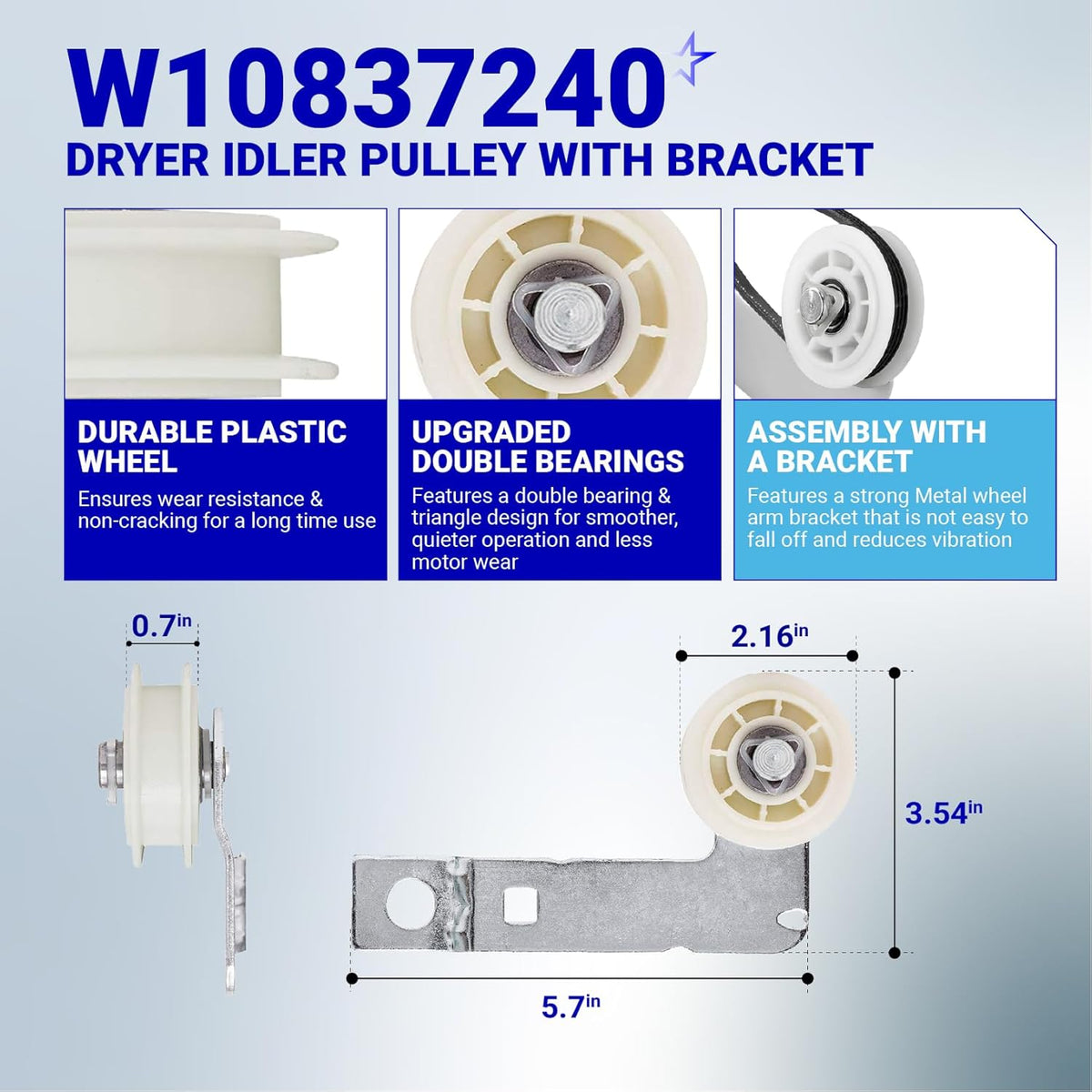

W10837240 dryer idler pulley with bracket showing dimensions, durable plastic wheel, and double bearing assembly.

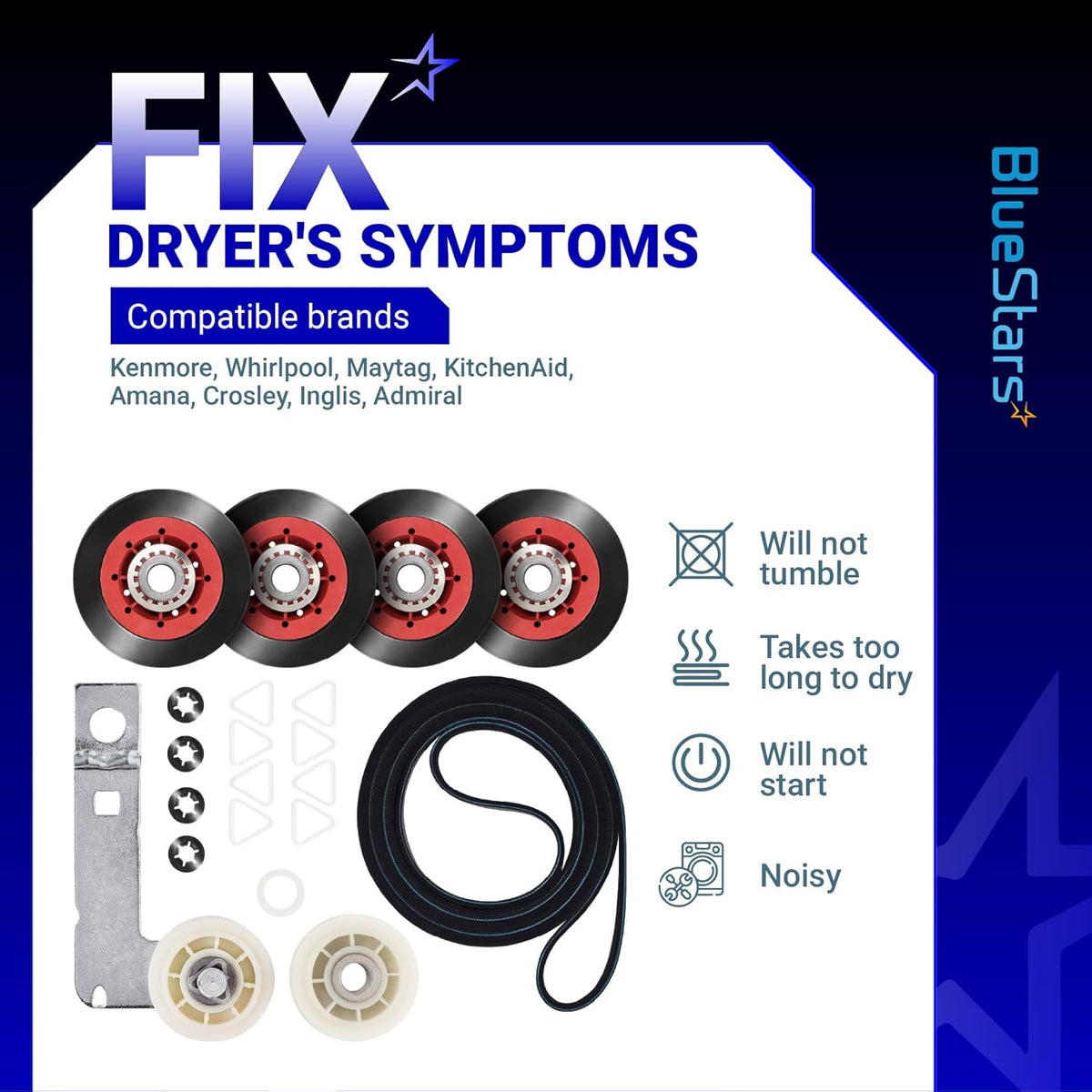

Dryer repair kit with idler pulley, belt, and rollers for Whirlpool, Maytag, and Kenmore dryers showing common symptoms.
Four-step installation guide for Whirlpool dryer repair kit and idler pulley replacement.

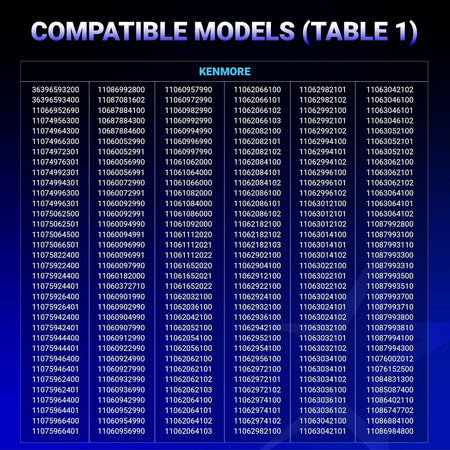

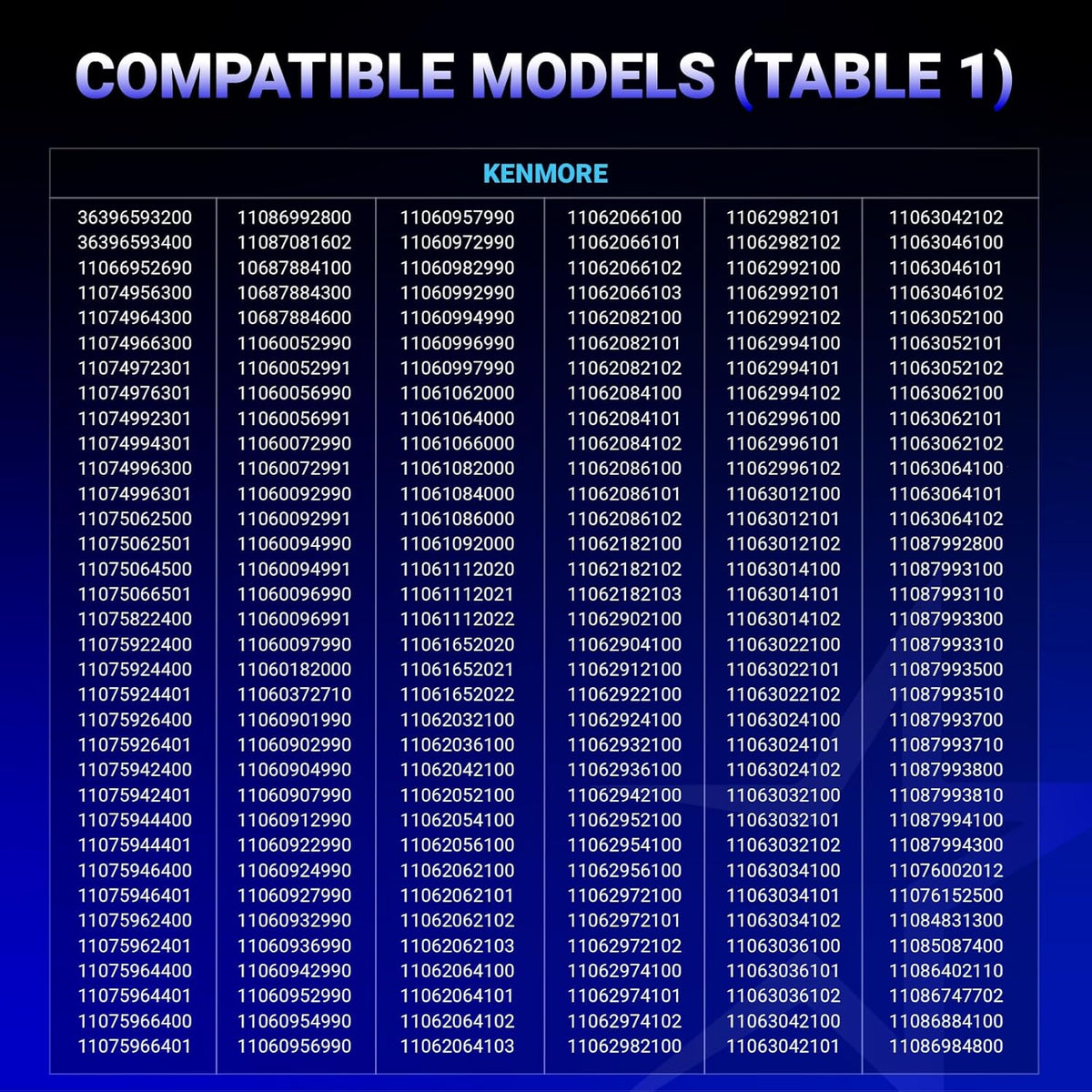

Compatibility chart for Kenmore dryer repair kit and idler pulley replacement parts.
Dryer repair kit with four red idler pulleys, white wheels, metal bracket, drive belt, and hardware for Whirlpool dryers.
Dryer repair kit contents infographic showing drum rollers, idler pulleys, drive belt, and hardware for Whirlpool dryers.
W10314173 dryer drum support roller with metal bearing, rubber wheel, and hardware with dimension labels.
661570 dryer drum drive belt with 93.5-inch length, 4 ribs, and 3 grooves for Whirlpool, Maytag, and Kenmore dryers.
279640 dryer idler pulley kit with metal ball bearing, plastic wheel, and dimensions shown in technical diagram.
W10837240 dryer idler pulley with bracket showing dimensions, durable plastic wheel, and double bearing assembly.
Dryer repair kit with idler pulley, belt, and rollers for Whirlpool, Maytag, and Kenmore dryers showing common symptoms.
Four-step installation guide for Whirlpool dryer repair kit and idler pulley replacement.
Compatibility chart for Kenmore dryer repair kit and idler pulley replacement parts.

4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers

0.00
$34.67
Save 12% $39.32
$34.67
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

4392067 Dryer Repair Kit & W10837240 Dryer Idler Pulley

Key Features

  • Complete maintenance kit containing parts from kit 4392067 and idler assembly W10837240.
  • Kit includes:
  • (4) Drum support rollers (replaces WPW10314173)
  • (1) Drum drive belt
  • (1) Idler pulley with bracket assembly (W10837240)
  • (1) Idler pulley with tri-ring and washer (component of 4392067)

Replaces / Cross-Reference Part Numbers

  • Dryer Repair Kit (4392067): AP3109602, PS373088, 4392067VP, 80047, 587637, 2015, EAP373088, 4392067RC, AH373088, EA373088
  • Dryer Idler Pulley with Bracket (W10837240): AP5988716, PS11726337, W10547290, W10118756, W10118754, W10547287, W10837240VP, 3387372, 3388674, W10547290

Compatibility & Fitment

  • Fits select dryer models from Whirlpool, Kenmore, and Maytag.
  • Intended for specific models that require both the standard 4392067 kit components and the W10837240 idler pulley with bracket.
  • Confirm fitment by checking your appliance model number before ordering.

When to Replace

  • Loud noises during operation, such as squeaking, rumbling, or thumping.
  • The dryer drum fails to rotate or turns with difficulty.
  • The dryer motor runs, but the appliance will not start a cycle.
  • Black marks or residue left on clothing from worn components.

Installation Tips

  • Disconnect the dryer from its power source before starting the repair.
  • Clean accumulated lint from the dryer cabinet interior and exhaust path during service.
  • Note the original path of the drive belt before removal.
  • Ensure the new drive belt is installed with the ribbed side against the drum surface.
  • Verify each new drum roller spins freely on its shaft after installation.
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 1
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 2
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 3
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 4
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 5
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 6
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 7
4392067 Dryer Repair Kit & W10837240 Idler Pulley - For Whirlpool Maytag Kenmore Dryers 8
4 SIMPLE STEPS

4 SIMPLE STEPS

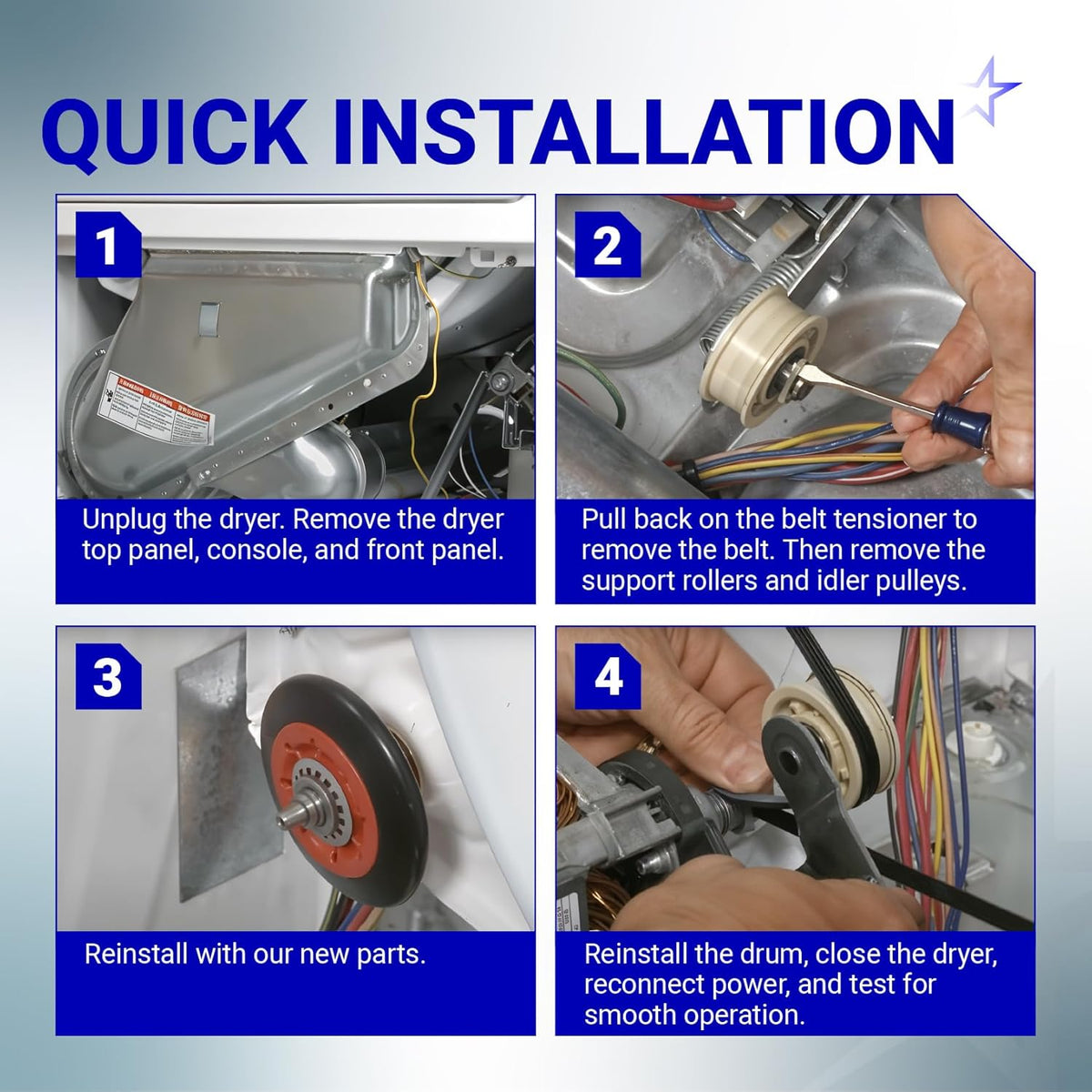

Please turn off appliance power & wear work gloves before repairing. Tools needed: ¼ inch nut driver, Short flat & long flat blade screw driver, Philips Screw Driver: 1. Unplug the dryer. Remove the dryer top panel, console, and front panel; 2. Pull back on the belt tensioner to remove the belt. Then remove the support rollers and idler pulleys; 3. Reinstall with our new parts; 4. Reinstall the drum, close the dryer, reconnect power, and test for smooth operation.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Parts Number
‎10837240, 4392067, 3387610, 279640
Color
‎As Pictured
Included Components
‎4 x W10314173 Drum Roller Support Wheel (4 Red Wheels, 9 PCS Tri-rings, 4 PCS Retaining Washers), 1 x W10837240 Dryer Idler Wheel, 1 x 279640 Dryer Idler Pulley, 1 x 661570V Dryer Drum Drive Belt (93.5'' Long, 1/4'' Width with 4 Ribs and 3 Grooves)

FAQs

This kit is designed to resolve common dryer issues such as excessive squeaking, thumping, or grinding noises during operation. If your dryer drum is failing to rotate, or if you notice the drum is dragging or vibrating significantly, these components are likely worn and in need of replacement.
This kit is compatible with most 27-inch wide dryers manufactured by Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Admiral, and Inglis. It is suitable for a wide range of models, including MEDB835DW4, MGDB835DW4, MEDB855DC4, MEDB835DC4, GEW9250PW1, GEW9250PW0, GGW9250PW3, and GGW9200LW1.
The repair kit replaces OEM part number 4392067. The included idler pulley (W10837240) also replaces and cross-references with 3387372, 3388674, W10118754, W10118756, W10547287, W10547290, and W10837240VP.
This comprehensive kit includes one dryer drive belt, four drum support rollers, one idler pulley assembly, nine roller tri-rings, and the necessary retaining clips to complete the repair.
Replacing these parts requires disassembling the dryer cabinet to access the drum and motor assembly. While it is a standard repair for most DIYers, it typically takes 1 to 2 hours. You will need basic hand tools, including a flat-head screwdriver for removing the tri-ring clips and a socket set or nut driver for the cabinet screws.
Since you will have the dryer cabinet open, it is an ideal time to vacuum out any lint buildup from the interior cabinet and the blower housing. You should also inspect the drum seals for wear and ensure the blower wheel is free of debris, as these can contribute to noise and airflow restrictions.
