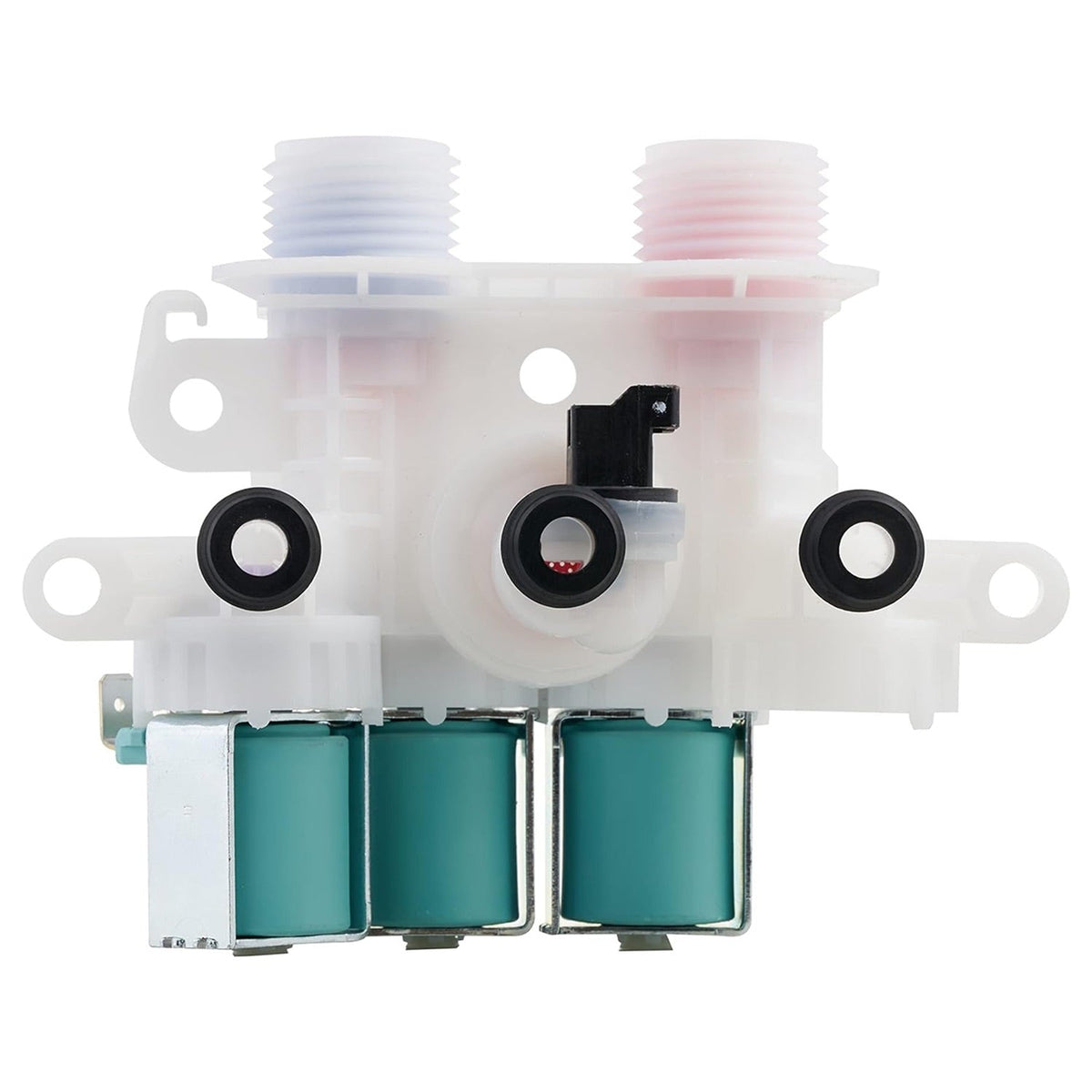

Washer water inlet valve replacement for Whirlpool and Kenmore washing machines with three teal solenoid coils.
W11096268 washer water inlet valve for Whirlpool and Kenmore washing machines shown on an informational product graphic.

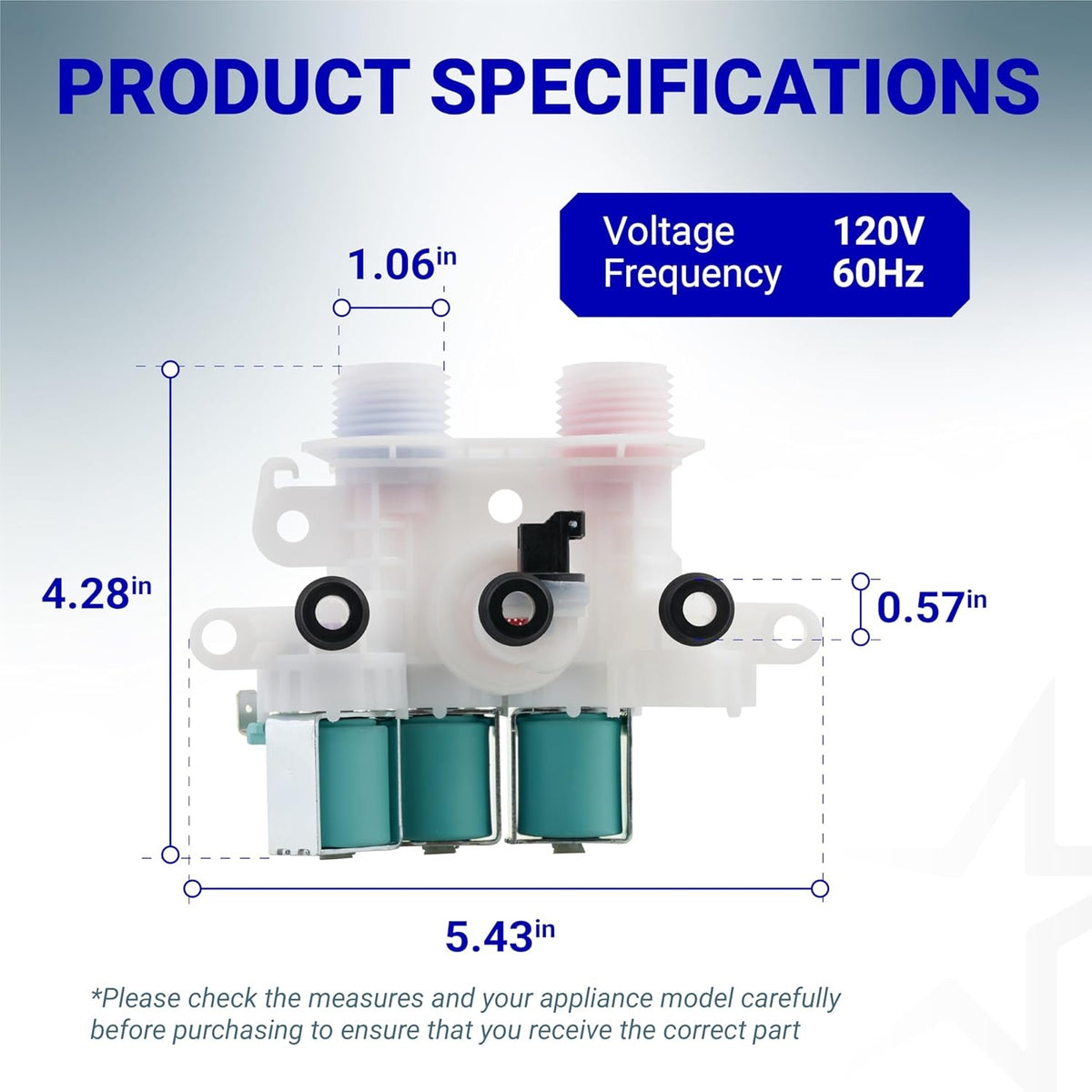

Dimensional diagram of W11096268 washer water inlet valve showing 120V 60Hz specifications and component measurements.
W11096268 washer water inlet valve shown with a top-load washing machine and temperature control description.

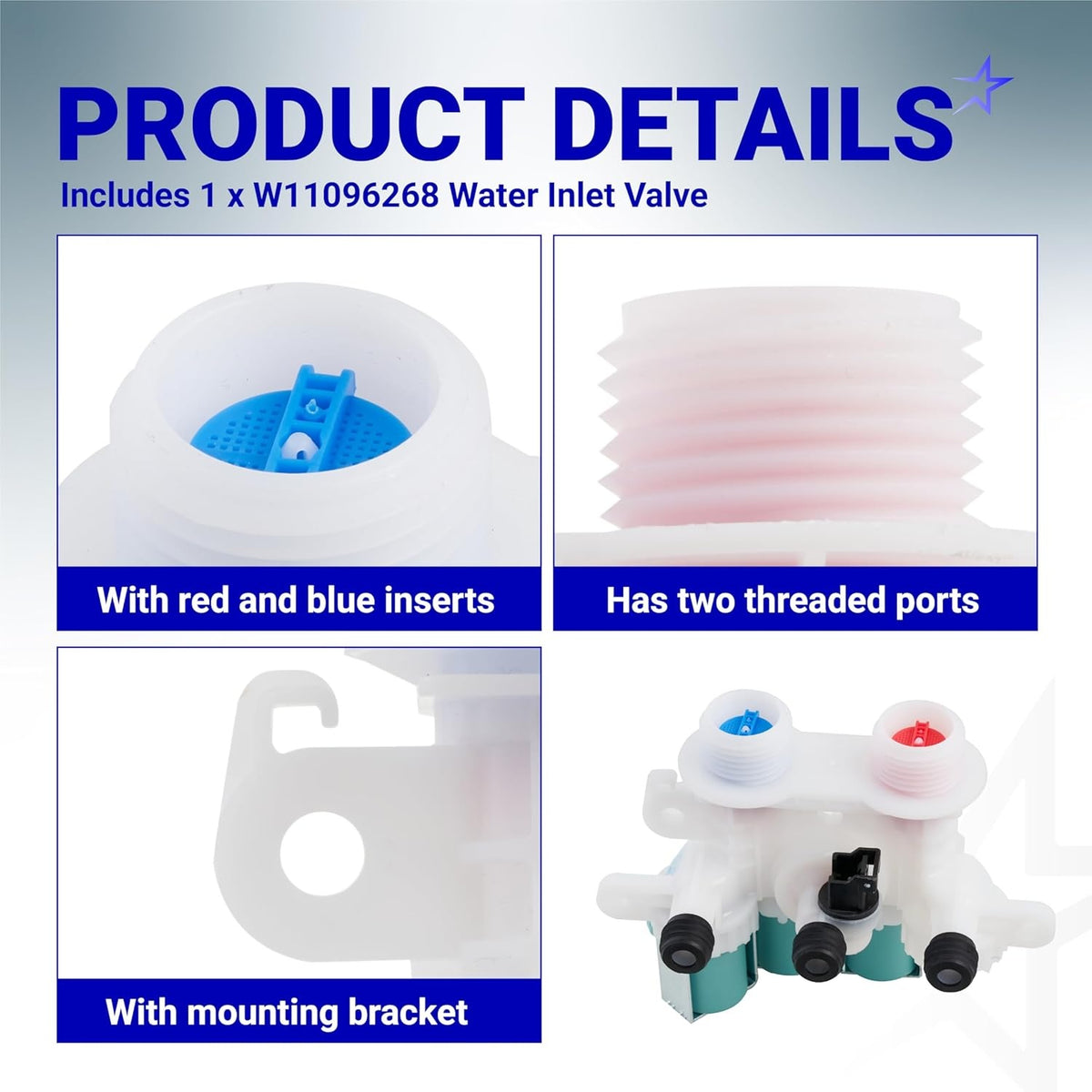

W11096268 washer water inlet valve detail collage showing threaded ports, red and blue inserts, and mounting bracket.

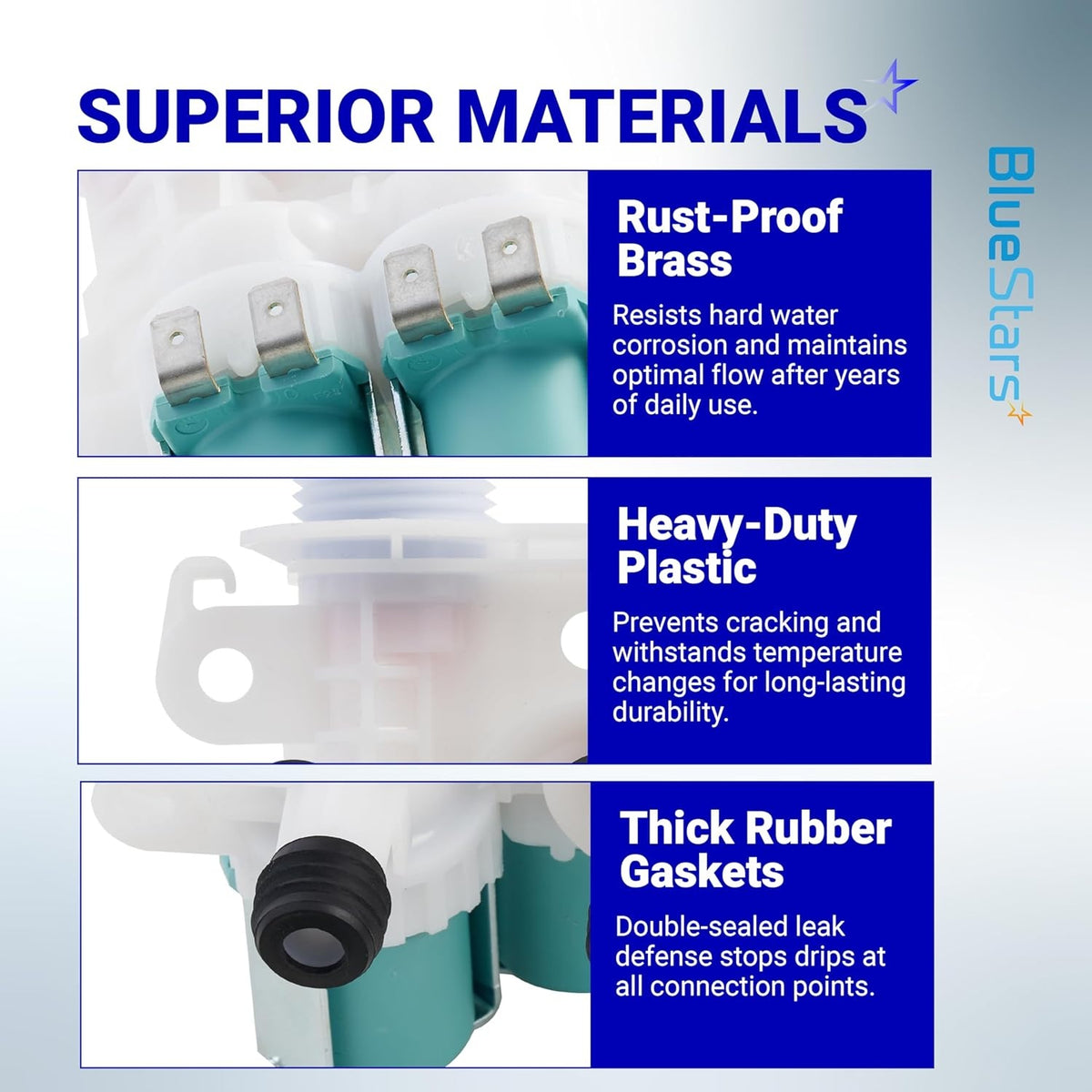

Infographic showing brass, plastic, and rubber materials of the W11096268 washer water inlet valve.
Infographic showing W11096268 washer water inlet valve and common symptoms for Whirlpool and Kenmore washing machines.
Four-step installation guide for Whirlpool and Kenmore washer water inlet valve replacement.
Compatibility chart listing Samsung washer model numbers for W11096268 water inlet valve replacement.
Washer water inlet valve replacement for Whirlpool and Kenmore washing machines with three teal solenoid coils.
W11096268 washer water inlet valve for Whirlpool and Kenmore washing machines shown on an informational product graphic.
Dimensional diagram of W11096268 washer water inlet valve showing 120V 60Hz specifications and component measurements.
W11096268 washer water inlet valve shown with a top-load washing machine and temperature control description.
W11096268 washer water inlet valve detail collage showing threaded ports, red and blue inserts, and mounting bracket.
Infographic showing brass, plastic, and rubber materials of the W11096268 washer water inlet valve.
Infographic showing W11096268 washer water inlet valve and common symptoms for Whirlpool and Kenmore washing machines.
Four-step installation guide for Whirlpool and Kenmore washer water inlet valve replacement.
Compatibility chart listing Samsung washer model numbers for W11096268 water inlet valve replacement.

W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore

0.00
$38.94
Save 11% $43.61
$38.94
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

W11096268 / W11220230 Washer Water Inlet Valve

Key Features

  • Controls the flow of hot and cold water into the washing machine.
  • Features three solenoids for precise water temperature management.
  • Electrical Specification: 120V, 60Hz.
  • Approximate Dimensions: 4.28 in Height x 5.43 in Length.

Replaces / Cross-Reference Part Numbers

  • W11220230
  • AP6329544
  • PS12349461
  • W10632527
  • W10758829
  • W10853296
  • 4591408
  • EAP12349461
  • W11220230VP
  • W11096268VP

Compatibility & Fitment

  • Designed for select washing machine models from brands including Whirlpool, Maytag, and Kenmore.
  • Verify compatibility with your specific model number before ordering.

When to Replace

  • Washer does not fill with water, or fills slowly.
  • Water leaks from the valve body or hose connections.
  • Washer fills with the incorrect water temperature.
  • Washer continues to fill with water when powered off.
  • Loud humming or buzzing noise is present during the fill cycle.

Installation Tips

  • Disconnect the washer from both power and water supplies before beginning installation.
  • Place towels under the work area to catch any residual water from hoses.
  • Inspect and clean the filter screens in the water inlet hoses.
  • Ensure all hose connections are hand-tightened, then turned an additional quarter-turn with pliers to prevent leaks.
W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 1
W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 2
W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 3
  • W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 1

    FIX WASHER'S SYMPTOMS:

    Error codes (E1, F8, FL, LF, LO) shown, Washer not filling properly, Inlet valve leaks, Incorrect water temperature
  • W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 2

    RELIABLE QUALITY

    W11096268 Washer Water Inlet Valve is made of strong & durable materials that prevent cracking and failure during installation and use.
  • W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 3

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore 4

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

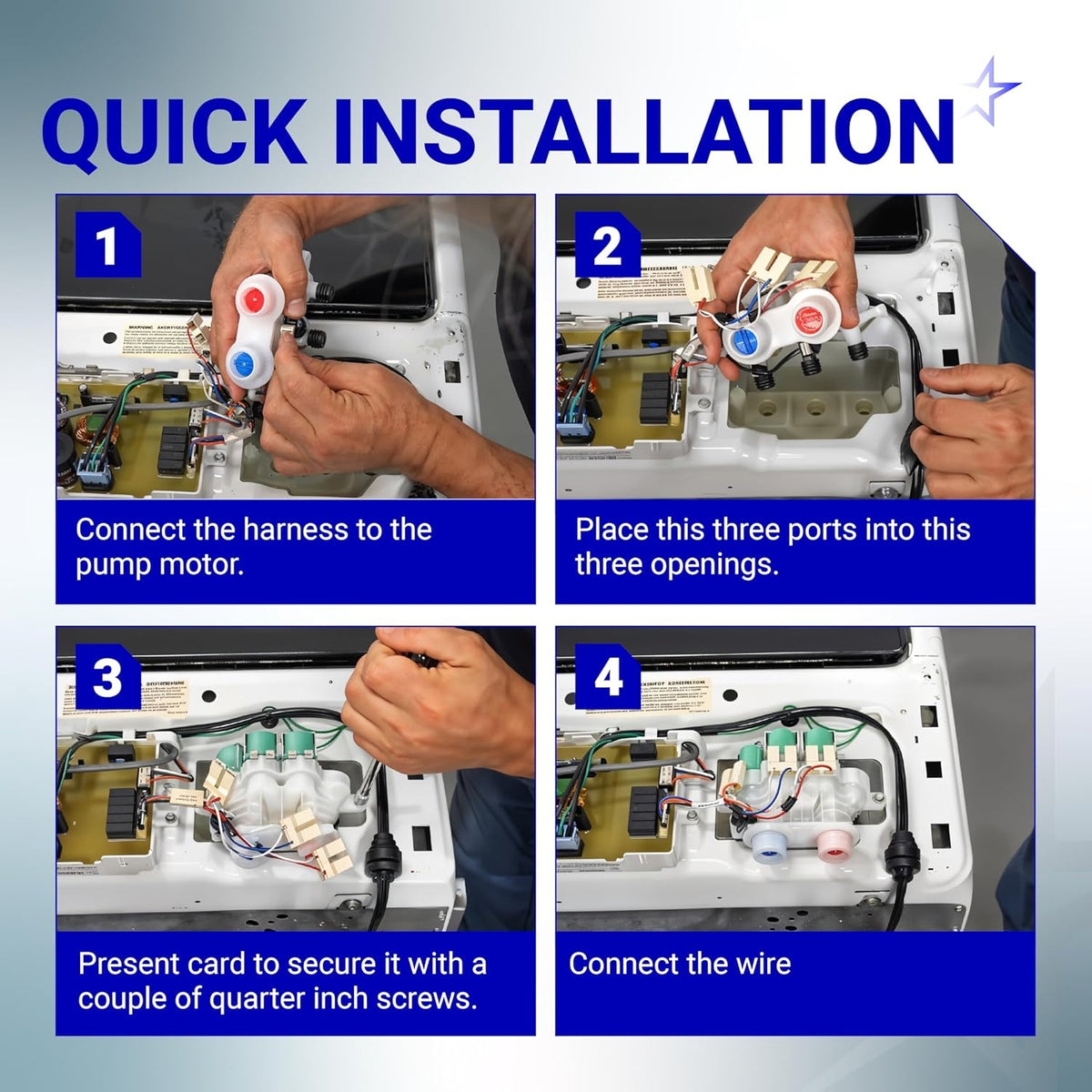

4 SIMPLE STEPS

4 SIMPLE STEPS

1.Connect the harness to the pump motor; 2. Place this three ports into this three openings; 3. Present card to secure it with a couple of quarter inch screws; 4.Connect the wire

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Voltage
120V AC
Frequency
60Hz
Solenoid Coils
3
Inlet Ports
2 (Hot / Cold)
Port Diameter
1.06 inches
Port Colors
Red (Hot) + Blue (Cold)

FAQs

This valve is designed for use with Whirlpool, Kenmore, and Maytag washing machines. It is compatible with a wide range of models, including but not limited to WTW7300DC0, WTW7300DW2, WTW8127LW0, WTW8127LC0, WTW8000DW1, WTW7000DW4, WTW8040DW0, and various units requiring the listed OEM part numbers.
This unit serves as a direct replacement for OEM part numbers W11096268, W11220230, W10632527, W10758829, W10853296, and AP6329544. It also cross-references with PS12349461, 4591408, and EAP12349461.
You likely need a new valve if your washer is failing to fill with water, filling very slowly, or if it continues to let water into the tub even when the machine is powered off. Leaking from the back of the machine near the hose connections can also indicate a failure of the internal valve seals.
The installation process is straightforward and typically requires a screwdriver, a pair of pliers, and a wrench to disconnect the water supply lines. Always ensure the washer is unplugged and the water supply valves are completely shut off before beginning the repair.
The valve features two distinct ports—one for hot and one for cold water—which are color-coded to match your supply hoses. When disassembling the back and top panels of your washer, keep track of your screws, as the access points can be slightly tight depending on your specific model configuration.
This water inlet valve is rated for 120V and 60Hz, which is the standard requirement for the compatible Whirlpool, Kenmore, and Maytag washing machine models listed.
