Lifetime Warranty
[Lifetime Warranty] WPW10448876 Washer Water Level Pressure Switch - Compatible with Whirlpool, Maytag, Amana, Kenmore Washer - W10448876 10448876 2312075 AP6021553 PS11754877 WPW10448876VP
Save 13%
0.00
Regular price
$25.19
Regular price
$28.97
Sale price
$25.19
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

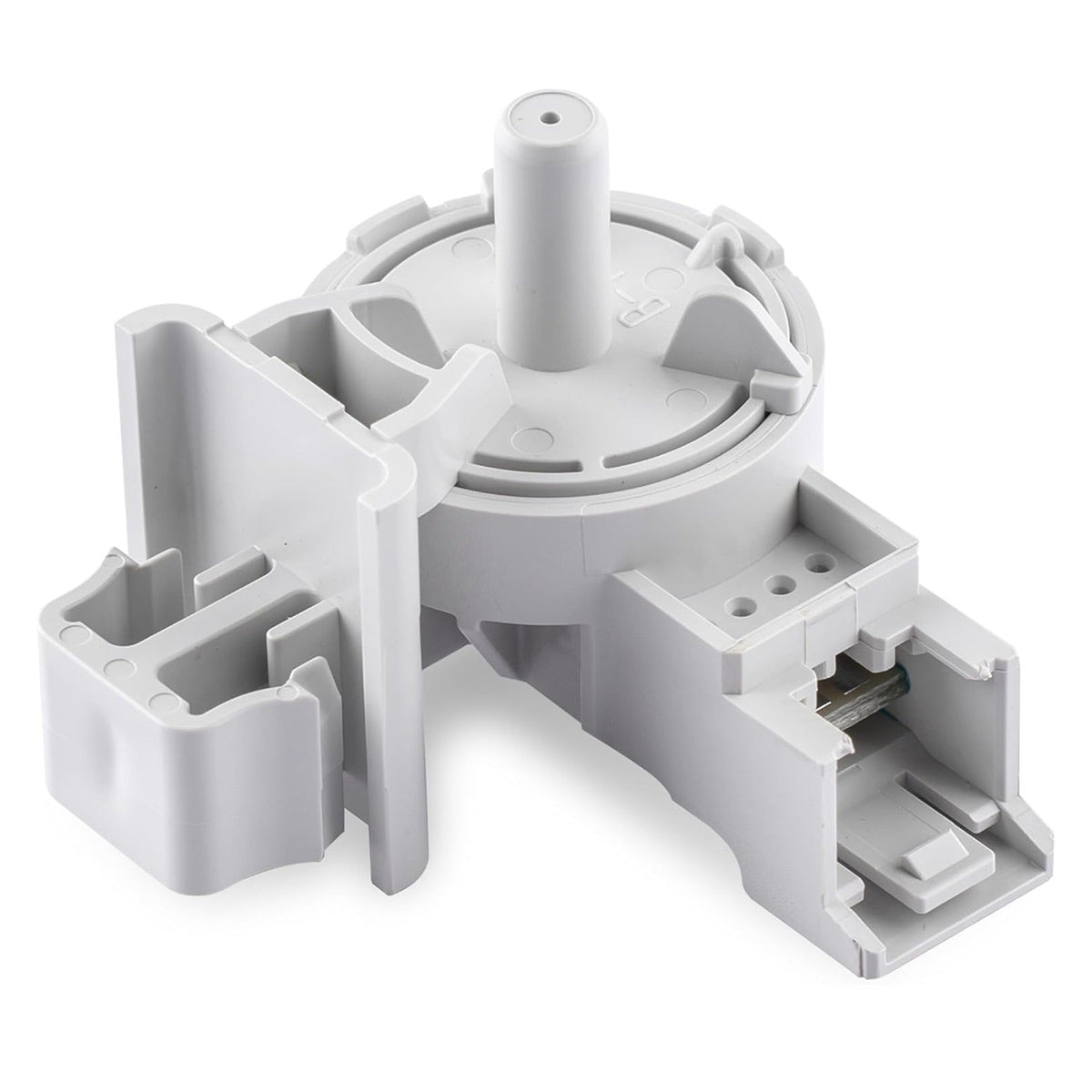

WPW10448876 Washer Water Level Pressure Switch
Key Features
- Senses and regulates the water level in the washer tub
- Ensures accurate water volume for different wash cycles
- Direct replacement for specified OEM part numbers
Replaces / Cross-Reference Part Numbers
- AP6021553
- PS11754877
- W10448876
- 2312075
- WPW10448876VP
- EAP11754877
Compatibility & Fitment
- Designed for specific front-load and top-load washing machines
- Compatible with select models from brands including Whirlpool, Maytag, and Kenmore
- Verify compatibility by checking your appliance's original part number
When to Replace
- Washer is overfilling or underfilling with water
- Washer fails to fill with water
- Washer does not advance to the spin or drain cycle
- Display shows a water level or pressure sensor error code
Installation Tips
- Disconnect the washer from power and water sources before beginning repair
- Access the switch, typically by removing the top or rear panel of the appliance
- Note the orientation of the old switch, wiring harness, and air hose before removal
- Ensure the air hose is securely reattached to the new switch and is free of kinks or blockages
-
WIDE COMPATIBILITY
Compatible with front-load washing machines of many top-named brands Whirlpool, Maytag, Amana, Kenmore, Crosley (detailed list below) -
PART NUMBERS
This Washer Water-Level Pressure Switch replaces parts: #WPW10448876VP, W10448876, 2312075, AP6021553, PS11754877, EA11754877 -
SAVING SOLUTION
BlueStars brings DIY solutions to help deal with any trouble -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility
4 SIMPLE STEPS
Please Unplug the washing machine and turn off the water supply & Wear work gloves before installing: 1. Unthread the rear screws to remove the top panel; 2. Release the pressure switch tab to detach the wire plug; 3. Rotate the switch to detach it from the side panel. Pull it free from the pressure tube; 4. Reinstall with our new part!

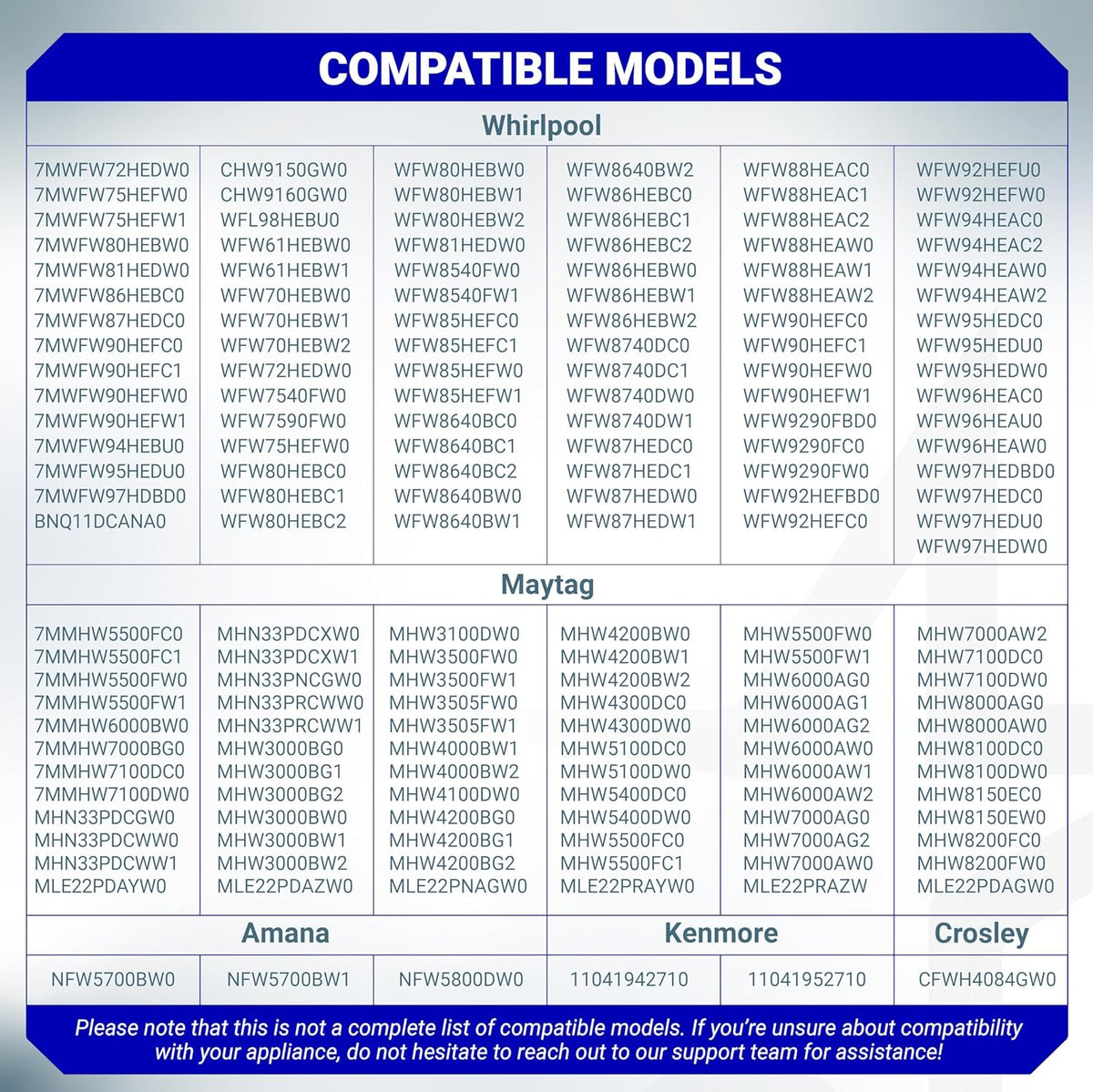

| Brand | Model Number |
|---|---|
| Replaces | 2312075, AP6021553, EAP11754877, PS11754877, W10448876, WPW10448876VP |
| Amana | NFW5700BW0, NFW5700BW1, NFW5800DW0 |
| Crosley | CFWH4084GW0 |
| Kenmore | 11041942710, 11041952710 |
| Maytag | 7MMHW5500FC0, 7MMHW5500FC1, 7MMHW5500FW0, 7MMHW5500FW1, 7MMHW6000BW0, 7MMHW7000BG0, 7MMHW7100DC0, 7MMHW7100DW0 |
| Maytag | MHN33PDCGW0, MHN33PDCWW0, MHN33PDCWW1, MHN33PDCXW0, MHN33PDCXW1, MHN33PNCGW0, MHN33PRCWW0, MHN33PRCWW1 |
| Maytag | MHW3000BG0, MHW3000BG1, MHW3000BG2, MHW3000BW0, MHW3000BW1, MHW3000BW2, MHW3100DW0, MHW3500FW0, MHW3500FW1, MHW3505FW0, MHW3505FW1, MHW4000BW1, MHW4000BW2, MHW4100DW0, MHW4200BG0, MHW4200BG1, MHW4200BG2, MHW4200BW0, MHW4200BW1, MHW4200BW2, MHW4300DC0, MHW4300DW0 |
| Maytag | MHW5100DC0, MHW5100DW0, MHW5400DC0, MHW5400DW0, MHW5500FC0, MHW5500FC1, MHW5500FW0, MHW5500FW1, MHW6000AG0, MHW6000AG1, MHW6000AG2, MHW6000AW0, MHW6000AW1, MHW6000AW2, MHW7000AG0, MHW7000AG2, MHW7000AW0, MHW7000AW2, MHW7100DC0, MHW7100DW0, MHW8000AG0, MHW8000AW0, MHW8100DC0, MHW8100DW0, MHW8150EC0, MHW8150EW0, MHW8200FC0, MHW8200FW0 |
| Maytag | MLE22PDAGW0, MLE22PDAYW0, MLE22PDAZW0, MLE22PNAGW0, MLE22PRAYW0, MLE22PRAZW0, MLG22PDAGW0, MLG22PDAWW0, MLG22PNAGW0, MLG22PRAWW0 |
| Whirlpool | 7MWFW72HEDW0, 7MWFW75HEFW0, 7MWFW75HEFW1, 7MWFW80HEBW0, 7MWFW81HEDW0, 7MWFW86HEBC0, 7MWFW87HEDC0, 7MWFW90HEFC0, 7MWFW90HEFC1, 7MWFW90HEFW0, 7MWFW90HEFW1, 7MWFW94HEBU0, 7MWFW95HEDU0, 7MWFW97HDBD0 |
| Whirlpool | BNQ11DCANA0, CET9000GQ0, CHW9150GW0, CHW9160GW0 |
| Whirlpool | WFL98HEBU0, WFW61HEBW0, WFW61HEBW1, WFW70HEBW0, WFW70HEBW1, WFW70HEBW2, WFW72HEDW0, WFW7590FW0, WFW75HEFW0 |
| Whirlpool | WFW80HEBC0, WFW80HEBC1, WFW80HEBC2, WFW80HEBW0, WFW80HEBW1, WFW80HEBW2, WFW81HEDW0, WFW8540FW0, WFW8540FW1, WFW85HEFC0, WFW85HEFC1, WFW85HEFW0, WFW85HEFW1, WFW8640BC0, WFW8640BC1, WFW8640BC2, WFW8640BW0, WFW8640BW1, WFW8640BW2, WFW86HEBC0, WFW86HEBC1, WFW86HEBC2, WFW86HEBW0, WFW86HEBW1, WFW86HEBW2, WFW8740DC0, WFW8740DC1, WFW8740DW0, WFW8740DW1, WFW87HEDC0, WFW87HEDC1, WFW87HEDW0, WFW87HEDW1, WFW88HEAC0, WFW88HEAC1, WFW88HEAC2, WFW88HEAW0, WFW88HEAW1, WFW88HEAW2 |
| Whirlpool | WFW90HEFC0, WFW90HEFC1, WFW90HEFW0, WFW90HEFW1, WFW9290FBD0, WFW9290FC0, WFW9290FW0, WFW92HEFBD0, WFW92HEFC0, WFW92HEFU0, WFW92HEFW0, WFW94HEAC0, WFW94HEAC2, WFW94HEAW0, WFW94HEAW2, WFW95HEDC0, WFW95HEDU0, WFW95HEDW0, WFW96HEAC0, WFW96HEAU0, WFW96HEAW0, WFW97HEDBD0, WFW97HEDC0, WFW97HEDU0, WFW97HEDW0 |
