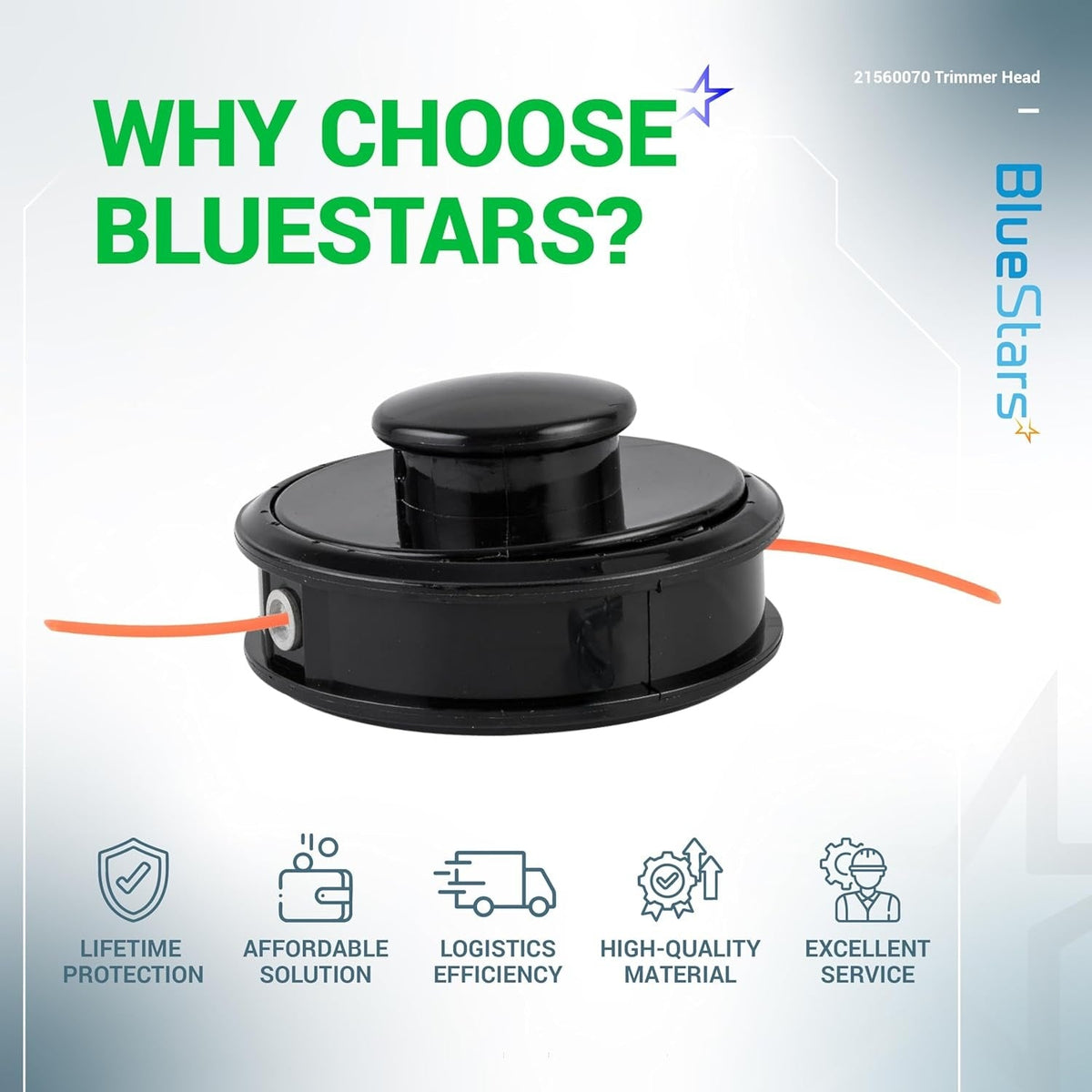

21560070 SRM Echomatic Trimmer Head - Fits Echo SRM-210 SRM-225 SRM-230 SRM-235 - Replaces 21560050 200095200
0.00
Regular price
$16.04
Regular price
Save 11%
$17.96
Sale price
$16.04
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

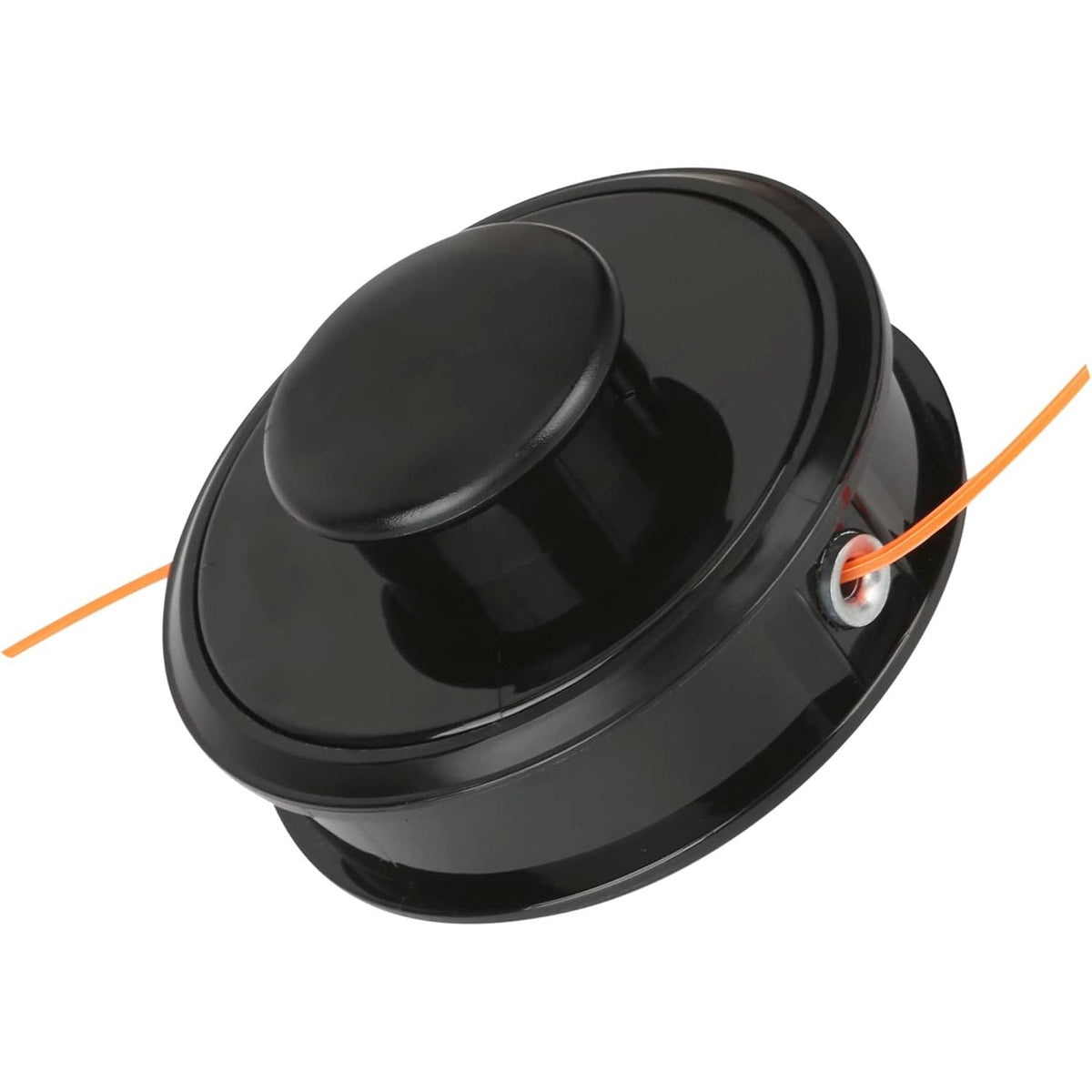

21560070 SRM Echomatic Trimmer Head
Key Features
- Reliable Semi-Automatic Feed: The classic Echomatic "bump" system provides instant line advancement with a simple tap on the ground, ensuring you never have to stop mid-job to manually pull line.
- High-Impact Structural Polymer: Manufactured from a specialized glass-reinforced nylon composite to resist cracking and shattering during high-velocity impacts with curbs and fence posts.
- Optimized Dual-Line Performance: Features an internal spool design that feeds two lines simultaneously, providing a balanced, level cut that is ideal for both manicured lawns and heavy weed clearing.
- Pre-Wound with 0.095" Line: Comes factory-loaded with professional-grade 0.095-inch diameter line, offering the perfect balance of cutting power and durability for standard garden maintenance.
- Centrifugal Balance Engineering: Designed to minimize motor vibration and shaft wobble, which reduces operator hand fatigue and prevents premature wear on the trimmer's gear head bearings.
Replaces / Cross-Reference Part Numbers
- 21560070
- 21560050
- 200095200

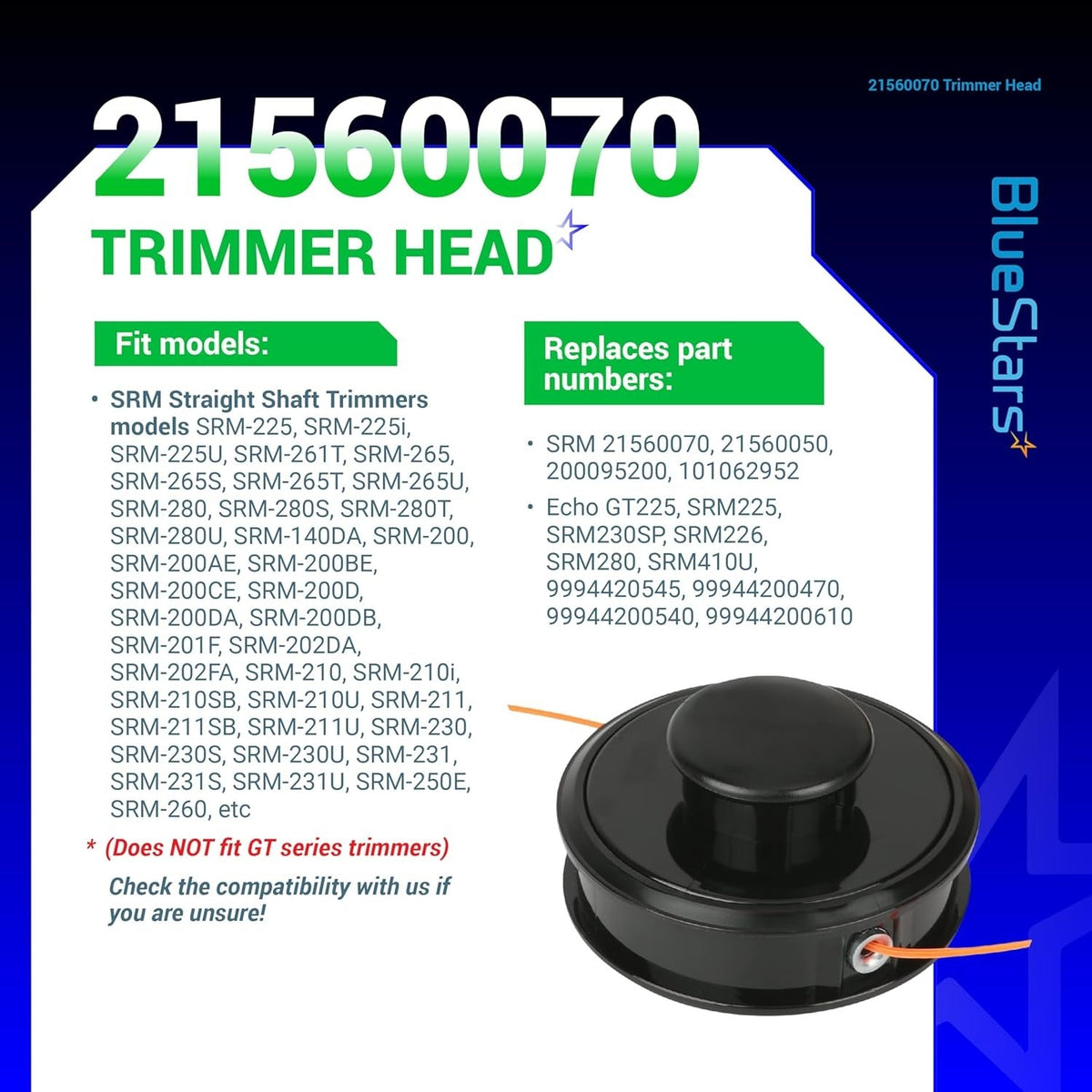

Compatibility & Fitment
This Echomatic head is the traditional standard replacement for Echo’s straight-shaft SRM trimmer series. Key compatible models include:
- Echo SRM Entry Series: SRM-210, SRM-225, SRM-225i, SRM-2100, SRM-2110.
- Echo Professional Series: SRM-230, SRM-231, SRM-235, SRM-250, SRM-265, SRM-266.
- Echo PAS Attachments: Compatible with most straight-shaft Pro Attachment Series trimmer heads.

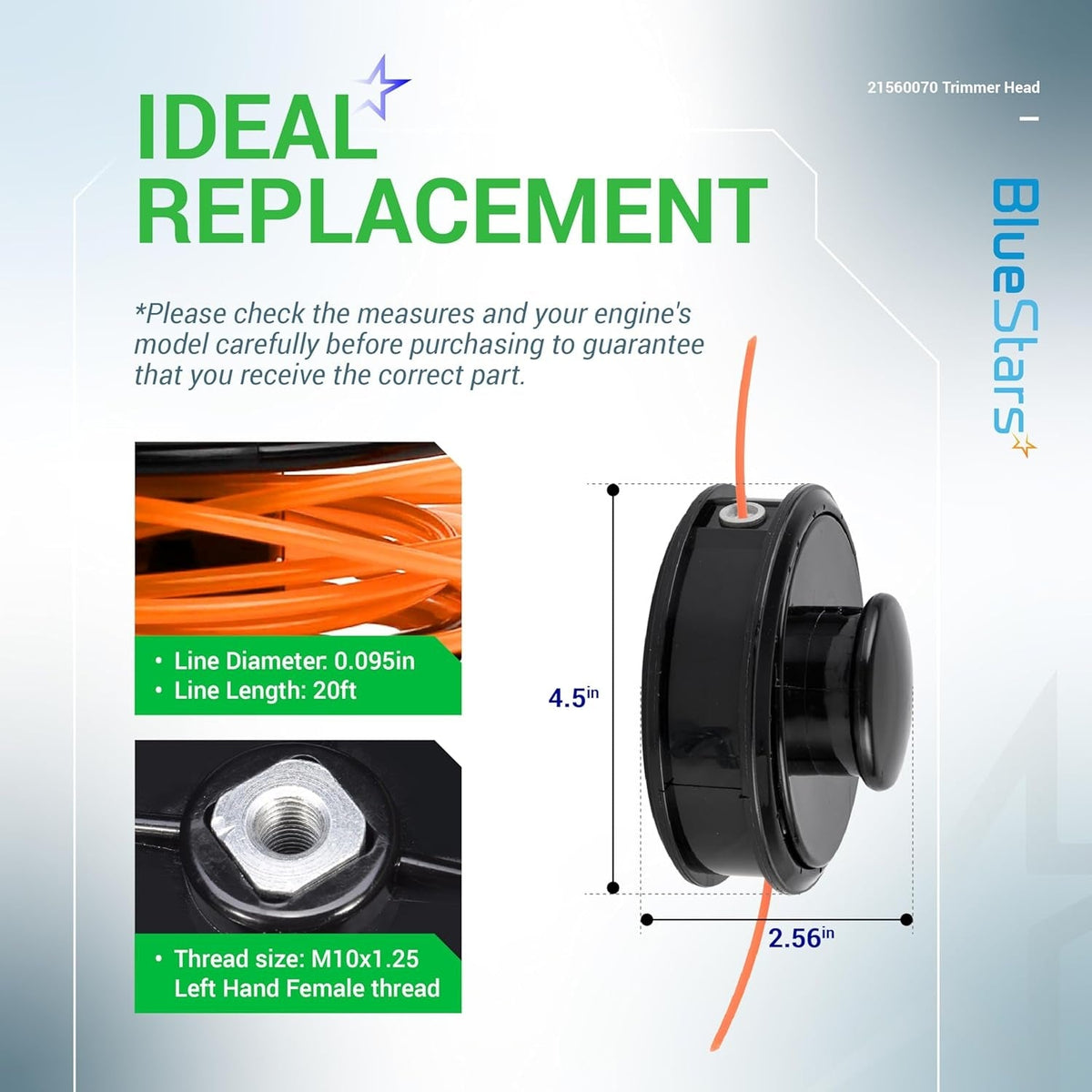

- Technical Fitment: Designed for models utilizing the M10 x 1.25 LHF (Left Hand Female) arbor thread.

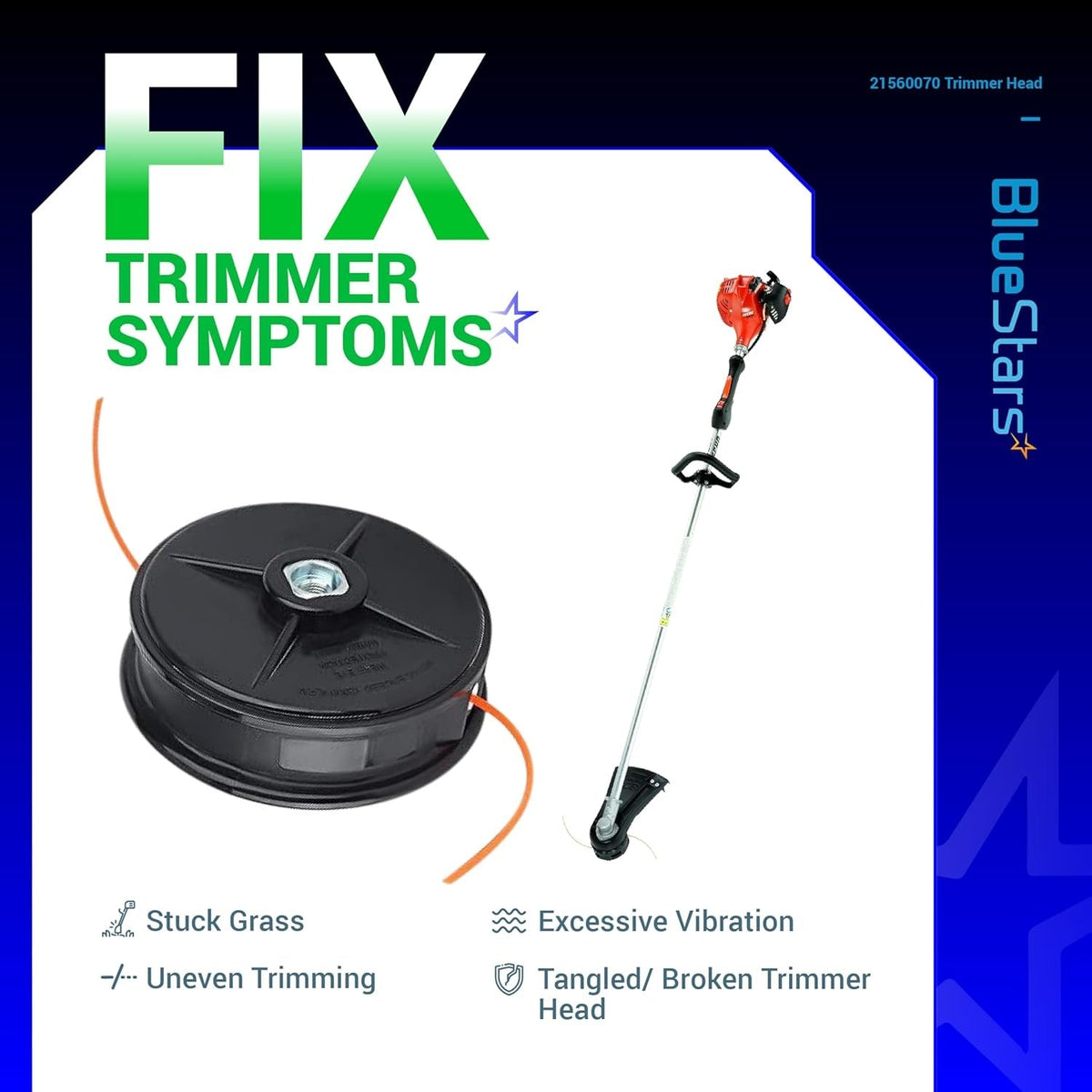

When to Replace
- Worn-Through Bump Surface: The bottom of the head has ground down from pavement contact to the point where the internal spool is exposed or the line no longer advances correctly.
- Cracked Outer Shell: Visible stress fractures or missing chunks of the black housing, which can cause the head to become dangerously unbalanced at high RPMs.
- Internal Spool Jamming: The plastic "locking teeth" inside the head have rounded off, causing the head to dump all the line at once during use.
- Eyelet Failure: The metal line exits (eyelets) have fallen out or are deeply grooved, causing the trimmer line to snap off inside the head repeatedly.
- Excessive Vibration: The head has become structurally unsound or unevenly worn, putting undue stress on the gear head and drive shaft.
Installation Tips
- Left-Hand Threads: Remember, this head is Left-Hand Threaded. To tighten it onto the trimmer, you must turn the head Counter-Clockwise.
- Lock the Gear Head: Insert a small hex key or the factory locking pin into the gear head hole to hold the shaft stationary while you spin the old head off and the new one on.
- Spool Direction: When reloading line, follow the arrows molded into the internal spool. Winding the line in the wrong direction will prevent the semi-automatic feed from working.
- Soak Your Line: To extend the life of your trimmer line, soak the spool in water for 24 hours before use. This keeps the nylon flexible and resistant to snapping at the eyelet.

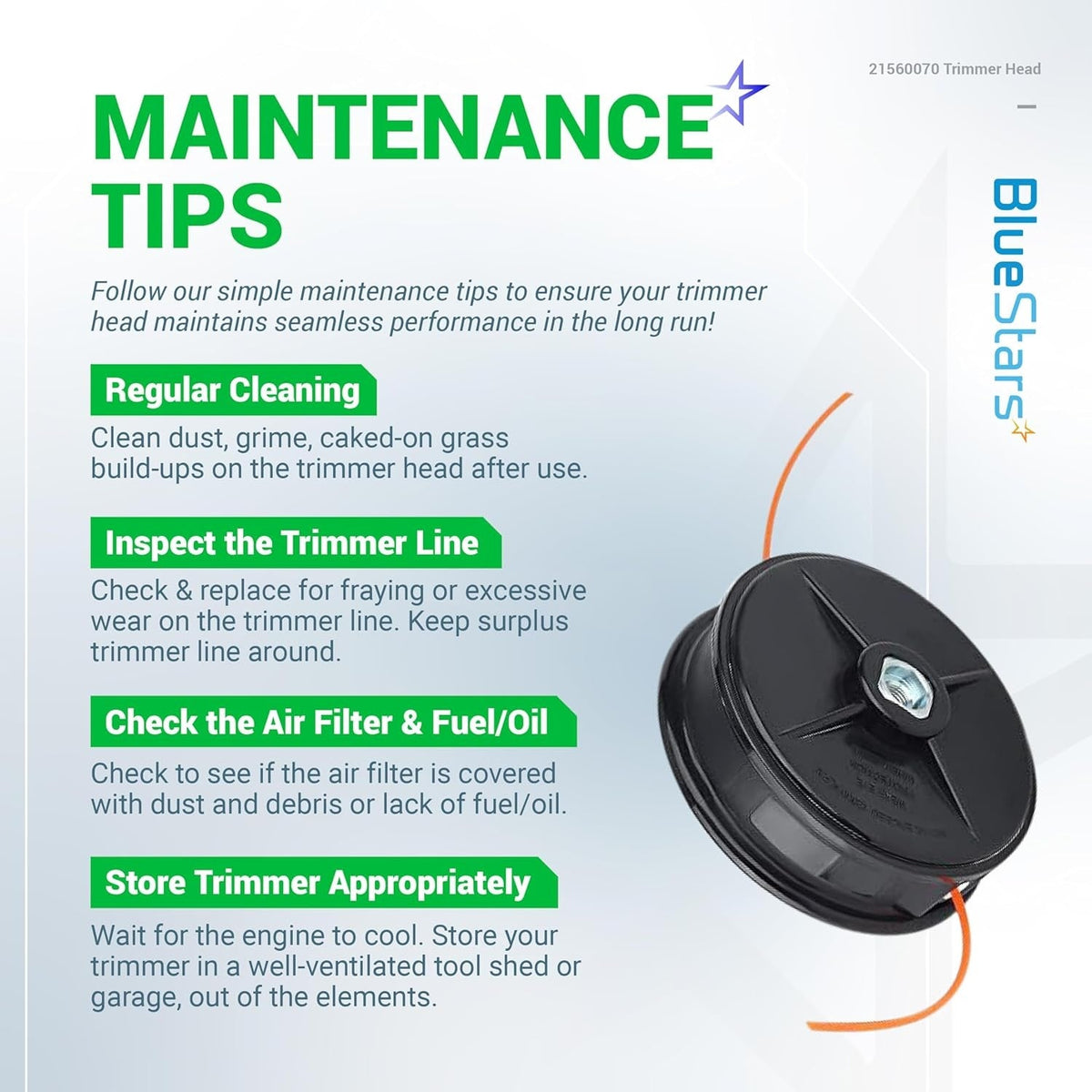

- Clean the Internal Spring: Every time you reload the line, shake out any dirt or dried grass trapped around the internal spring to ensure the "tap" action stays smooth and responsive.
