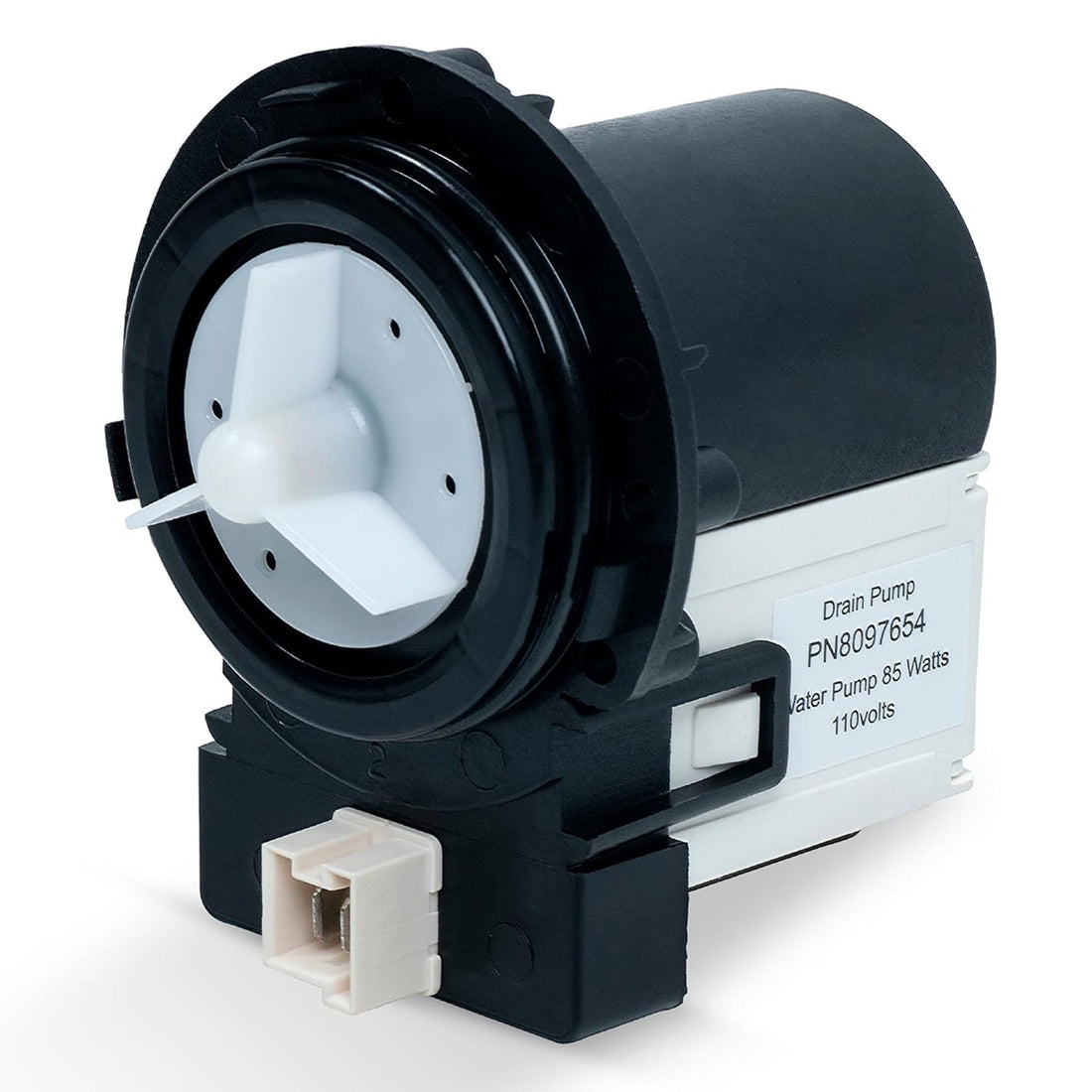

Replacement DC31-00054A washer drain pump motor with white impeller and 110V electrical connector.

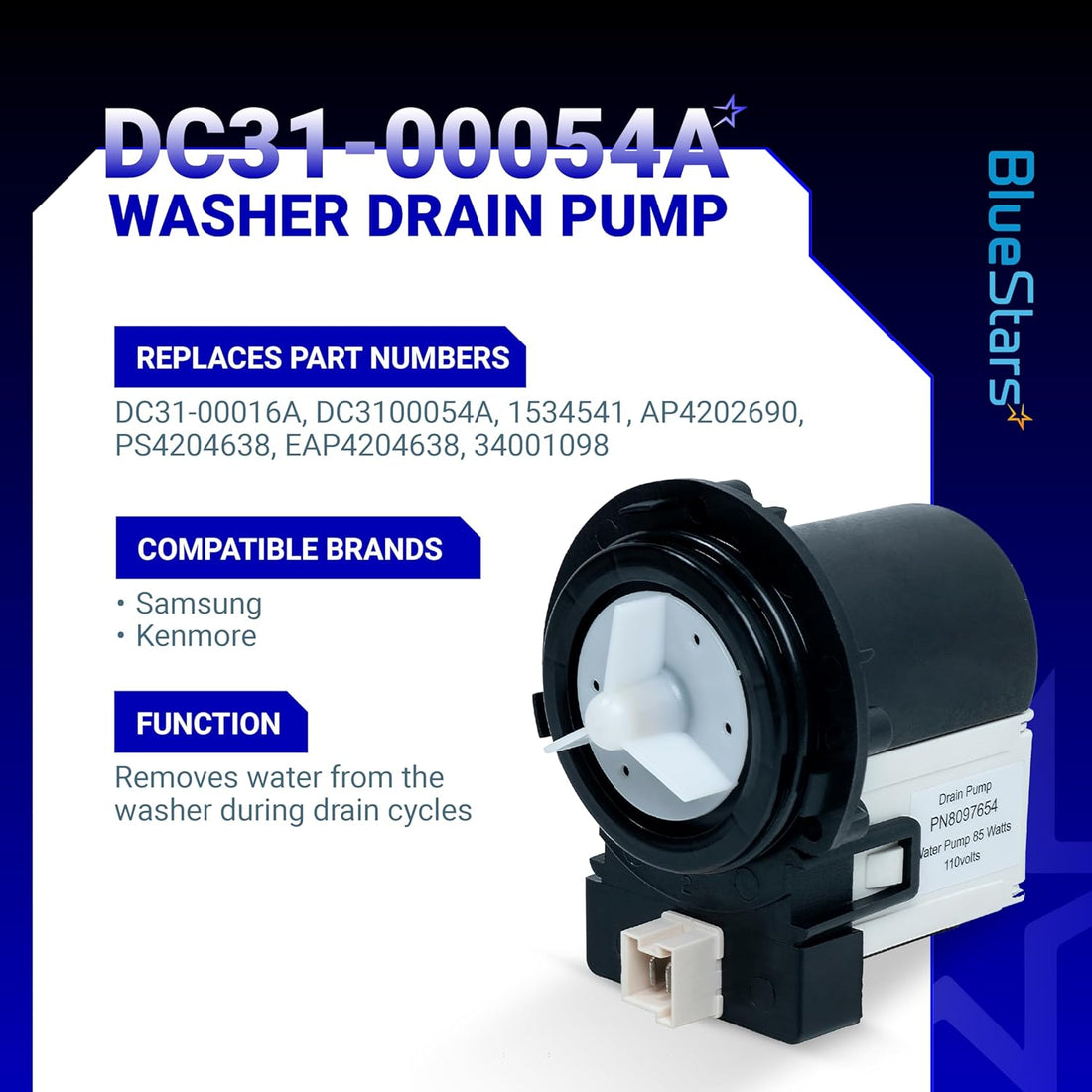

DC31-00054A washer drain pump motor for Samsung and Kenmore washing machines with technical specifications graphic.

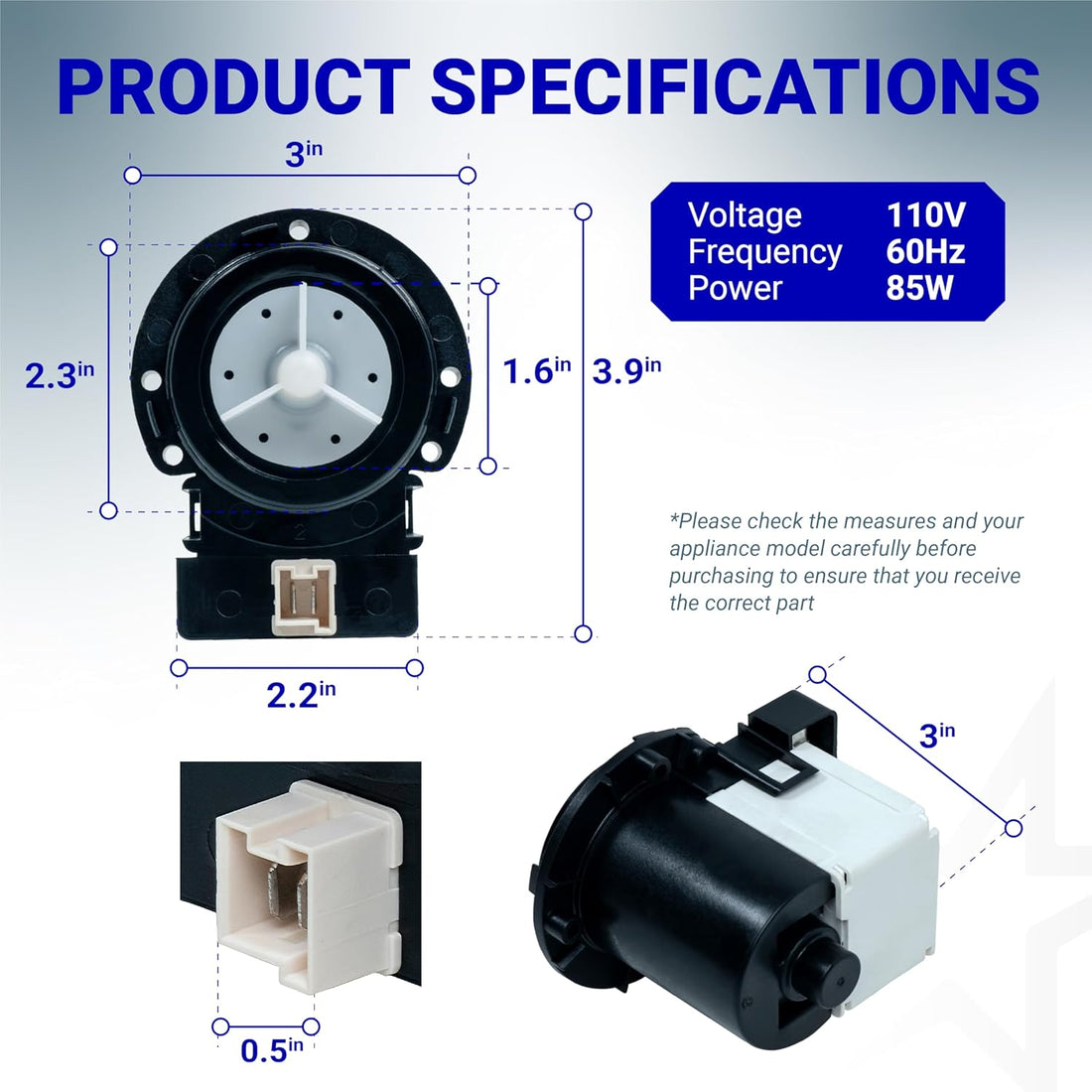

DC31-00054A washer drain pump motor technical specification diagram with dimensions and electrical ratings.
DC31-00054A washer drain pump motor shown in a lifestyle graphic for Samsung, Maytag, and Kenmore washing machines.

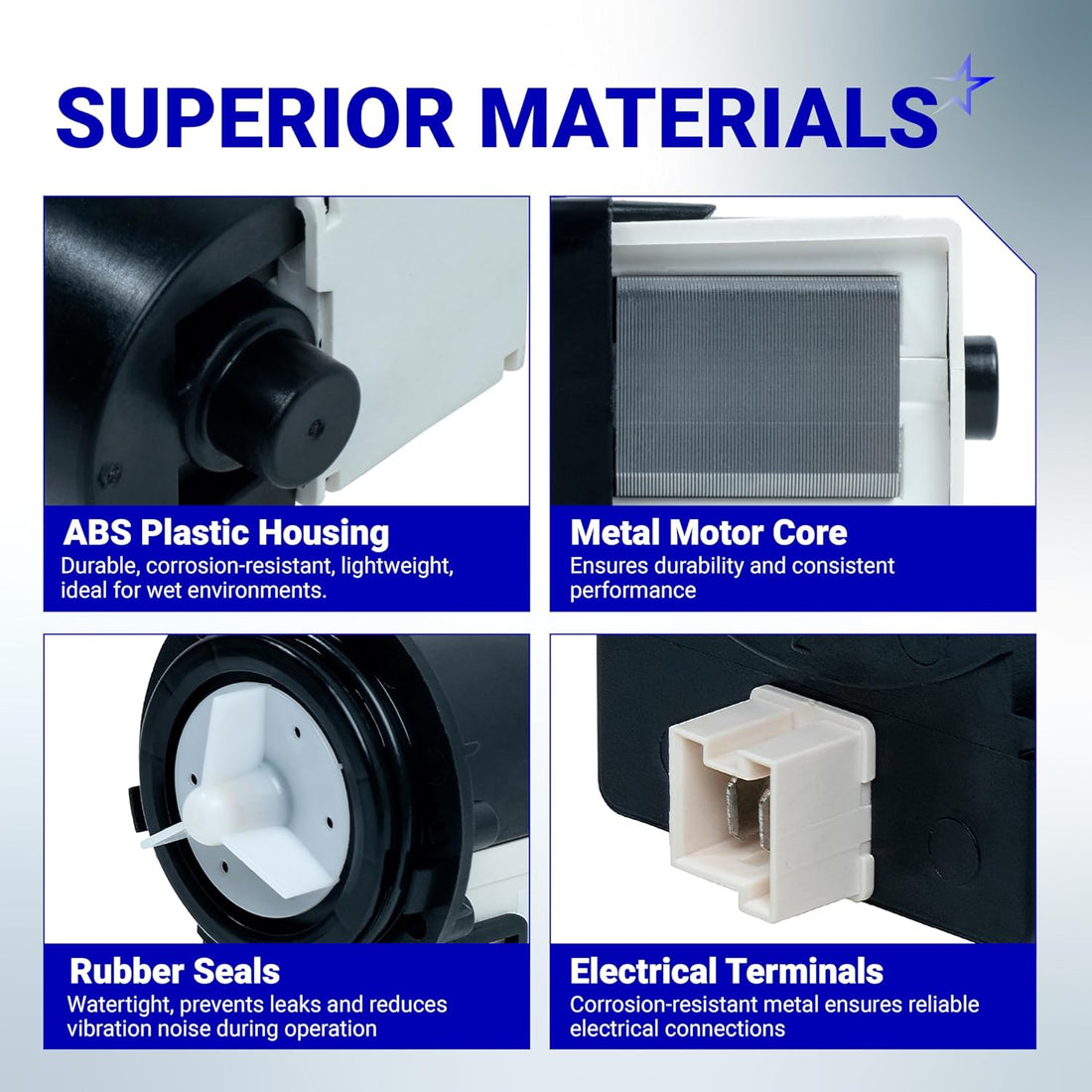

Close-up detail views of DC31-00054A washer drain pump motor components including housing, motor core, seals, and terminals.
DC31-00054A washer drain pump motor and washing machine showing common repair symptoms like leaks and drainage issues.
Four-step quick installation guide for DC31-00054A washer drain pump motor showing removal and replacement process.

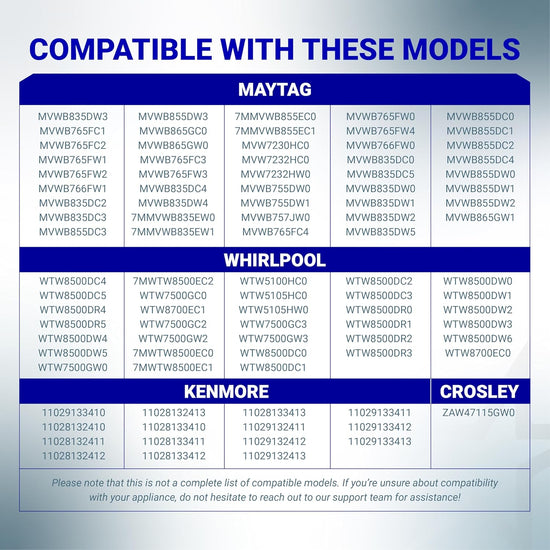

Compatibility chart for DC31-00054A washer drain pump motor listing Maytag, Whirlpool, Kenmore, and Crosley models.
Front view of DC31-00054A washer drain pump motor for Samsung, Maytag, and Kenmore washing machines.
Replacement DC31-00054A washer drain pump motor with white impeller and 110V electrical connector.
DC31-00054A washer drain pump motor for Samsung and Kenmore washing machines with technical specifications graphic.
DC31-00054A washer drain pump motor technical specification diagram with dimensions and electrical ratings.
DC31-00054A washer drain pump motor shown in a lifestyle graphic for Samsung, Maytag, and Kenmore washing machines.
Close-up detail views of DC31-00054A washer drain pump motor components including housing, motor core, seals, and terminals.
DC31-00054A washer drain pump motor and washing machine showing common repair symptoms like leaks and drainage issues.
Four-step quick installation guide for DC31-00054A washer drain pump motor showing removal and replacement process.
Compatibility chart for DC31-00054A washer drain pump motor listing Maytag, Whirlpool, Kenmore, and Crosley models.
Front view of DC31-00054A washer drain pump motor for Samsung, Maytag, and Kenmore washing machines.
Lifetime Warranty

[Lifetime Warranty] DC31-00054A WF210ANW/XAA Washer Drain Pump Motor - For Samsung Maytag Kenmore WF220ANW/XAA WF448AAW/XAA WF328AAW/XAA - Replaces DC31-00016A AP4202690 62902090

Save 13%
0.00
$36.20
$41.63
$36.20
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC31-00054A WF210ANW/XAA Washer Drain Pump Motor Assembly

Key Features

  • Direct replacement drain pump and motor assembly.
  • Removes water from the washer tub during the drain cycle.
  • Constructed with durable materials for longevity.
  • Specifications: 85W, 110V.

Replaces / Cross-Reference Part Numbers

  • DC31-00054A
  • DC31-00016A
  • DC97-15974C
  • 34001098
  • 62902090
  • AP4202690

Compatibility & Fitment

  • Fits select front-load washing machines from major brands including Samsung, Maytag, and Kenmore.
  • Compatible with specific models such as: WF206BNW/XAA, WF209ANW/XAA, WF210ANW/XAA, WF218ANB, WF220ANW/XAA, WF328AAW/XAA, WF448AAW/XAA.
  • Note: Always verify the part number against your appliance's model number before ordering.

When to Replace

  • Washer fails to drain or drains slowly.
  • Water remains in the tub after the cycle completes.
  • Loud humming or grinding noises occur during the drain cycle.
  • Leaks are visible from the pump housing.
  • Drain-related error codes are displayed on the control panel.

Installation Tips

  • Disconnect the washer from both power and water sources before beginning installation.
  • Place towels or a shallow pan under the pump area to catch residual water.
  • Access the pump by removing the front lower access panel or by carefully tilting the machine.
  • Clean the pump filter and inspect drain hoses for blockages or damage during replacement.
  • Ensure all hose clamps are securely tightened to prevent post-installation leaks.
Product image
Product image
Product image
  • FIX WASHER'S SYMPTOMS

    FIX WASHER'S SYMPTOMS

    Washer leaks, Noisy operation, Pumps but will not spin, Will not drain
  • RELIABLE QUALITY

    RELIABLE QUALITY

    DC31-00054A Washer Drain Pump is made of strong & durable materials that prevent cracking and failure during installation and use.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

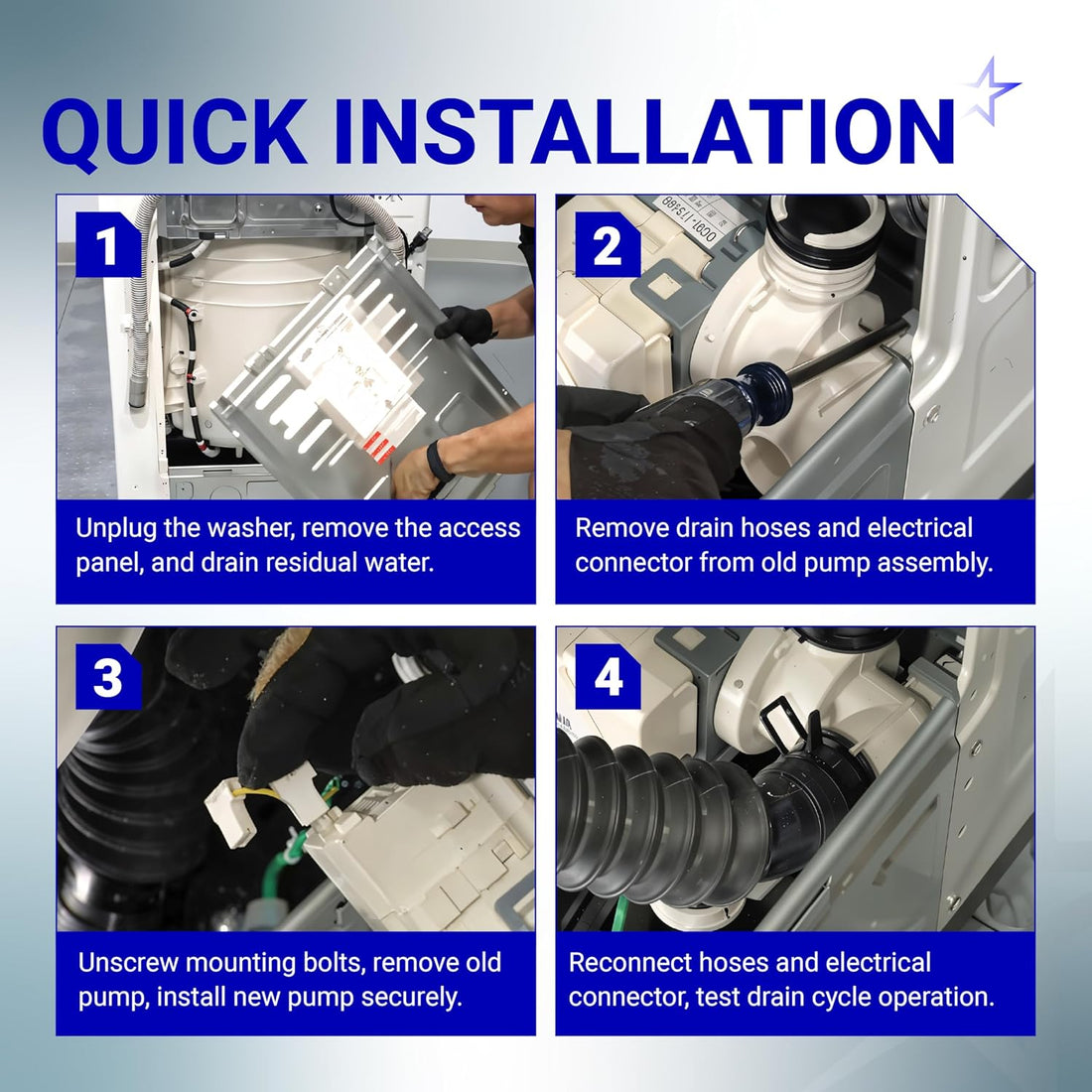

4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug the washer, remove the access panel, and drain residual water; 2. Remove drain hoses and electrical connector from old pump assembly; 3. Unscrew mounting bolts, remove old pump, install new pump securely; 4. Reconnect hoses and electrical connector, test drain cycle operation.
Brand Model Number
Samsung WF328AAWXAA0000, WF328AAWXAA0001, WF328AAWXAA0002, WF350ANRXAA0000, WF331ANRXAA0004, WF328AARXAA0000, WF328AARXAA0001, WF328AARXAA0002, WF350ANWXAA0000, WF337AAWXAA, WF409ANWXAA, WF306BHW/XAA, WF316BAW/XAA, WF339AAW/XAA, WF520ABP/XAA, WF410ANW/XAA, WF206BNW/XAC, 40249032010, WF448AAW/XAC, WF448AAP/XAC, WF206ANS/XAC, WF438AAR/XAA, WF409ANW/XAA, WF410ANR/XAA, WF203ANS/XAX, WF316BAC/XAA, WF448AAP/XAA-00, WF448AAP/XAA-05, WF448AAP/XAA-06, WF448AAP/XAA-07, WF448AAP/XAA-08, WF317AAS/XAA-00
Samsung WF328AAW/XAA-02, WA5471ABP/XAA-00, WA5471ABP/XAA-01, WA5471ABP/XAA-02, WF218ANB/XAA-01, WF328AAW/XAA-00, WF328AAW/XAA-01, WF218ANW/XAA-01, WF209ANW/XAA-00, WF219ANW/XAA-01, WF409ANW/XAA-01, WF520ABP/XAA-00, WF520ABP/XAA-01, WF520ABP/XAA-02, WF520ABP/XAA-03, WF331ANW/XAA-04, WF448AAW/XAA-05, WF448AAW/XAA-07, WF448AAE/XAA-01, WF330ANB/XAA-02, WF220ANW/XAA-01, WA5471ABW/XAA-00, WA5471ABW/XAA-01, WA5471ABW/XAA-02, WF350ANR/XAA-00, WF350ANR/XAA-01, WF350ANR/XAA-02, WF350ANW/XAA-00, WF350ANW/XAA-01, WF350ANW/XAA-02
Samsung WF331ANR/XAA-04, WF317AAG/XAA-00, WF317AAW/XAA-00, WF511ABR/XAA-00, WF218ANW/XAA-00, WF448AAE/XAA-02, WF330ANW/XAA-00, WF330ANW/XAA-01, WF330ANW/XAA-02, WF220ANW/XAA-02, WF419AAW/XAA-02, WF219ANW/XAA-00, WF431ABW/XAA-00, WF330ANB/XAA-00, WF330ANB/XAA-01, WF337AAG/XAA-00, WF337AAW/XAA-00, WF338AAB/XAA-00, WF338AAB/XAA-01, WF338AAW/XAA-00, WF338AAW/XAA-01, WA5451ANW/XAA-01, WA5451ANW/XAA-03, WF419AAW/XAA-03, WF218ANB/XAA-00, WF328AAG/XAA-00, WF328AAG/XAA-01, WF328AAG/XAA-02, WF328AAR/XAA-00, WF328AAR/XAA-01, WF328AAR/XAA-02
Samsung WA484DSHASU/A1-01, WF419AAW/XAA-00, WF419AAW/XAA-01, WF419AAW/XAA-04, WF520ABW/XAA-01, WF520ABW/XAA-02, WF520ABW/XAA-03, WA476DSHAWR/A1-01, WA484DSHAWR/A1-01, WA5451ANP/XAA-01, WF206BNW/XAA-00, WF210ANW/XAA-01, WF210ANW/XAA-02, WF210ANW/XAA-03, WF219ANB/XAA-00, WF219ANB/XAA-01, WF419AAU/XAA-00, WF448AAE/XAA-00, WF501ANW/XAA-01, WF218ANW/XAA, WF448AAP/XAA-02, WF448AAP/XAA-01, WF448AAP/XAA-03, WF448AAP/XAA-04, WF338AAB/XAA, WA5451ANW/XAA-02, WA5451ANW/XAA-00, WF407ANW/XAA-00, WF209ANW/XAA, WF206BNW/XAA
Samsung WF210ANW/XAC-0001, WF210ANW/XAC-0002, WF210ANW/XAC-0003, WF448AAP/YE, WF448AAP/XAC-0001, WF448AAP/XAC-0002, WF448AAP/XAC-0004, WF448AAP/XAC-0005, WF448AAP/XAC-0006, WF448AAP/XAC-0007, WF448AAP/XAC-0008, WF218ANB/XAC, WF218ANB/XAA, WF448AAW/XAC-0001, WF448AAW/XAC-0002, WF520ABP/XAC-0003, WF520ABP/XAC-0002, WF520ABP/XAC-0001, WF520ABP/XAC-0000, WF219ANW/XAA, WF409ANR/XAA, WF220ANWXAA, WF220ANW/XAA-03, WF220ANW/XAC-0001, WF220ANW/XAC-0002, WF220ANW/XAC-0003
Samsung WF410ANR/XAA-01, WF410ANR/XAA-02, WF410ANW/XAA-00, WF410ANW/XAA-01, WF410ANW/XAA-02, WF448AAW/XAC-00, WF419AAU/XAA-02, WF419AAU/XAA-03, WF410ANR/XAA-00, WF331ANW/XAA-00, WF317AASXAA
Kenmore 40249032012, 40249032011
Note This is not an exhaustive list. You can send us your appliance model and we will help you!
Manufacturer
‎BlueStars
Part Number
‎DC31-00054A
Item Weight
‎1 pounds
Color
‎Black and White
Material
‎‎‎Plastics and ABS metals
Power Source
‎Corded Electric
Item Package Quantity
‎1
Included Components
‎1 x DC31-00054A Washer Drain Pump Motor Assembly
Batteries Included?
‎No
Batteries Required?
‎No

FAQ

This pump is compatible with a wide range of Samsung, Maytag, and Kenmore washing machines, including models such as WF210ANW/XAA, WF220ANW/XAA, WF448AAW/XAA, WF328AAW/XAA, WF306BHW, WF316BAC, WF316BAW, WF316LAS, WF316LAW, WF330ANB, WF330ANW, and WF350ANG.
This unit directly replaces OEM part number DC31-00054A. It also cross-references with DC31-00016A, DC97-15974C, 1534541, AP4202690, PS4204638, EAP4204638, 34001098, 62902090, PD00001978, and LP054A.
You likely need a new pump if your washer is failing to drain water at the end of a cycle, making loud grinding or rattling noises during the drain phase, or if the machine displays a drain-related error code. Before replacing, ensure the drain hose is not kinked and the debris filter is clear of obstructions.
The installation is a moderate repair that typically takes 30 to 60 minutes. You will need basic hand tools, including a screwdriver and pliers for the hose clamps. Always unplug the washer and turn off the water supply before beginning. It is recommended to wear work gloves, as the internal components can have sharp edges.
Safety is paramount. Always disconnect the power cord from the wall outlet to prevent electrical shock. Additionally, place a shallow pan or towels under the pump area to catch any residual water that may spill out when you disconnect the hoses from the old pump.
Drain pumps often fail due to mechanical wear on the impeller over time, or because debris like coins, hairpins, or heavy lint has bypassed the filter and jammed the motor. If the motor hums but does not move water, it is usually a sign that the internal pump motor has burned out or the impeller is broken.
