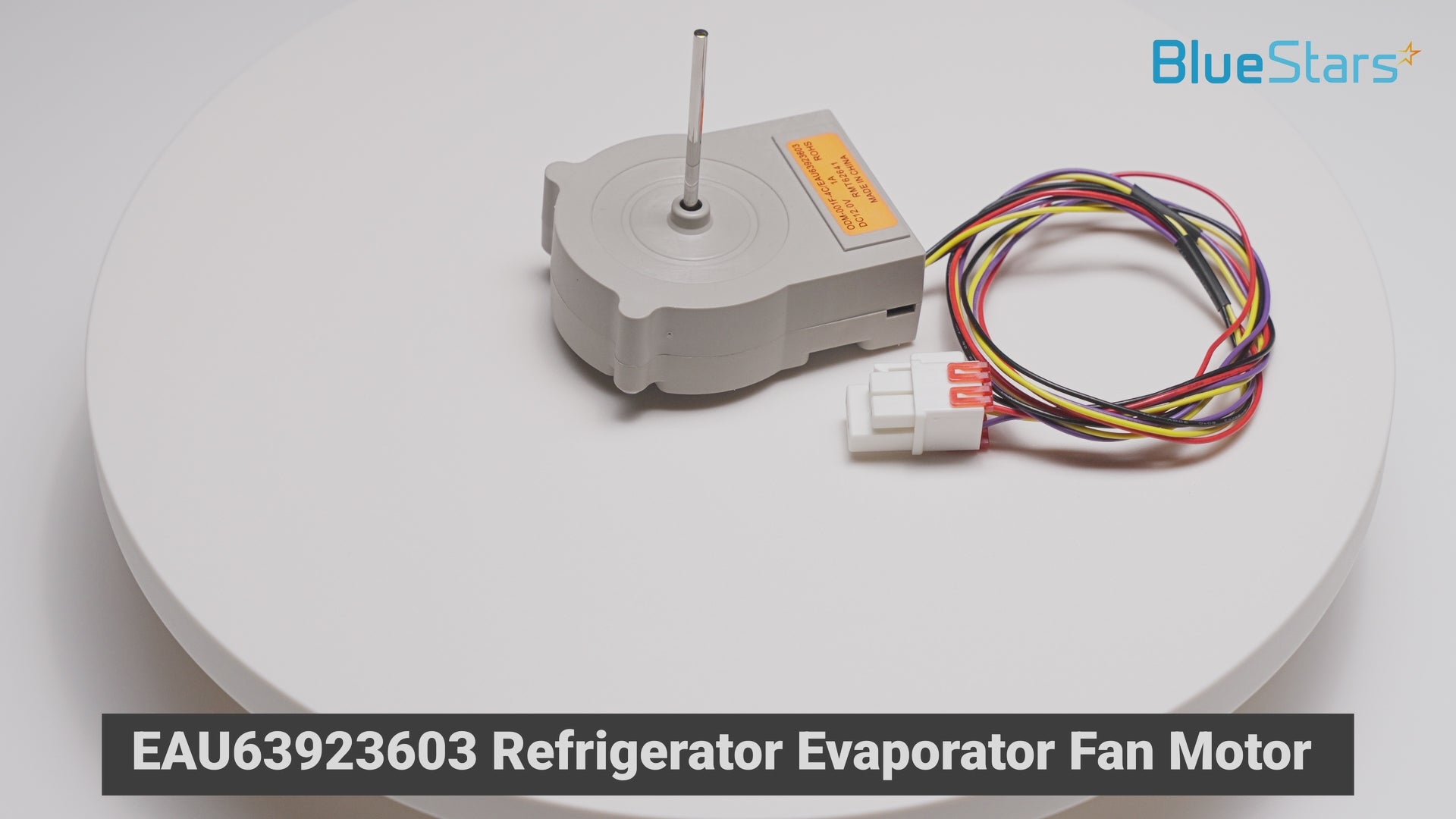

EAU63923603 EAU65058305 Refrigerator Evaporator Fan Motor Assembly (DC 12V/1A) for LG Kenmore Refrigerators
0.00
Regular price
$31.24
Regular price
Save 11%
$34.99
Sale price
$31.24
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
EAU63923603 Refrigerator Evaporator Fan Motor Assembly
Key Features
- Function: Circulates air through the fresh food compartment for efficient cooling.
- Specifications: DC 12V, 1.0 A
- Connection: 4-pin wire harness connector
Replaces / Cross-Reference Part Numbers
- EAU65058305
- EAU63923606
- AP6317197
- PS12383671
- EAP12383671
- AP7178305
- PD00045140
- 4877339
Compatibility & Fitment
- Designed for use in specific LG and Kenmore refrigerator models.
- Verify compatibility with your appliance's model number before ordering.
When to Replace
- Refrigerator compartment is warm while the freezer remains cold.
- Unusual or loud noises coming from the fan area.
- The fan motor does not run or the fan blade does not spin.
- Visible damage or obstruction to the motor or fan blades.
Installation Tips
- Disconnect the refrigerator from its power source before beginning the installation.
- Safely store any food that could deteriorate while the power is off.
- The evaporator fan motor is located behind a panel inside the fresh food compartment.
- Wear work gloves to protect your hands during the repair.
-
WIDE COMPATIBILITY
-Replaces: EAU63923603, EAU65058305, AP6317197, PS12383671, EAP12383671, PD00045140 -
PRODUCT SPECIFICATIONS
Voltage: DC 12V | Current: 1A | 4-Pin Connector | Wire Length: 700mm/ 27.5in | Shaft Length: 46mm | Shaft Diameter: 3mm -
SAVING SOLUTION
BlueStars brings DIY solutions to help deal with any trouble -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
4 SIMPLE STEPS
1. Disconnect the fridge power. Removing the evaporator cover panel. 2. Unplug all wire harnesses to get the panel out. 2. Unthread mounting screws securing the rear motor bracket. 3. Slide the fan off the motor shaft to detach the old fan motor. Reinstall with our new part!
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
