DG32-00002B EBG61305805 Range Oven Temperature Sensor Probe for Samsung & LG Oven
0.00
Regular price
$20.99
Regular price
Save 11%
$23.51
Sale price
$20.99
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

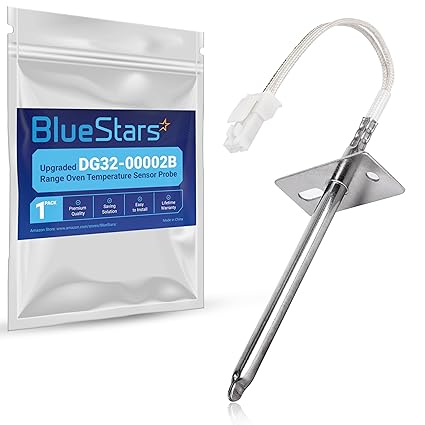

DG32-00002B / EBG61305805 Range Oven Temperature Sensor Probe
Key Features
- Thermistor-based technology accurately monitors internal oven temperatures to ensure consistent thermal regulation.
- High-grade stainless steel probe construction provides resistance to corrosion and thermal degradation.
- Equipped with a standardized plastic connector for a secure and reliable electrical interface with the control board.
- Engineered to provide precise resistance readings (approximately 1080-1100 ohms at room temperature) for optimized heat calibration.
Replaces / Cross-Reference Part Numbers
- AP4343210
- PS4240743
- DG32-00002A
- EBG61305805
- 6322B62214A
- 2087461
- PS11732697
- EAP2567734
- PS2567734
- 4210332
Compatibility & Fitment
- Compatible with Samsung and LG gas and electric ranges and ovens.
- Fits various freestanding ranges, built-in wall ovens, and slide-in models.
- Designed for use in convection, radiant, and thermal cooking systems.
When to Replace
- Oven control panel displays temperature-related error codes such as F3, F-3, or E-01.
- Oven fails to heat to the selected temperature or significantly overshoots the target setting.
- Baked goods are consistently undercooked or burnt despite following recipe instructions.
- The oven remains stuck in the "preheating" phase indefinitely.
- A multimeter test shows the sensor has no continuity or resistance values significantly outside the 1100-ohm range at 75°F.
Installation Tips
- Disconnect the power to the range by unplugging the unit or switching off the circuit breaker before beginning service.
- Remove the oven racks to gain clear access to the rear wall of the oven cavity.
- Use a Phillips head screwdriver or a 1/4-inch nut driver to remove the mounting screws securing the probe.
- Gently pull the sensor forward to reveal the wire harness connector; if the connector is not accessible, the rear access panel of the range must be removed.
- Disconnect the old sensor and snap the new connector firmly into place.
- Re-insert the wires and the probe into the mounting hole, ensuring the probe is straight before tightening the screws.
-
FIX RANGE SYMPTOMS
Oven temperature unpredictable or uncontrollable | No heat or Too hot | Not correspond to the LED readout temp | Error code displayed C-20 -
PREMIUM QUALITY

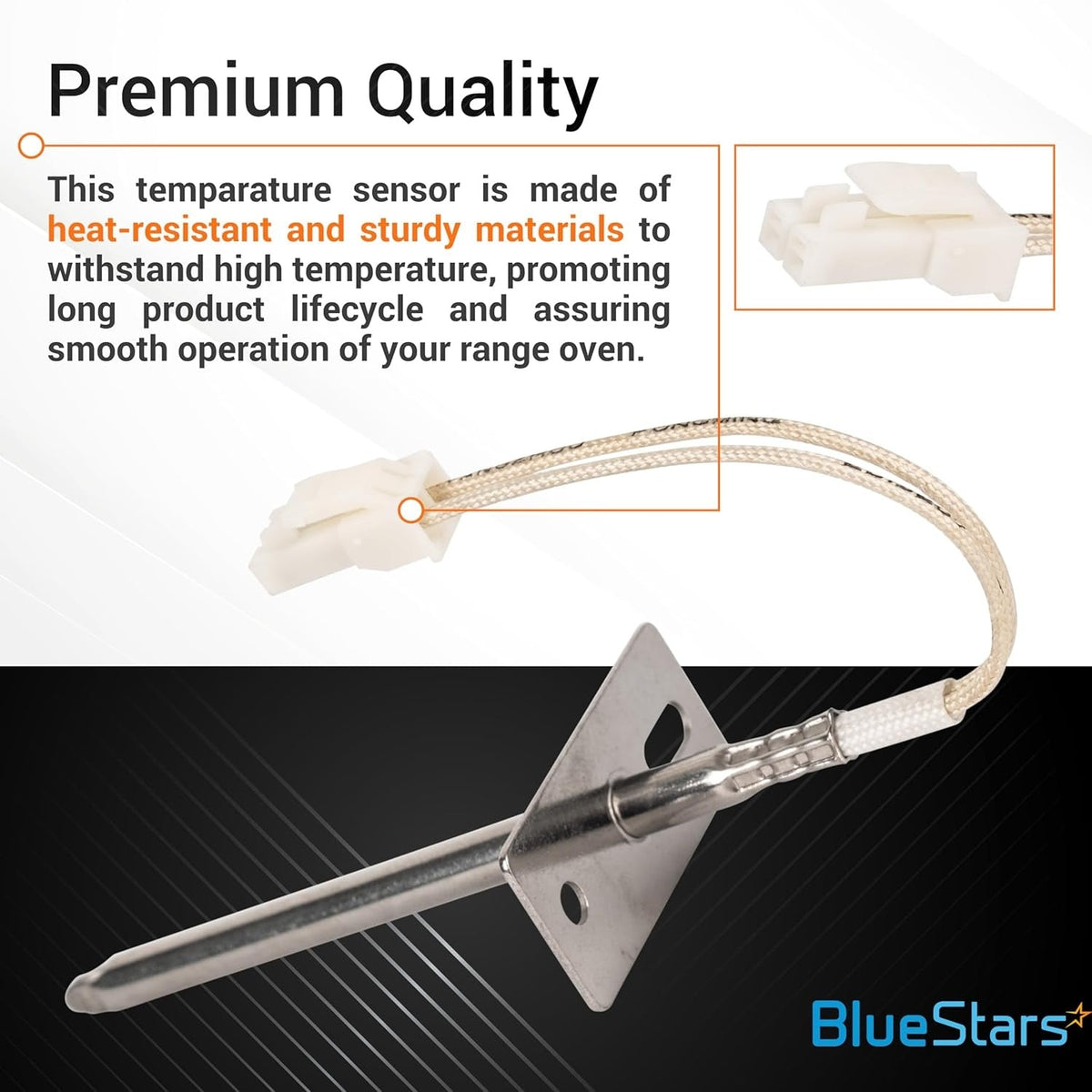

BlueStars DG32-00002B Temperature Sensor is made of high-grade materials ensuring long-lasting operation. -
SAVING SOLUTION
Great feeling when your oven is repaired and works efficiently - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
You will need these tools in advance: 1 x small flat-blade screwdriver; 2 x Phillips screwdriver; 1 x locking pliers; 1 x needle nose pliers.
IDEAL DESIGN
Well-designed with 304 stainless steel and sturdy braided wire material to withstand extreme heat (Range of -50 to +300°)
PRECISE TEMP CONTROL
The sensitive thermistor sensor chip will allow for precise temperature control, allowing you to set and maintain the desired temperature.
ENJOY YOUR LIFE WITH OUR PART INSIDE!
BlueStars - #1 source of high-quality replacement parts
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Sensor Type
Platinum RTD (Class B PT1000)
Temperature Range
-50°C to +300°C
Material
Stainless steel with plastic plug
Color
Gray / White

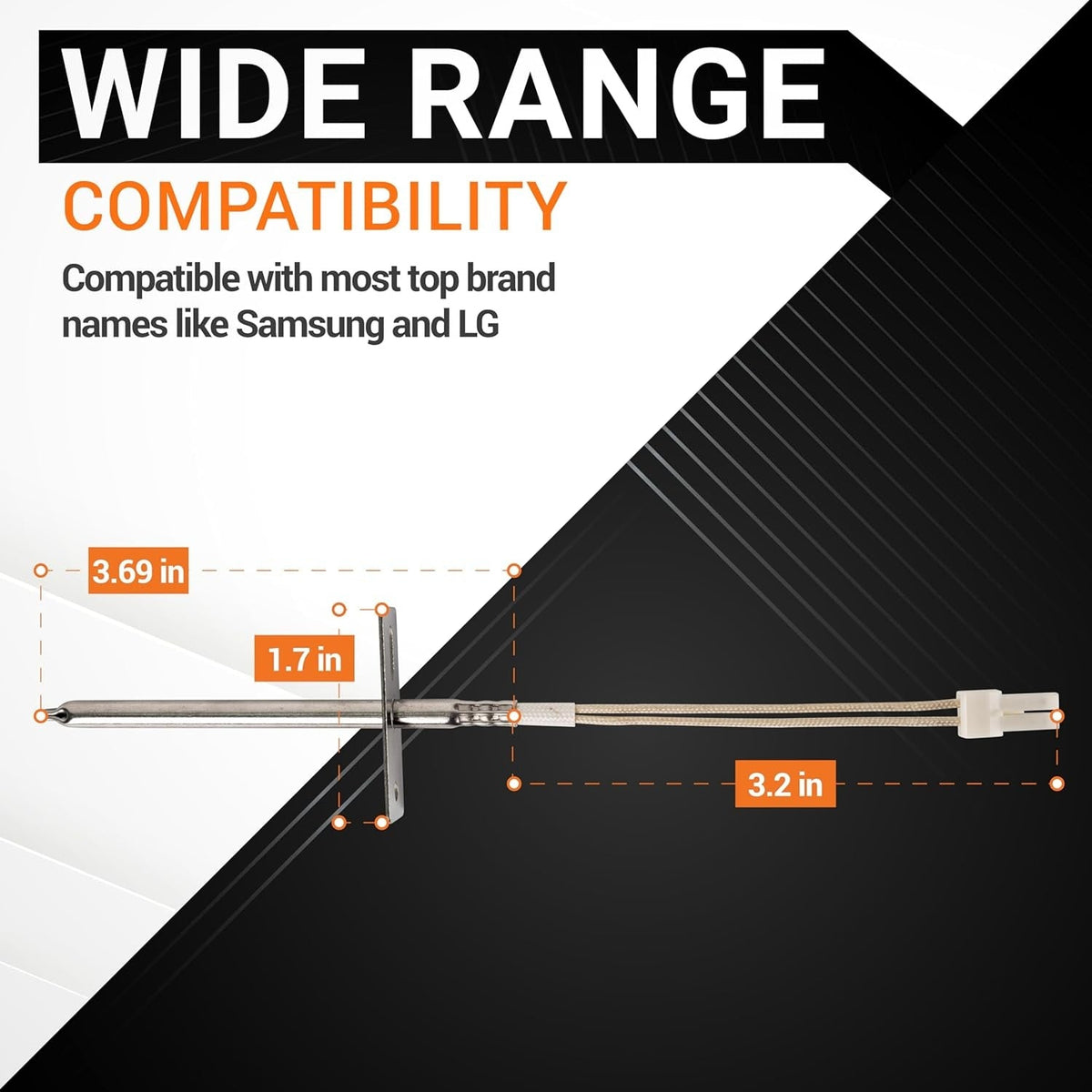

Probe Length
100 mm (approx. 3.9")
Cable Length
82 mm (approx. 3.2")
Support Bracket Width
1-3/4" (approx. 1.7")
Product Dimensions
3-7/8"L x 1-3/4"W x 3/4"H
