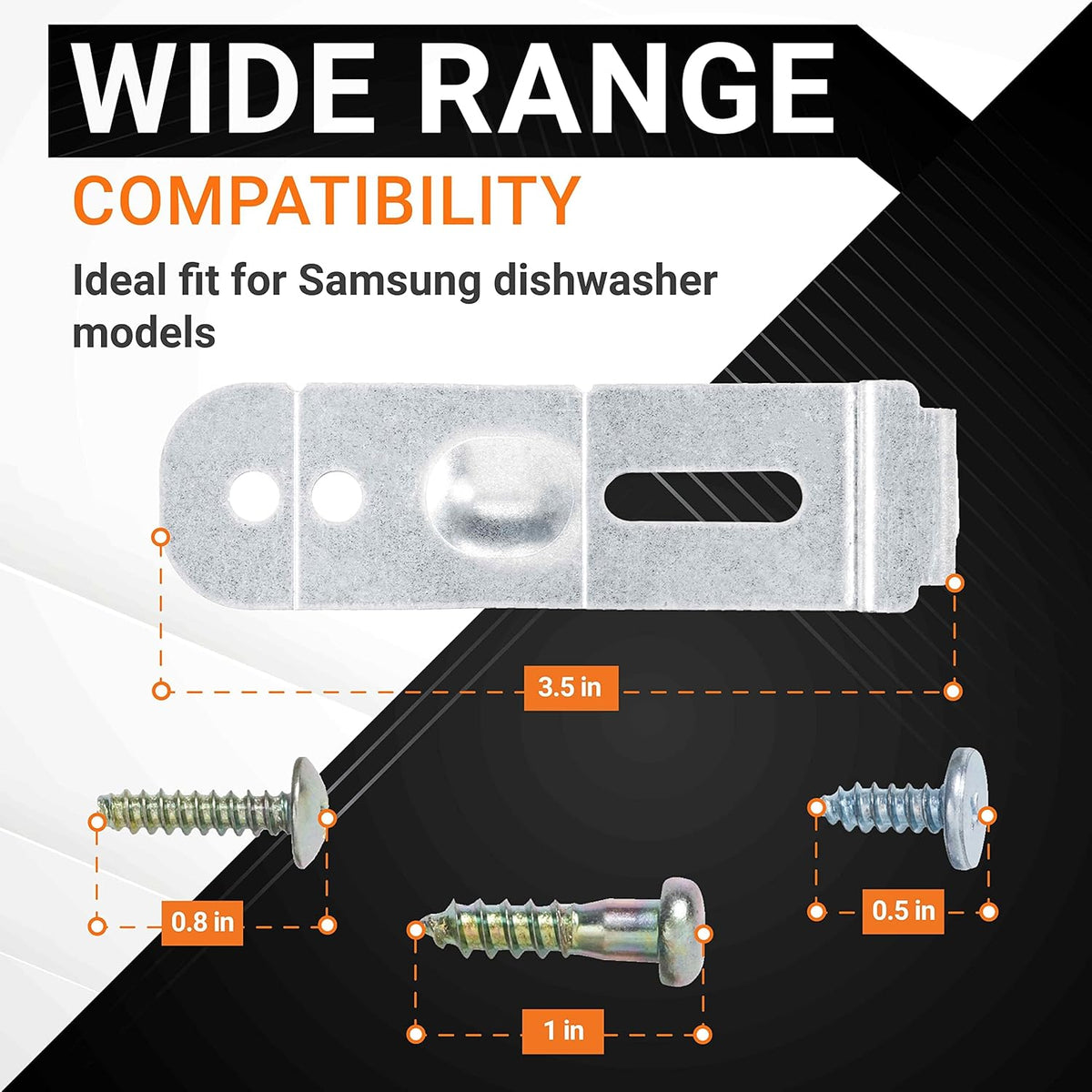

DD94-01002A Dishwasher Mounting Bracket Assembly Kit for Samsung Dishwashers - Includes 2 Brackets, 6 Screws
0.00
Regular price
$5.82
Regular price
Save 11%
$6.52
Sale price
$5.82
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
DD94-01002A Dishwasher Mounting Bracket Assembly Kit
Key Features

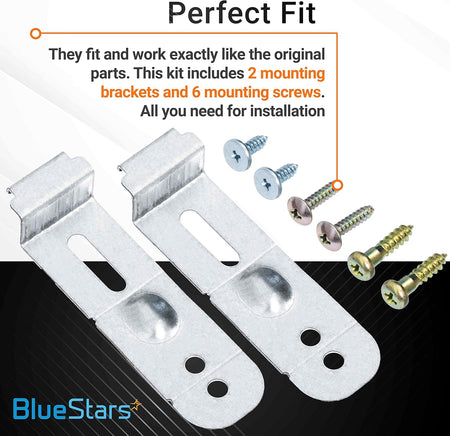

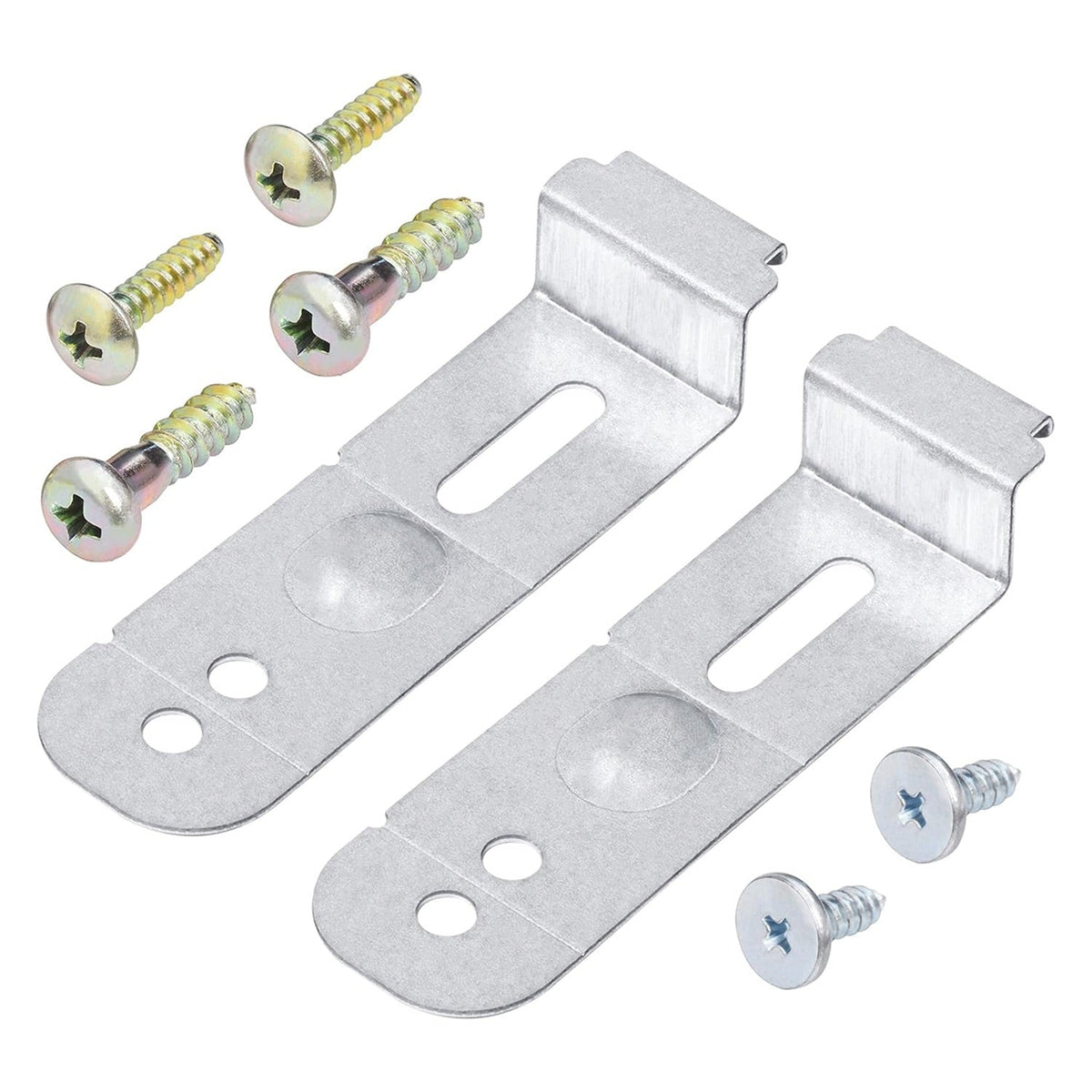

- Complete Installation Kit: Includes two heavy-duty metal mounting brackets and six specialized screws, providing everything needed to secure the unit to the cabinetry or countertop.
- Countertop & Cabinet Versatility: Designed for standard top-mounting to the underside of wooden countertops or side-mounting to cabinets when stone or granite surfaces are present.
- Reinforced Structural Support: Prevents the dishwasher from shifting, vibrating, or tipping forward when the door is opened and the racks are fully extended.

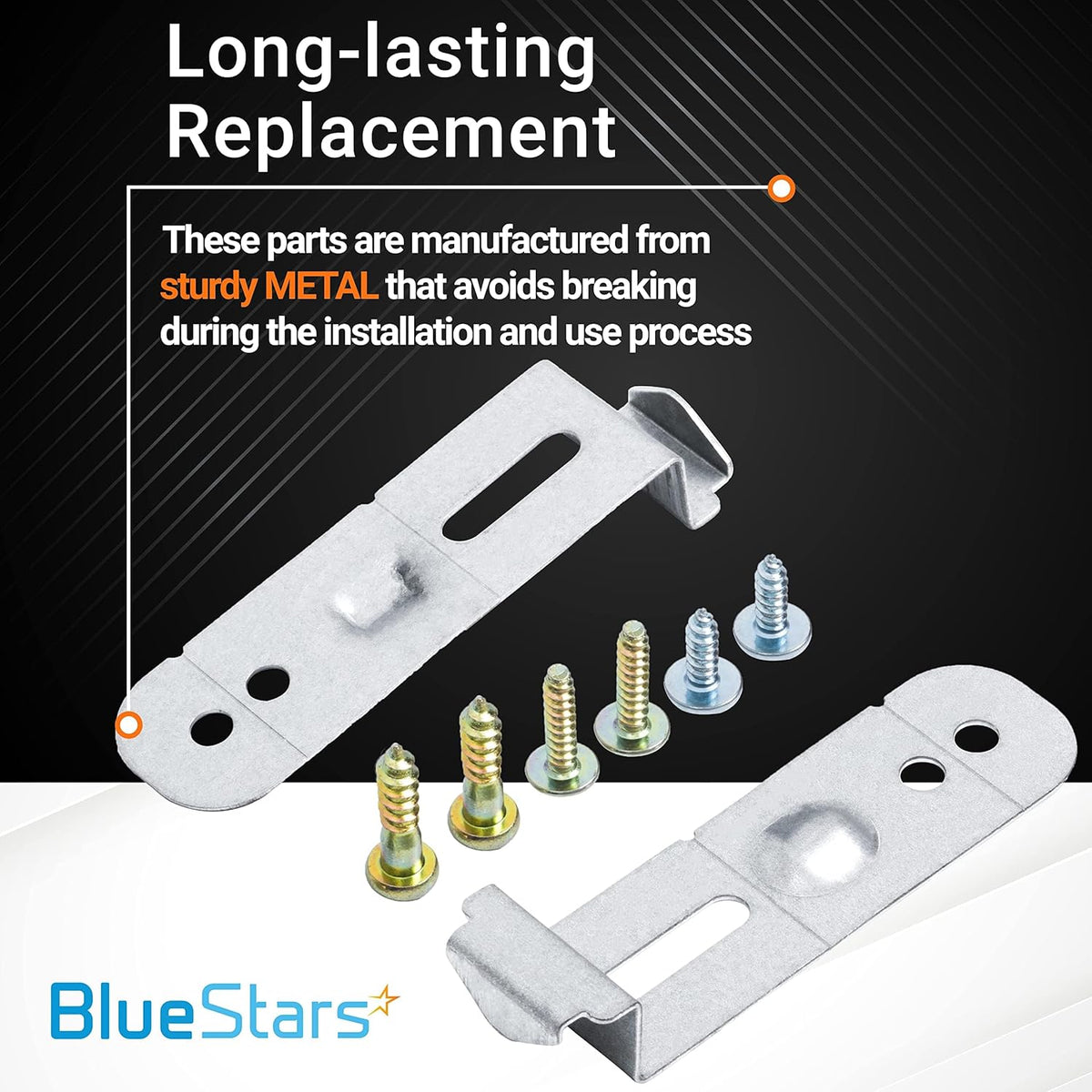

- Corrosion-Resistant Finish: The brackets are treated with a protective coating to withstand the high-humidity environment typically found around kitchen appliances.
Replaces / Cross-Reference Part Numbers
- DD94-01002A
- 2077601
- AP4450818
- PS4222710
- PD00007402
- EAP4222710
Compatibility & Fitment
This mounting kit is a standard replacement part for a wide range of Samsung built-in dishwashers. Key compatible series include:
- DW80 Series: DW80K5050US, DW80K7050US, DW80J3020US, DW80M9960US, DW80F600UTW.
- DW79 Series: DW7933LRASR, DW7933LRAWW.
- DMT Series: DMT400RHS, DMT800RHS, DMT300RFB.
- Other Models: Fits select DW60 and DW50 models utilizing the DD94 series bracket configuration.
When to Use This Kit
- New Installation: Essential for a secure fit during the initial setup of your dishwasher.
- Broken or Bent Brackets: The existing brackets have snapped or become deformed, causing the dishwasher to sit unevenly or wobble.
- Tipping Issues: The dishwasher tilts forward when the bottom rack is loaded with heavy plates and pulled out.
- Cabinet Noise: Excessive vibration and rattling against the surrounding cabinets due to loose or missing mounting hardware.
Installation Tips
- Safety First: Ensure the dishwasher is disconnected from power and water if you need to pull the unit out to access the mounting slots.
- Slot Alignment: Slide the brackets into the designated slots on the top or sides of the dishwasher frame before pushing the unit into the cabinet opening.
- Bending Tabs: Once inserted into the frame, you may need to bend the small metal tabs with pliers to lock the brackets into the dishwasher housing.
- Screw Selection: Use the shorter screws to attach the brackets to the dishwasher frame and the longer screws to anchor the brackets into the wooden cabinet or countertop.
- Leveling: Always adjust the dishwasher's leveling legs before securing the brackets to ensure the door closes and seals perfectly.
