W10124096 Refrigerator Condenser Fan Motor Kit - For Whirlpool Kenmore Maytag Refrigerators
0.00
Regular price
$29.84
Regular price
Save 11%
$33.43
Sale price
$29.84
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
W10124096 Refrigerator Condenser Fan Motor Kit
Key Features

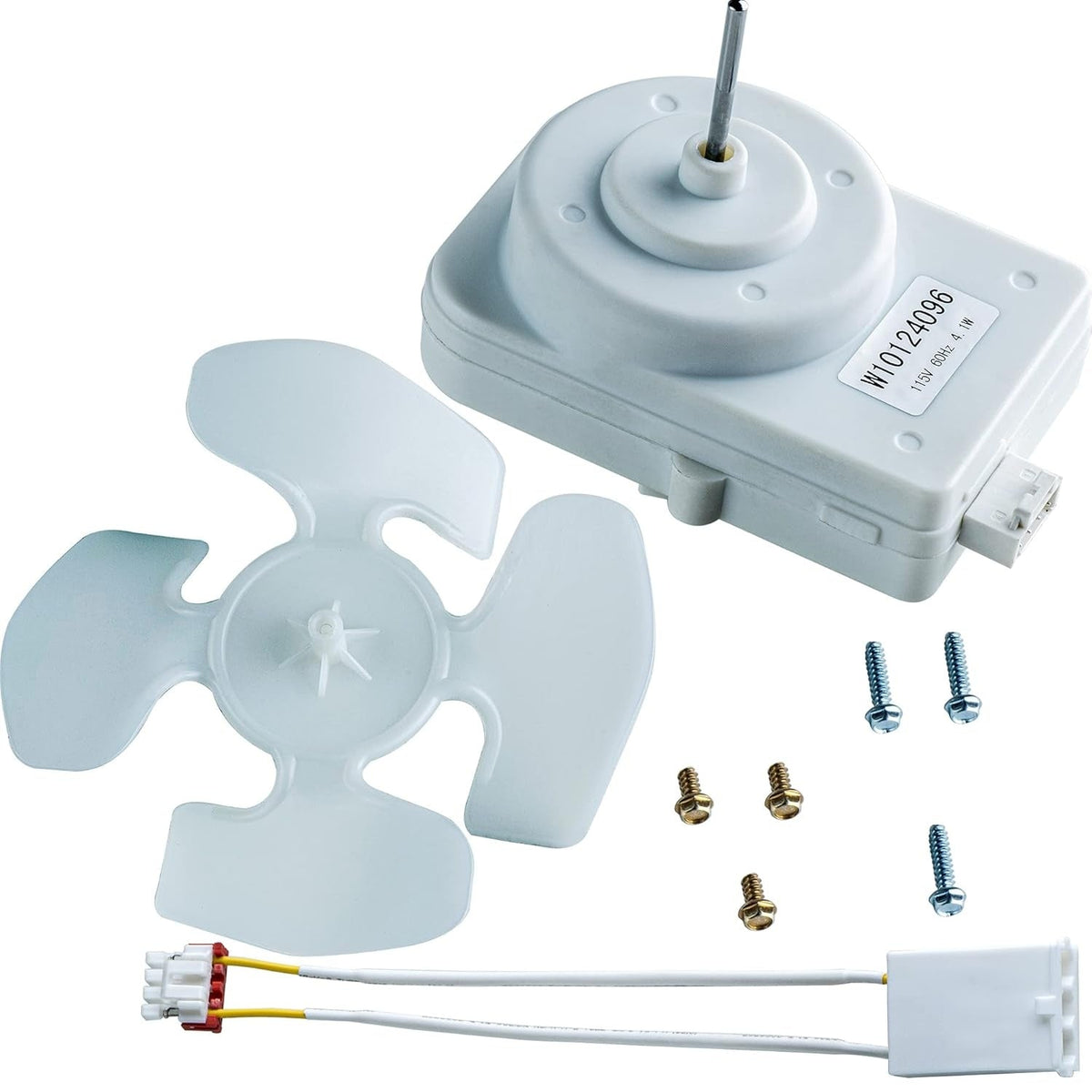

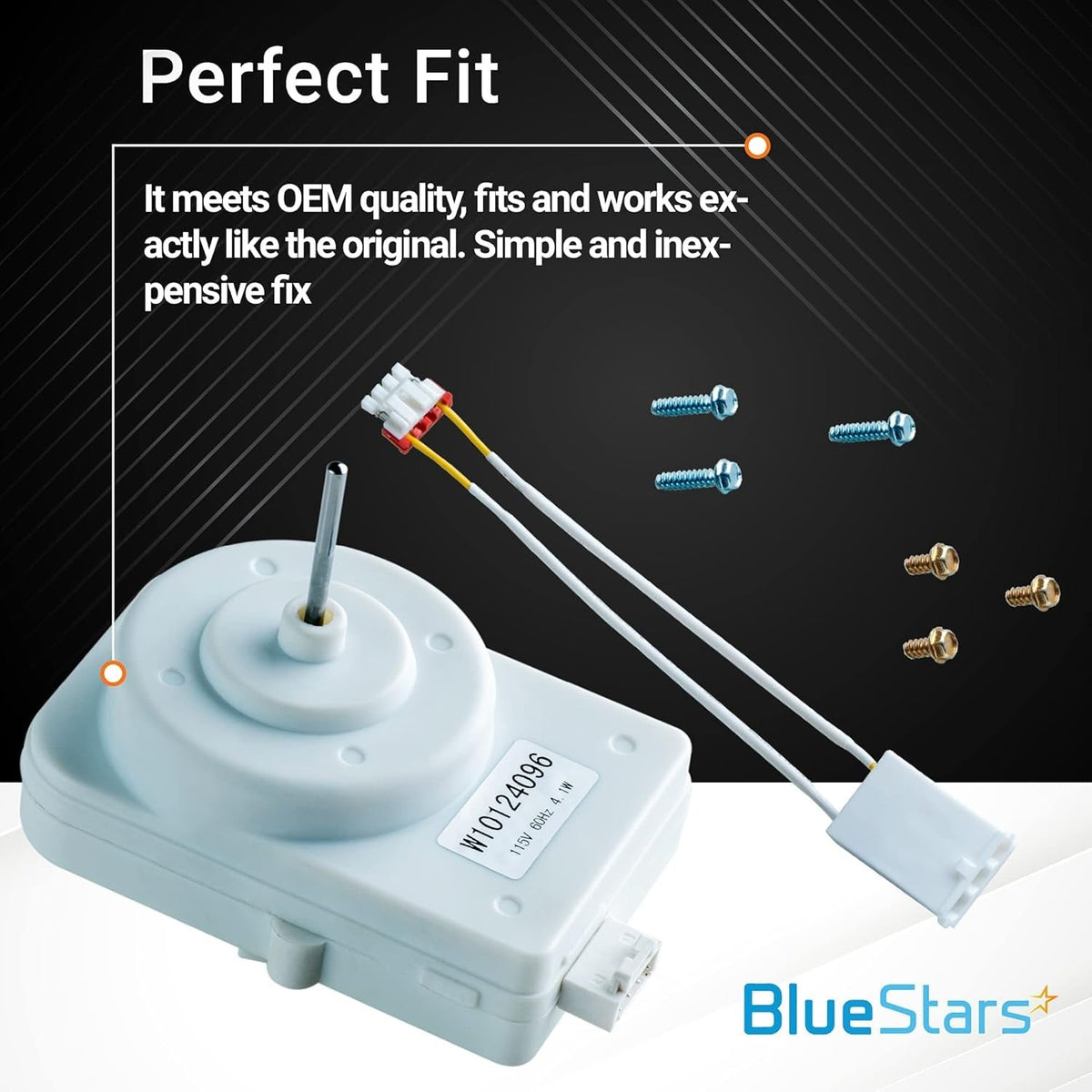

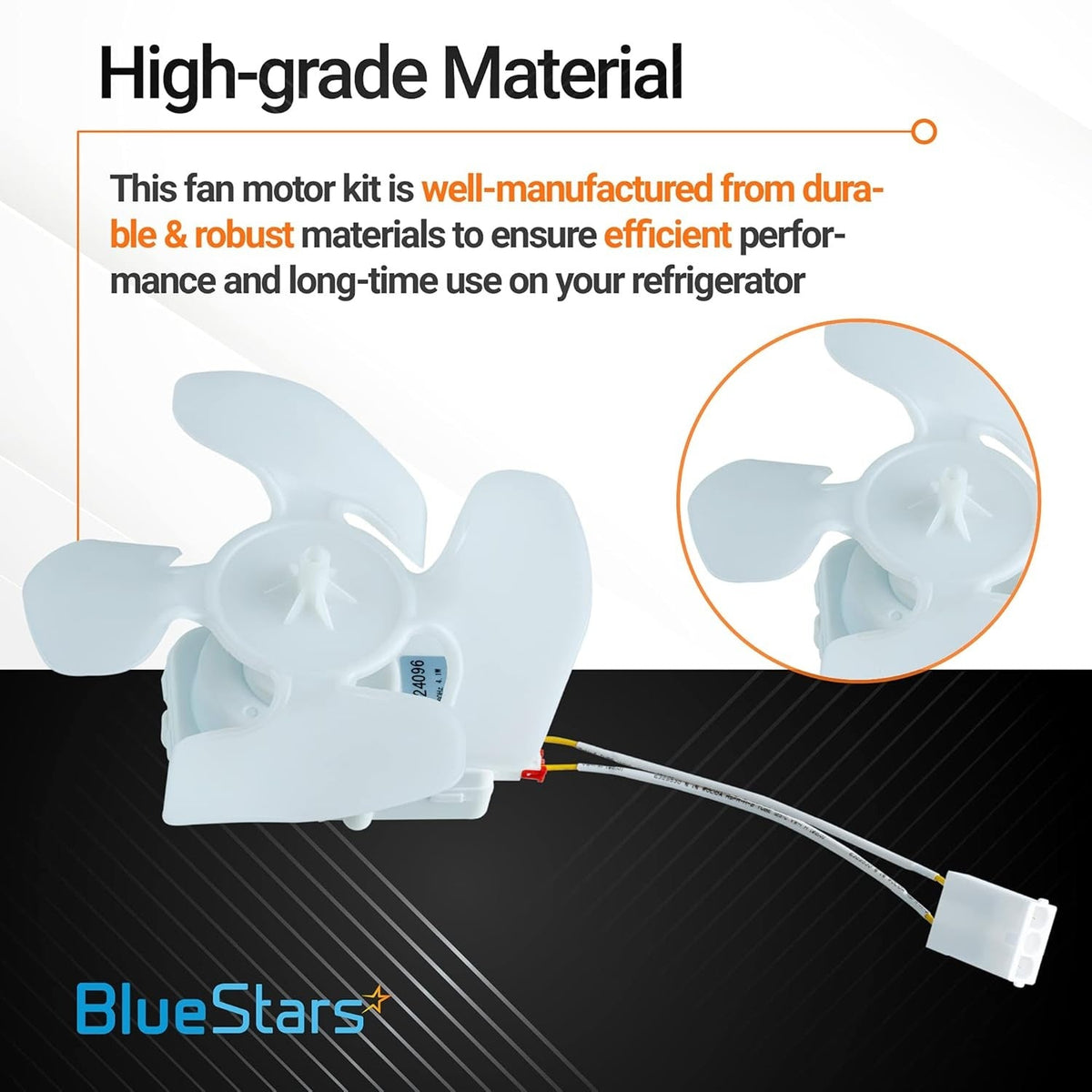

- Complete kit includes 1 motor, 1 fan blade, 1 wire harness, and mounting screws.
- Motor Specifications: 115V, 60Hz, 4.1W.
- Circulates air over the condenser coils and compressor to dissipate heat.
- Located in the rear machine compartment of the refrigerator.
Replaces / Cross-Reference Part Numbers
- AP4318657
- PS1957416
- AH1957416
- EA1957416
- EAP1957416
- W10130108
- W10204250
- W10509333
- W10861645
- W10124096VP
Compatibility & Fitment

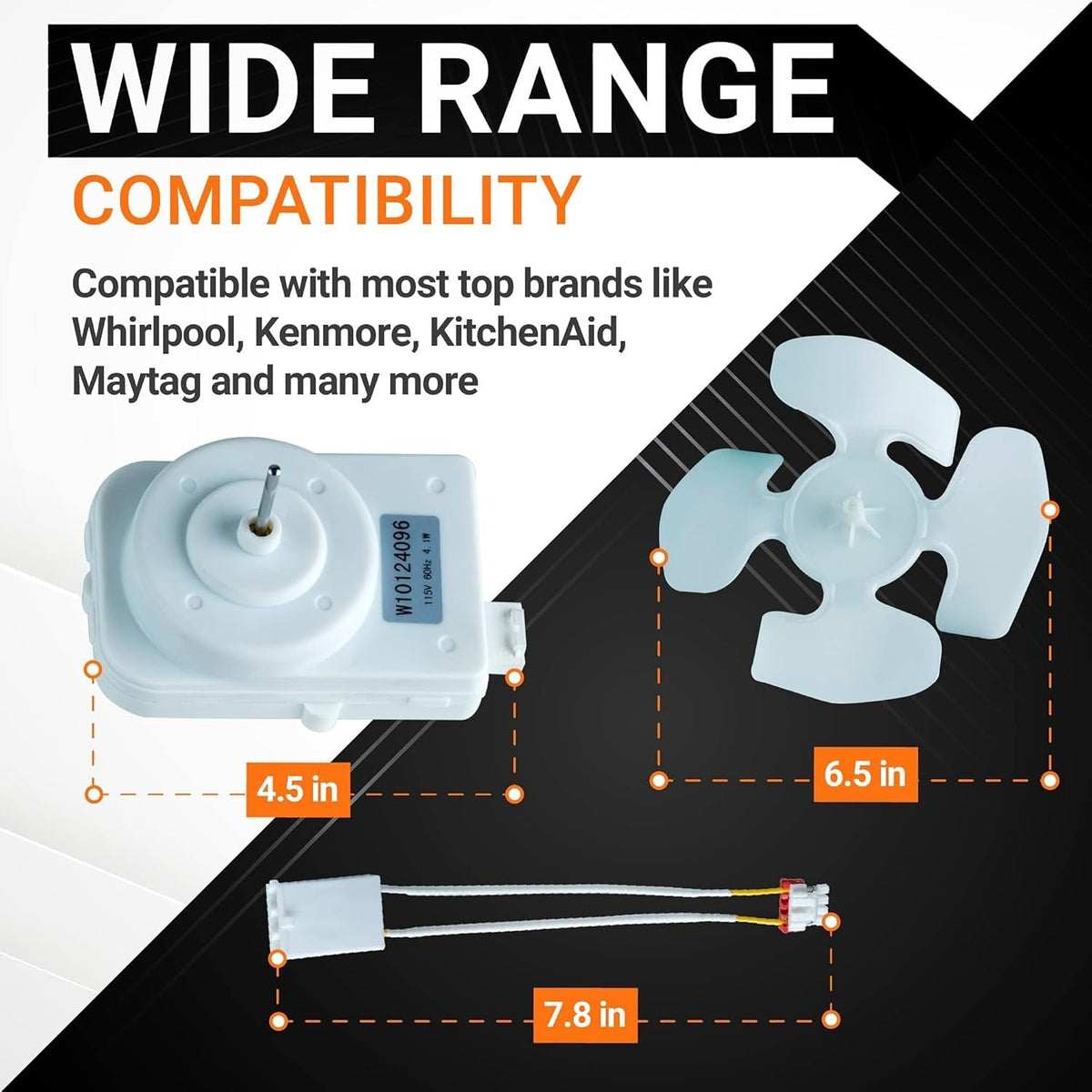

- Fits specific refrigerator models from brands including Whirlpool, Kenmore, Maytag, and KitchenAid.
- Verify fitment with your appliance's model number before purchasing.
When to Replace
- Refrigerator is not cooling properly or is too warm.
- Loud or unusual noises from the back of the appliance.
- Compressor is overheating.
- Fan blade does not spin when the compressor is on.
Installation Tips
- Disconnect the refrigerator from its power source before starting the installation.
- Access the condenser fan motor by removing the rear service panel.
- Take a photo of the wire connections before removing the old motor for reference.
- Ensure the fan blade is installed correctly and spins freely without obstruction.
