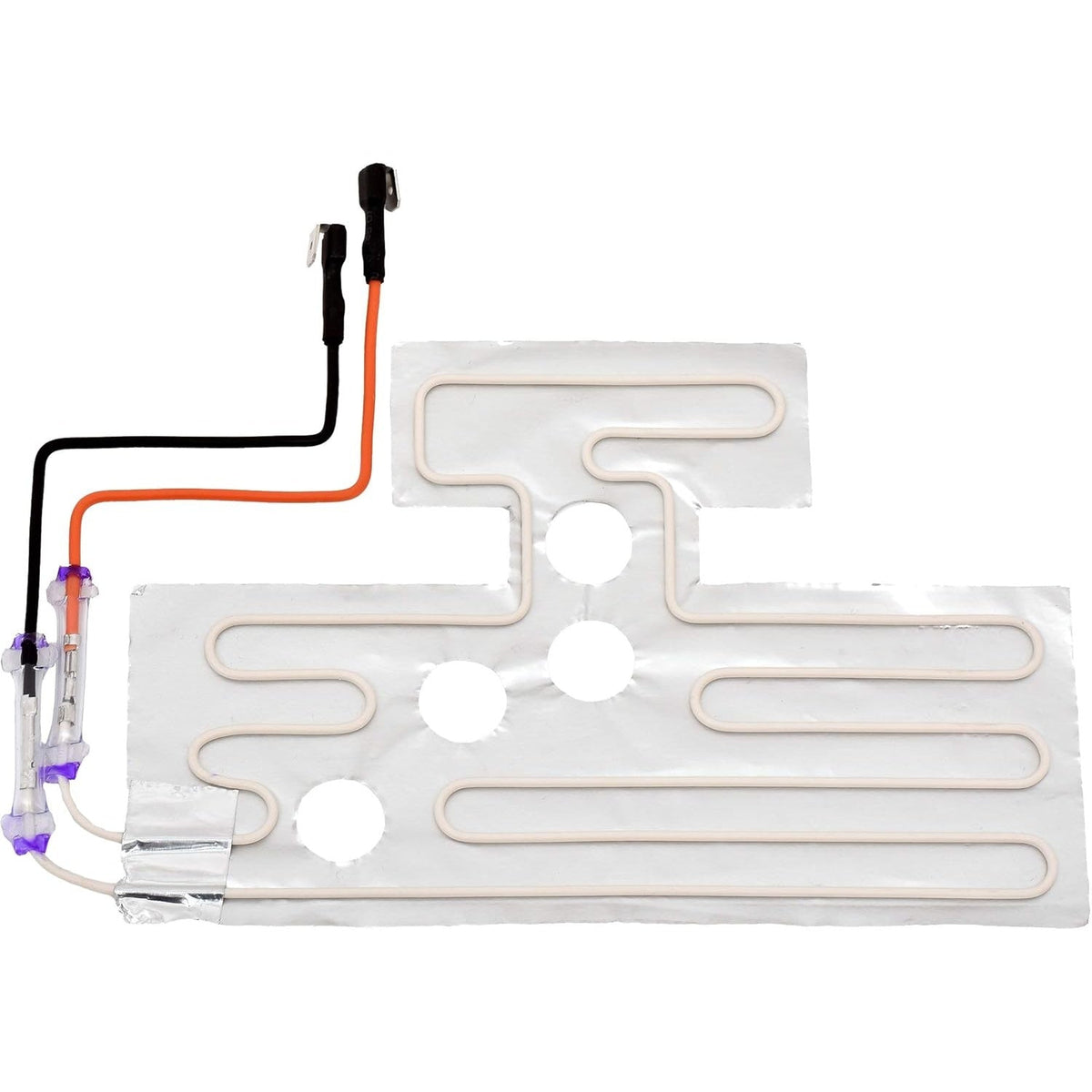

5303918301 Refrigerator Garage Heater Kit – For Frigidaire & Kenmore
0.00
Regular price
$13.79
Regular price
Save 11%
$15.44
Sale price
$13.79
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
5303918301 Refrigerator Garage Heater Kit
Key Features
- Enables refrigerator operation in low ambient temperatures, down to 34°F (1.1°C).
- Designed for top-freezer refrigerators located in unheated spaces like garages or basements.
- Warms the temperature control sensor to ensure the compressor cycles correctly in cold environments.
- Kit includes one heater assembly (PN 5303950194) and installation instructions (PN 241532101).
- Operating Voltage: 120V AC.
Replaces / Cross-Reference Part Numbers
- AP3722172
- PS900213
- AH900213
- EA900213
- EAP900213
- 1037646
- LP15815
- 5303950194

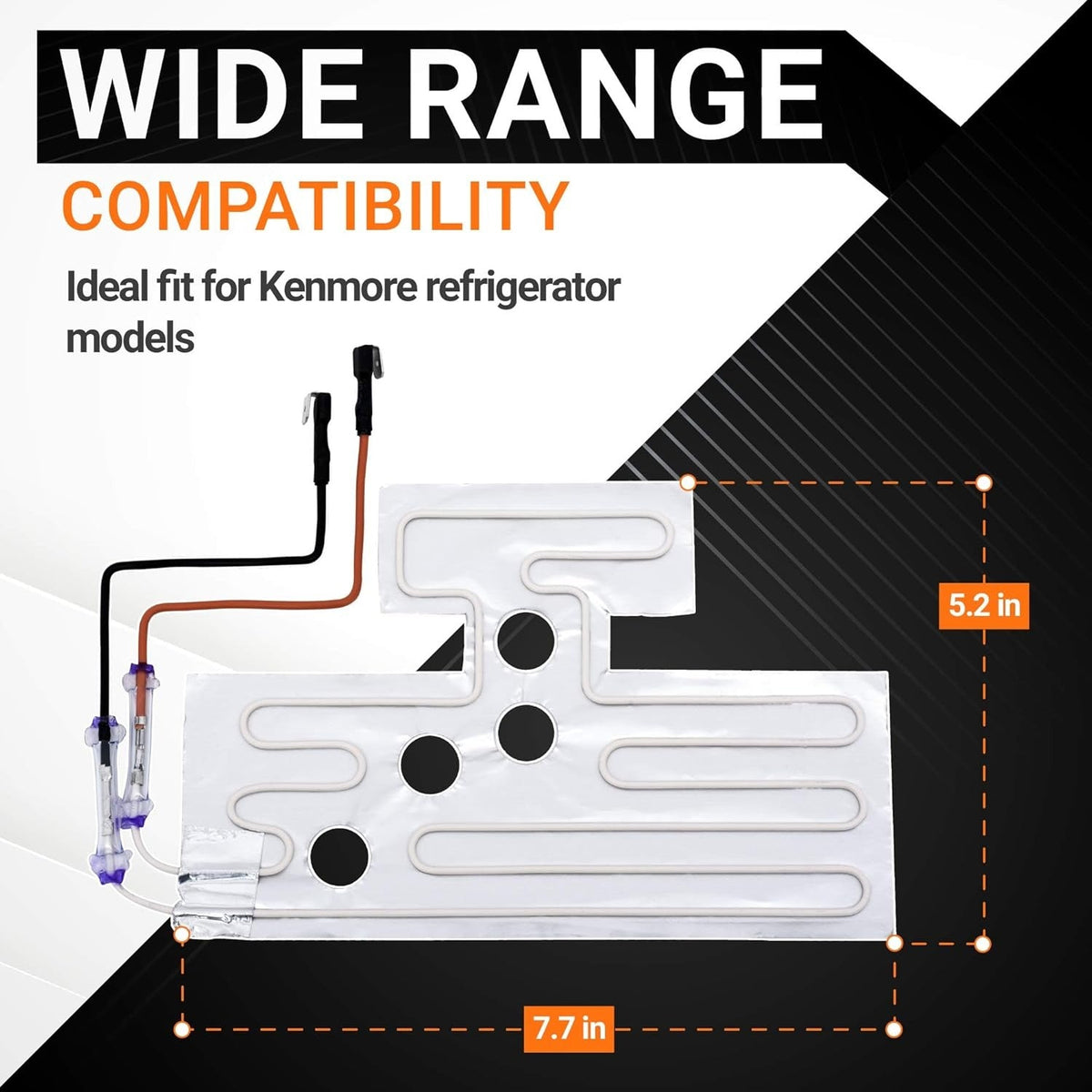

Compatibility & Fitment
- Designed for specific Frigidaire-manufactured top-freezer refrigerator models.
- Compatible brands may include Frigidaire, Electrolux, and Kenmore.
- Always verify compatibility by checking your appliance's model number and service manual.
When to Replace
- The refrigerator fails to run or cool when the surrounding temperature drops.
- The freezer compartment works, but the fresh food section becomes warm.
- The compressor does not turn on in a cold environment.
Installation Tips
- Disconnect the refrigerator from its power source before starting the installation.
- The heater is installed on or near the thermostat in the fresh food compartment's control housing.
- Follow the included manufacturer instructions for correct placement and electrical connection.
