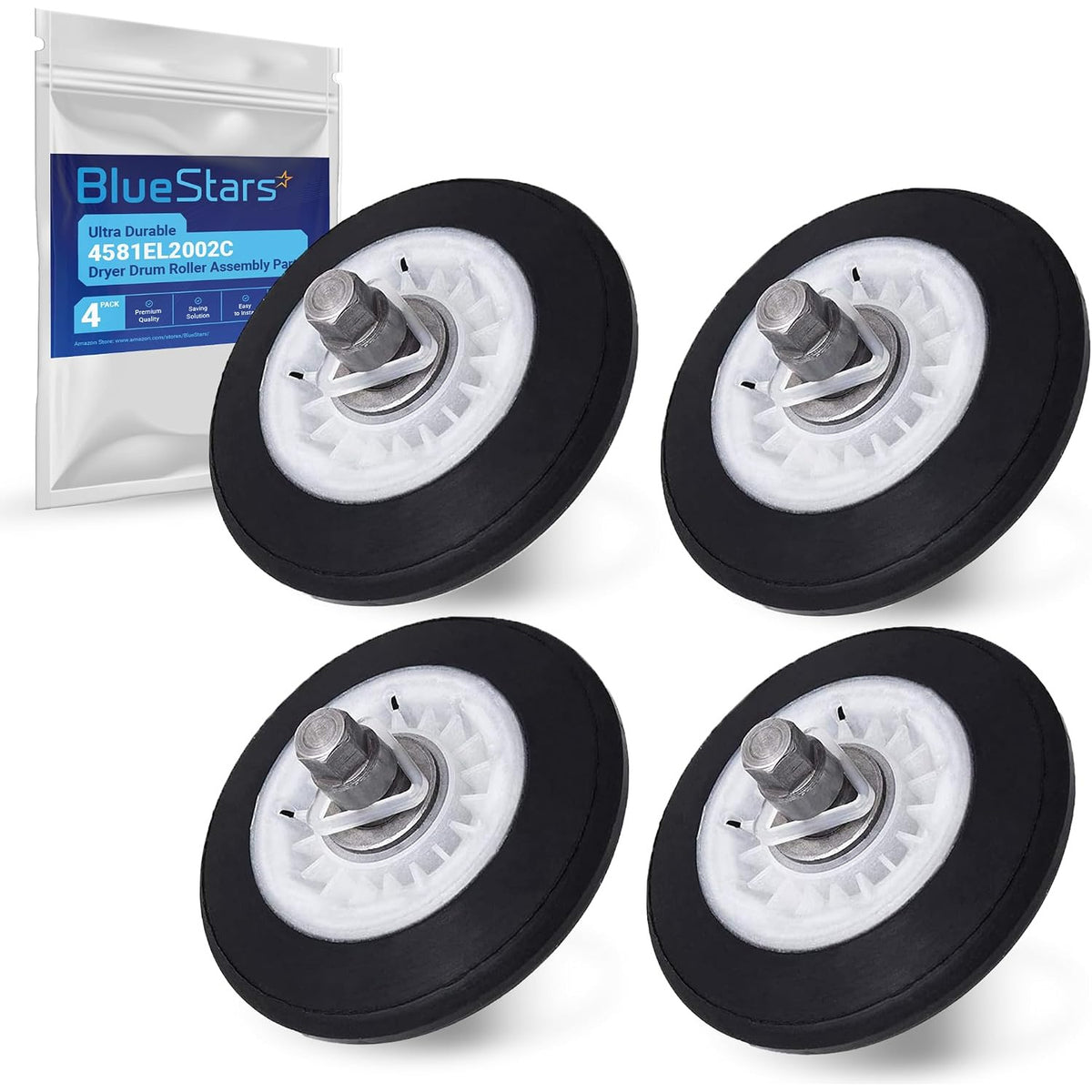

4581EL2002C Dryer Drum Roller Assembly - For LG Kenmore Dryers - Replaces 4581EL2002A 4581EL2002B - 4 Pack

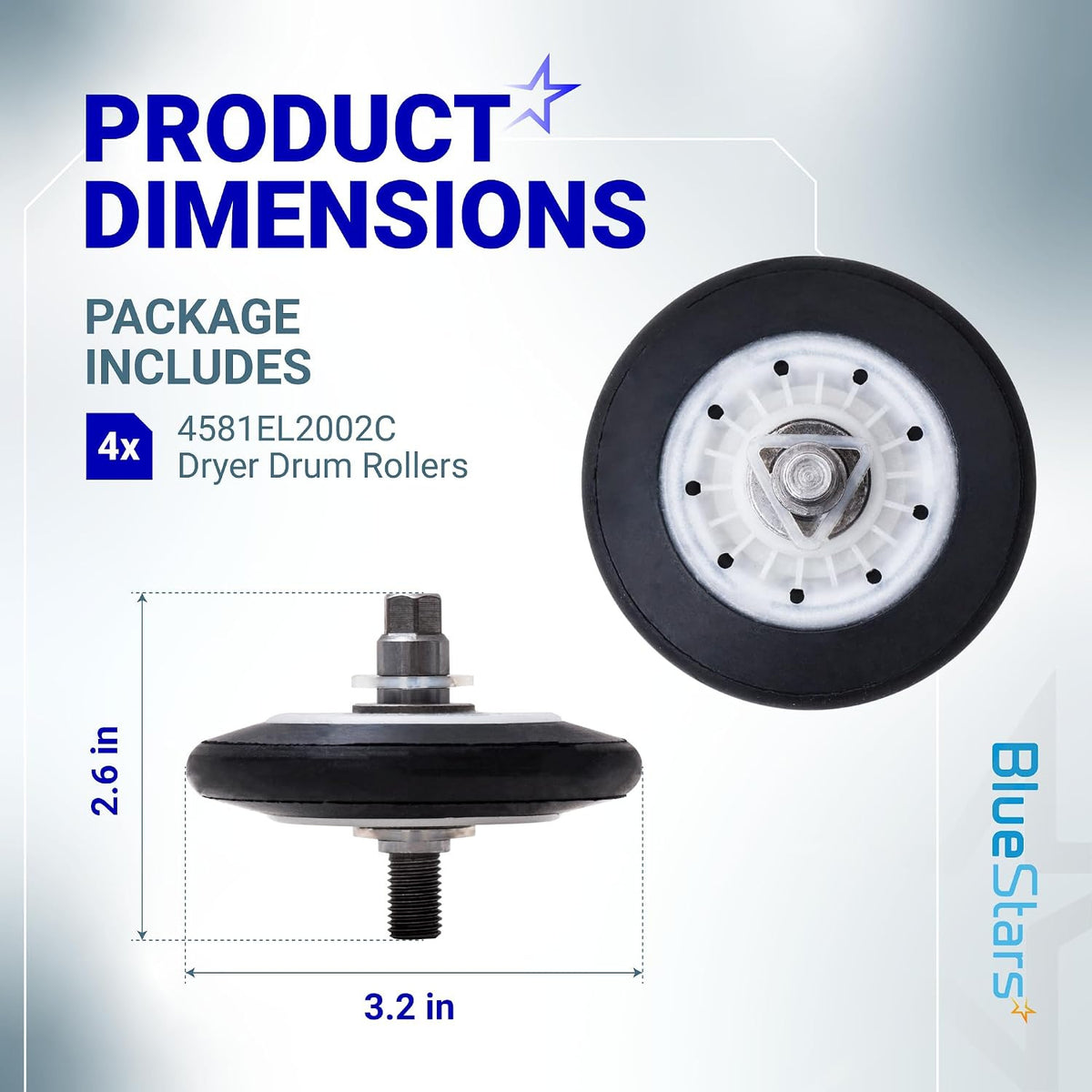

4581EL2002C / 4581EL2002A Dryer Drum Roller

Key Features

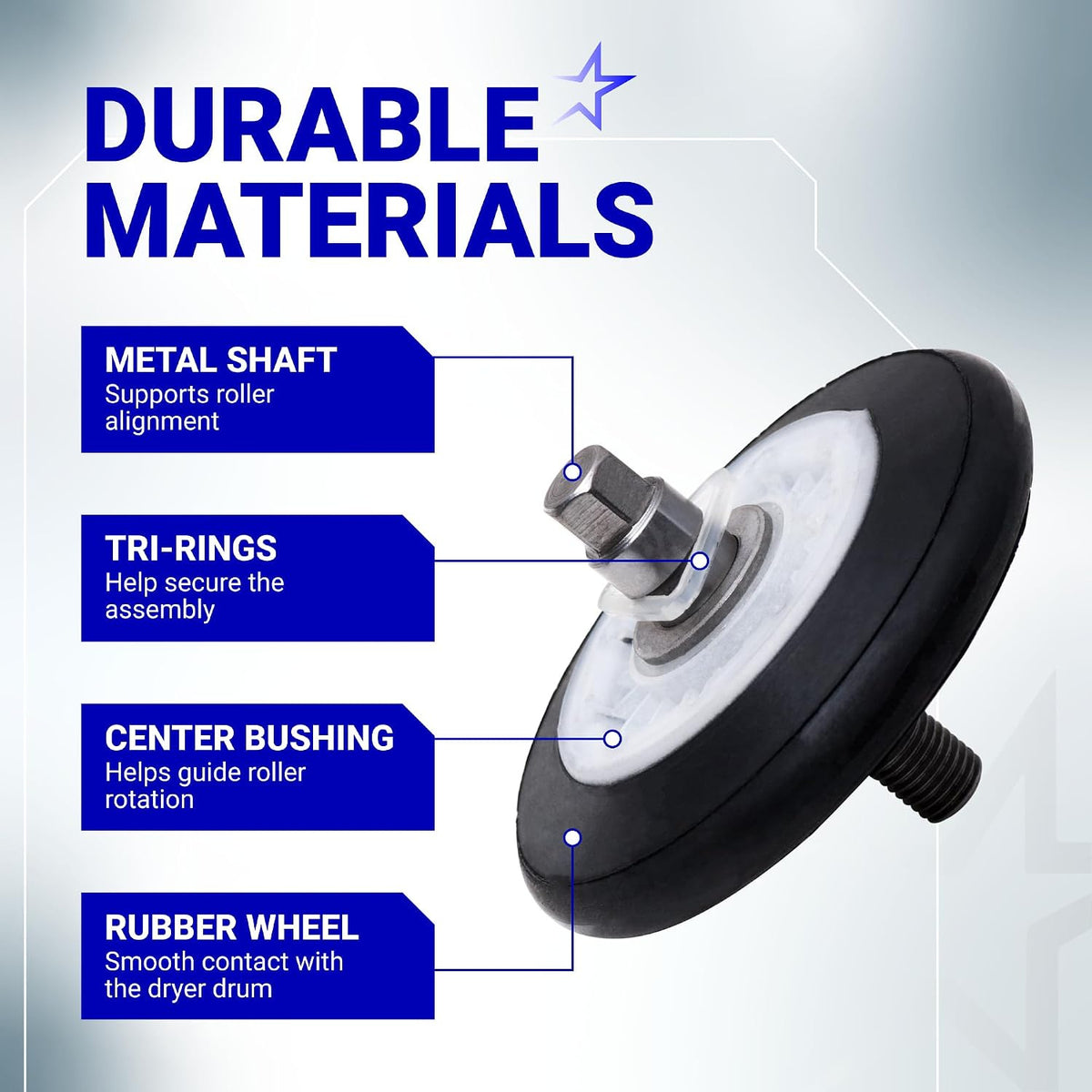

• Upgraded Dual Ball-Bearing Design: Unlike standard bushing-style rollers, the 4581EL2002C features high-precision internal ball bearings that provide significantly smoother rotation and reduced friction, extending the life of the dryer motor.
• Reinforced High-Density Rubber: The outer wheel is manufactured from a premium, wear-resistant rubber compound designed to absorb mechanical vibrations and eliminate the "thumping" noise common in high-capacity drying cycles.
• Heat-Stabilized Construction: Engineered to maintain its structural integrity and circular shape even under the intense thermal stress of back-to-back drying loads, preventing "flat spots" from forming.
• Quiet-Operation Engineering: Specifically designed to reduce operational decibels, restoring the factory-quiet performance of your LG or Kenmore laundry suite by providing stable, balanced support for the heavy dryer drum.

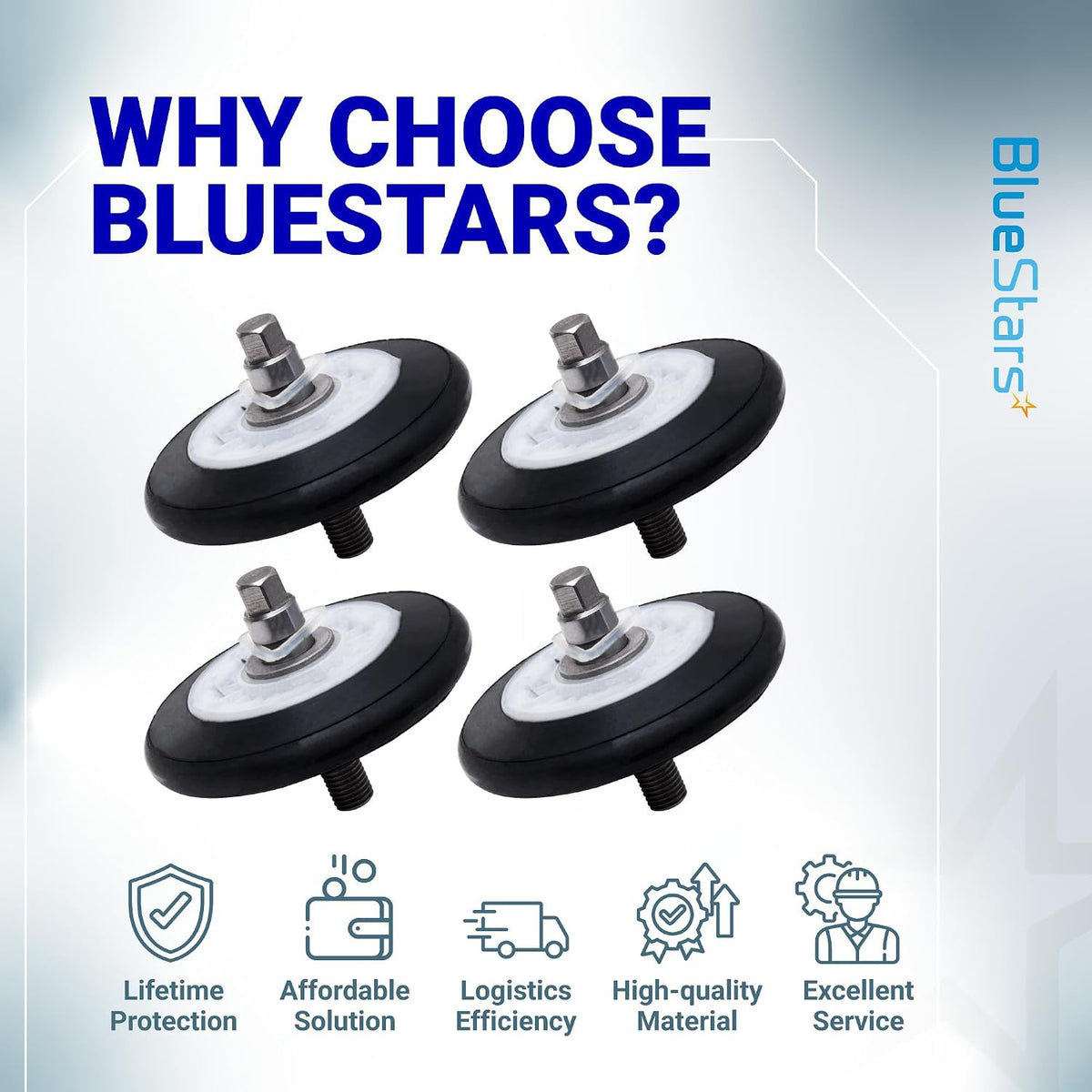

• Essential 4-Piece Maintenance Pack: Since drum rollers tend to wear at the same rate, this 4-pack allows for a complete system overhaul, ensuring even weight distribution and preventing premature failure of the new parts.

Replaces / Cross-Reference Part Numbers

• AP5688895
• PS8260240
• 4581EL2002H
• 4581EL2002A
• 4581EL2002B
• 4581EL2002D
• 4581EL2002E
• 4581EL3001C
• 4581EL3001F
• AGM75510755

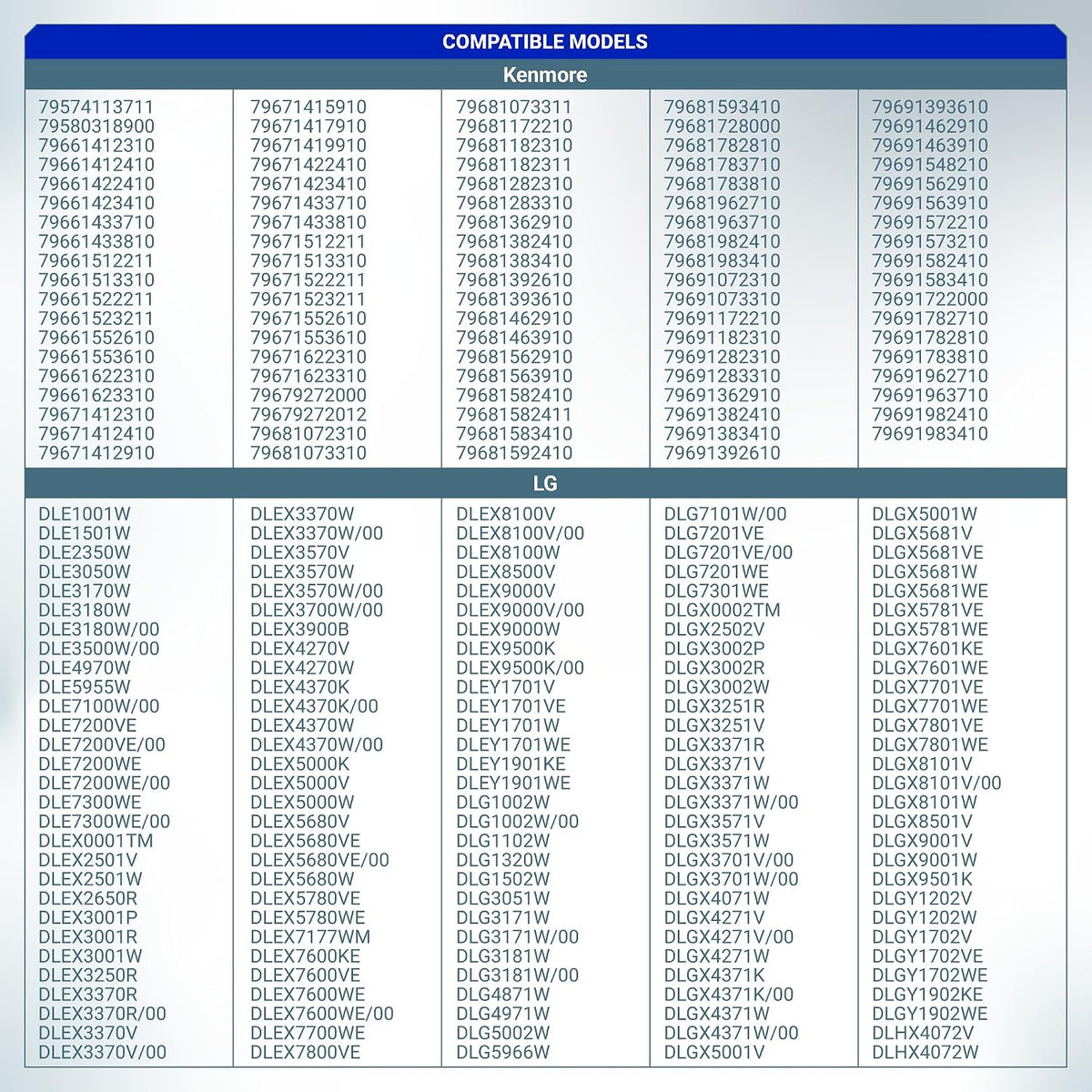

Compatibility & Fitment

This roller assembly is the primary drum support component for modern LG-manufactured front-load dryers. Key compatible series include:

• LG DLE/DLG Series: Fits hundreds of Electric (DLE) and Gas (DLG) models including DLEX3370W, DLEX3570W, DLGX3370V, DLE2512W, and DLE3777W.
• Kenmore (796 Series): Compatible with the vast majority of 796-prefix high-efficiency dryers produced by LG for Sears (e.g., 796.69002010, 796.79002010).

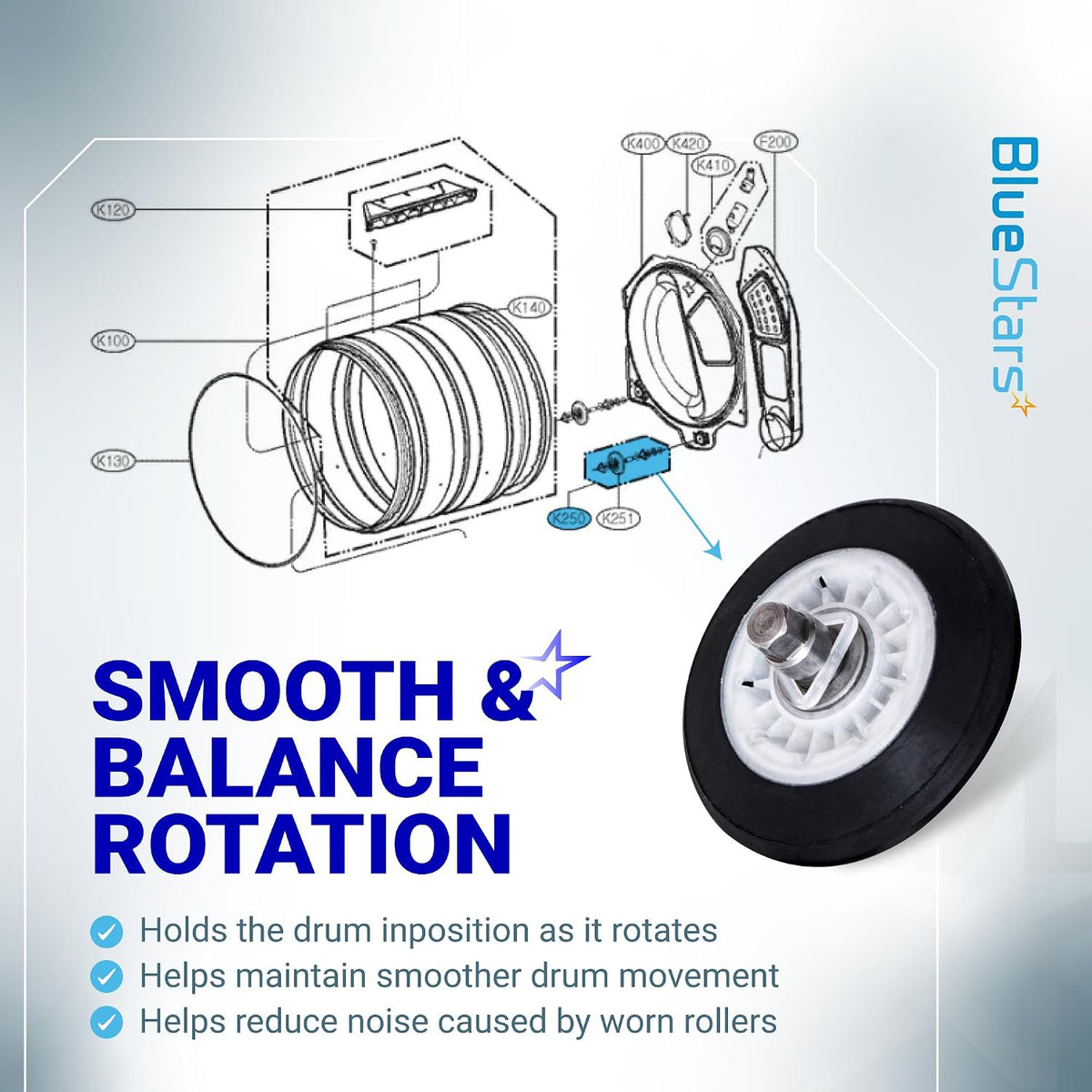

• Note: These rollers are typically located on both the Front Bulkhead and the Rear Bulkhead. Most LG dryers utilize a total of four rollers to support the drum.

When to Replace

• Loud Squealing or Chirping: A high-pitched sound that increases in frequency as the drum rotates, indicating the internal bearings have run dry or seized.
• Rhythmic Thumping: A persistent "thump-thump" sound, even when the dryer is empty, suggesting the rubber on one or more rollers has developed a flat spot.
• Dryer Vibrates Excessively: If the rollers are out of round, the entire cabinet will vibrate, which can lead to early failure of the heating element or control board.
• Rumbling or Grinding: A heavy mechanical grinding sound indicates the rubber has worn away completely, leaving the drum to ride on the metal roller core.
• Drum Won't Turn Freely: If the rollers are seized, the motor may hum and shut off due to over-torque, or the belt may slip and burn.

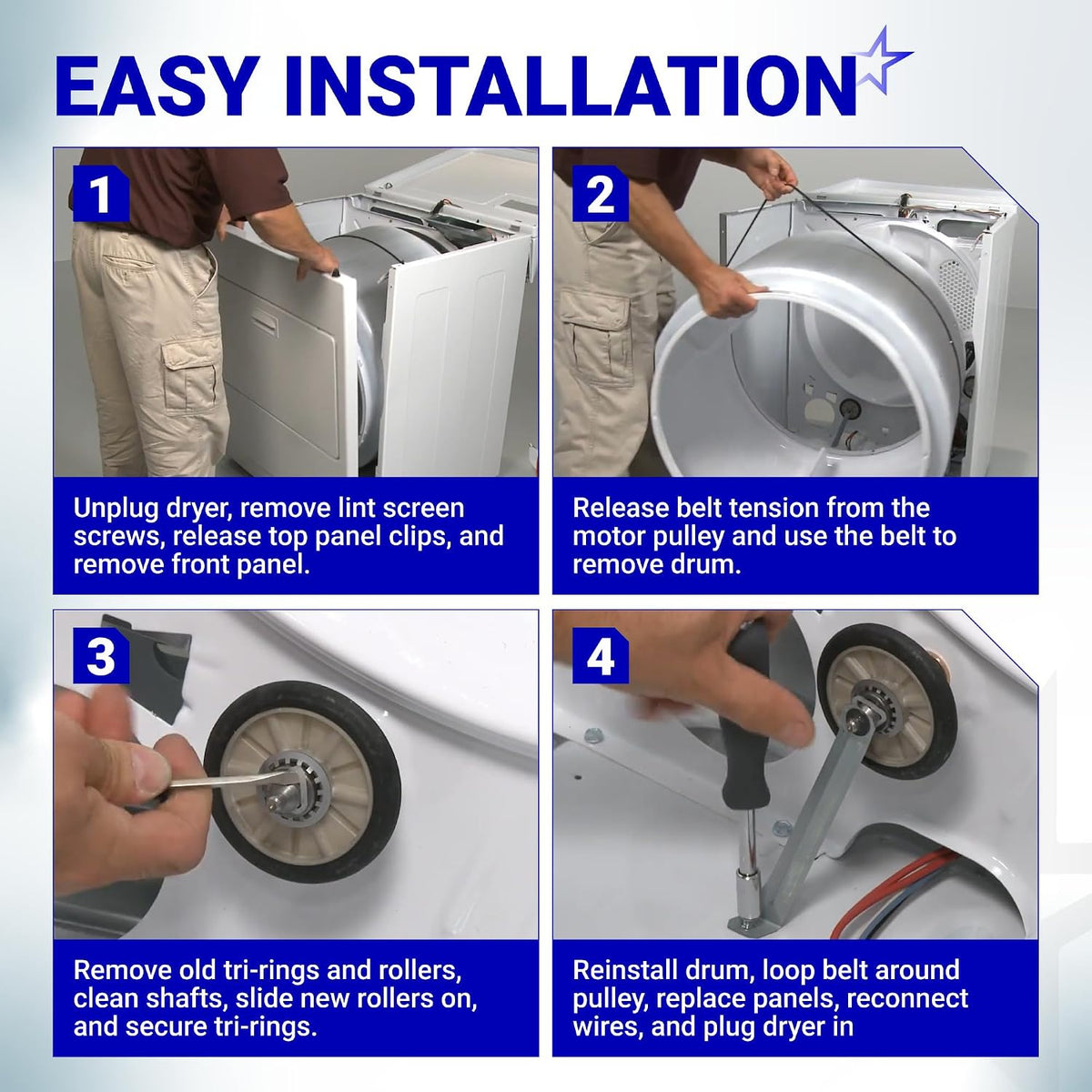

Installation Tips

• Safety First: You MUST unplug the dryer. This repair requires a near-complete disassembly of the cabinet and removal of the dryer drum.
• Accessing the Rollers: You will need to remove the top panel, the control console, and the front door bulkhead. This is an ideal time to vacuum the internal cabinet to prevent fire hazards.
• The "Dry" Rule (IMPORTANT): These ball bearings are factory-sealed. Do not add oil, grease, or WD-40 to the rollers or the shafts, as lubricants will attract lint and cause the new rollers to fail prematurely.
• Check the Shafts: Inspect the metal mounting shafts for grooves or "stepping." If the shafts are not perfectly smooth, they should be replaced along with the rollers to prevent the new bearings from wobbling.

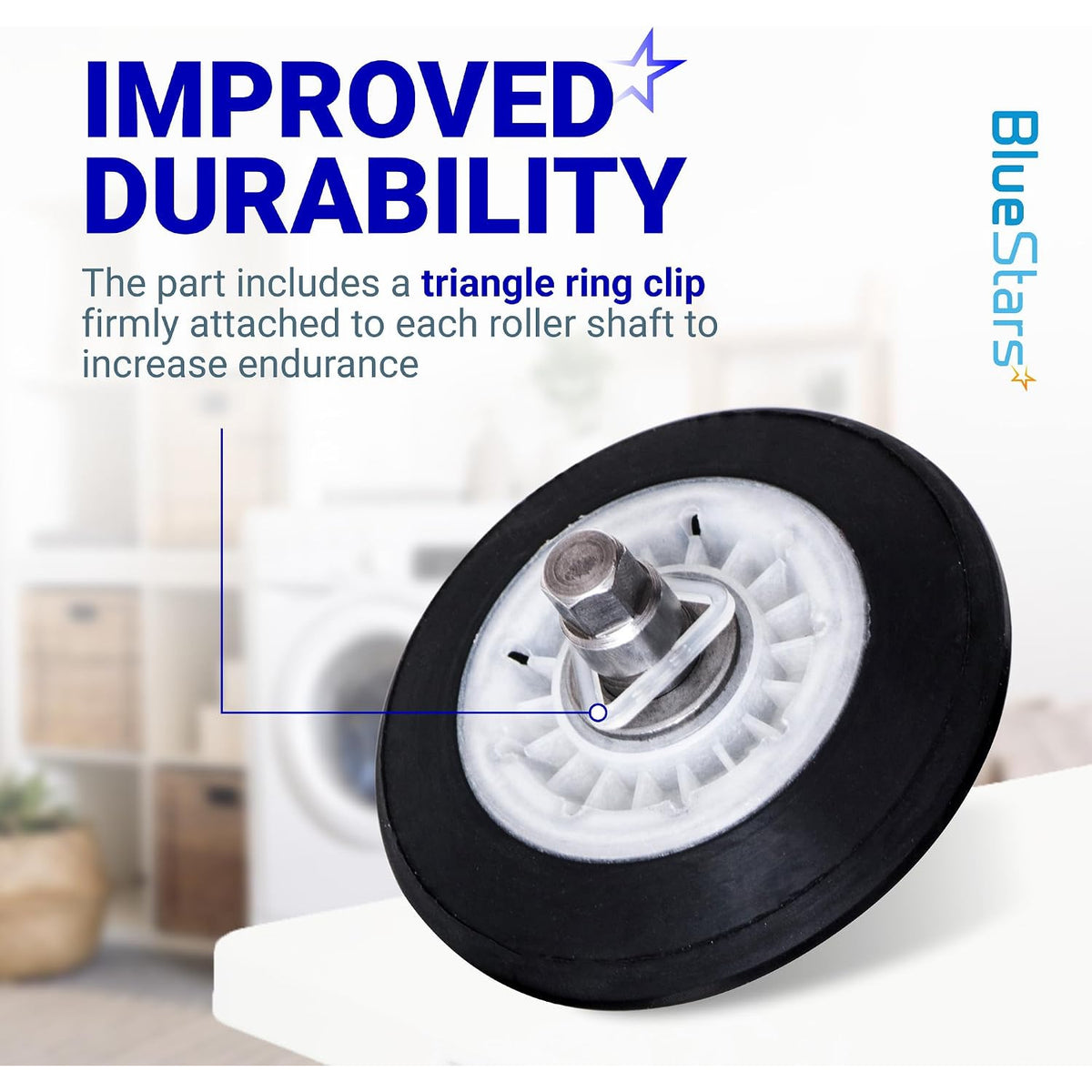

• Triangle Clips: Be careful when removing the small plastic triangle clips (tri-rings) that hold the rollers in place; they can snap easily. If they are brittle, it is recommended to replace them with the new ones typically found in the kit.
