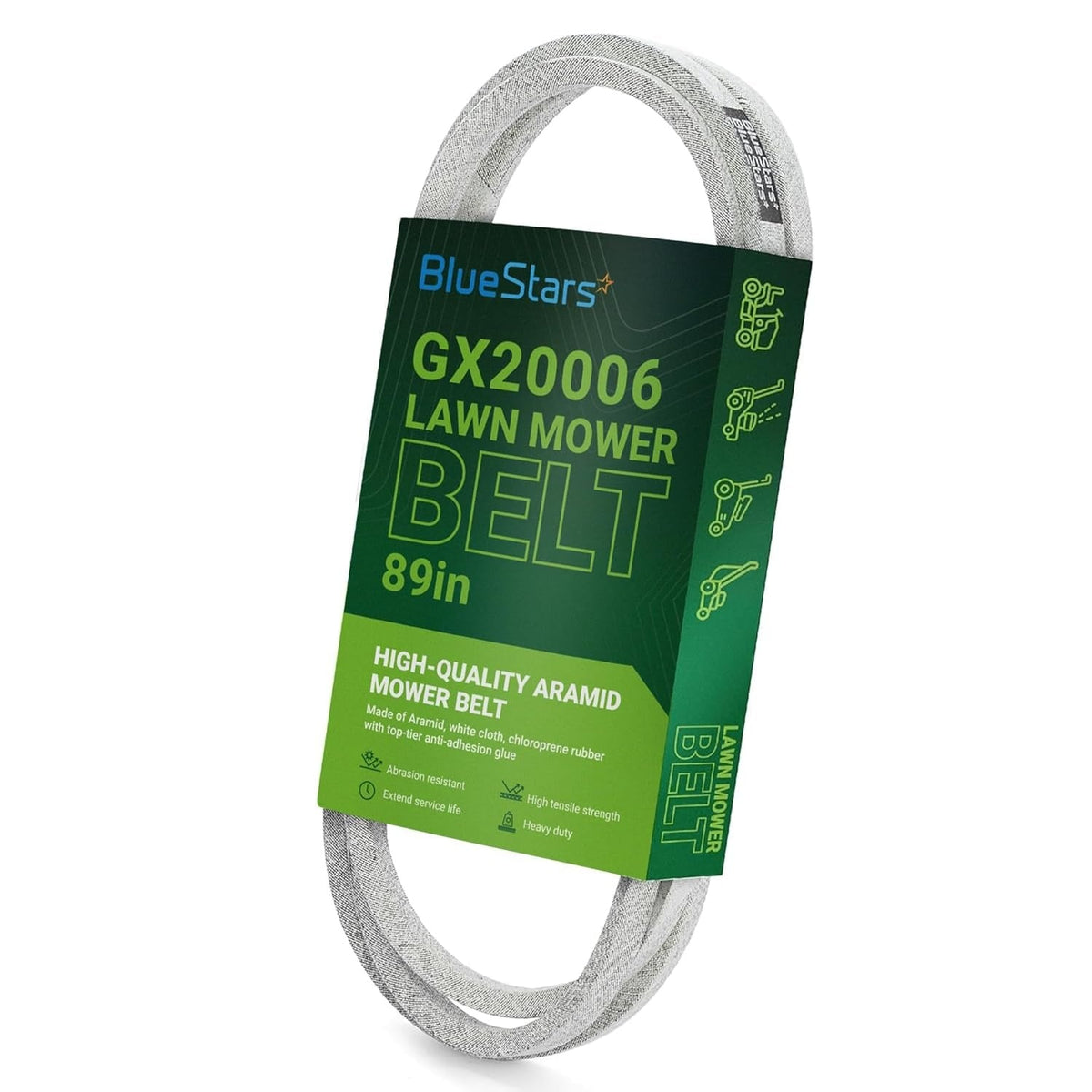

GX20006 Lawn Mower Belt

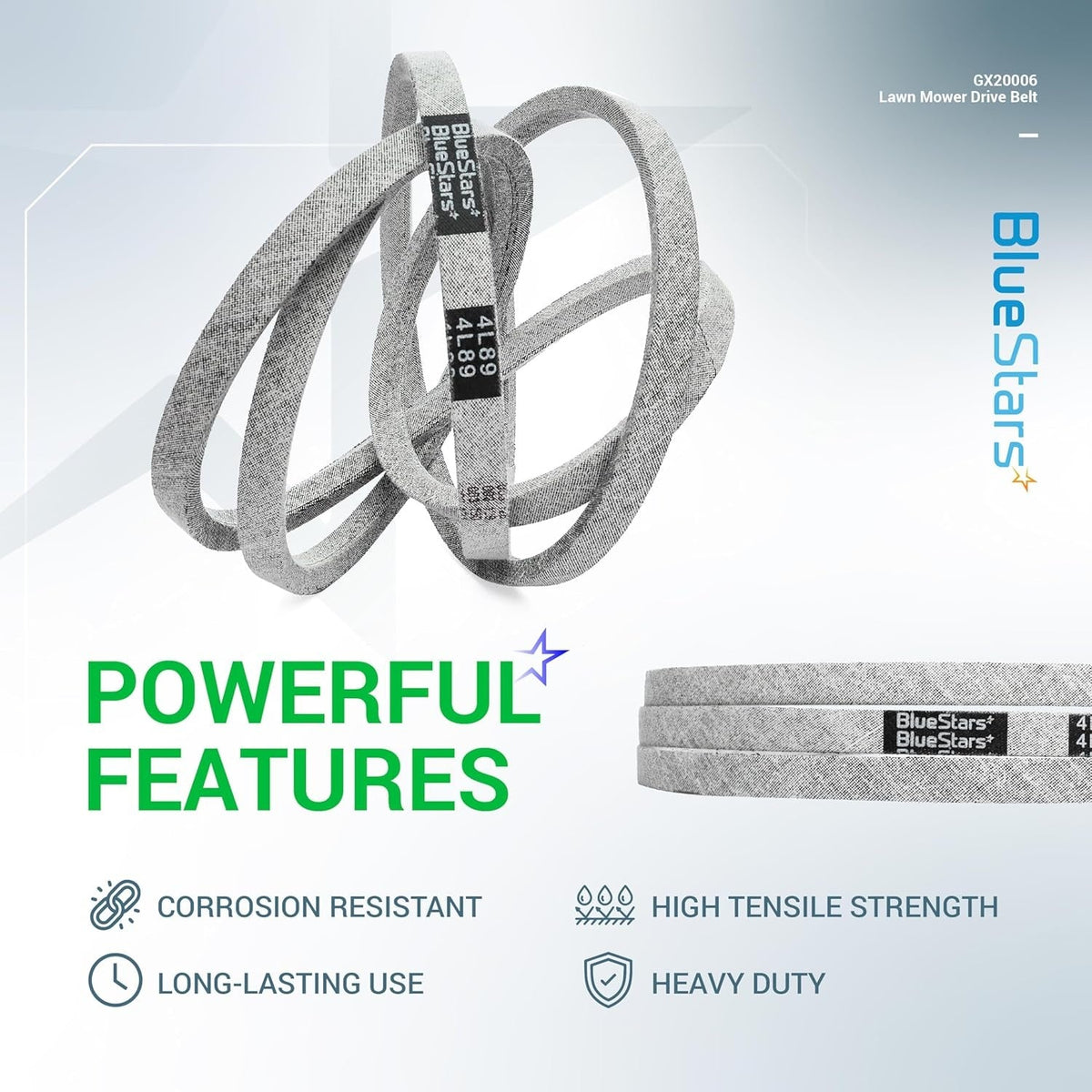

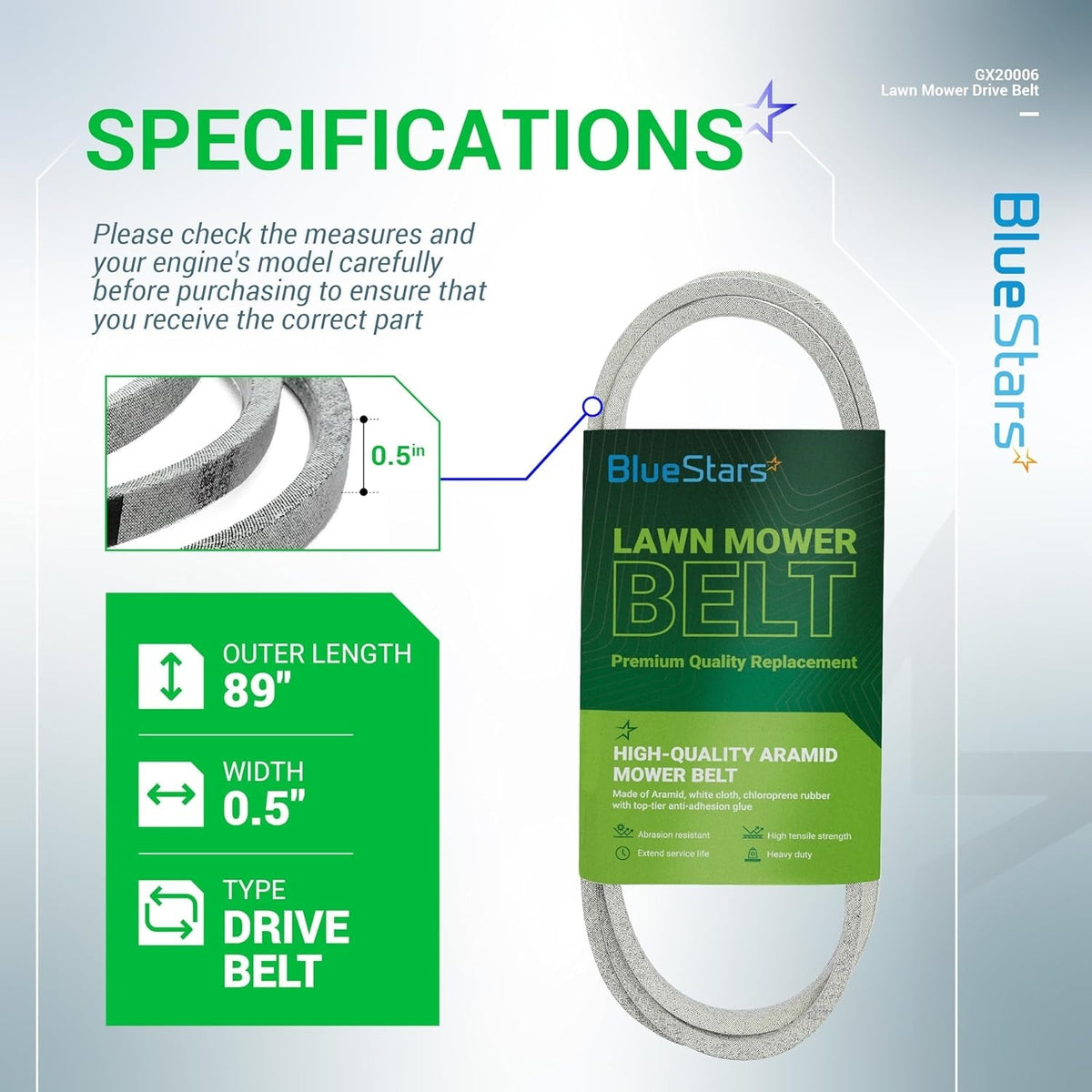

Key Features
- Type: Transmission Drive Belt

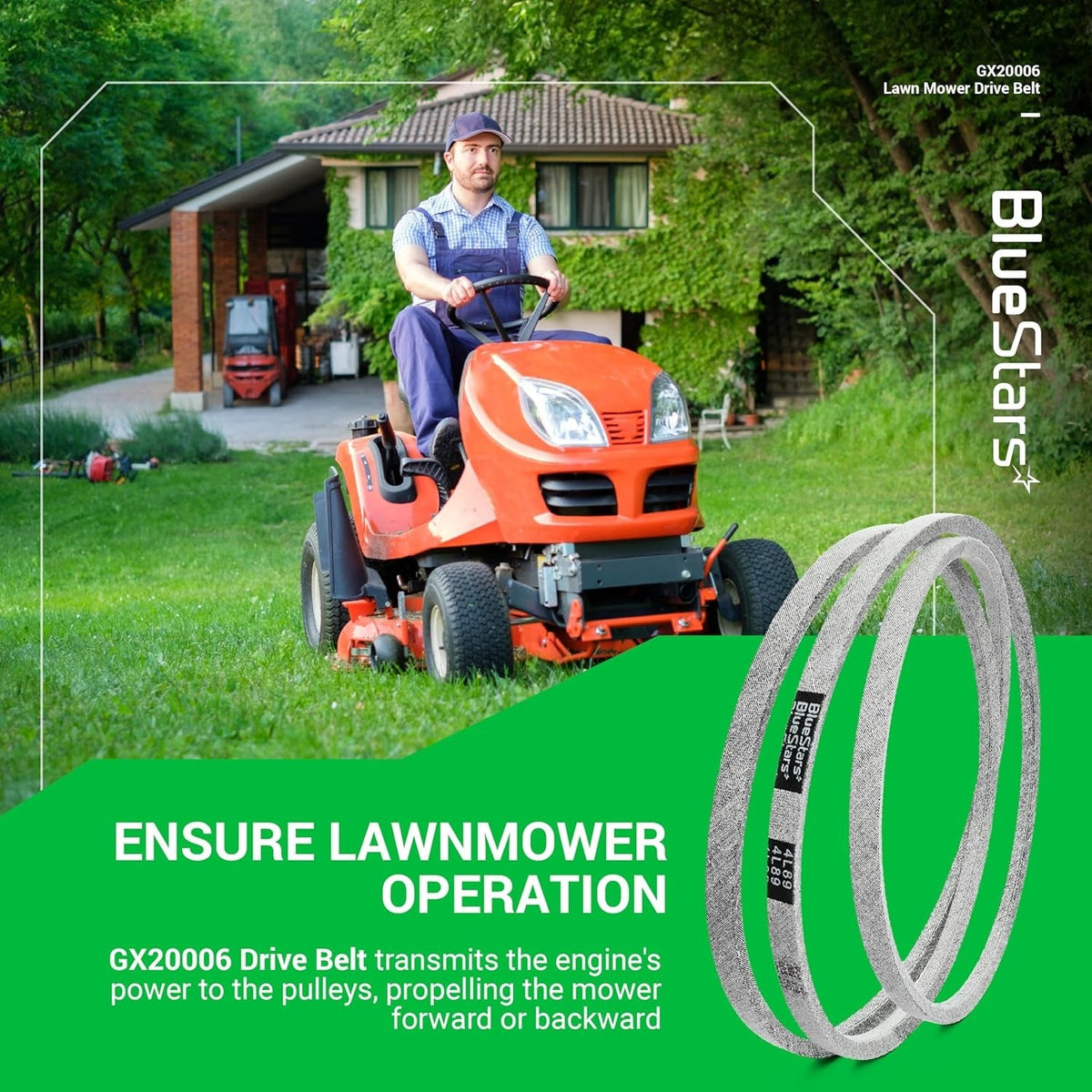

- Application: Powers the hydrostatic transmission

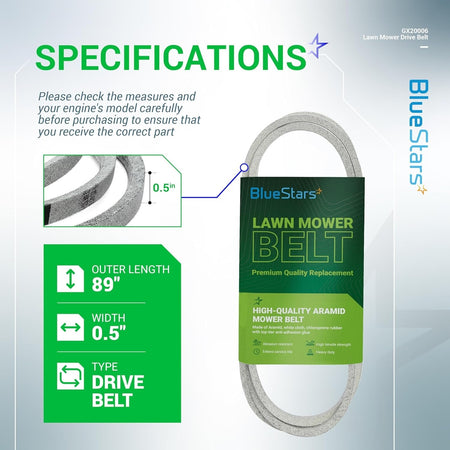

- Length: 88.9 inches (2258 mm)
- Top Width: 1/2 inch

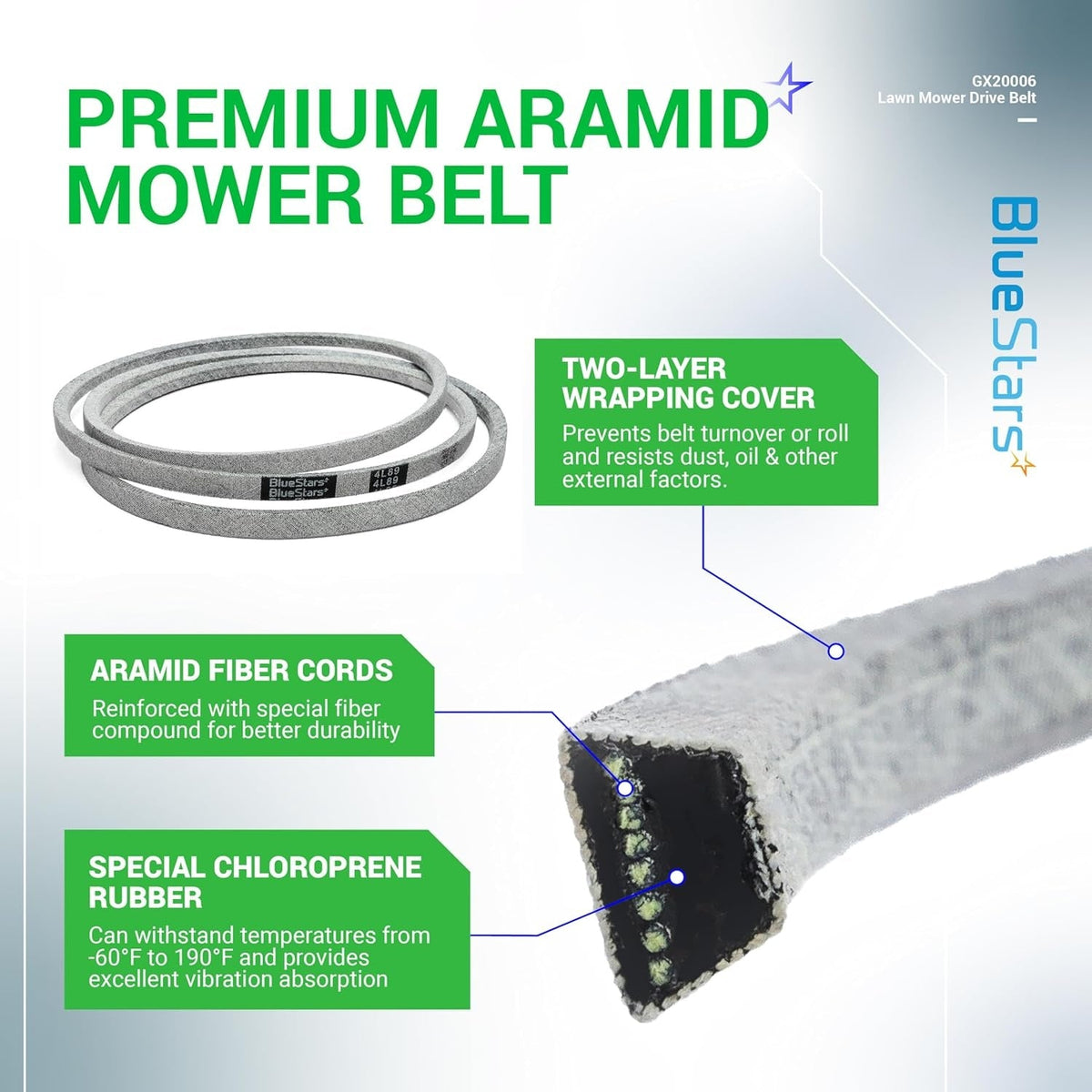

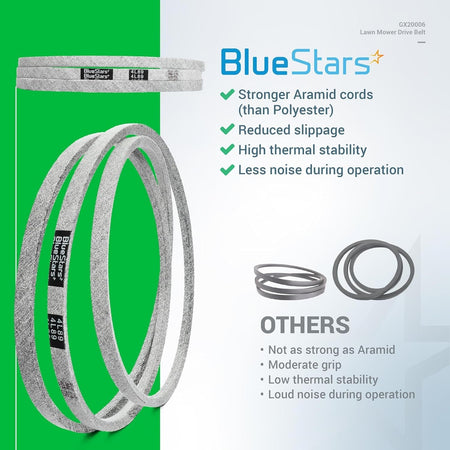

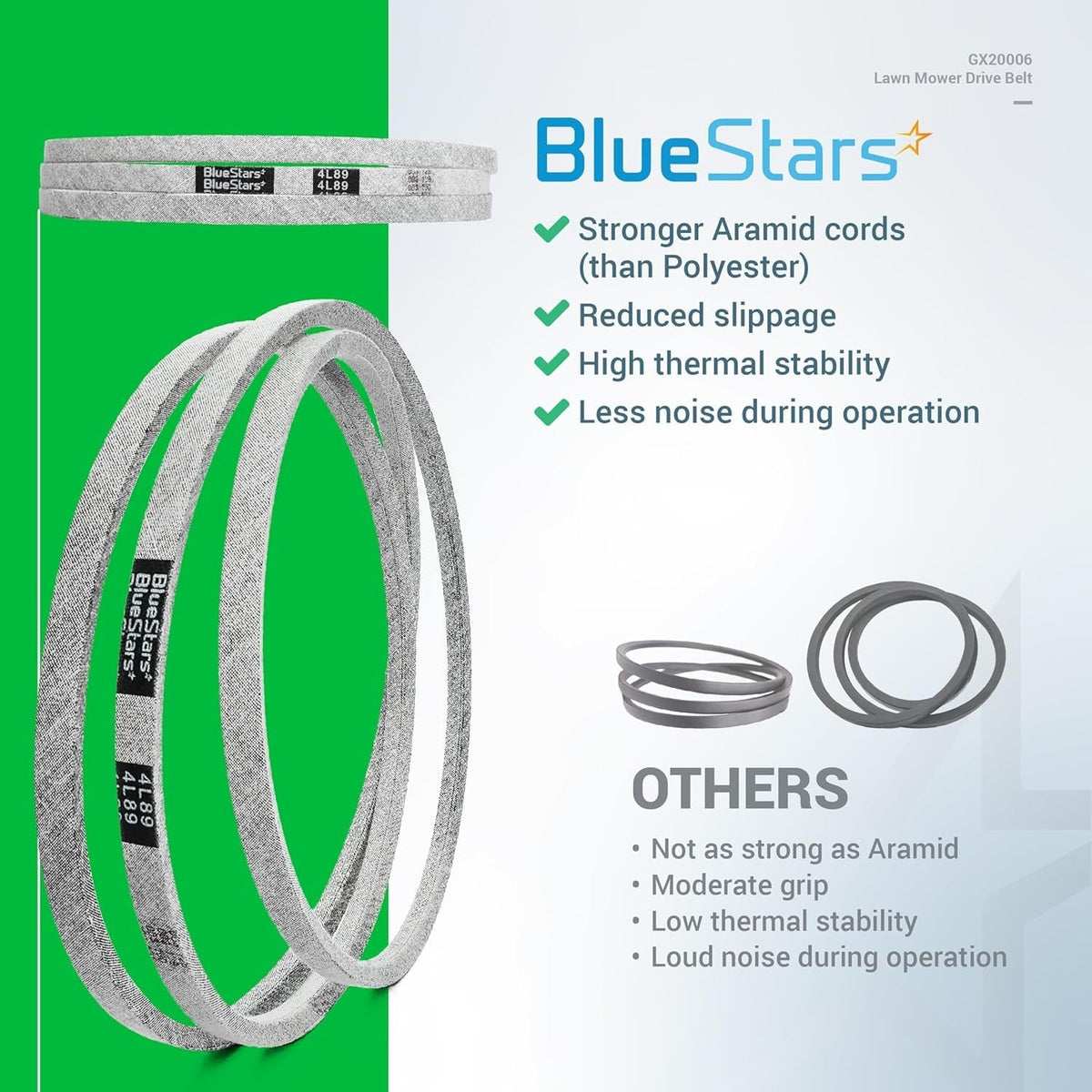

- Construction: Aramid fiber reinforcement for high tensile strength and durability

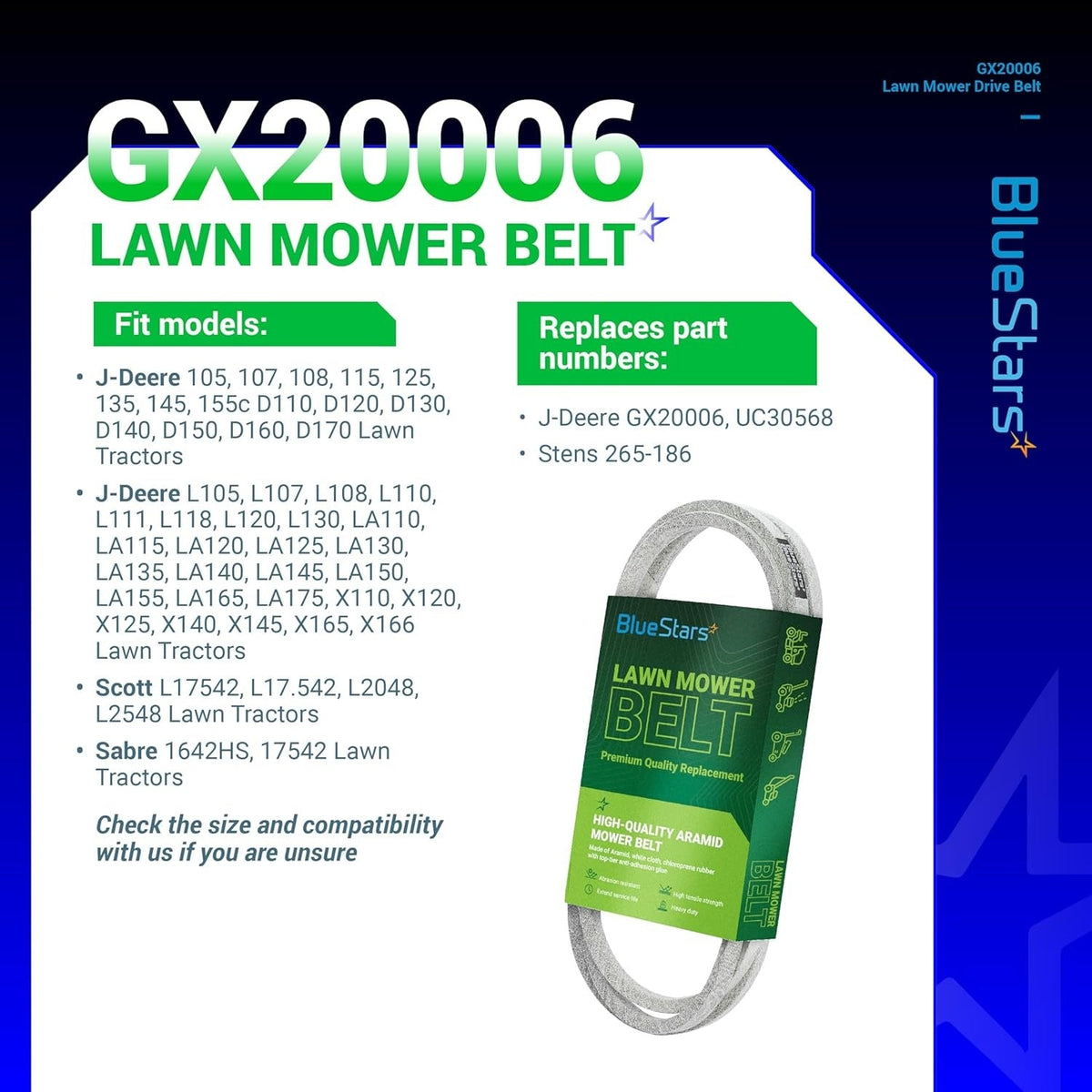

Replaces / Cross-Reference Part Numbers
- John Deere OEM: GX20006, UC30568
Compatibility & Fitment
- Fits John Deere 100 Series riding lawn tractors with hydrostatic transmissions.
- Specific Models Include: S100-S180, E110-E180, D110, D120, D130, D140, D170, LA110, LA115, LA125, LA130, LA175, L105, L108, L110, L111, L118, L120, L130, X125, X165, 115, 155

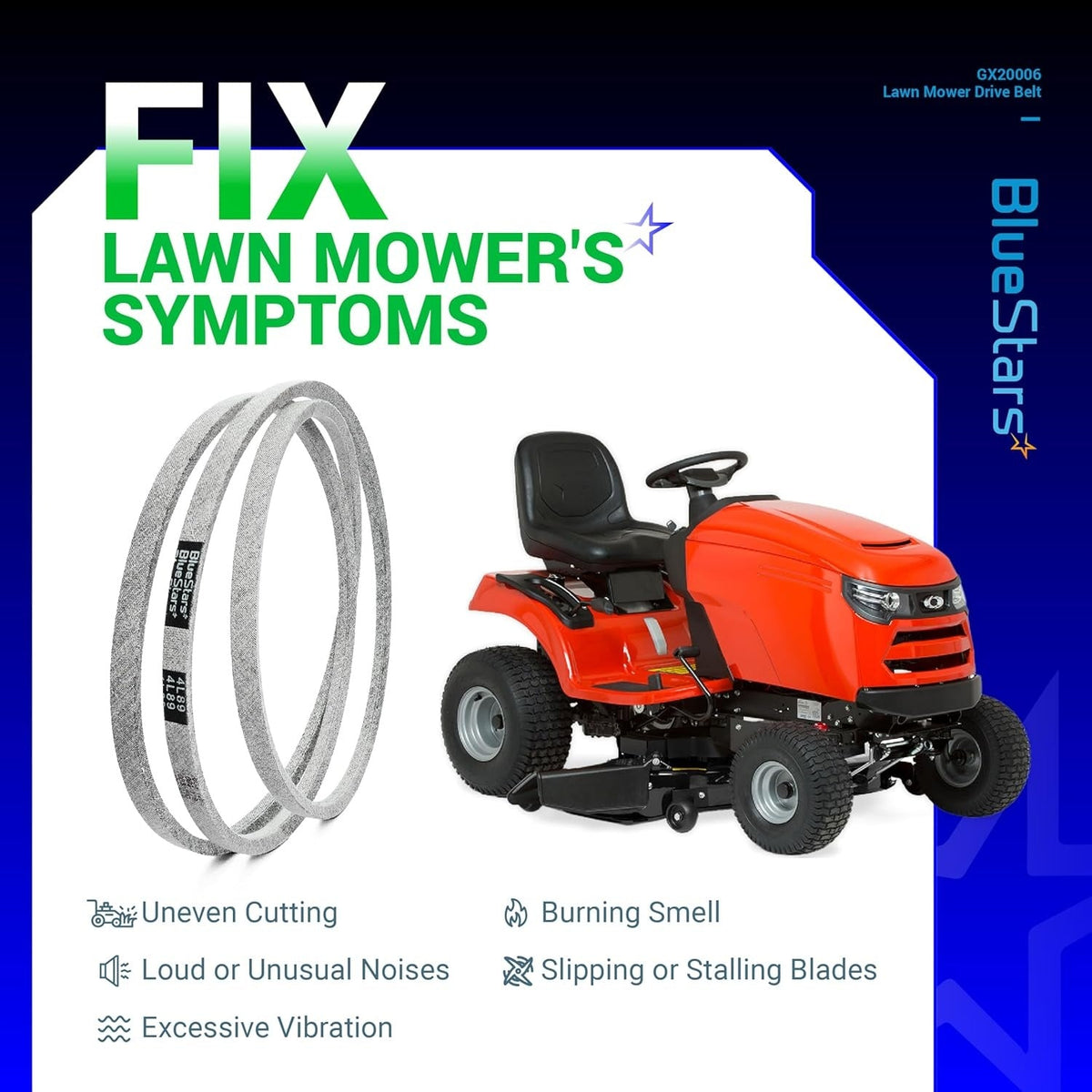

When to Replace
- Visible signs of wear such as cracking, fraying, glazing, or separation.
- Noticeable loss of drive power or belt slippage during operation.
- Audible squealing or chirping sounds originating from the drive system.
- As part of scheduled preventative maintenance according to the owner's manual.
Installation Tips
- Before servicing, disconnect the spark plug wire and engage the parking brake for safety.
- Refer to your lawn tractor's owner's manual for the specific belt routing diagram and replacement procedure.

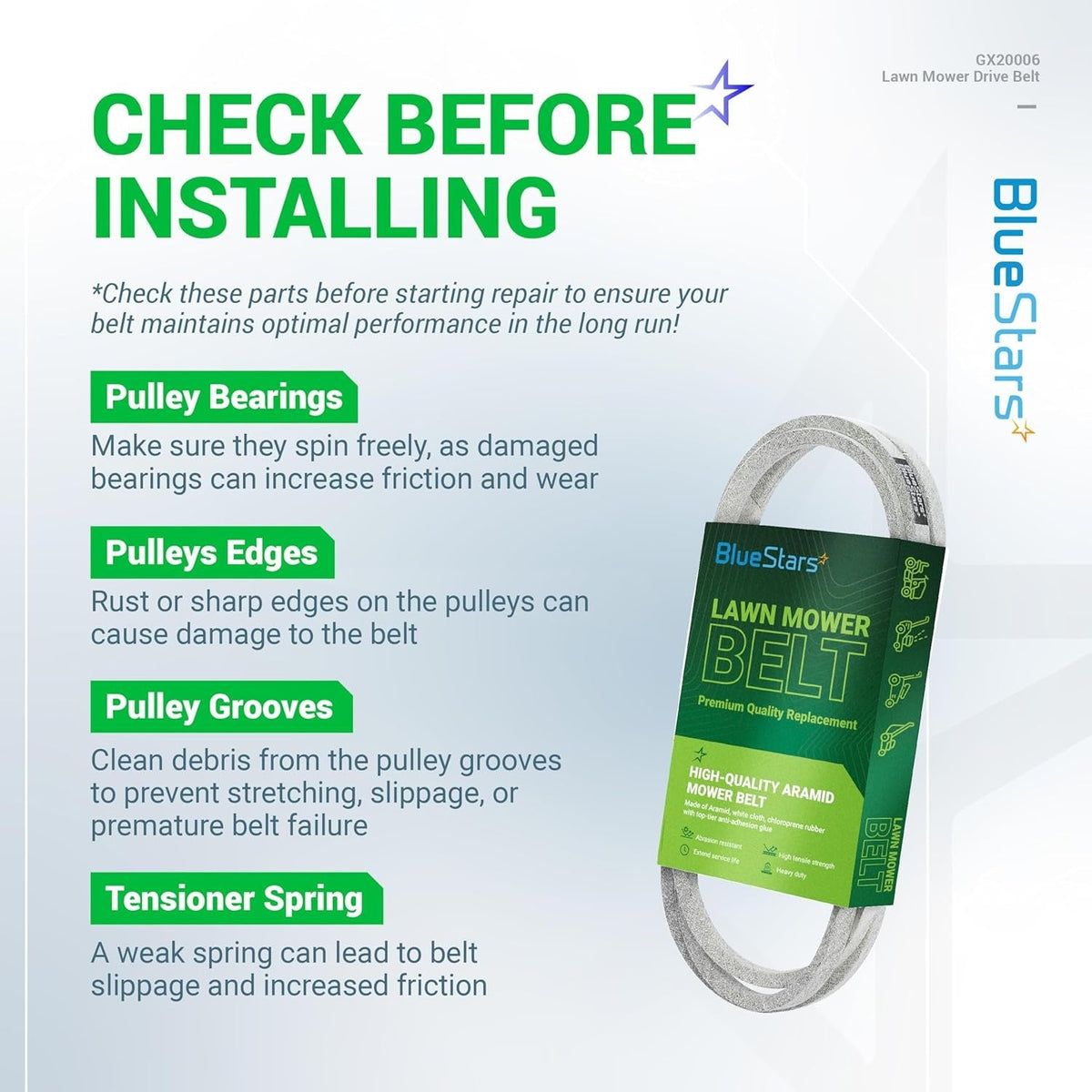

- Inspect all pulleys for damage, wear, or debris before installing the new belt.
- Ensure the belt is correctly seated in all pulley grooves and that tension is set to the manufacturer's specification.
