16620-Z8D-305 Thermowax Assembly - Fits Honda HRX217, HRR216, GCV160, GCV190, Engines
0.00
Regular price
$9.88
Regular price
Save 23%
$12.85
Sale price
$9.88
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
16620-Z8D-305 Auto-Choke Thermowax Assembly
Key Features
- Precision Thermal Activation: Utilizing a heat-sensitive wax element, this assembly automatically regulates the choke plate position based on engine temperature, eliminating the need for manual choking.
- Optimized Fuel Economy: Ensures the choke is fully opened as soon as the engine reaches operating temperature, preventing a "rich" fuel condition and reducing spark plug fouling.
- Seamless Cold Starts: Provides the exact amount of air restriction needed for a reliable first-pull start, then gradually retracts the plunger as the engine block warms up.

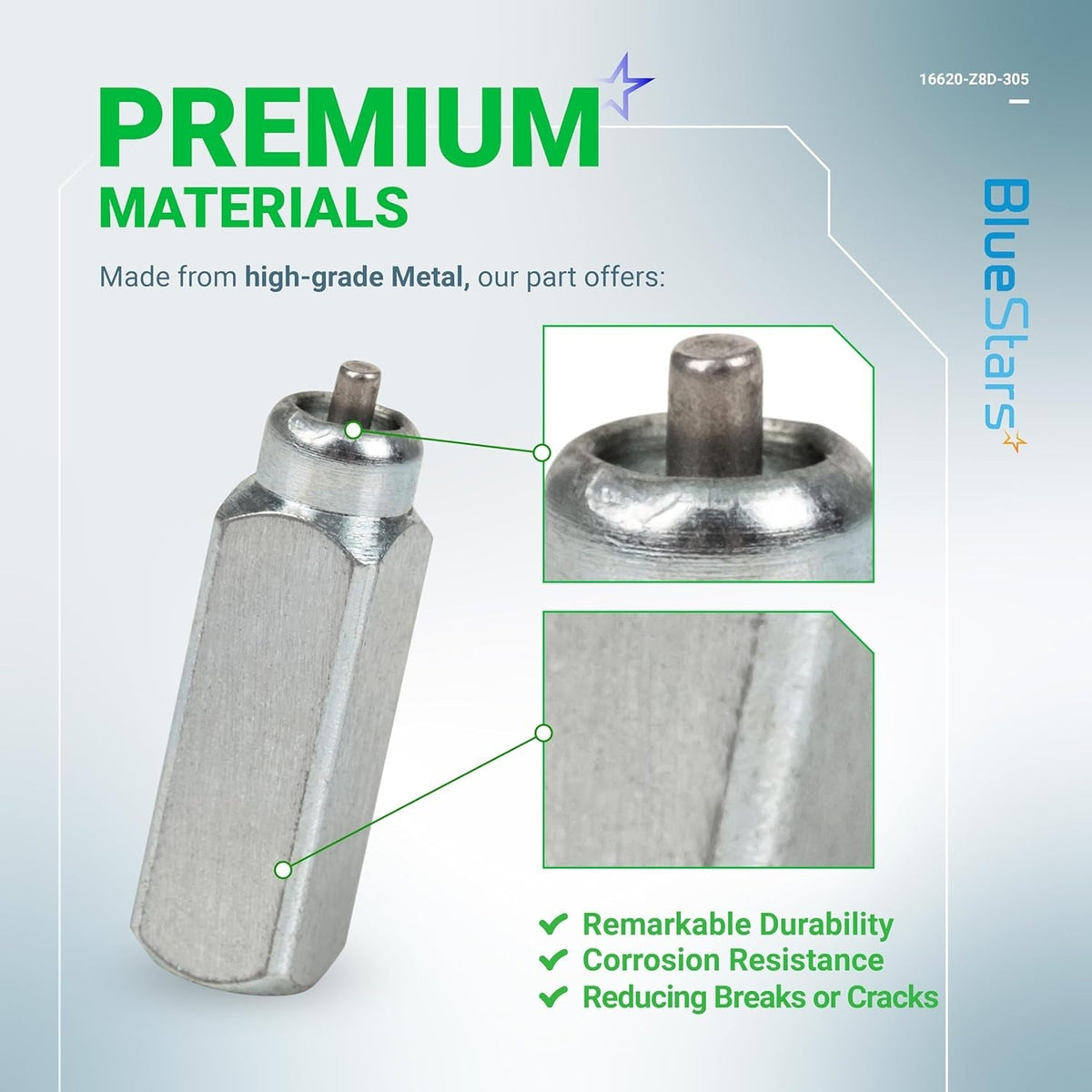

- High-Durability Brass Housing: The wax element is encased in a corrosion-resistant brass cylinder designed for rapid heat transfer and long-term structural integrity in high-vibration environments.
- Direct OEM Integration: Engineered to factory specifications for Honda's GCV series, ensuring the plunger stroke and tension perfectly match the original auto-choke linkage.

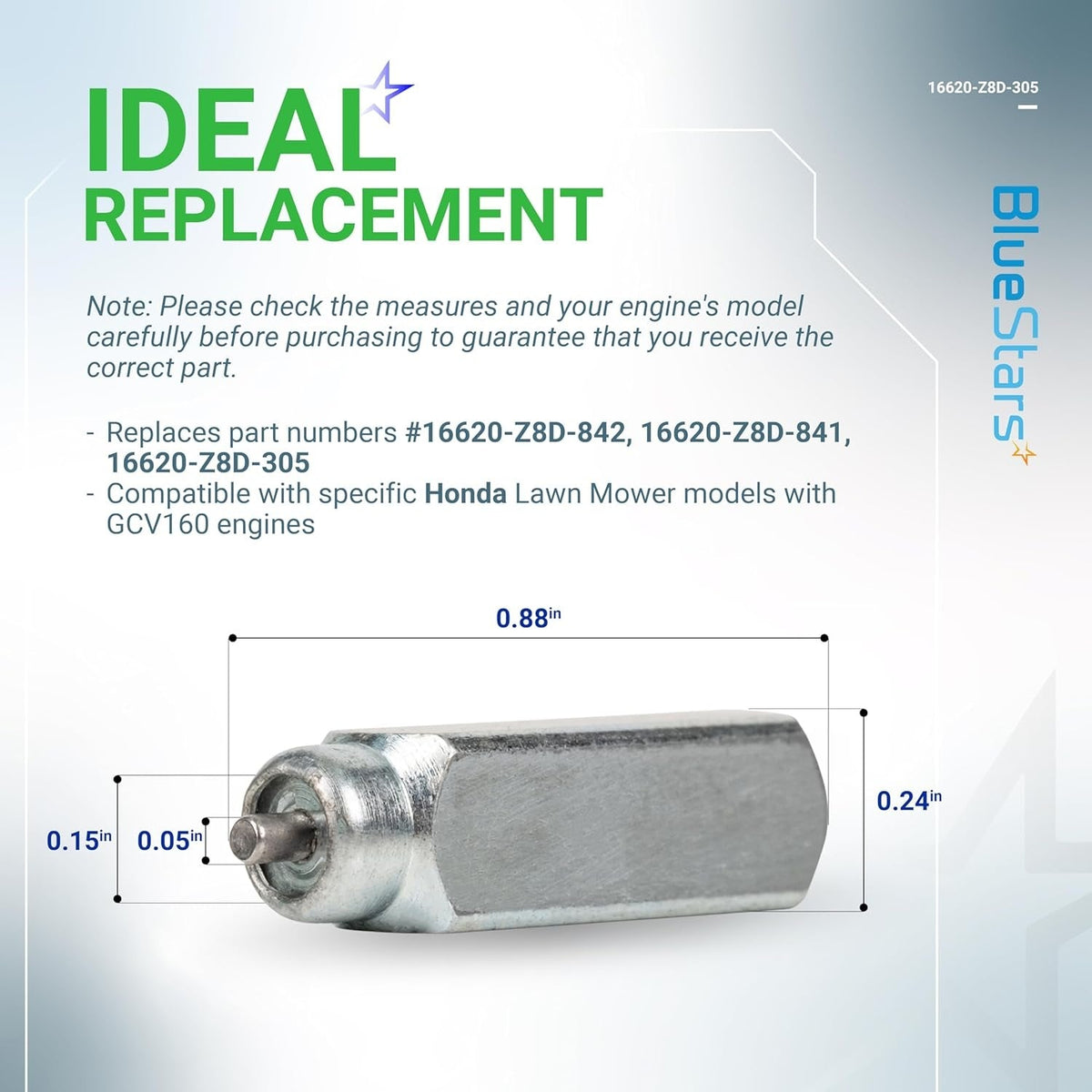

Replaces / Cross-Reference Part Numbers
- 16620-Z8D-305
- 16620-Z8D-841
- 16620-Z8D-842
- 16620-Z9L-003
Compatibility & Fitment
This Thermowax assembly is the primary component of the Honda "Auto-Choke" system used on premium walk-behind mowers. Key compatible models include:

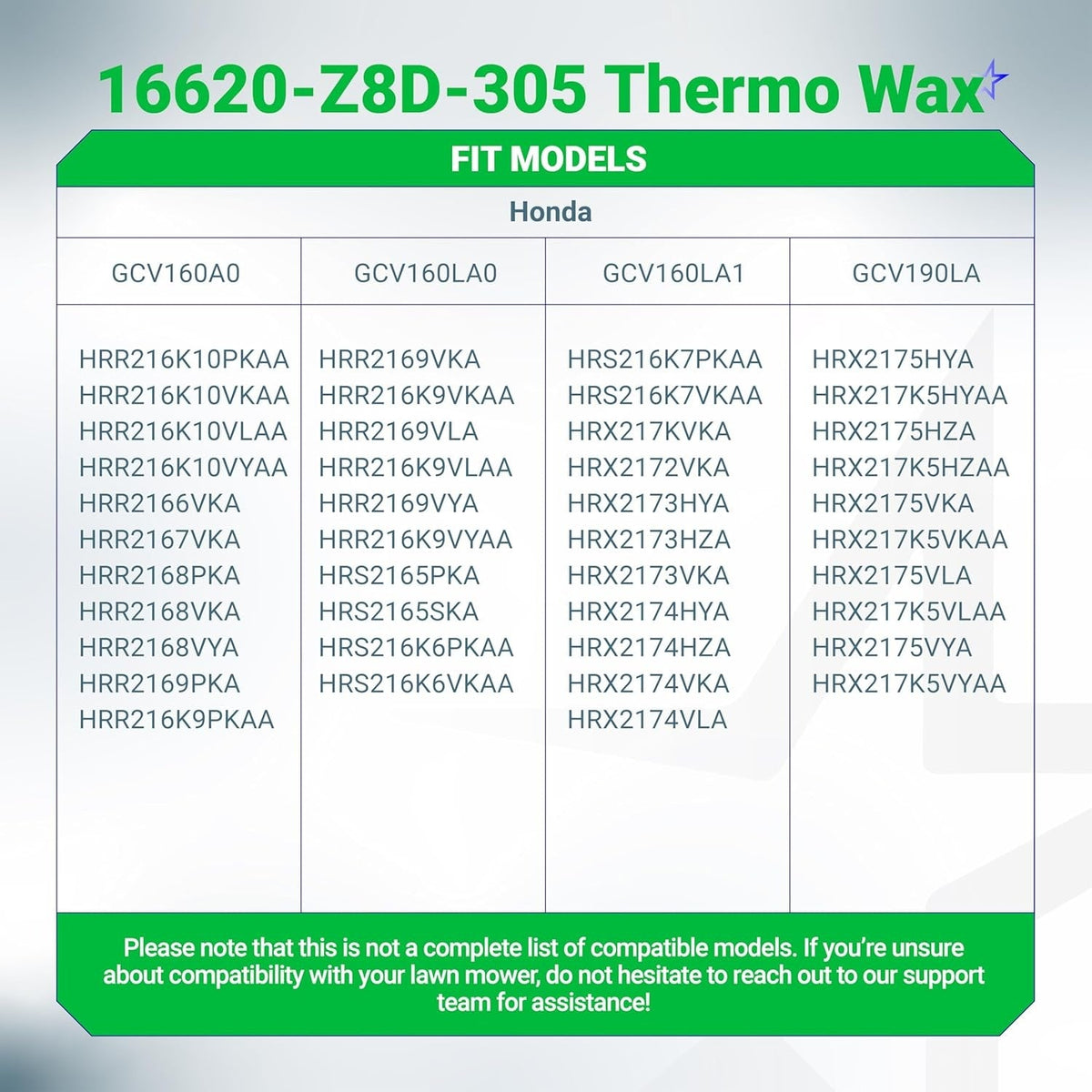

- Honda HRX Series Mowers: HRX217, HRX217K1, HRX217K2, HRX217K3, HRX217K4.
- Honda HRR Series Mowers: HRR216, HRR216K5, HRR216K6, HRR216K7, HRR216K8, HRR216K9.
- Honda GCV Engines: GCV160, GCV190, GCV160LA0, GCV190LA.
- Note: Specifically designed for engines featuring the automatic choke system located near the exhaust manifold; not used on manual choke models.

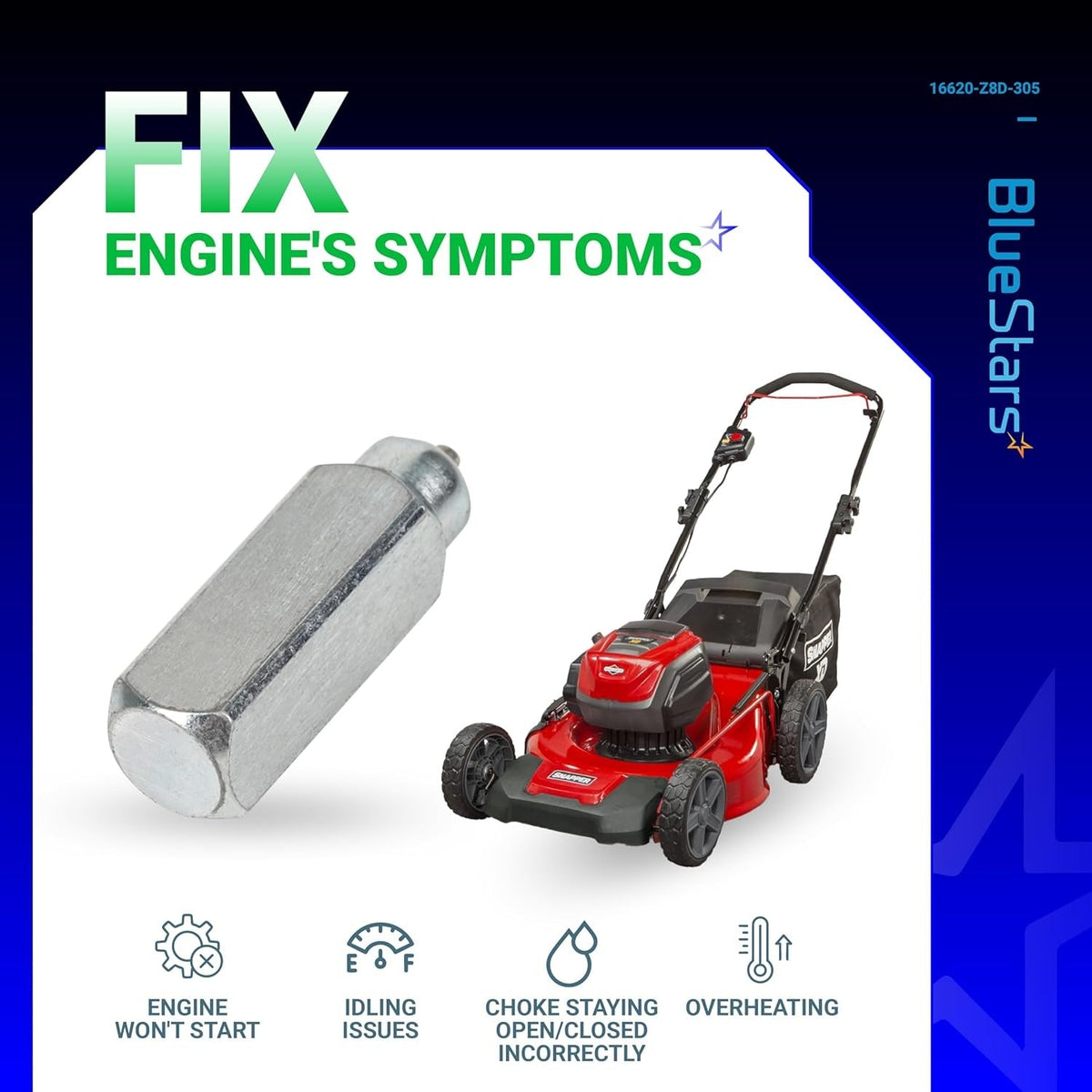

When to Replace
- Hard Starting When Cold: The plunger fails to extend, leaving the choke plate open and making the engine nearly impossible to start without manual intervention.
- Engine "Hunting" or Surging: The Thermowax is partially seized, preventing the choke from fully opening or closing, leading to inconsistent RPMs.
- Black Smoke / Sooty Spark Plug: The wax element has failed in the "cold" position, keeping the choke closed even after the engine is hot, causing a rich air-fuel mixture.
- Engine Dies After Starting: The assembly retracts the plunger too quickly or too slowly, causing the engine to stall during the transition from cold-start to operating temperature.
- Visible Plunger Seizure: The metal pin is stuck in place and does not move when the brass body is heated, indicating a internal wax failure.

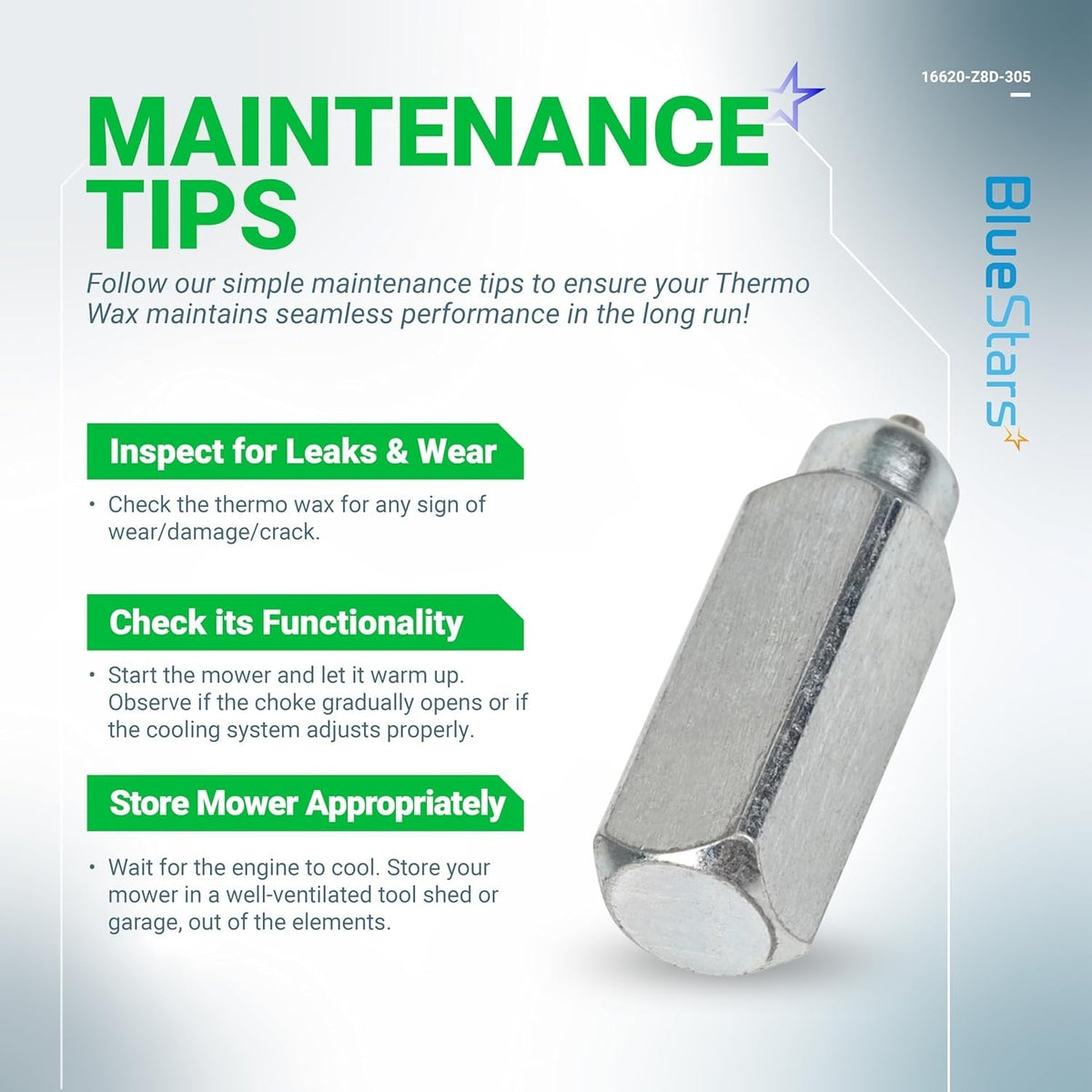

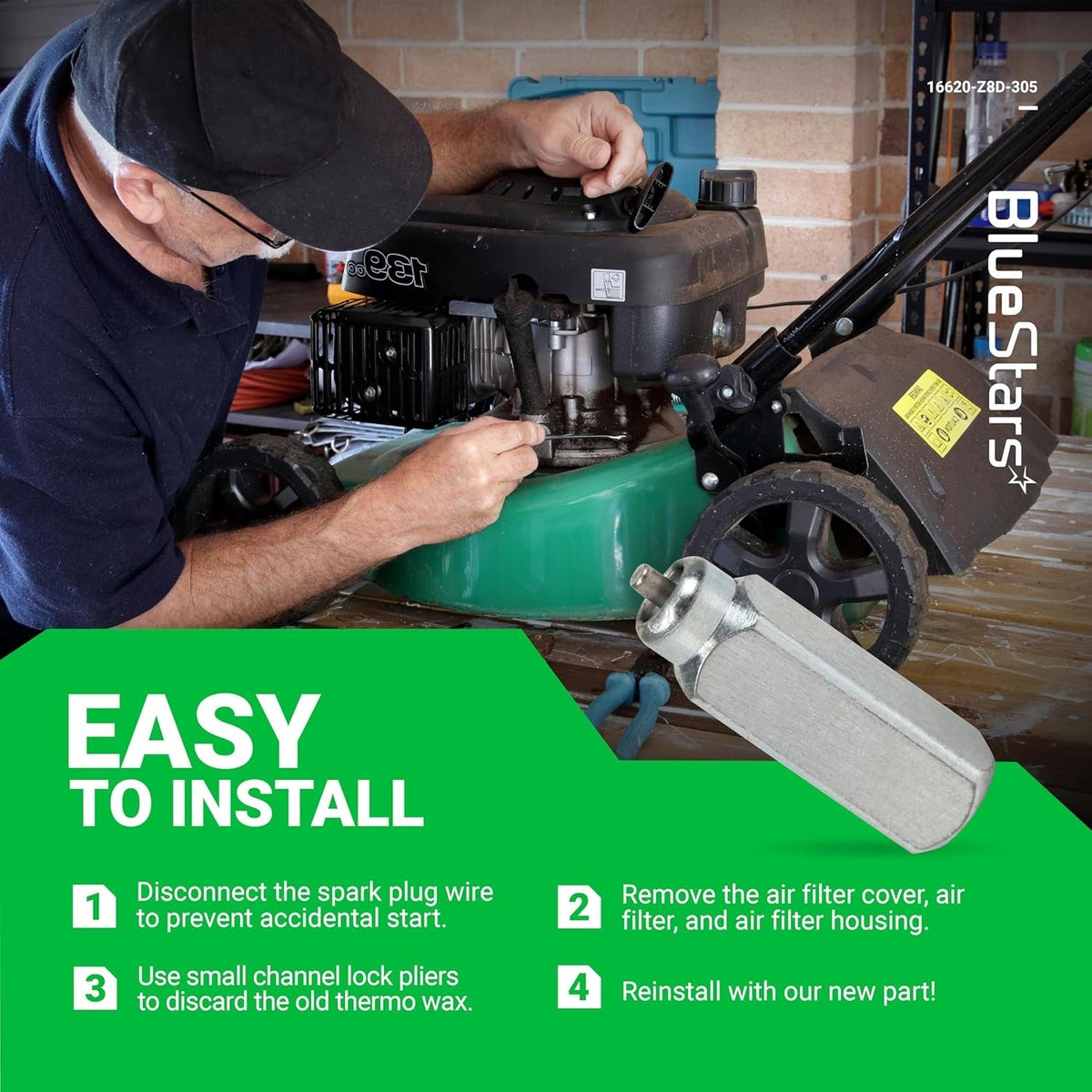

Installation Tips
- Handle with Care: Do not drop or strike the brass cylinder. The wax element inside is precision-calibrated and internal damage can render the auto-choke system inoperable.
- Check the Linkage: Before installing, ensure the choke linkage and springs are not bent or rusted. A sticking linkage will often mimic a failed Thermowax assembly.
- Clean the Mounting Port: Use a wire brush or cloth to clean the area on the engine block where the Thermowax sits. Proper contact is essential for the wax to "sense" the engine's heat.
- The Hot Water Test: You can verify the new part's function by placing the brass tip in hot water; you should see the plunger slowly extend. As it cools, it should retract.
- Avoid Lubricants: Do not apply heavy grease to the plunger pin, as it can attract dust and debris, eventually causing the mechanism to bind. A light spray of dry silicone lubricant is acceptable if needed.
