951-12690 LT4200 Oil Filter for MTD 751-12690 420cc Troy Bilt
0.00
Regular price
$21.06
Regular price
Save 10%
$23.39
Sale price
$21.06
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
951-12690 LT4200 Oil Filter for MTD 751-12690 420cc Troy-Bilt
Key Features
- Replacement oil filter for compatible lawn mower engines.

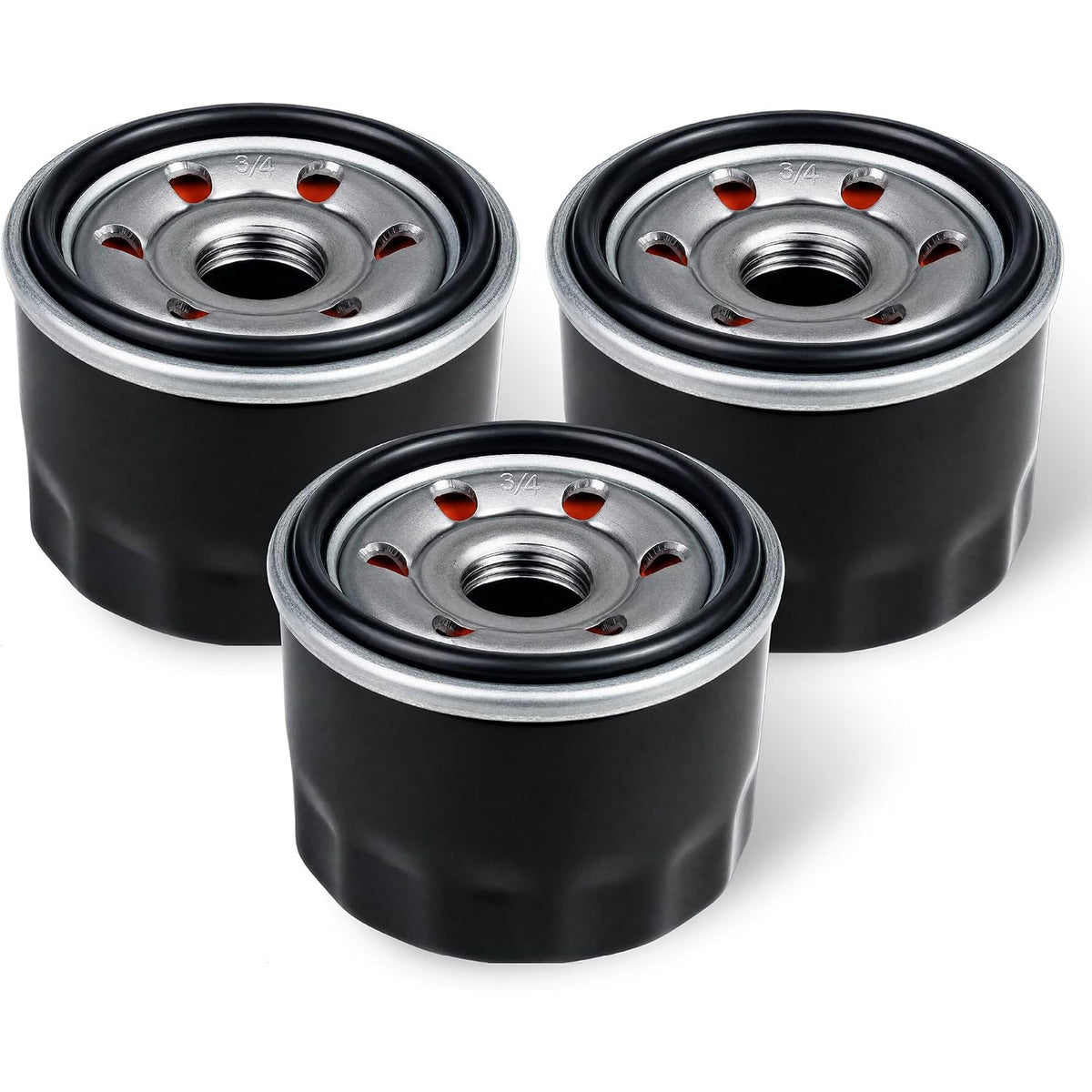

- Ships as 3 pieces.

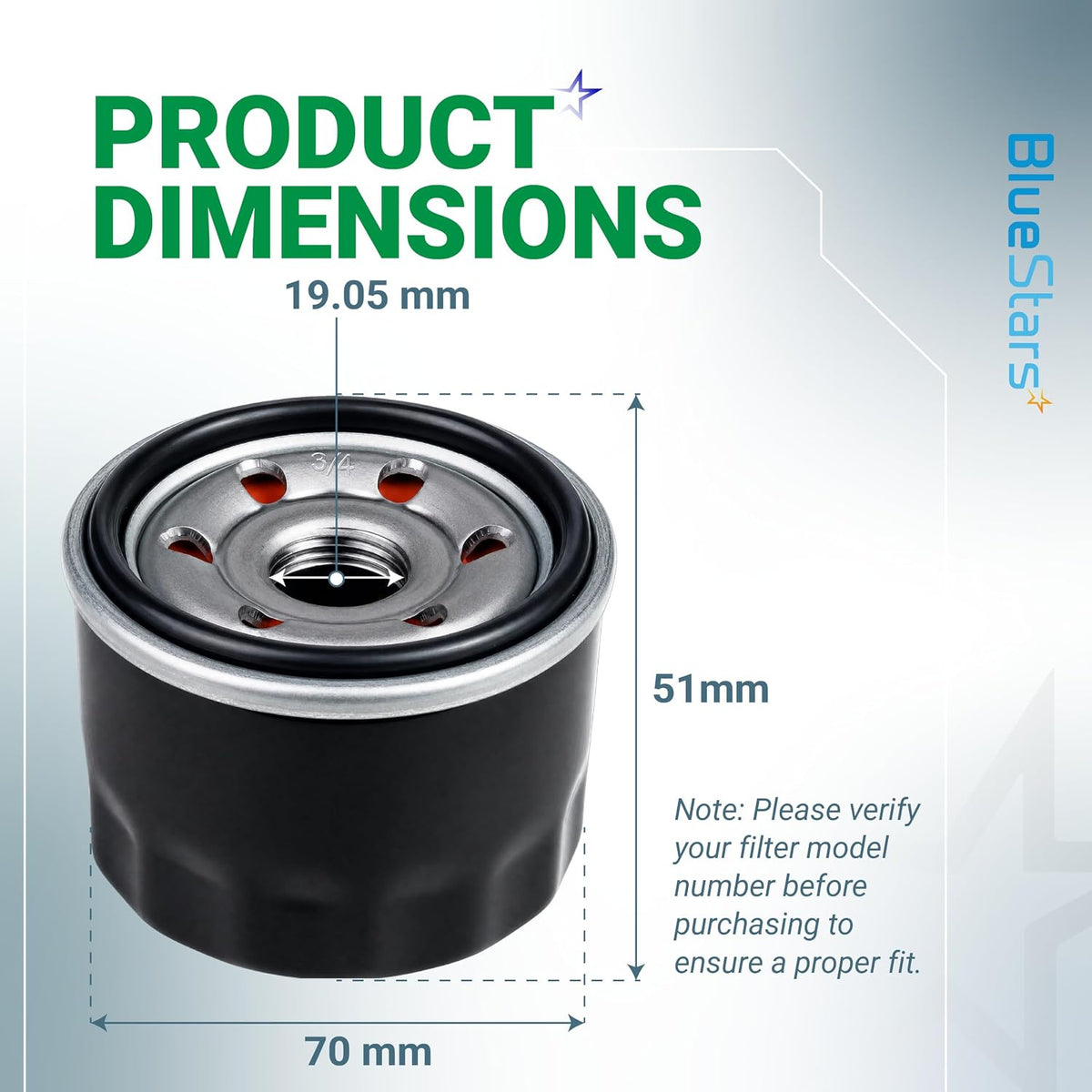

- Outside diameter: 2-5/8 inches, approximately 2.63 inches.
- Height: 2-1/8 inches.
- Thread size: 3/4-16.
- Designed to filter engine oil and help reduce contamination and restricted oil flow.
Replaces / Cross-Reference Part Numbers
- 951-12690
- 751-12690
- 751-11501
- 951-11501
Compatibility & Fitment
Fits selected MTD engines and lawn mower models, including the following engine models:
- MTD 4P90HU, 4P90HUA, 4P90HUB, 4P90HUC, 4P90HUD, 4P90JHA, 4P90JU, 4P90JUA, 4P90JUB, 4P90JUC, 4P90JUE, 4P90JUF, 4P90MU, 4P90MUA, 4P90MUB, 4P90MUC, 4P90MUD, 4Q78HU, 4X90HU, 4X90HUA, 7T84JU, 7T84JUA, 7T84MU, 7T84MUA, 7T90HU, 7T90JU, 8P92ZU, 8P92ZUA, 8Q78HUA, 8Q78XUA, 8X90KU, 8X90ZU, 8X90ZUA, 9X90HU, 9X90HUA, and AX90HU.
- MTD Powermore engines rated 382cc, 420cc, 439cc, 452cc, 547cc, and 679cc.

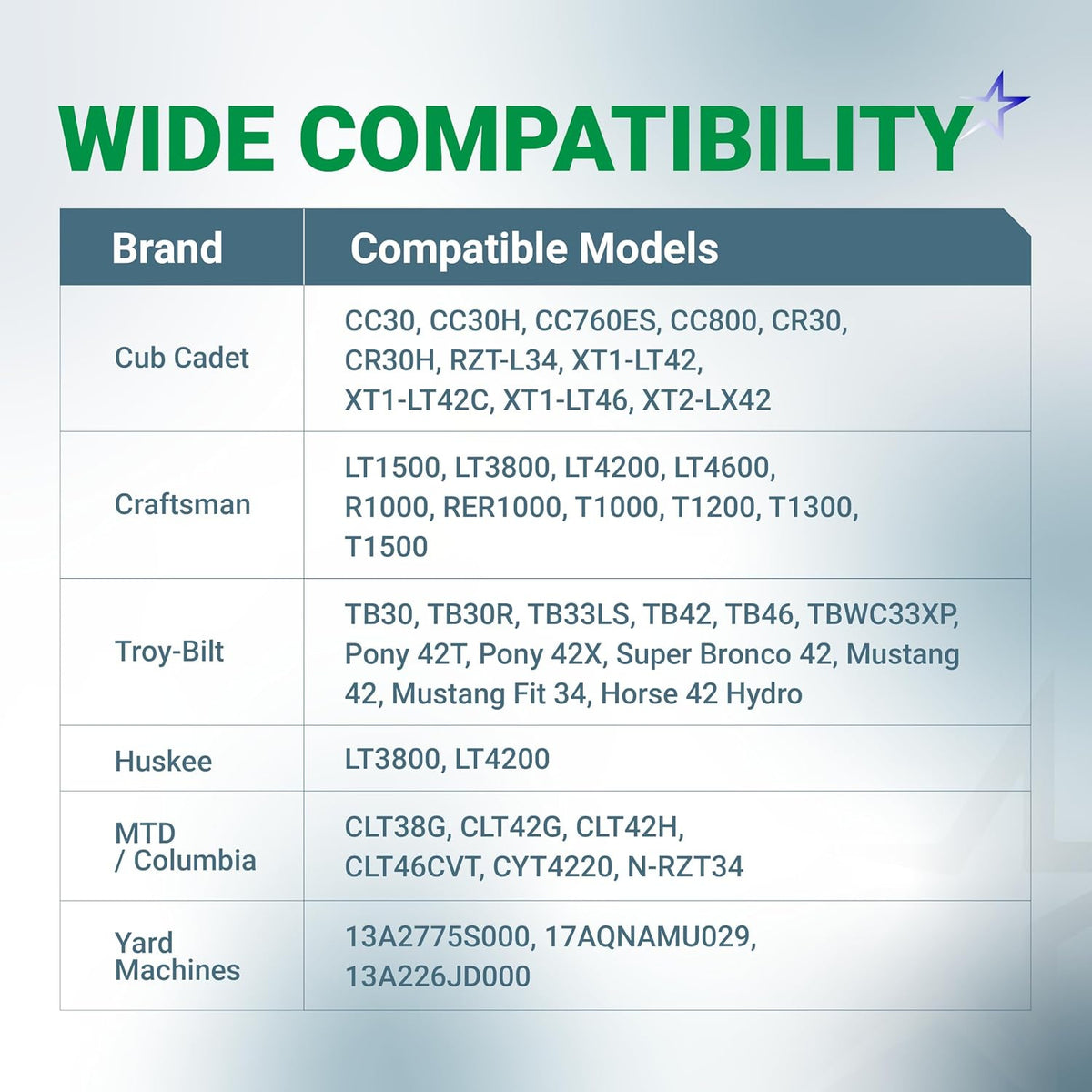

Compatible equipment includes:
- Huskee LT3800, LT4200, and LT 4200.
- Craftsman LT1500, R1000, RER1000, T1000, and T1200.
- Troy-Bilt LS27, LS33, TB30, TB30R, TB33LS, TB42, and TBWC33XP.
- MTD CR30, CLT38G, CLT42G, CLT42H, and CLT46CVT.
Verify the engine model, filter dimensions, and thread before ordering, since equipment fitment can vary by production configuration.
When to Replace
Replace the oil filter at the interval specified for the engine or when servicing the engine oil. A clogged or worn filter may contribute to dark, gritty oil, restricted oil flow, seepage around the filter base, or accelerated internal engine wear.
Installation Tips
- Confirm the replacement filter dimensions, 3/4-16 thread, and engine model before installation.
- Drain the engine oil and remove the old filter using an appropriate oil-filter tool if it is tight.
- Check that the old sealing gasket is removed from the mounting surface.
- Apply a light coating of clean engine oil to the new gasket, install the filter, and tighten it according to the engine manufacturer’s service instructions.
- Refill the engine with the specified oil, run it briefly, and inspect the filter seal for leaks.

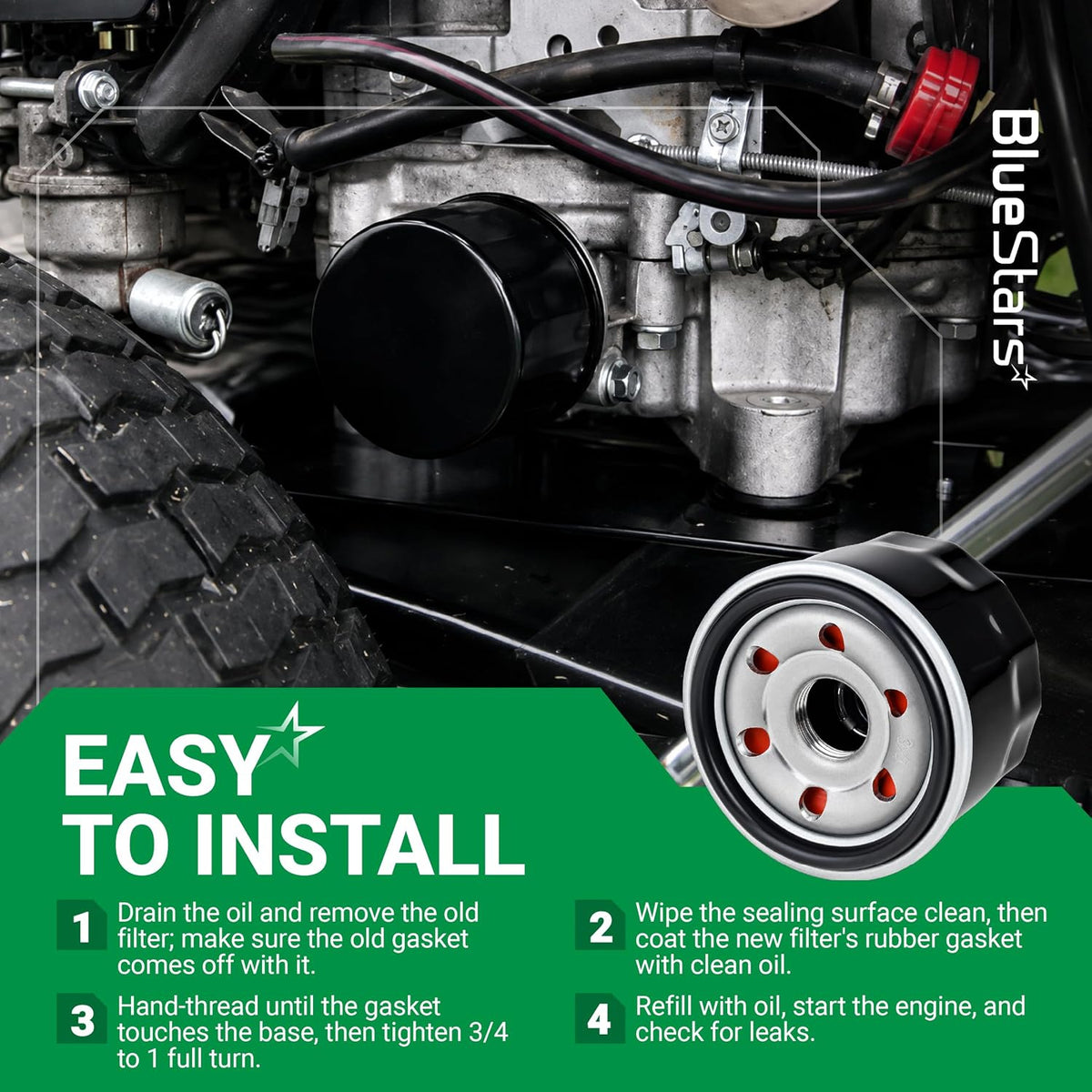

EASY TO INSTALL
1. Drain the oil and remove the old filter; make sure the old gasket comes off with it.
2. Wipe the sealing surface clean, then coat the new filter's rubber gasket with clean oil.
3. Hand-thread until the gasket touches the base, then tighten 3/4 to 1 full turn.
4. Refill with oil, start the engine, and check for leaks.
2. Wipe the sealing surface clean, then coat the new filter's rubber gasket with clean oil.
3. Hand-thread until the gasket touches the base, then tighten 3/4 to 1 full turn.
4. Refill with oil, start the engine, and check for leaks.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Brand
BlueStars
Manufacturer
BlueStars
Part Number
951-12690 751-12690 751-11501 951-11501
Product Grade
Replacement Part
Vehicle Service Type
Lawn Mower
Outside Diameter
2.63 inches
Thread Size
3/4"-16
Compatible with Vehicle Type
Lawn Mower
Part Interchange Info
Replaces 951-12690, 751-12690, 751-11501, 951-11501. Fits for MTD 4P90HU 4P90HUA 4P90HUB 4P90HUC 4P90HUD 4P90JHA 4P90JU 4P90JUA 4P90JUB 4P90JUC 4P90JUE 4P90JUF 4P90MU 4P90MUA 4P90MUB 4P90MUC 4P90MUD 4Q78HU 4X90HU 4X90HUA 7T84JU 7T84JUA 7T84MU 7T84MUA 7T90HU 7T90JU 8P92ZU 8P92ZUA 8Q78HUA 8Q78XUA 8X90KU 8X90ZU 8X90ZUA 9X90HU 9X90HUA AX90HU Engine. Also fits Huskee LT3800 LT4200 LT 4200, Craftsman LT1500 R1000 RER1000 T1000 T1200, Troy Bilt LS27 LS33 TB30 TB30R TB33LS TB42 TBWC33XP, and MTD CR30 CLT38G CLT42G CLT42H CLT46CVT models with 382cc, 420cc, 439cc, 452cc, 547cc, 679cc Powermore Engines.
OEM Equivalent Part Number
751-12690
Automotive Fit Type
Vehicle Specific Fit
