GX25628 Deck Belt | Fits 42" Deck John Deere Z335E Z345M Z345R Z315E ZTrak & More | Aramid Cord | 118.63"
0.00
Regular price
$24.69
Regular price
Save 16%
$29.38
Sale price
$24.69
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
GX25628 Deck Belt | 118.63"
Key Features
- Type: Deck Drive V-Belt

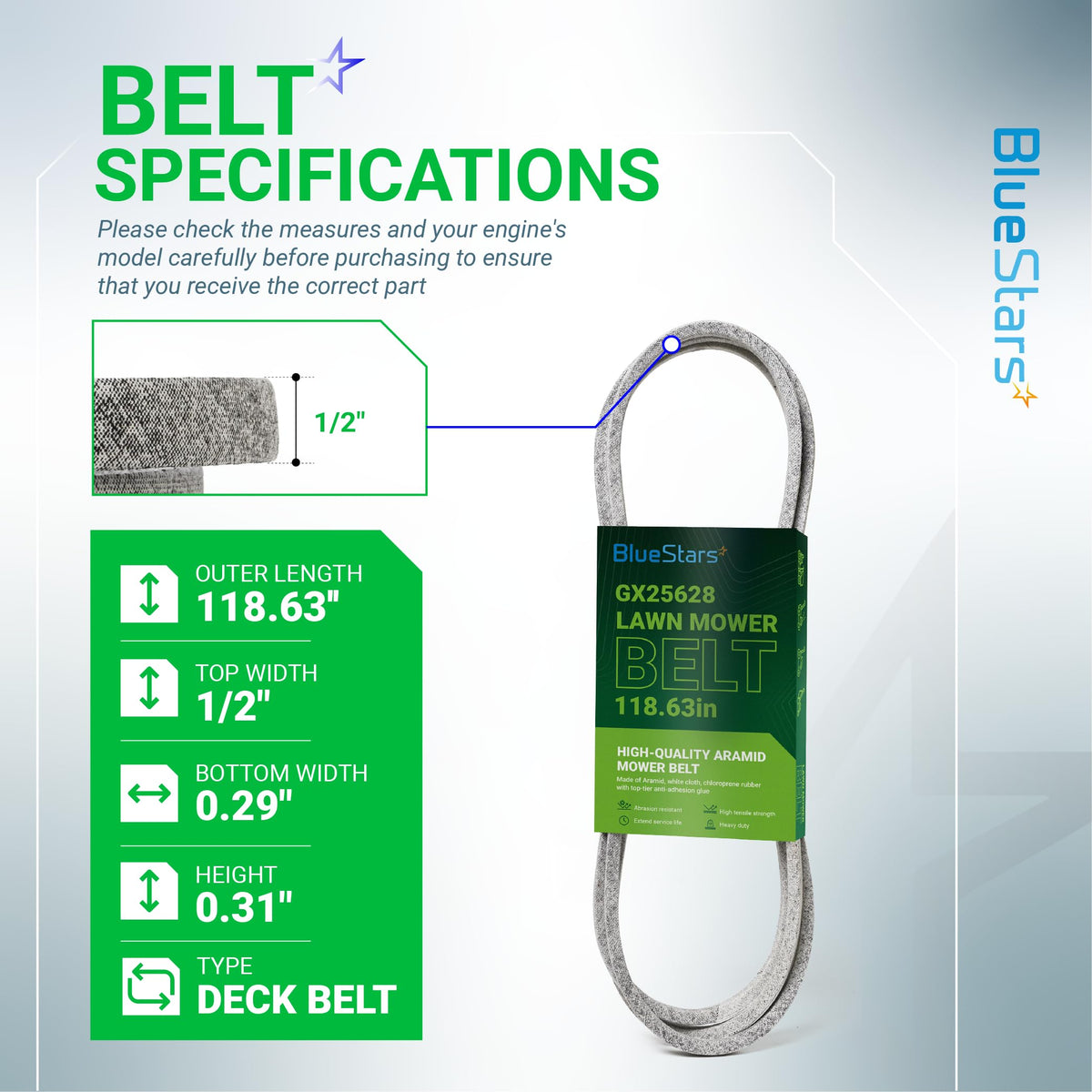

- Dimensions: 0.5 inch (1/2") Width x 118.63 inch Outer Circumference

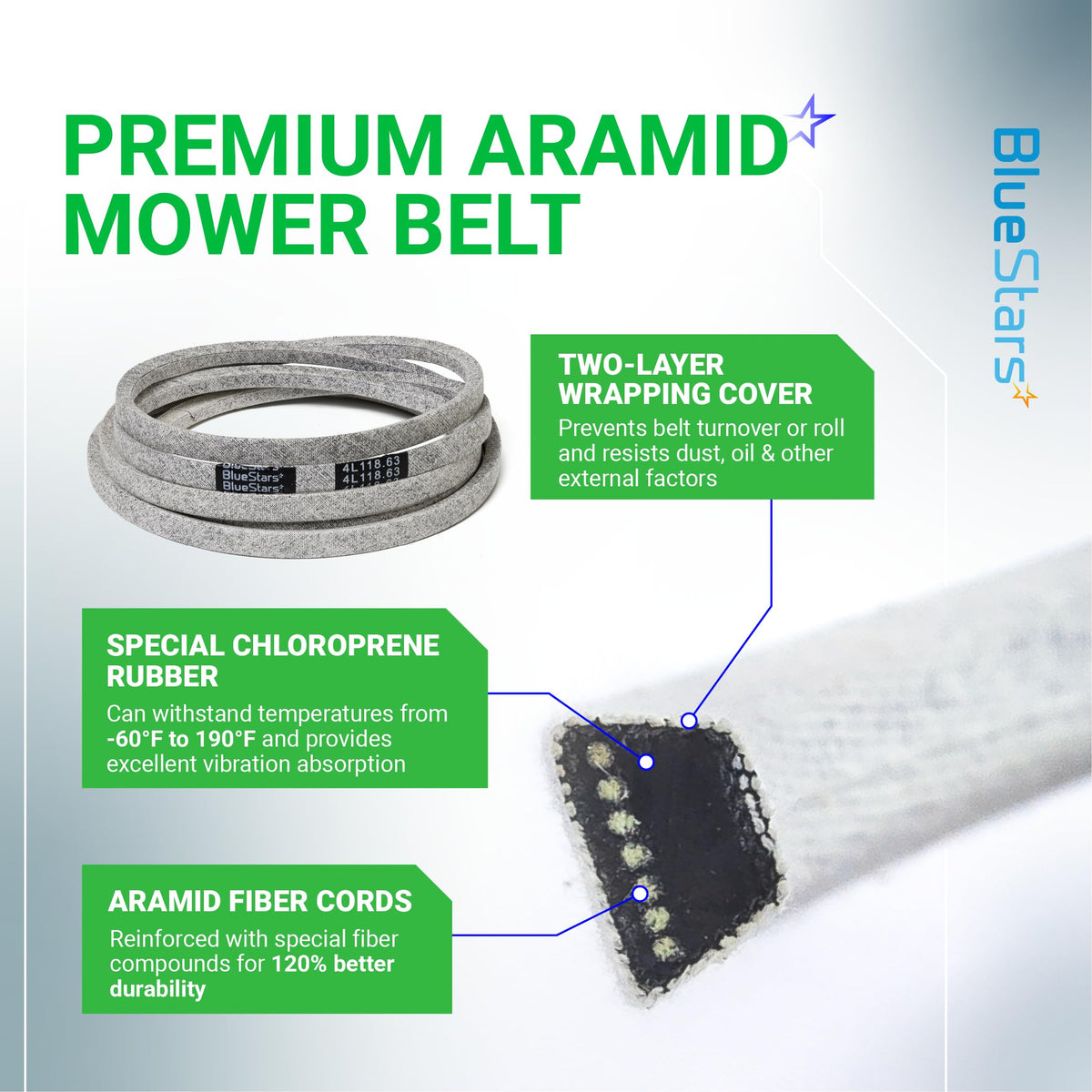

- Construction: Oil and heat-resistant synthetic rubber compound
- Reinforcement: Internal high-tensile cords for durability and resistance to stretching

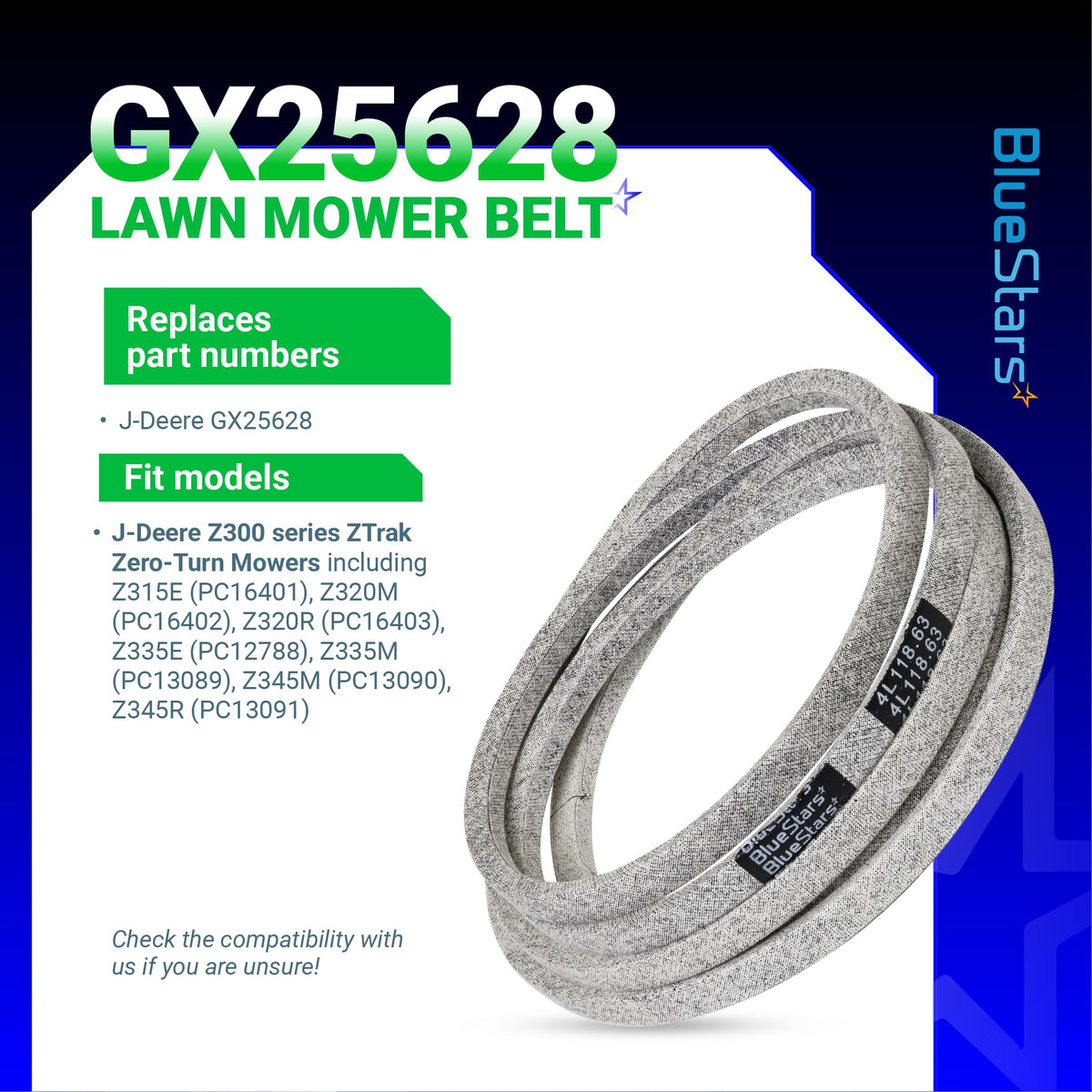

Replaces / Cross-Reference Part Numbers
- 265-828
- 75-992
- 175-992
- 810-CBL2214T
- KVLR40928
- 954-04033A
- M154294
Compatibility & Fitment
- Brand: John Deere
- Deck Size: 42 inches
- Mower Series: ZTrak Z300 Series
- Compatible Models: Z315E, Z320M, Z320R, Z335E, Z335M, Z345M, Z345R
When to Replace
- Visible signs of cracking, fraying, glazing, or separation
- Squealing or slipping sounds during deck operation
- Noticeable decrease in blade speed or cutting performance
- Belt feels loose or has excessive slack
Installation Tips
- Disconnect the spark plug wire before beginning work.
- Refer to your mower's operator manual for the correct belt routing diagram.
- Ensure all pulleys and tensioner assemblies are clean and move freely.
- Confirm the belt is correctly seated in all pulley grooves before re-engaging the deck.
-
PART NUMBERS
This Deck Drive Belt replaces part number: J-Deere GX25628 -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble -

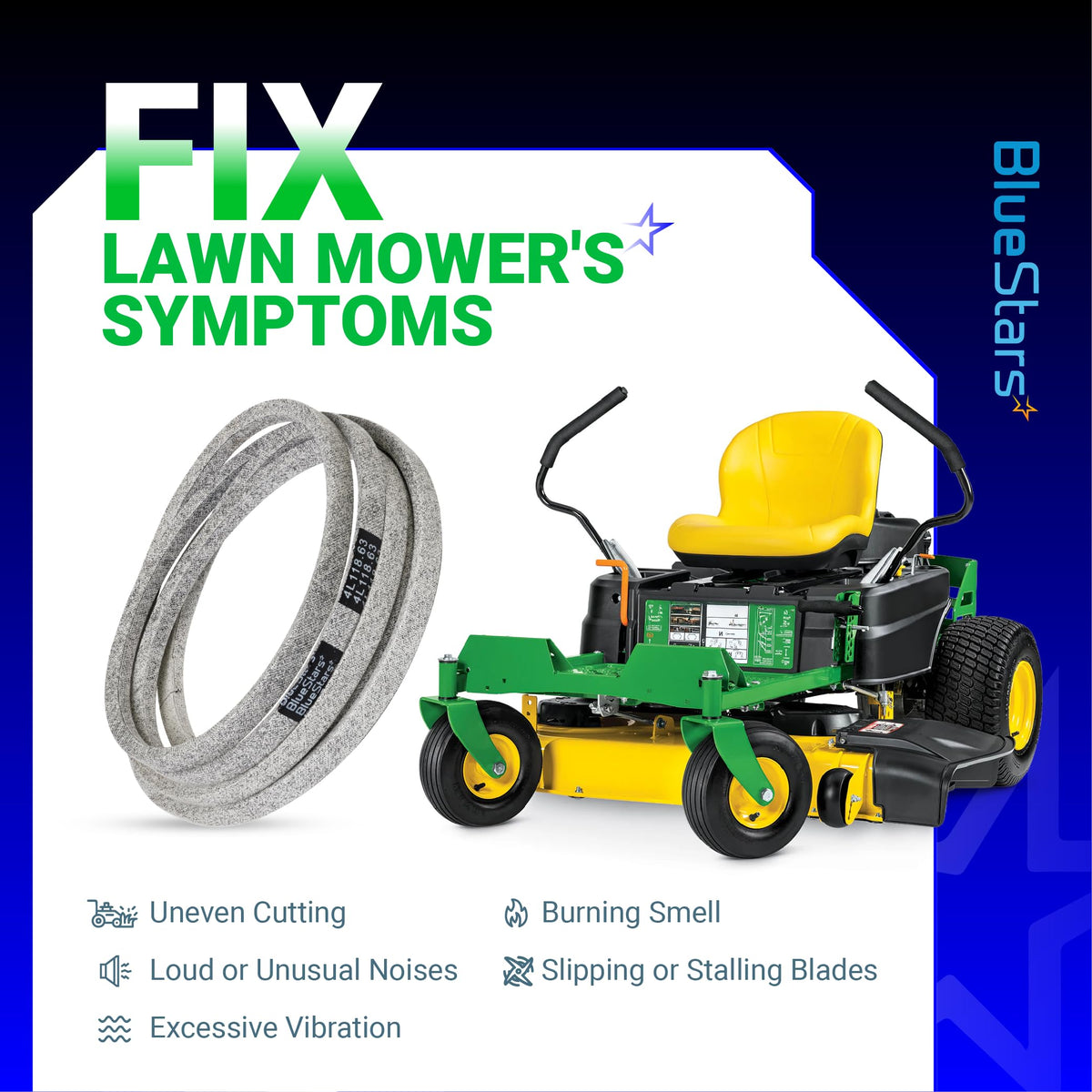

FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool | 2. Raise & secure deck, remove belt covers | 3. Release tension, remove old belt (note/take photos of routing) | 4. Install new belt, rotate blades/spindle to check alignment & operation.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS
Enjoy the comfort that our small yet mighty parts simplify your mowing experience
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
