GX20006, UC30568 Drive Belt | Fits John Deere 105 115 125 135 145 D110 D120 D125 & More | Aramid Cord | 88.9"
0.00
Regular price
$29.25
Regular price
Save 10%
$32.49
Sale price
$29.25
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy

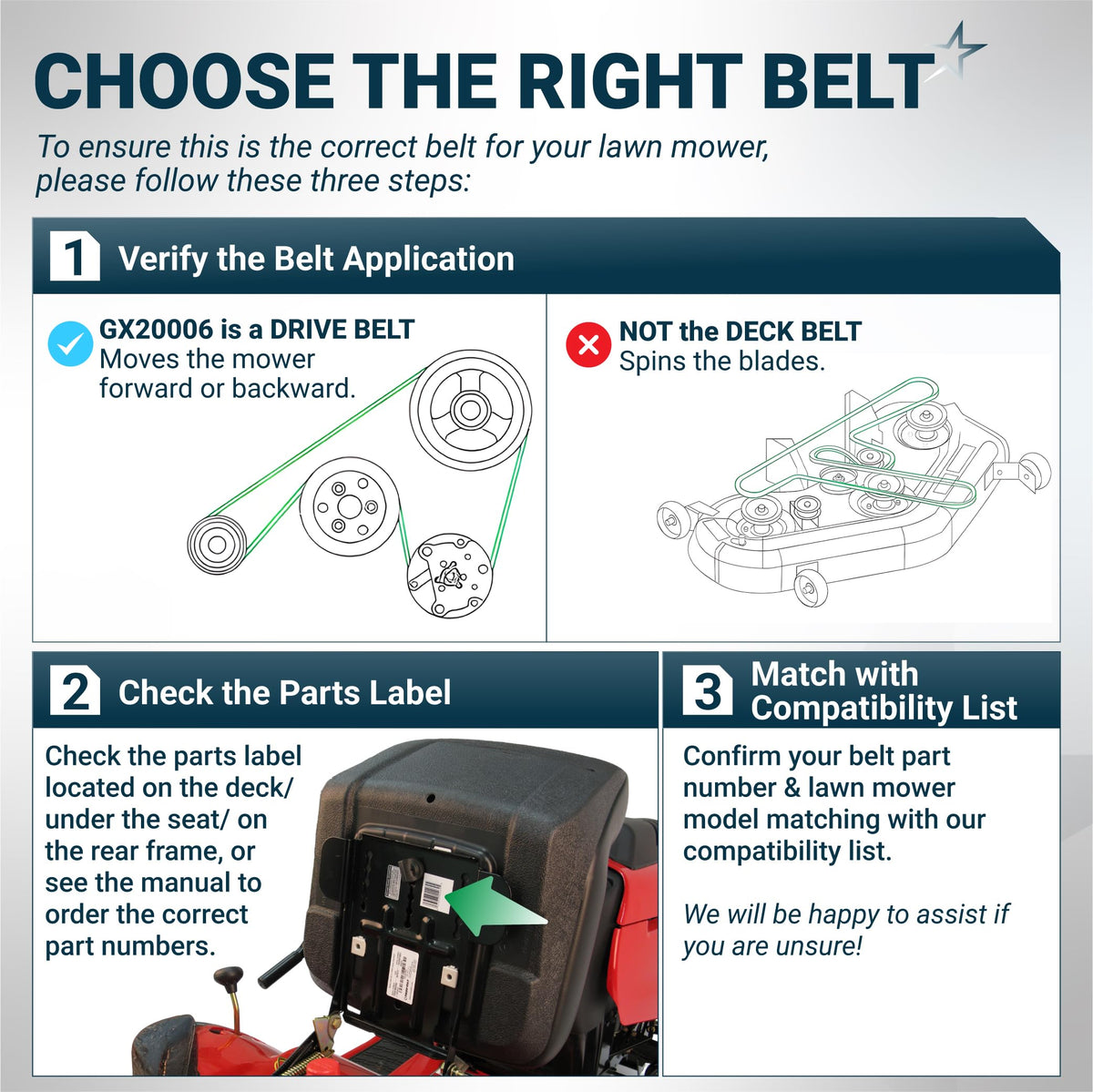

CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

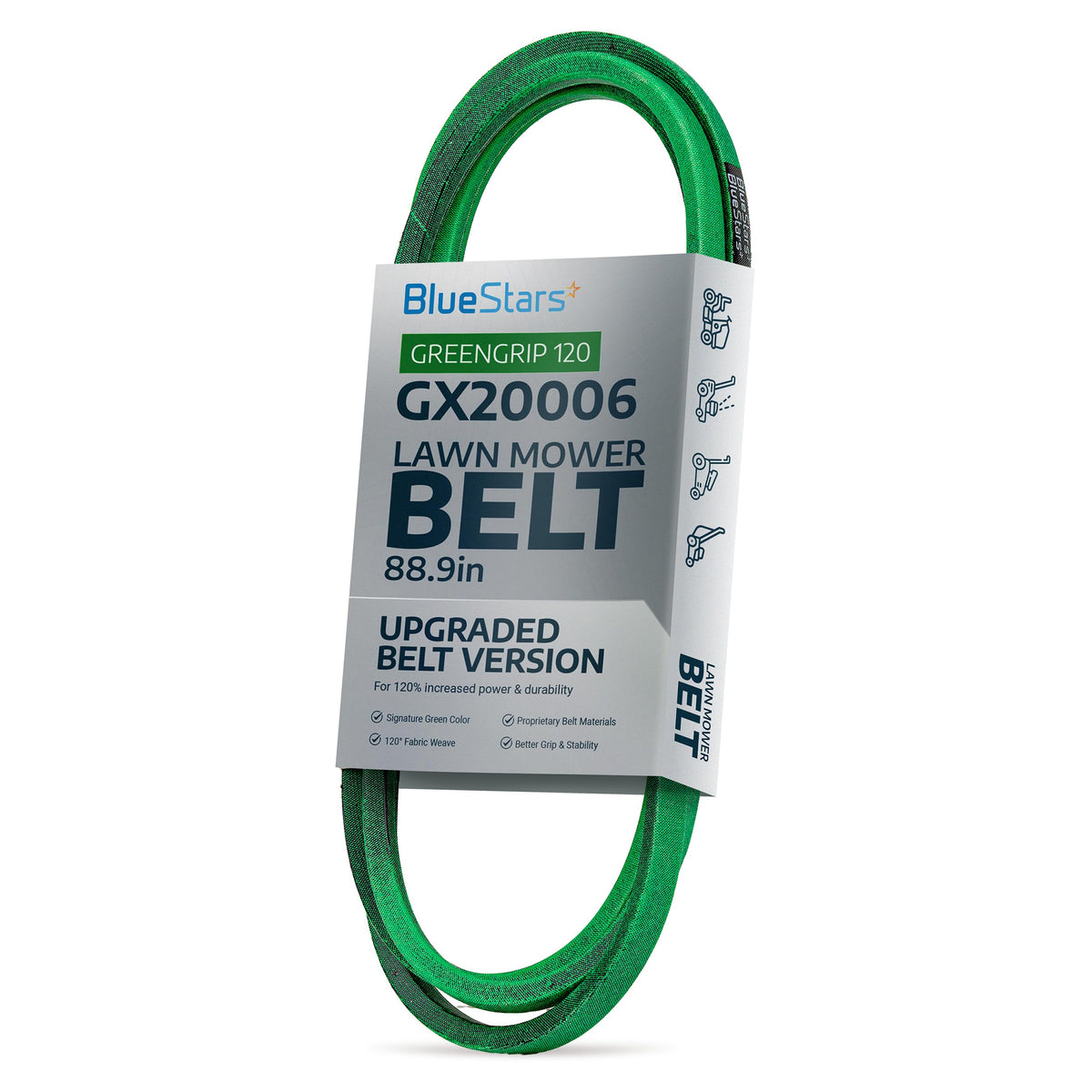

[Grip120] GX20006, UC30568 Drive Belt | 88.9"
Key Features
- Type: Transmission Drive Belt

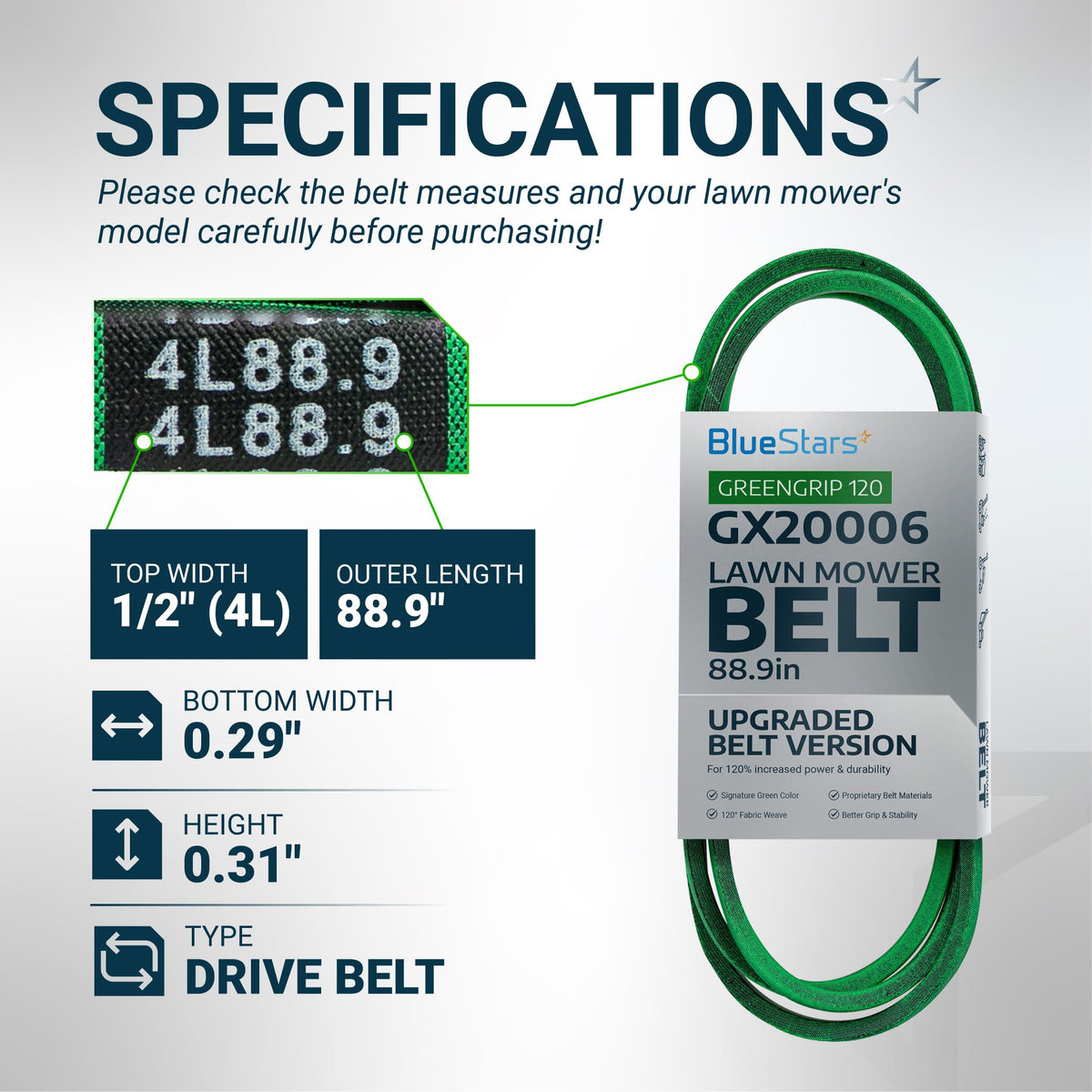

- Dimensions (W x L): 0.50 in. x 88.9 in. (1/2 in. x 88 9/10 in.)

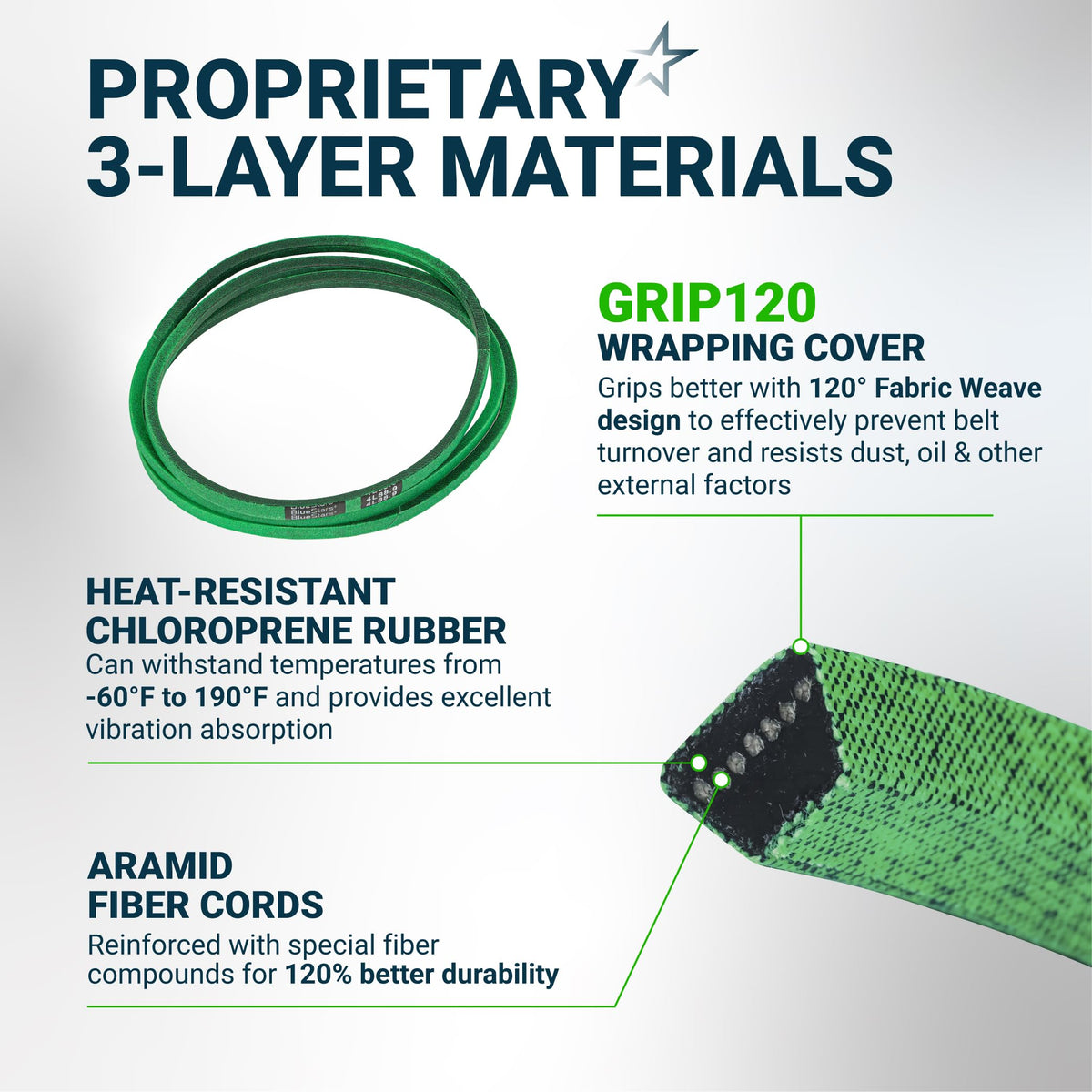

- Internal Construction: Reinforced with aramid cord for high tensile strength and durability.
- Material Composition: Engineered for flexibility and resistance to heat and oil.
Replaces / Cross-Reference Part Numbers
- UC30568
- 75-964
- 75-979
- 265-024
- 336388B
- 810-CBL2348T
- 10434
- 7-078099
- B1JD93
- 008-959
Compatibility & Fitment
- Fits John Deere Lawn Tractor Models:
- 100 Series: 105, 115, 125, 135, 145, 155c
- D Series: D110, D120, D125, D130, D140, D150, D155, D160, D170
- E Series: E110
- L Series: L105, L107, L108, L110, L111, L118, L120, L130
- LA Series: LA110, LA130
When to Replace
- Visible signs of wear such as cracking, glazing, fraying, or splitting.
- Slipping of the drive system, resulting in loss of power to the wheels.
- Audible squealing or chirping sounds during operation.
- As part of scheduled maintenance according to the owner's manual.
Installation Tips
- Disconnect the spark plug wire for safety before beginning work.
- Consult the mower's technical manual for the correct belt routing diagram.
- Inspect idler pulleys and tensioner spring for wear and replace if necessary.
- Ensure the new belt is properly seated in all pulley grooves before starting the engine.
-
PART NUMBERS
This Drive Belt replaces part numbers: J-Deere GX20006, UC30568; Stens 265-186 -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble -

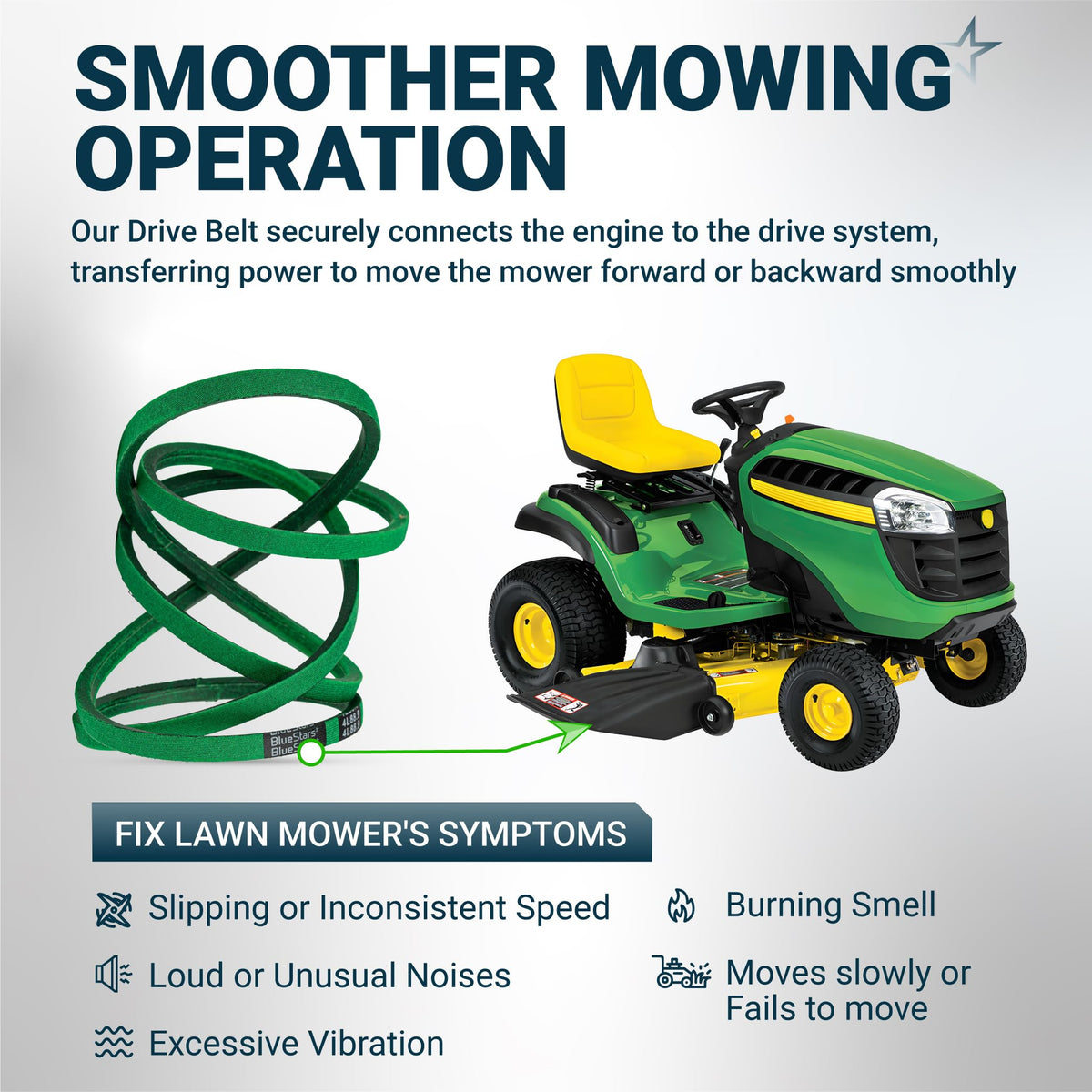

FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool | 2. Raise & secure deck, remove belt covers | 3. Release tension, remove old belt (note/take photos of routing) | 4. Install new belt, rotate blades/spindle to check alignment & operation.

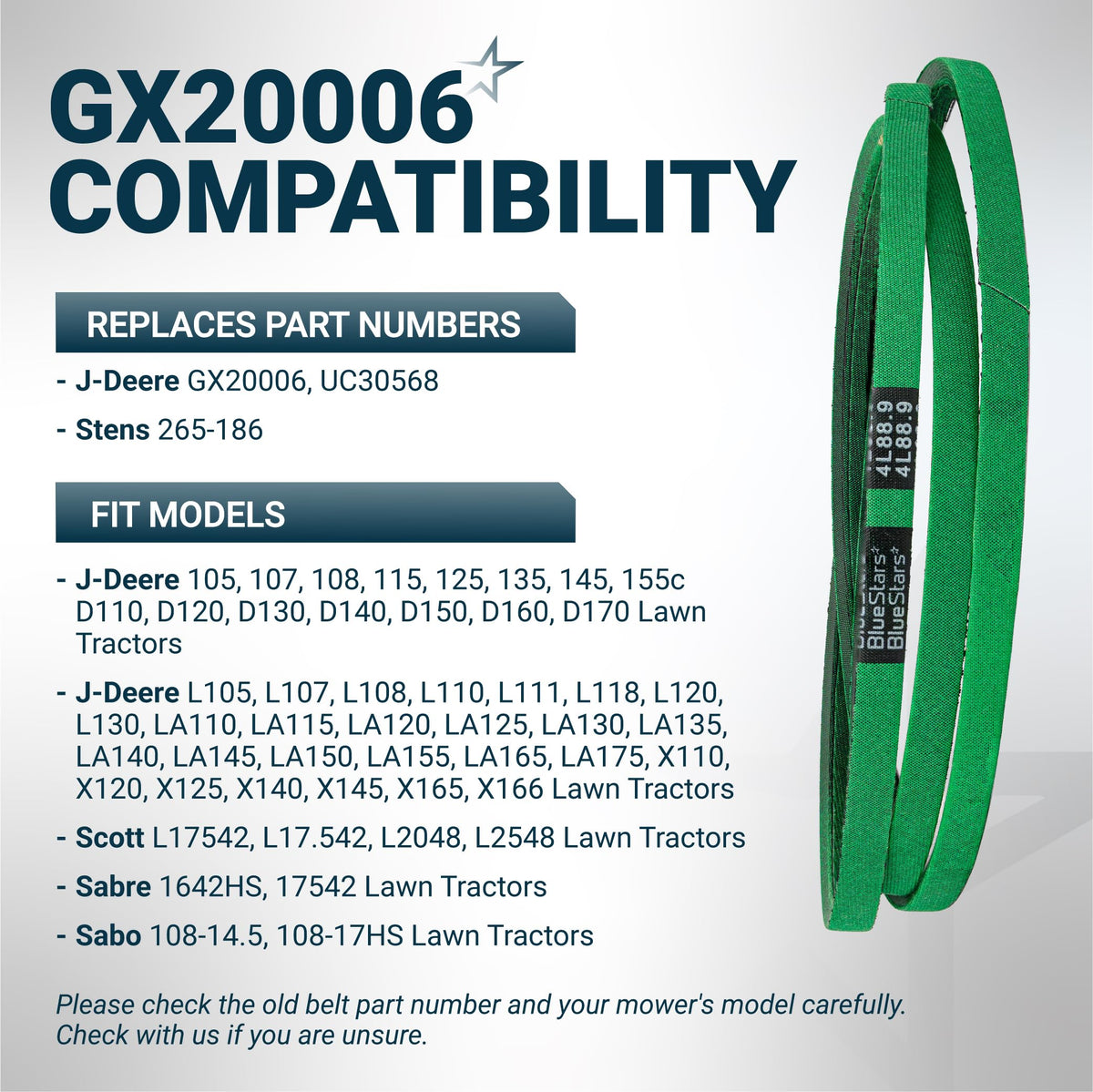

FIT MODELS
J-Deere 105, 107, 108, 115, 125, 135, 145, 155c D110, D120, D130, D140, D150, D160, D170, L105, L107, L108, L110, L111, L118, L120, L130, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, X110, X120, X125, X140, X145, X165, X166 Lawn Tractors | Scott L17542, L17.542, L2048, L2548 Lawn Tractors | Sabre 1642HS, 17542 Lawn Tractors | Sabo 108-14.5, 108-17HS Lawn Tractors- CRAFTSMAN: PYT9000 247.289810 (13AR91PP099), 247.289060 | COLUMBIA: YT950KH (13AQ91GP897)
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
