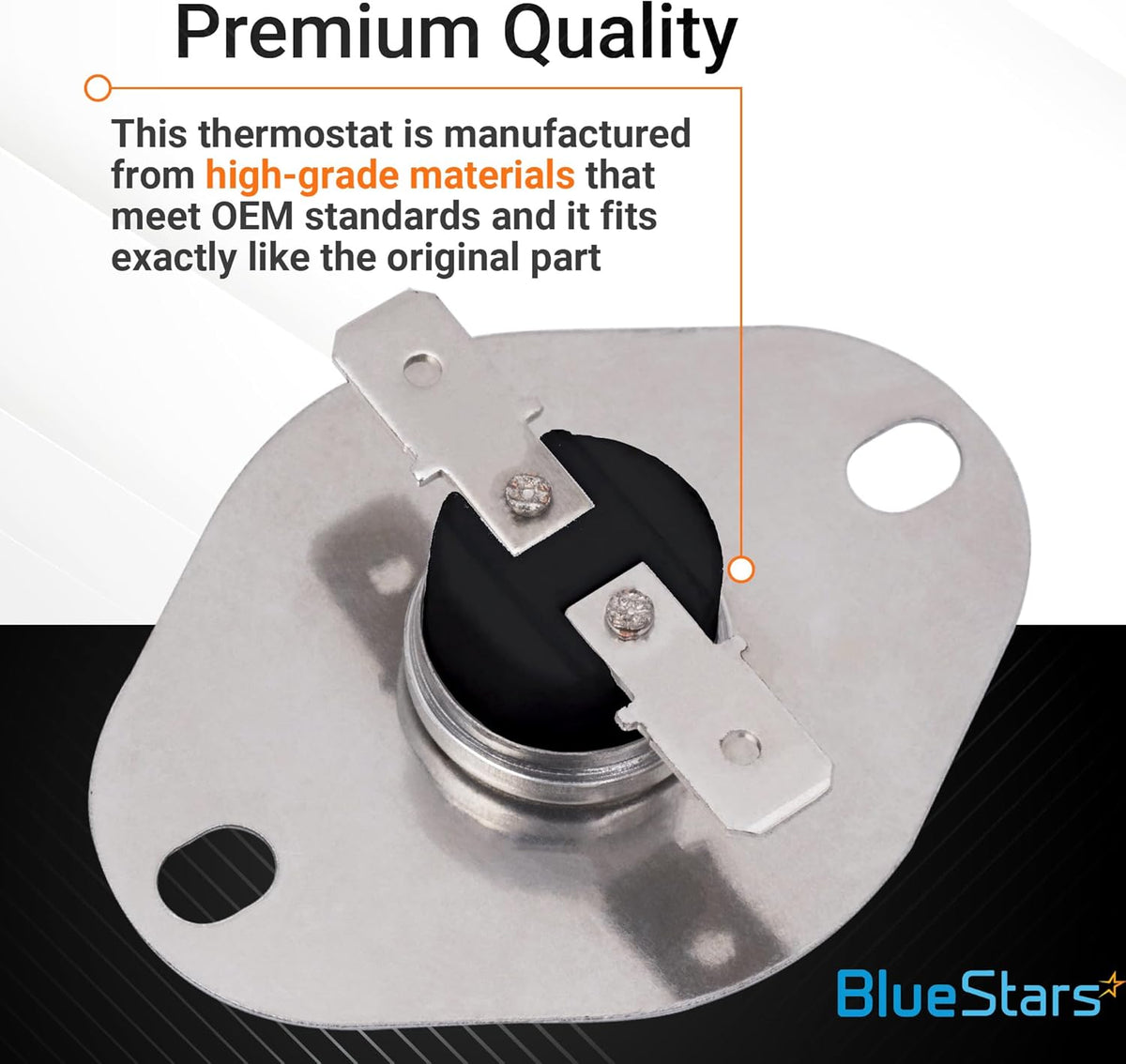

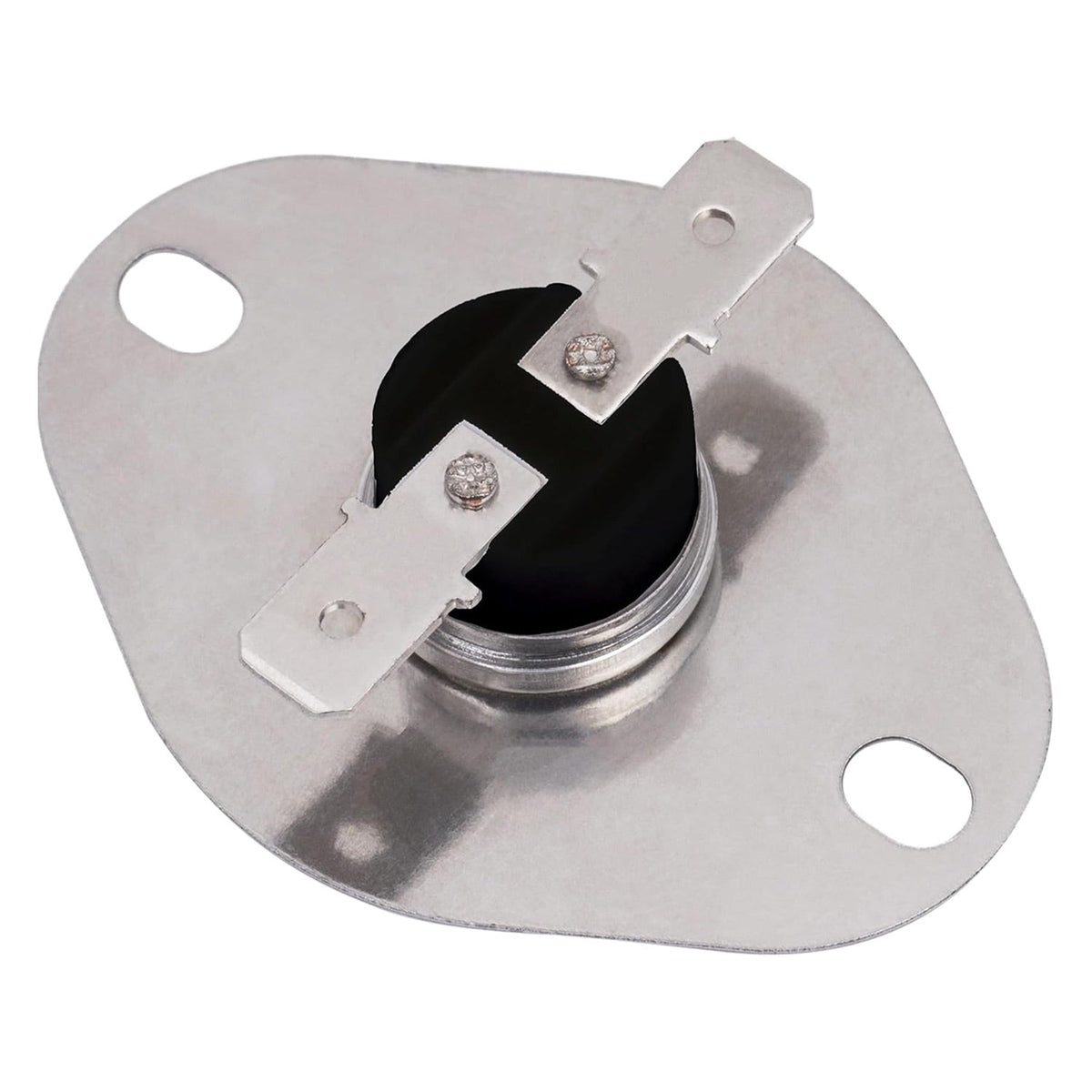

9759242 Oven Thermal Fuse - For Whirlpool KitchenAid Maytag Ovens/Ranges
0.00
Regular price
$7.69
Regular price
Save 11%
$8.61
Sale price
$7.69
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
9759242 Oven Thermal Fuse
Key Features

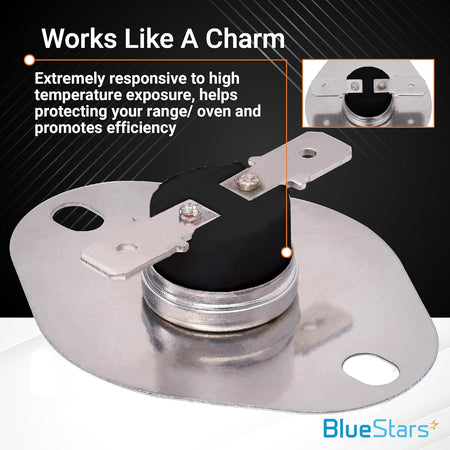

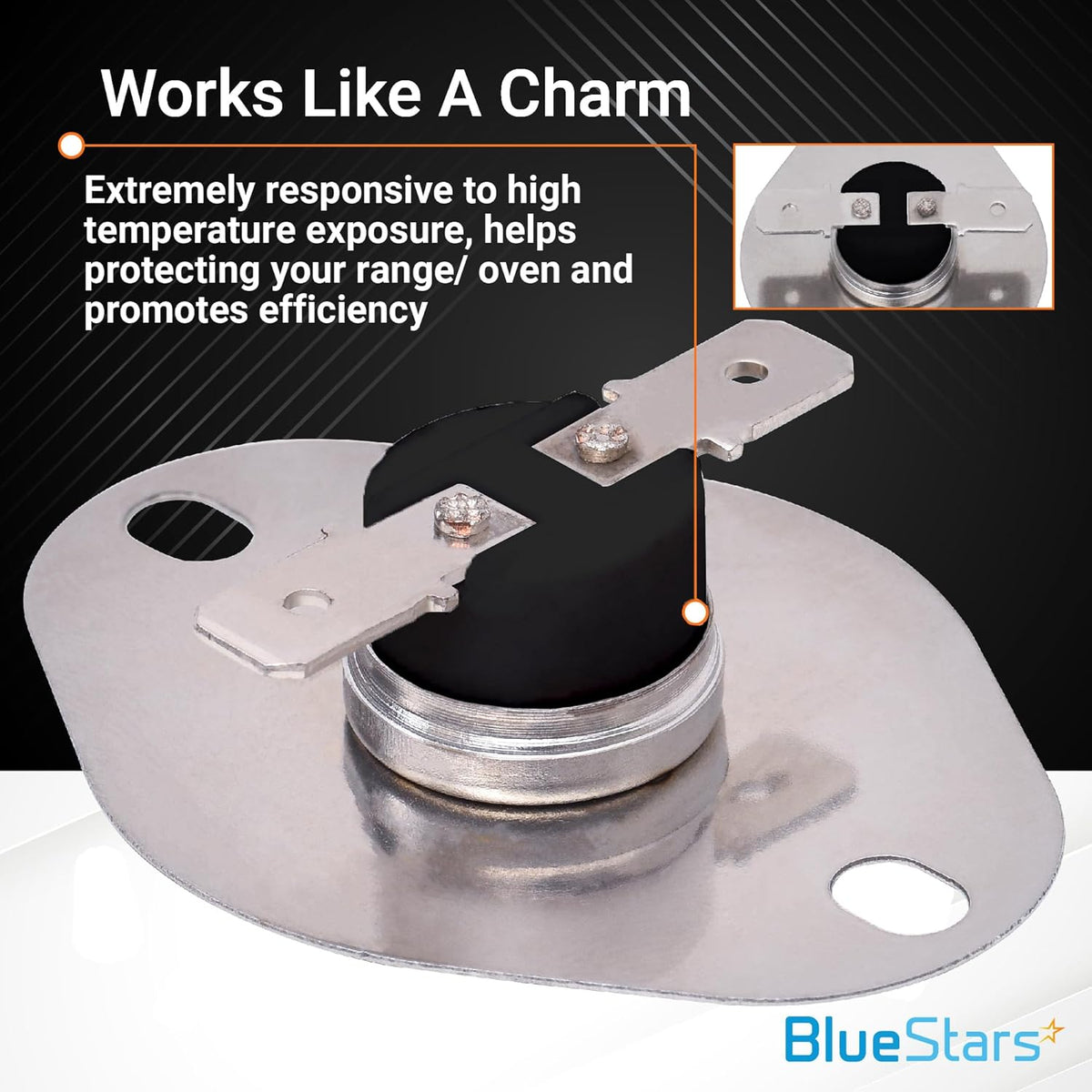

- Acts as a safety device to protect the oven from overheating
- Non-resettable, one-time use thermal cut-off
- Trips and cuts power if the oven temperature exceeds a safe limit
- Rated for 320°F / 160°C
Replaces / Cross-Reference Part Numbers
- WP9759242
- AP6014015
- PS11747248
- 4452223
- 1061375
- AP3879224
- PS974726
- WP9759242VP
- PD00002614
- ER9759242

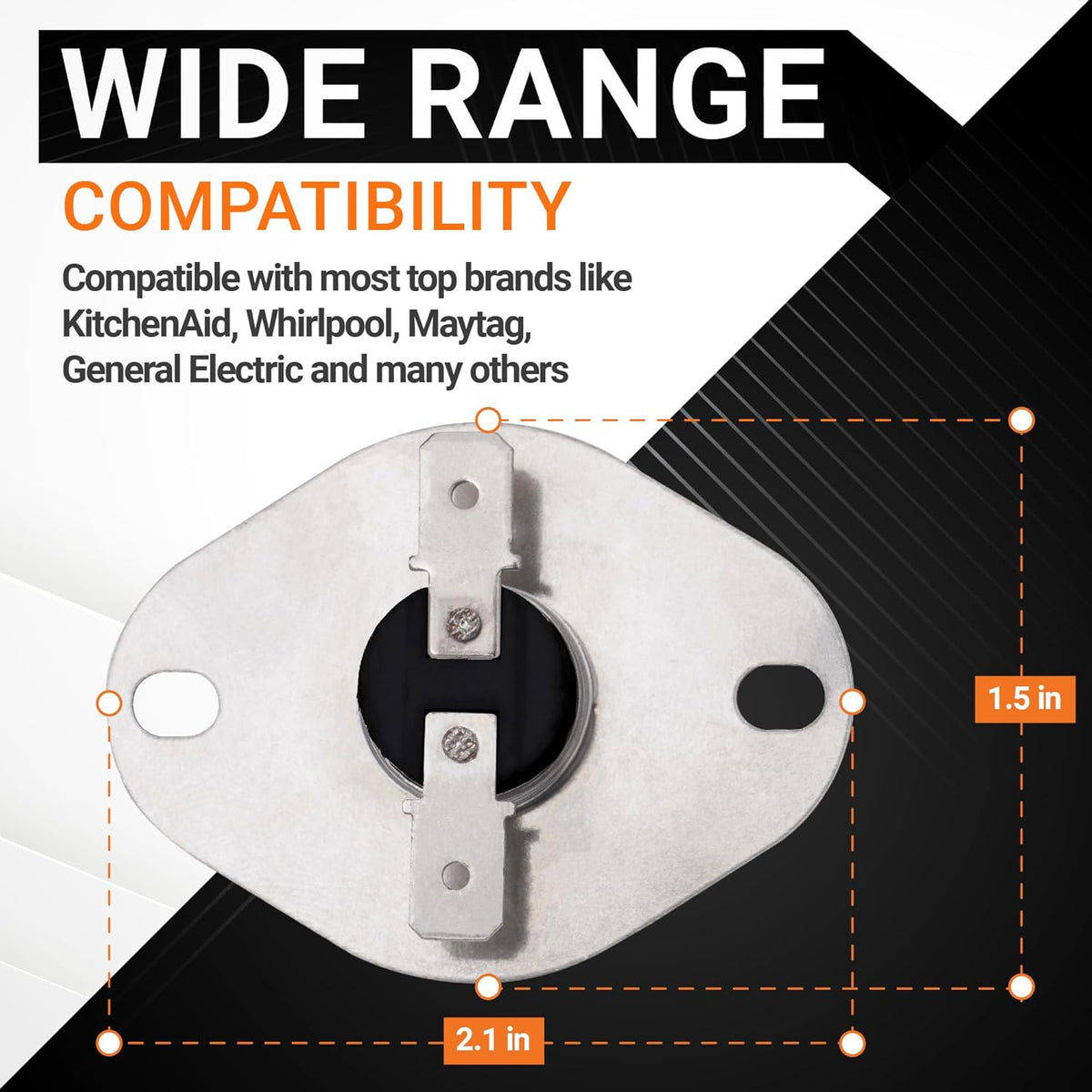

Compatibility & Fitment
- Designed for various wall oven and range models
- Commonly used in Whirlpool and KitchenAid brand appliances
- Verify compatibility with your specific appliance model number before ordering
When to Replace
- Oven has no power or will not start
- Oven does not heat or has little heat
- Bake or broil elements will not turn on
- Door remains locked after a self-cleaning cycle
- Fuse has tripped (no continuity) during testing
Installation Tips
- Disconnect the appliance from all power sources before installation
- The fuse is typically located on the outer rear panel of the oven
- Before replacing, inspect the cooling fan and high-limit thermostat for proper operation, as their failure can cause the fuse to trip
- If the fuse has tripped, investigate and resolve the underlying cause of overheating to prevent repeat failure
